Honda Pilot (2022 year). Manual in english - page 31

494

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

Collision Mitigation Braking System

(CMBS

)

The system can assist you when it determines there is a possibility of your vehicle
colliding with a vehicle or a pedestrian detected in front of your vehicle. The CMBS

is designed to alert you when the potential for a collision is determined, as well as to
reduce your vehicle speed to help minimize collision severity when a collision is
deemed unavoidable.

■

How the system works

Collision Mitigation Braking System

(CMBS

)

Important Safety Reminder

The CMBS

is designed to reduce the severity of an

unavoidable collision. It does not prevent a collision nor
stop the vehicle automatically. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately according to the driving conditions.

The CMBS

may not activate or may not detect a

vehicle in front of your vehicle under certain conditions:

CMBS

Conditions and Limitations

P. 498

For directions on the proper handling of the radar
sensor, refer to the following page.

Radar Sensor

P. 535

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

P. 533

How the system works

Rapid vibrations on the steering wheel alert you
when your vehicle speed is between 19 and 62 mph
(30 and 100 km/h) with an oncoming vehicle
detected in front of you.

When the CMBS

activates, it may automatically

apply the brake. It will be canceled when your vehicle
stops or a potential collision is not determined.

The system starts monitoring the roadway ahead when your vehicle speed is about
3 mph (5 km/h) or above and will search for a vehicle in front of you.

The radar sensor is
behind the emblem.

The CMBS

activates when:

●

The speed difference between your vehicle and a vehicle or pedestrian
detected in front of you becomes about 3 mph (5 km/h) and over with a chance
of a collision.

●

Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected vehicle or a pedestrian in front of you.

The camera is
located behind the
rearview mirror.

When to use

Continued

495

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

■

When the system activates

You can change the distance (

Long

Normal

Short

) between vehicles at which the

system's earliest collision alert will come on through the audio/information screen
setting options.

Customized Features

P. 385

■

Vibration alert on the steering wheel

When a potential collision to an oncoming detected vehicle is determined, the
system alerts you with rapid vibration on the steering wheel, in addition to visual and
audible alerts.

Take appropriate action to prevent a collision (apply the brakes, operate the
steering wheel, etc.).

When the system activates

The camera in the CMBS

is also designed to detect

pedestrians.
However, this pedestrian detection feature may not
activate or may not detect a pedestrian in front of
your vehicle under certain conditions.
Refer to the ones indicating the pedestrian detection
limitations from the list.

CMBS

Conditions and Limitations

P. 498

The system provides visual, audible and tactile alerts of a possible collision, and
stops if the collision is avoided.

Take appropriate action to prevent a collision (apply the brakes, change
lanes, etc.)

Beep

Visual Alerts

Audible Alert

Tactile Alert

Vibration alert on the steering wheel

Vibration alert function is disabled when the electric
power steering (EPS) system indicator comes on.

Driver Information Interface Warning and
Information Messages

P. 95

496

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

The system has three alert stages for a possible collision. However, depending on circumstances, the CMBS

may not go through all of

the stages before initiating the last stage.

■

Collision Alert Stages

Distance between vehicles

CMBS

The sensors detect a

vehicle

Audible & Visual WARNINGS

Steering Wheel

Braking

Stage

one

There is a risk of a collision
with the vehicle ahead of
you.

When in

Long

, visual and

audible alerts come on at a
longer distance from a vehicle
ahead than in

Normal

setting,

and in

Short

, at a shorter

distance than in

Normal

In case of an
oncoming vehicle
detected, rapid
vibration is
provided.

—

Stage

two

The risk of a collision has
increased, time to respond
is reduced.

Visual and audible alerts.

—

Lightly

applied

Stage

three

The CMBS

determines

that a collision is
unavoidable.

—

Forcefully

applied

Your Vehicle

Vehicle
Ahead

Normal

Short

Long

Your
Vehicle

Vehicle
Ahead

Your
Vehicle

Vehicle
Ahead

Continued

497

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

Press and hold the button until the beeper
sounds to switch the system on or off.

When the CMBS

is off:

•

The CMBS

indicator in the instrument

panel comes on.

•

A message on the driver information
interface reminds you that the system is off.

The CMBS

is turned on every time you start

the engine, even if you turned it off the last
time you drove the vehicle.

■

CMBS

On and Off

Collision Mitigation Braking System

(CMBS

)

The CMBS

may automatically shut off, and the

CMBS

indicator will come and stay on under certain

conditions:

CMBS

Conditions and Limitations

P. 498

498

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

The system may automatically shut off and the CMBS

indicator will come on under

certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the CMBS

functions.

Front Sensor Camera

P. 533

■

Environmental conditions

•

Driving in bad weather (rain, fog, snow, etc.).

•

Sudden changes between light and dark, such as an entrance or exit of a tunnel.

•

There is little contrast between objects and the background.

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Strong light is reflected onto the roadway.

•

Driving in the shadows of trees, buildings, etc.

•

Roadway objects or structures are misinterpreted as vehicles and pedestrians.

•

Reflections on the interior of the windshield.

•

Driving at night or in a dark condition such as a tunnel.

■

Roadway conditions

•

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).

•

The road is hilly or the vehicle is approaching the crest of a hill.

•

Driving on curvy, winding, or undulating roads.

■

CMBS

Conditions and Limitations

499

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Continued

Driving

■

Vehicle conditions

•

Headlight lenses are dirty or the headlights are not properly adjusted.

•

The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.

•

The inside of the windshield is fogged.

•

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, compact spare tire, etc.).

•

When tire chains are installed.

•

The vehicle is tilted due to a heavy load or suspension modifications.

•

The camera temperature gets too high.

•

Driving with the parking brake applied.

•

When the radar sensor behind the emblem gets dirty.

•

The vehicle is towing a trailer.

500

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

■

Detection limitations

•

A vehicle or pedestrian suddenly crosses in front of you.

•

The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.

•

A vehicle cuts in front of you at a slow speed, and it brakes suddenly.

•

When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.

•

The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.

•

When there are animals in front of your vehicle.

•

When you drive on a curved, winding or undulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.

•

The speed difference between your vehicle and a vehicle or pedestrian in front of
you is significantly large.

•

An oncoming vehicle suddenly comes in front of you.

•

Another vehicle suddenly comes in front of you at an intersection, etc.

•

Your vehicle abruptly crosses over in front of an oncoming vehicle.

•

When driving through a narrow iron bridge.

•

When the lead vehicle suddenly slows down.

501

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Continued

Driving

•

When there is a group of people in front of your vehicle walking together side by
side.

•

Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recognizing that the person is a pedestrian.

•

When the pedestrian is shorter than about 3.3 feet (1 meter) or taller than about
6.6 feet (2 meters) in height.

•

When a pedestrian blends in with the background.

•

When a pedestrian is bent over or squatting, or when their hands are raised or
they are running.

•

When several pedestrians are walking ahead in a group.

•

When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).

Limitations applicable to pedestrian detection only

502

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

■

Automatic shutoff

CMBS

may automatically shut itself off and the CMBS

indicator comes and stays

on when:

•

The temperature inside the system is high.

•

You drive off-road or on a mountain road, or curved and winding road for an
extended period.

•

An abnormal tire condition is detected (wrong tire size, flat tire, etc.).

•

The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.

Once the conditions that caused CMBS

to shut off improve or are addressed (e.g.,

cleaning), the system comes back on.

Continued

503

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

The CMBS

may activate even when you are aware of a vehicle ahead of you, or

when there is no vehicle ahead. Some examples of this are:

■

When Passing

Your vehicle approaches another vehicle ahead of you and you change lanes to pass.

■

At an intersection

Your vehicle approaches or passes another vehicle that is making a left or right turn.

■

With Little Chance of a Collision

Collision Mitigation Braking System

(CMBS

)

Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).

504

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

■

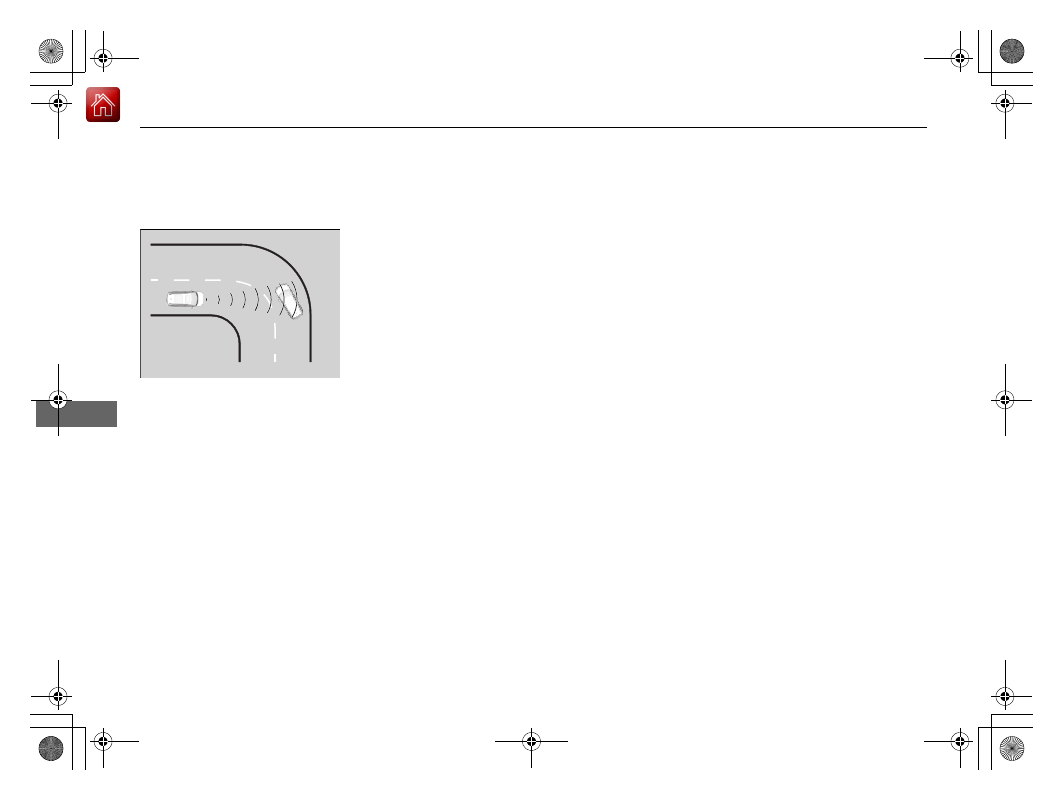

On a curve

When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.

■

Through a low bridge at high speed

You drive under a low or narrow bridge at high speed.

505

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

■

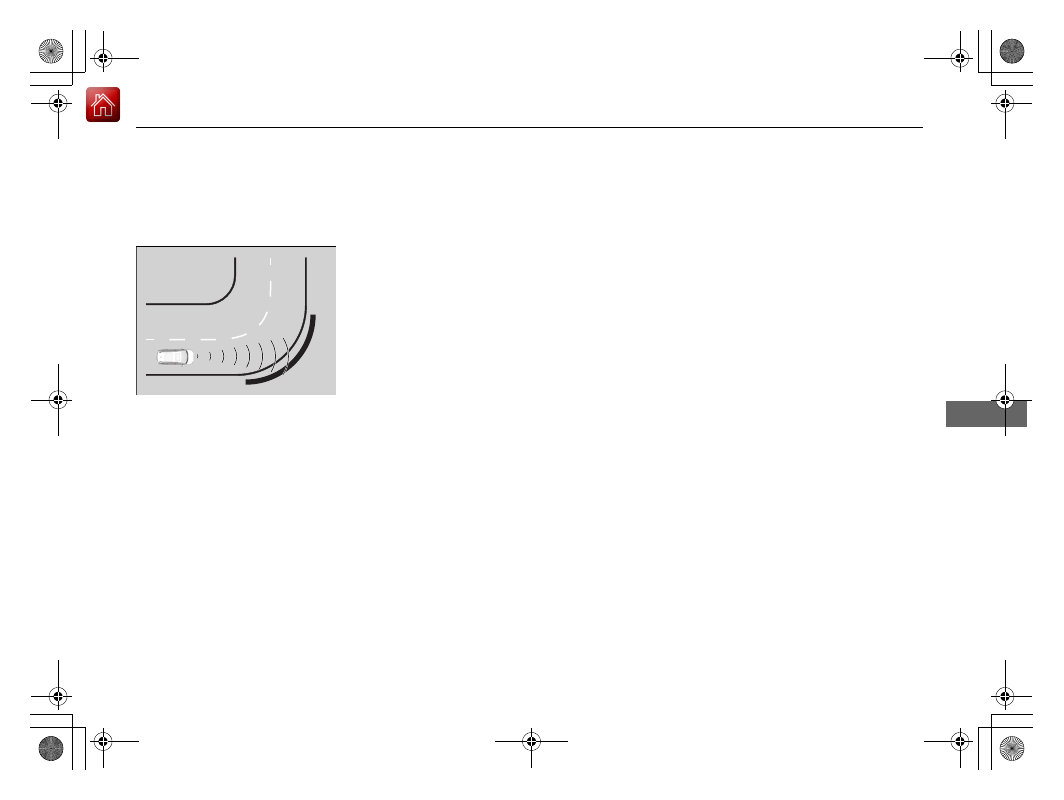

Speed bumps, road work sites, train tracks, roadside objects, etc.

You drive over speed bumps, steel road plates, etc., or your vehicle approaches train
tracks or roadside objects [such as a traffic sign and guard rail] on a curve or, when
parking, stationary vehicles and walls.

506

Honda Sensing

Adaptive Cruise Control (ACC)

Driving

Adaptive Cruise Control (ACC)

Helps maintain a constant vehicle speed and a set following-interval behind a vehicle
detected ahead of yours, without you having to keep your foot on the brake or the
accelerator.

Adaptive Cruise Control (ACC)

ACC cannot be activated if Intelligent Traction
Management setting is snow, sand

or mud

WARNING

Improper use of ACC can lead to a crash.
Use ACC only when driving on expressways
or freeways and in good road and weather
conditions.

WARNING

ACC has limited braking capability.

When your vehicle speed drops below
22 mph (35 km/h), ACC will automatically
cancel and no longer will apply your
vehicle's brakes.

Always be prepared to apply the brake
pedal when conditions require.

When to use

■

Vehicle speed for adaptive cruise control: Desired speed in a

range above roughly 25 mph (40 km/h)

■

Gear positions for adaptive cruise control: In

(

The radar sensor is behind
the emblem.

The camera is located
behind the rearview
mirror.

* Not available on all models

Continued

507

Honda Sensing

Adaptive Cruise Control (ACC)

Driving

■

How to activate the system

Adaptive Cruise Control (ACC)

Important Reminder

As with any system, there are limits to ACC. Use the
brake pedal whenever necessary, and always keep a
safe interval between your vehicle and other vehicles.

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

P. 533

The radar sensor for ACC is shared with the Collision
Mitigation Braking System

(CMBS

Collision Mitigation Braking System

(CMBS

)

P. 494

■

Press the

MAIN

button on

the steering wheel.

ACC is on in the driver
information interface.

Adaptive cruise control is
ready to use.

How to use

Honda Sensing

Adaptive Cruise Control (ACC)

508

Driving

Take your foot off the pedal and press the

–/SET

button when you reach the desired

speed. The moment you release the

–/SET

button, the set speed is fixed, and ACC

begins.

When ACC starts operating, the vehicle icon,
distance bars and set speed appear on the
driver information interface.

■

To Set the Vehicle Speed

Adaptive Cruise Control (ACC)

ACC may not work properly under certain conditions.

ACC Conditions and Limitations

P. 511

When not using ACC: Turn off adaptive cruise by
pressing the

MAIN

button. This also will turn off the

Lane Keeping Assist System (LKAS).

When the

MAIN

button is pressed, ACC and Lane

Keeping Assist System (LKAS) are both turned on or
off.

You can switch the displayed set speed
measurements on the driver information interface
between mph and km/h.

Units

P. 118

Do not use ACC under the following conditions:

•

On roads with heavy traffic or while driving in
continuous stop and go traffic.

•

On roads with sharp turns.

•

On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, ACC will not apply the brakes to maintain
the set speed.

•

On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.

On when
adaptive cruise
control begins

Press and release

–/SET

Button

Set Vehicle
Interval

Set Vehicle
Speed

Continued

509

Honda Sensing

Adaptive Cruise Control (ACC)

Driving

■

There is a vehicle ahead

ACC monitors if a vehicle ahead of you enters the ACC range. If a vehicle is detected
doing so, the ACC system maintains or decelerates your vehicle’s set speed in order
to keep the vehicle’s set following-interval from the vehicle ahead.

To Set or Change Following-interval

P. 514

■

When in Operation

When in Operation

If the vehicle detected ahead of you slows down
abruptly, or if another vehicle is detected cutting in
front of you, the beeper sounds and a message
appears on the driver information interface.

Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.

Beep

ACC Range: 394 ft. (120 m)

Content .. 29 30 31 32 ..
