573

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

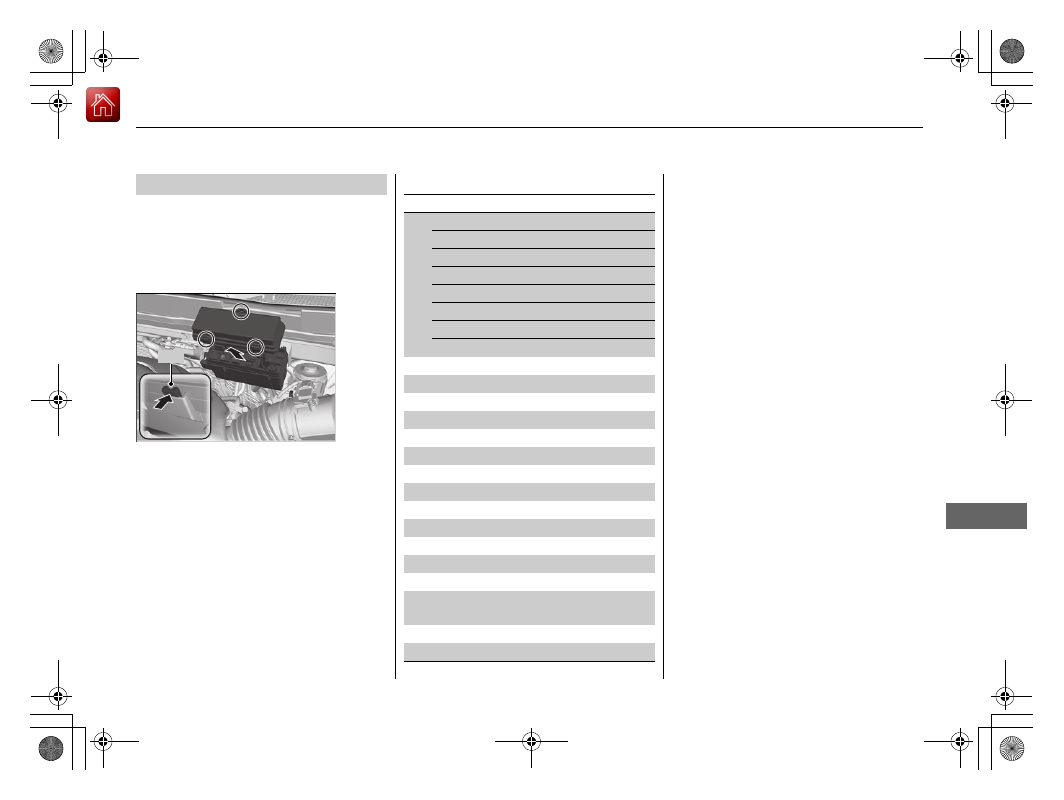

Located near the brake fluid reservoir. Push
the tabs to open the box.

■

Engine Compartment Fuse Box Type B

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

−

(40 A)

4WD

(20 A)

IG MAIN

30 A

IG MAIN2

30 A

P/TAILGATE MOTOR

(40 A)

F/B MAIN2

60 A

F/B MAIN

60 A

EPS

60 A

TRAILER MAIN

(30 A)

TRAILER E-BRAKE

(20 A)

BATTERY SENSOR

7.5 A

H/L HI MAIN

20 A

P/TAILGATE CLOSER

(20 A)

CTR ACC SOCKET

20 A

REAR ACC SOCKET

(20 A)

FRONT WIPER DEICER

(15 A)

ACC/IG2_MAIN

10 A

TRAILER CHARGE

(20 A)

IDLE STOP ST CUT

(30 A)

IDLE STOP

(30 A)

IDLE STOP

(30 A)

ELECTRONIC GEAR

SELECTOR

(15 A)

REAR HEATED SEAT

(20 A)

ST CUT FEED BACK

7.5 A

* Not available on all models

574

Fuses

Fuse Locations

Han

lin
g the U

expected

Located under the dashboard.

Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.

■

Interior Fuse Box Type A

Fuse Box

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

DRIVER P/WINDOW

20 A

DOOR LOCK

20 A

SMART

7.5 A

PASSENGER P/WINDOW

20 A

FRONT ACC SOCKET

20 A

FUEL PUMP

20 A

ACG

15 A

FRONT WIPER

7.5 A

IG1 SMART

7.5 A

SRS

10 A

DRIVER REAR P/WINDOW

20 A

−

PASSENGER REAR P/

WINDOW

20 A

FUEL LID

20 A

DRIVER P/SEAT(RECLINE)

(20 A)

−

(7.5 A)

FRONT SEAT HEATER

(20 A)

INTR LT

7.5 A

DRIVER REAR DOOR

UNLOCK

10 A

PASSENGER SIDE DOOR

UNLOCK

10 A

DRL

7.5 A

KEY LOCK

7.5 A

A/C

7.5 A

IG1a FEED BACK

7.5 A

INST PANEL LIGHTS

7.5 A

LUMBAR SUPPORT

(10 A)

PARKING LIGHTS

7.5 A

OPTION

10 A

BACK LT

7.5 A

REAR WIPER

10 A

ST MOTOR

7.5 A

SRS

7.5 A

PASSENGER SIDE DOOR

LOCK

10 A

DRIVER DOOR LOCK

10 A

DRIVER DOOR UNLOCK

10 A

DRIVER P/SEAT(SLIDE)

(20 A)

PASSENGER H/L HI

10 A

DRIVER H/L HI

10 A

IG1b FEED BACK

7.5 A

ACC

7.5 A

41 DRIVER REAR DOOR LOCK

10 A

−

Circuit Protected

Amps

* Not available on all models

575

Fuses

Fuse Locations

Han

lin
g the U

expected

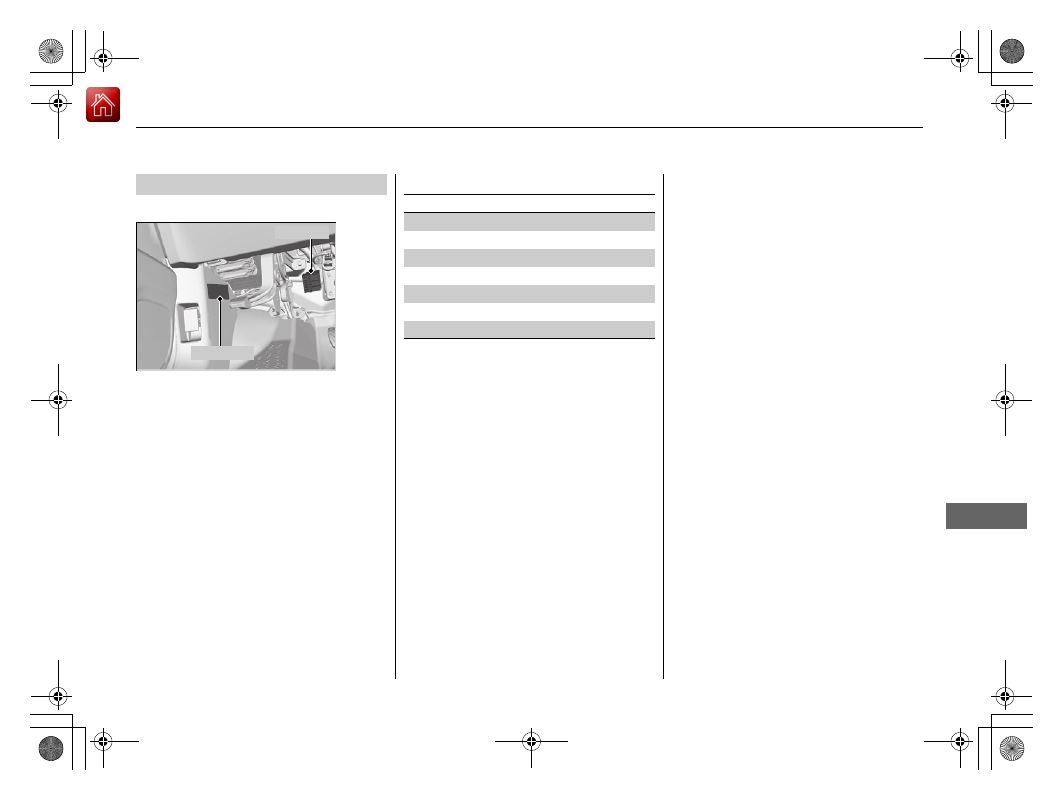

Located under the dashboard.

Fuse locations are shown on the image.
Locate the fuse in question by the fuse
number and label number.

■

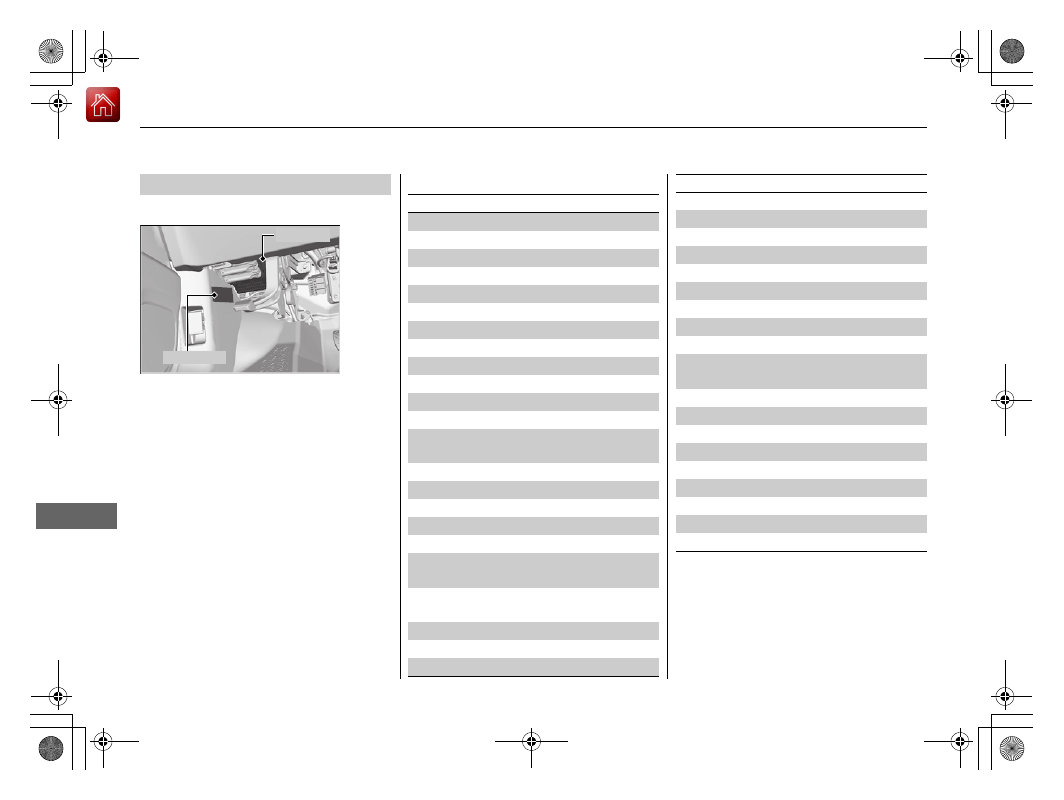

Interior Fuse Box Type B

Fuse Box

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

METER

10 A

ABS/VSA

7.5 A

ACG

7.5 A

MICU

7.5 A

AUDIO

15 A

BACK UP

10 A

ACC

7.5 A

576

Fuses

Inspecting and Changing Fuses

Han

lin
g the U

expected

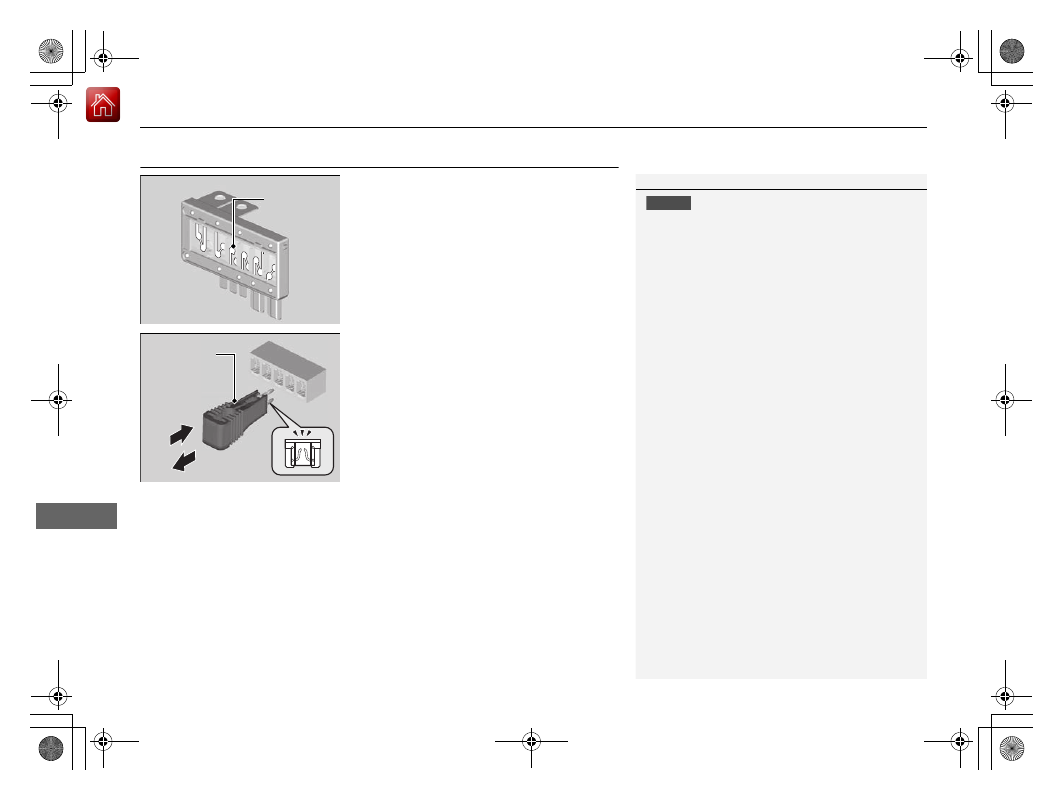

Inspecting and Changing Fuses

Set the power mode to VEHICLE OFF
(LOCK). Turn the headlights and all
accessories off.

Remove the fuse box cover.

Check the large fuse in the engine
compartment.

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

Inspect the small fuses in the engine
compartment and the vehicle interior.

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

Fuse Locations

P. 572

Replace fuse with a spare fuse of the same specified
amperage.

There is a fuse puller in the engine compartment fuse
box.

Combined
Fuse

Blown Fuse

Fuse Puller

577

Han

lin
g the U

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flatbed equipment

The operator loads your vehicle on the back of a truck.

This is the best way to transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground.

This is an acceptable way to

tow your vehicle.

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

All models

2WD models

578

Han

lin
g the U

expected

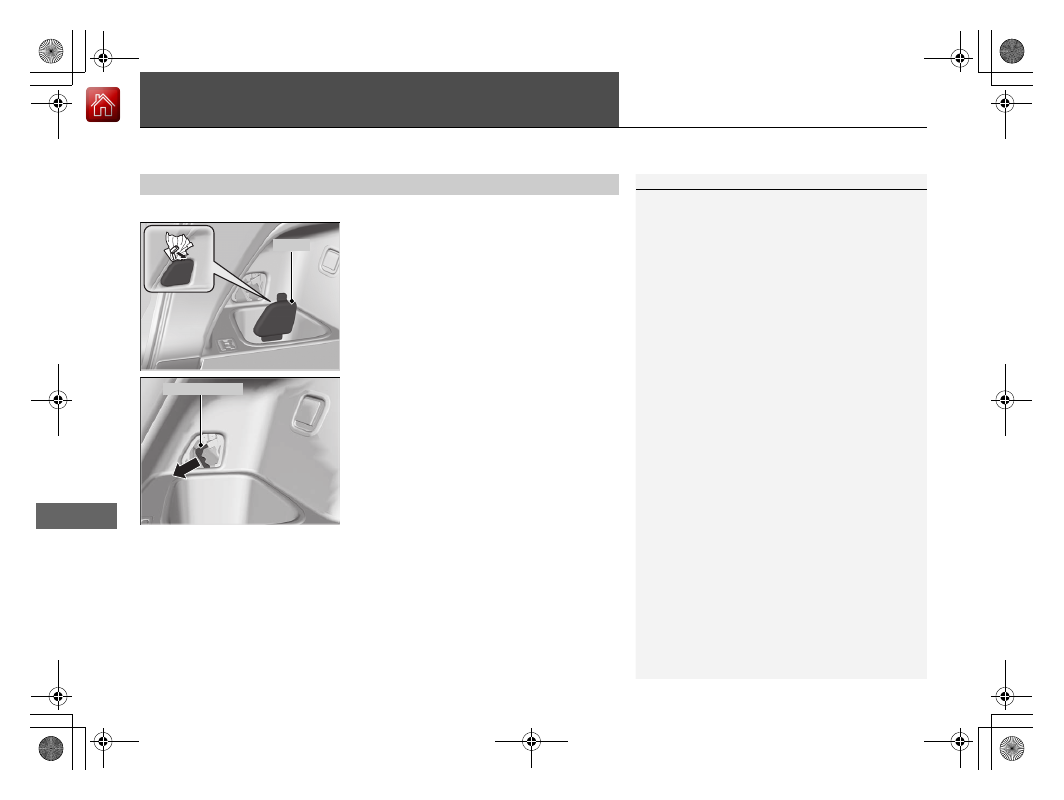

If You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure:

Open the tailgate.

Wrap a cloth around the built-in key. Put it
into the cover slot as shown in the image,
and remove the cover.

Pull the release lever toward you.

The release lever unlocks the fuel fill door
when it is pulled.

■

What to Do If Unable to Unlock the Fuel Fill Door

What to Do If Unable to Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Release Lever

579

Han

lin
g the U

expected

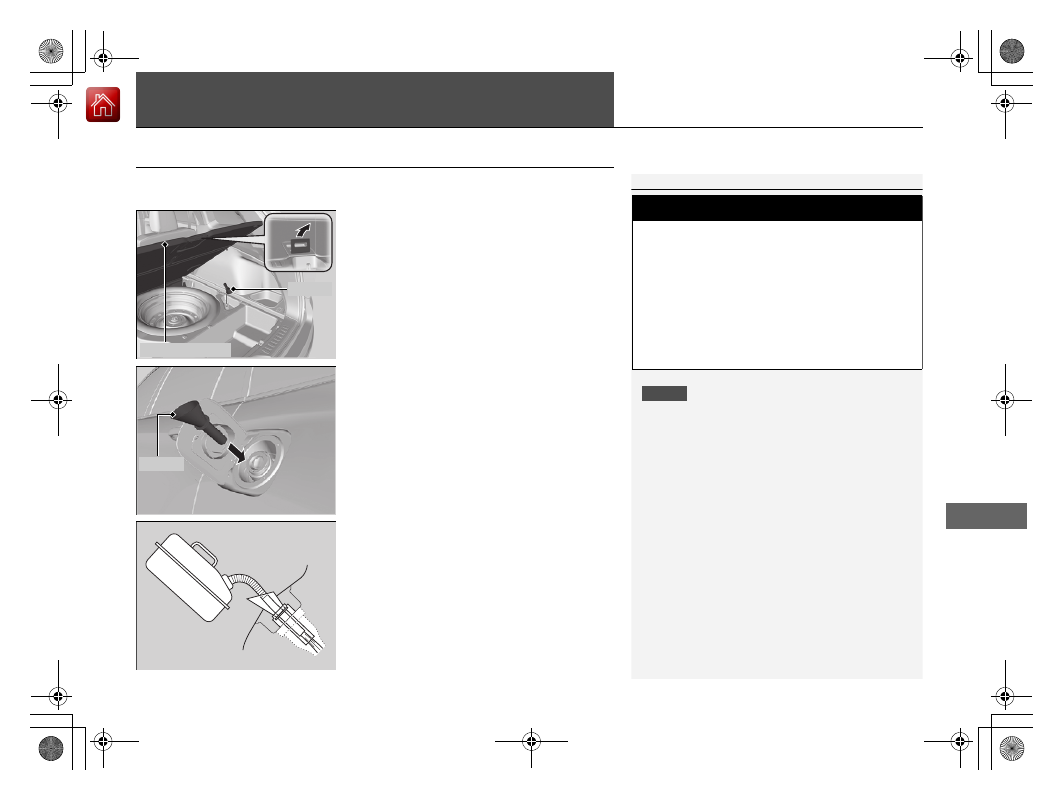

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

Turn off the engine.

Press the fuel fill door release button.

The fuel fill door opens.

Take the funnel out of the cargo bin in the
cargo area.

Types of Tools

P. 550

Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.

Make sure that the end of the funnel
goes down along with the filler pipe.

Fill the tank with fuel from the portable fuel
container.

Pour fuel carefully so you do not spill any.

Remove the funnel from the filler neck.

Wipe up any fuel from the funnel before
storing it.

Shut the fuel fill door by hand.

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

•

Stop the engine, and keep heat, sparks,
and flames away.

•

Handle fuel only outdoors.

•

Wipe up spills immediately.

Funnel

Cargo Floor Lid

Funnel

580

Han

lin
g the U

expected

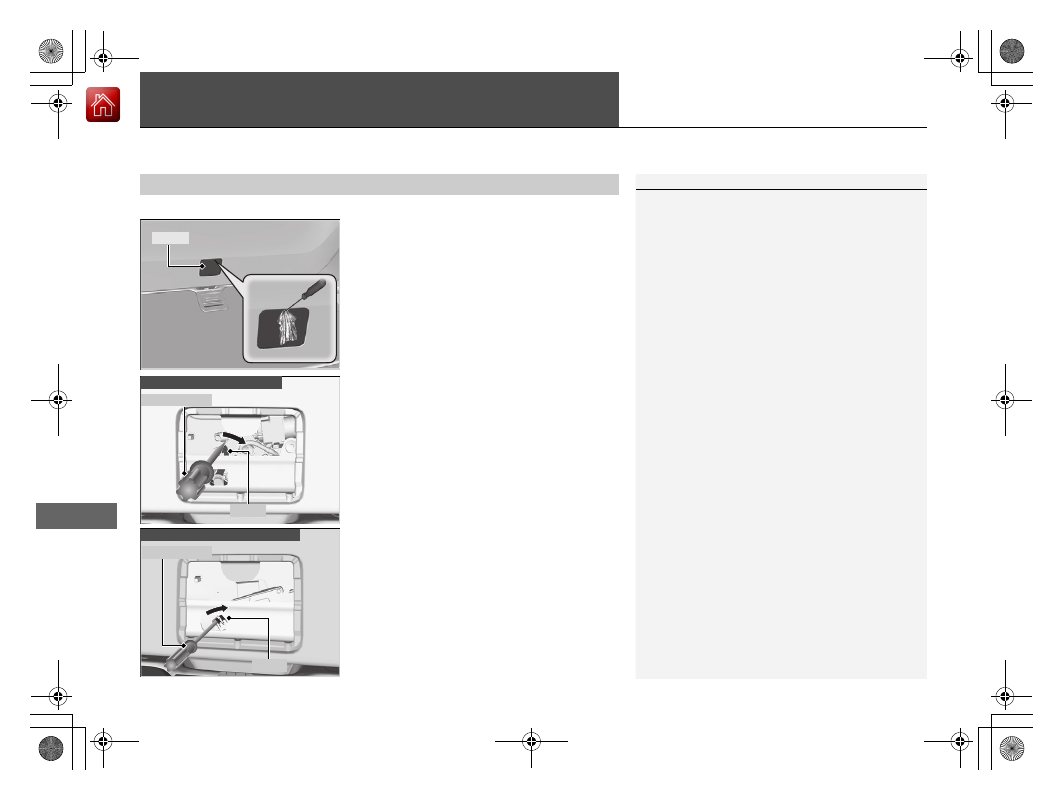

If You Cannot Open the Tailgate

If you cannot open the tailgate, use the following procedure:

Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

To open the tailgate, push the tailgate
while pushing the lever to the right using a
flat-tip screw driver.

■

What to Do If Unable to Open the Tailgate

What to Do If Unable to Open the Tailgate

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.

Cover

Lever

Models with power tailgate

Screwdriver

Lever

Models without power tailgate

Screwdriver

581

Information

This chapter includes your vehicle’s specifications, locations of identification numbers, and other

information required by regulation.

Specifications

.................................... 582

Identification Numbers

Vehicle Identification Number (VIN),

Engine Number, and Transmission
Number ......................................... 584

Devices that Emit Radio Waves

....... 585

Reporting Safety Defects

................. 586

Emissions Testing

Testing of Readiness Codes.............. 587

Warranty Coverages

........................ 589

Authorized Manuals

......................... 592

Customer Service Information

......... 593

582

Info

ation

Specifications

■

Vehicle Specifications

*1: 2WD models
*2: AWD models

Model

Passport

No. of Passengers:
Front

Rear

Total

Weights:
Gross Vehicle
Weight Rating

See the certification label
on the driver's doorjamb

Gross Axle Weight
Rating (Front)

See the certification label
on the driver's doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label
on the driver's doorjamb

Gross Combined Weight
Rating

U.S.:

8,025 lbs (3,640 kg)

9,755 lbs (4,425 kg)

Canada:

4,425 kg

■

Air Conditioning

■

Engine Specifications

■

Fuel

■

Washer Fluid

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

21.3 – 23.1 oz (605 – 655 g)

Lubricant Type

RL85HM (POE)

Quantity

7.75 – 9.33 cu-in (127 – 153 cm

)

Displacement

211.8 cu-in (3,471 cm

)

Spark Plugs

NGK

DILZKR7B11G

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

19.5 US gal (73.8 L)

Tank Capacity

U.S.: 4 US qt (3.8 L)
Canada: 5.6 US qt (5.3 L)

■

Light Bulbs

Headlights (Low Beam)

LED

Headlights (High Beam)

60 W (HB3)

Fog Lights

LED

Front Turn Signal Lights

28/8 W (Amber)

Front Side Marker Lights

LED

Parking/Daytime Running Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

LED

Brake/Taillights

LED

Rear Side Marker Lights

LED

Back-Up Lights

21 W

Rear Turn Signal Lights

21 W (Amber)

High-Mount Brake Light

LED

Rear License Plate Lights

LED

Interior Lights

Front Map Lights

5 W

Rear Map Lights

5 W

Ambient Lights

LED

Vanity Mirror Lights

1.4 W

Door Courtesy Lights

3.8 W

Door Inner Handle Lights

LED

Door Pocket Lights

LED

Beverage Holder Light

LED

Foot Lights

LED

Console Compartment Light

1.4 W

Glove Box Light

1.4 W

Cargo Area Lights

8 W

* Not available on all models

583

Specifications

Info

ation

■

Brake Fluid

■

Automatic Transmission Fluid

■

Rear Differential Fluid

■

Transfer Assembly Fluid

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda ATF Type-3.1 or higher

Capacity

Change

3.5 US qt (3.3 L)

Specified

Honda DPSF-II

Capacity

Change

1.92 US qt (1.82 L)

Specified

Honda HGO-1

Capacity

Change

0.45 US qt (0.43 L)

■

Engine Oil

■

Engine Coolant

Recommended

·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

5.4 US qt (5.1 L)

Change
including
filter

5.7 US qt (5.4 L)

Specified

Honda Long Life Antifreeze/Coolant Type 2

Ratio

50/50 with distilled water

Capacity

1.96 US gal (7.40 L)
(change including the remaining 0.22 US gal
(0.82 L) in the reserve tank)

■

Tire

*1: Original tire size is mentioned on the tire information label on

the driver’s doorjamb.

*2: Models with 245/60R18
*3: Models with 265/45R20

Regular

Size

245/60R18 105H
265/45R20 104H

Pressure
psi (kPa [kgf/cm

])

35 (240 [2.4])

37 (255 [2.6])

Compact
Spare

Size

T165/80D17 104M

Pressure
psi (kPa [kgf/cm

])

60 (420 [4.2])

Wheel Size

Regular

18 x 8J

20 x 8 1/2J

Compact Spare

17 x 4T

* Not available on all models

584

Info

ation

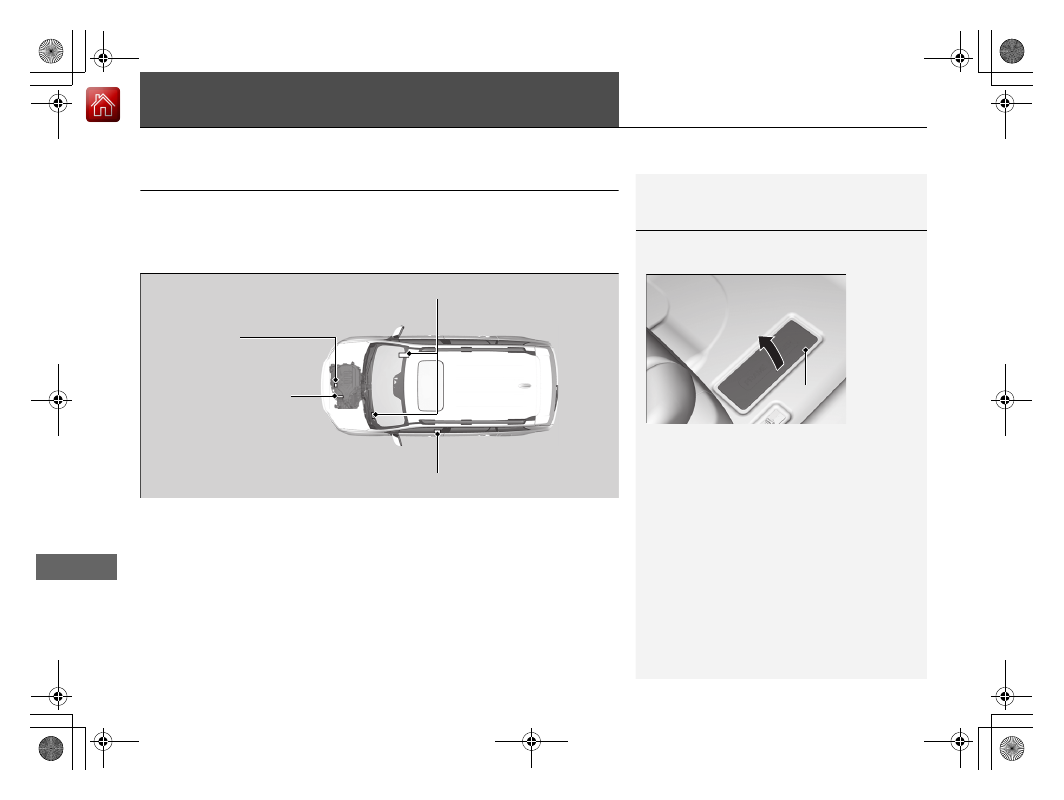

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows:

Vehicle Identification Number (VIN), Engine Number, and
Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Cover

Vehicle Identification Number

Engine Number

Certification Label/Vehicle Identification Number

Automatic Transmission
Number

585

Info

ation

Devices that Emit Radio Waves

Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

586

Info

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to

http://www.safercar.gov

; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,

Washington, DC 20590. You can also obtain other information about motor vehicle safety from

http://

www.safercar.gov

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to

http://www.tc.gc.ca/

roadsafety

587

Continued

Info

ation

Emissions Testing

Testing of Readiness Codes

Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.

To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.

If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:

Fill the gas tank to approximately 3/4 full.

Park the vehicle and leave the engine off for 6 hours or more.

Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).

Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.

Keep the vehicle in

(

. Increase the engine speed to 2,000 rpm, and hold it there

for about 3 minutes.

Let the engine idle with your foot off the accelerator for 20 seconds.

Testing of Readiness Codes

The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.

If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.

If the testing facility determines the readiness codes
are still not set, see a dealer.

588

Emissions Testing

Testing of Readiness Codes

Info

ation

Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in

(

. Do not use cruise control. When traffic allows, drive for 90 seconds without

moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).

Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.

Park the vehicle and leave the engine off for 30 minutes.

Content .. 34 35 36 37 ..
