Honda Passport (2022 year). Manual in english - page 28

445

Honda Sensing

Collision Mitigation Braking System

(CMBS

)

Driving

■

Speed bumps, road work sites, train tracks, roadside objects, etc.

You drive over speed bumps, steel road plates, etc., or your vehicle approaches train
tracks or roadside objects [such as a traffic sign and guard rail] on a curve or, when
parking, stationary vehicles and walls.

446

Honda Sensing

Adaptive Cruise Control (ACC)

Driving

Adaptive Cruise Control (ACC)

Helps maintain a constant vehicle speed and a set following-interval behind a vehicle
detected ahead of yours, without you having to keep your foot on the brake or the
accelerator.

Adaptive Cruise Control (ACC)

ACC cannot be activated if Intelligent Traction
Management setting is

Snow

Sand

Mud

WARNING

Improper use of ACC can lead to a crash.
Use ACC only when driving on expressways
or freeways and in good road and weather
conditions.

WARNING

ACC has limited braking capability.

When your vehicle speed drops below
22 mph (35 km/h), ACC will automatically
cancel and no longer will apply your
vehicle's brakes.

Always be prepared to apply the brake
pedal when conditions require.

When to use

■

Vehicle speed for adaptive cruise control: Desired speed in a

range above roughly 25 mph (40 km/h)

■

Gear positions for adaptive cruise control: In

(

The radar sensor is behind
the emblem.

The camera is located
behind the rearview
mirror.

* Not available on all models

Continued

447

Honda Sensing

Adaptive Cruise Control (ACC)

Driving

■

How to activate the system

Adaptive Cruise Control (ACC)

Important Reminder

As with any system, there are limits to ACC. Use the
brake pedal whenever necessary, and always keep a
safe interval between your vehicle and other vehicles.

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

P. 473

The radar sensor for ACC is shared with the Collision
Mitigation Braking System

(CMBS

Collision Mitigation Braking System

(CMBS

)

P. 434

How to use

■

Press the

MAIN

button on

the steering wheel.

ACC is on in the driver
information interface.

Adaptive cruise control is
ready to use.

Honda Sensing

Adaptive Cruise Control (ACC)

448

Driving

Take your foot off the pedal and press the

–/SET

button when you reach the desired

speed. The moment you release the

–/SET

button, the set speed is fixed, and ACC

begins.

When ACC starts operating, the vehicle icon,
distance bars and set speed appear on the
driver information interface.

■

To Set the Vehicle Speed

Adaptive Cruise Control (ACC)

ACC may not work properly under certain conditions.

ACC Conditions and Limitations

P. 451

When not using ACC: Turn off adaptive cruise by
pressing the

MAIN

button. This also will turn off the

Lane Keeping Assist System (LKAS).

When the

MAIN

button is pressed, ACC and Lane

Keeping Assist System (LKAS) are both turned on or
off.

You can switch the displayed set speed
measurements on the driver information interface
between mph and km/h.

Units

P. 117

Do not use ACC under the following conditions:

•

On roads with heavy traffic or while driving in
continuous stop and go traffic.

•

On roads with sharp turns.

•

On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, ACC will not apply the brakes to maintain
the set speed.

•

On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.

On when
adaptive cruise
control begins

Press and release

–/SET

Button

Set Vehicle
Interval

Set Vehicle
Speed

Continued

449

Honda Sensing

Adaptive Cruise Control (ACC)

Driving

■

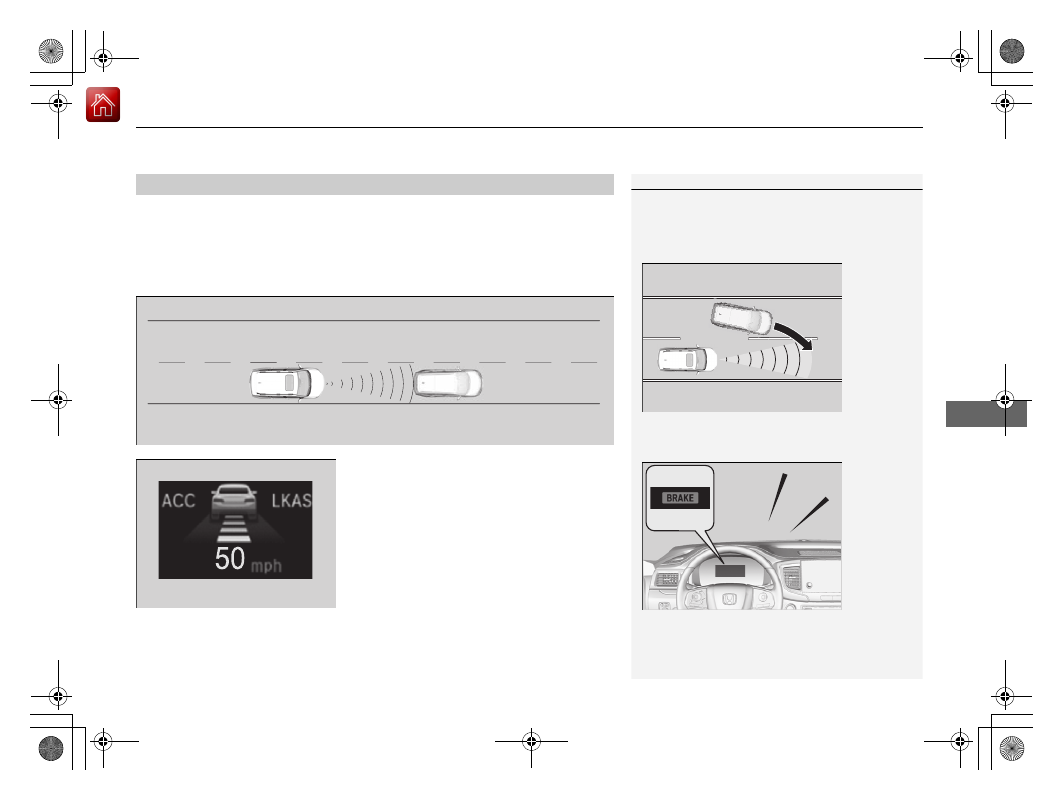

There is a vehicle ahead

ACC monitors if a vehicle ahead of you enters the ACC range. If a vehicle is detected
doing so, the ACC system maintains or decelerates your vehicle’s set speed in order
to keep the vehicle’s set following-interval from the vehicle ahead.

To Set or Change Following-interval

P. 454

When a vehicle whose speed is slower than
your set speed is detected in front of you, your
vehicle starts to slow down.

■

When in Operation

When in Operation

If the vehicle detected ahead of you slows down
abruptly, or if another vehicle is detected cutting in
front of you, the beeper sounds and a message
appears on the driver information interface.

Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.

Beep

ACC Range: 394 ft. (120 m)

A vehicle icon appears on the
driver information interface.

Honda Sensing

Adaptive Cruise Control (ACC)

450

Driving

■

There is no vehicle ahead

Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from traveling at
the set speed, ACC accelerates your vehicle to
the set speed, and then maintains it.

■

When you depress the accelerator pedal

You can temporarily increase the vehicle speed. In this case, there is no audible or
visual alerts even if a vehicle is in ACC range.
ACC stays on unless you cancel it. Once you release the accelerator pedal, the
system resumes the set speed.

When in Operation

Even if the interval between your vehicle and the
vehicle detected ahead is short, ACC may start
accelerating your vehicle under the following
circumstances:

•

The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.

•

A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the interval
between the vehicles.

You can also set the system to beep when a vehicle in
front of you comes in and goes out of the ACC
detecting range. Change the

ACC Forward Vehicle

Detect Beep

setting.

Customized Features

P. 327

Limitations

You may need to use the brake to maintain a safe
interval when using ACC. Additionally, ACC may not
work properly under certain conditions.

ACC Conditions and Limitations

P. 451

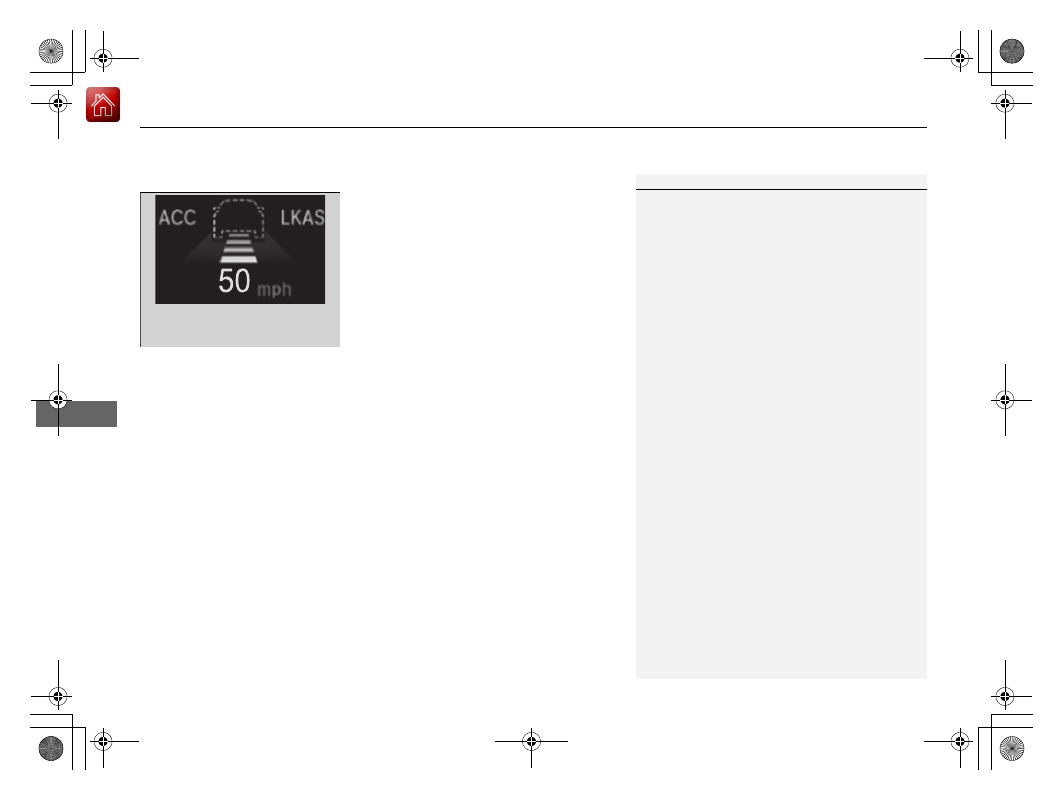

A vehicle icon with dotted-line
contour appears on the driver
information interface.

Continued

451

Honda Sensing

Adaptive Cruise Control (ACC)

Driving

The system may automatically shut off and the

ACC

indicator will come on under

certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the ACC functions.

Front Sensor Camera

P. 473

■

Environmental conditions

Driving in bad weather (rain, fog, snow, etc.).

■

Roadway conditions

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks, reflected
lights, road spray, high contrast).

■

Vehicle conditions

•

The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.

•

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, compact spare tire, etc.).

•

The camera temperature gets too high.

•

The parking brake is applied.

•

When the front grille is dirty.

•

The vehicle is tilted due to a heavy load or suspension modifications.

•

When tire chains are installed.

•

The vehicle is towing a trailer.

■

ACC Conditions and Limitations

ACC Conditions and Limitations

If you need the radar sensor to be repaired, or
removed, or the radar sensor cover is strongly
impacted, turn off the system by pressing the

MAIN

button and take your vehicle to a dealer.

Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).

452

Honda Sensing

Adaptive Cruise Control (ACC)

Driving

■

Detection limitations

•

A vehicle suddenly crosses in front of you.

•

The interval between your vehicle and the vehicle ahead of you is too short.

•

A vehicle cuts in front of you at a slow speed, and it brakes suddenly.

•

When you accelerate rapidly and approach the vehicle ahead of you at high
speed.

•

The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.

•

When there are animals in front of your vehicle.

•

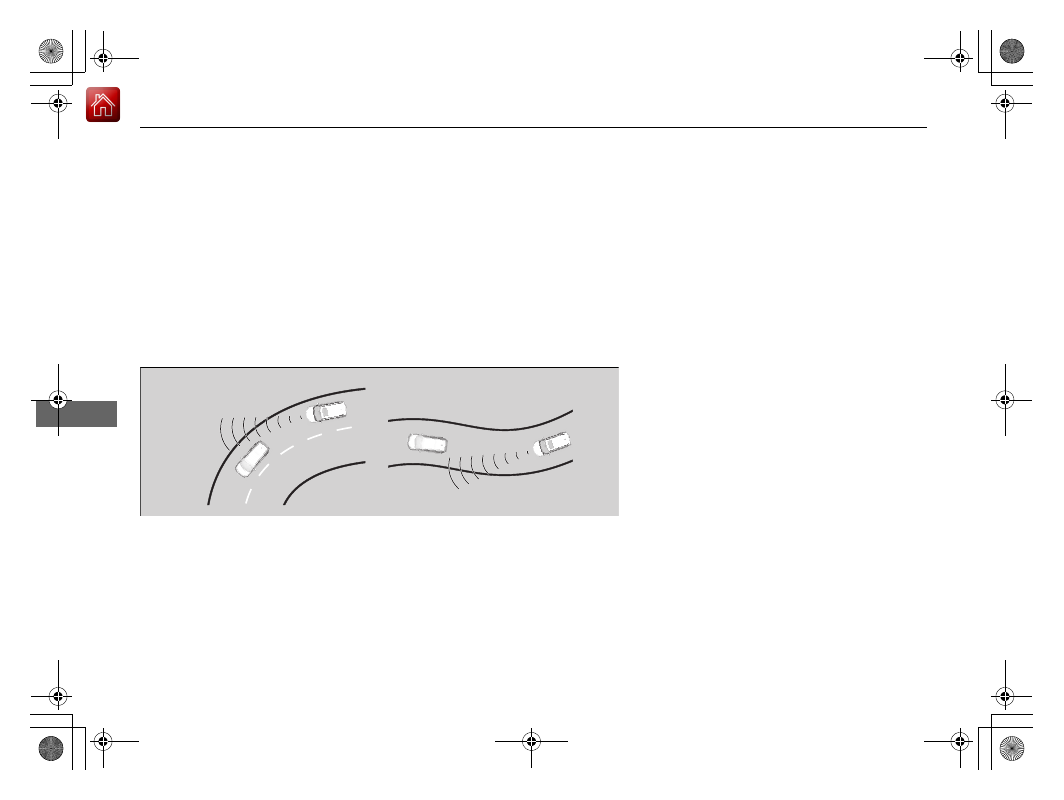

When you drive on a curved or winding or undulating road that makes it difficult
for the sensor to properly detect a vehicle in front of you.

•

The speed difference between your vehicle and a vehicle in front of you is
significantly large.

•

An oncoming vehicle suddenly comes in front of you.

•

Your vehicle abruptly crosses over in front of an oncoming vehicle.

453

Honda Sensing

Adaptive Cruise Control (ACC)

Continued

Driving

•

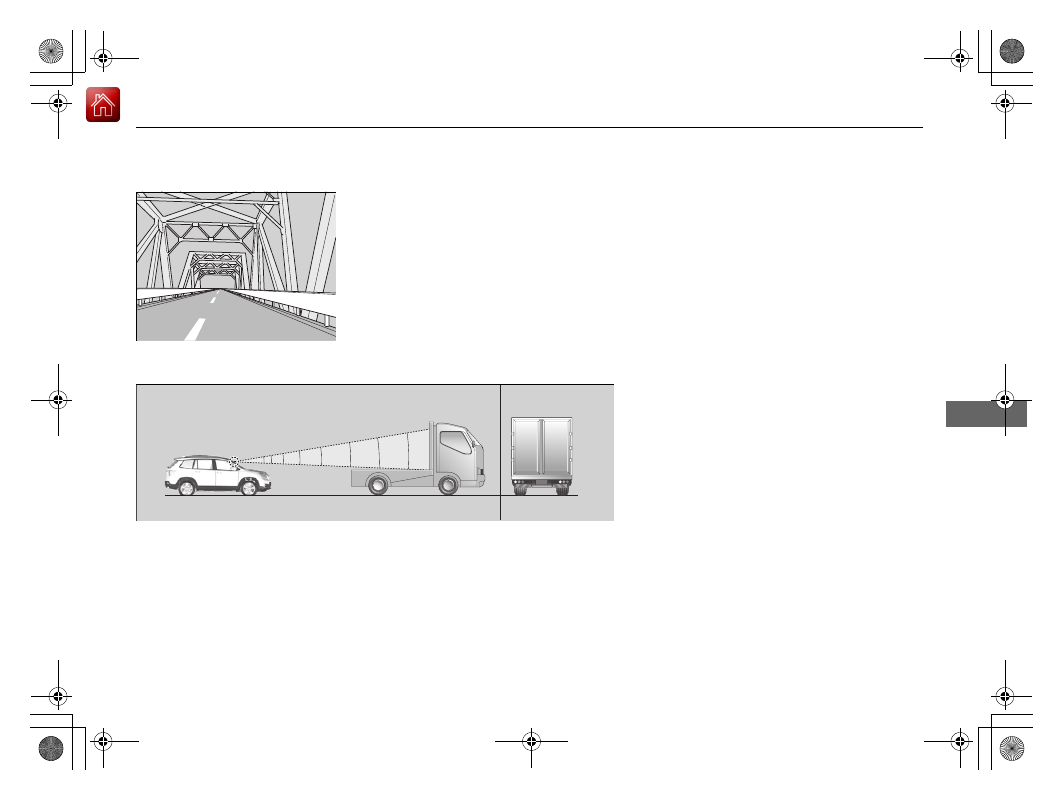

When driving through a narrow metal bridge.

•

When the vehicle ahead of you brakes suddenly.

•

When the vehicle ahead of you has a unique shape.

•

When your vehicle or the vehicle ahead of you is driving on one edge of the lane.

Sensor detects upper section of
an empty carrier truck.

Panel truck,
tanker truck, etc.

Honda Sensing

Adaptive Cruise Control (ACC)

454

Driving

Increase or decrease the vehicle speed using the

RES/+

−/SET

buttons on the

steering wheel.

•

Each time you press the button, the vehicle speed is increased or decreased by
about 1 mph or 1 km/h accordingly.

•

If you keep the button pressed, the vehicle speed increases or decreases by about
5 mph or 5 km/h accordingly.

Press the

(Interval) button to change the

ACC following-interval.
Each time you press the button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cycles through short,
middle, long, and extra long following-
interval.

■

To Adjust the Vehicle Speed

To Adjust the Vehicle Speed

If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC may not
accelerate your vehicle. This is to maintain the set
interval between your vehicle and the vehicle ahead.

You can switch the displayed set speed
measurements on the driver information interface
between mph and km/h.

Units

P. 117

You can set the vehicle speed using the

−/SET

button

on the steering wheel when adjusting the speed with
the accelerator and brake pedals.

■

To Set or Change Following-interval

To increase speed

To decrease speed

Interval Button

455

Honda Sensing

Adaptive Cruise Control (ACC)

Continued

Driving

Determine the most appropriate following-interval setting based on your specific
driving conditions. Be sure to adhere to any following-interval requirements set by
local regulation.

The higher vehicle's following-speed is, the longer the short, middle, long or extra
long following-interval becomes. See the following examples for your reference.

Following-interval

When the Set Speed is:

50 mph (80 km/h)

65 mph (104 km/h)

Short

83 feet

25 meters

1.1 sec

100 feet

31 meters

1.1 sec

Middle

110 feet

33 meters

1.5 sec

137 feet

42 meters

1.5 sec

Long

154 feet

47 meters

2.1 sec

200 feet

61 meters

2.1 sec

Extra
Long

204 feet

62 meters

2.8 sec

265 feet

81 meters

2.8 sec

Honda Sensing

Adaptive Cruise Control (ACC)

456

Driving

To cancel ACC, do any of the following:

•

Press the

CANCEL

button.

•

Press the

MAIN

button.

ACC indicator goes off.

•

Depress the brake pedal while the vehicle is
moving forward.

■

Automatic cancellation

The beeper sounds and a message appears on the driver information interface when
ACC is automatically canceled. Any of these conditions may cause the ACC to
automatically cancel:

•

Bad weather (rain, fog, snow, etc.).

•

When the radar sensor behind the emblem gets dirty.

•

The vehicle ahead of you cannot be detected.

•

An abnormal tire condition is detected, or the tires are skidding.

•

Driving on a mountainous road, or driving off road for extended periods.

•

Abrupt steering wheel movement.

•

When the ABS, VSA

, or CMBS

is activated.

•

When the ABS or VSA

system indicator comes on.

•

When you manually apply the parking brake.

•

When the detected vehicle within the ACC range is too close to your vehicle.

•

The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.

■

To Cancel

To Cancel

Resuming the prior set speed: After you have
canceled ACC, you can resume the prior set speed
while it is still displayed. Press the

RES/+

button

when driving at a speed of at least 25 mph (40 km/h)
or more.

The set speed cannot be set or resumed when ACC
has been turned off using the

MAIN

button. Press

the

MAIN

button to activate the system, then set the

desired speed.

CANCEL

Button

MAIN

Button

Automatic cancellation

Even though ACC has been automatically canceled,
you can still resume the prior set speed. Wait until the
condition that caused ACC to cancel improves, then
press the

RES/+

button.

Continued

457

Honda Sensing

Adaptive Cruise Control (ACC)

Driving

Press and hold the (interval) button for one
second.

Cruise Mode Selected

appears on

the driver information interface for two
seconds, and then the mode switches to
Cruise.
To switch back to ACC, press and hold the
button again for one second.

■

When to use

Desired speed in a range above roughly 25 mph (40 km/h).

Take your foot off the pedal and press the

–/SET

button when you reach the desired

speed.
The moment you release the

–/SET

button, the set speed is fixed, and cruise control

begins. The

CRUISE CONTROL

indicator comes on.

Each time you press the

RES/+

–/SET

button, the vehicle speed is increased or

decreased by about 1 mph (1.6 km/h).
If you keep the

RES/+

–/SET

button pressed, the vehicle speed increases or

decreases until you release it. This speed is then set.

■

To Switch ACC to Cruise Control

To Switch ACC to Cruise Control

Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a following-interval from a vehicle
ahead of you.

ACC ON

Cruise
Control ON

■

To Set the Vehicle Speed

■

To Adjust the Vehicle Speed

Honda Sensing

Adaptive Cruise Control (ACC)

458

Driving

To cancel cruise control, do any of the following:

•

Press the

CANCEL

button.

•

Press the

MAIN

button.

•

Depress the brake pedal.

The

CRUISE CONTROL

indicator goes off.

■

To Cancel

To Cancel

Resuming the prior set speed:
After cruise control has been canceled, you can still
resume the prior set speed by pressing the

RES/+

button while driving at a speed of at least 25 mph (40
km/h) or more.

You cannot set or resume in the following situations:

•

When vehicle speed is less than 25 mph (40 km/h).

•

When the

MAIN

button is turned off.

At vehicle speeds of 22 mph (35 km/h) or less, cruise
control is canceled automatically.

459

Honda Sensing

Lane Keeping Assist System (LKAS)

Continued

Driving

Lane Keeping Assist System (LKAS)

Provides steering input to help keep the vehicle in the middle of a detected lane and
provides tactile and visual alerts if the vehicle is detected drifting out of its lane.

Lane Keeping Assist System (LKAS)

Important Safety Reminders

The LKAS is for your convenience only. It is not an
autonomous driving system and always requires
driver attention and control. The system does not
work if you take your hands off the steering wheel or
fail to steer the vehicle.

Driver Information Interface Warning and
Information Messages

P. 96

The LKAS is convenient when it is used on
expressways or freeways.

Do not place objects on the instrument panel.
Objects may reflect on the windshield and prevent
correct detection of the traffic lanes.

The LKAS only alerts you when lane drift is detected
without a turn signal in use. The LKAS may not detect
all lane markings or lane departures; accuracy will
vary based on weather, speed, and lane marker
condition. It is always your responsibility to safely
operate the vehicle and avoid collisions.

The LKAS may not work properly or may work
improperly under the certain conditions:

LKAS Conditions and Limitations

P. 465

The LKAS may not function as designed while driving
in frequent stop and go traffic, or on roads with
sharp curves.

When you operate the turn signals to change lanes, the system is suspended, and
resumes after the signals are off.
If you make a lane change without operating the turn signals, the LKAS alerts
activate, and torque is applied to the steering.

■

Front sensor camera

Monitors the lane
lines

■

Tactile and visual alerts

Rapid vibrations on the steering wheel
and a warning display alert you that the
vehicle is drifting out of a detected
lane.

■

Steering input assist

The system applies torque to the steering to keep the vehicle between the left and
right lane lines. The applied torque becomes stronger as the vehicle gets closer to
either of the lane lines.

Honda Sensing

Lane Keeping Assist System (LKAS)

460

Driving

Provides assistance to keep the vehicle in the center of the lane. When the vehicle
nears a white or yellow line, steering force of the electric power steering will become
stronger.

When the vehicle enters the warning area, the LKAS alerts you with slight steering
wheel vibration as well as warning display.

■

Lane Keep Support Function

Lane Keeping Assist System (LKAS)

You can read about handling information for the
camera equipped with this system.

Front Sensor Camera

P. 473

When it fails to detect lanes, the system will
temporarily be canceled. When a lane is detected, the
system will recover automatically.

■

Lane Departure Warning Function

Warning Area

Content .. 26 27 28 29 ..
