Honda HR-V eHEV (2022 year). Manual in english

594

Indicator, Coming On/Blinking

If the

Reduced Stopping Power

Warning Appears

Han

lin
g the U

expected

If the Reduced Stopping Power Warning Appears

■

Reasons for the warning to appear

Appears when braking ability is reduced.

■

What to do as soon as the warning appears

Slow down and drive carefully. Have your vehicle checked by a dealer.

If the Malfunction Indicator Lamp Comes On or Blinks

■

Reasons for the indicator lamp to come on or blink

•

Comes on when there is a problem with the engine emissions control
system or electric vehicle system.

•

Blinks when engine misfiring is detected.

■

What to do when the indicator lamp comes on

•

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

■

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
50 km/h (30 mph) or less. Have your vehicle
inspected.

595

Indicator, Coming On/Blinking

If the Brake System Indicator (Red) Comes On or Blinks

Han

lin
g the U

expected

If the Brake System Indicator (Red) Comes On or Blinks

■

Reasons for the indicator to come on

•

The brake fluid is low.

•

There is a malfunction in the brake system.

■

What to do when the indicator comes on while driving

Depress the brake pedal lightly to check pedal pressure.

•

If normal, check the brake fluid level the next time you stop.

•

If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using regenerative braking.

■

Reasons for the indicator to blink

•

There is a problem with the electric parking brake system.

■

What to do when the indicator lamp blinks

•

Avoid using the parking brake and have your vehicle checked by a
dealer immediately.

If the Brake System Indicator (Red) Comes On or Blinks

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the transmission.

If the Brake System Indicator (Red) and

ABS

indicator

come on simultaneously, the electronic brake
distribution system is not working. This can result in
vehicle instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

If the Brake System Indicator (Red) blinks at the same
time when the Brake System Indicator (Amber) comes
on, the parking brake may not work.
Avoid using the parking brake and have your vehicle
checked by a dealer immediately.

If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On

P. 597

597

Indicator, Coming On/Blinking

If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On

Han

lin
g the U

expected

If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On

■

If the Brake System Indicator (Red) comes on or blinks at the
same time when the Brake System Indicator (Amber) comes on,
release the parking brake manually or automatically

Parking Brake

P. 471

•

If the Brake System Indicator (Red) continuously comes on or blinks at
the same time when the Brake System Indicator (Amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.

Preventing the vehicle from moving, put the transmission into

(

•

If only the Brake System Indicator (Red) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.

If the Brake System Indicator (Red) Comes On or Blinks at the
Same Time When the Brake System Indicator (Amber) Comes On

If you apply the parking brake, you may not be able
to release it.

If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.

(Red)

(Amber)

598

Indicator, Coming On/Blinking

If the Low Tyre Pressure/Deflation Warning System Indicator Comes On or Blinks

Han

lin
g the U

expected

If the Low Tyre Pressure/Deflation Warning System
Indicator Comes On or Blinks

■

Reasons for the indicator to come on or blink

A tyre pressure is significantly low, or the deflation warning system has
not been calibrated. If there is a problem with the deflation warning
system, the indicator blinks for about one minute, and then stays on.

■

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tyre pressure and adjust the
pressure to the specified level. The specified tyre pressure is on a label on
the driver side doorjamb.

Calibrate the deflation warning system after the tyre pressure is
adjusted.

Deflation Warning System

P. 392

■

What to do when the indicator blinks, then remains on

Have the tyre inspected by a dealer as soon as possible.

If the Low Tyre Pressure/Deflation Warning System Indicator
Comes On or Blinks

NOTICE

Driving on an extremely underinflated tyre can cause
it to overheat. An overheated tyre can fail. Always
inflate your tyres to the prescribed level.

599

Indicator, Coming On/Blinking

If the

Engine Oil Level Low

Warning Appears

Han

lin
g the U

expected

If the Engine Oil Level Low Warning Appears

■

Reasons for the warning to appear

Appears when the engine oil level is low.

■

What to do as soon as the warning appears

Immediately park the vehicle on level ground in a safe place.

If necessary, turn the hazard warning lights on.

■

What to do after parking the vehicle

Stop the power system and let it sit for about three minutes.

Open the bonnet and check the oil level.

Add oil as necessary.

NOTICE

Running the engine with low oil level can cause
serious mechanical damage almost immediately.

This system activates after the engine warms up. If
the outside temperature is extremely low, you may
have to drive for a long time until the system senses
the engine oil level.

If the warning appears again, stop the engine and
contact a dealer for repairs immediately.

600

Han

lin
g the U

expected

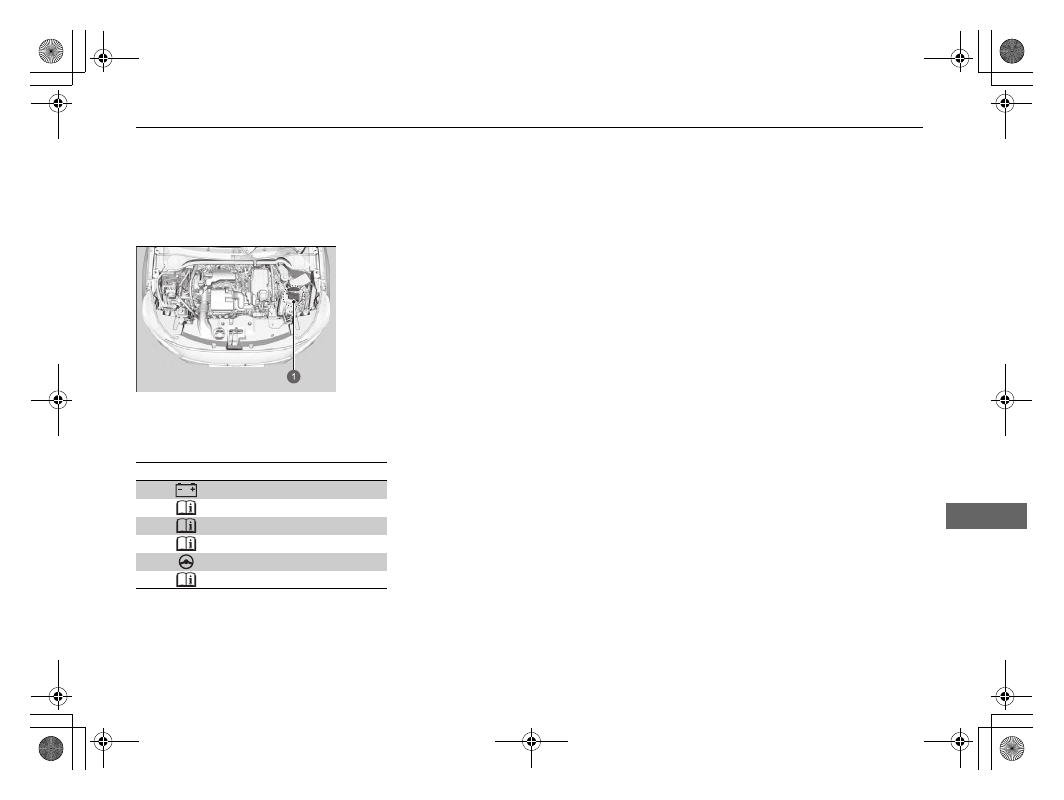

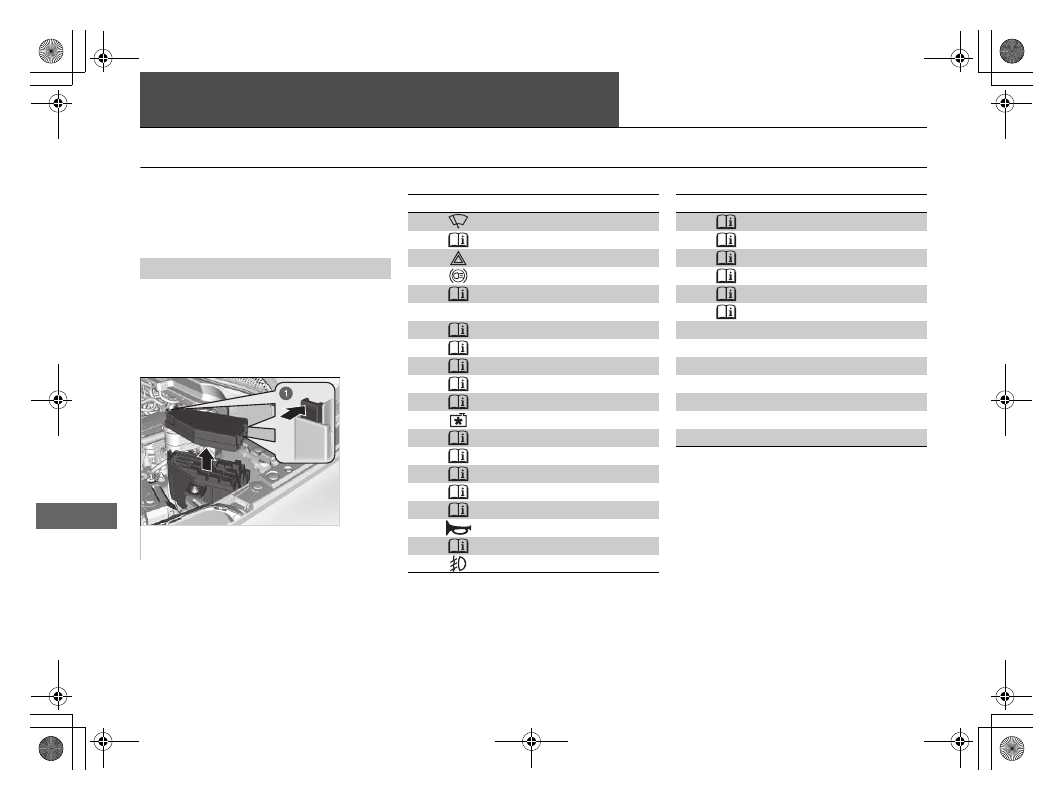

Fuses

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.

■

Fuse box A

Located near the 12-volt battery. Push the
tabs to open the box.
Locate the fuse in question by the fuse
number and box cover number.

■

Engine Compartment Fuse Box

Tabs

■

Circuit protected and fuse rating

Circuit Protected

Amps

Wiper

30 A

Left LCM

15 A

Hazard

10 A

Stop

10 A

PCU EWP

15 A

–

EVTC

20 A

IGP

15 A

IG Coil

15 A

DBW

15 A

ABS/VSA MTR

40 A

Main Fan

30 A

Engine Water Pump

30 A

Keyless Access

10 A

Battery Sensor

7.5 A

Right LCM

15 A

Back Up FI-ECU

10 A

Horn

10 A

Sub Audio

(7.5 A)

Front Fog Lights

(10 A)

Circuit Protected

Amps

Audio

15 A

Back Up

15 A

Sub Fan

30 A

ABS/VSA FSR

40 A

IGP2 Sub

7.5 A

LAF

10 A

–

* Not available on all models

601

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

■

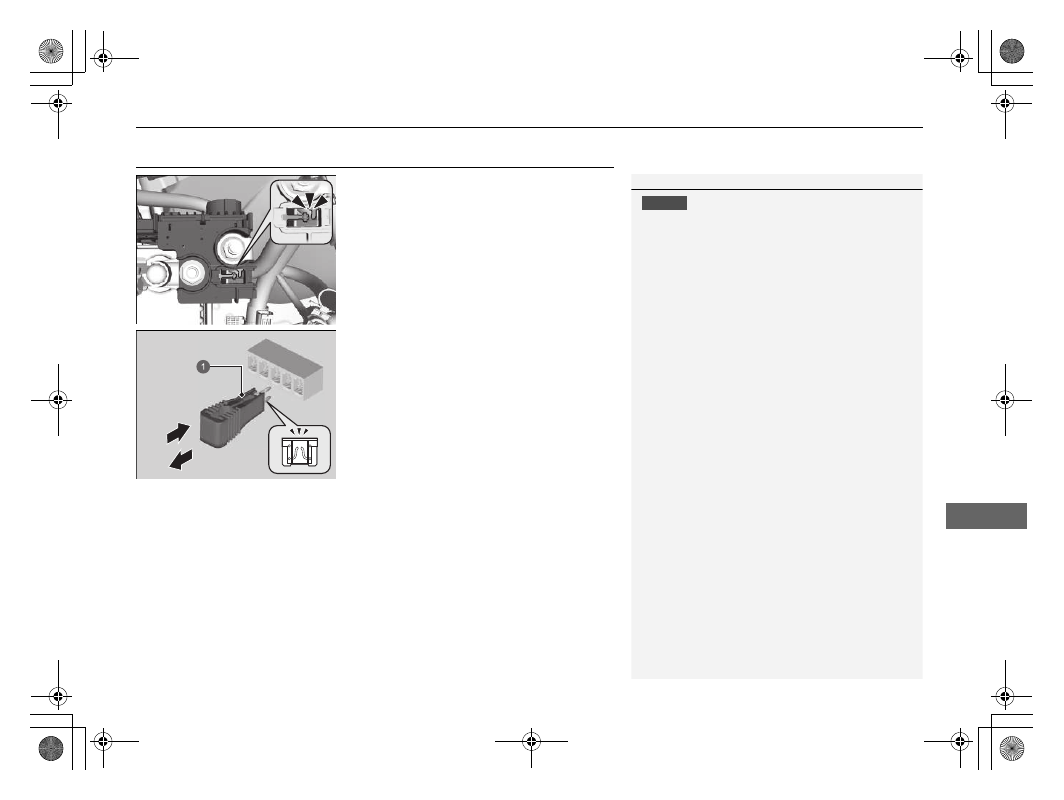

Fuse box B

Located near the

terminal of the 12-volt

battery.
Have a dealer inspect and replace the fuse.

■

Circuit protected and fuse rating

Fuse Box

Circuit Protected

Amps

Battery Main

170 A

Battery Main (Fan)

60 A

Battery Main (ENG)

80 A

Battery Main (HEV)

60 A

EPS

70 A

ESB

40 A

602

Fuses

Fuse Locations

Han

lin
g the U

expected

■

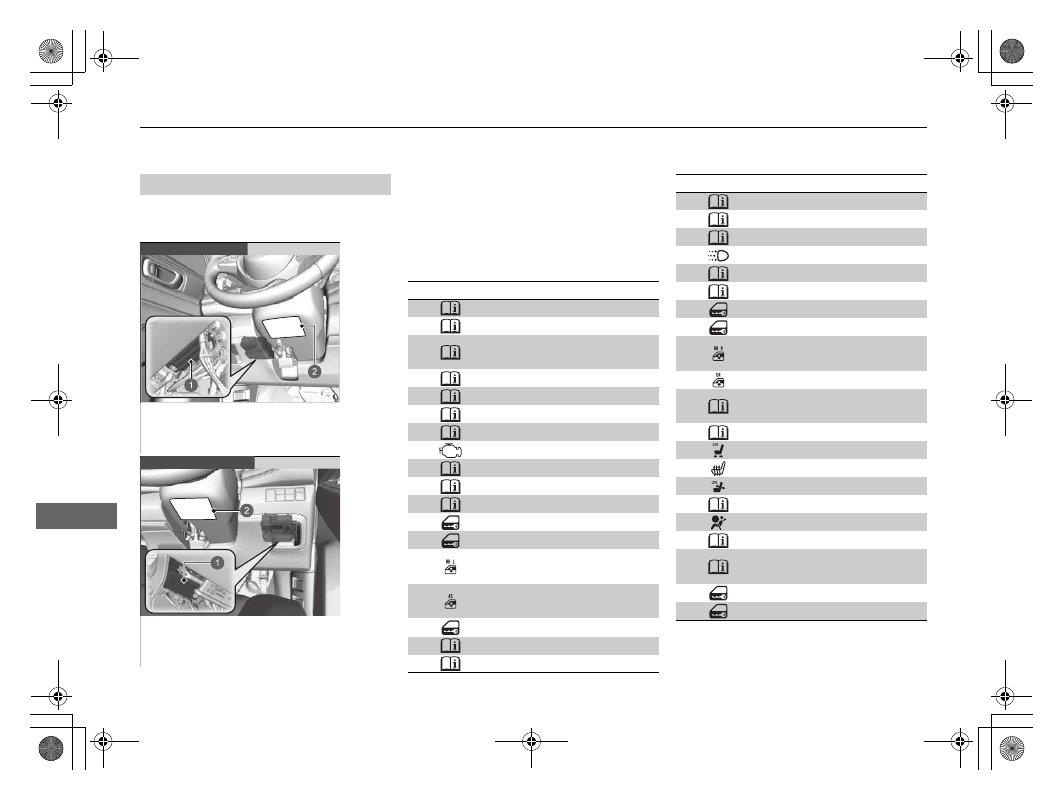

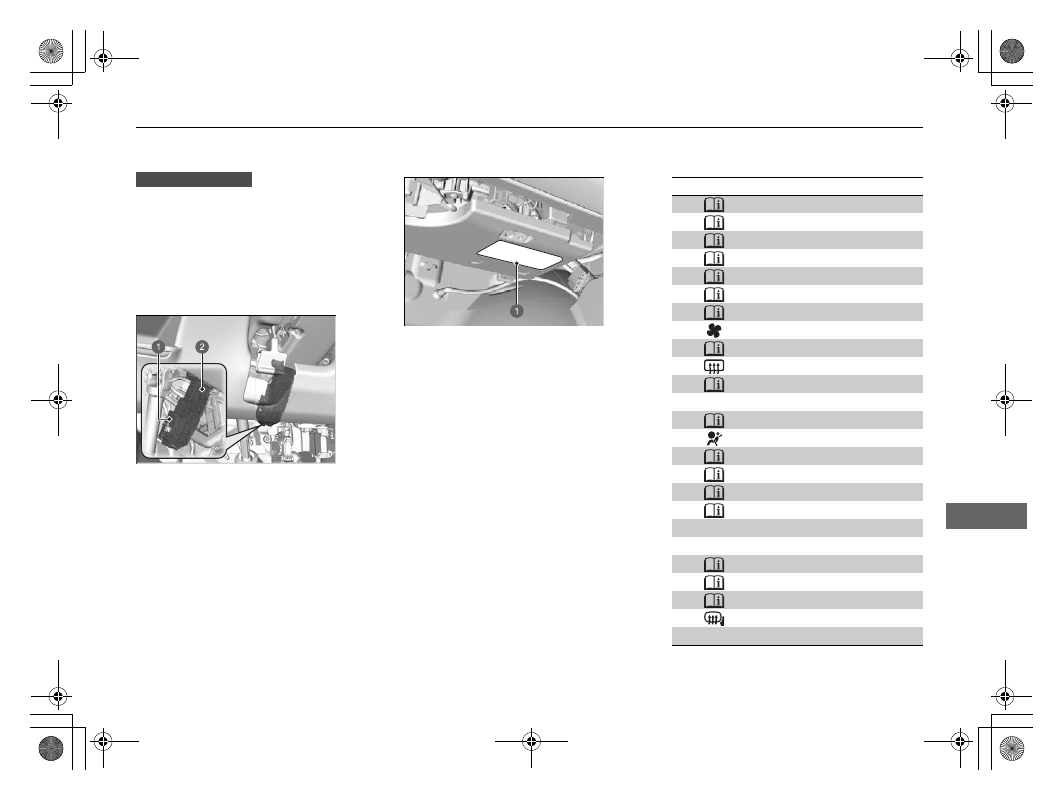

Type A

Located under the dashboard.

■

Driver Side Interior Fuse Box

Left-hand drive type

Fuse Box

Fuse Label

Right-hand drive type

Fuse Box

Fuse Label

Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.

■

Circuit protected and fuse rating

Circuit Protected

Amps

Accessory

7.5 A

ACC Key Lock

7.5 A

Blind spot information

System

(10 A)

LCM

(5 A)

Option

10 A

Option 2

10 A

Meter

10 A

Fuel Pump

15 A

AIRCON

10 A

−

(20 A)

MON

5 A

Right Side Door Lock

10 A

Left Side Door Unlock

10 A

Rear Left Side Power

Window

20 A

Front Passenger’s

Power Window

20 A

Door Lock

20 A

Transmission

10 A

USB Charger

(10 A)

Super Locking

(20 A)

Starter Cut Relay

7.5 A

ACG

10 A

Daytime Running Lights 7.5 A

Rear Fog Light

(10 A)

Option

10 A

−

(10 A)

Right Side Door Unlock

10 A

Rear Right Side Power

Window

20 A

Driver’s Power Window

20 A

Front Accessory Power

Socket

(20 A)

Heated Windscreen

(10 A)

−

(20 A)

Front Seat Heater

(20 A)

−

(20 A)

VSA/ABS

10 A

SRS

10 A

−

(20 A)

Heated Steering

Wheel

(15 A)

Left Side Door Lock

10 A

−

(10 A)

Circuit Protected

Amps

* Not available on all models

603

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

■

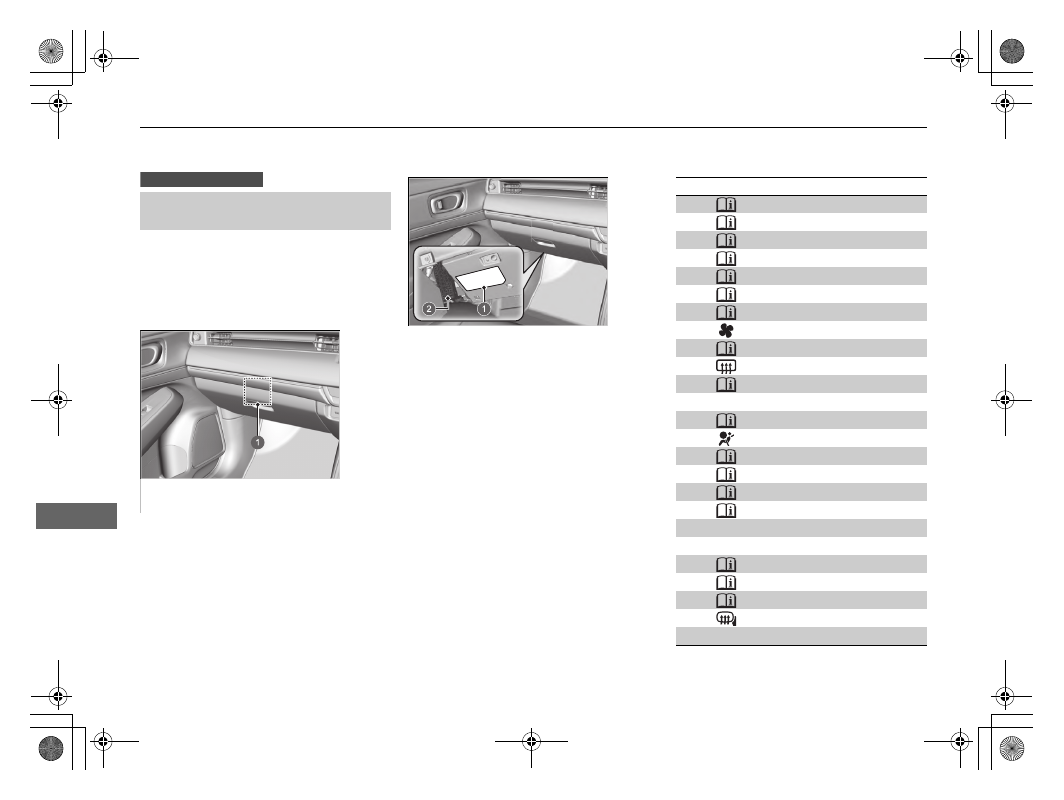

Type B

Located under the dashboard.

Only the fuse No. 1 is outside of the fuse
box.
Replacement of this fuse should be done by
a dealer.

Left-hand drive type

Fuse No. 1

Fuse No. 2-25

Fuse locations are shown on the label under
the glove box.
Locate the fuse in question by the fuse
number and label number.

Fuse Label

Circuit Protected

Amps

Fuse Box Main

60 A

IG Main

30 A

IG Main 2

30 A

Relay Module 1

30 A

Relay Module 2

30 A

Fuse Box Main 2

40 A

Fuse Box Option

(40 A)

Heater Motor

30 A

A/C PTC1

(40 A)

Rear Demister

30 A

A/C PTC2

(40 A)

−

Power Tailgate Motor

(40 A)

SRS

10 A

IG HOLD1

10 A

IG HOLD3

10 A


10 A

Audio Amp

(20 A)

−

Power Tailgate Closer

(20 A)

IG HOLD2

15 A

Washer

(15 A)

−

(10 A)

−

* Not available on all models

604

Fuses

Fuse Locations

Han

lin
g the U

expected

Located under the dashboard.

Only the fuse No. 1 is outside of the fuse
box. Replacement of this fuse should be
done by a dealer.

The fuses other than No.1 are under the
dashboard.

■

Passenger Side Interior Fuse

Box

Right-hand drive type

Fuse No. 1

Fuse locations are shown on the label.
Locate the fuse in question by the fuse
number and label number.

Fuse Label

Fuse No. 2-25

Circuit Protected

Amps

Fuse Box Main

60 A

IG Main

30 A

IG Main 2

30 A

Relay Module 1

30 A

Relay Module 2

30 A

Fuse Box Main 2

40 A

Fuse Box Option

(40 A)

Heater Motor

30 A

−

(40 A)

Rear Demister

30 A

−

(40 A)

−

Power Tailgate Motor

(40 A)

SRS

10 A

IG HOLD1

10 A

IG HOLD3

10 A


10 A

Audio Amp

(20 A)

−

Power Tailgate Closer

(20 A)

IG HOLD2

15 A

Washer

(15 A)

−

(10 A)

−

* Not available on all models

605

Fuses

Inspecting and Changing Fuses

Han

lin
g the U

expected

Inspecting and Changing Fuses

Set the power mode to VEHICLE OFF
(LOCK). Turn the headlights and all
accessories off.

Remove the cover on the

terminal.

Check the fuses on the battery in the
engine compartment.

If the fuse is blown, have it replaced by a
dealer.

Remove the fuse box cover.

Inspect the small fuses in the engine
compartment and the vehicle interior.

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

Fuse Locations

P. 600

Replace fuse with a spare fuse of the same specified
amperage.

There is a fuse puller on the back of the cover of the
engine compartment fuse box A.

Fuse Puller

606

Han

lin
g the U

expected

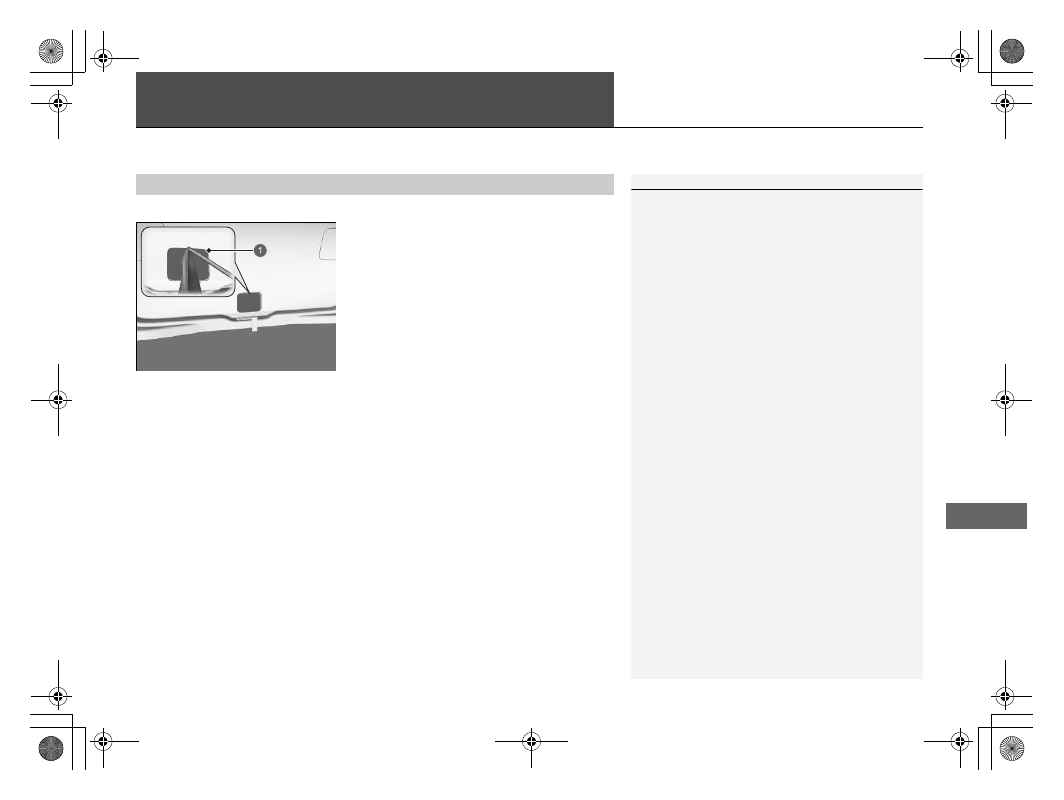

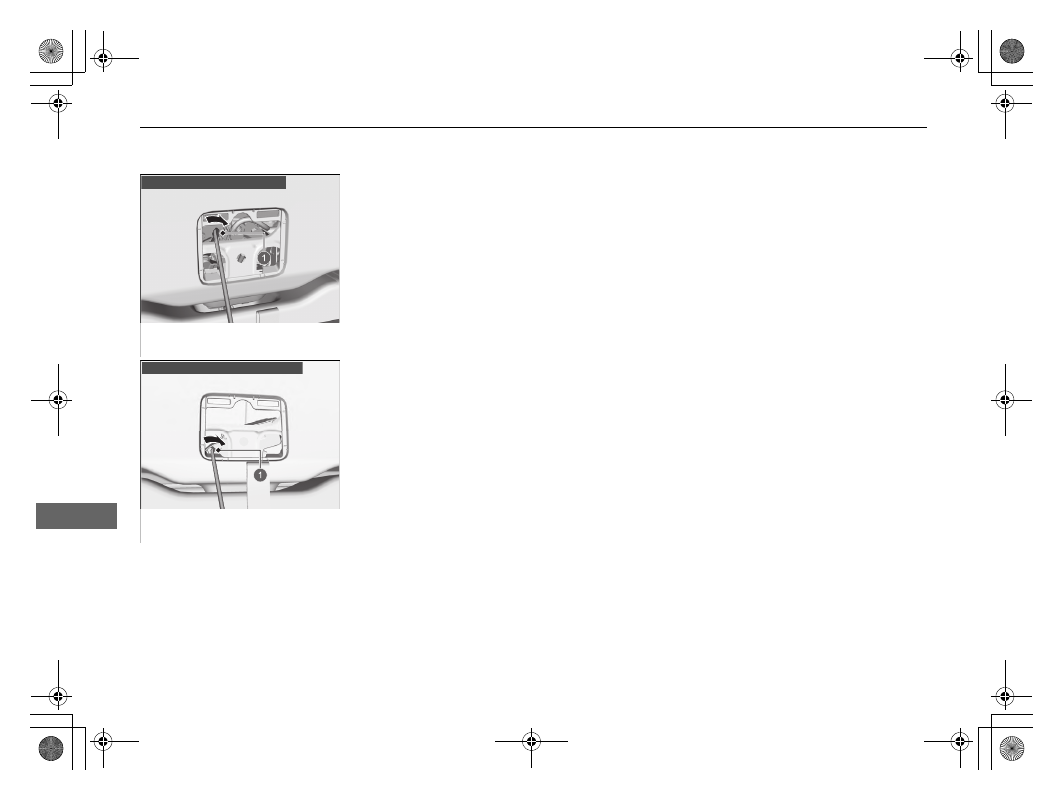

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flatbed equipment

The operator loads your vehicle on the back of a truck.

This is the best way to transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tyres and lift them off
the ground. The rear tyres remain on the ground.

This is an acceptable way to

tow your vehicle.

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment.

Parking Brake

P. 471

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

Honda HR-V eHEV (2022 year). Manual in english - page 37
