uu

If a Tyre Goes Flat

u

Temporarily Repairing a Flat Tyre

578

Han

d

lin
g the U

n

expected

•

Greater than 130 kPa (1.3 bar, 19 psi),
but less than front:220 kPa (2.2 bar,32
psi)/rear:210 kPa (2.1 bar, 30 psi):
Turn the air compressor on to inflate the
tyre until the tyre pressure reaches
front:220 kPa (2.2 bar, 32 psi)/rear:210
kPa (2.1 bar, 30 psi).

2

Injecting Sealant and Air

 P. 572

Then, drive carefully for 10 more
minutes or until you reach the nearest
service station.
Do not exceed 80 km/h (50 mph).

u

You should repeat this procedure as long
as the air pressure is within this range.

6.

Unplug the kit from the accessory power
socket.

7.

Unscrew the sealant/air hose from the tyre
valve stem. Reinstall the valve cap.

8.

Press the deflate button until the gauge
returns to 0 kPa (0 bar, 0 psi).

9.

Repackage and properly stow the kit.

1

Distributing the Sealant in the Tyre

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.

Breathing this colourless, odourless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

a

Air Compressor Switch

b

Deflate Button

c

Air Pressure Gauge

Continued

579

uu

If a Tyre Goes Flat

u

Temporarily Repairing a Flat Tyre

Han

d

lin
g the U

n

expected

You can use the kit to inflate a non-punctured under-inflated tyre.

1.

Take the kit out of the luggage area.

2

Getting Ready to Temporarily Repair
the Flat Tyre

 P. 570

2.

Place the kit, face up, on flat ground near
the tyre to be inflated, away from traffic.
Do not place the kit on its side.

3.

Remove the air hose from the kit.

4.

Remove the valve cap from the tyre valve
stem.

■

Inflating an Under-inflated Tyre

1

Inflating an Under-inflated Tyre

NOTICE

Do not operate the temporary tyre repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.

Breathing this colourless, odourless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

a

Power Plug

b

Air Hose

a

Tyre Valve Stem

b

Valve Cap

580

uu

If a Tyre Goes Flat

u

Temporarily Repairing a Flat Tyre

Han

d

lin
g the U

n

expected

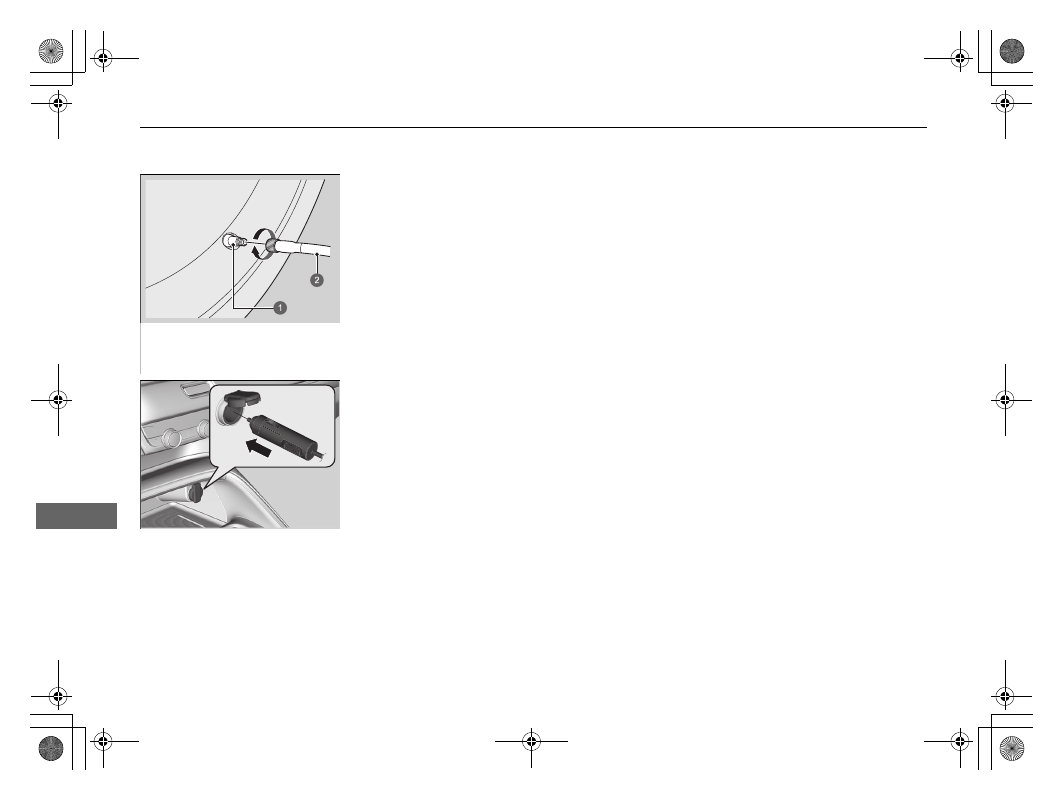

5.

Attach the air hose onto the tyre valve
stem. Screw it until it is tight.

6.

Plug in the compressor to the accessory
power socket.

u

Be careful not to pinch the cord in a
door or window.

2

Accessory Power Socket

 P. 230

7.

Turn on the vehicle’s power system.

2

Carbon Monoxide Gas

 P. 98

a

Tyre Valve Stem

b

Air Hose

581

uu

If a Tyre Goes Flat

u

Temporarily Repairing a Flat Tyre

Han

d

lin
g the U

n

expected

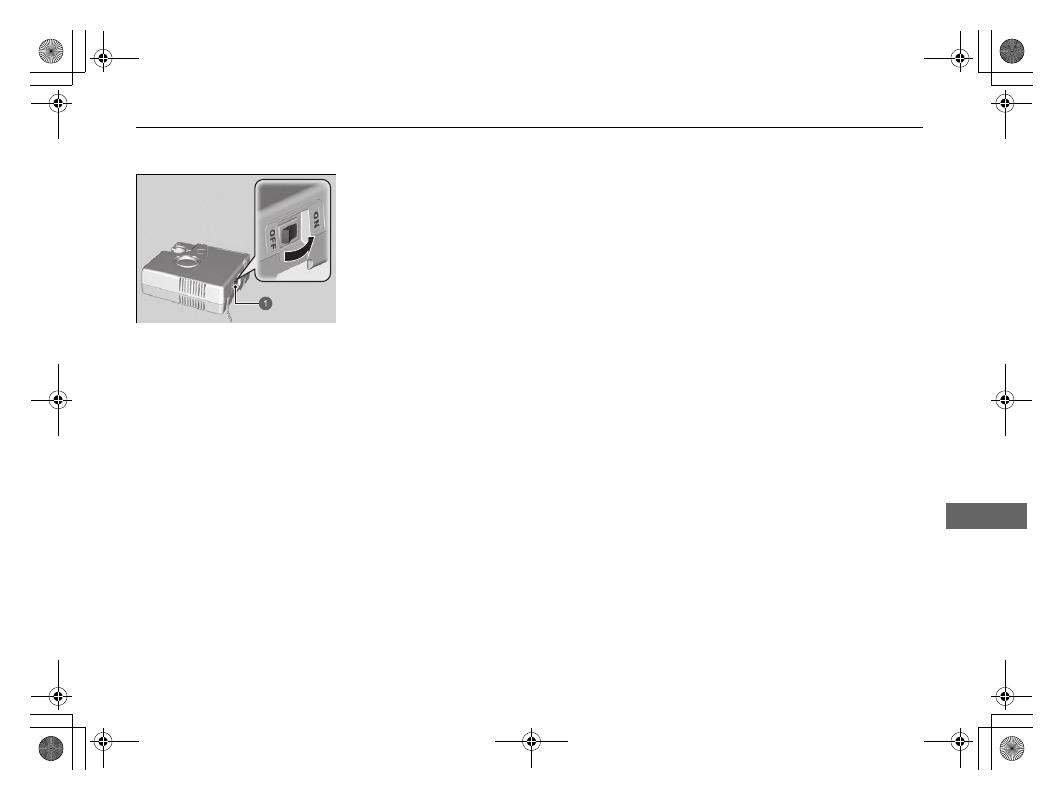

8.

Turn the air compressor switch on to
inflate the tyre.

u

The compressor starts to inject air into
the tyre.

u

If you have started the engine, leave it
running while injecting air.

9.

Inflate the tyre to the specified air
pressure.

10.

Turn off the kit.

u

Check the pressure gauge on the air
compressor.

u

If overinflated, press the deflate button.

11.

Unplug the power plug from the accessory
power socket.

12.

Unscrew the air hose from the tyre valve
stem. Reinstall the valve cap.

13.

Repackage and properly stow the kit.

a

Air Compressor Switch

582

Han

d

lin
g the U

n

expected

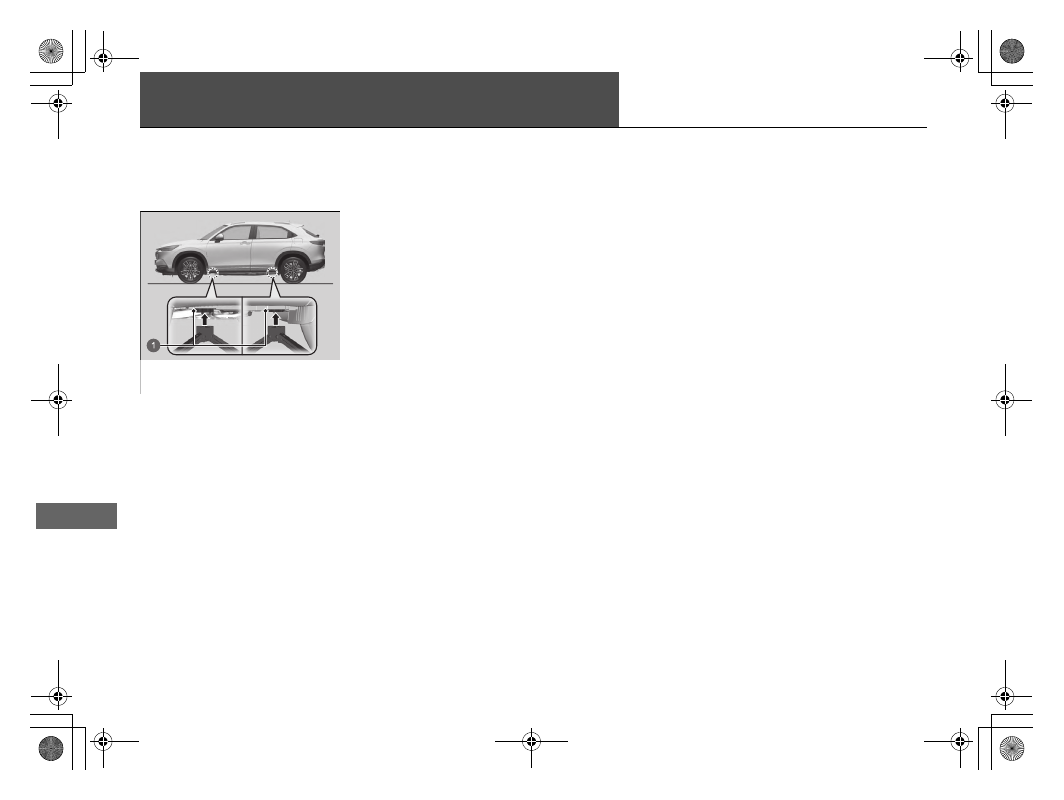

Handling of the Jack

Your vehicle has jacking points as shown.
When replacing your tyres, consult a dealer.

a

Jacking Points

583

Han

d

lin
g the U

n

expected

Power System Won’t Start

Checking the Procedure

When the

 (Ready) indicator does not come on and



Ready To Drive

 does

not appear on the driver information interface, check the following items and take
appropriate action.

If you cannot turn on the power system after checking all the items in the list above,
have your vehicle checked by a dealer.

Checklist

Condition

What to Do

Check if the related
indicator or driver
information interface
messages come on.



Temperature Too Low For Vehicle To Operate

 appears.

●

You must wait for an increase in the ambient
temperature or move the vehicle to a warmer
location.

●

Contact a dealer if necessary.



To Start, Hold Remote Near Start Button

 appears.

2

If the Keyless Remote Battery is Weak



P. 584

The

 (Power System) indicator comes on.

Have your vehicle checked by a dealer.

Check the brightness
of the interior lights.

The interior lights are dim or do not come on at all.

Have the 12-volt battery checked by a dealer.

The interior lights come on normally.

Check all fuses, or have your vehicle checked by
a dealer.

2

Inspecting and Changing Fuses

 P. 605

2

Emergency Power System On

 P. 585

Check the shift
position.

The transmission is not in

(

P

.

Put the transmission into

(

P

.

Check the power system starting procedure.

Follow the instructions, and try to start the power system again.

2

Turning on the Power

 P. 359

Check the
immobilizer system
indicator.

When the immobilizer system indicator is blinking, the power
system cannot be turned on.

2

Immobilizer System Indicator

 P. 113

1

Checking the Procedure

If you must start the vehicle immediately, use an
assisting vehicle or booster battery to jump start it.

2

If the 12-Volt Battery Is Dead

 P. 587

584

uu

Power System Won’t Start

u

If the Keyless Remote Battery is Weak

Han

d

lin
g the U

n

expected

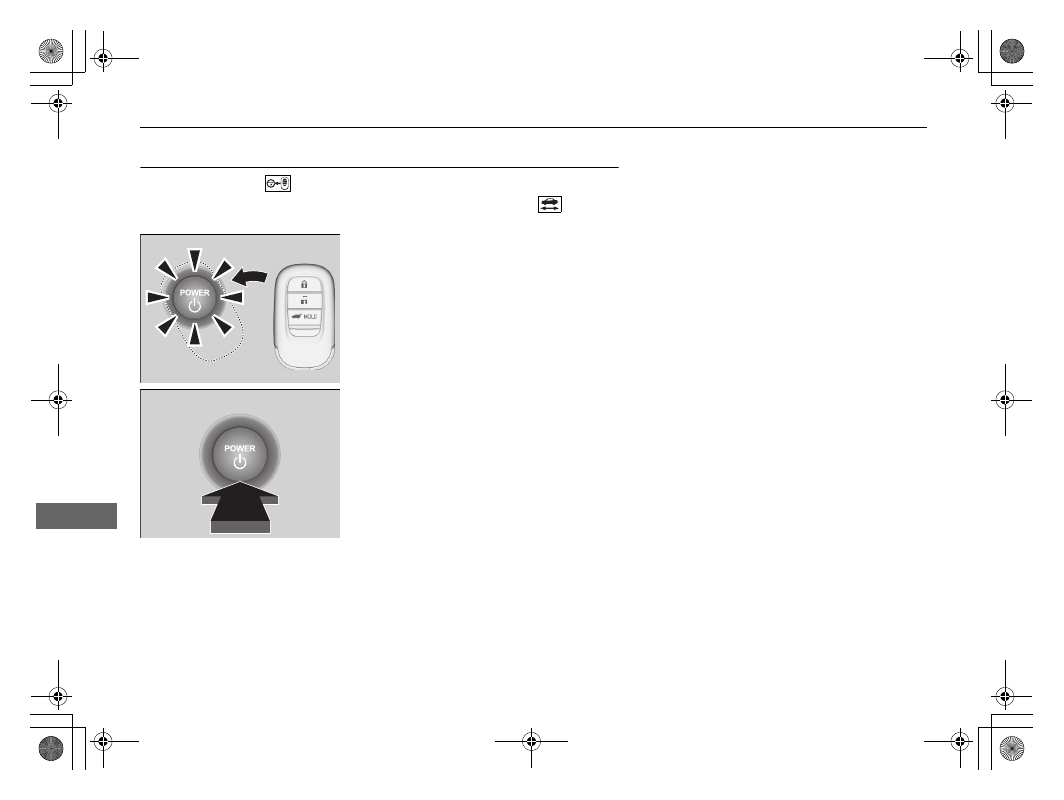

If the Keyless Remote Battery is Weak

If the beeper sounds,



To Start, Hold Remote Near Start Button

 appears on

the driver information interface, the

POWER

 button flashes, and the

 (Ready)

indicator does not come on, turn on the power system as follows:

1.

Touch the centre of the

POWER

 button

with the

H

 logo on the keyless remote while

the

POWER

 button is flashing. The buttons

on the keyless remote should be facing you.

u

The

POWER

 button flashes for about 30

seconds.

2.

Depress the brake pedal and press the

POWER

 button within 10 seconds after the

beeper sounds and the

POWER

 button

changes from flashing to on.

u

If you do not depress the pedal, the
mode will change to ACCESSORY.

585

uu

Power System Won’t Start

u

Emergency Power System On

Han

d

lin
g the U

n

expected

Emergency Power System On

If the power system can not be turned on using the normal starting procedure, you
may be able to turn it on using the emergency starting procedure below.
Do not use this procedure if it is not an emergency.

1.

Make sure the parking brake is applied.

u

The parking brake and brake system indicator (red) comes on for 30 seconds
when you press the electric parking brake switch.

2.

Check that the transmission is in

(

P

, then set the power mode to ACCESSORY.

3.

Firmly depress the brake pedal and press and hold the

POWER

 button for at least

15 seconds.

This should be considered a system malfunction even if you are able to turn the
power system on using the above procedure.
Have your vehicle checked by a dealer immediately.

1

Emergency Power System On

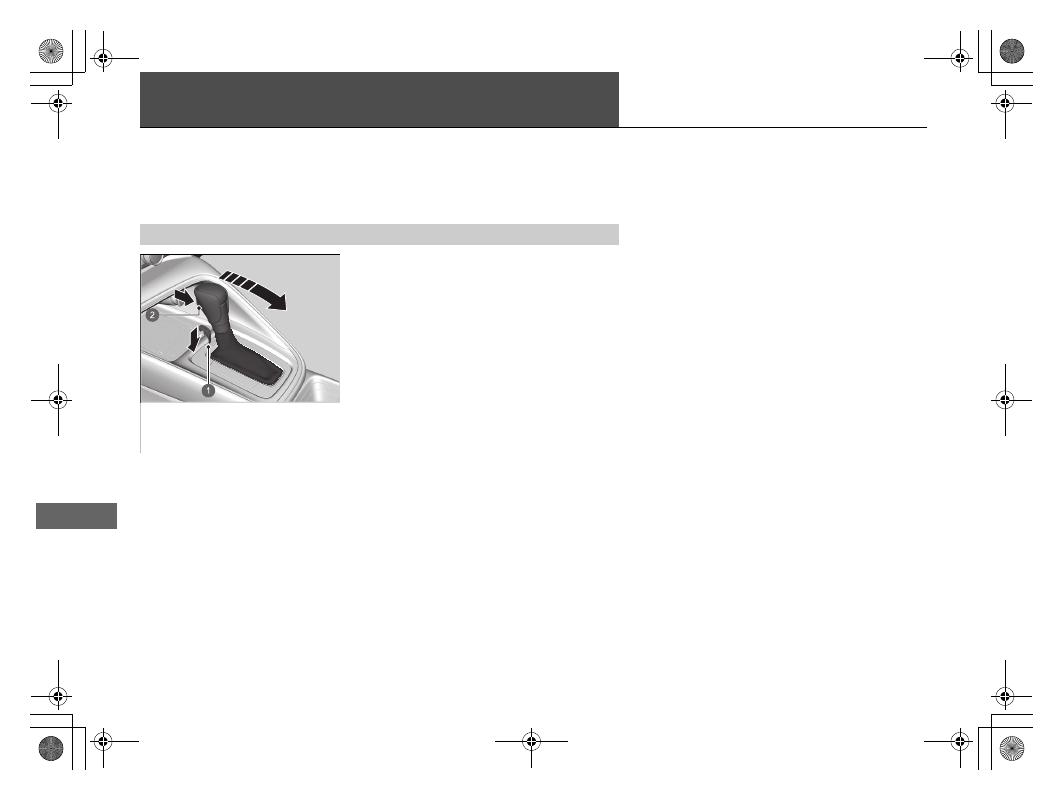

Refer to the following if you cannot move the shift
lever out of the

(

P

 position.

2

Shift Lever Does Not Move

 P. 590

586

uu

Power System Won’t Start

u

Emergency Power System Off

Han

d

lin
g the U

n

expected

Emergency Power System Off

The

POWER

 button may be used to turn the power system off due to an emergency

situation even while driving. If you must turn the power system off, do either of the
following operations:

•

Press and hold the

POWER

 button for about two seconds.

•

Firmly press the

POWER

 button three times.

The steering wheel will not lock. However, because turning off the power system
disables the power assist the power system provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pedal to slow down the vehicle and stop
immediately in a safe place.

The power mode is in ACCESSORY when the power system is stopped.
To change the mode to VEHICLE OFF, put the transmission into

(

P

 after the vehicle

comes to a complete stop. Then, press the

POWER

 button twice without depressing

the brake pedal.

1

Emergency Power System Off

Do not press the

POWER

 button while driving unless

it is absolutely necessary for the power system to be
turned off.
If you press the

POWER

 button while driving, the

beeper sounds.

587

Continued

Han

d

lin
g the U

n

expected

If the 12-Volt Battery Is Dead

Jump Starting Procedure

Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the bonnet.

1.

Open the terminal cover on your vehicle's
12-volt battery positive

+

 terminal.

2.

Connect the first jumper cable to your
vehicle’s 12-volt battery

+

 terminal.

3.

Connect the other end of the first jumper
cable to the booster battery

+

 terminal.

u

Use a 12-volt booster battery only.

u

When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.

4.

Connect the second jumper cable to the
booster battery

-

 terminal.

1

Jump Starting Procedure

NOTICE

If a 12-volt battery sits in extreme cold, the electrolyte
inside can freeze. Attempting to jump start with a
frozen 12-volt battery can cause it to rupture.

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Be careful
not to tangle the jumper cables or allow the cable
ends to touch each other while attaching or
detaching the jumper cables.

3

WARNING

A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.

a

Booster Battery

uu

If the 12-Volt Battery Is Dead

u

Jump Starting Procedure

588

Han

d

lin
g the U

n

expected

5.

Connect the other end of the second
jumper cable to the stud bolt as shown. Do
not connect this jumper cable to any other
part.

6.

If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.

7.

Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.

1

Jump Starting Procedure

12-volt battery performance degrades in cold
conditions and may prevent the engine from starting.

a

Stud Bolt

589

uu

If the 12-Volt Battery Is Dead

u

Jump Starting Procedure

Han

d

lin
g the U

n

expected

Once your vehicle’s engine has started, remove the jumper cables in the following
order.

1.

Disconnect the jumper cable from your vehicle’s stud bolt.

2.

Disconnect the other end of the jumper cable from the booster battery

-



terminal.

3.

Disconnect the jumper cable from your vehicle’s 12-volt battery

+

 terminal.

4.

Disconnect the other end of the jumper cable from the booster battery

+



terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

1

Jump Starting Procedure

The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Vehicle Stability Assist (VSA)
System, VSA OFF, Low Tyre Pressure/Deflation
Warning System and Safety Support Indicator
(Amber) may come on along with a message in the
driver information interface when you turn the power
system on after reconnecting the 12-volt battery.
Drive a short distance at more than 20 km/h (12
mph). The indicator should go off. If it does not, have
your vehicle checked by a dealer.

590

Han

d

lin
g the U

n

expected

Shift Lever Does Not Move

Follow the procedure below if you cannot move the shift lever out of the

(

P



position.

1.

Set the parking brake.

2.

Set the power mode to VEHICLE OFF.

3.

Remove the built-in key from the keyless
remote.

4.

Insert the key into the shift lock release slot.

5.

While pushing the key down, press the shift
lever release button, and place the shift
lever into

(

N

.

u

The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.

■

Releasing the Lock

a

Shift Lock Release Slot

b

Release Button

591

Continued

Han

d

lin
g the U

n

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:

•



High Temperature. Power Reduced.

 appears on the driver information

interface.

•



Engine Temperature Too Hot. Allow Engine To Cool.

 appears on the

driver information interface.

•

Steam or spray comes out of the engine compartment.



High Temperature. Power Reduced.

 appears on the driver information

interface when the power system temperature is high.

1.

Park the vehicle in a safe place.

u

Set the parking brake, and put the transmission into

(

P

. Turn off all accessories

and turn on the hazard warning lights.

2.

Keep the power mode in ON, and wait until the message disappears.

u

If the message does not disappear, have your vehicle inspected at a dealer.

■

First thing to do

1.

Immediately park the vehicle in a safe place.

2.

Turn off all accessories and turn on the hazard warning lights.

u

No steam or spray present:

 Keep the power system on and open the

bonnet.

u

Steam or spray is present:

 Turn off the power system and wait until it

subsides. Then, open the bonnet.

■



High Temperature. Power Reduced. Appears on the

Driver Information Interface

■

 Engine Temperature Too Hot. Allow Engine To Cool.

Appears on the Driver Information Interface

1

How to Handle Overheating

NOTICE

Continuing to drive with



Engine Temperature

Too Hot. Allow Engine To Cool.

 on the driver

information interface may damage the engine.

If

High Temperature. Power Reduced.



appears on the driver information interface, your
vehicle has less ability to accelerate and may be
harder to start on an incline.

3

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the bonnet if steam is coming
out.

uu

Overheating

u

How to Handle Overheating

592

Han

d

lin
g the U

n

expected

■

Next thing to do

1.

Check that the cooling fan is operating and
turn the power system off once



Engine

Temperature Too Hot. Allow Engine To
Cool.

 on the driver information interface

disappears.

u

If the cooling fan is not operating,
immediately turn the power system off.

2.

Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.

u

If the coolant level in the reserve tank is
low, add coolant until it reaches the

MAX

 mark.

u

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, turn the power system on.
If

Engine Temperature Too Hot. Allow Engine To Cool.

 does not appear,

resume driving. If it appears again, contact a dealer for repairs.

1

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

a

MAX

b

MIN

c

Reserve Tank

593

Han

d

lin
g the U

n

expected

Indicator, Coming On/Blinking

If the Engine Oil Pressure Low Warning Appears

■

Reasons for the warning to appear

Appears when the engine oil pressure is low.

■

What to do as soon as the warning appears

1.

Immediately park the vehicle on level ground in a safe place.

2.

If necessary, turn the hazard warning lights on.

■

What to do after parking the vehicle

1.

Stop the power system and let it sit for approximately three minutes.

2.

Open the bonnet and check the oil level.

u

Add oil as necessary.

2

Oil Check

 P. 522

3.

Start the engine and check the

Engine Oil Pressure Low

 warning.

u

The warning disappears: Start driving again.

u

The warning does not disappear within 10 seconds: Immediately
stop the power system and contact a dealer for repairs.

If the 12-Volt Battery Charging System Indicator
Comes On

■

Reasons for the indicator to come on

Comes on when the 12-volt battery is not charging.

■

What to do when the indicator comes on

Stop in a safe place and have your vehicle checked by a dealer
immediately.

1

If the

Engine Oil Pressure Low

 Warning Appears

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

1

If the 12-Volt Battery Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
power system. The power system uses the 12-volt
battery to activate. You may not be able to turn the
power system on again if you have turned it off with
this indicator on.
