Honda HR-V eHEV (2022 year). Manual in english - page 28

449

uu

Honda Sensing

u

Lane Keeping Assist System (LKAS)

Continued

Driving

The system may not detect lane markings and therefore may not keep the vehicle in
the middle of the lane under certain conditions, including the following:

■

Environmental conditions

•

There is little contrast between lane lines and the roadway surface.

•

Driving in bad weather (rain, fog, snow, etc.).

•

Driving on a snowy or wet roadway.

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Shadows of adjacent objects (trees, buildings, guard rails, vehicles, etc.) are
parallel to white lines (or yellow lines).

•

Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.

•

Driving at night or in a dark place such as a tunnel (due to low-light conditions,
lane lines or the road surface may not be illuminated).

•

The distance between your vehicle and the vehicle ahead of you is too short, and
lane lines and the road surface are not visible.

•

Strong light is reflected onto the roadway.

■

LKAS Conditions and Limitations

450

uu

Honda Sensing

u

Lane Keeping Assist System (LKAS)

Driving

■

Roadway conditions

•

Driving on a road with temporary lane markings.

•

Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.

•

The roadway has merging, split, or crossing lines, such as at an intersection or
crosswalk.

•

The lane markings are extremely narrow, wide, or changing.

•

Part of the lane markings are hidden by an object, such as a vehicle.

•

The road is hilly or the vehicle is approaching the crest of a hill.

•

Your vehicle is strongly shaken on uneven road surfaces.

•

When objects on the road (curb, guard rail, pylons, etc.) are recognised as white
lines (or yellow lines).

•

Driving on rough or unpaved roads, or over bumpy surfaces.

a

Faded lines

b

Duplicate lines

c

Tyre tracks

a

Very wide or narrow traffic lane

451

uu

Honda Sensing

u

Lane Keeping Assist System (LKAS)

Continued

Driving

•

Driving on roads with double lane line.

•

Driving on snowy or slippery roads.

•

The pavement is partially visible due to snow or puddles on the road.

•

There is a film of water or puddles on the road surface.

•

White lines (or yellow lines) are not recognised correctly due to road conditions
such as curves, twists, or hills.

•

Driving on unpaved or rutted roads.

•

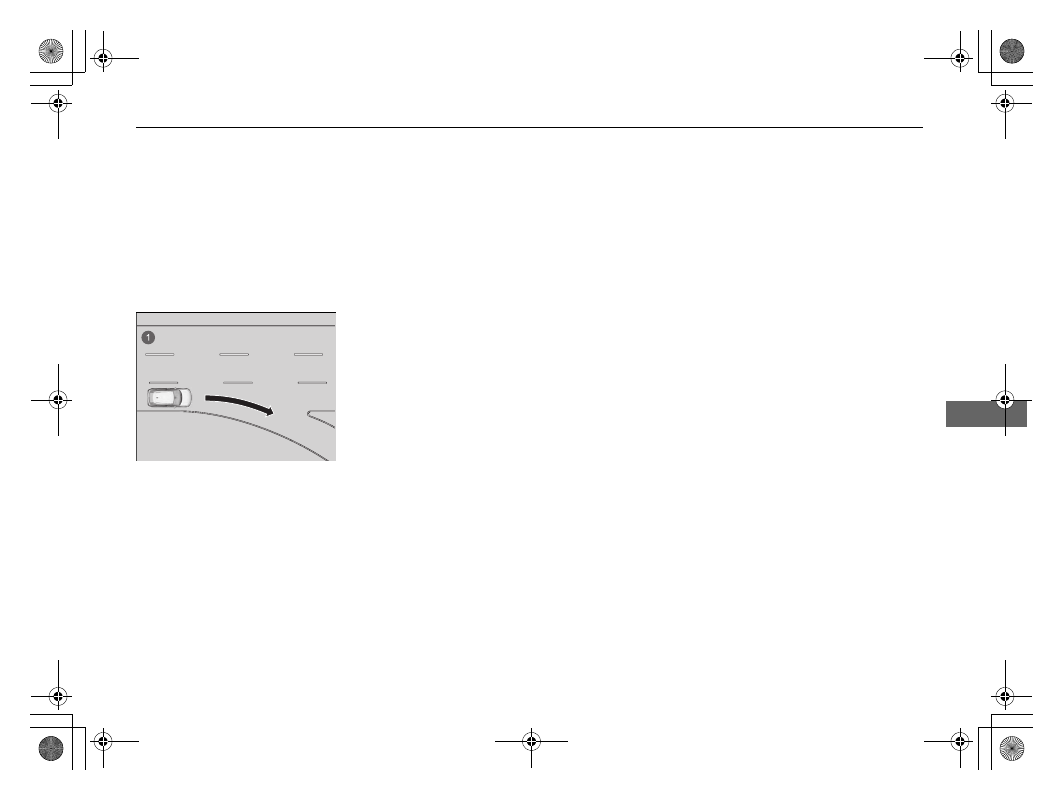

Passing through a junction.

a

Lane void of lines at junction

452

uu

Honda Sensing

u

Lane Keeping Assist System (LKAS)

Driving

■

Vehicle conditions

•

When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.

•

The front of the front wide view camera is covered by dirt, fog, rain, mud, wet
snow, seals, accessories, stickers, or film on the windscreen.

•

Driving at night or in a dark place (e.g., a tunnel) with the headlights off.

•

There is residue on the windscreen from the windscreen wipers.

•

Abnormal tyre or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, etc.).

•

The vehicle is tilted due to heavy luggage in the luggage area or rear seats.

•

The suspension has been modified.

•

Tyre chains are installed.

453

uu

Honda Sensing

u

Road Departure Mitigation System

Continued

Driving

Road Departure Mitigation System

Alerts and helps to assist you when the system detects a possibility of your vehicle
crossing over detected lane markings, or approaching the outer edge of the
pavement (into grass or gravel border) or an oncoming vehicle.

The front wide view camera located at the top
of the windscreen monitors left and right lane
markings in white or yellow, the outer edge of
the pavement (bordered by grass or gravel) or
oncoming vehicles.
If your vehicle approaches any detected lane
markings, the outer edge of the pavement
(bordered by grass or gravel) or a detected
oncoming vehicles when the turn signals have
not been engaged, the system activates.

u

If the system cannot detect lane
markings (in white or yellow), no
assistance will be provided to avoid
approaching oncoming vehicles.
In addition to a visual alert, the system
assists with steering and alerts you with
rapid steering wheel vibrations to help
you remain within the detected lane.

2

Customized Features

 P. 305

As a visual alert,



Lane Departure



message appears on the driver information
interface.

■

How the System Works

1

Road Departure Mitigation System

Important Safety Reminder

Like all assistance systems, the Road Departure
Mitigation system has limitations.
Over-reliance on the Road Departure Mitigation
system may result in a collision. It is always your
responsibility to keep the vehicle within your driving
lane.

The Road Departure Mitigation system alerts you
when the system detects that you are approaching
the outer edge of the pavement (into grass or gravel
border), an oncoming vehicle, or drifting into another
lane without using a turn signal.
The Road Departure Mitigation system may not
detect all lane markings or every instance of lane
drift.
The Road Departure Mitigation system may not
detect that you are approaching the outer edge of
the pavement (bordered by grass or gravel) or an
oncoming vehicle.
The Road Departure Mitigation system may not be
able to assist you depending on weather, speed or
road conditions.

The Road Departure Mitigation system is not
activated for about 15 seconds after the power
system is turned on.

You can read about handling information for the
front wide view camera equipped with this system.

2

Front Wide View Camera

 P. 468

uu

Honda Sensing

u

Road Departure Mitigation System

454

Driving

The system cancels assisting operations when you turn the steering wheel to avoid
crossing over detected lane markings or approaching the outer edge of the
pavement (into grass or gravel border) or an oncoming vehicle.

If the system operates several times without
detecting driver response, the system beeps to
alert you. After that, the Road Departure
Mitigation steering assist is temporarily
stopped, and the warning sound is given only.

After a few minutes, the message to the left is
displayed and the Road Departure Mitigation
system is fully restored.

1

Road Departure Mitigation System

The Road Departure Mitigation system may not work
properly or may work improperly under the certain
conditions:

2

Road Departure Mitigation system
Conditions and Limitations

 P. 457

There are times when you may not notice the Road
Departure Mitigation system functions due to your
operation of the vehicle, or road surface conditions.

If LKAS is off and you have selected

Early

 or

Normal



from the customized options using the audio/
information screen, the message below will appear if
the system has determined that there is a possibility
of your vehicle crossing over detected lane markings,
the outer edge of the pavement (into grass or gravel
border) or oncoming vehicle. If you have selected

Delayed

, however, the message will only appear if

the vehicle is about to cross over the outer edge of
the pavement or oncoming vehicle.

2

Customized Features

 P. 305

Continued

455

uu

Honda Sensing

u

Road Departure Mitigation System

Driving

The system activates when all of the following conditions are met:

•

The lane markings is white (yellow).
The vehicle is travelling between about 72 and 180 km/h (45 and 112 mph).

u

When oncoming vehicles are running
The vehicle is travelling between about 30 and 180 km/h (18 and 112 mph).

•

The outer edge of the pavement is grass or gravel border.
The vehicle is travelling between about 30 and 180 km/h (18 and 112 mph).

•

The vehicle is on a straight or slightly curved road.

•

The turn signals are off.

•

The system makes a determination that the driver is not actively accelerating,
braking, or steering.

■

How the System Activates

1

How the System Activates

The Road Departure Mitigation system may
automatically shut off and the safety support
indicator (amber) comes and stays on.

2

Indicators

 P. 102

Road Departure Mitigation system function can be
impacted when the vehicle is:

•

Driven on the inside edge of a curve, or outside of
a lane.

•

Driven in a narrow lane.

uu

Honda Sensing

u

Road Departure Mitigation System

456

Driving

When you turn the Road Departure Mitigation
system on and off, do the following.

1.

Press the safety support switch.

2.

Roll the left selector wheel to the



symbol and push it.

u

A message appears on the driver
information interface when the system
turns on or off.

u

A check mark appears in the box and the
colour of the

 symbol changes to

green when the system is on. The check
mark disappear and the colour of the



symbol changes to gray when the system
is off.

The Road Departure Mitigation system is
turned on every time you turn the power
system on, even if you turned it off the last
time you drove the vehicle.

■

Road Departure Mitigation system On and Off

1

Road Departure Mitigation system On and Off

You can also select the safety support content from
the driver information interface.

2

Driver Information Interface

 P. 135

The adaptive cruise control (ACC) with low speed
follow (amber), vehicle stability assist (VSA) system,
vehicle stability assist (VSA) OFF, low tyre pressure/
deflation warning system, and safety support (amber)
indicators may come on in amber along with a
message in the gauge when you set the power mode
to ON after reconnecting the 12-volt battery. Drive a
short distance at more than 20 km/h (12 mph). Each
indicator should go off. If any do not, have your
vehicle checked by a dealer.

a

Safety Support Switch

b

Left Selector Wheel

457

uu

Honda Sensing

u

Road Departure Mitigation System

Continued

Driving

The system may not properly detect lane markings and the position of your vehicle
under certain conditions. Some examples of these conditions are listed below.

■

Environmental conditions

•

There is little contrast between lane lines and the roadway surface.

•

Driving in bad weather (rain, fog, snow, etc.).

•

Driving on a snowy or wet roadway.

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Shadows of adjacent objects (trees, buildings, guard rails, vehicles, etc.) are
parallel to white lines (or yellow lines).

•

Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.

•

Strong light is reflected onto the roadway.

•

Driving at night or in a dark place such as a tunnel (due to low-light conditions,
lane lines, the road surface, or oncoming vehicles may not be illuminated).

•

The distance between your vehicle and the vehicle ahead of you is too short, and
lane lines and the road surface are not visible.

•

The outer edge of the road is bordered by objects, materials, etc. other than grass
or gravel.

■

Road Departure Mitigation system Conditions and Limitations

458

uu

Honda Sensing

u

Road Departure Mitigation System

Driving

■

Roadway conditions

•

Driving on a road with temporary lane markings.

•

Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.

•

The roadway has merging, split, or crossing lines, such as at an intersection or
crosswalk.

•

The lane markings are extremely narrow, wide, or changing.

•

Part of the lane markings are hidden by an object, such as a vehicle.

•

The road is hilly or the vehicle is approaching the crest of a hill.

•

Your vehicle is strongly shaken on uneven road surfaces.

•

When objects on the road (curb, guard rail, pylons, etc.) are recognised as white
lines (or yellow lines).

•

Driving on rough or unpaved roads, or over bumpy surfaces.

•

Driving on roads with double lane lines.

•

Driving on snowy or slippery roads.

•

Passing through a junction.

•

The pavement is only partially visible due to snow or puddles on the road.

•

Driving on unpaved or rutted roads.

•

White lines (or yellow lines) are not recognised correctly due to road conditions
such as curves, twists, or hills.

459

uu

Honda Sensing

u

Road Departure Mitigation System

Continued

Driving

■

Vehicle conditions

•

When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.

•

The front of the front wide view camera is covered by dirt, fog, rain, mud, wet
snow, seals, accessories, stickers, or film on the windscreen.

•

Driving at night or in a dark place (e.g., a tunnel) with the headlights off.

•

When the driver operates the brake pedal and steering wheel.

•

There is residue on the windscreen from the windscreen wipers.

•

Abnormal tyre or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, etc.).

•

The vehicle is tilted due to heavy luggage in the luggage area or rear seats.

•

Tyre chains are installed.

•

The suspension has been modified.

■

Examples of limitations on detection due to the condition of oncoming
vehicles

•

The oncoming vehicle or vehicle ahead of you is sideways.

•

The oncoming vehicle jumps out in front of you.

•

When the oncoming vehicle blends in with the background, preventing the
system from recognising it.

•

The headlights of a oncoming vehicle are lit on one side or not lit on either side in
a dark place.

•

The distance between your vehicle and the oncoming vehicle is too short.

•

Part of the oncoming vehicle is not visible due to the vehicle ahead of you.

•

There are multiple oncoming lanes or turning lanes.

•

The vehicle in the adjacent lane is parked or moving at an extremely slow speed.

460

uu

Honda Sensing

u

Road Departure Mitigation System

Driving

■

Examples of other limitations on detection or system operation

•

When the oncoming vehicle is specially-shaped.

•

When the front wide view camera cannot correctly identify the shape of the
oncoming vehicle.

■

With Little Chance of a Collision

The Road Departure Mitigation system may activate in the below conditions.

•

When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.

461

uu

Honda Sensing

u

Traffic Sign Recognition System

Continued

Driving

Traffic Sign Recognition System

Reminds you of road sign information, such as the current speed limit and that
overtaking is prohibited, your vehicle has just passed through, showing it on the
gauge.

When the front wide view camera located behind the rearview mirror captures
traffic signs while driving, the system displays the ones that are recognised as
designated for your vehicle. The sign icon will be displayed until the vehicle reaches
a predetermined time and distance.

The sign icon also may switch to another one, or disappear when:

•

The end of speed limit or other designated limit is detected.

•

Your vehicle enters/exists motorway or highway.

•

You make a turn with a turn signal at an intersection.

■

How the System Works

1

Traffic Sign Recognition System

The system is designed to detect signs that follow the
Vienna Convention standards. Not all signs may be
displayed, but any signs posted on roadsides should
not be ignored. The system does not work on the
designated traffic signs of all the countries you travel,
nor in all situations.
Do not rely too much on the system. Always drive at
speeds appropriate for the road conditions.

Never apply a film or attach any objects to the
windscreen that could obstruct the front wide view
camera’s field of vision and cause the system to
operate abnormally.
Scratches, nicks, and other damage to the windscreen
within the front wide view camera’s field of vision can
cause the system to operate abnormally. If this occurs,
we recommend that you replace the windscreen with a
genuine Honda replacement windscreen. Making even
minor repairs within the front wide view camera’s field
of vision or installing an aftermarket replacement
windscreen may also cause the system to operate
abnormally. After replacing the windscreen, have a
dealer recalibrate the front wide view camera.
Proper calibration of the front wide view camera is
necessary for the system to operate properly.

The Traffic Sign Recognition System is not activated for
about 15 seconds after the power system is turned on.

You can turn the traffic sign recognition system on
and off.

2

Customized Features

 P. 305

uu

Honda Sensing

u

Traffic Sign Recognition System

462

Driving

If the system does not detect any traffic signs while you are driving, the image below
may appear.

1

Traffic Sign Recognition System

To help reduce the likelihood that high interior
temperatures will cause the front wide view camera’s
sensing system to shut off, when parking, find a
shady area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do not
allow it to cover the camera housing.
Covering the front wide view camera can
concentrate heat on it.

You can read about handling information for the
front wide view camera equipped with this system.

2

Front Wide View Camera

 P. 468

Continued

463

uu

Honda Sensing

u

Traffic Sign Recognition System

Driving

1

Traffic Sign Recognition System

If your vehicle exceeds the detected speed limit, an
icon representing the speed limit sign for the current
area will blink in the display.

2

Customized Features

 P. 305

The system’s ability to accurately notify the driver of
the speed limit is dependent on certain conditions
such as the units displayed on the traffic sign as well
as the speed and direction of travel of the vehicle. In
some cases, the system may display false warnings or
other inaccurate information.

2

Traffic Sign Recognition System Conditions
and Limitations

 P. 464

The unit for speed limits (mph or km/h) varies from
country to country. Just after entering a country
whose unit differs to the one of the country from
which you came, Traffic Sign Recognition System
may not work correctly.

2

Customized Features

 P. 305

uu

Honda Sensing

u

Traffic Sign Recognition System

464

Driving

The Traffic Sign Recognition system may not be able to recognise a traffic sign in the
following cases.

■

Environmental conditions

•

Driving into low sunlight (e.g., at dawn or dusk).

•

Strong light is reflected onto the roadway.

•

Driving at night, in dark areas such as long tunnels.

•

Driving in bad weather (rain, fog, snow, etc.).

•

Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.

•

Water is sprayed by or snow blown from a vehicle ahead.

■

Roadway conditions

•

Your vehicle is strongly shaken on uneven road surfaces.

■

Vehicle conditions

•

When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.

•

The front of the front wide view camera is covered by dirt, fog, rain, mud, wet
snow, seals, accessories, stickers, or film on the windscreen.

•

There is residue on the windscreen from the windscreen wipers.

•

Abnormal tyre or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, etc.).

•

The vehicle is tilted due to heavy luggage in the luggage area or rear seats.

•

The suspension has been modified.

•

Tyre chains are installed.

•

Driving at night or in a dark place (e.g., a tunnel) with the headlights off.

■

Traffic Sign Recognition System Conditions and Limitations

1

Traffic Sign Recognition System Conditions and Limitations

When the Traffic Sign Recognition System
malfunctions,

 appears on the gauge. If this

message does not disappear, have your vehicle
checked by a dealer.
