752

uu

Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber)

Comes On

Han

d

lin
g the U

n

expected

If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On

■

If the brake system indicator (red) comes on or blinks at the
same time when the brake system indicator (amber) comes on,
release the parking brake manually or automatically

2

Parking Brake

 P. 626

•

If the brake system indicator (red) continuously comes on or blinks at
the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.

u

Preventing the vehicle from moving,

put the transmission into

(

P

.

put the transmission into

(

1

 or

(

R

.

•

If only the brake system indicator (red) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.

1

If the Brake System Indicator (Red) Comes On or Blinks at the
Same Time When the Brake System Indicator (Amber) Comes On

If you apply the parking brake, you may not be able
to release it.

If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.

(Red)

(Amber)

Continuously variable transmission models

Manual transmission models

753

uu

Indicator, Coming On/Blinking

u

If the Electric Power Steering (EPS) System Indicator Comes On

Han

d

lin
g the U

n

expected

If the Electric Power Steering (EPS) System Indicator
Comes On

■

Reasons for the indicator to come on

•

Comes on if there is a problem with the EPS system.

•

If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.

■

What to do when the indicator comes on

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

754

uu

Indicator, Coming On/Blinking

u

If the Low Tyre Pressure/Deflation Warning System Indicator Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Low Tyre Pressure/Deflation Warning System
Indicator Comes On or Blinks

■

Reasons for the indicator to come on or blink

A tyre pressure is significantly low, or the deflation warning system has
not been initialised. If there is a problem with the deflation warning
system, the indicator blinks for about one minute, and then stays on.
If the compact spare tyre is installed, the indicator will either come on or
it will first blink for about one minute, then stay on.

■

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tyre pressure and adjust the
pressure to the specified level. The specified tyre pressure is on a label on
the driver side doorjamb.

u

Initialise the deflation warning system after the tyre pressure is
adjusted.

2

Deflation Warning System Initialisation

 P. 548

If the compact spare tyre causes the indicator to come on, change the
tyre to a full-size tyre. The indicator goes off after initialising the
deflation warning system.

■

What to do when the indicator blinks, then remains on

Have the tyre inspected by a dealer as soon as possible. If the compact
spare tyre causes the indicator to first blink, and then stay on, change
the tyre to a full-size tyre. The indicator goes off after initialising the
deflation warning system.

1

If the Low Tyre Pressure/Deflation Warning System Indicator
Comes On or Blinks

NOTICE

Driving on an extremely underinflated tyre can cause
it to overheat. An overheated tyre can fail. Always
inflate your tyres to the prescribed level.

755

uu

Indicator, Coming On/Blinking

u

If the Low Oil Level Symbol Appears

Han

d

lin
g the U

n

expected

If the Low Oil Level Symbol Appears

■

Reasons for the symbol to appear

Appears when the engine oil level is low.

■

What to do as soon as the symbol appears

1.

Immediately park the vehicle on level ground in a safe place.

2.

If necessary, turn the hazard warning lights on.

■

What to do after parking the vehicle

1.

Stop the engine and let it sit for about three minutes.

2.

Open the bonnet and check the oil level.

2

Oil Check

 P. 683

1

If the Low Oil Level Symbol Appears

NOTICE

Running the engine with low oil level can cause
serious mechanical damage almost immediately.

This system activates after the engine warms up. If
the outside temperature is extremely low, you may
have to drive for a long time until the system senses
the engine oil level.

If the symbol appears again, stop the engine and
contact a dealer for repairs immediately.

756

Han

d

lin
g the U

n

expected

Fuses

Fuse Locations

If any electrical devices are not working, turn the ignition switch to LOCK

(

0

*1

 and

check to see if any applicable fuse is blown.

Located near battery. Push the tabs to open the box.

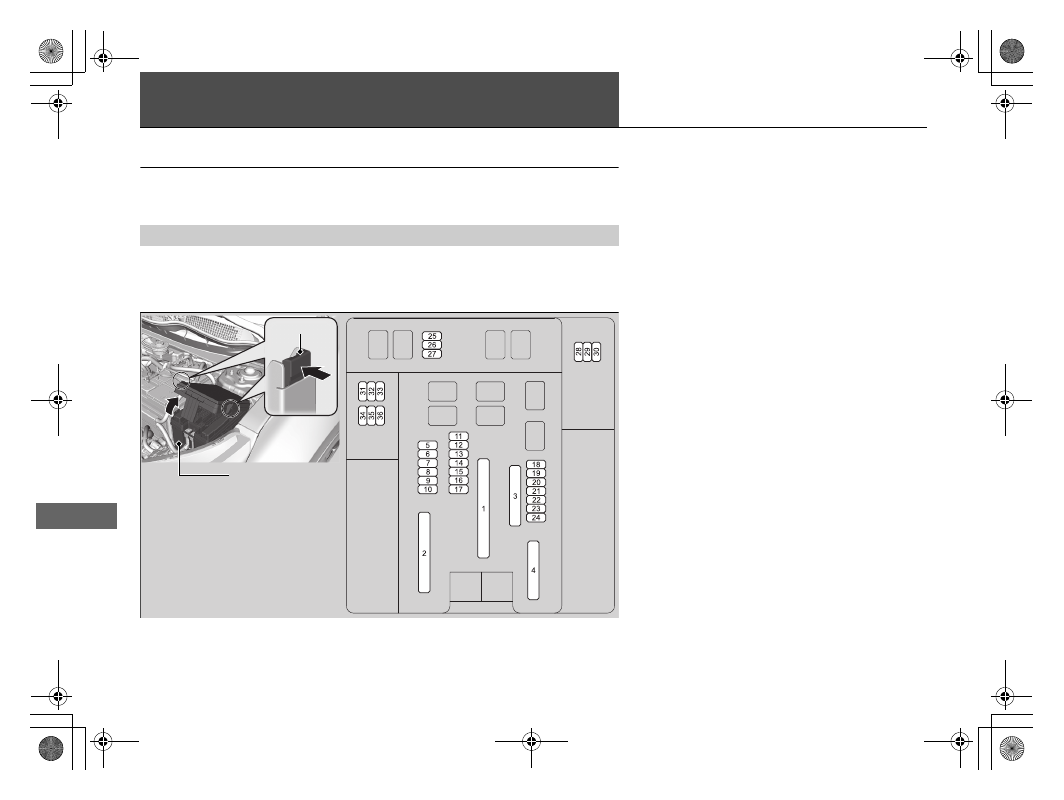

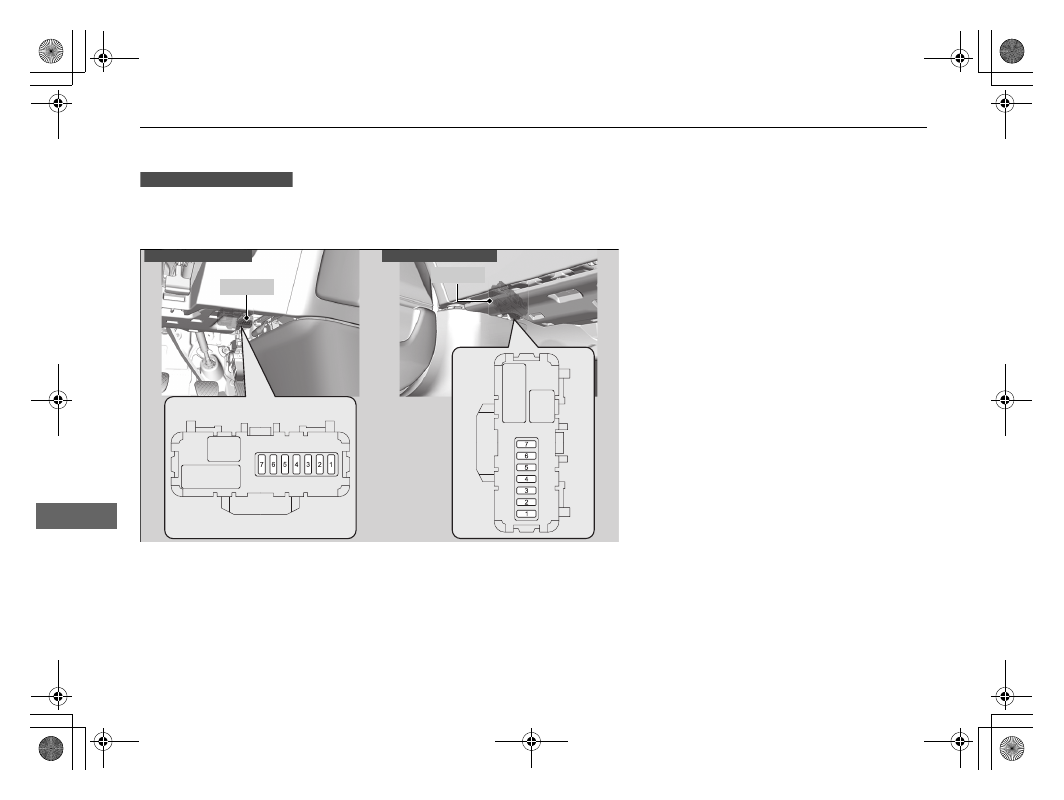

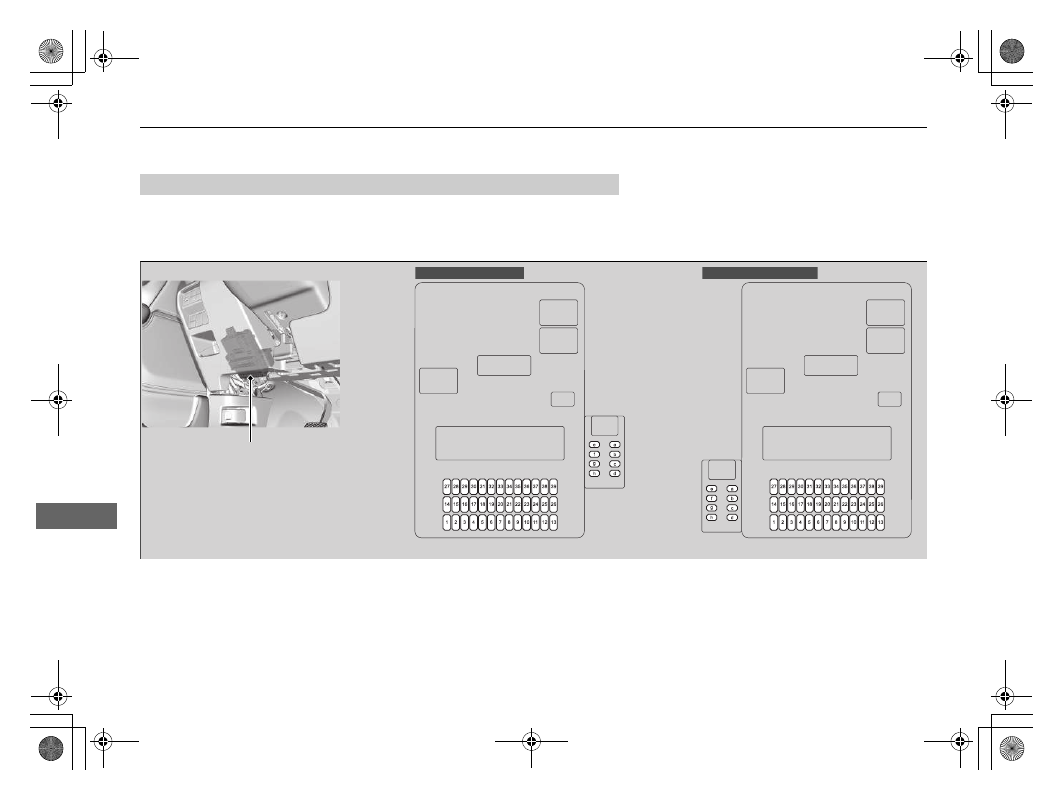

Fuse locations are shown on the image below.
Locate the fuse in question by the fuse number in the image and chart.

*1: Models with the keyless access system have an

ENGINE START/STOP

 button instead of an

ignition switch.

■

Engine Compartment Fuse Box

Fuse Box

Tab

757

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

DCDC1

*

30 A

EBB

40 A

MAIN FAN

30 A

R/MOD1

30 A

IG MAIN 2

*

30 A

R/MOD2

30 A

MAIN FUSE

125 A

2

EPS

70 A

IG MAIN

30 A

*1

50 A

*2

FUSE BOX OPTION

40 A

FUSE BOX MAIN

60 A

WIPER

30 A

SUB FAN

30 A

3

REAR DEMISTER

40 A

STARTER MOTOR

30 A

FUSE BOX MAIN2

40 A

ABS/VSA MOTOR

40 A

ABS/VSA FSR

40 A

BLOWER MOTOR

40 A

4

OP BLOCK 1

*

40 A

OP BLOCK 2

40 A

DCDC2

*

30 A

POWER TAILGATE

*

40 A

5

VB ACT

7.5 A

6

WASHER

15 A

7

IGP

15 A

8

FI SUB

15 A

9

STOP LIGHTS

10 A

10

INJECTOR

20 A

11

IGPS (LAF)

7.5 A

12

BACKUP FI ECU

10 A

13

FR R DEICER

*

15 A

14

HAZARD

10 A

15

IG COIL

15 A

16

TCU

*

15 A

17

HEADLIGHT WASHER

*

30 A

18

BACK UP

10 A

19

AUDIO

*

15 A

20

AWD

*

20 A

21

REAR SEAT HEATER

*

20 A

22

FR FOG

*

15 A

*3

10 A

*4

23

FI ECU MAIN

*5

A/C MG CLUTCH/USB

*6

20 A

VMP

*7

10 A

24

HORN

10 A

25

IGP2 (SUB)

7.5 A

26

−

−

27

BACKUP2

*

30 A

28

STARTER MOTOR

*

7.5 A

29

STARTER MOTOR

*

−

Circuit Protected

Amps

*1:Models with keyless access system
*2:Models without keyless access system
*3:Models with halogen front fog lights
*4:Models without halogen front fog lights
*5:Left-hand drive type with wireless

charger

*6:Right-hand drive type with wireless

charger

*7:Models without wireless charger

30

STARTER MOTOR

*

−

Circuit Protected

Amps

34

USB CHARGER

*

7.5 A

35

VMP

*

10 A

36

−

−

Circuit Protected

Amps

31

VMP

*

10 A

32

−

−

33

−

−

34

USB CHARGER

*

7.5 A

35

−

−

36

−

−

Circuit Protected

Amps

Left-hand drive type

Right-hand drive type with wireless charger

* Not available on all models

758

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

Located under the dashboard.
Fuse locations are shown on the image below.
Locate the fuse in question by the fuse number in the image and chart.

■

Interior Fuse Box

Fuse Box

Left-hand drive type

Right-hand drive type

759

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

ACCESSORY

10 A

2

ACC KEY LOCK

5 A

3

IG1 OPTION 3

10 A

4

IG1 OPTION 2

*1

IG1 TCU

*2, *3

5 A

10 A

5

IG1 OPTION

10 A

6

IG1 SRS 2

10 A

7

IG1 METER

10 A

8

IG1 FUEL PUMP

15 A

9

IG2 A/C

10 A

10

CTR ACCESSORY SOCKET

20 A

11

IG1 MONITOR

5 A

12

R SIDE DOOR LOCK

10 A

13

L SIDE DOOR UNLOCK

10 A

14

P/W RR L

20 A

15

P/W AS

20 A

16

DOOR LOCK

20 A

17

IG1 TCU

*1, *3

−

*1, *4

IG1 OPTION 2

*2

10 A

−

5 A

18

DR POWER LUMBAR

10 A

19

PANORAMIC ROOF

*

20 A

20

IG1 STARTER

10 A

21

IG1 ACG

10 A

22

IG2 DAYTIME LIGHT

10 A

23

REAR FOG LIGHT

10 A

24

+B OPTION

5 A

25

DR DOOR LOCK

10 A

26

R SIDE DOOR UNLOCK

10 A

27

P/W RR R

20 A

28

P/W DR

20 A

29

ACCESSORY SOCKET

(CARGO)

20 A

30

SMART

*1

STS

*2

10 A

5 A

31

DR P/SEAT RECLINE

*

20 A

32

FR HEATED SEAT

*

20 A

33

DR P/SEAT SLIDE

*

20 A

34

IG1 ABS/VSA

10 A

35

IG1 SRS

10 A

36

HAC OPTION

20 A

37

+B TRAILER

15 A

38

L SIDE DOOR LOCK

10 A

39

DR DOOR UNLOCK

10 A

a

PTG

*

20 A

b

AUDIO AMP

*

20 A

c

SUPER LOCKING

*

15 A

d

SUNSHADE

*

20 A

e

−

−

f

EPT L

20 A

g

EPT R

20 A

h

−

−

Circuit Protected

Amps

*1:Models with keyless access system
*2:Models without keyless access system
*3:Continuously variable transmission

models

*4:Manual transmission models

* Not available on all models

760

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

Located under the dashboard.
Fuse locations are shown on the image below.
Locate the fuse in question by the fuse number in the image and chart.

Models with Auto Idle Stop

Fuse Box

Left-hand drive type

Right-hand drive type

Fuse Box

761

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

VST ACC1

5 A

2

BACKUP2 MAIN

15 A

3

EOP

7.5 A

4

VSA

5 A

5

VSA1

7.5 A

6

METER VST

5 A

7

VSA2

7.5 A

762

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

Inspecting and Changing Fuses

1.

Turn the ignition switch to LOCK

(

0

*1

. Turn

headlights and all accessories off.

2.

Remove the fuse box cover.

3.

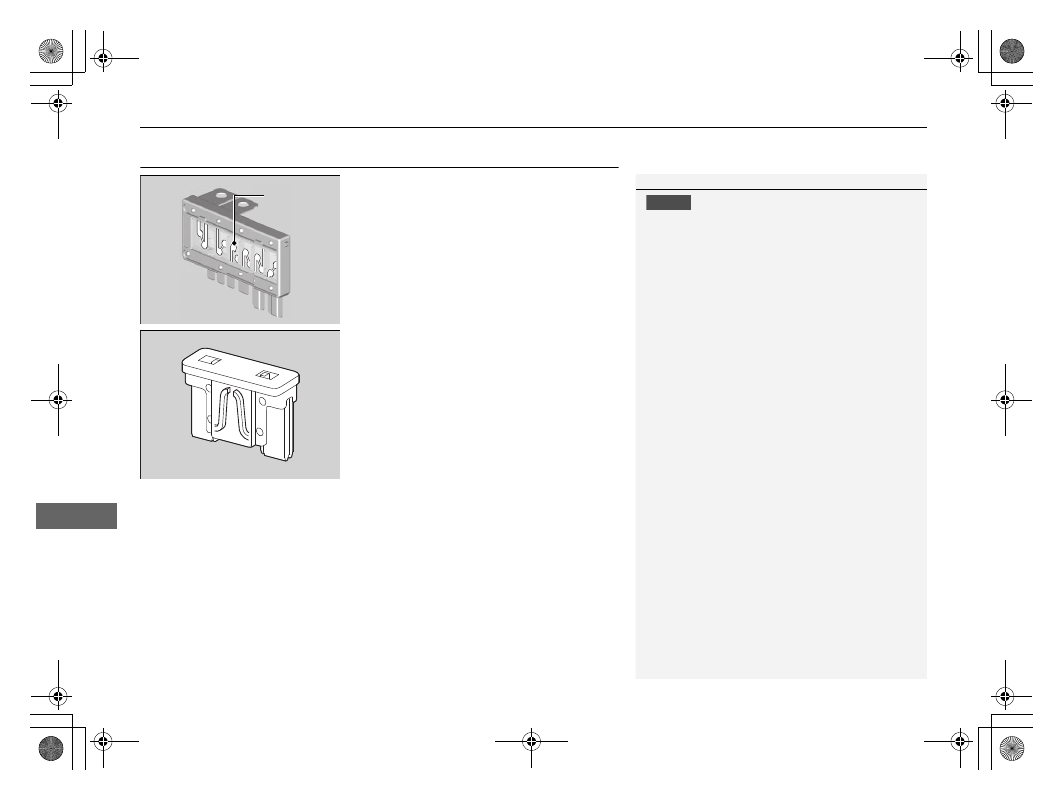

Check the large fuse in the engine
compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4.

Inspect the small fuses in the engine
compartment and the vehicle interior.

u

If there is a blown fuse, remove it and
replace it with a new one.

*1: Models with the keyless access system have an

ENGINE START/STOP

 button instead of an

ignition switch.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage.

2

Fuse Locations

 P. 756, 758

Combined
Fuse

Blown Fuse

763

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flat bed equipment

The operator loads your vehicle on the back of a truck.

This is the best way to transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tyres and lift them off
the ground. The rear tyres remain on the ground.

This is an acceptable way to

tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

Before towing your vehicle, deactivate the security
system’s tilt sensor if you have to set the system.

2

Security System Alarm

 P. 201

Right-hand drive type

All models

2WD models

764

Han

d

lin
g the U

n

expected

If You Cannot Open the Tailgate

If you cannot open the tailgate, use the
following procedure.

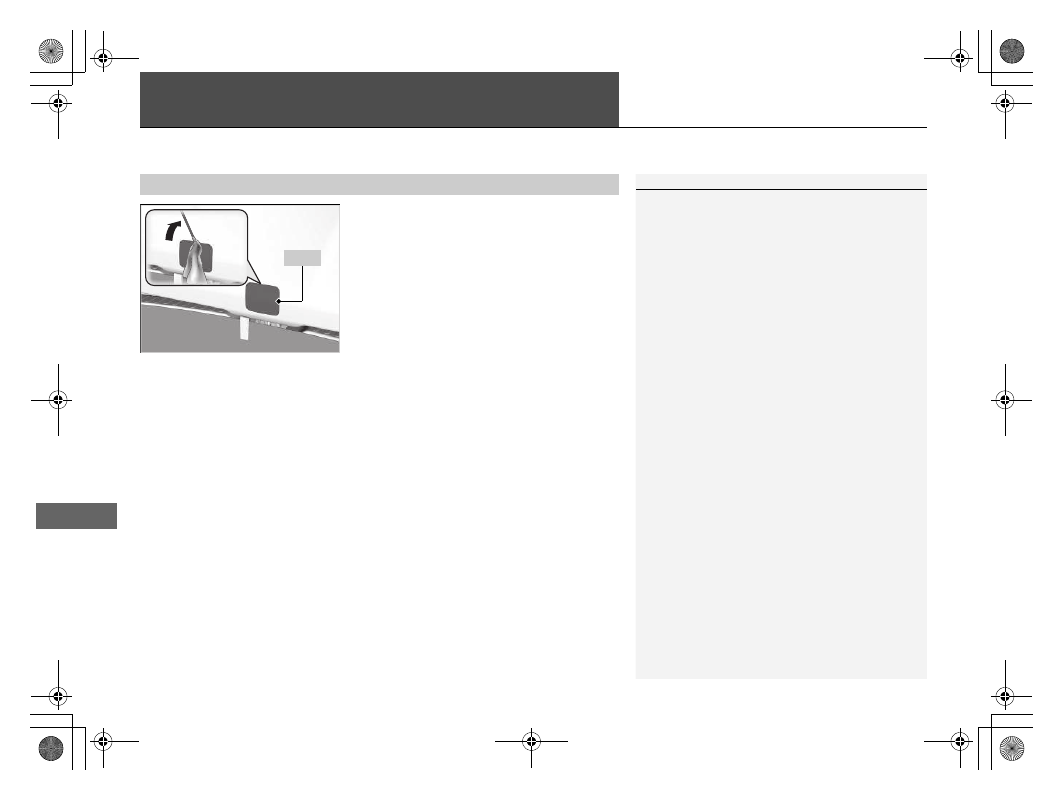

1.

Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.

u

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

■

What to Do If Unable to Open the Tailgate

1

What to Do If Unable to Open the Tailgate

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.

Cover

765

uu

If You Cannot Open the Tailgate

u

Han

d

lin
g the U

n

expected

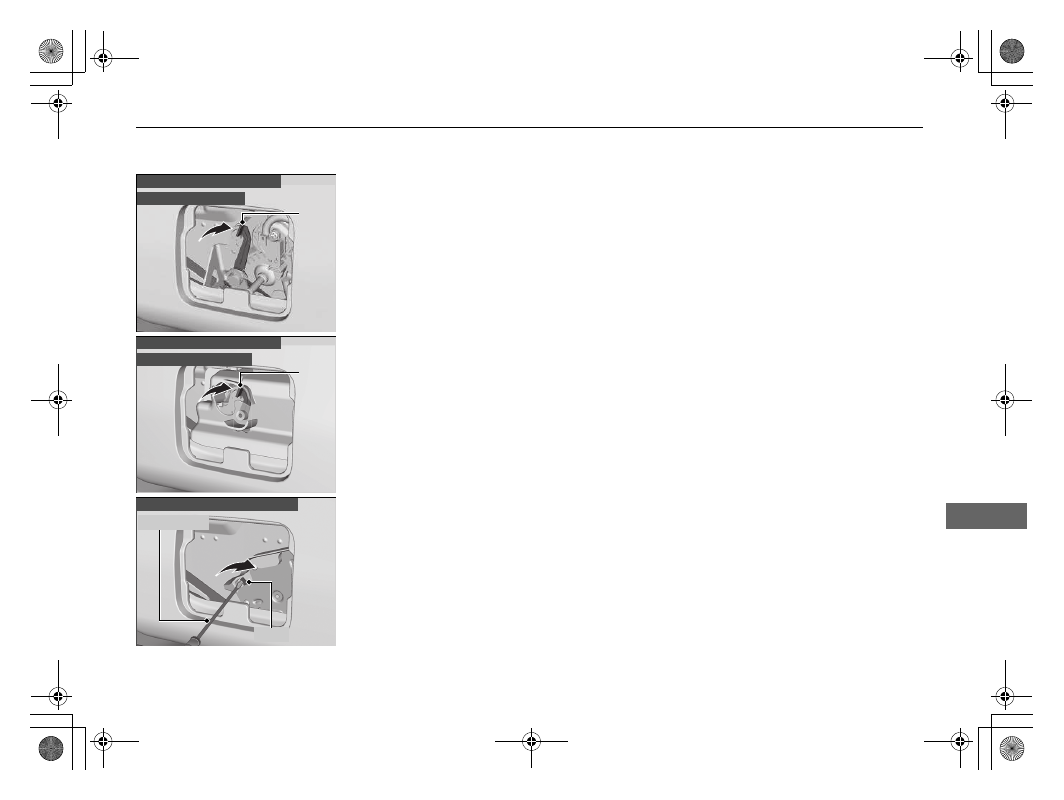

2.

To open the tailgate, push the tailgate
while pushing the lever to the right.

Models with power tailgate

Left-hand drive type

Lever

Models with power tailgate

Right-hand drive type

Lever

Models without power tailgate

Lever

Screwdriver

768

Info

rm

ation

Specifications

■

Vehicle Specifications

*1: 2WD models
*2: AWD models
*3: Continuously variable transmission models
*4: Manual transmission models
*5: Left-hand drive type
*6: Right-hand drive type

■

Engine Specifications

Model

CR-V

Curb Weight

1,501-1,523 kg (3,309-3,358 lbs)

*1

1,598-1,705 kg (3,523-3,759 lbs)

*2, *3

1,573-1,642 kg (3,468-3,620 lbs)

*2, *4

Maximum Permissible
Weight

See the certification label on the driver’s
doorjamb

*5

See the certification label on the front
passenger’s doorjamb

*6

Maximum Permissible
Axle Weight

See the certification label on the driver’s
doorjamb

*5

See the certification label on the front
passenger’s doorjamb

*6

Type

Water-cooled in-line 4-cylinder DOHC

Bore x Stroke

73 x 89.5 mm (2.87 x 3.52 in)

Displacement

1,498 cm

3

 (91.4 cu-in)

Compression Ratio

10.3 : 1

Spark Plugs

NGK

ILZKAR8J8SY

■

Fuel

■

Battery

Idle Stop:
The battery installed in this vehicle is specifically designed
for a model with Auto Idle Stop. If you need to replace the
battery, make sure to select the specified type (LN2). Ask a
dealer for more details.

■

Washer Fluid

*1: Right-hand drive type
*2: Left-hand drive type

Type

EN 228 standards petrol/gasohol fuel
Unleaded premium petrol/gasohol up to
E10 (90% petrol and 10% ethanol),
research octane number 95 or higher

Fuel Tank Capacity

57 L (12.5 Imp gal)

Capacity

48AH(5)/60AH(20)

Tank Capacity

2.5 L (2.2 Imp qt)

*1

4.4 L (3.9 Imp qt)

*2

■

Light Bulbs

Headlights (Low Beam)

LED

Headlights (High Beam)

LED

Front Fog Lights

*

LED

*

35 W (H8)

*

Front Turn Signal Lights

LED

Daytime Running Lights/Position Lights

LED

Active Cornering Lights

*

LED

Side Turn Signal Lights
(on Door Mirrors)

LED

Taillights

LED

Brake/Taillights

LED

Rear Turn Signal Lights

LED

Back-Up Lights

16 W

Rear Fog Light

LED

High-Mount Brake Light

LED

Rear Licence Plate Light

LED

Interior Lights

Front Map Light

LED

Rear Map Light

LED

Luggage Area Light(s)

5 W

Vanity Mirror Lights

*

1.4 W

Glove Box Light

*

3.4 W

Foot Lights

*

LED

Door Inner Handle Lights

*

LED

* Not available on all models















Content      ..     45      46      47      48     ..
