27

Quick

 Referenc

e Guide

Adjustable Speed Limiter

(P532)

●

This system enables you to set a maximum
speed that cannot be exceeded even if
you are depressing the accelerator pedal.

●

To use the adjustable speed limiter, press
the

MAIN

 button. Select the adjustable

speed limiter by pressing the

LIM

 button,

then press the

–/SET

 when your vehicle

reaches the desired speed.

●

The vehicle speed limit can be set from 30
km/h (18 mph) to 250 km/h (156 mph).

VSA On and Off

(P544)

●

The Vehicle Stability Assist (VSA) system
helps stabilise the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.

●

VSA comes on automatically every time
you start the engine.

●

To partially disable or fully restore VSA
function, press and hold the button until
you hear a beep.

Deflation Warning
System

(P547)

●

Detects a change in tyre conditions and
overall dimensions due to decrease in tyre
pressures.

●

Deflation warning system is turned on
automatically every time you start the
engine.

●

A initialisation procedure must be
performed when certain conditions arise.

CMBS On and Off

(P562)

●

When a possible collision is likely
unavoidable, the CMBS can help you to
reduce the vehicle speed and the severity
of the collision.

●

The CMBS is turned on every time you
start the engine.

●

To turn the CMBS on or off, press and
hold the button until you hear a beep.

*

 Not available on all models

28

Quick

 Referenc

e Guide

Refueling

(P650)

a

Pull the fuel fill door release handle.

b

Turn the fuel fill cap slowly to remove the cap.

c

Place the cap in the holder on the fuel fill door.

d

After refueling, screw the cap back on until it
clicks at least once.

Fuel recommendation:

EN 228 standards petrol/gasohol fuel
Unleaded premium petrol/gasohol up to E10 (90% petrol and 10% ethanol), research octane
number 95 or higher

Fuel tank capacity: 57 L

29

Quick

 Referenc

e Guide

Honda Sensing

(P555)

Honda Sensing is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windscreen, behind the rearview mirror.

Front Sensor
Camera

The camera is located
behind the rearview
mirror.

Radar Sensor

The radar sensor is in
the front grille.

Collision Mitigation
Braking System (CMBS)

(P 558)

Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimise collision severity when a collision is
deemed unavoidable.

Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)

*



(P 569)

Helps to maintain a constant vehicle speed
and a set following interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.

Adaptive Cruise Control
(ACC)

*

(P 586)

Helps to maintain a constant vehicle speed
and a set following interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.

Lane Keeping Assist
System (LKAS)

(P 601)

Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.

Road Departure
Mitigation System

(P 609)

Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.

Traffic Sign Recognition
System

(P 615)

Reminds you of road sign information, such as
the current speed limit and that overtaking is
prohibited, your vehicle has just passed
through, showing it on the driver information
interface and the head-up display

*

.

*

 Not available on all models

30

Quick

 Referenc

e Guide

Maintenance

(P655)

Under the Bonnet

(P678)

●

Check engine oil, engine coolant, and windscreen washer
fluid. Add when necessary.

●

Check brake/clutch

*

 fluid.

●

Check the battery condition monthly.

a

Pull the bonnet release handle under the driver’s side
lower outside corner of the dashboard.

b

Locate the bonnet latch lever, push it to the side, and then
raise the bonnet. Once you have raised the bonnet slightly,
you can release the lever.

c

When finished, close the bonnet and make sure it is firmly
locked in place.

Lights

(P692)

●

Inspect all lights regularly.

Wiper Blades

(P700)

●

Replace blades if they leave streaks
across the windscreen.

Tyres

(P705)

●

Inspect tyres and wheels
regularly.

●

Check tyre pressures
regularly.

●

Install winter tyres for
winter driving.

Quick

 Referenc

e Guide

31

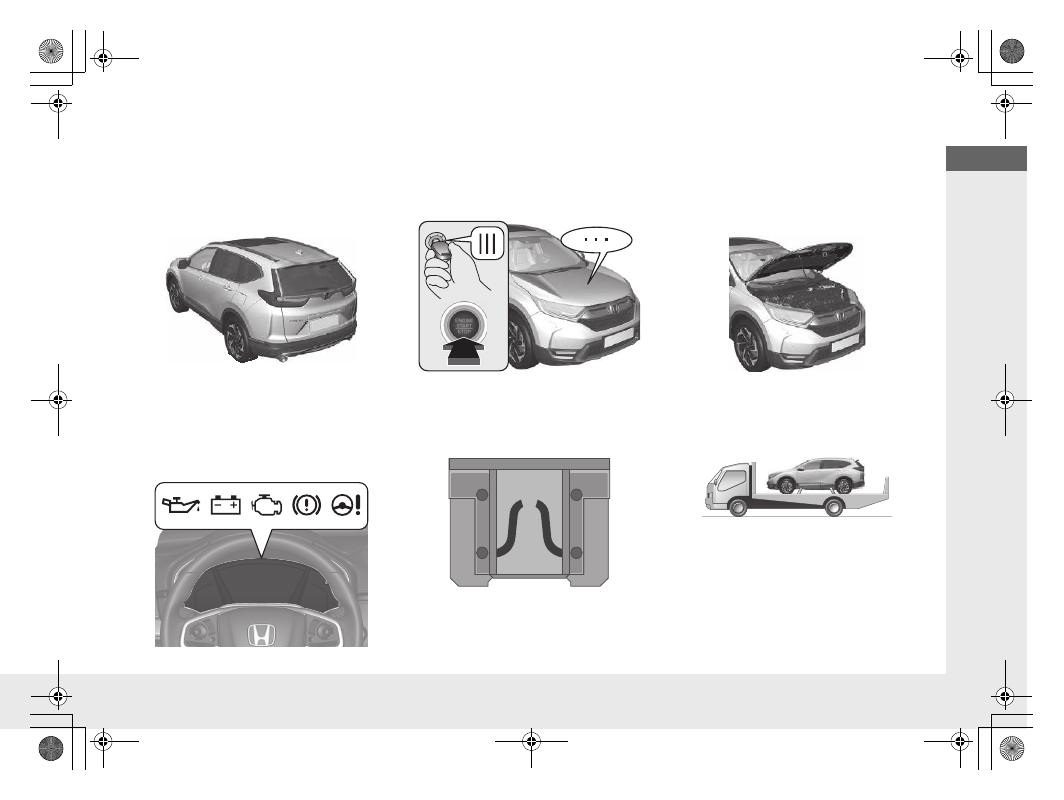

Handling the Unexpected

(P729)

Flat Tyre

(P732)

●

Park in a safe location and replace the
flat tyre with the compact spare tyre in
the luggage area.

Indicators Come On

(P749)

●

Identify the indicator and consult the
owner’s manual.

Engine Won’t Start

(P741)

●

If the battery is dead, jump start using a
booster battery.

Blown Fuse

(P756)

●

Check for a blown fuse if an electrical
device does not operate.

Overheating

(P747)

●

Park in a safe location. If you do not see
steam under the bonnet, open the
bonnet, and let the engine cool down.

Emergency Towing

(P763)

●

Call a professional towing service if you
need to tow your vehicle.

*

 Not available on all models

32

Quick

 Referenc

e Guide

What to Do If

The ignition switch does not turn from

(

0

 to

(

q

. Why?

The power mode does not change from
VEHICLE OFF (LOCK) to ACCESSORY.
Why?

●

The steering wheel may be
locked.

●

Try to turn the steering wheel
left and right while turning the
ignition key.

●

Move the steering wheel left and right after
pressing the

ENGINE START/STOP

 button.

The ignition switch does not turn from

(

q

 to

(

0

 and I cannot remove the key.

Why?

The power mode does not change from
ACCESSORY to VEHICLE OFF (LOCK).
Why?

The shift lever should be moved to

(

P

.

Models without keyless access system

Models with keyless access system

Models without keyless access system

Models with keyless access system

Continuously variable transmission models without
keyless access system

Continuously variable transmission models with
keyless access system

Continuously variable transmission models

33

Quick

 Referenc

e Guide

Why does the brake pedal pulsate
slightly when applying the brakes?

This can occur when the ABS activates and does not
indicate a problem. Apply firm, steady pressure on
the brake pedal. Never pump the brake pedal.

2

Anti-lock Brake System (ABS)

(P 634)

The rear door cannot be opened from
inside the vehicle. Why?

Check if the childproof
lock is in the lock position.
If so, open the rear door
with the outside door
handle.
To cancel this function,
slide the lever up to the
unlock position.

Why do the doors lock after I unlocked
the doors?

If you do not open the doors within 30 seconds, the
doors are relocked automatically for security.

Why does the beeper sound when I
open the driver’s door?

The beeper sounds when:

●

The exterior lights are left on.

●

The Auto Idle Stop

*

 is in operation.

●

The power mode is in ACCESSORY.

Models with keyless access system

*

 Not available on all models

34

Quick

 Referenc

e Guide

Why does the beeper
sound when I start driving?

The beeper sounds when the driver and/or any passengers are
not wearing their seat belts.

Pressing the electric
parking brake switch does
not release the parking
brake. Why?

Press the electric parking brake switch with the brake pedal
depressed.

Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?

•

Fasten the driver’s seat belt.

•

Check if the transmission is in

(

P

*

 or

(

N

. If so, select any other

position.

Why do I hear a screeching
sound when I apply the
brake pedal?

The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.

I’m seeing an amber
indicator of a tyre with an
exclamation point. What is
that?

The Deflation Warning System needs attention. If you recently
inflated or changed a tyre, you have to reinitialise the system.

2

Deflation Warning System

(P 547)

35

Quick

 Referenc

e Guide

Is it possible to use
unleaded petrol with a
Research Octane Number
(RON) of 91 or higher on
this vehicle?

Your vehicle is designed to operate on premium unleaded
petrol with a research octane of 95 or higher. If this octane
grade is unavailable, regular unleaded petrol with a research
octane of 91 or higher may be used temporarily.
The use of regular unleaded petrol can cause metallic knocking
noises in the engine and will result in decreased engine
performance. The long-term use of regular-grade petrol can
lead to engine damage.

*

 Not available on all models

38

Safe Driving

For Safe Driving

The following pages explain your vehicle’s safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.

Important Safety Precautions

■

Always wear your seat belt

A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.

■

Restrain all children

Children aged 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children should be restrained in a child restraint system.
Larger children should use a booster seat and a lap/shoulder seat belt until they can
use the belt properly without a booster seat.

■

Be aware of airbag hazards

While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not properly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.

■

Don’t drink and drive

Alcohol and driving don’t mix. Even one drink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either.

1

For Safe Driving

Some countries prohibit the use of mobile phones
other than hands-free devices by the driver while
driving.

39

uu

For Safe Driving

u

Important Safety Precautions

Safe Driving

■

Pay appropriate attention to the task of driving safely

Engaging in mobile phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.

■

Control your speed

Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.

■

Keep your vehicle in safe condition

Having a tyre blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tyre pressures and condition
frequently, and perform all regularly scheduled maintenance.

■

Do not leave children unattended in the vehicle

Children, pets and people needing assistance left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in which they and/or another person(s) can be
injured or killed. Also, depending on the ambient temperature, the temperature of
the interior may reach extreme levels, which can result in harm or death.
Even if the climate control system is on, never leave them in the vehicle unattended
as the climate control system can shut off at any time.

40

uu

For Safe Driving

u

Important Handling Information

Safe Driving

Important Handling Information

Your vehicle has higher ground clearance than a passenger vehicle designed for use
only on pavement. Higher ground clearance has many advantages for off-road
driving. It allows you to travel over bumps, obstacles, and rough terrain. It also
provides good visibility so you can anticipate problems earlier.

These advantages come at some cost. Because your vehicle is taller and rides higher
off the ground, it has a higher centre gravity making it more susceptible to tipping
or roll over if you make abrupt turns. Utility vehicles have a significantly higher
rollover rate than other types of vehicles. In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a seat belt. As a reminder,
make sure you and your passengers always wear seat belts.

1

Important Handling Information

For information on how to reduce the risk of rollover,
read:

2

Precautions While Driving

 P. 516

2

Off-road Guidelines

 P. 508

Failure to operate your vehicle correctly might result
in a crash or a rollover.

In many countries, the law prohibits off-road driving,
e. g. driving in forests, trailblazing, etc. Please check
your local laws and regulations before commencing
any off-road driving activity.

41

uu

For Safe Driving

u

Your Vehicle’s Safety Features

Safe Driving

Your Vehicle’s Safety Features

The following checklist will help you take an active role in protecting yourself and
your passengers.

1

Your Vehicle’s Safety Features

Your vehicle is equipped with many features that
work together to help to protect you and your
passengers during a crash.

Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zones, a collapsible steering
column, and tensioners that tighten the front seat
belts in a sufficient crash.

However, you and your passengers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.

Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags

Side Curtain Airbags
Seat Belt Tensioners/Seat Belt
e-pretensioners (Front seats)

Side Airbags

8

9

6

7

8

7

6

7

8

9

10

10

9

10

42

uu

For Safe Driving

u

Safety Checklist

Safe Driving

Safety Checklist

For the safety of you and your passengers, make a habit of checking these items
each time before you drive.

•

Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.

2

Seats

 P. 246

•

Adjust head restraints to the proper position. Head restraints are most effective
when the centre of the head restraint aligns with the centre of your head. Taller
persons should adjust their head restraint to the highest position.

2

Adjusting the Front Head Restraints

 P. 260

•

Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.

2

Fastening a Seat Belt

 P. 49

•

Protect children by using seat belts or child restraint systems according to a child’s
age, height and weight.

2

Child Safety

 P. 70

1

Safety Checklist

If the door and/or tailgate open message appears on
the driver information interface, a door and/or the
tailgate is not completely closed. Close all doors and
the tailgate tightly until the message disappears.

2

Driver Information Interface Warning and
Information Messages

 P. 122

43

Continued

Safe Driving

Seat Belts

About Your Seat Belts

Seat belts are the single most effective safety device because they keep you
connected to the vehicle so that you can take advantage of many built-in safety
features. They also help to keep you from being thrown against the inside of the
vehicle, against any passengers, or out of the vehicle. When worn properly, seat
belts also keep your body properly positioned in a crash so that you can take full
advantage of the additional protection provided by the airbags.

In addition, seat belts help to protect you in almost every type of crash, including:

-

frontal impacts

-

side impacts

-

rear impacts

-

rollovers

1

About Your Seat Belts

WARNING:

Seat belts are designed to bear upon the

bony structure of the body, and should be worn low
across the front of the pelvis or the pelvis, chest and
shoulders, as applicable; wearing the lap section of
the belt across the abdominal area must be avoided.

WARNING:

Seat belts should be adjusted as firmly as

possible, consistent with comfort, to provide the
protection for which they have been designed. A
slack belt will greatly reduce the protection afforded
to the wearer.

WARNING:

Belts should not be worn with straps

twisted.

WARNING:

Each belt assembly must only be used by

one occupant; it is dangerous to put a belt around a
child being carried on the occupant’s lap.

3

WARNING

Not wearing a seat belt properly increases
the chance of serious injury or death in a
crash, even though your vehicle has
airbags.

Be sure you and your passengers always
wear seat belts and wear them properly.















Content      ..      1      2      3      ..
