Honda Ridgeline (2019 year). Instruction - part 38





593

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

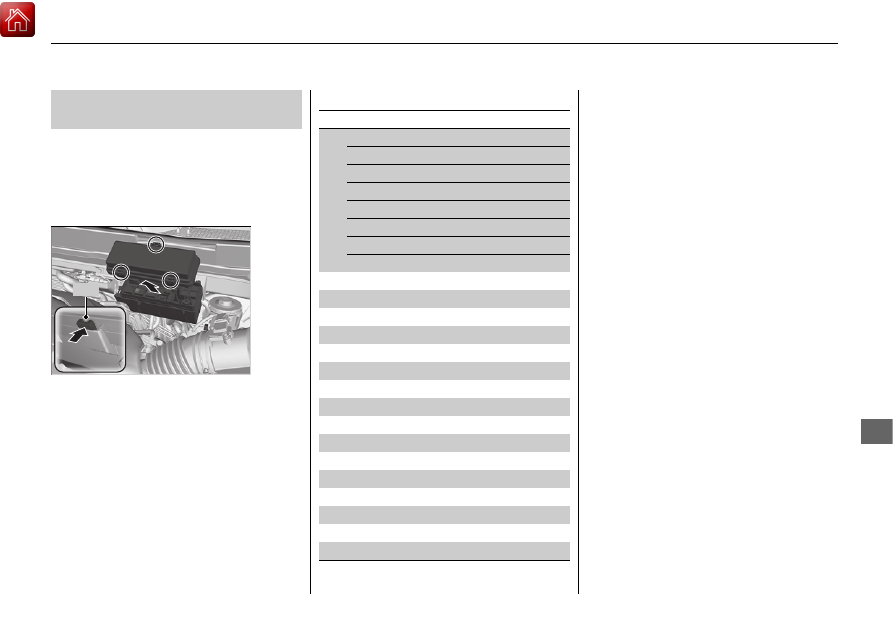

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.

Engine Compartment Fuse
Box Type B

Tab

Circuit protected and fuse rating

Circuit Protected

Amps

1

ST CUT1

40 A

4WD

(20 A)

IG MAIN

30 A

IG MAIN2

30 A

F/B MAIN2

60 A

F/B MAIN

60 A

EPS

60 A

2

3

TRL E-BRAKE

(20 A)

4

BMS

7.5  A

5

H/L HI MAIN

20 A

6

+B TRL HAZARD

(7.5 A)

7

+B TRL BACKUP

(7.5 A)

8

CTR ACC SOCKET

20 A

9

TRAILER SMALL

(20 A)

10

ACC/IG2_MAIN

10 A

11

TRL CHARGE

(20 A)

12

13

14

15

FR DE-ICER

(15 A)

16

RR _HTD SEAT

(20 A)

17

STRLD

7.5 A

594

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

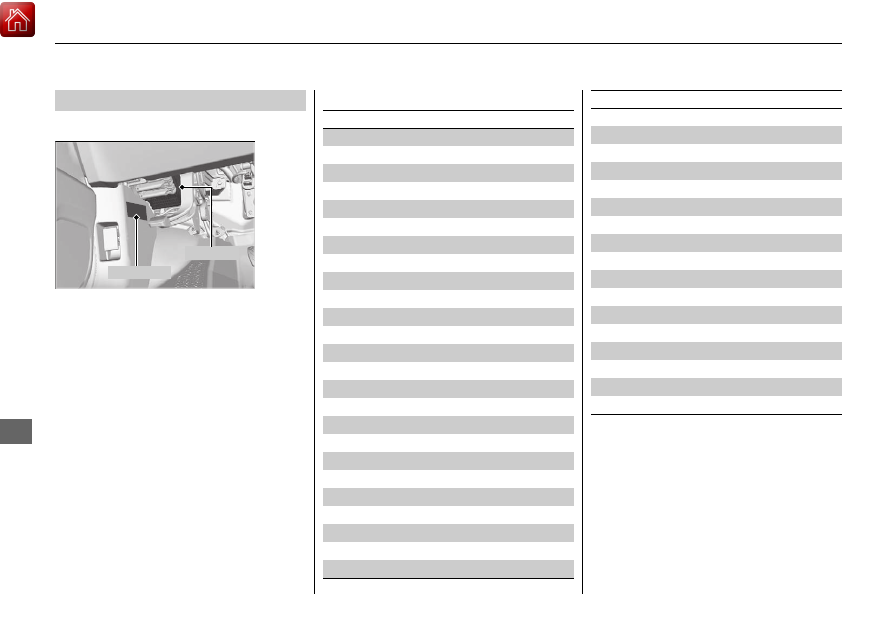

Located under the dashboard.

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

Interior Fuse Box

Fuse Box

Fuse Label

Circuit protected and fuse rating

Circuit Protected

Amps

1

DR P/W

20 A

2

DOOR LOCK

20 A

3

SMART

7.5 A

4

AS P/W

20 A

5

FR ACC SOCKET

20 A

6

FUEL PUMP

20 A

7

ACG

15 A

8

FRONT WIPER

7.5 A

9

ABS/VSA

7.5 A

10

SRS

10 A

11

REAR LEFT P/W

20 A

12

BACK P/W

(20 A)

13

REAR RIGHT P/W

20 A

14

S/R FUEL LID

20 A

15

DR P/SEAT (REC)

(20 A)

16

CARGO LT

7.5 A

17

FR SEAT HEATER

(20 A)

18

INTR LT

7.5 A

19

DR REAR DOOR UNLOCK

10 A

20

AS SIDE DOOR UNLOCK

10 A

21

DRL

7.5 A

22

KEY LOCK

7.5 A

23

A/C

7.5 A

24

IG1a FEED BACK

7.5 A

25

INST PANEL LIGHTS

7.5 A

26

LUMBAR SUPPORT

(7.5 A)

27

PARKING LIGHTS

7.5 A

28

OPTION

10 A

29

METER

7.5 A

30

31

MISS SOL

7.5 A

32

SRS

7.5 A

33

AS SIDE DOOR LOCK

10 A

34

DR DOOR LOCK

10 A

35

DR DOOR UNLOCK

10 A

36

DR P/SEAT (SLIDE)

(20 A)

37

RIGHT H/L HI

10 A

38

LEFT H/L HI

10 A

39

IG1b FEED BACK

7.5 A

40

ACC

7.5 A

41

DR REAR DOOR LOCK

10 A

42

Circuit Protected

Amps

595

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

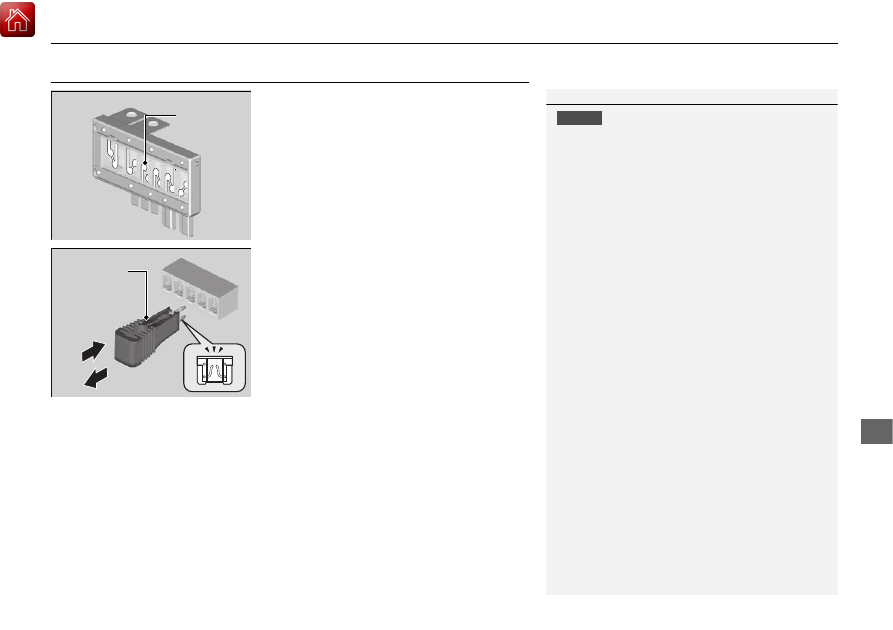

Inspecting and Changing Fuses

1. Set the power mode to VEHICLE OFF

(LOCK). Turn headlights and all accessories
off.

2. Remove the fuse box cover.
3. Check the large fuse in the engine

compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

u

If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 591 to  P. 594.

There is a fuse puller in the engine compartment fuse
box located on the passenger’s side.

Combined
Fuse

Blown Fuse

Fuse Puller

596

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

All models

2WD models

597

Han

d

lin
g the U

n

expected

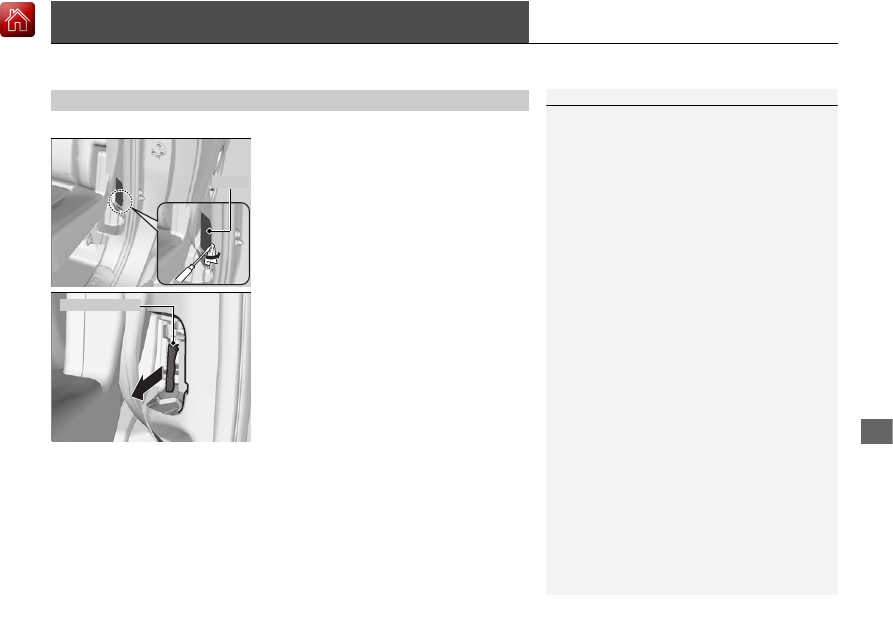

When You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure.

1. Open the rear driver side door.
2. Wrap a cloth around the tip of a small flat-

tip screwdriver. Put it into the cover slot as
shown in the image, and remove the cover.

3. Pull the release lever toward you.

u

The release lever unlocks the fuel fill door
when it is pulled.

What to Do When Unable to Unlock the Fuel Fill Door

1

What to Do When Unable to Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Release Lever

598

Han

d

lin
g the U

n

expected

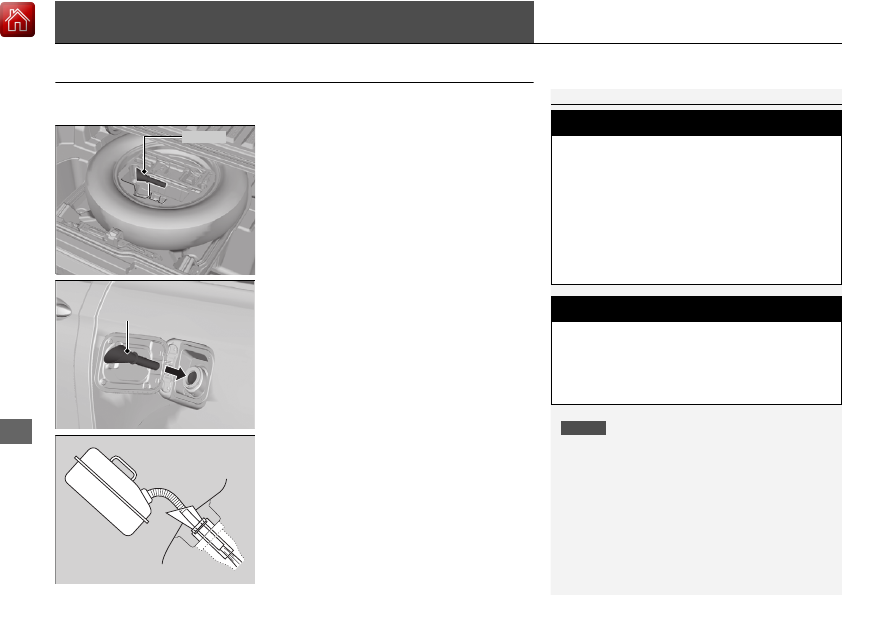

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1. Turn off the engine.
2. Press the fuel fill door release button.

u

The fuel fill door opens.

3. Open the trunk and pull out the tire tray

with the handles.

Getting Ready to Replace the Flat Tire

P. 570

4. Remove the funnel from the tool box.

5. Place the end of the funnel on the lower

part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

6. Fill the tank with fuel from the portable fuel

container.

u

Pour fuel carefully so you do not spill any.

7. Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

8. Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the filler opening
with foreign objects. This can damage the filler
opening and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

3

WARNING

Do not fill a portable fuel container in the
pickup bed.
Static electricity can ignite gas vapors and
you can be burned.

Funnel

Funnel

599

uu

Refueling

u

Refueling From a Portable Fuel Container

Han

d

lin
g the U

n

expected

1

Refueling From a Portable Fuel Container

Your vehicle has a warning label for filling a portable
fuel container on the left rear side of the pickup bed.

Whenever filling a fuel container, use an approved
fuel container, and place it on the ground. Do not fill
the fuel container in the vehicle, including the pickup
bed and the trunk. Make sure to put the fuel pump
nozzle in the fuel filler of the container securely and
to handle it properly.

602

Info

rm

ation

Specifications

Vehicle Specifications

*1: Models with AWD
*2: Models with 2WD

Air Conditioning

Model

Ridgeline

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

6019 lbs (2730 kg)

*1

5710 lbs (2590 kg)

*2

Gross Axle Weight
Rating (Front)

3131 lbs (1420 kg)

*1

3042 lbs (1380 kg)

*2

Gross Axle Weight
Rating (Rear)

3219 lbs (1460 kg)

*1

3042 lbs (1380 kg)

*2

Gross Combined Weight
Rating

9987 lbs (4530 kg)

*1

8201 lbs (3720 kg)

*2

Air Conditioning:
Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

20.3 – 22.0 oz (575 – 625 g)

Lubricant Type

RL85HM (POE)

Quantity

7.5 – 8.7 cu-in (123 – 143 cm

3

)

Engine Specifications

Fuel

Washer Fluid

Displacement

211.8 cu-in (3,471 cm

3

)

Spark Plugs

NGK

DILZKR7B11G

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

19.5 US gal (73.8 L)

Tank Capacity

U.S.: 1.0 US gal (3.8 L)
Canada: 1.4 US gal (5.3 L)

Light Bulbs

*1: Models with LED low beam headlights
*2: Models without LED low beam headlights
*3: Models with LED day time running lights
*4: Models without LED day time running lights
*5: Models with moonroof
*6: Models without moonroof

Headlights (Low Beam)

LED

*1

55 W

*2

 (H11)

Headlights (High Beam)

60W (HB3)

Fog Lights

*

35 W (H8)

Front Turn Signal/Parking Lights

*

28/8 W (Amber)

Parking Lights

*

LED

Front Side Marker Lights

LED

Daytime Running Lights

LED

*3

60W (HB3)

*4

Side Turn Signal Lights (on Door Mirrors)

*

LED

Rear Side Marker Lights

LED

Brake/Taillights

LED

Back-Up Lights

21 W

Rear Turn Signal Lights

21 W

High-Mount Brake Light

LED

Rear License Plate Lights

5 W

Bed Lights

LED

*1

3CP

*2

Interior Lights

Front Map Lights

LED

*5

5 W

*6

Rear Map Lights

5 W

Vanity Mirror Lights

*

1.4 W

Door Pocket Lights

*

LED

Beverage Holder Light

*

LED

Door Courtesy Lights

*

3.8 W

Door Inner Handle Lights

*

LED

Console Compartment Light

1.4 W

Glove Box Light

1.4 W

Foot Lights

*

LED

* Not available on all models

603

uu

Specifications

u

Info

rm

ation

Brake Fluid

Automatic Transmission Fluid

Rear Differential Fluid

*

Transfer Assembly Fluid

*

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda ATF DW-1 (automatic transmission fluid)

Capacity

Change

3.3 US qt (3.1 L)

Specified

Honda All Wheel Drive Fluid (DPSF-II)

Capacity

Change

1.92 US qt (1.82 L)

Specified

·Honda Hypoid Gear Oil HGO-1
·Hypoid gear oil SAE 75W-85 or SAE 90 (API
grade GL4 or GL5)

Capacity

Change

0.45 US qt (0.43 L)

Engine Oil

Engine Coolant

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

5.4 US qt (5.1 L)

Change
including
filter

5.7 US qt (5.4 L)

Specified

Honda Long Life Antifreeze/Coolant Type 2

Ratio

50/50 with distilled water

Capacity

1.88 US gal (7.13 L)
(change including the remaining 0.19 US gal
(0.72 L) in the reserve tank)

Tire

Regular

Size

245/60R18 105H

Pressure
psi (kPa [kgf/cm

2

])

35 (240 [2.4])

Compact
Spare

Size

T165/90R17 105M

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

18 x 8J

Compact Spare

17 x 4T

* Not available on all models

604

Info

rm

ation

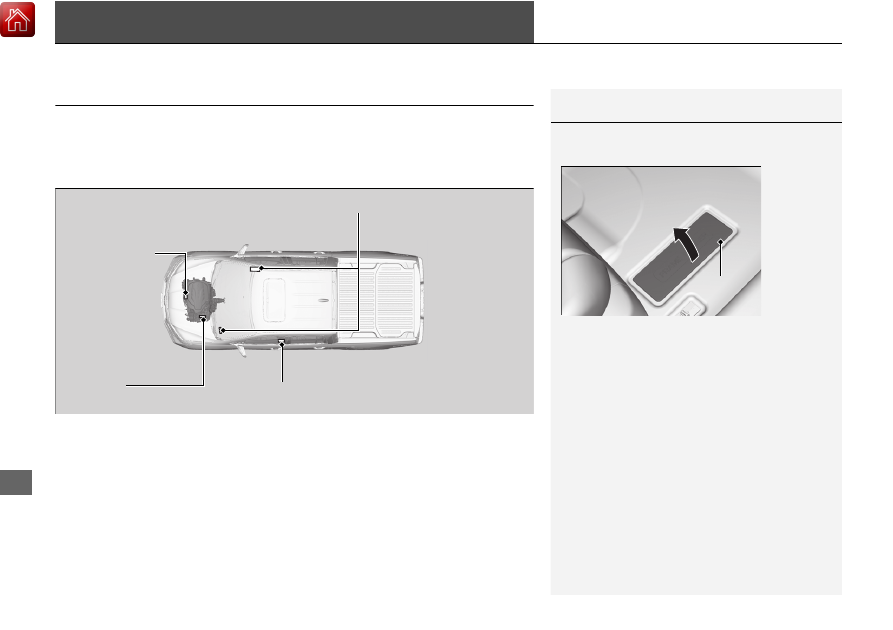

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows.

1

Vehicle Identification Number (VIN), Engine Number, and
Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Cover

Vehicle Identification Number

Engine Number

Certification Label/Vehicle Identification Number

Automatic
Transmission Number

605

Info

rm

ation

Devices that Emit Radio Waves

The following products and systems on your vehicle emit radio waves when in operation.

Each of the above complies with the appropriate requirements or the required standards of FCC (Federal Communications Commission)
and Industry Canada Standard, described below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.

This device complies with industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.

HondaLink

*

Audio System
Blind spot information System

*

Bluetooth® Audio
Bluetooth® HandsFreeLink®
HomeLink® Universal Transceiver

*

Collision Mitigation Braking System

TM*

Immobilizer System
Remote Transmitter
Smart Entry System

*

Tire Pressure Monitoring System (TPMS)
Remote Engine Start System

*

* Not available on all models

606

Info

rm

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov
.

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety
.

607

Continued

Info

rm

ation

Emissions Testing

Testing of Readiness Codes

Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.

To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.

If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:

1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20

seconds.

5. Keep the vehicle in

(

P. Increase the engine speed to 2,000 rpm, and hold it there

for about 3 minutes.

6. Let the engine idle with your foot off the accelerator for 20 seconds.

1

Testing of Readiness Codes

The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.

If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.

If the testing facility determines the readiness codes
are still not set, see a dealer.

608

uu

Emissions Testing

u

Testing of Readiness Codes

Info

rm

ation

7. Select a nearby, lightly traveled major highway where you can maintain a speed

of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in

(

D. Do not use cruise control. When traffic allows, drive for 90 seconds without

moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).

8. Drive in city or suburban traffic for at least 10 minutes. When traffic conditions

allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.

9. Park the vehicle and leave the engine off for 30 minutes.

609

Continued

Info

rm

ation

Warranty Coverages

U.S. Owners

Your new vehicle is covered by these warranties:

New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessories, against defects in materials and
workmanship.

Emissions Control Systems Defects Warranty and Emissions Performance
Warranty –
 these two warranties cover your vehicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.

Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.

Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.

Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.

Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.

610

uu

Warranty Coverages

u

Info

rm

ation

Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.

Replacement Muffler Lifetime Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.

Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.

Canadian Owners

Please refer to the warranty manual that came with your vehicle.

EPA Contact Information

An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:

U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Light-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: complianceinfo@epa.gov















Content   ..  36  37  38  39   ..
