Climate Control System

Rear Climate Control System

Continued

Co
ntrols

Rear Climate Control System

Use the system when the engine is running and the climate control system is
operating.

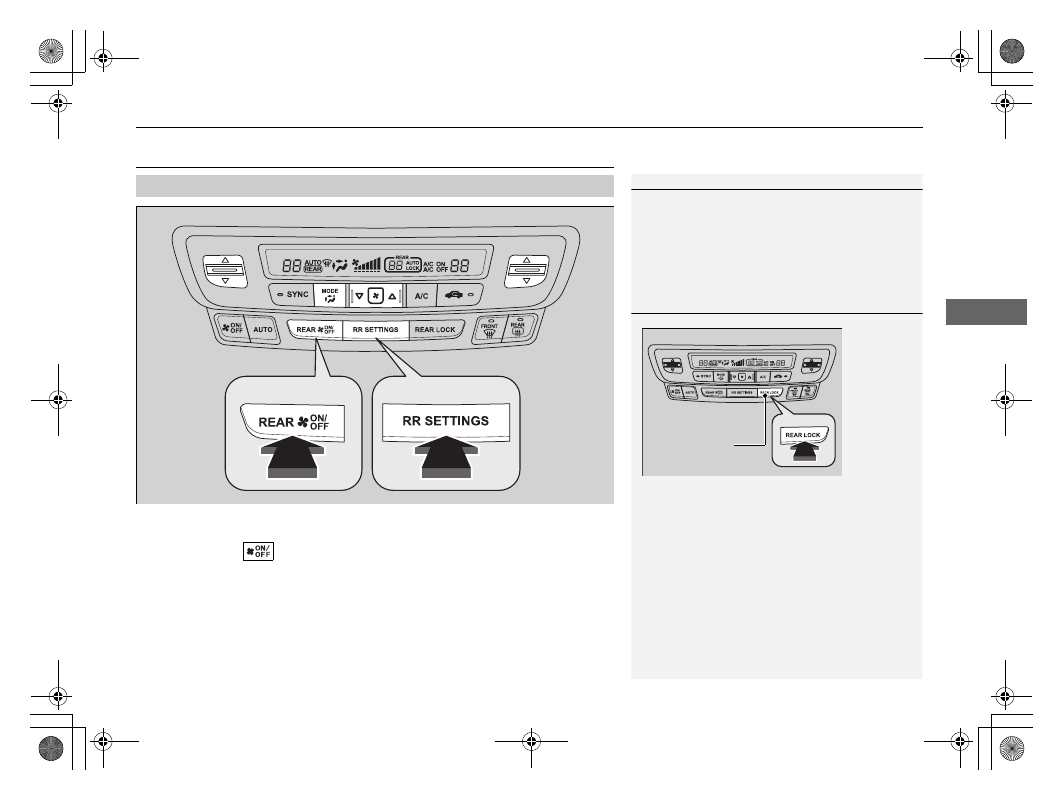

1. Press the REAR

(Rear On/Off) button.

2. Press the RR SETTINGS button.

The system switches to the rear control mode for 10 seconds. The REAR
indicator appears on the display.

■

Using the Rear Climate Control System From the Front Panel

Rear Climate Control System

LOCK appears on the rear control panel while the
rear lock is on.

If the rear lock is on while in SYNC mode, the rear
control panel is disabled. LOCK SYNC appears on the
rear control panel.

Using the Rear Climate Control System From the Front Panel

Press the REAR LOCK button to turn the rear lock
mode on and off.
While the rear lock mode is on, the rear control panel
is disabled.

REAR LOCK appears on the display.

REAR LOCK
Button

(Rear On/Off) Button

RR SETTINGS Button

Climate Control System

Rear Climate Control System

240

Co
ntrols

3. Press the AUTO button.

The rear system changes to AUTO mode.

The system automatically adjusts the fan speed and airflow levels to maintain
the set rear temperature. Change the temperature if necessary.

4. To turn off the rear climate control system, press the

(Rear On/Off) button.

Use the system when the engine is running and the climate control system is
operating.
1. Press the

(Rear On/Off) button.

2. Press the Rear AUTO button.
3. Adjust the interior temperature using the rear temperature control button.
4. To turn off the rear climate control system, press the

button.

■

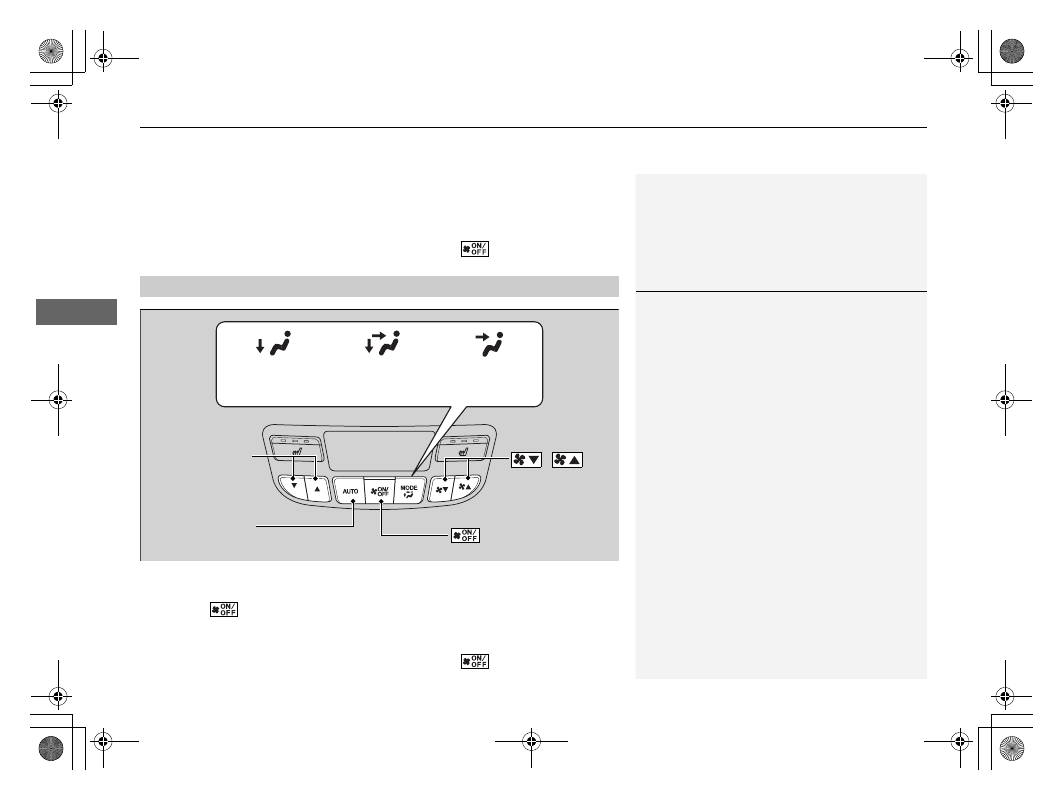

Using the Rear Climate Control System From the Rear Panel

Using the Rear Climate Control System From the Rear Panel

When the REAR LOCK button on the front control
panel is off, the temperature of the rear passenger
compartment can be controlled independently.

Rear floor
vents

Rear console
vents and
floor vents

Rear console
vents

(Rear Fan
Control) Buttons

(Rear On/Off) Button

Rear Temperature
Control Buttons

Rear AUTO Button

244

Features

Audio System

About Your Audio System

The audio system features AM/FM radio and SiriusXM® Radio

service. It can also

play audio CDs

, WMA/MP3/AAC files

, USB flash drives, and iPod, iPhone, iPad

and Bluetooth® devices.

You can operate the audio system from the buttons

and knobs on the panel, the

remote controls on the steering wheel, or the icons on the touchscreen interface

About Your Audio System

SiriusXM® Radio is available on a subscription basis
only. For more information on SiriusXM® Radio,
contact a dealer.

2 General Information on the Audio System

P. 353

SiriusXM® Radio is available in the United States and
Canada, except Hawaii, Alaska, and Puerto Rico.

SiriusXM® is a registered trademark of SiriusXM
Radio, Inc.

Video CDs and 3-inch (8-cm) mini CDs are not
supported.

iPod, iPad, iPhone and iTunes are trademarks of
Apple Inc.

State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.

After you set the power mode to VEHICLE OFF, you
can use the audio system for up to 30 minutes per
driving cycle, or until opening the driver's door.
However, whether you can continue using the audio
system depends on the battery condition. Repeatedly
using this feature may drain the battery.

Models with Blu-ray

player

Models with Display Audio

Remote Controls

iPod

USB Flash Drive

*1 : Models with color audio system
*2 : Models with Display Audio

* Not available on all models

245

Audio System

USB Ports

Continued

Features

USB Ports

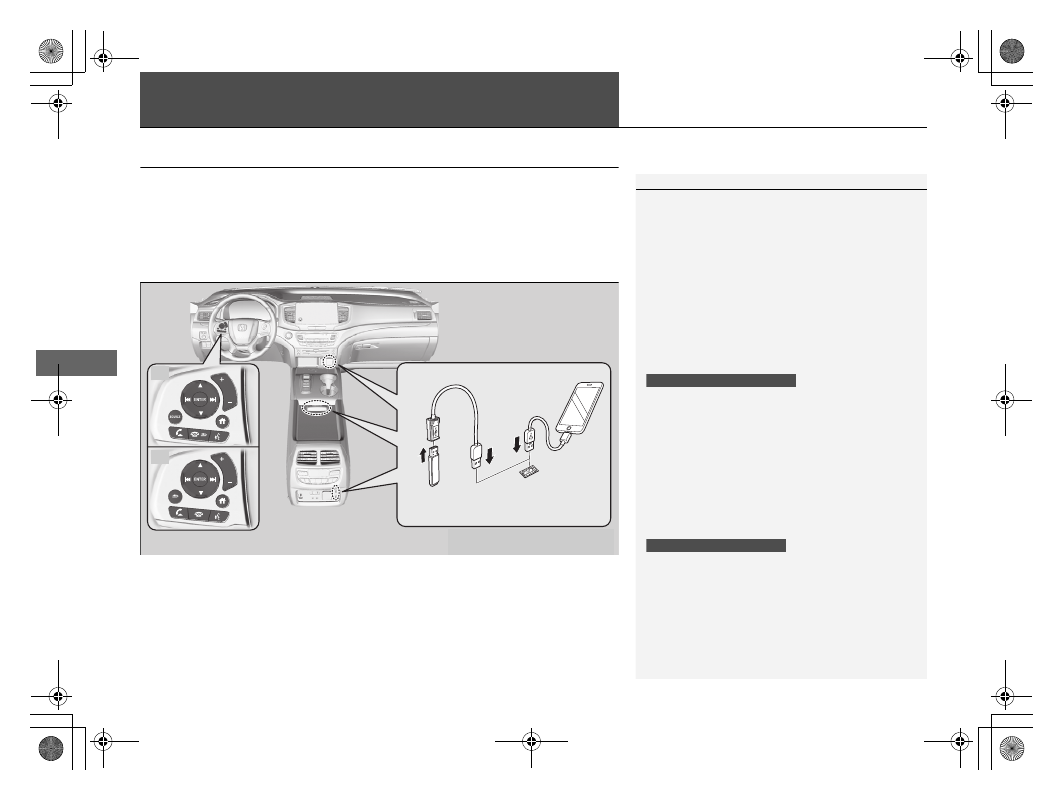

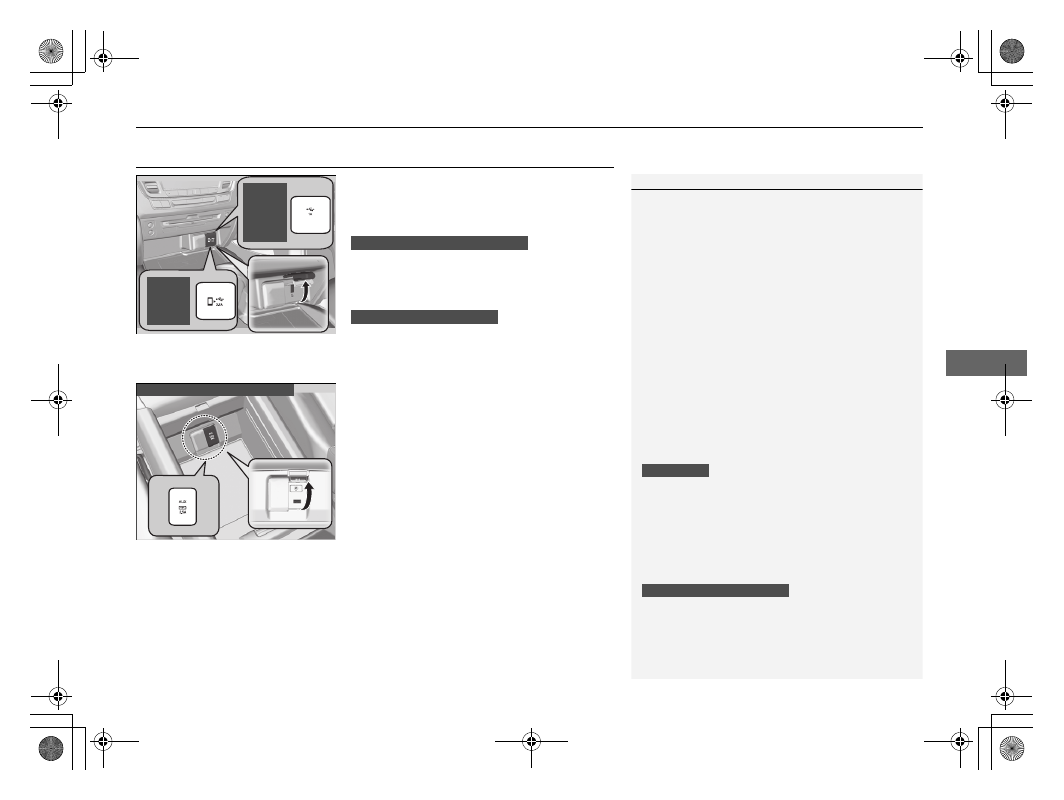

Install the iPod USB connector or the USB flash
drive to the USB port.

■

On the console panel

The USB port (1.0A) is for playing audio files
on the USB flash drive, connecting a cell
phone, and charging devices.

The USB port (2.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay or Android Auto.

■

In the console compartment

The USB port (2.5A) is only for charging
devices.

USB Ports

•

Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.

•

We recommend using an extension cable with the
USB port.

•

Do not connect the iPod or USB flash drive using a hub.

•

Do not use a device such as a card reader or hard disk
drive, as the device or your files may be damaged.

•

We recommend backing up your data before using
the device in your vehicle.

•

Displayed messages may vary depending on the
device model and software version.

If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufacturer’s instructions
provided with the iPod or visit www.apple.com/ipod.

The USB port can supply up to 1.0A/2.5A of power. It
does not output 1.0A/2.5A unless the device
requests.
For amperage details, read the operating manual of
the device that needs to be charged.
Set the power mode to ACCESSORY or ON first.

This port is for battery charge only. You cannot play
music even if you have connected a music player to it.

USB charge

In the console compartment

Models
with
color
audio
system

Models
with
Display
Audio

Models with color audio system

Models with Display Audio

In the console compartment

Audio System

Auxiliary Input Jack

246

Features

■

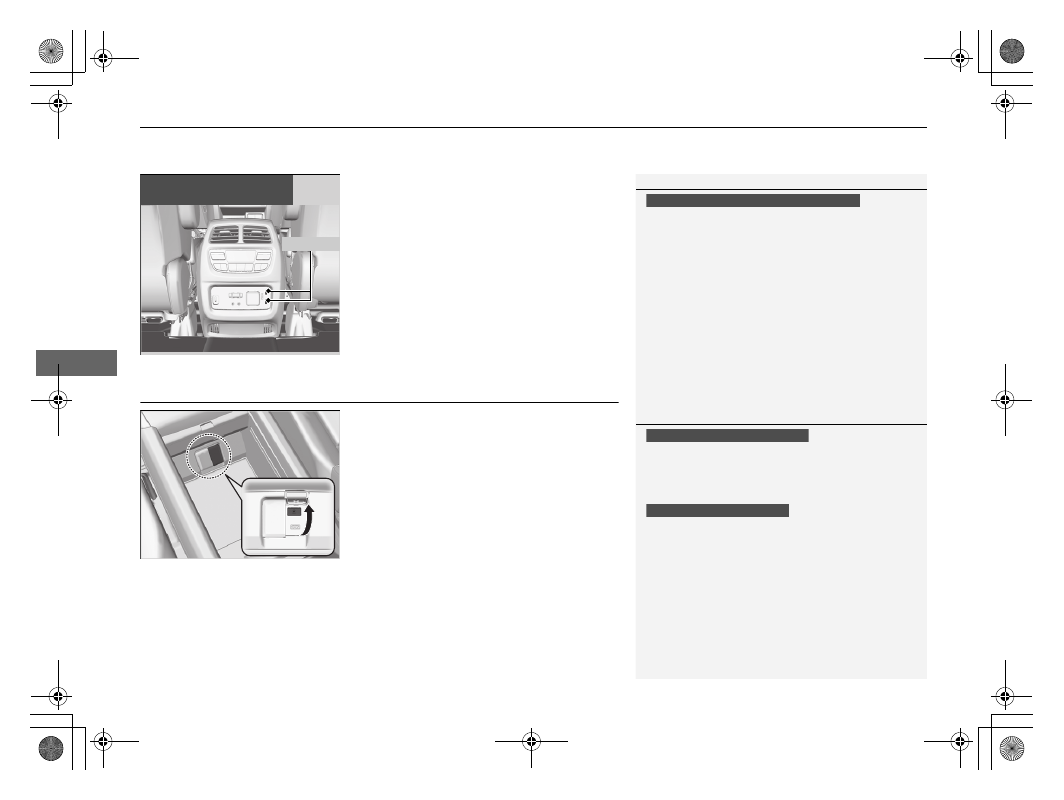

On the back of the console
compartment

The USB ports (2.5A) are only for charging
devices.

Auxiliary Input Jack

Use the jack to connect devices.

1. Open the cover.
2. Connect a device to the input jack using a

1/8 inch (3.5 mm) stereo miniplug.

The audio system automatically switches
to the AUX mode.

USB Ports

This port is for battery charge only. You cannot play
music even if you have connected a music player to it.

Under certain conditions, a device connected to the port
may generate noise in the radio you are listening to.

On the back of the console compartment

On the back of the console
compartment

USB Ports

Auxiliary Input Jack

To switch to another mode, press the RADIO or
MEDIA button.
To return to the AUX mode, press the MEDIA
button.

To switch to another mode or return to the AUX
mode, select the audio source icon.

You cannot use the auxiliary input jack if you replace
the audio system.

Models with color audio system

Models with Display Audio

* Not available on all models

247

Audio System

Audio System Theft Protection

Features

Audio System Theft Protection

The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display a code entry screen. If this occurs, reactivate the audio system.

■

Reactivating the audio system

1. Set the power mode to ON.
2. Turn on the audio system.
3. Press and hold the audio system power button for more than two seconds.

The audio system is reactivated when the audio control unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to a dealer and have the audio unit checked.

248

Audio System

Audio Remote Controls

Features

Audio Remote Controls

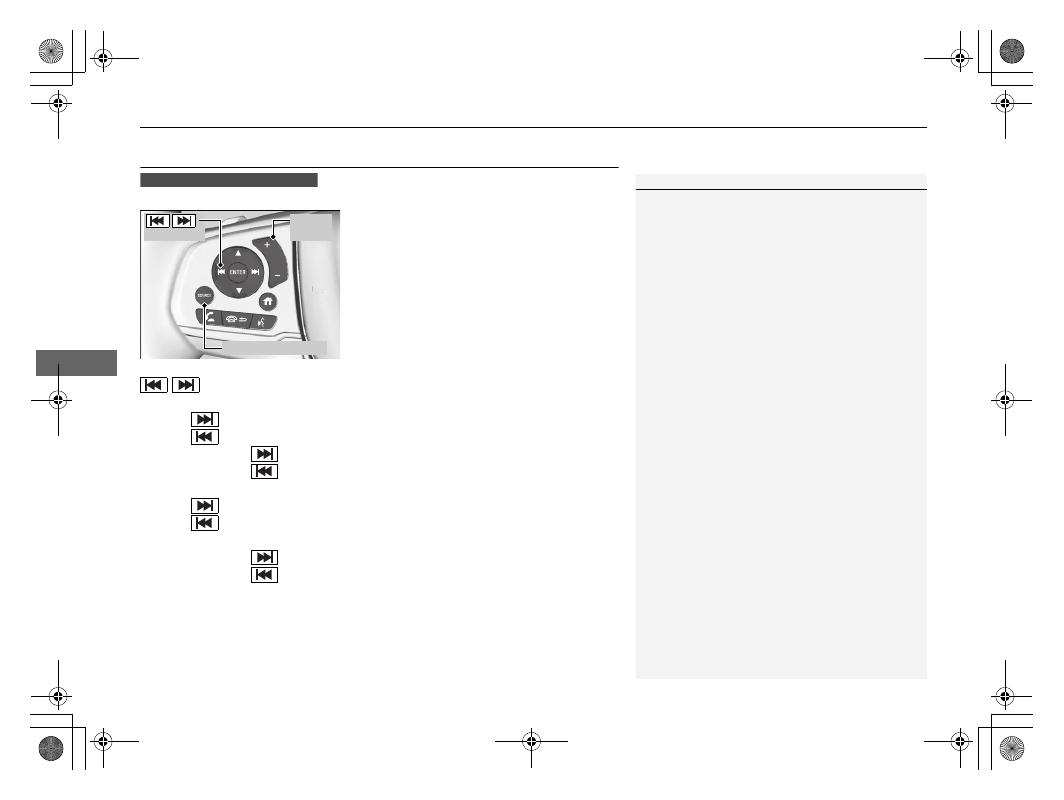

Allow you to operate the audio system while driving.

SOURCE Button
Cycles through the audio modes as follows:
FM1FM2AMUSB/iPodBluetooth®
AudioAUX

(

- (Volume) Bar

Press

(

+: To increase the volume.

Press

(

-: To decrease the volume.

Buttons

• When listening to the radio

Press :

To select the next preset radio station.

Press :

To select the previous preset radio station.

Press and hold

: To select the next strong station.

Press and hold

: To select the previous strong station.

• When listening to an iPod, USB flash drive, or Bluetooth® Audio

Press :

To skip to the next song.

Press :

To go back to the beginning of the current or previous song.

• When listening to a USB flash drive, or Bluetooth® Audio

Press and hold

: To skip to the next folder.

Press and hold

: To go back to the previous folder.

Audio Remote Controls

Some modes appear only when an appropriate
device or medium is used.

Depending on the Bluetooth® device you connect,
some functions may not be operated.

Models with color audio system

Buttons

SOURCE Button

(

Bar

Continued

249

Audio System

Audio Remote Controls

Features

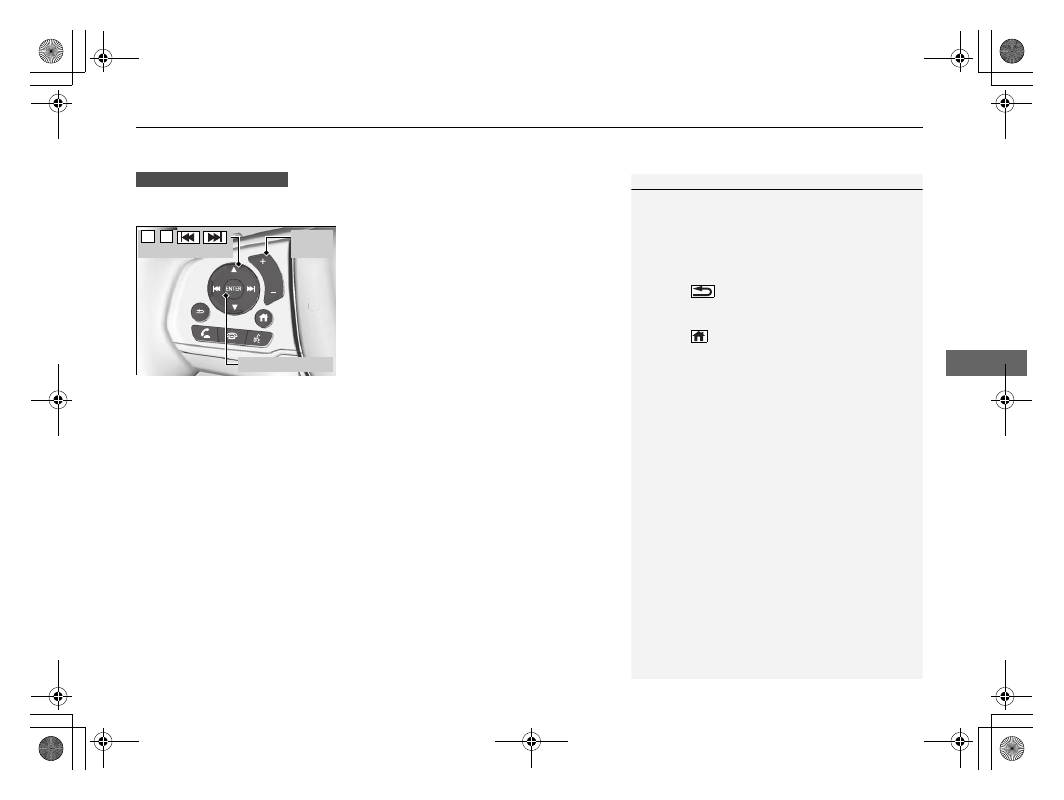

Allow you to operate the audio system while driving. The information is shown on
the driver information interface.

(

- (Volume) Bar

Press

(

+: To increase the volume.

Press

(

-: To decrease the volume.

Audio Remote Controls

Some modes appear only when an appropriate
device or medium is used.

Depending on the Bluetooth® device you connect,
some functions may not be operated.

Press the

(back) button to go back to the

previous screen or cancel a command.

Press the

(home) button to go back to the home

screen of the driver information interface.

You can show or hide the audio mode icons, or
change the order of the icons.

2 Show/Hide Apps P. 122
2 Arrange Apps P. 123

Models with Display Audio

ENTER Button

(

Bar

Buttons

3 4

250

Audio System

Audio Remote Controls

Features

/ENTER Buttons

• When selecting the audio mode

Press

to select Now Playing on the home screen of the driver

information interface, and then press the ENTER button.

Press

or :

To cycles through the audio modes as follows:

Android Auto/Apple CarPlaySiriusXM®

Rear Entertainment

AUX

InputAMBluetooth® AudioSocial PlaylistFMMy Honda MusicUSB/
iPodCD

• When listening to the radio

Press :

To select the next preset radio station.

Press :

To select the previous preset radio station.

• When listening to a CD

, iPod, USB flash drive, My Honda Music, or Bluetooth®

Audio
Press :

To skip to the next song.

Press :

To go back to the beginning of the current or previous song.

3 4

* Not available on all models

251

Features

Audio System Basic Operation

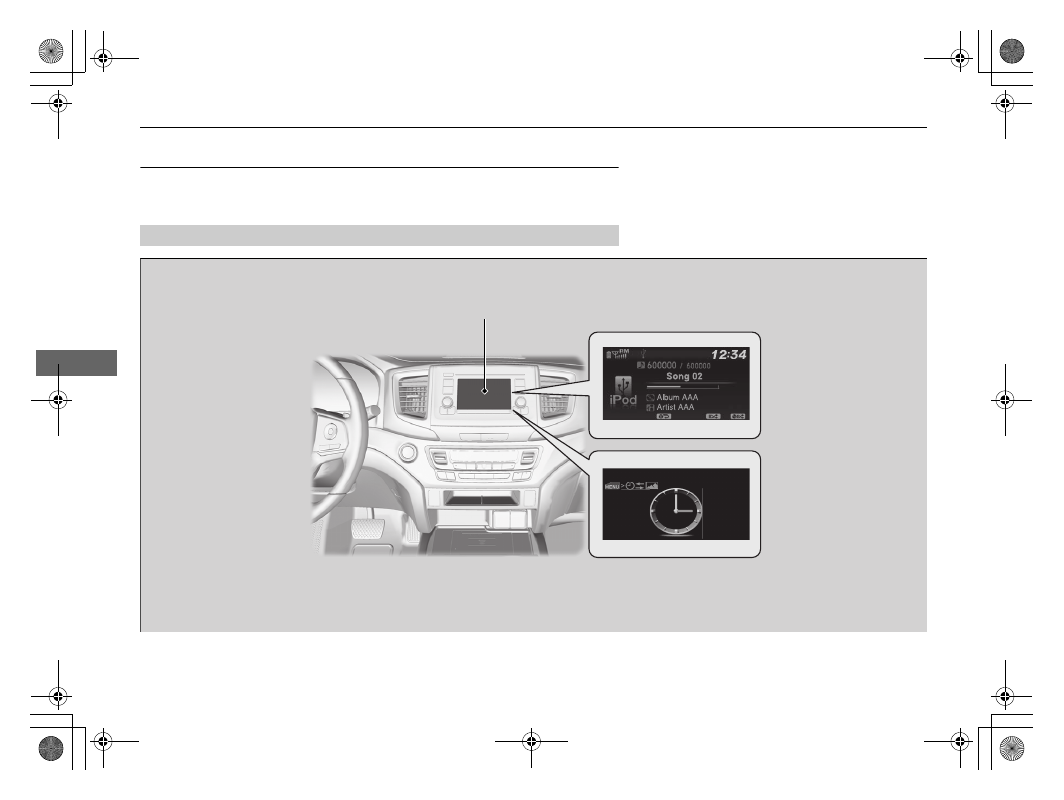

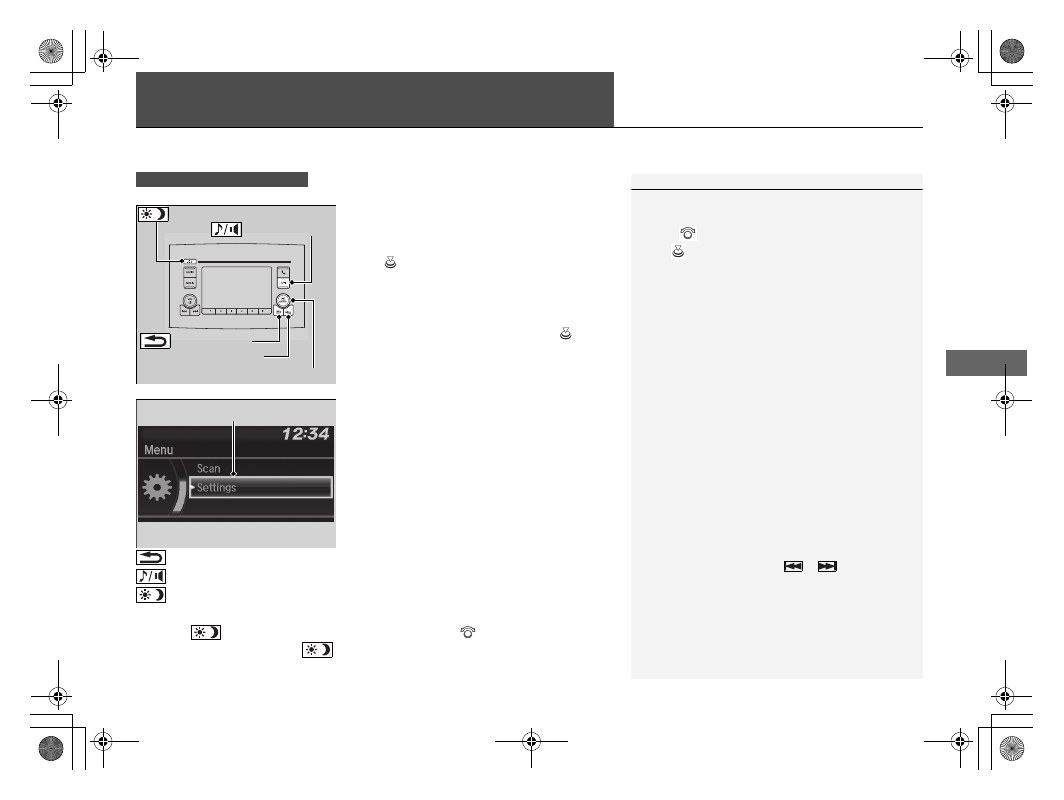

To use the audio system, the power mode must be in ACCESSORY or ON.

Use the selector knob or MENU/CLOCK
button to access some audio functions.

Press

to switch between the normal and

extended display for some functions.

Selector knob: Rotate left or right to scroll
through the available choices. Press

to set

your selection.
MENU/CLOCK button: Press to select any
mode.
The available modes include wallpaper,
display, clock, language setup, and play
modes. Play mode choices include scan,
random, repeat, and so on.

(Back) button: Press to go back to the previous display.
(Sound) button: Press to select the sound setting mode.
(Day/Night) button: Press to change the audio/information screen

brightness.
Press the

button, then adjust the brightness using

Each time you press the

button, the mode switches between the daytime

mode, nighttime mode and off mode.

Models with color audio system

Audio System Basic Operation

These indications are used to show how to operate
the selector knob.

Rotate

to select.

Press

to enter.

Menu Items

2 Adjusting the Clock P. 136

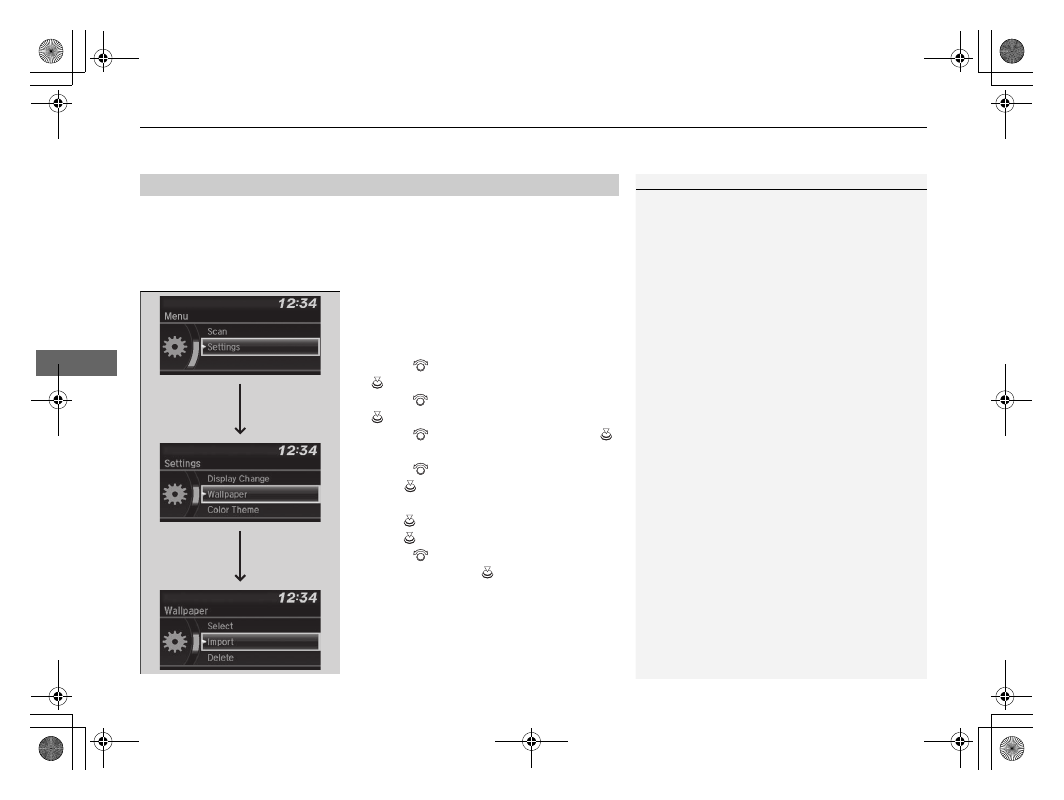

2 Wallpaper Setup P. 254
2 Adjusting the Sound P. 256
2 Display Setup P. 257
2 Scan P. 259, 265
2 Play Mode P. 262, 265
2 RDS Settings P. 259
2 Bluetooth P. 426

One of the operating systems used in this unit is
eCos.
For software license terms and condition, visit their
website (eCos license URL:
http://ecos.sourceware.org/license-overview.html)
For source code disclosure and other details
regarding eCos, visit:
http://www.hondaopensource2.com

Press the SOURCE,

(

button on the

steering wheel to change any audio setting.

2 Audio Remote Controls P. 248

(Back) Button

Selector Knob

MENU/CLOCK Button

(Day/Night) Button

(Sound) Button

Menu Display

252

Audio System Basic Operation

Audio/Information Screen

Features

Audio/Information Screen

Displays the audio status and wallpaper. From this screen, you can go to various
setup options.

■

Switching the Display

Audio/Information Screen

Audio

Clock/Wallpaper

253

Audio System Basic Operation

Audio/Information Screen

Continued

Features

■

Audio

Shows the current audio information.

■

Clock/Wallpaper

Shows a clock screen or an image you import.

■

Change display

1. Press the MENU/CLOCK button.
2. Rotate

to select Settings, then press

3. Rotate

to select Display Change, then press

4. Rotate

to select Wallpaper, then press

If you want to return to the audio/information screen, select Audio.

Audio System Basic Operation

Audio/Information Screen

254

Features

You can change, store, and delete the wallpaper on the audio/information screen.

■

Import wallpaper

You can import up to three images, one at a time, for wallpaper from a USB flash
drive.

1. Connect the USB flash drive to the USB

port.

2 USB Ports P. 245

2. Press the MENU/CLOCK button.
3. Rotate

select

Settings, then press

4. Rotate

to select Wallpaper, then press

5. Rotate

select

Import, then press

The picture name is displayed on the list.

6. Rotate

to select a desired picture, then

press .

The selected picture is displayed.

7. Press

to save the picture.

8. Press

to select OK.

9. Rotate

to select a location to save the

picture, then press

The display will return to the wallpaper
setting screen.

■

Wallpaper Setup

Wallpaper Setup

•

When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.

•

The file name must be fewer than 64 characters.

•

The file format of the image that can be imported
is BMP (bmp) or JPEG (jpg).

•

The individual file size limit is 2 MB.

•

The maximum image size is 1,920 x 936 pixels. If
the image size is less than 480 × 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.

•

Up to 255 files can be selected.

•

If the USB flash drive does not have any pictures,
the No files detected message appears.

Honda Pilot (2019 year). Instruction - part 16
