If a Tire Goes Flat

Changing a Flat Tire

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or
replaced.

1. Park the vehicle on firm, level, and non-slippery surface and apply the parking

brake.

2. Move the shift lever to

(

3. Turn on the hazard warning lights and turn the ignition switch to LOCK

(

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

Changing a Flat Tire

Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm

)

When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.

The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not use another type of compact
spare tire or wheel with your vehicle.

Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.

Do not use the jack if it doesn’t work properly. Call
your dealer or a professional towing service.

Continued

577

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

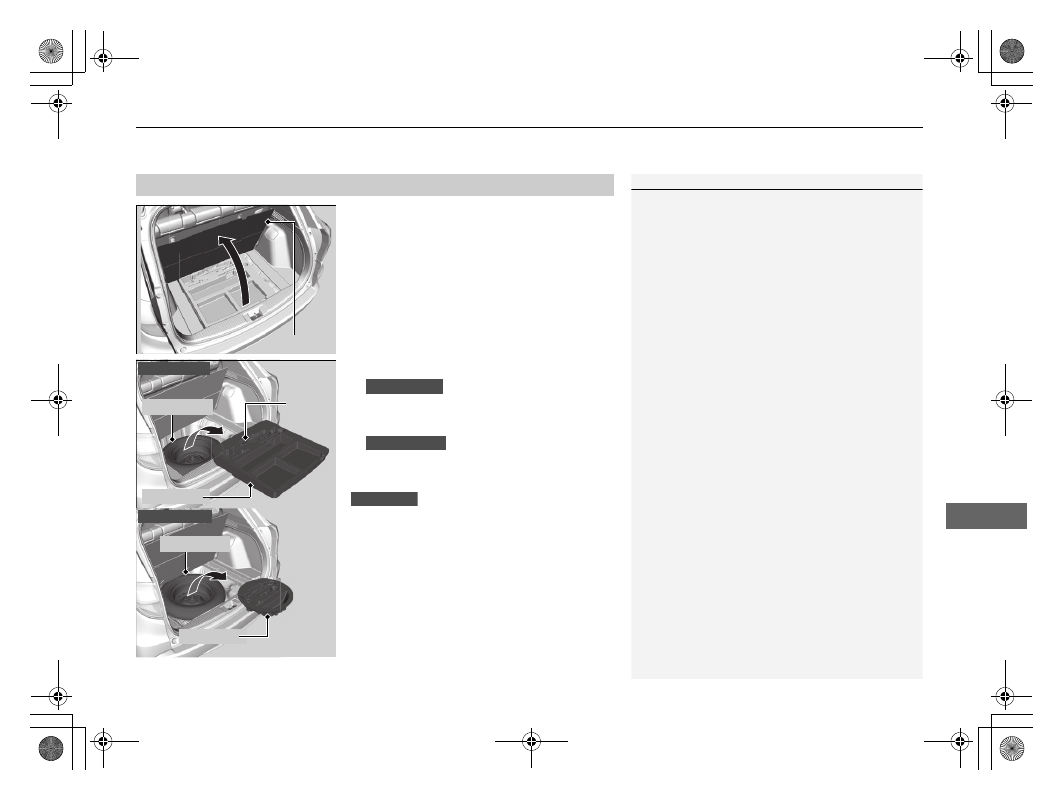

1. Open the cargo area floor lid.

2. Take the tool case out of the cargo area.

Take the wheel nut wrench, jack handle bar
and jack out of the tool case.

Take the wheel nut wrench and jack handle
bar out of the tool case.

3. Unscrew the wing bolt, and remove the

spacer cone. Then, remove the spare tire.

■

Getting Ready to Replace the Flat Tire

Getting Ready to Replace the Flat Tire

The wheel nut wrench supplied with your vehicle is
specially adapted to fit the holder shaft. Do not use
any other tool.

The shape of the tool case varies by model.

Floor Lid

Tool Case

Jack

Spare Tire

2WD models

AWD models

Tool Case

Spare Tire

2WD models

AWD models

All models

578

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

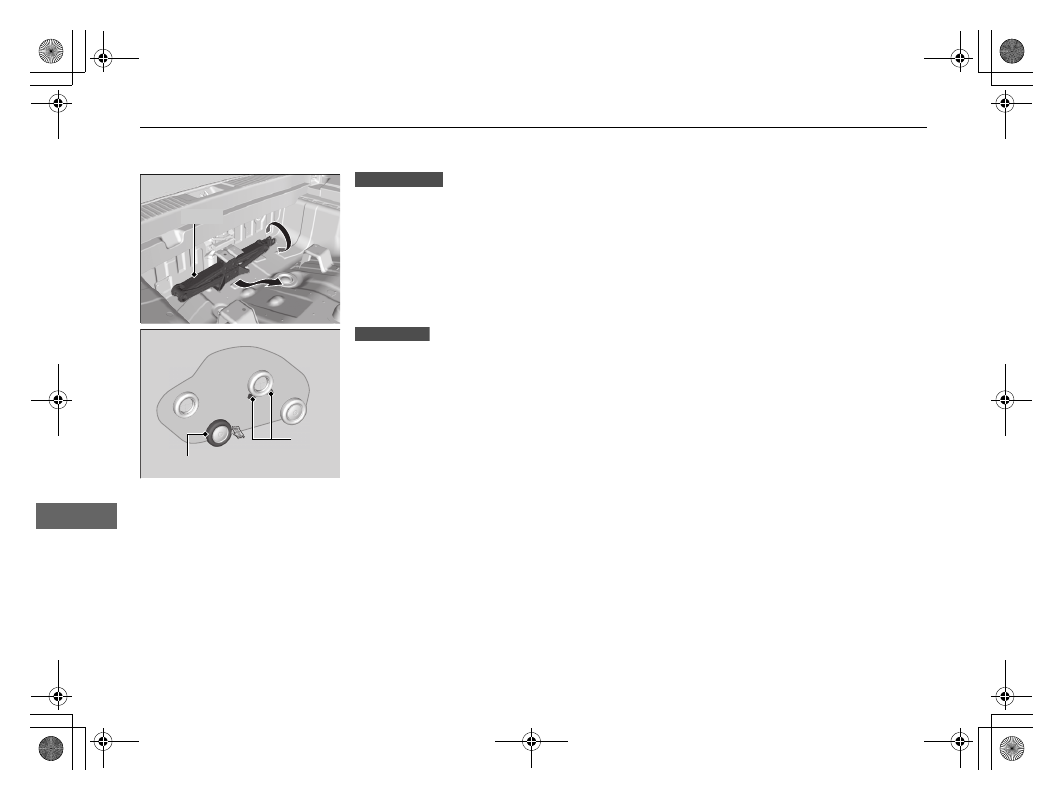

4. Turn the jack’s end bracket anti-clockwise

to loosen it, then remove the jack.

5. Place a wheel block or rock in front and rear

of the wheel diagonal to the flat tire.

Jack

AWD models

Wheel
Blocks

The tire to be replaced.

All models

579

If a Tire Goes Flat

Changing a Flat Tire

Continued

Han

lin
g the U

expected

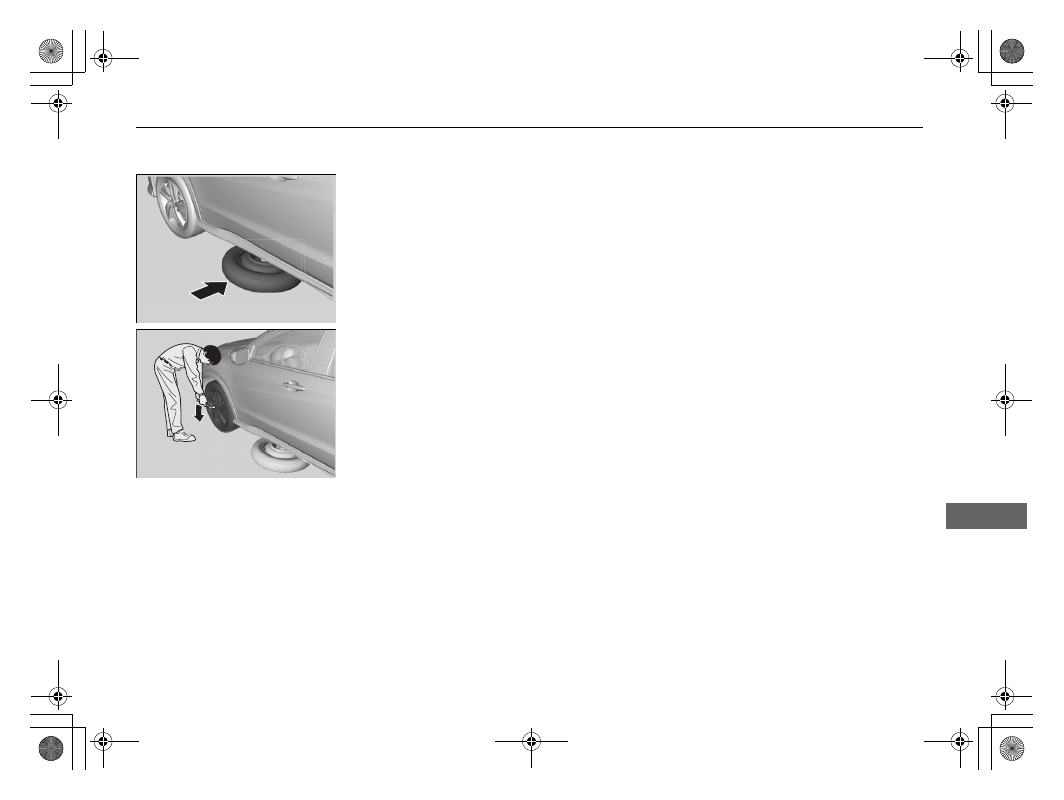

6. Place the compact spare tire (wheel side up)

under the vehicle body, near the tire that
needs to be replaced.

7. Loosen each wheel nut about one turn

using the wheel nut wrench.

If a Tire Goes Flat

Changing a Flat Tire

580

Han

lin
g the U

expected

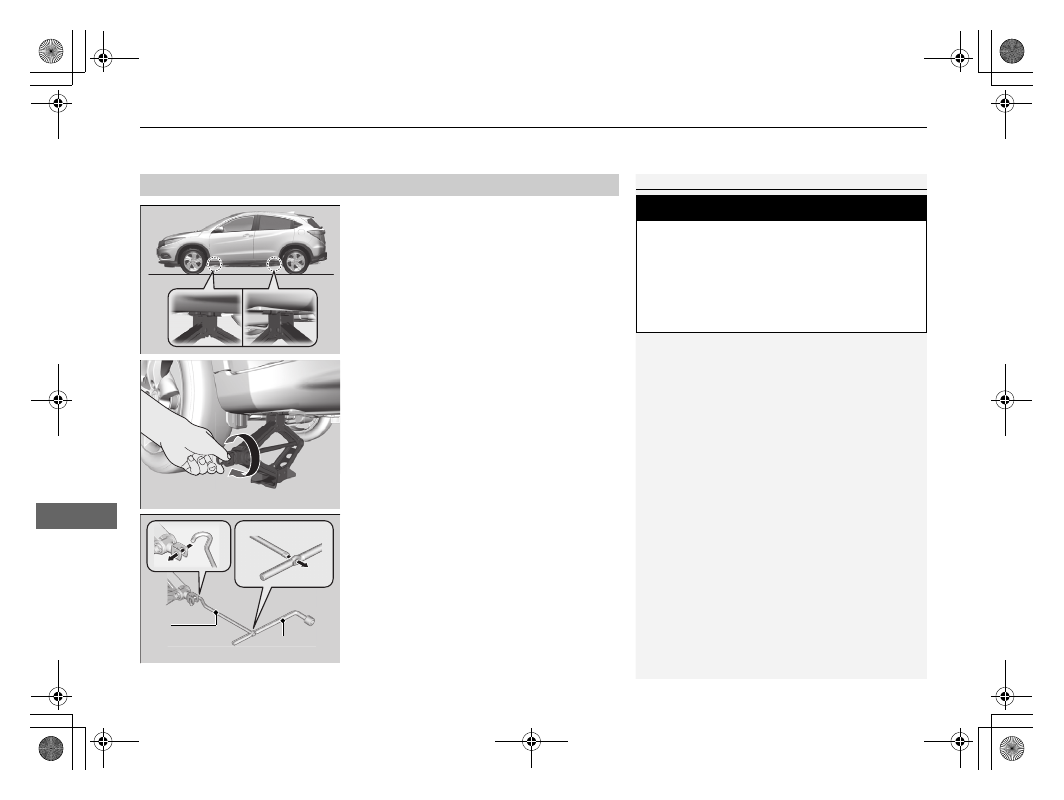

1. Place the jack under the jacking point

closest to the tire to be changed.

2. Turn the end bracket clockwise as shown in

the image until the top of the jack contacts
the jacking point.

Make sure that the jacking point tab is
resting in the jack notch.

3. Raise the vehicle, using the jack handle bar

and the jack handle, until the tire is off the
ground.

■

How to Set Up the Jack

How to Set Up the Jack

Do not use the jack with people or luggage in the
vehicle.

Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
their shape may not match.

The following instructions must be followed to use
the jack safely:

•

Do not use while the engine is running.

•

Use only where the ground is firm and level.

•

Use only at the jacking points.

•

Do not get in the vehicle while using the jack.

•

Do not put anything on top of or underneath the
jack.

Store the wheel, jack, and tools securely before
driving.

Loose items can fly around the interior in a crash and
can seriously injure the occupants.

WARNING

The vehicle can easily roll off the jack,
seriously injuring anyone underneath.

Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.

Jack
Handle
Bar

Wheel Nut

Wrench as Jack Handle

Continued

581

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

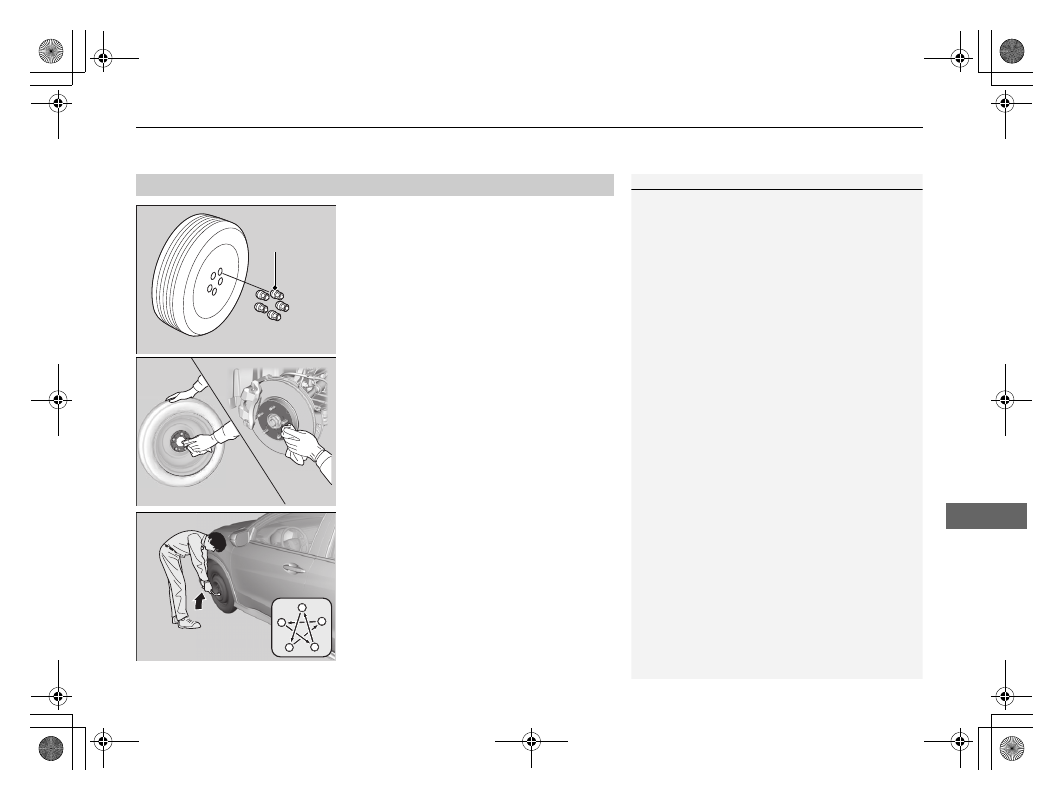

1. Remove the wheel nuts and flat tire.

2. Wipe the mounting surfaces of the wheel

with a clean cloth.

3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the

lips around the mounting holes, and stop
rotating.

5. Lower the vehicle and remove the jack.

Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)

■

Replacing the Flat Tire

Replacing the Flat Tire

Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

Wheel
Nut

If a Tire Goes Flat

Changing a Flat Tire

582

Han

lin
g the U

expected

1. Remove the center cap.
2. Place the flat tire face down in the spare tire

well.

3. Remove the spacer cone from the wing

bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.

4. Securely store the wheel nut wrench, jack

handle bar and jack back in the tool case.
Store the case in the cargo area under the
cargo floor lid.

■

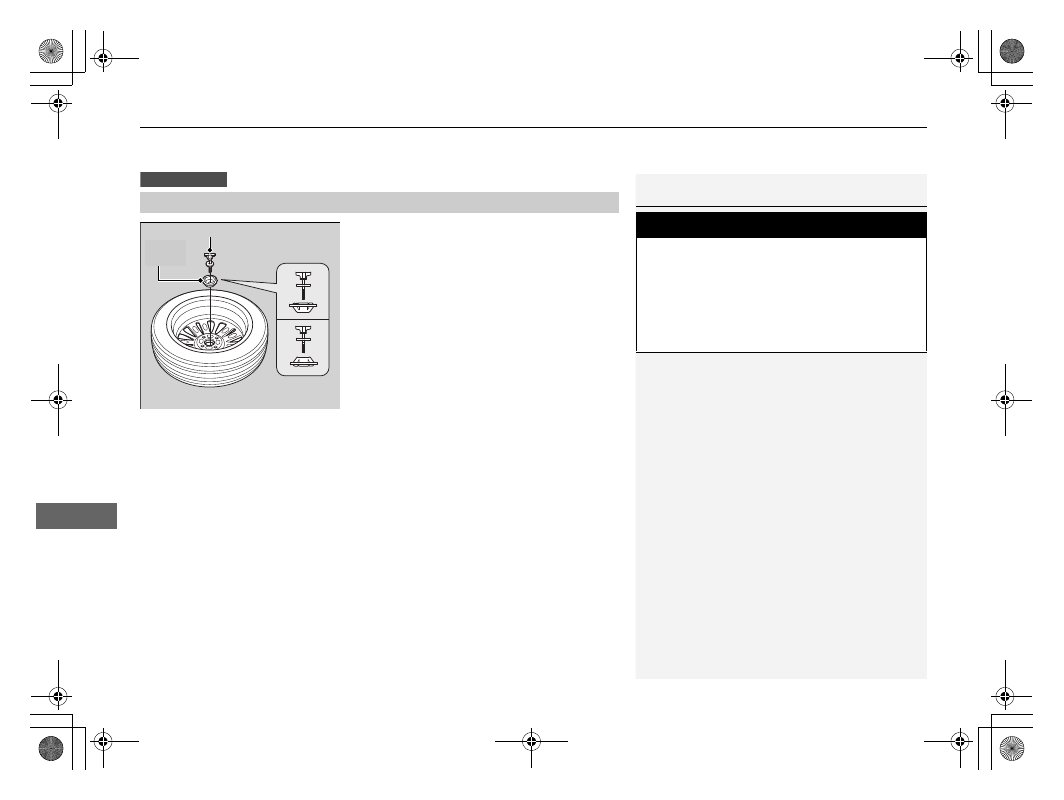

Storing the Flat Tire

2WD models

Storing the Flat Tire

WARNING

Loose items can fly around the interior in a
crash and can seriously injure the
occupants.

Store the wheel, jack, and tools securely
before driving.

For full-size
tire

For compact
spare tire

Wing Bolt

Spacer
Cone

Continued

583

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

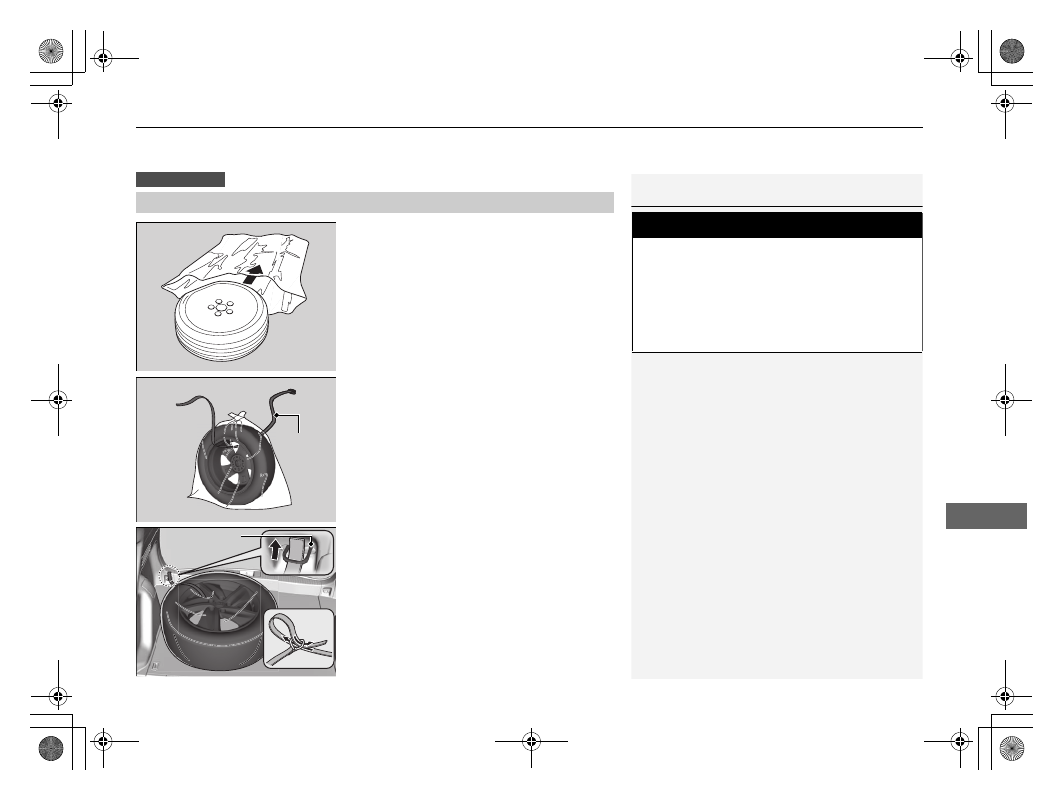

1. Put the flat tire in the storage bag provided

with your vehicle.

The storage bag is in the tool case.

2. Knot the top of the storage bag.
3. Store the jack in its holder. Turn the jack’s

end bracket to lock it in place.

4. Securely put the wheel nut wrench and jack

handle bar back in the tool case.

5. Bore through the bag, and pass the holding

belt through the hole of the bag and the
wheel of the flat tire as shown.

6. Place the flat tire in the cargo area, and

thread the belt through the rear anchor as
shown.

7. Pass the belt through the ring, and tighten

the belt to secure the flat tire in place.

■

Storing the Flat Tire

AWD models

Storing the Flat Tire

WARNING

Loose items can fly around the interior in a
crash and can seriously injure the
occupants.

Store the wheel, jack, and tools securely
before driving.

Belt

Rear Anchor

584

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on, but this is normal.

Calibrate the TPMS when you replace the tire with a specified regular tire.

2 TPMS Calibration P. 449

■

TPMS and the Spare Tire

U.S. models

585

Han

lin
g the U

expected

Engine Does Not Start

Checking the Engine

If the engine does not start, check the starter.

Starter condition

Checklist

Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.

Check for a message on the multi-information display

●

If the To Start, Hold Remote Near Start Button message appears.

2 If the Smart Entry Remote Battery is Weak P. 586

Make sure the smart entry remote is in its operating range.

2 ENGINE START/STOP Button Operating Range P. 164

Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.

●

If the interior lights are dim or do not come on at all

2 Battery P. 560

●

If the interior lights come on normally

2 Fuses P. 598

The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.

Review the engine start procedure.
Follow its instructions, and try to start the engine again.

2 Starting the Engine P. 426, 42 9

Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.

2 Immobilizer System P. 157

Check the fuel level.
There should be enough fuel in the tank.

2 Fuel Gauge P. 116

Check the fuse.
Check all fuses, or have your vehicle checked by a dealer.

2 Inspecting and Changing Fuses P. 602

If the problem continues:

2 Emergency Towing P. 603

Checking the Engine

If you must start the vehicle immediately, use an
assisting vehicle to jump start it.

2 Jump Starting P. 588

Models with smart entry system

* Not available on all models

586

Engine Does Not Start

If the Smart Entry Remote Battery is Weak

Han

lin
g the U

expected

If the Smart Entry Remote Battery is Weak

If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, the ENGINE START/STOP button flashes,
and the engine won’t start, start the engine as follows:

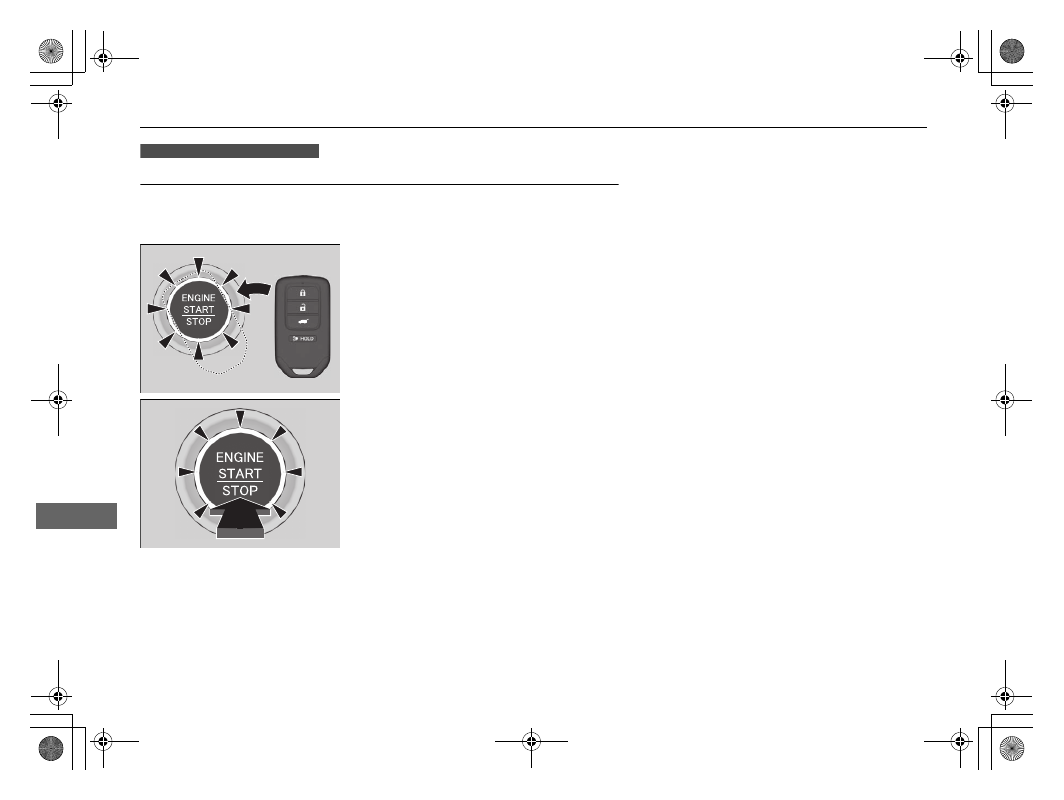

1. Touch the center of the ENGINE START/

STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.

The ENGINE START/STOP button
flashes for about 30 seconds.

2. Depress the brake pedal and press the

ENGINE START/STOP button within 10
seconds after the beeper sounds while the
ENGINE START/STOP button changes
from flashing to on.

If you don’t depress the pedal, the mode
will change to ACCESSORY.

Models with smart entry system

587

Engine Does Not Start

Emergency Engine Stop

Han

lin
g the U

expected

Emergency Engine Stop

The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for two seconds.
• Firmly press the ENGINE START/STOP button three times.

The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The power mode is in ACCESSORY when the engine is stopped.

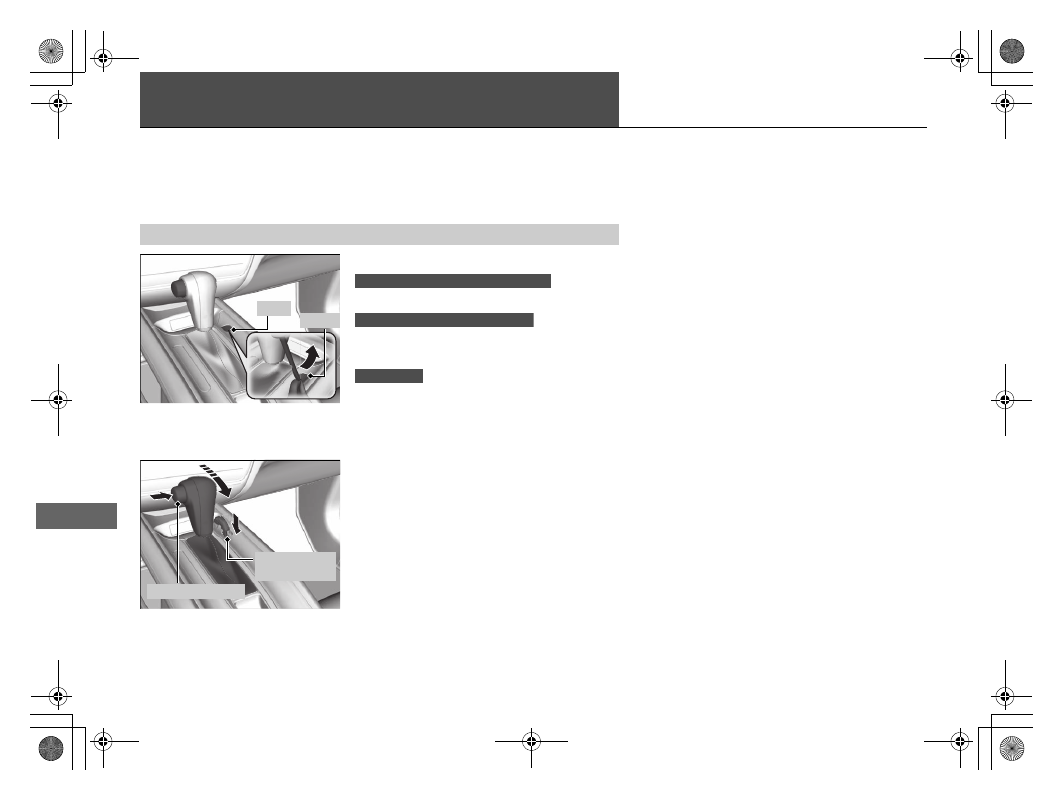

To change the mode to VEHICLE OFF, move the shift lever to

(

P after the vehicle

comes to a complete stop.

Then press the ENGINE START/STOP button twice without depressing the brake
pedal.

Models with smart entry system

Emergency Engine Stop

Do not press the button while driving unless it is
absolutely necessary for the engine to be switched
off.

Canadian models

588

Han

lin
g the U

expected

Jump Starting

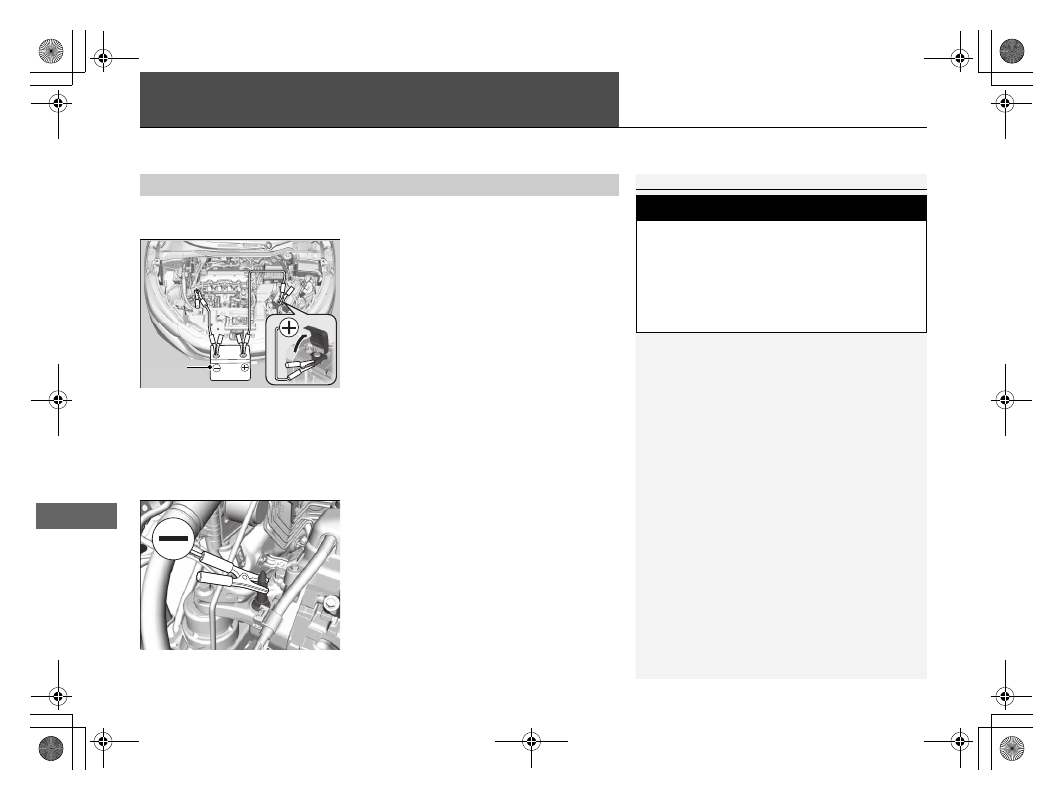

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

1. Connect the first jumper cable to your

vehicle’s battery + terminal.

Remove the cover from the under-hood
fuse box.

2 Engine Compartment Fuse Box P. 598

2. Connect the other end of the first jumper

cable to the booster battery + terminal.

Use a 12-volt booster battery only.

Connect when using the automotive
battery charger to boost your 12-volt
battery, select a lower charging voltage
than 15-volt. Check the charger manual
for the proper setting.

3. Connect the second jumper cable to the

booster battery - terminal.

4. Connect the other end of the second

jumper cable to the stud bolt as shown. Do
not connect this jumper cable to any other
part.

5. If your vehicle is connected to another

vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.

6. Attempt to start your vehicle’s engine. If it

turns over slowly, check that the jumper
cables have good metal-to-metal contact.

■

Jump Starting Procedure

Jump Starting

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.

Battery performance degrades in cold conditions and
may prevent the engine from starting.

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Booster
Battery

589

Jump Starting

Han

lin
g the U

expected

Once your vehicle’s engine has started, remove the jumper cables in the following
order.

1. Disconnect the jumper cable from your vehicle’s stud bolt.
2. Disconnect the other end of the jumper cable from the booster battery -

terminal.

3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +

terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

590

Han

lin
g the U

expected

Shift Lever Does Not Move

Follow the procedure below if you cannot move the shift lever out of the

(

position.

1. Set the parking brake.

2. Remove the key from the ignition switch.

2. Remove the built-in key from the smart

entry remote.

3. Wrap a cloth around the tip of a small flat-

tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.

4. Insert the key into the shift lock release slot.
5. While pushing the key down, press the shift

lever release button, and place the shift
lever into

(

The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.

■

Releasing the Lock

Slot

Cover

Models without smart entry system

Models with smart entry system

All models

Release Button

Shift Lock
Release Slot

591

Continued

Han

lin
g the U

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:
• The high temperature indicator (red) comes on or the engine suddenly loses

power.

• Steam or spray comes out of the engine compartment.

■

First thing to do

1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.

No steam or spray present: Keep the engine running and open the hood.

Steam or spray is present: Turn off the engine and wait until it subsides.

Then open the hood.

How to Handle Overheating

NOTICE

Continuing to drive with the high temperature
indicator on may damage the engine.

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

Content .. 35 36 37 38 ..
