Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

Main

tenan

ce

Changing the Engine Oil and Oil Filter

You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.

Change the oil and filter in accordance with the maintenance message on the
information display

*

/multi-information display

*

.

1. Run the engine until it reaches normal

operating temperature, and then turn the
engine off.

2. Open the hood and remove the engine oil

fill cap.

3. Remove the bolts and clips on the

undercarriage and remove the under
cover.

4. Remove the drain bolt and washer from

the bottom of the engine, and drain the
oil into a suitable container.

1

Changing the Engine Oil and Oil Filter

NOTICE

You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself, appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.

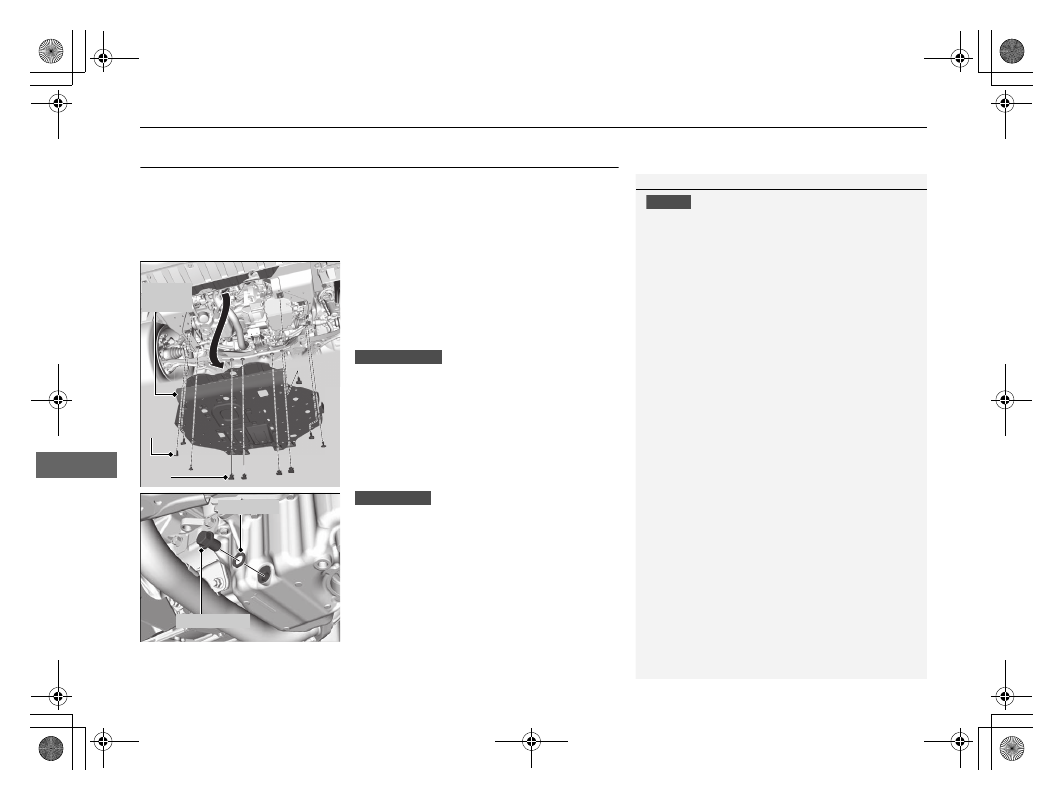

Under
Cover

Bolt

Clip

2WD models

Washer

Drain Bolt

All models

* Not available on all models

529

uu

Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

Main

tenan

ce

5. Remove the oil filter and dispose of the

remaining oil.

6. Check that the filter gasket is not stuck to

the engine contact surface.

u

If it is stuck, you must detach it.

7. Wipe away dirt and dust adhering to the

contact surface of the engine block, and
install a new oil filter.

u

Apply a light coat of new engine oil to
the filter gasket.

8. Put a new washer on the drain bolt, then

reinstall the drain bolt.

u

Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)

9. Pour the recommended engine oil into the

engine.

u

Engine oil change capacity (including
filter):
3.9 US qt (3.7 L)

10. Reinstall the engine oil fill cap securely and

start the engine.

11. Run the engine for a few minutes, and

then check that there is no leak from the
drain bolt or oil filter.

12. Stop the engine, wait for three minutes,

and then check the oil level on the
dipstick.

u

If necessary, add more engine oil.

1

Changing the Engine Oil and Oil Filter

You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.

When installing the new oil filter, follow the
instructions supplied with the oil filter.

Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.

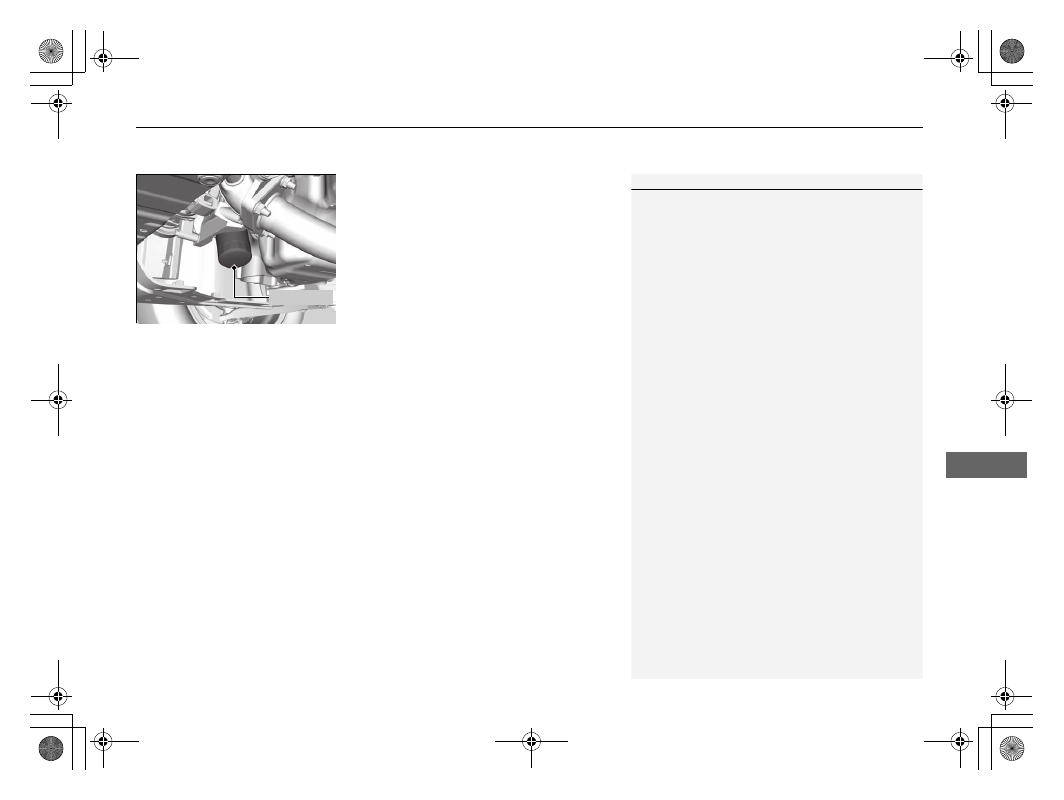

Oil Filter

530

uu

Maintenance Under the Hood

u

Engine Coolant

Main

tenan

ce

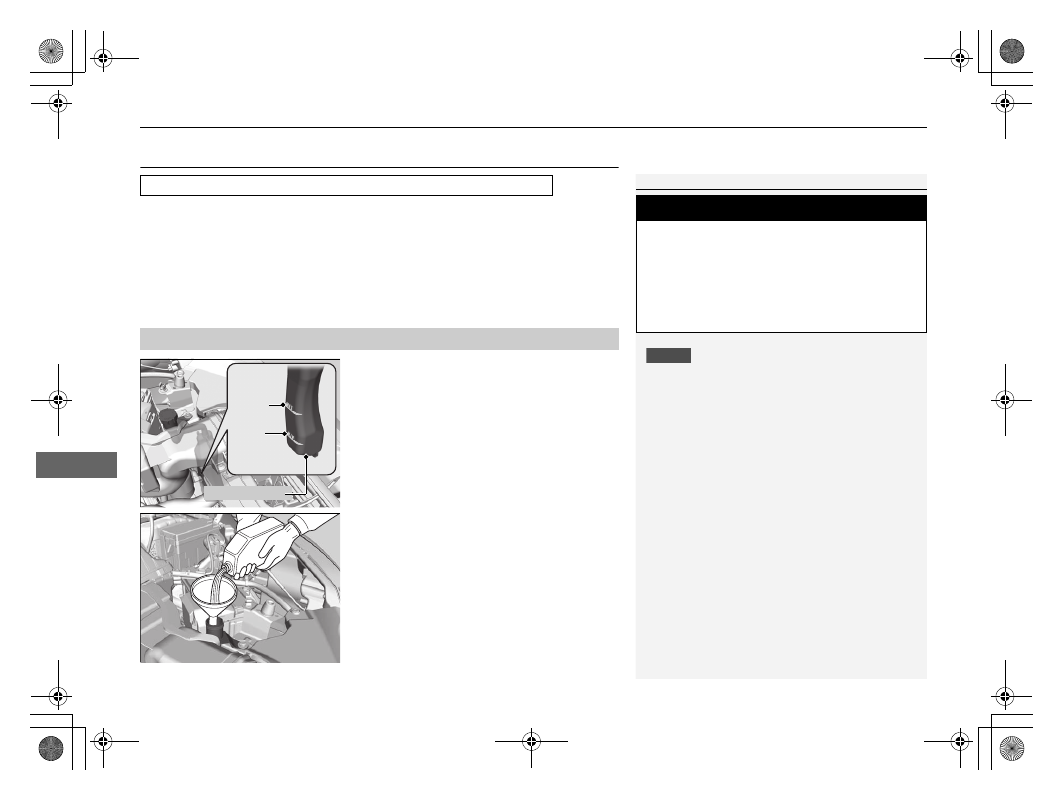

Engine Coolant

This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.

We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.

1. Make sure the engine and radiator are

cool.

2. Check the amount of coolant in the reserve

tank.

u

If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.

3. Inspect the cooling system for leaks.

Specified coolant: Honda Long Life Antifreeze/Coolant Type 2

■

Reserve Tank

1

Engine Coolant

NOTICE

Genuine Honda engine coolant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.

If Honda antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.

Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

Reserve Tank

MAX

MIN

531

uu

Maintenance Under the Hood

u

Engine Coolant

Main

tenan

ce

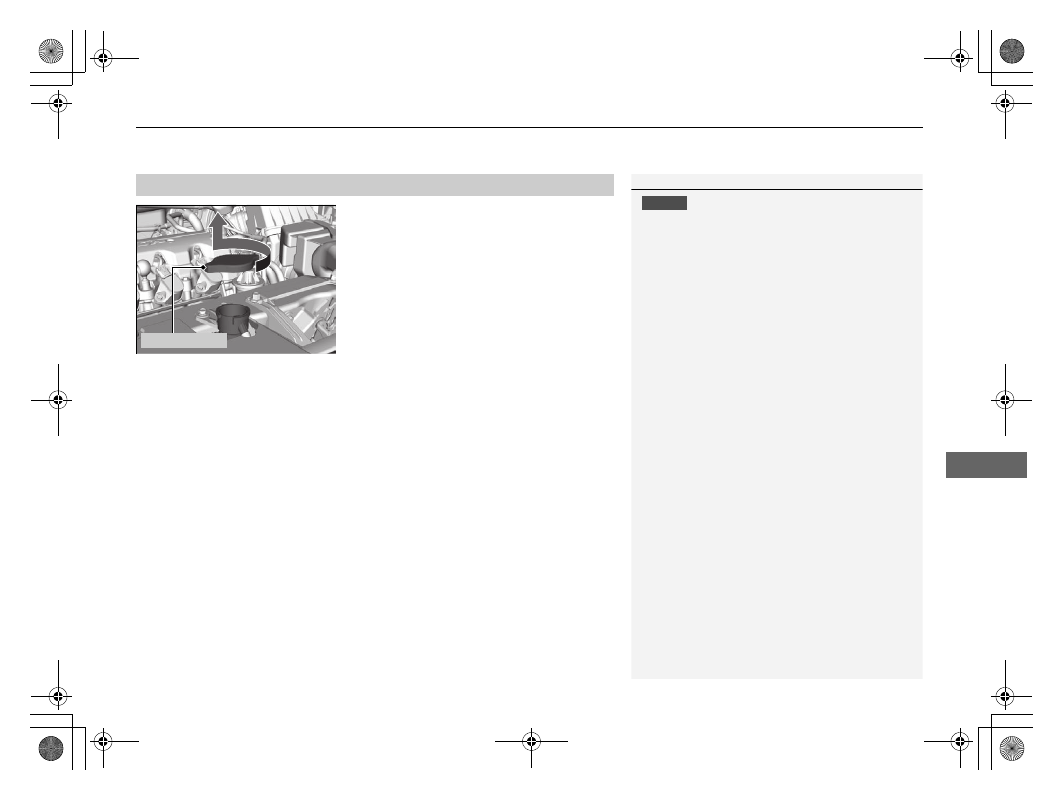

1. Make sure the engine and radiator are

cool.

2. Turn the radiator cap 1/8 turn counter-

clockwise and relieve any pressure in the
cooling system. Do not push the cap down
when turning.

3. Push down and turn the radiator cap

counter-clockwise to remove it.

4. The coolant level should be up to the base

of the filler neck. Add coolant if it is low.

5. Put the radiator cap back on, and tighten it

fully.

■

Radiator

1

Radiator

NOTICE

Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.

Radiator Cap

532

uu

Maintenance Under the Hood

u

Transmission Fluid

Main

tenan

ce

Transmission Fluid

Have a dealer check the fluid level and replace if necessary.

■

Continuously Variable Transmission (CVT) Fluid

Specified fluid: Honda HCF-2 Transmission Fluid

1

Continuously Variable Transmission (CVT) Fluid

NOTICE

Do not mix HCF-2 with other transmission fluids
Using a transmission fluid other than HCF-2 may
adversely affect the operation and durability of your
vehicle's transmission, and damage the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda's
new vehicle limited warranty.

533

uu

Maintenance Under the Hood

u

Brake Fluid

Main

tenan

ce

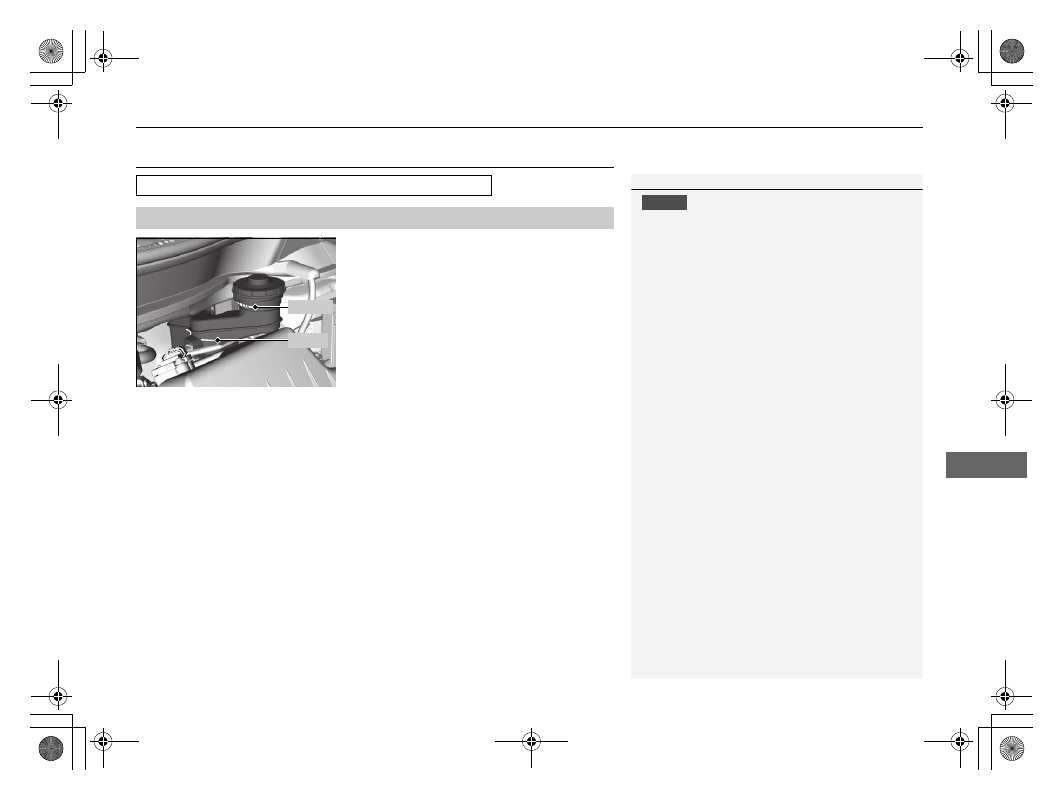

Brake Fluid

The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.

Specified fluid: Honda Heavy Duty Brake Fluid DOT 3

■

Checking the Brake Fluid

1

Brake Fluid

NOTICE

Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.

If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.

Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and refilled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.

If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.

MIN

MAX

534

uu

Maintenance Under the Hood

u

Refilling Window Washer Fluid

Main

tenan

ce

Refilling Window Washer Fluid

Check the amount of window washer fluid by
looking at the reservoir.
If the level is low, fill the washer reservoir.

If the washer fluid is low, a message appears
on the multi-information display.

Pour the washer fluid carefully. Do not overflow the reservoir.

1

Refilling Window Washer Fluid

NOTICE

Do not use engine antifreeze or a vinegar/water
solution in the window washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the window
washer pump.
Use only commercially available windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.

Window Washer
Reservoir

Models without washer level sensor

Canadian models

535

Continued

Main

tenan

ce

Replacing Light Bulbs

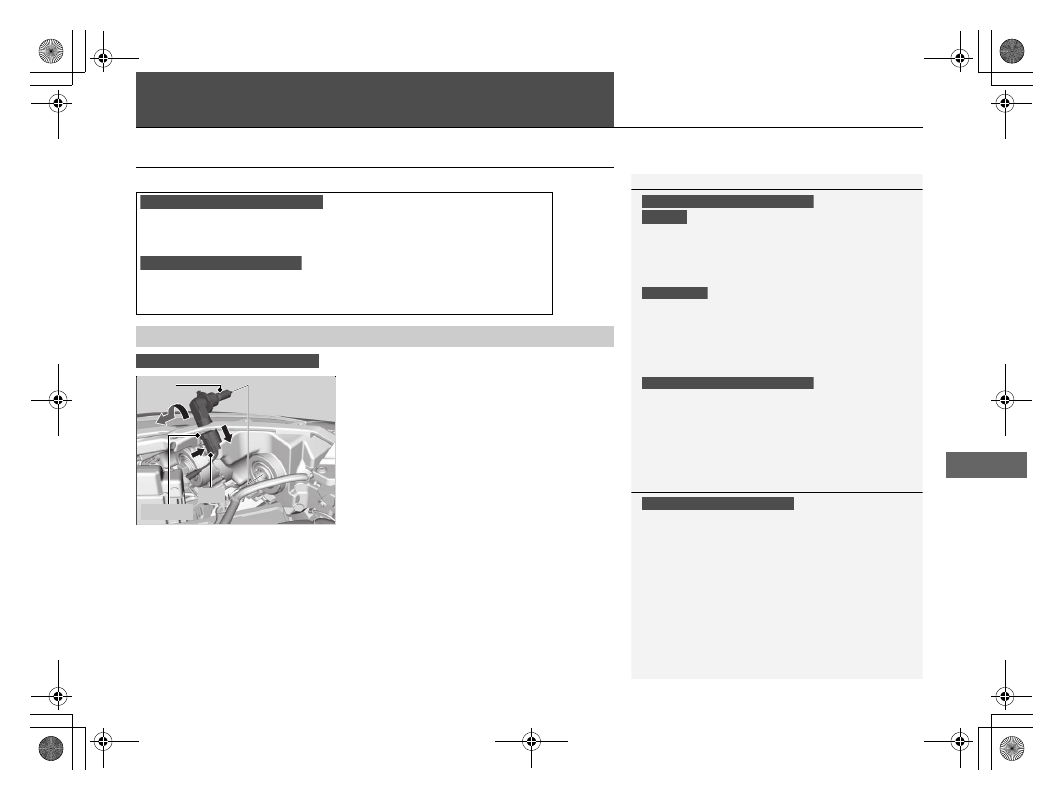

Headlight Bulbs

When replacing, use the following bulbs.

1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to

remove.

3. Insert a new bulb.
4. Insert the coupler into the connector of the

bulb.

High beam headlight:

60 W (HB3 for halogen bulb type)

Low beam headlight:

55 W (H11 for halogen bulb type)

High beam headlight:

LED type

Low beam headlight:

LED type

■

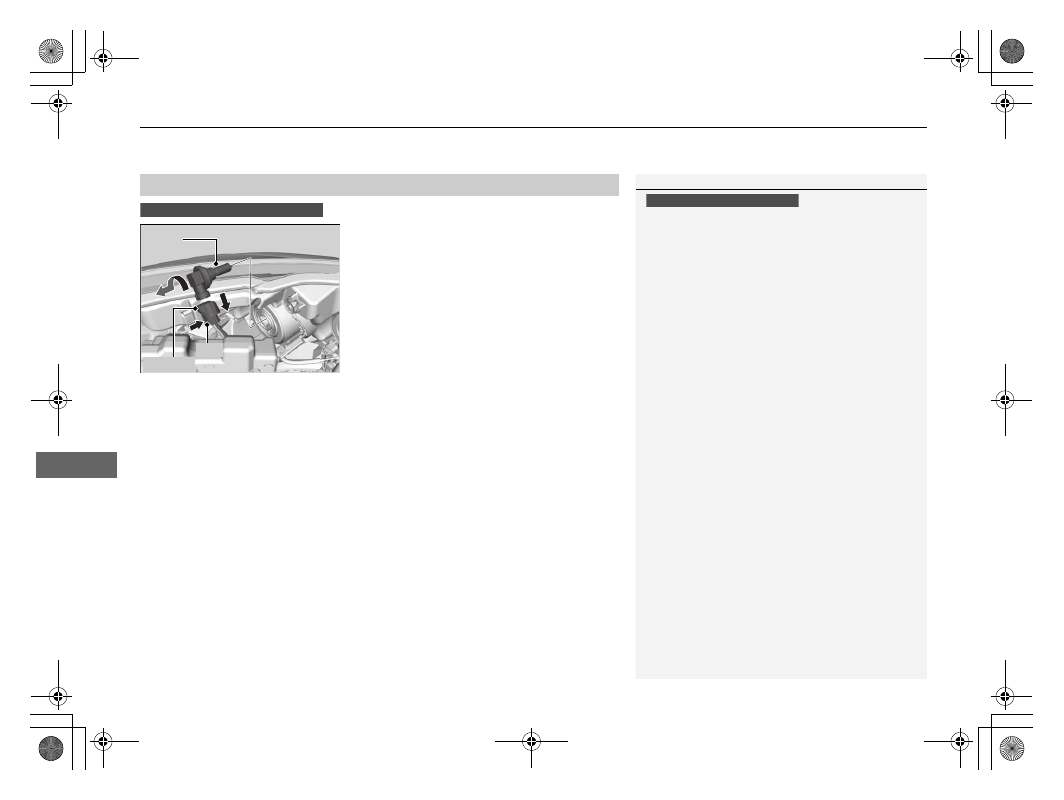

High Beam Headlights

1

Headlight Bulbs

NOTICE

Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.

When replacing a halogen bulb, handle it by its base,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.

Models with halogen headlights

All models

Models with halogen headlights

Models with halogen headlights

Models with LED headlights

1

High Beam Headlights

High beam headlights are LED type. Have an
authorized Honda dealer inspect and replace the light
assembly.

Models with LED headlights

Models with halogen headlights

Coupler

Bulb

Tab

uu

Replacing Light Bulbs

u

Headlight Bulbs

536

Main

tenan

ce

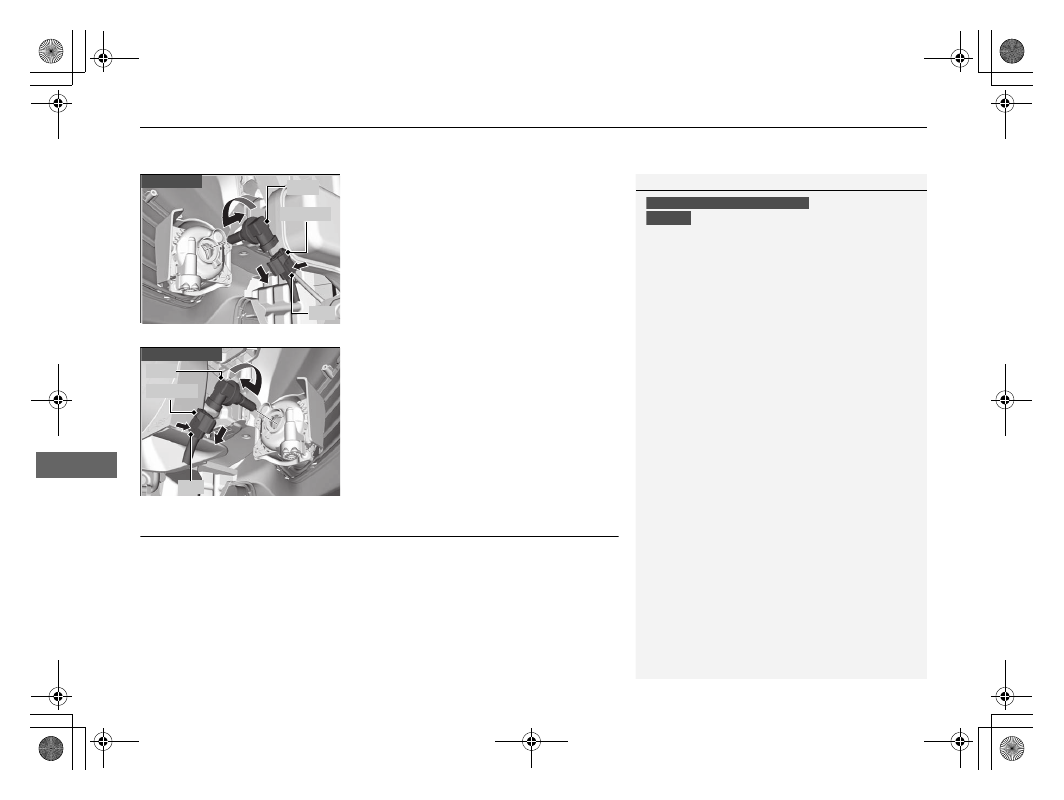

1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to

remove.

3. Insert a new bulb.
4. Insert the coupler into the connector of the

bulb.

■

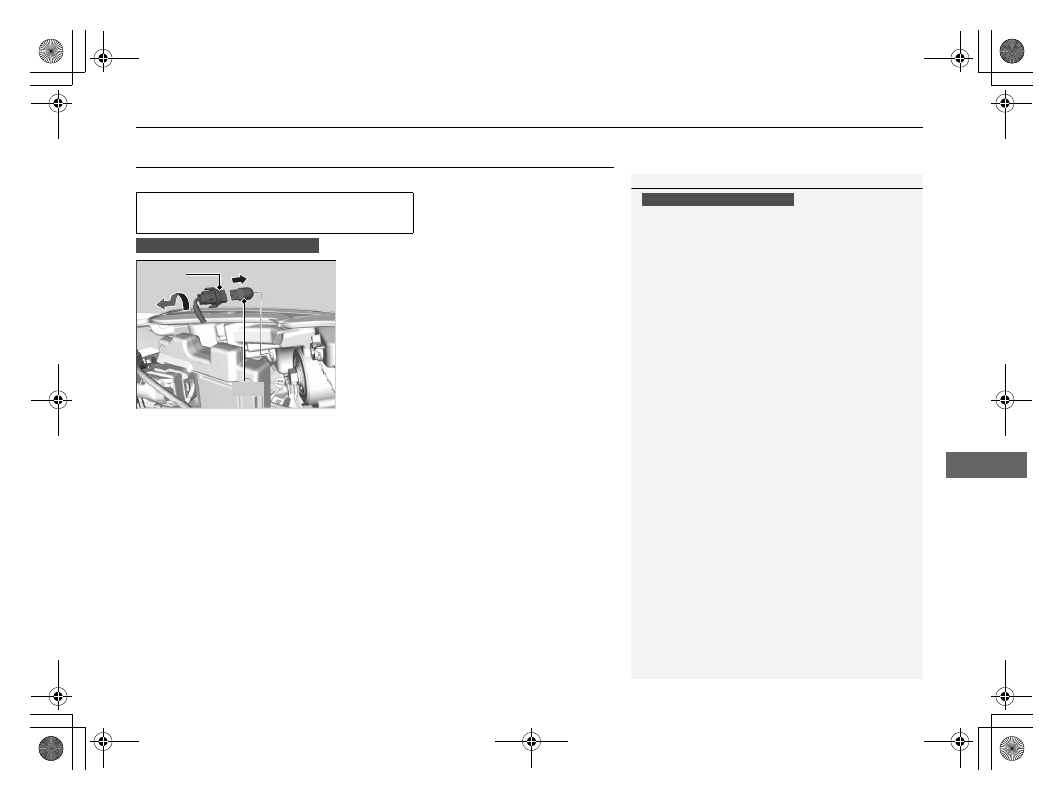

Low Beam Headlights

1

Low Beam Headlights

Low beam headlights are LED type. Have an
authorized Honda dealer inspect and replace the light
assembly.

Models with LED headlights

Models with halogen headlights

Tab

Coupler

Bulb

537

uu

Replacing Light Bulbs

u

Front Turn Signal Light Bulbs

Main

tenan

ce

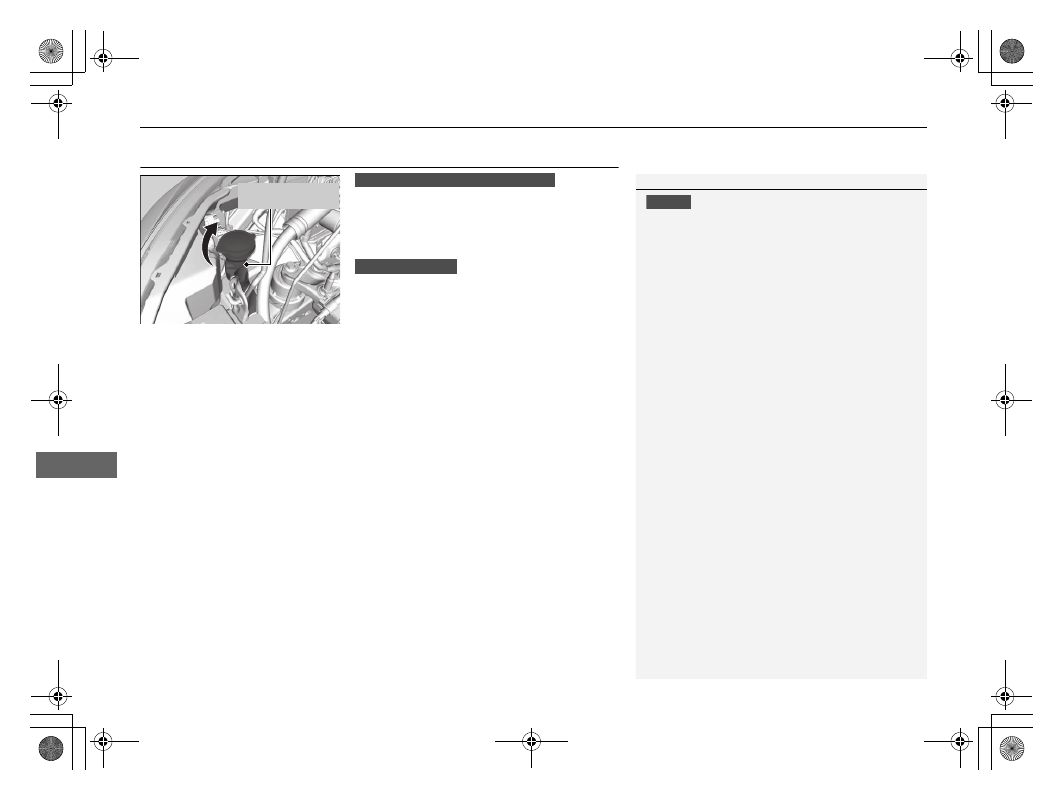

Front Turn Signal Light Bulbs

When replacing, use the following bulbs.

1. Turn the socket counter-clockwise and

remove it.

2. Pull the bulb straight out of its holder.
3. Insert a new bulb.

Front Turn Signal Light: 28/8 W (Amber)

*

Front Turn Signal Light: LED type

*

1

Front Turn Signal Light Bulbs

Front turn signal lights are LED type. Have an
authorized Honda dealer inspect and replace the light
assembly.

Models with LED headlights

Models with halogen headlights

Bulb

Socket

* Not available on all models

538

uu

Replacing Light Bulbs

u

Front Side Marker Lights

Main

tenan

ce

Front Side Marker Lights

Front side marker lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

Parking/Daytime Running Lights

Parking/daytime running lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.

539

uu

Replacing Light Bulbs

u

Fog Light Bulbs

*

Continued

Main

tenan

ce

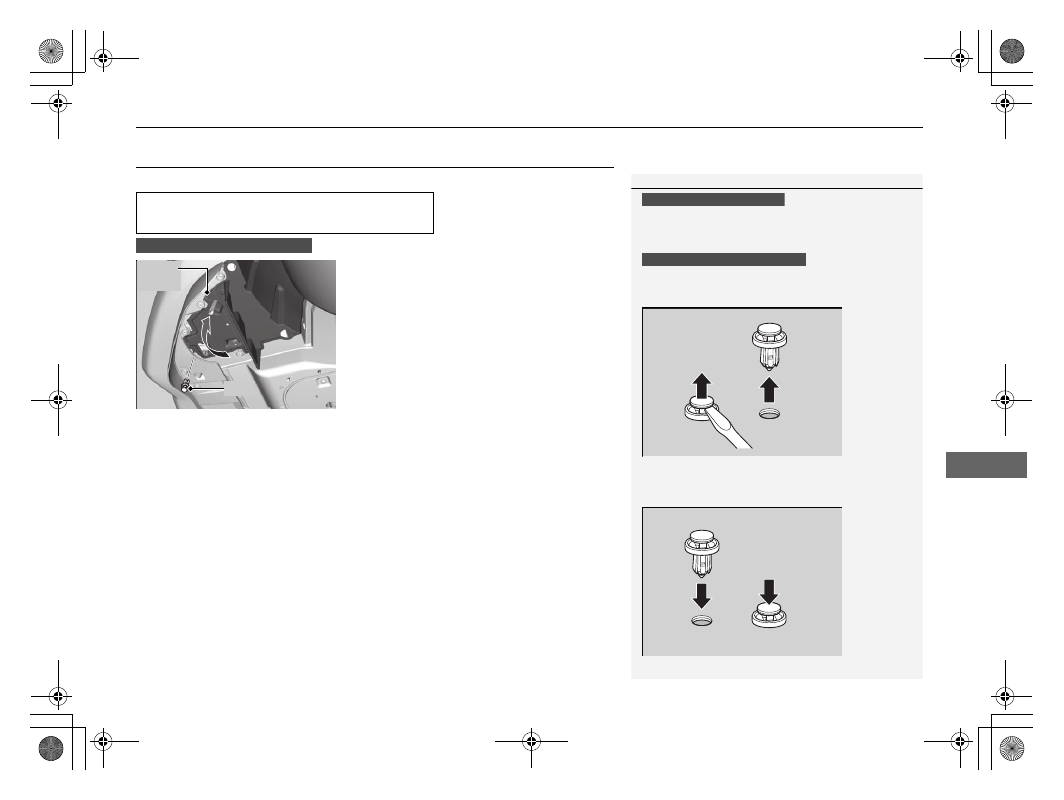

Fog Light Bulbs

*

When replacing, use the following bulbs.

1. Remove the clips using a flat-tip

screwdriver, and push up the under cover.

Fog Light: 35 W (H8 for halogen bulb type)

*

Fog Light: LED type

*

1

Fog Light Bulbs

*

Fog lights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.

Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.

Insert the clip with the center pin raised, and push
until it is flat.

Models with LED fog lights

Models with halogen fog lights

Push until the pin
is flat.

Models with halogen fog lights

Clip

Under
Cover

* Not available on all models

uu

Replacing Light Bulbs

u

Side Turn Signal/Emergency Indicator Lights

*

540

Main

tenan

ce

2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise on

driver side and clockwise on passenger side
to remove.

4. Insert a new bulb into the fog light

assembly and turn it clockwise on driver
side and counter-clockwise on passenger
side.

5. Insert the coupler into the connector of the

bulb.

Side Turn Signal/Emergency Indicator Lights

*

Side turn lights are LED type. Have an authorized Honda dealer inspect and replace
the light assembly.

1

Fog Light Bulbs

*

NOTICE

Halogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.

When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alcohol and a clean cloth.

Models with halogen fog lights

Tab

Bulb

Coupler

Driver side

Tab

Bulb

Coupler

Passenger side

* Not available on all models

541

uu

Replacing Light Bulbs

u

Rear Turn Signal Light Bulbs

Main

tenan

ce

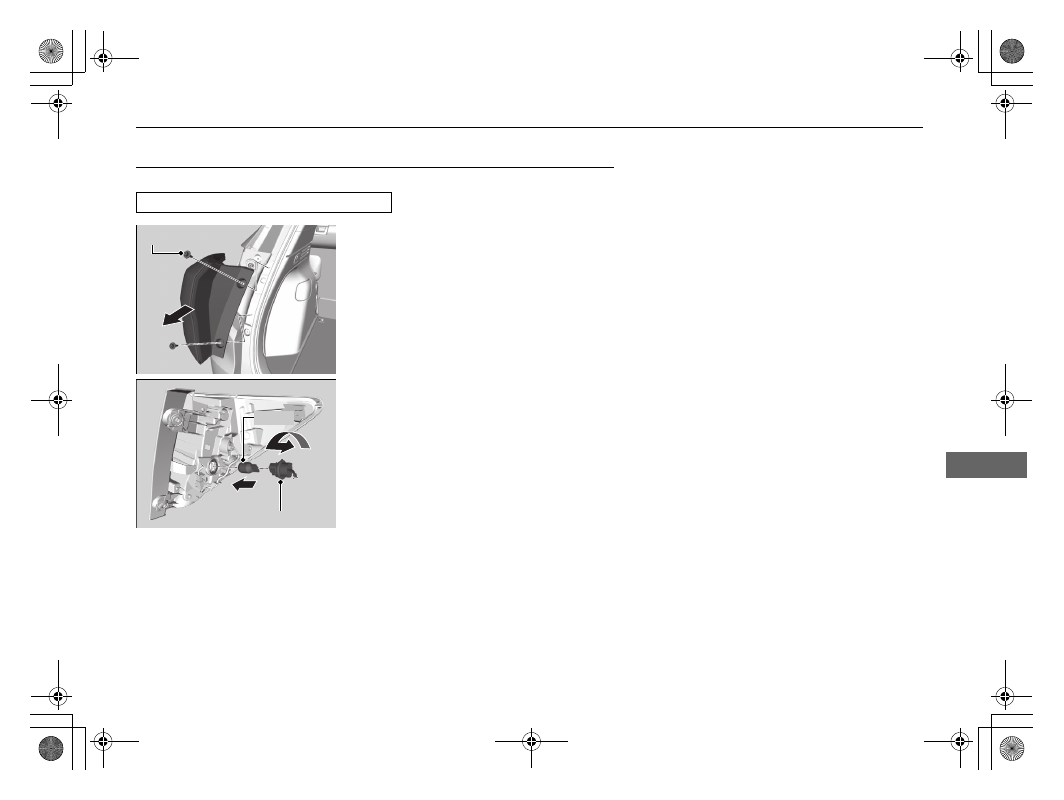

Rear Turn Signal Light Bulbs

When replacing, use the following bulbs.

1. Use a Phillips-head screwdriver to remove

the bolts.

2. Pull the light assembly out of the rear pillar.

3. Turn the socket counter-clockwise and

remove it.

4. Remove the old bulb.
5. Insert a new bulb.
6. Slide the light assembly onto the guide on

the body.

Rear Turn Signal Light: 21 W (Amber)

Bolt

Bulb

Socket

542

uu

Replacing Light Bulbs

u

Back-Up Light Bulbs

Main

tenan

ce

Back-Up Light Bulbs

When replacing, use the following bulbs.

1. Remove the cover by prying on the edge

using a flat-tip screwdriver.

u

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

2. Turn the socket counter-clockwise and

remove it.

3. Remove the old bulb.
4. Insert a new bulb.

Back-Up Light: 16 W

Cover

Bulb

Socket

543

uu

Replacing Light Bulbs

u

Brake/Tail/Rear Side Marker Lights

Main

tenan

ce

Brake/Tail/Rear Side Marker Lights

Brake/tail/rear side marker lights are the LED type. Have an authorized Honda dealer
inspect and replace the light assembly.

High-Mount Brake Light

High-mount brake light is a LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
