Honda HR-V (2019 year). Instruction - part 10

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

144

Co
ntrols

If the lock or unlock button of the remote does not work, use the key instead.

If the lock or unlock button of the remote
does not work, use the key instead.
Fully insert the key and turn it.

■

Locking/Unlocking the Doors Using a Key

1

Locking/Unlocking the Doors Using a Key

If you unlock the doors with the key, the alarm
activates when you open the hood or move the shift
lever out of

(

P (continuously variable transmission

models).

When you lock the driver’s door with a key, all the
other doors and tailgate lock at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors and the tailgate.

You can customize the door unlock mode setting.

2 Customized Features P. 122

Models with multi-information display

Lock

Unlock

145

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

Co
ntrols

If you do not have the key on you, or if for some reason you cannot lock a door using
the key, you can lock the door without it.

■

Locking the driver’s door

Push the lock tab forward

a

 or push the

master door lock switch in the lock direction

b

, and close the door.

■

Locking the passengers’ doors

Push the lock tab forward and close the door.

■

Lockout prevention system

The doors and the tailgate cannot be locked when the key is in the ignition switch.

The doors and the tailgate cannot be locked when the smart entry remote is inside
the vehicle.

■

Locking a Door Without Using a Key

1

Locking a Door Without Using a Key

When you lock the driver’s door, all the other doors
and tailgate lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.

Models without smart entry system

Models with smart entry system

146

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Inside

Co
ntrols

Locking/Unlocking the Doors from the Inside

■

Locking a door

Push the lock tab forward.

■

Unlocking a door

Pull the lock tab rearward.

■

Using the Lock Tab

1

Using the Lock Tab

When you lock the door using the lock tab on the
driver’s door, all of the other doors and the tailgate
lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driver’s door will unlock.

To Unlock

Lock Tab

To Lock

Continued

147

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Inside

Co
ntrols

Pull the front door inner handle.

u

The door unlocks and opens in one
motion.

Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.

To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door.

u

This setting works for one time only.

If you do not want all the doors to be unlocked all the time, customize the Auto
Door Unlock setting to OFF using the multi-information display.

2 Customized Features P. 122

If you do not want all the doors to unlock all the time, customize the Auto Door
Unlock setting to Off using the master door lock switch.

2 Customizing the Auto Door Locking/Unlocking Setting P. 151

■

Unlocking Using the Front Door Inner Handle

1

Unlocking Using the Front Door Inner Handle

The front door inner handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.

Children should always ride in a rear seat where
childproof door locks are provided.

2 Childproof Door Locks P. 149

Inner Handle

Models with multi-information display

Models without multi-information display

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Inside

148

Co
ntrols

Press the master door lock switch in as shown
to lock or unlock all the doors and the tailgate.

■

Using the Master Door Lock Switch

1

Using the Master Door Lock Switch

When you lock/unlock the driver’s door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.

To Lock

To Unlock

Master Door
Lock Switch

149

uu

Locking and Unlocking the Doors

u

Childproof Door Locks

Co
ntrols

Childproof Door Locks

The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.

Slide the lever in the rear door to the lock
position, and close the door.

■

When opening the door

Open the door using the outside door handle.

■

Setting the Childproof Door Locks

1

Childproof Door Locks

To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.

Lock

Unlock

150

uu

Locking and Unlocking the Doors

u

Auto Door Locking/Unlocking

Co
ntrols

Auto Door Locking/Unlocking

Your vehicle locks and unlocks all doors automatically when a certain condition is
met.

■

Drive lock mode

All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).

■

Driver’s door open mode

All doors and the tailgate unlock when the driver’s door is opened.

■

Auto Door Locking

■

Auto Door Unlocking

1

Auto Door Locking/Unlocking

You can turn off or change to another auto door
locking/unlocking setting using the master door lock
switch.

2 Customizing the Auto Door Locking/

Unlocking Setting P. 151

You can turn off or change to another auto door
locking/unlocking setting using the multi-information
display.

2 Customized Features P. 122

Models with multi-information display

151

uu

Locking and Unlocking the Doors

u

Customizing the Auto Door Locking/Unlocking Setting

Continued

Co
ntrols

Customizing the Auto Door Locking/Unlocking Setting

You can customize the auto door locking/unlocking setting to your liking using the master door lock switch.

■

Auto door locking

■

Auto door unlocking

*1:Default setting

■

List of the Auto Door Locking/Unlocking Customizable Options

Mode

Description

Drive Lock Mode

*1

All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).

Off

The auto door locking is deactivated all the time.

Mode

Description

Driver’s Door Open
Mode

*1

All doors and the tailgate unlock when the driver’s door is opened.

Park Unlock Mode

All doors unlock when the transmission is put into

(

P with the brake pedal depressed.

Off

The auto door unlocking is deactivated all the time.

152

uu

Locking and Unlocking the Doors

u

Customizing the Auto Door Locking/Unlocking Setting

Co
ntrols

*1 : Default setting
*2 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

■

Customizing Flow for Auto Door Locking Options

Steps

Drive Lock Mode

*1

Off

1

Apply the parking brake.

2

The driver’s door must be closed at this stage.

Open the driver’s door.

3

Turn the ignition switch to ON

(

w

*2

.

4

Press and hold the front of the master door lock switch on the driver’s door. You will hear a click more than five seconds elapsed.
Release the switch.

5

Turn the ignition switch to OFF

(

0 within 20 seconds

*2

.

u

Customization is completed.

u

All doors unlock and all turn signals blink three times.

153

uu

Locking and Unlocking the Doors

u

Customizing the Auto Door Locking/Unlocking Setting

Co
ntrols

*1 : Default setting
*2 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

■

Customizing Flow for Auto Door Unlocking Options

Steps

Driver Door Open Unlock Mode

*1

Park Unlock Mode

Off

1

Apply the parking brake.
Move the shift lever out of

(

P with the

brake pedal depressed.

Apply the parking brake.
Move the shift lever to

(

P.

Apply the parking brake.
Move the shift lever to

(

P.

2

The driver’s door must be closed at this stage.

Open the driver’s door.

3

Turn the ignition switch to ON

(

w

*2

.

4

Press and hold the rear of the master door lock switch on the driver’s door. You will hear a click more than five seconds elapsed.
Release the switch.

5

Turn the ignition switch to OFF

(

0 within 20 seconds

*2

.

u

Customization is completed.

u

All doors lock and all turn signals blink three times.

154

Co
ntrols

Opening and Closing the Tailgate

Precautions for Opening/Closing the Tailgate

Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
• Open the tailgate all the way.

u

If it is not fully opened, the tailgate may begin to close under its own weight.

• Be careful when it is windy. The wind may cause the tailgate to close.
Keep the tailgate closed while driving to:

u

Avoid possible damage.

u

Prevent exhaust gas from leaking into the vehicle.

2 Carbon Monoxide Gas P. 77

1

Precautions for Opening/Closing the Tailgate

Be careful not to hit your head on the tailgate or to
put your hands between the tailgate and the cargo
area when closing the tailgate.

When you are storing or picking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.

Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.

3

WARNING

Anyone caught in the path of a tailgate
that is being opened or closed can be
seriously injured.
Make sure that all people are clear of the
tailgate before opening or closing it.

155

uu

Opening and Closing the Tailgate

u

Using the Tailgate Release Button

Continued

Co
ntrols

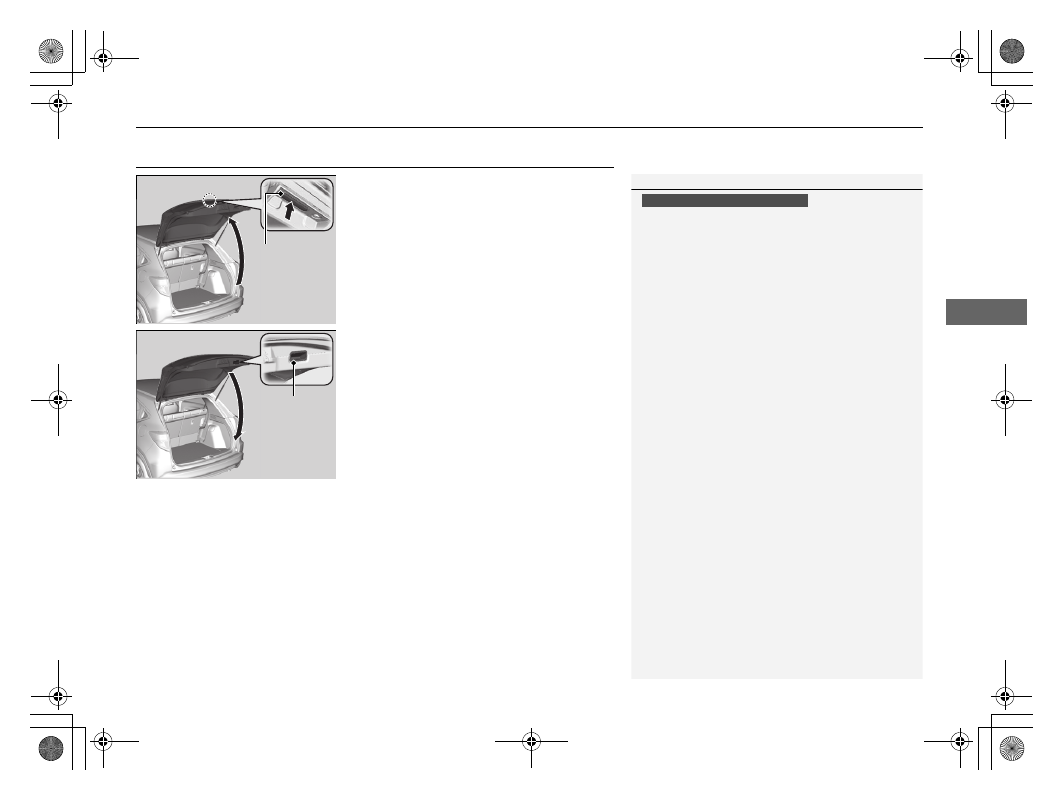

Using the Tailgate Release Button

When all the doors are unlocked or press the
tailgate unlock button on the remote
transmitter, the tailgate is unlocked. Press the
tailgate release button and lift open the
tailgate.

To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.

If you close the tailgate when all the doors are
locked, the tailgate locks automatically.

u

Some exterior lights flash.

1

Using the Tailgate Release Button

•

Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.

•

Even if you are not carrying the smart entry remote,
you can unlock the tailgate while someone else
with the remote is within range.

•

Do not leave the smart entry remote inside the
cargo area and close the tailgate. The beeper
sounds and the tailgate cannot be closed.

If you are carrying the smart entry remote, you do not
have to unlock the tailgate before opening it.

Models with smart entry system

Tailgate
Release
Button

Inner
Handle

uu

Opening and Closing the Tailgate

u

Using the Tailgate Release Button

156

Co
ntrols

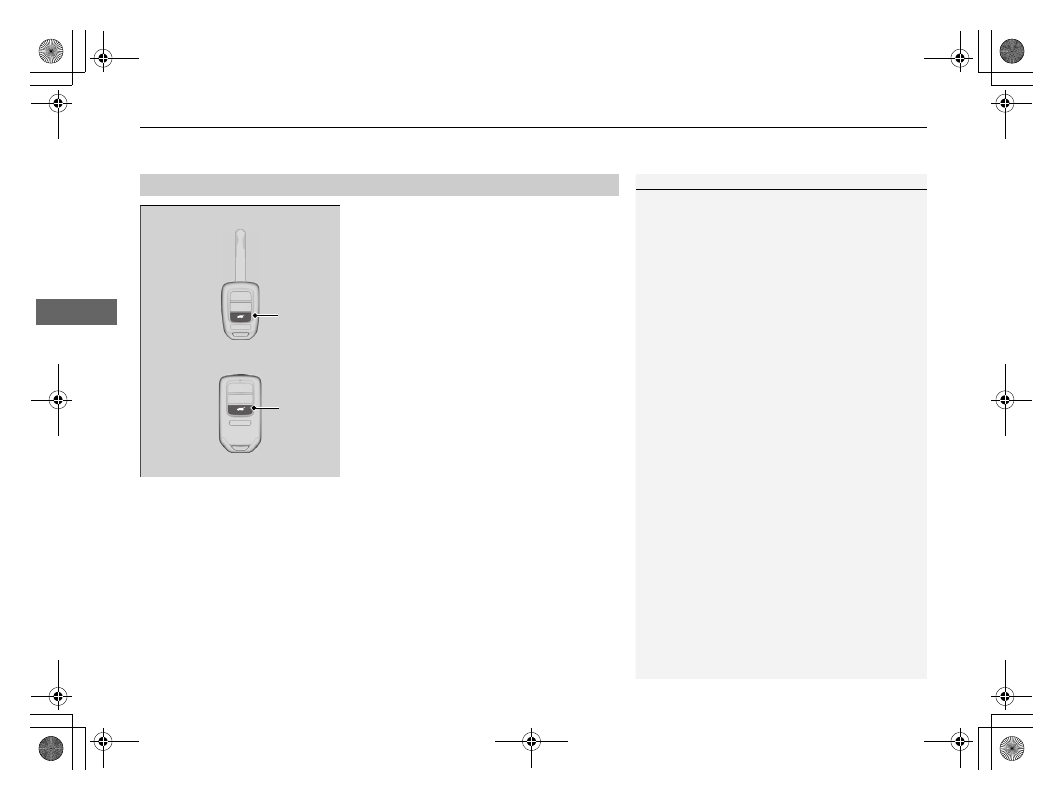

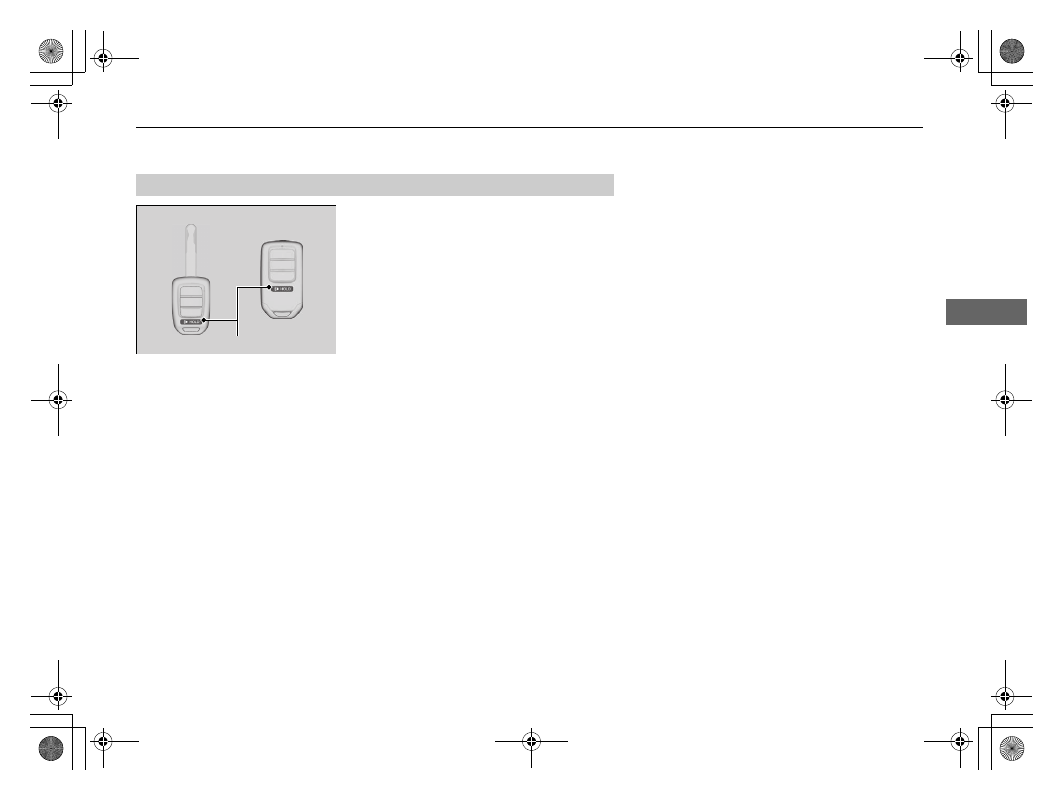

Press the tailgate unlock button to unlock the
tailgate.

■

Using the Remote Transmitter

1

Using the Remote Transmitter

If you have unlocked and opened the tailgate using
the remote transmitter, or smart entry remote, when
closing, the tailgate locks automatically.

Tailgate
Unlock
Button

Tailgate
Unlock
Button

157

Continued

Co
ntrols

Security System

Immobilizer System

The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.

Pay attention to the following when inserting the key into the ignition switch or
pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ignition switch or the

ENGINE START/STOP button.

• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the ignition

switch or the ENGINE START/STOP button.

• Do not put the key near magnetic items. Electronic device, such as televisions and

audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.

Security System Alarm

The security system alarm activates when the tailgate, hood or doors are forcibly
opened. The alarm does not activate if the tailgate or doors are opened with the key,
remote transmitter or smart entry system

*

.

However, the alarm activates if a door is opened with the key and then the
transmission is taken out of

(

P or the hood is opened before the ignition switch is

turned to ON

(

w

*1

.

■

When the security system alarm activates

The horn sounds intermittently and all of the exterior lights flash.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

1

Immobilizer System

NOTICE

Leaving the key in the vehicle can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.

Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.

1

Security System Alarm

The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.

* Not available on all models

uu

Security System

u

Security System Alarm

158

Co
ntrols

■

To deactivate the security system alarm

Unlock the vehicle using the remote transmitter or smart entry remote

*

, or turn the

ignition switch to ON

(

w

*1

. The system, along with the horn and flashing lights, is

deactivated.

■

Setting the security system alarm

The security system alarm automatically sets when the following conditions have
been met:
• The ignition switch is in LOCK

(

0

*1

, and the key has been removed from the

ignition switch.

• The hood is closed.
• All doors and the tailgate are locked from outside with the key, remote

transmitter, or smart entry system

*

.

■

When the security system alarm sets

The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.

■

To cancel the security system alarm

The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter or smart entry system

*

, or the ignition switch is turned to ON

(

w

*1

. The

security system alarm indicator goes off at the same time.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

1

Security System Alarm

Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:

•

Unlocking the door with the lock tab.

•

Opening the hood with the hood release handle.

•

Moving the shift lever out of

(

P.

If the battery goes dead after you have set the
security system alarm, the security alarm may activate
once the battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key, remote transmitter,
or smart entry system

*

.

Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.

* Not available on all models

159

uu

Security System

u

Security System Alarm

Co
ntrols

■

The panic button on the remote
transmitter

If you press the panic button for
approximately one second, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.

■

Canceling panic mode

Press any button on the remote transmitter, or turn the ignition switch to ON

(

w

*1

.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

Panic Mode

Panic Button
