Honda Accord Hybrid (2019 year). Instruction

560

Driving

Multi-View Rear Camera

About Your Multi-View Rear Camera

The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into

(

*1: Models with color audio
*2: Models with Display Audio

■

Multi-View Rear Camera Display Area

About Your Multi-View Rear Camera

The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.

Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.

If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.

You can change the Fixed Guideline and Dynamic
Guideline settings.

2 Customized Features P. 367, 378

Fixed Guideline
On

/ON

: Guidelines appear when you put the

transmission into

(

Off

/OFF

: Guidelines do not appear.

Dynamic Guideline
On

/ON

: Guidelines move according to the

steering wheel direction.
Off

/OFF

: Guidelines do not move.

Top Down View Mode

Normal View Mode

Wide View Mode

Guidelines

Bumper

Camera

Approx. 20 inches (50 cm)

Approx. 39 inches (1 m)

561

Multi-View Rear Camera

About Your Multi-View Rear Camera

Continued

Driving

You can view three different camera modes on the audio/information screen.

Press the preset button(1-3) under the appropriate icon to switch the mode.

: Wide view mode
: Normal view mode
: Top down view mode

Touch the appropriate icon to switch the modes.

: Wide view mode
: Normal view mode
: Top down view mode

• If you were last using Wide view mode or Normal view mode, the same view

mode will be activated the next time you put the transmission into

(

• If you were using Top down view mode before you turned off the power system,

Wide view mode will be activated the next time you set the power mode to ON
and put the transmission into

(

• If you were using Top down view mode and 10 seconds elapsed after you took

the transmission out of

(

R, Wide view mode will be activated the next time you

put the transmission into

(

Models with color audio

Models with Display Audio

Models with color audio

562

Multi-View Rear Camera

About Your Multi-View Rear Camera

Driving

• If you were last using Wide view mode or Normal view mode, the same view

mode will be activated the next time you put the transmission into

(

• If you were using Top down view mode before turning off the power system, the

next time you set the power mode to ON and put the transmission into

(

R, the

view mode you were using just before using Top down view mode (Wide view
mode or Normal view mode) will be activated.

• If you were using Top down view mode and 10 seconds elapsed after you took

the transmission out of

(

R, the view mode you were using just before selecting

Top down view mode (Wide view mode or Normal view mode) will be activated
the next time you put the transmission into

(

Models with Display Audio

563

Driving

Refueling

Fuel Information

■

Fuel recommendation

Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.

■

Top tier detergent gasoline

Because the level of detergency and additives in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.

Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.

For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasoline. For more information on top
tier gasoline, visit www.toptiergas.com.

■

Fuel tank capacity: 12.81 US gal (48.5 L)

Unleaded gasoline, pump octane number 87 or higher

Fuel Information

NOTICE

We recommend quality gasoline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.

Use of gasoline with these additives may adversely
affect performance, and cause the malfunction
indicator lamp on your instrument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gasoline containing methanol.
If you notice any undesirable operating symptoms, try
another service station or switch to another brand of
gasoline.

564

Refueling

How to Refuel

Driving

How to Refuel

Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seals itself again when you pull out the filler
nozzle.

1. Stop your vehicle with the service station

pump on the left side of the vehicle in the
rear.

2. Turn off the power system.
3. Unlock the driver’s door using the master

door lock switch.

The fuel fill door on the outer side of the
vehicle will unlock.

2 Using the Master Door Lock Switch

P. 176

4. Press the area indicated by the arrow to

release the fuel fill door. You will hear a
click.

How to Refuel

The fuel filler opening is designed to accept only
service station filler nozzles for refueling. Use of
smaller diameter tubes (e.g., those used to siphon
fuel for other uses) or other non-service station
devices can damage the area in and around the filler
opening.

Use the master door lock switch to unlock the fuel fill
door.
The vehicle doors and fuel fill door automatically
relock if the remote unlock function is used. This can
be deactivated by briefly opening then closing the
driver’s door.

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Turn the power system off, and keep

heat, sparks, and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Master Door Lock Switch

Press

Fuel Fill Door

565

Refueling

How to Refuel

Driving

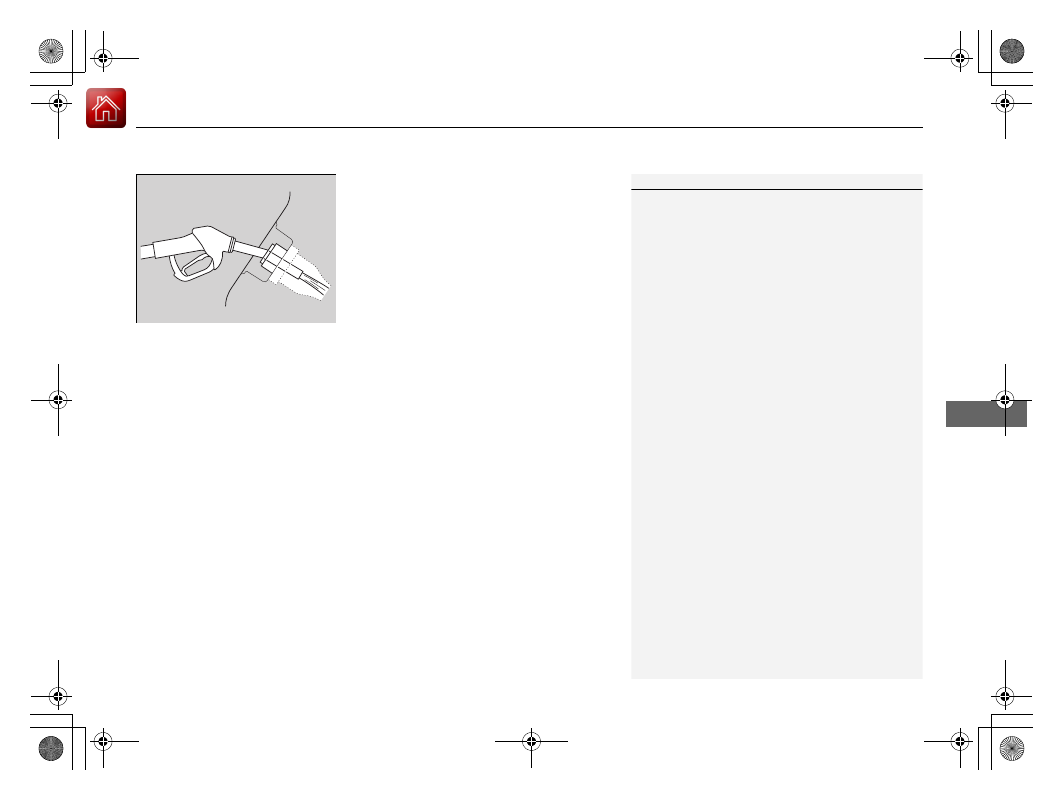

5. Place the end of the filler nozzle on the

lower part of filler opening, then insert it
slowly and fully.

Make sure that the end of the filler
nozzle goes down along with the filler
pipe.

Keep the filler nozzle level.

When the tank is full, the filler nozzle will
click off automatically.

After filling, wait about five seconds
before removing the filler nozzle.

6. Shut the fuel fill door by hand.

How to Refuel

The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.

If the filler nozzle keeps turning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try filling at another pump. If
this does not fix the problem, consult a dealer.

Do not continue to add fuel after the filler nozzle has
automatically stopped. Additional fuel can exceed
the full tank capacity.

If you have to refuel your vehicle from a portable
container, use the funnel provided with your vehicle.

2 Refueling From a Portable Fuel Container

P. 660

566

Driving

Fuel Economy and CO

Emissions

Improving Fuel Economy and Reducing CO

Emissions

Achieving fuel economy and reducing CO

emissions is dependent on several

factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.

You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
driver information interface.
• Use the recommended viscosity engine oil, displaying the API Certification Seal.
• Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside

adds weight and increases wind resistance.

■

Maintenance and Fuel Economy

Improving Fuel Economy and Reducing CO

Emissions

Direct calculation is the recommended method to
determine actual fuel consumed while driving.

In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/

Miles driven

Gallons of

fuel

Miles per

Gallon

100

Liter

Kilometers

L per 100 km

568

Main

tenan

Before Performing Maintenance

Inspection and Maintenance

For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)

■

Daily inspections

Perform inspections before long distance trips, when washing the vehicle, or when
refueling.

■

Periodic inspections

• Check the brake fluid level monthly.

2 Brake Fluid P. 589

• Check the tire pressure monthly. Examine the tread for wear and foreign objects.

2 Checking and Maintaining Tires P. 602

• Check the operation of the exterior lights monthly.

2 Replacing Light Bulbs P. 591

• Check the condition of the wiper blades at least every six months.

2 Checking and Maintaining Wiper Blades P. 599

■

Types of Inspection and Maintenance

Inspection and Maintenance

Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.

According to state and federal regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordance with the intervals
indicated by the driver information interface.

2 Maintenance Service Items P. 575

If you want to perform complex maintenance tasks
that require more skills and tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com.

2 Authorized Manuals P. 671

If you want to perform maintenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenance, update the records in
the separate maintenance booklet.

U.S. models

569

Before Performing Maintenance

Safety When Performing Maintenance

Main

tenan

Safety When Performing Maintenance

Some of the most important safety precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether you should perform a given
task.

• To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames

away from the 12-volt battery, all High Voltage system, and all fuel related parts.

• Never leave rags, towels, or other flammable objects under the hood.

Heat from the engine and exhaust can ignite them, causing a fire.

• To clean parts, use a commercially available degreaser or parts cleaner, not

gasoline.

• Wear eye protection and protective clothing when working with the 12-volt

battery or compressed air.

• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.

Only operate the engine if there is sufficient ventilation.

• The vehicle must be in a stationary condition.

Make sure your vehicle is parked on level ground, the parking brake is set, and
the power system is turned off.

• Be aware that hot parts can burn you.

Make sure to let the power system including the engine and exhaust system
cool thoroughly before touching vehicle parts.

• Be aware that moving parts can injure you.

Do not activate the power system unless instructed, and keep your hands and
limbs away from moving parts. When the power system is on, the engine can
automatically start, or the radiator fan may start operating without the engine
running.

■

Maintenance Safety

■

Vehicle Safety

Safety When Performing Maintenance

WARNING

Improperly maintaining this vehicle or
failing to correct a problem before driving
can cause a crash in which you can be
seriously hurt or killed.

Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.

WARNING

Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.

Always follow the procedures and
precautions in this owner’s manual.

570

Before Performing Maintenance

Parts and Fluids Used in Maintenance Service

Main

tenan

Parts and Fluids Used in Maintenance Service

The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.

Parts and Fluids Used in Maintenance Service

Do not press the engine cover forcibly. This may
damage the engine cover and component parts.

572

Maintenance Minder

To Use Maintenance Minder

Main

tenan

To Use Maintenance Minder

Maintenance items, which should be serviced at the same time that you replace the
engine oil, appear on the driver information interface.
You can view them on the engine oil life screen at any time.
1. Set the power mode to ON.
2. Press the

(home) button.

3. Roll the left selector wheel until

is displayed.

4. Press the left selector wheel to go to the Maintenance Minder screen. The engine

oil life appears on the driver information interface along with maintenance items
due soon.

■

Displaying the Maintenance Minder Information

Displaying the Maintenance Minder Information

Based on the engine operating conditions, the
remaining engine oil life is calculated and displayed
as a percentage.

There is a list of maintenance main and sub items you
can view on the driver information interface.

2 Maintenance Service Items P. 575

Displayed Engine Oil

Life (%)

Calculated Engine Oil

Life (%)

100

100 to 91

90 to 81

80 to 71

70 to 61

60 to 51

50 to 41

40 to 31

30 to 21

20 to 16

15 to 11

10 to 6

5 to 1

(home) Button

Engine Oil Life

Main Item

Sub Item

Left Selector Wheel

573

Maintenance Minder

To Use Maintenance Minder

Continued

Main

tenan

■

Maintenance Minder Messages on the Driver Information
Interface

Maintenance Message

Oil Life Display

Explanation

Information

—

When you select the Maintenance
Minder screen, it displays codes for
maintenance items due at the next
engine oil change, along with the
percentage of engine oil life
remaining.

—

Maintenance Due Soon

15 %

The engine oil life indicator starts
to appear along with other due-
soon maintenance item codes
when the remaining oil life drops
to 15 percent.

The engine oil is approaching the end
of its service life.

574

Maintenance Minder

To Use Maintenance Minder

Main

tenan

The system message indicator (

) comes on along with the Maintenance Minder message.

Maintenance Message

Oil Life Display

Explanation

Information

Maintenance Due Now

5 %

The remaining engine oil life is 5 to
1 percent. Press the

(home)

button to switch to another
display.

The engine oil has almost reached the
end of its service life, and the
maintenance items should be
inspected and serviced as soon as
possible.

Maintenance Past Due

Negative Distance

The engine oil has passed its
service life, and a negative
distance appears after driving over
10 miles (U.S. models) or 10 km
(Canadian models). The negative
distance on the display blinks.

The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.

575

Maintenance Minder

To Use Maintenance Minder

Continued

Main

tenan

■

Maintenance Service Items

Maintenance Service Items

•

Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.

Maintenance Minder Message

System Message
Indicator

Sub Items

Main Item

U.S. models

*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,

change the engine oil every year.

# : See information on maintenance and emissions warranty.

CODE

Maintenance Main Items

• Replace engine oil

and oil filter

• Inspect front and rear brakes
• Check expiry date for tire repair kit bottle
• Inspect tie rod ends, steering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and lines (Including ABS/VSA®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system

• Inspect fuel lines and connections

*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and

from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).

*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.

This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (76,000 kilometers) or 3 years.

*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is

reset, change the brake fluid every 3 years.

CODE

Maintenance Sub Items

• Rotate tires

• Replace air cleaner element

• Replace dust and pollen filter

• Replace transmission fluid

• Replace spark plugs
• Inspect valve clearance

• Replace engine coolant

• Replace brake fluid

Honda Accord Hybrid (2019 year). Instruction - part 36
