Honda Accord Hybrid (2019 year). Instruction - part 35

uu

Braking

u

Brake System

544

Driving

Your vehicle is equipped with disc brakes at all four wheels. The brake assist system
increases the stopping force when you depress the brake pedal hard in an
emergency situation. The anti-lock brake system (ABS) helps you retain steering
control when braking very hard.

2 Brake Assist System P. 548
2 Anti-lock Brake System (ABS) P. 547

■

Foot Brake

1

Foot Brake

Check the brakes after driving through deep water,
or if there is a buildup of road surface water. If
necessary, dry the brakes by lightly depressing the
pedal several times.

If you hear a continuous metallic friction sound when
applying the brakes, this is caused by the brake wear
indicator rubbing on the brake rotor and indicates
that the brake pads need to be replaced. Have the
vehicle checked by a dealer. If you hear only an
occasional squeak or squeal when you initially apply
the brake pedal, this may be normal and caused by
high frequency vibration of the brake pads against
the rotating brake disc.

Applying constant pressure to the brakes while going
down a long hill can cause the brakes to heat up,
resulting in a loss of stopping power.
Therefore, when descending a long hill, release the
accelerator pedal and allow regenerative braking to
slow the vehicle down. To adjust the rate of
deceleration, use the deceleration paddle selector.

2 Deceleration Paddle Selector P. 472

Do not rest your foot on the brake pedal while
driving, as it will lightly apply the brakes and cause
them to lose effectiveness over time and reduce pad
life. It will also confuse drivers behind you.

Continued

545

uu

Braking

u

Brake System

Driving

Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while the vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.

■

Automatic Brake Hold

1

Automatic Brake Hold

3

WARNING

Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.

If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.

Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.

3

WARNING

Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.

If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.

Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in

(

P

 and applying the parking

brake.

■

Turning on the system

Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button.

●

The automatic brake
hold system indicator
comes on. The system
is turned on.

■

Activating the system

Depress the brake pedal
to come to a complete
stop. The transmission
must be in

(

D or

(

N.

●

The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.

●

Release the brake
pedal after the
automatic brake hold
indicator comes on.

■

Canceling the system

Depress the accelerator
pedal while the
transmission is in

(

D. The

system is canceled and
the vehicle starts to
move.

●

The automatic brake
hold indicator goes
off. The system
continues to be on.

Accelerator Pedal

Brake Pedal

Automatic Brake
Hold Button

Goes
Off

U.S.

Canada

On

On

Comes
On

Comes
On

Comes
On

uu

Braking

u

Brake System

546

Driving

■

The system automatically cancels when:

• You engage the parking brake.
• You depress the brake pedal and put the transmission into to

(

P or

(

R.

■

The system automatically cancels and the parking brake is applied when:

• Braking is kept for more than 10 minutes.
• The driver’s seat belt is unfastened.
• The power system is turned off.
• Brake Hold System Problem. Apply Brake When Stopped. See Your

Dealer. appears on the driver information interface.

• There is a problem with automatic brake hold system.

■

Turning off the automatic brake hold system

While the system is on, press the automatic
brake hold button again.

u

The automatic brake hold system
indicator goes off.

If you want to turn off automatic brake hold
while the system is in operation, press the
automatic brake hold button with the brake
pedal depressed.

1

Automatic Brake Hold

While the system is activated, you can turn off the
power system or park the vehicle through the same
procedure as you normally do.

2 When Stopped P. 549

Whether the system is on, or the system is activated,
the automatic brake hold turns off once the power
system is off.

1

Turning on the system

Make sure to turn off the automatic brake hold
system before using an automated car wash.

You may hear an operating noise if the vehicle moves
while the automatic brake hold system is in
operation.

Automatic Brake
Hold Button

Goes
Off

547

uu

Braking

u

Anti-lock Brake System (ABS)

Driving

Anti-lock Brake System (ABS)

Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you.

The electronic brake distribution (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.

You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pedal. This is sometimes referred to as
“stomp and steer.”

■

ABS operation

The brake pedal may pulsate slightly when the ABS is working. Keep holding the
pedal firmly down. On dry pavement, you will need to press on the brake pedal very
hard before the ABS activates. However, you may feel the ABS activate immediately
if you are trying to stop on snow or ice.

ABS may activate when you depress the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surfaces, such as potholes, cracks, manholes, etc.

When the vehicle speed goes under 6 mph (10 km/h), the ABS stops.

■

ABS

1

Anti-lock Brake System (ABS)

NOTICE

The ABS may not function correctly if you use a tire of
the wrong size or type.

If the ABS indicator comes on while driving, there
may be a problem with the system. While normal
braking will not be affected, there is a possibility that
the ABS will not be operating. Have your vehicle
checked by a dealer immediately.

The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lockup which can lead to
skidding and loss of steering control.

In the following cases, your vehicle may need more
distance to stop than a vehicle without the ABS:

•

You are driving on rough or uneven road surfaces,
such as gravel or snow.

•

The tires are equipped with snow chains.

The following may be observed with the ABS system:

•

Motor sounds coming from the engine
compartment when the brakes are applied, or
when system checks are being performed after the
power system has been started while vehicle
accelerates.

•

Brake pedal and/or the vehicle body vibration when
ABS activates.

These vibrations and sounds are normal to ABS
systems and are no cause for concern.

548

uu

Braking

u

Brake Assist System

Driving

Brake Assist System

Designed to assist the driver by generating greater braking force when you depress
the brake pedal hard during emergency braking.

■

Brake assist system operation

Press the brake pedal firmly for more powerful braking.

When brake assist operates, the pedal may wiggle slightly and an operating noise
may be heard. This is normal. Keep holding the brake pedal firmly down.

■

Brake Assist System

549

Continued

Driving

Parking Your Vehicle

When Stopped

1. Depress the brake pedal firmly.
2. With the brake pedal depressed, pull up the electric parking brake switch slowly,

but fully.

3. Change the shift position to

(

P.

4. Turn off the power system.

u

The parking brake indicator (red) goes off in about 30 seconds.

1

Parking Your Vehicle

Do not park your vehicle near flammable objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.

3

WARNING

The vehicle can roll away if left unattended
without confirming that Park is engaged.

A vehicle that rolls away could cause a crash
resulting in serious injury or death.

Always keep your foot on the brake pedal
until you have confirmed that

(

P

 is shown

on the shift position indicator.

1

When Stopped

NOTICE

The following can damage the driveline:

•

Depressing the accelerator and brake pedals
simultaneously.

•

Changing into

(

P before the vehicle stops

completely.

When facing uphill, do not hold the vehicle by
depressing the accelerator pedal.
Doing so may cause the power system to overheat
and fail.

uu

Parking Your Vehicle

u

When Stopped

550

Driving

Always confirm the electric parking brake is set, in particular if you are parked on an
incline.

1

When Stopped

In extremely cold temperatures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpectedly, leading to a crash.

551

uu

Parking Your Vehicle

u

Parking Sensor System

*

Continued

Driving

Parking Sensor System

*

The corner and center sensors monitor obstacles around your vehicle, and the
beeper, driver information interface and audio/information screen let you know the
approximate distance between your vehicle and the obstacle.

■

The sensor location and range

1

Parking Sensor System

*

Even when the system is on, always confirm if there is
no obstacle near your vehicle before parking.

The system may not work properly when:

•

The sensors are covered with snow, ice, mud or
dirt.

•

The vehicle is on uneven surface, such as grass,
bumps, or a hill.

•

The vehicle has been out in hot or cold weather.

•

The system is affected by devices that emit
ultrasonic waves.

•

Driving in bad weather.

The system may not sense:

•

Thin or low objects.

•

Sonic-absorptive materials, such as snow, cotton,
or sponge.

•

Objects directly under the bumper.

Do not put any accessories on or around the sensors.

Within about 24 in (60 cm) or less

Front Corner Sensors

Rear Corner Sensors

Within about 43 in (110 cm) or less

Rear Center Sensors

* Not available on all models

uu

Parking Your Vehicle

u

Parking Sensor System

*

552

Driving

■

Parking sensor system on and off

With the power mode in ON, press the
parking sensor system button to turn on or off
the system. The indicator in the button comes
on when the system is on.

The front corner, rear corner and rear center
sensors start to detect an obstacle when the
transmission is in

(

R, and the vehicle speed is

less than 5 mph (8 km/h).

The front corner sensors start to detect an
obstacle when the transmission is in any
position other than

(

P, and the vehicle speed

is less than 5 mph (8 km/h).

1

Parking Sensor System

*

When you set the power mode to ON, the system will
be in the previously selected condition.

* Not available on all models

Continued

553

uu

Parking Your Vehicle

u

Parking Sensor System

*

Driving

■

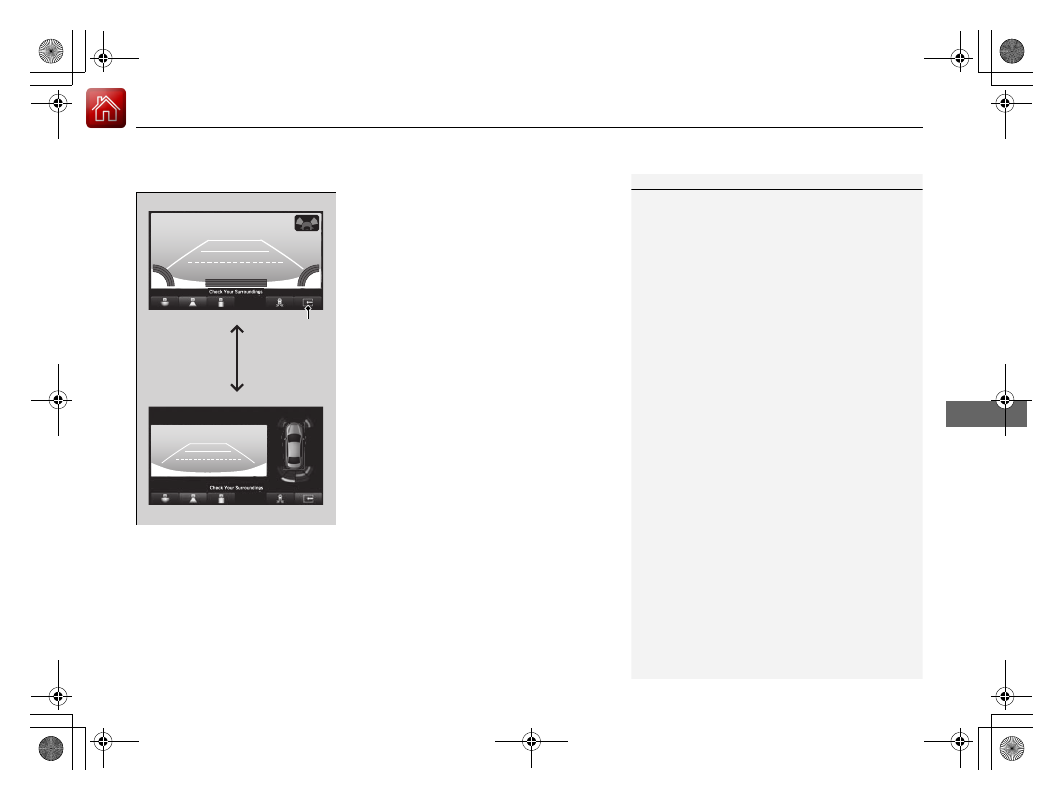

Screen Operation

You can switch between split view off and
split view on by touching the split screen tab.

1

Screen Operation

The split screen tab disappears, and the split view
returns to the last camera view mode under the
following conditions:

•

If the parking sensor system is turned off.

•

If there is a malfunction in the system.

Split Screen
Tab

Split View Off

Split View On

554

uu

Parking Your Vehicle

u

Parking Sensor System

*

Driving

■

When the distance between your vehicle and obstacles behind becomes shorter

*1:At this stage, only the center sensors detect obstacles.

Length of the

intermittent beep

Distance between the Bumper and Obstacle

Indicator

Audio/Information Screen

Driver Information Interface

Corner Sensors

Center Sensors

Moderate

—

Rear: About 43-24 in

(110-60 cm)

Comes on in Yellow

*1

Short

About 24-18 in

(60-45 cm)

About 24-18 in

(60-45 cm)

Comes on in Amber

Very short

About 18-14 in

(45-35 cm)

About 18-14 in

(45-35 cm)

Continuous

About 14 in

(35 cm) or less

About 14 in

(35 cm) or less

Comes on in Red

Indicators light where the
sensor detects an obstacle.

Indicators light where the
sensor detects an obstacle.

555

uu

Parking Your Vehicle

u

Parking Sensor System

*

Driving

1. Make sure that the parking sensor system is not activated. Set the power mode to

VEHICLE OFF.

2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for ten seconds. Release the button when the indicator

in the button blinks.

u

The beeper sounds once.

4. Press the button again. The indicator in the button goes off.

u

The beeper sounds twice. The rear sensors are now turned off.

To turn the rear sensors on again, follow the above procedure. The beeper sounds
three times when the rear sensors come back on.

■

Turning off All Rear Sensors

1

Turning off All Rear Sensors

When you put the transmission into

(

R, the indicator

in the parking sensor system button blinks as a
reminder that the rear sensors have been turned off.

556

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Driving

Cross Traffic Monitor

*

Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.

The system is convenient when you are backing out of a parking space.

1

Cross Traffic Monitor

*

The parking sensor system’s alerting buzzer overrides
the Cross Traffic Monitor buzzer when the sensors
are detecting obstacles at the closest range.

3

CAUTION

Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.

Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.

Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.

Models with parking sensor system

* Not available on all models

Continued

557

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Driving

The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned

on.

2 Cross Traffic Monitor On and Off P. 559

• The transmission is in

(

R.

• Your vehicle is moving at 3 mph (5 km/h) or

lower.

When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.

The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.

The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestrians, bicycles, or stationary objects.

■

How the System Works

1

Cross Traffic Monitor

*

Cross Traffic Monitor may not detect or may delay
alerting an approaching vehicle, or may alert without
an approaching vehicle under the following
conditions:

•

An obstacle, such as another vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.

•

Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.

•

A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).

•

The system picks up external interference such as
other radar sensors from another vehicle or strong
radio wave transmitted from a facility nearby.

•

Either corner of the rear bumper is covered with
snow, ice, mud or dirt.

•

When there is bad weather.

•

Your vehicle is on an incline.

•

Your vehicle is tilted due to a heavy load in the rear.

•

Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.

•

The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have your vehicle checked by a dealer.

For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.

Radar sensors:
Underneath the rear bumper
corners

* Not available on all models

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

558

Driving

An arrow icon appears on the side of the audio/information screen when a vehicle
is approaching.

■

When the System Detects a Vehicle

1

When the System Detects a Vehicle

If the

 on the lower right changes to

 in amber

when the transmission is in

(

R, mud, snow or ice,

etc. may have accumulated in the vicinity of the
sensor. The system is temporarily canceled. Check the
bumper corners for any obstructions, and thoroughly
clean the area if necessary.

If the

 comes on when the transmission is in

(

R,

there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.

If the display remains the same with the transmission
in

(

R, there may be a problem with the rear camera

system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.

Wide View

Normal View

Arrow Icon

Top Down View

559

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Driving

You can switch on and off the system using the audio/information screen.
1. Press the

 button.

2. Select Settings.
3. Select Camera.
4. Select Cross Traffic Monitor.
5. Select ON or OFF, then select Save.

The system can also be turned on and off on
the audio/information screen by pressing the
CTM icon.

■

Cross Traffic Monitor On and Off

Check Your Surroundings

Icon
