96

uu

Indicators

u

Multi-Information Display Warning and Information Messages

*

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.

●

May appear when driving in bad weather (rain,
snow, fog, etc.).

●

Have your vehicle checked by a dealer if the message
appears again after you cleaned the area around the
camera.

●

Appears if the temperature inside the camera is too
high.

●

ACC/LKAS has been automatically canceled.

●

Use the climate control system to cool down the camera.

●

Goes off - The camera has been cooled down. Pressing
the MAIN/LKAS button can resume the system.

2 Front Sensor Camera

*

 P. 445

2 Adaptive Cruise Control (ACC)

*

 P. 447

2 Lane Keeping Assist System (LKAS)

*

 P. 464

●

Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.

●

Keep the vehicle within the lane you are driving.

●

The color of either line changes from white to amber as
the vehicle gets closer to that side of the lane line.

2 Lane Keeping Assist System (LKAS)

*

 P. 464

●

Appears when the vehicle is driving out of a detected
line.

- The steering wheel vibrates rapidly when the

vehicle is drifting out of a detected line.

- The steering wheel vibrates rapidly when the

vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.

●

Keep the vehicle within the lane you are driving.

●

The color of either line changes from white to amber as
the vehicle gets closer to that side of the lane line.

2 Road Departure Mitigation (RDM) System

*

 P. 460

●

You can change the setting for the road departure
mitigation system. Normal, Wide, and Warning Only
can be selected.

2 Customized Features P. 106, 298, 316

Lane Keeping Assist System (LKAS)

Road Departure Mitigation (RDM) System

When you selected Warning Only

When you selected Normal or Wide

* Not available on all models

97

uu

Indicators

u

Multi-Information Display Warning and Information Messages

*

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.

●

Operate the steering wheel to resume the LKAS.

●

Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.

●

If any other system indicators come on, such as the
VSA®, ABS and brake system, take appropriate action.

2 Indicators P. 70

Message

Condition

Explanation

●

Appears when you unlock and open the driver’s
door while the engine is running by smart entry
remote.

2 Remote Engine Start

*

 P. 425

Models with remote engine starter

* Not available on all models

98

In

strum

e

nt Pa

nel

Gauges and Displays

Gauges

Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON

(

w

*1

.

Displays your driving speed in mph (U.S.) or km/h (Canada).

Shows the number of engine revolutions per minute.

Displays the amount of fuel left in the fuel tank.

Displays the temperature of the engine coolant.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

Speedometer

■

Tachometer

■

Fuel Gauge

■

Temperature Gauge

1

Fuel Gauge

NOTICE

You should refuel when the reading approaches

.

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

E

1

Temperature Gauge

NOTICE

Driving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.

2 Overheating P. 570

99

uu

Gauges and Displays

u

Information Display

*

Continued

In

strum

e

nt Pa

nel

Information Display

*

The information display shows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.

Press the

 (Select/Reset) knob to change the display.

■

Switching the Display

1

Switching the Display

Each time you press the

 knob, the information

display changes as follows:

Some of the items on the information display also
appear on the audio/information screen. They also
change along with the information display changes
while the fuel consumption is shown.

Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature

Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature

Engine Oil Life

Instant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature

Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature

Select/Reset
Knob

* Not available on all models

uu

Gauges and Displays

u

Information Display

*

100

In

strum

e

nt Pa

nel

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.

■

Resetting a trip meter

To reset a trip meter, display it, then press and hold the

 knob. The trip meter is

reset to 0.0.

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the remaining oil life and Maintenance Minder

TM

.

2 Maintenance Minder

TM

 P. 505

■

Odometer

■

Trip Meter

■

Average Fuel Economy

■

Instant Fuel Economy

■

Engine Oil Life

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the

 knob.

1

Average Fuel Economy

You can change when to reset the average fuel
economy.

2 Customized Features P. 298, 316

101

uu

Gauges and Displays

u

Information Display

*

In

strum

e

nt Pa

nel

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■

Adjusting the outside temperature indicator

Adjust the temperature reading up to ± 5°F or ± 3°C if the temperature reading
seems incorrect.
1. Turn the ignition switch to ON

(

w

*1

.

2. Press and hold the

 (Select/Reset) knob for 10 seconds or more while the

outside temperature is shown on the information display.

u

The information display goes into temperature adjustment mode. The display
starts showing from -5°F to +5°F (U.S.) or -3°C to +3°C (Canada).

3. Release the

 knob when the right adjustment amount is shown.

u

The adjustment is complete.

Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

Outside Temperature

■

Range

1

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

102

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

Multi-Information Display

*

The multi-information display shows the odometer, trip meter, outside temperature
indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.

■

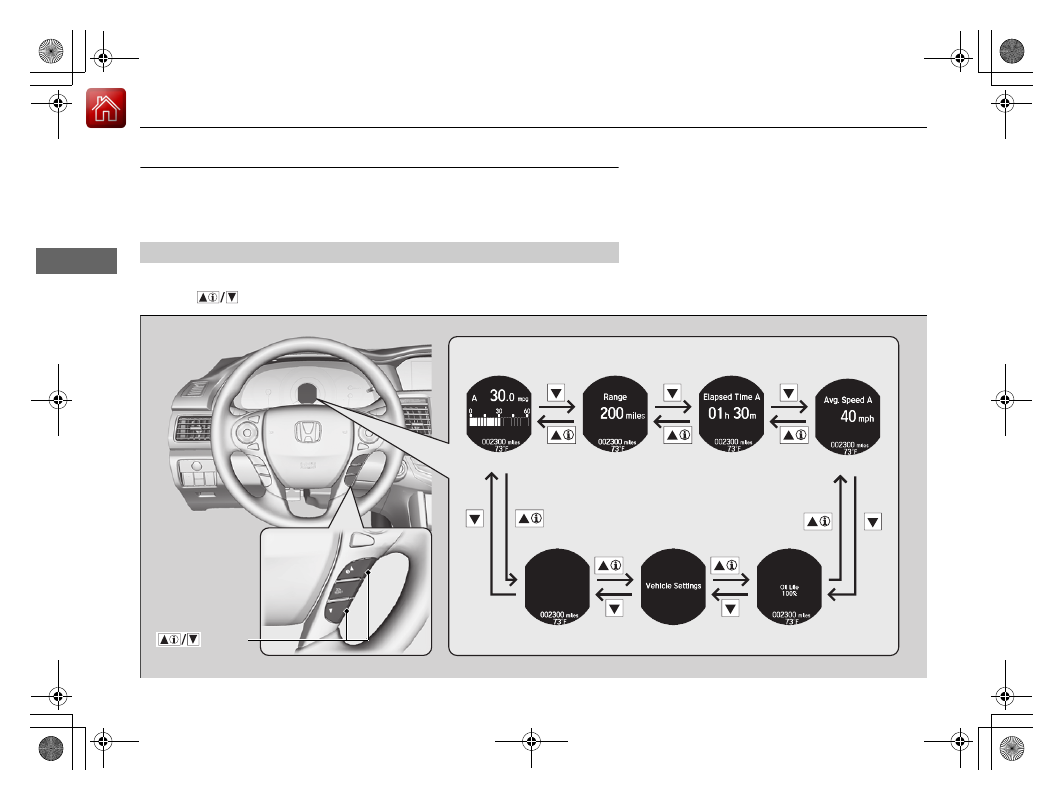

Main displays

Press the

 (information) button to change the display.

■

Switching the Display

Average Fuel Economy/
Instant Fuel Economy

Range

Elapsed Time

Average Speed

Blank Screen

Vehicle Settings

Engine Oil Life

 Button

* Not available on all models

103

uu

Gauges and Displays

u

Multi-Information Display

*

Continued

In

strum

e

nt Pa

nel

■

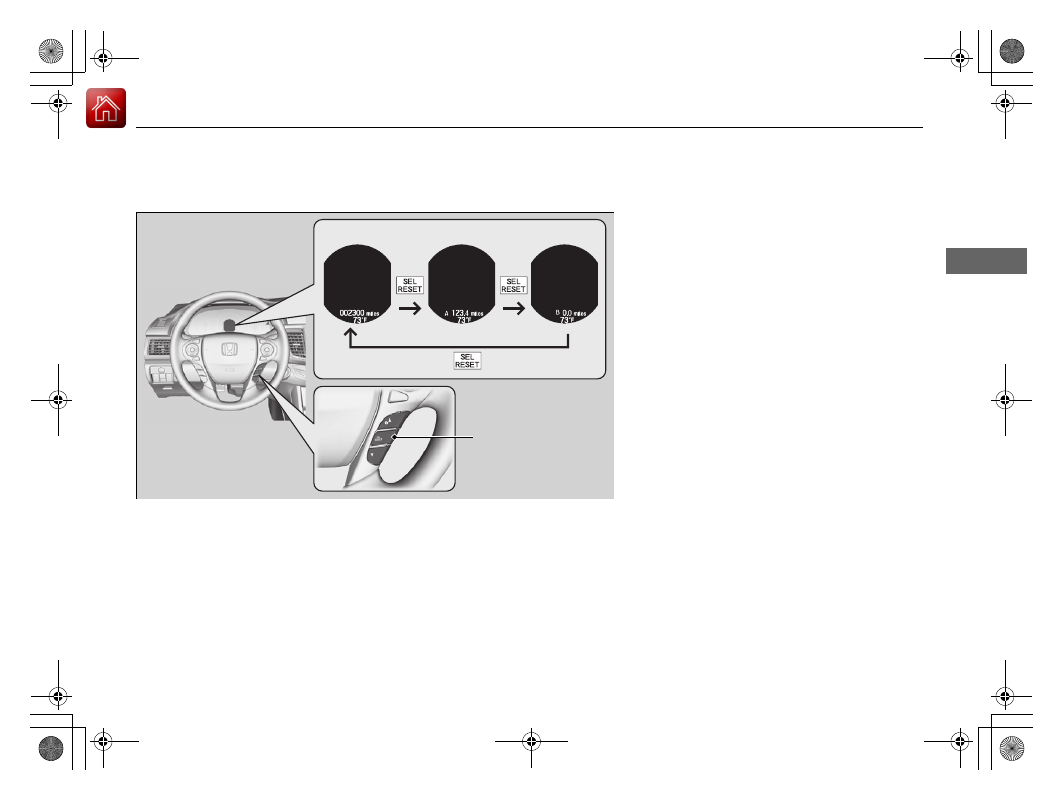

Lower displays

Press the SEL/RESET button to change the display.

Odometer

Trip A

Trip B

SEL/RESET
Button

uu

Gauges and Displays

u

Multi-Information Display

*

104

In

strum

e

nt Pa

nel

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.

■

Resetting a trip meter

To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.

Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.

Shows the time elapsed since Trip A or Trip B was reset.

■

Odometer

■

Trip Meter

■

Average Fuel Economy

■

Range

■

Elapsed Time

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.

1

Average Fuel Economy

You can change when to reset the average fuel
economy.

2 Customized Features P. 106, 298, 316

1

Elapsed Time

You can change when to reset the elapsed time.

2 Customized Features P. 106, 298, 316

Continued

105

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the remaining oil life and Maintenance Minder

TM

.

2 Maintenance Minder

TM

 P. 505

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■

Adjusting the outside temperature display

Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.

■

Average Speed

■

Instant Fuel Economy

■

Engine Oil Life

■

Outside Temperature

1

Average Speed

You can change when to reset the average speed.

2 Customized Features P. 106, 298, 316

1

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

Use the multi-information display's customized
features to correct the temperature.

2 Customized Features P. 106, 298, 316

uu

Gauges and Displays

u

Multi-Information Display

*

106

In

strum

e

nt Pa

nel

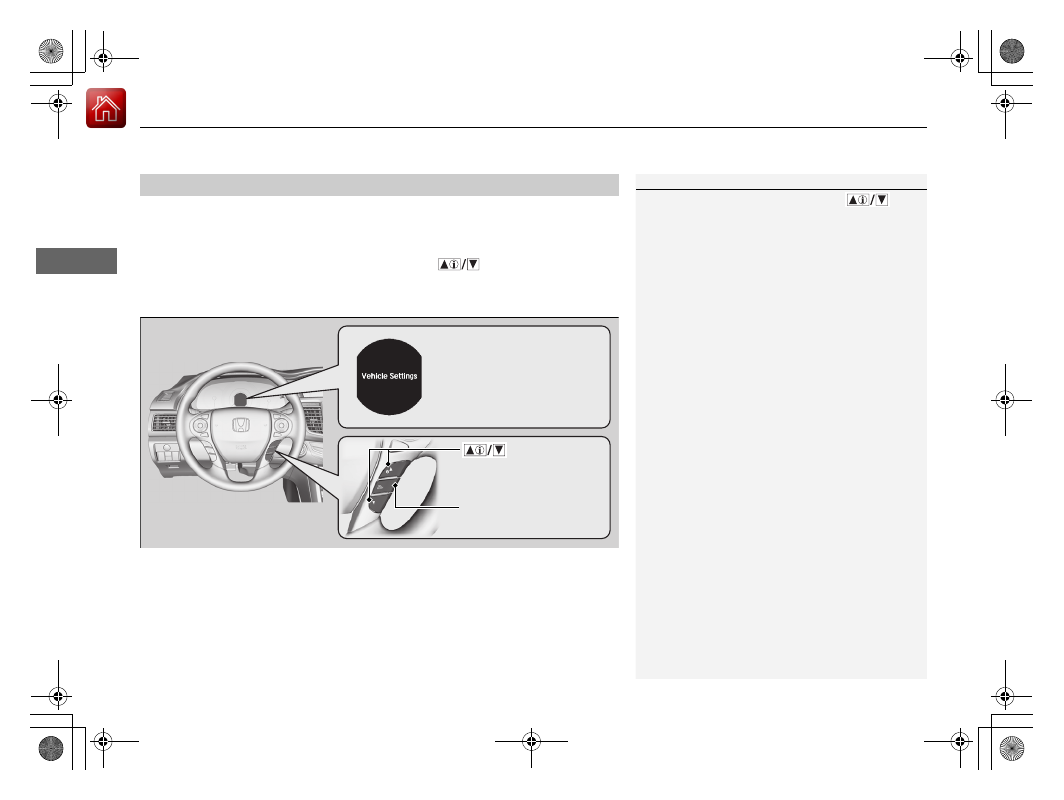

Use the multi-information display to customize certain features.

■

How to customize

Select the Vehicle Settings screen by pressing the

 button while the

ignition switch is in ON

(

w

*1

, and the vehicle is at a complete stop.

Press the SEL/RESET button.

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

Customized Features

1

Customized Features

To customize other features, press the



button.

2 List of customizable options P. 109
2 Example of customization settings P. 113

Customization is possible when you see the driver’s
ID (Driver 1 or Driver 2) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.

When you customize settings: Shift to

(

P

 Button:

Changes the customize
menus and items.

Multi-Information Display:
Goes to Vehicle Settings.

SEL/RESET button:
Enters the selected item.

107

uu

Gauges and Displays

u

Multi-Information Display

*

Continued

In

strum

e

nt Pa

nel

■

Customization flow

Press the

 button.

SEL/RESET

Vehicle Settings

“Trip A” Reset Timing

Language Selection

Adjust Outside Temp. Display

Memory Position Link

Door Unlock Mode

Keyless Access Light Flash

4

4

4

4

TPMS Calibration

Driver Assist System Setup

Meter Setup

Position Setup

Keyless Access Setup

SEL/RESET

SEL/RESET

SEL/RESET

SEL/RESET

“Trip B” Reset Timing

Fuel Efficiency Backlight

4

ACC Pre-Running Car Detect Beep

ACC Display Speed Unit

4

Keyless Start Guidance Screens

SEL/RESET

Keyless Access Beep

Forward Collision Warning Distance

4

4

4

Lane Keep Assist Suspend Beep

Road Departure Mitigation Setting

Remote Start System ON/OFF

*

* Not available on all models

108

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

Exit

4

4

4

Door Setup

Maintenance Reset

Default All

SEL/RESET

4

SEL/RESET

4

Lighting Setup

SEL/RESET

4

Key And Remote Unlock Mode

Auto Door Lock

Auto Door Unlock

Keyless Lock Answer Back

Security Relock Timer

Interior Light Dimming Time

Headlight Auto Off Timer

Auto Light Sensitivity

4

4

109

uu

Gauges and Displays

u

Multi-Information Display

*

Continued

In

strum

e

nt Pa

nel

■

List of customizable options

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

TPMS
Calibration

—

Calibrates the TPMS.

Cancel/Calibrate

Driver Assist
System
Setup

Forward Collision
Warning Distance

Changes at which distance the CMBS

TM

 alerts.

Long/Normal

*1

/Short

ACC Pre-Running Car
Detect Beep

Causes the system to beep when the system detects a
vehicle, or when the vehicle goes out of ACC range.

On/Off

*1

ACC Display Speed Unit

Changes the ACC display speed unit.

mph

*1

/km/h

(U.S.)
mph/km/h

*1

(Canada)

Road Departure
Mitigation Setting

Changes the setting for the road departure
mitigation system.

Normal

*1

/Wide/Warning

Only

Lane Keep Assist
Suspend Beep

Causes the system to beep when the LKAS is
suspended.

On/Off

*1

110

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Meter Setup

Language Selection

Changes the displayed language.

English

*1

/French/Spanish

Adjust Outside Temp.
Display

Adjusts the temperature reading by a few degrees.

-5°F ~ ±0°F

*1

 ~ +5°F

(U.S.)
-3°C ~ ±0°C

*1

 ~ +3°C

(Canada)

“Trip A” Reset Timing

Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.

With Refuel/IGN Off/
Manually Reset

*1

“Trip B” Reset Timing

Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.

With Refuel/IGN Off/
Manually Reset

*1

Fuel Efficiency Backlight

Turns the ambient meter feature on and off.

On

*1

/Off

Keyless Start Guidance
Screens

Displays the push button start guidance when
conditions are met to change power mode.

On

*1

/Off

Driving
Position
Setup

Memory Position Link

Changes the driver’s seat position to a stored
setting.

On

*1

/Off

111

uu

Gauges and Displays

u

Multi-Information Display

*

Continued

In

strum

e

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Keyless
Access
Setup

Door Unlock Mode

Changes which doors unlock when you grab the
driver’s door handle.

Driver Door Only

*1

/All Doors

Keyless Access Light
Flash

Causes some exterior lights to blink when you
unlock/lock the doors.

On

*1

/Off

Keyless Access Beep

Sets the beeper sound or not when you grab either
door handle.

On

*1

/Off

Remote Start System
ON/OFF

*

Turns the remote engine start feature on and off.

ON

*1

/OFF

Lighting
Setup

Interior Light Dimming
Time

Changes the length of time the interior lights stay on
after you close the doors.

60sec/30sec

*1

/15sec

Headlight Auto Off
Timer

Changes the length of time the exterior lights stay
on after you close the driver’s door.

60sec/30sec/15sec

*1

/0sec

Auto Light Sensitivity

Changes the timing for the headlights to come on.

Max/High/Mid

*1

/Low/Min

* Not available on all models
