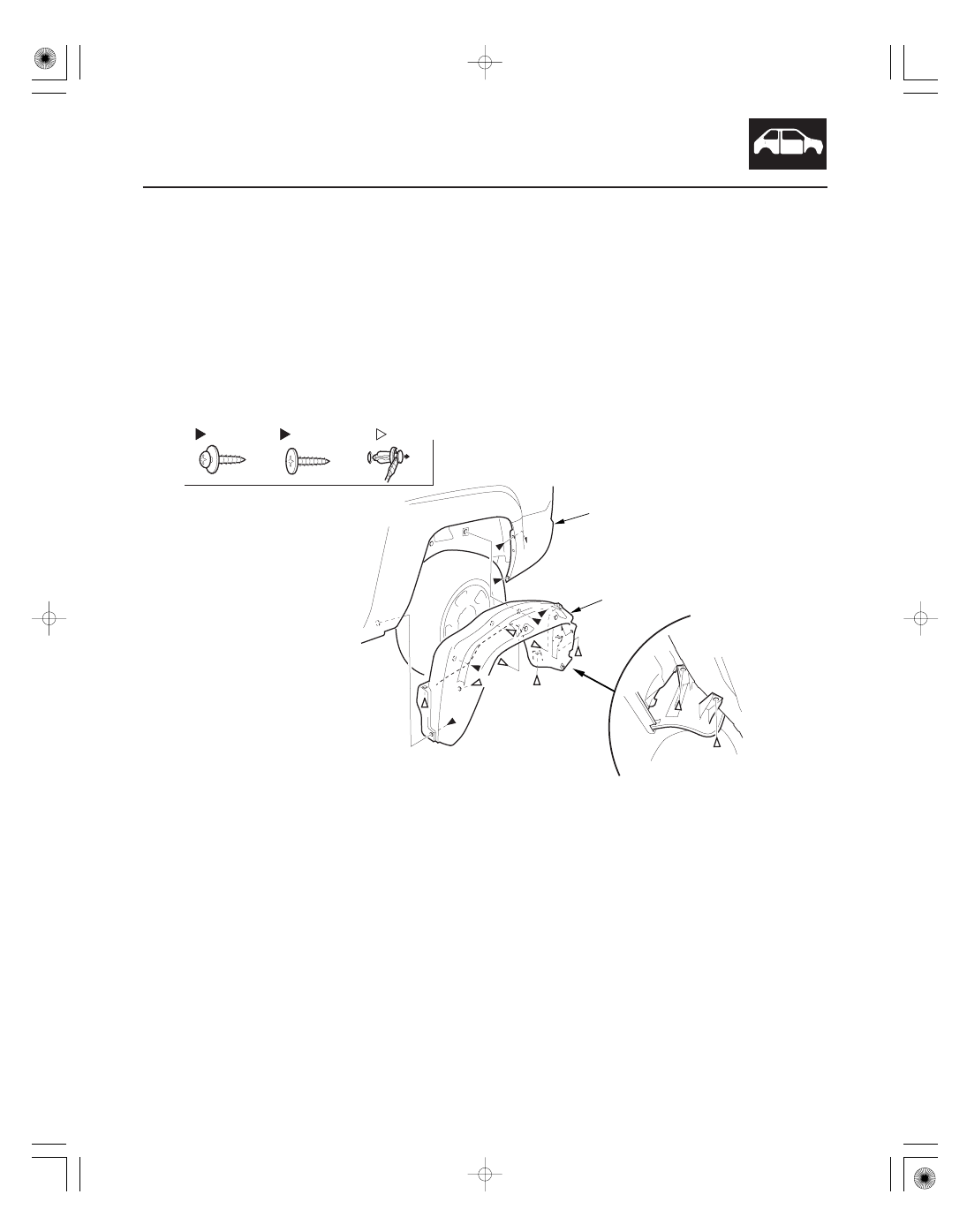

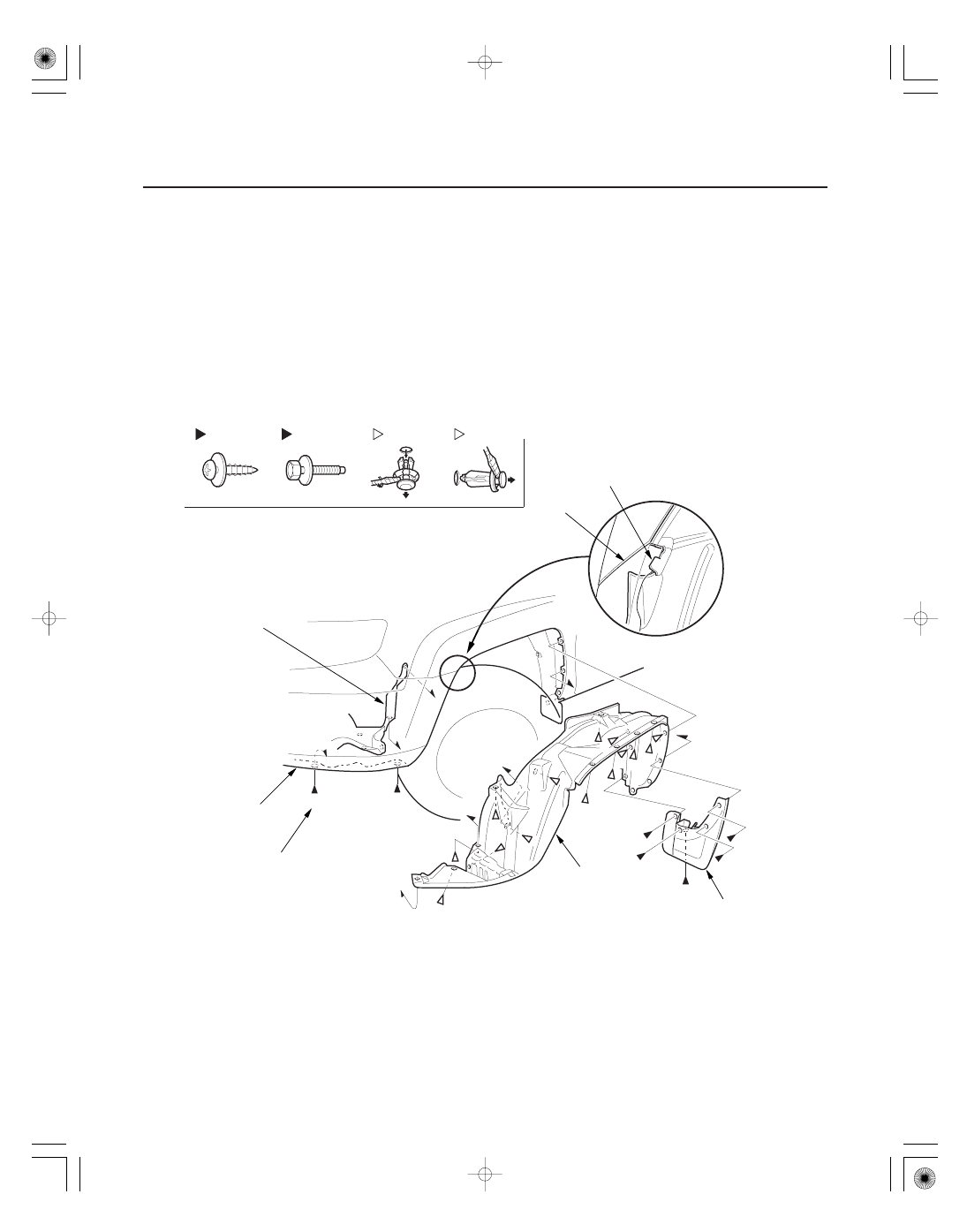

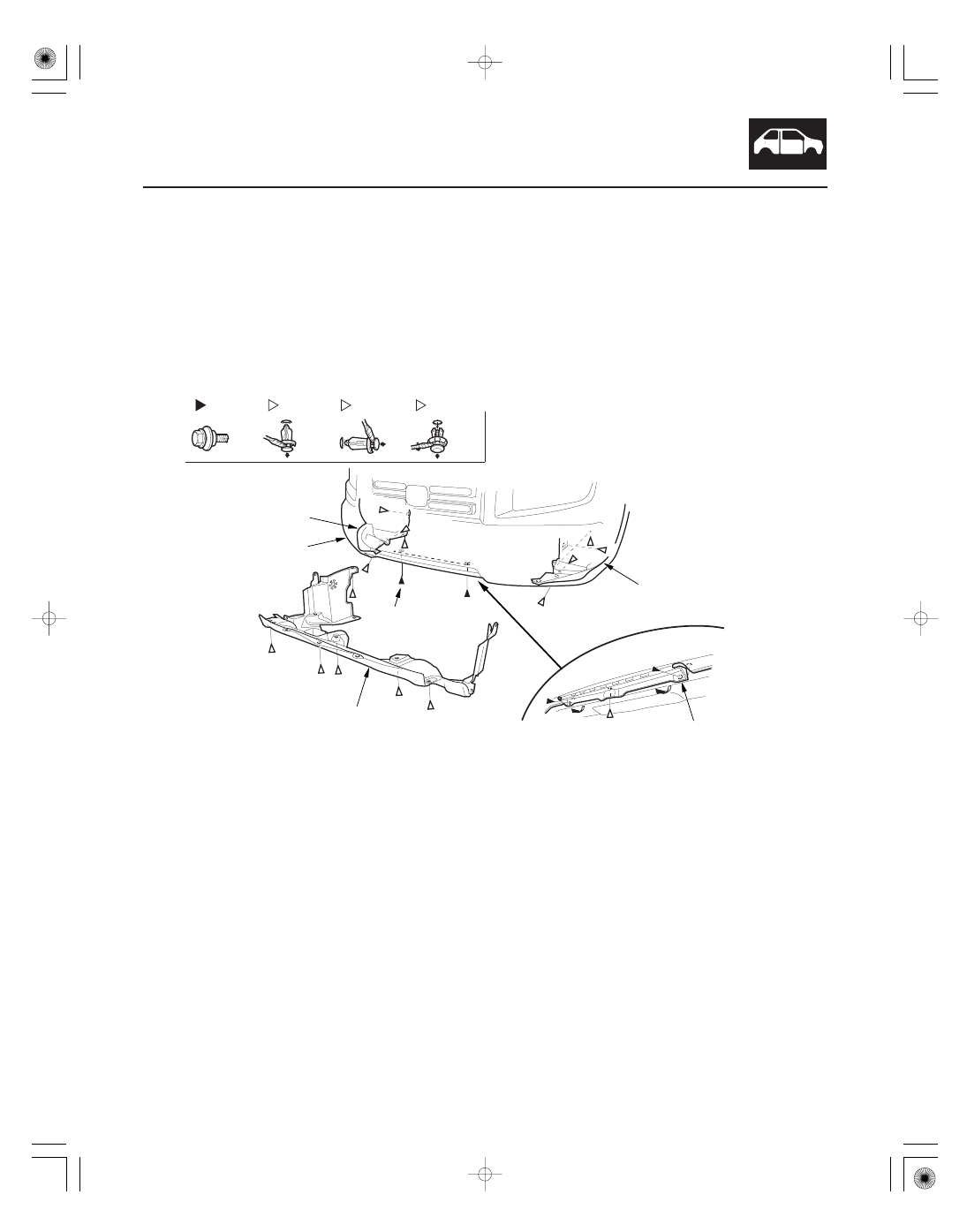

*01 SJC8A00J18526234602KBAT00 20-178 Fenderwell Front Inner Fender Replacement Fastener Locations : Screw, 5 : Bolt, 2 : Clip, 13 : Clip, 1 B E I F, H 6 x 1.0 mm A C D E F H I G E F F F H H H H H H H H B B B B B D J NOTE: • Put on gloves to protect your hands. 1. Remove the front inner fender (A). –1 Remove the screws (B) from the rear of the front wheel arch, then remove the splash guard (C). remove the clips (F) securing the front inner fender and front splash shield (G). –3 From the wheel arch, remove the clips (H, I) securing the front inner fender (and splash shield) to the body. 2. Install the inner fender in the reverse order of removal, and note these items: • Make sure to set the tab (J) on the inner fender behind the front bumper. |
