Honda Element. Manual - part 362

Courtesy of AMERICAN HONDA MOTOR CO., INC.

VSA/FUEL PUMP WIRE HARNESS

CONNECTOR TO HARNESS INDEX

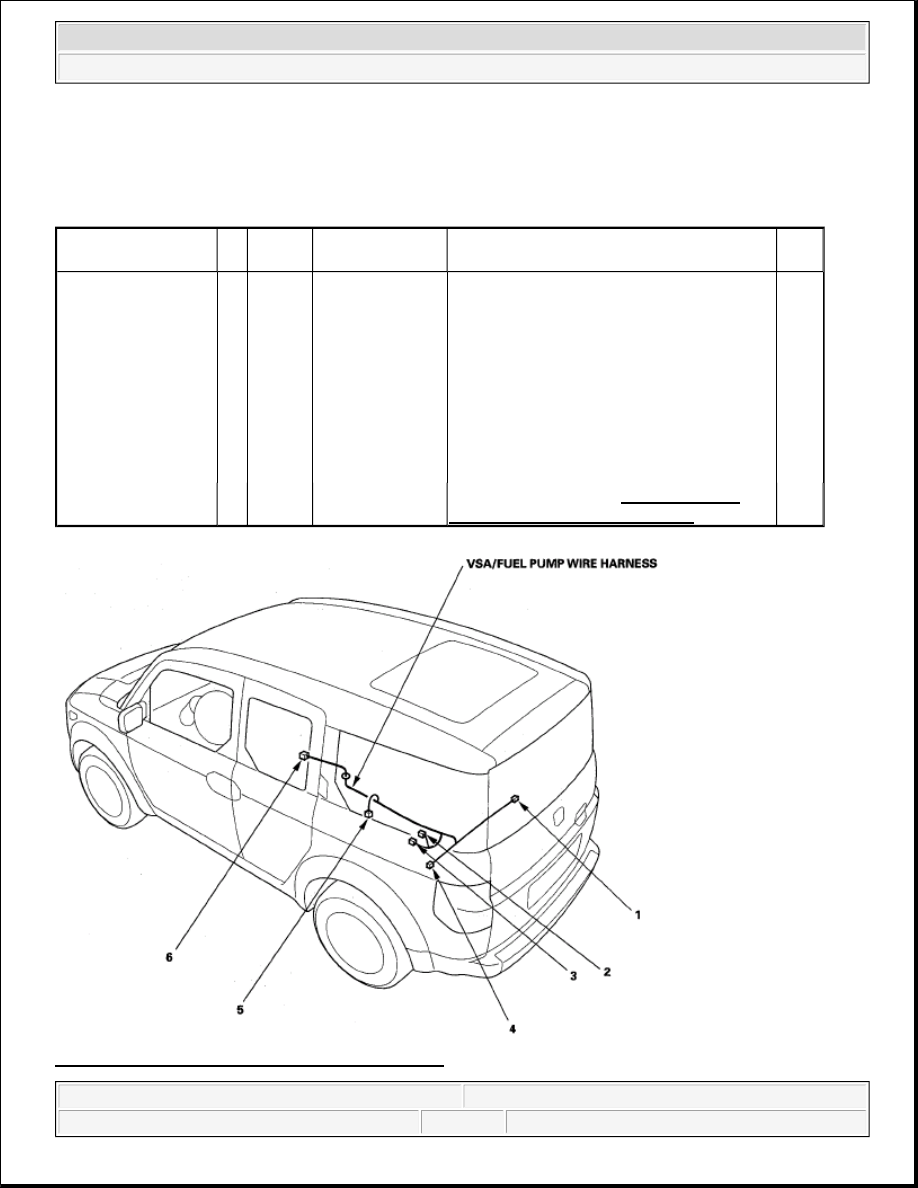

Fig. 18: Identifying VSA/Fuel Pump Wire Harness

Connector or

Terminal

Ref Cavities

Location

Connects to

Notes

EVAP canister vent
shut valve

2

2

Under left rear of
vehicle





Fuel tank unit

5

5

Under left rear of
vehicle





Fuel tank pressure
(FTP) sensor

3

3

Under left rear of
vehicle





Left rear wheel
sensor

4

2

Under left rear of
vehicle





Right rear wheel
sensor

1

2

Under right rear
of vehicle





C558

6

14

Under center
console

Floor wire harness (see FLOOR WIRE
HARNESS (RIGHT BRANCH) )





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

DRIVER'S DOOR WIRE HARNESS

CONNECTOR TO HARNESS INDEX

Connector or

Terminal

Ref Cavities

Location

Connects to

Notes

Driver's door lock
actuator

9

2

Driver's door





Driver's door lock
knob switch

10

3

Driver's door





Driver's door lock
switch

4

5

Driver's door





Driver's door
speaker

8

2

Driver's door





Driver's power
window motor

1

6

Driver's door





Left power mirror

5

8

Driver's door





Power mirror
switch

3

13

Driver's door





Power window
master switch

2

14

Driver's door





C751

7

20

Under left side
of dash

Dashboard wire harness A (see DASHBOARD
WIRE HARNESS A (LEFT BRANCH) )



C752

6

6

Under left side
of dash

Dashboard wire harness A (see DASHBOARD
WIRE HARNESS A (LEFT BRANCH) )





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



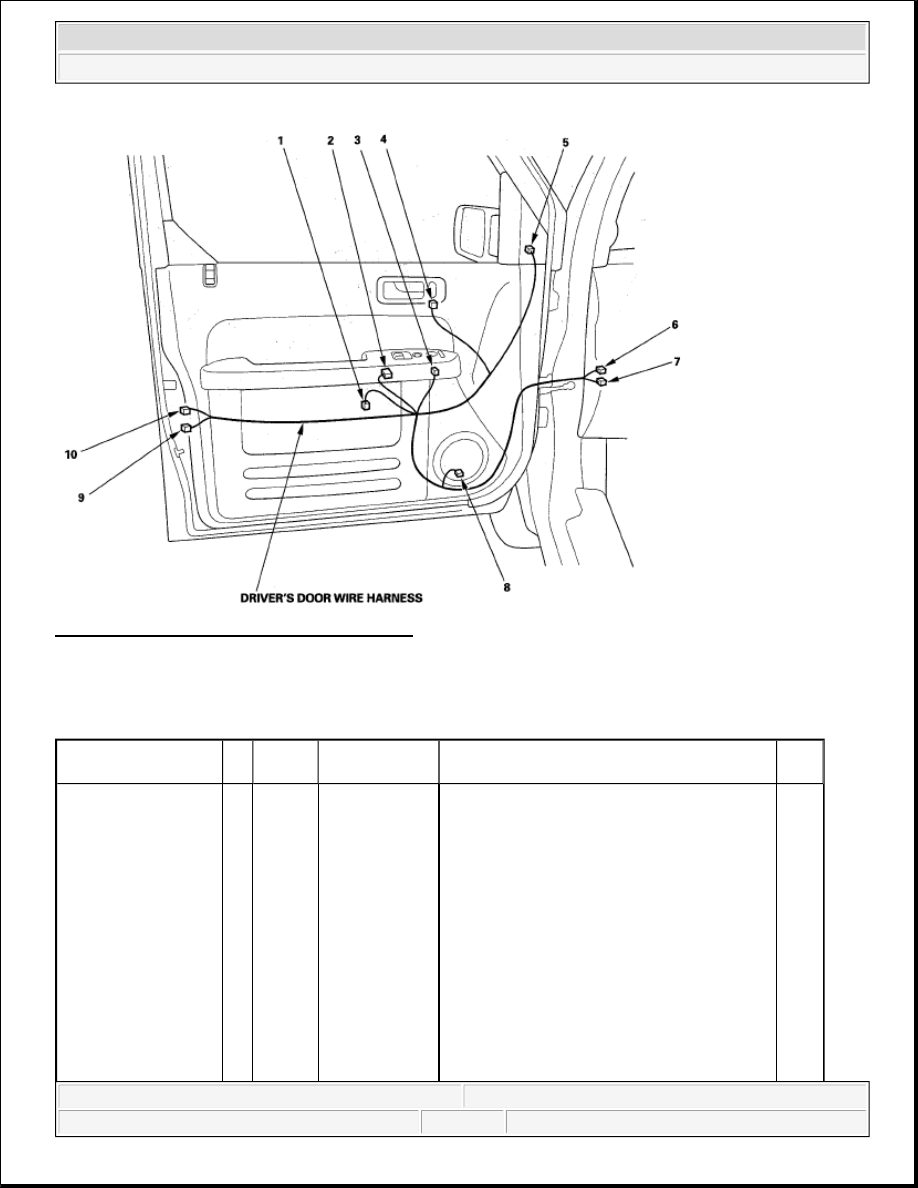

Fig. 19: Identifying Driver Door Wire Harness
Courtesy of AMERICAN HONDA MOTOR CO., INC.

FRONT PASSENGER'S DOOR WIRE HARNESS

CONNECTOR TO HARNESS INDEX

Connector or

Terminal

Ref Cavities

Location

Connects to

Notes

Front passenger's door
lock actuator

5

2

Front
passenger's
door





Front passenger's door
speaker

6

2

Front
passenger's
door





Front passenger's
power window motor

4

2

Front
passenger's
door





Front passenger's
power window switch

3

5

Front
passenger's
door





Right power mirror

2

8

Front
passenger's







2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



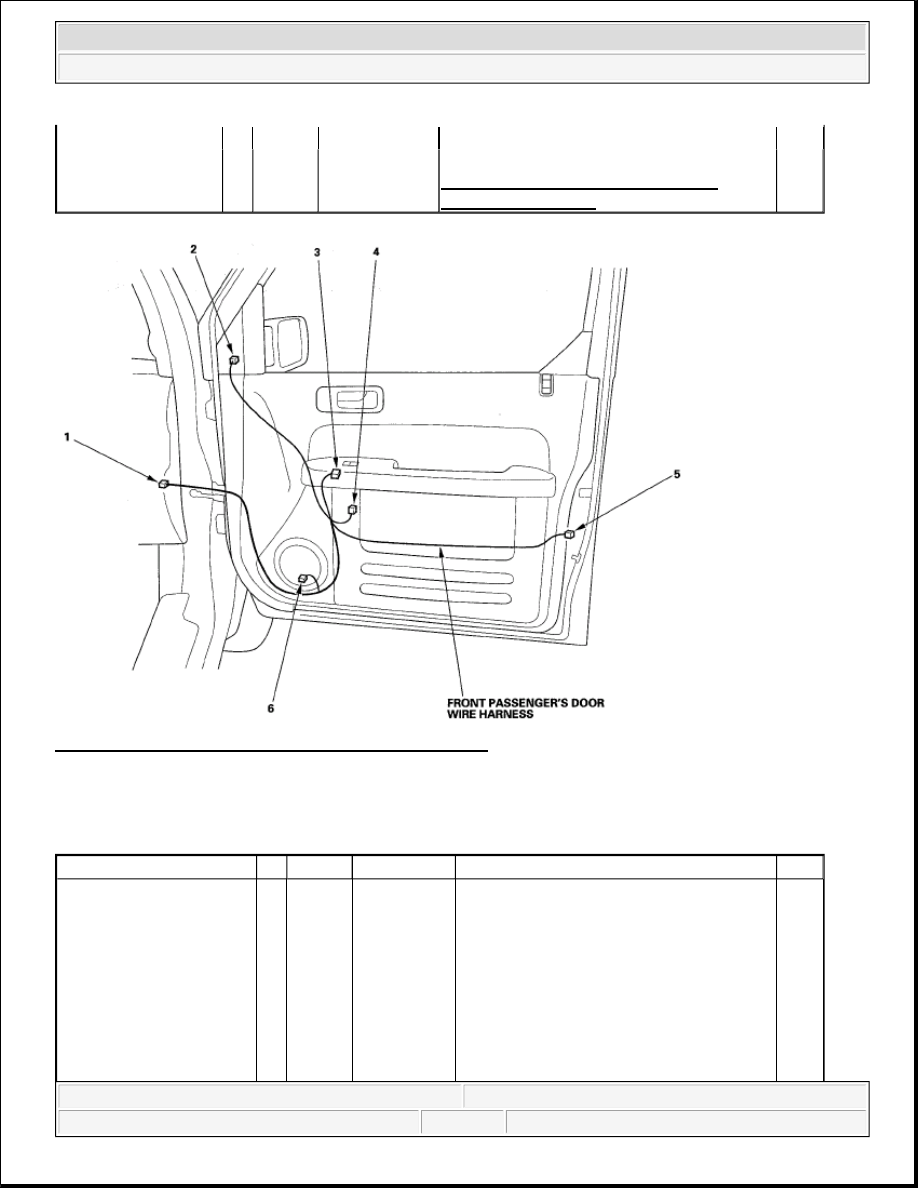

Fig. 20: Identifying Front Passenger Door Wire Harness
Courtesy of AMERICAN HONDA MOTOR CO., INC.

LEFT REAR DOOR WIRE HARNESS

CONNECTOR TO HARNESS INDEX

door

C781

1

14

Under right side
of dash

Dashboard wire harness A (see
DASHBOARD WIRE HARNESS A
(RIGHT BRANCH) )



Connector or Terminal Ref Cavities

Location

Connects to

Notes

Driver's door switch

5

1

Left rear
door





Left rear door lower
switch

4

2

Left rear
door





Left rear door speaker

7

2

Left rear
door





Left rear door upper
switch

3

2

Left rear
door





C771

2

6

Left rear

Left rear door subharness





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element
