Fig. 15: Identifying Floor Wire Harness (Right Branch)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

HATCH WIRE HARNESS

CONNECTOR TO HARNESS INDEX

Connector or

Terminal

Ref Cavities

Location

Connects to

Notes



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



TAILGATE WIRE HARNESS

CONNECTOR TO HARNESS INDEX

Hatch latch switch

5

2

Middle of
hatch





Hatch lock actuator

8

2

Middle of
hatch





High mount brake light

7

2

Middle of
hatch





Rear window defogger
connector (+)

1

1

Left side of
hatch





Rear window defogger
connector (-)

9

1

Right side of
hatch





Rear window wiper
motor

6

4

Middle of
hatch





C601

3

10

Left D-pillar

Floor wire harness (+see FLOOR WIRE
HARNESS (LEFT BRANCH) )



C602

2

4

Left D-pillar

Floor wire harness (see FLOOR WIRE
HARNESS (LEFT BRANCH) )



C603

4

4

Left rear of
roof

Roof wire harness (see ROOF WIRE
HARNESS )



Connector or

Terminal

Ref Cavities

Location

Connects to

Notes

Left tailgate latch
switch

13

2

Left side of
tailgate





License plate light
connector A

11

2

Middle of
tailgate





License plate light
connector B

12

2

Middle of
tailgate





Right tailgate latch
switch

10

2

Right side of
tailgate





Trailer lighting
connector

14

4

Back end of
cargo area





C681

15

8

Left quarter
panel

Floor wire harness (see FLOOR WIRE
HARNESS (LEFT BRANCH) )





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



Fig. 16: Identifying Hatch Wire Harness
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ROOF WIRE HARNESS

CONNECTOR TO HARNESS INDEX

Connector or

Terminal

Ref Cavities

Location

Connects to

Notes

Front ceiling
light

5

3

Middle of roof



Left side curtain
airbag

4

2

Middle of roof



Rear ceiling
light

2

3

Rear of roof





Right side
curtain airbag

11

2

Middle of roof



Right tweeter

7

2

Right A-pillar

EX and SC
models

AM/FM
antenna

1

1

Rear of roof



Without
XM radio



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



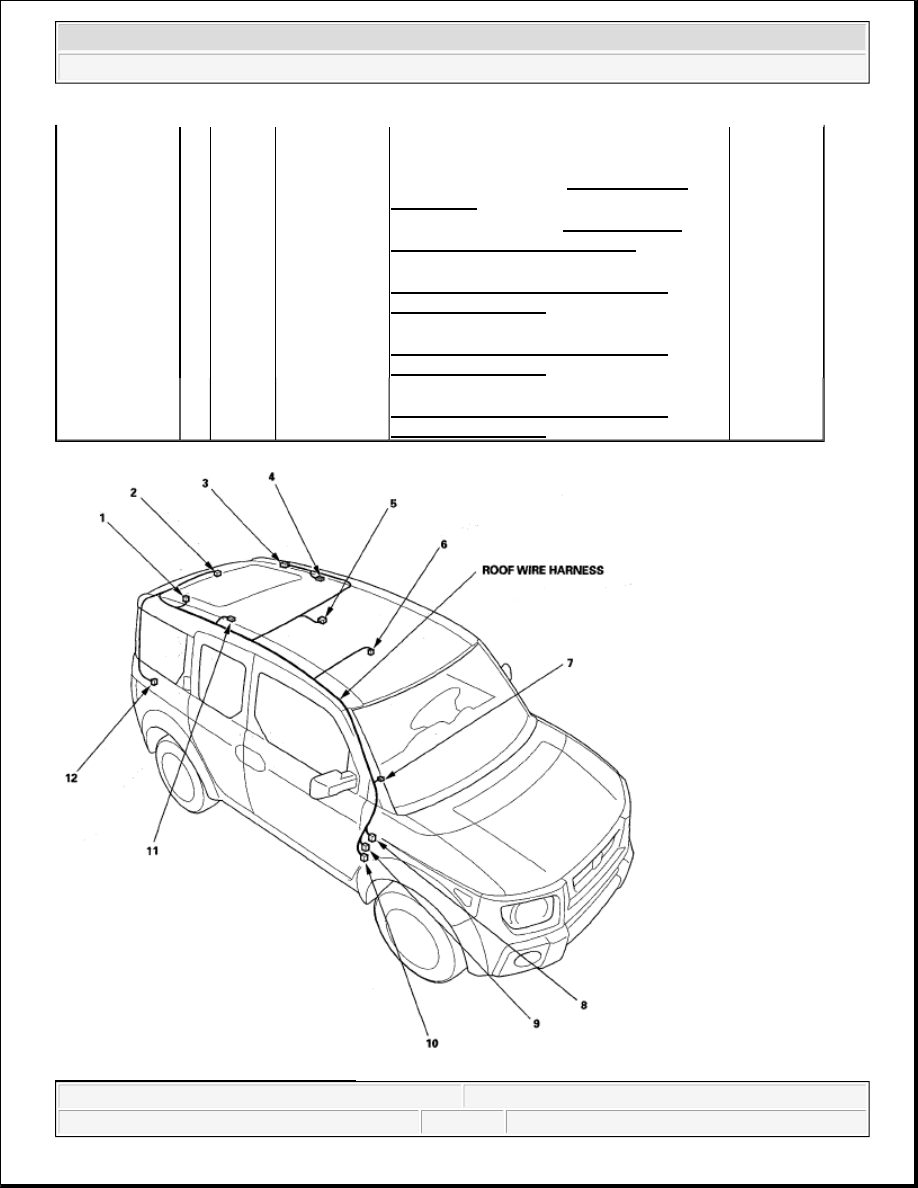

Fig. 17: Identifying Roof Wire Harness

Spotlight

6

2

Middle of roof

EX and SC
models

C603

3

4

Rear of roof

Hatch wire harness (see HATCH WIRE
HARNESS )



C604

12

4

Right quarter
panel

Floor wire harness (see FLOOR WIRE
HARNESS (RIGHT BRANCH) )



C651

8

6

Under right
side of dash

Dashboard wire harness A (see
DASHBOARD WIRE HARNESS A
(RIGHT BRANCH) )



C652

9

4

Under right
side of dash

Dashboard wire harness A (see
DASHBOARD WIRE HARNESS A
(RIGHT BRANCH) )



C653

10

4

Under right
side of dash

Dashboard wire harness A (see
DASHBOARD WIRE HARNESS A
(RIGHT BRANCH) )





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element
