12. Install the A/T gear position indicator panel light socket, and install the connector.

13. Install the shift lever assembly (see SHIFT LEVER INSTALLATION ).

COMPONENT LOCATION INDEX

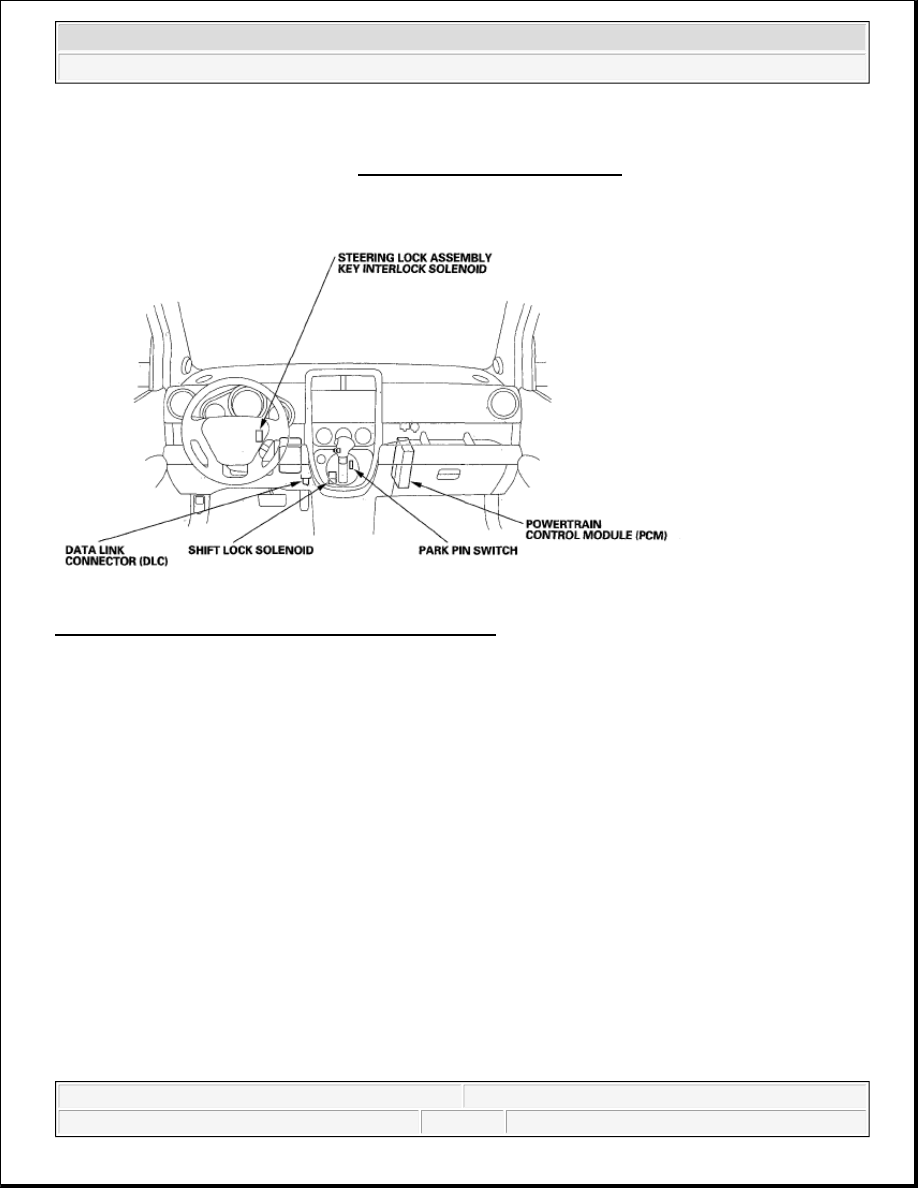

Fig. 366: Identifying A/T Interlock Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

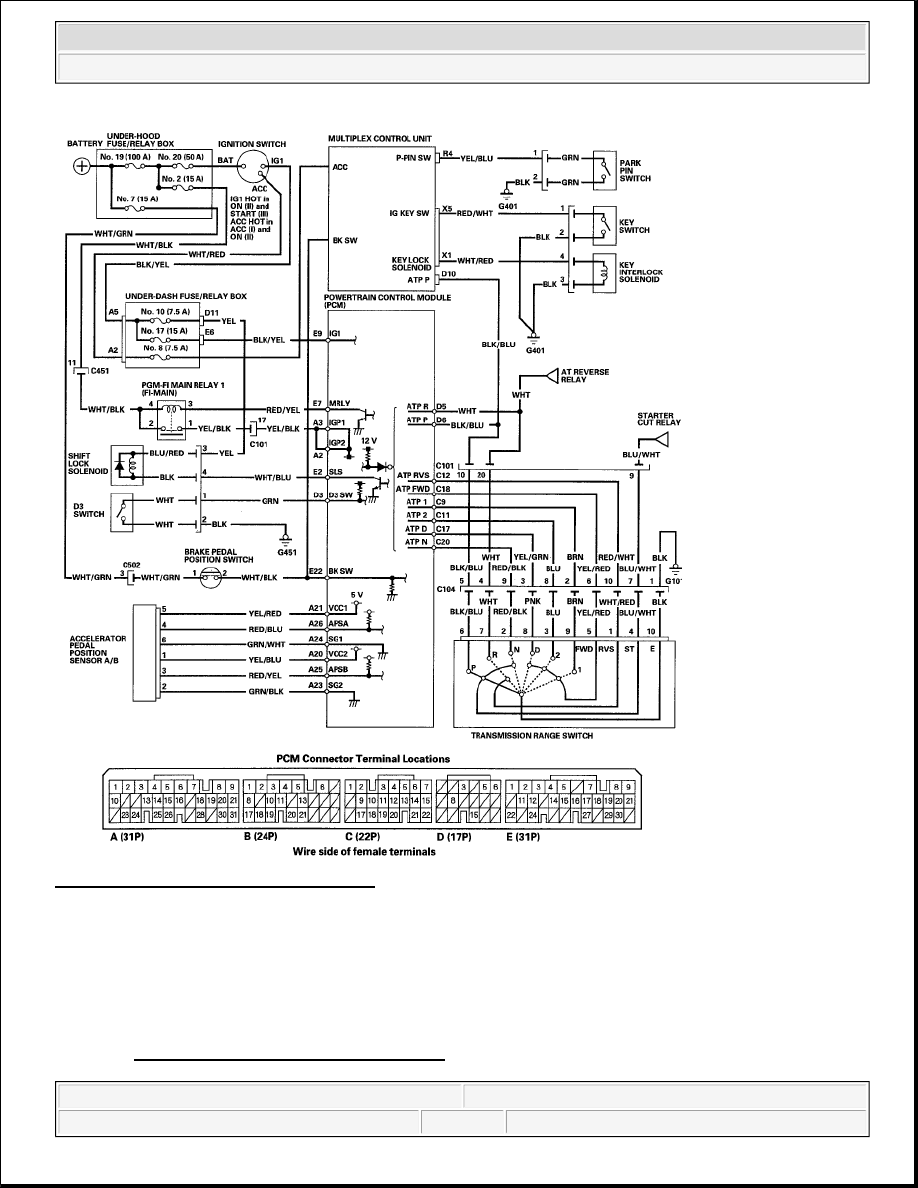

Fig. 367: A/T Interlock - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SHIFT LOCK SYSTEM CIRCUIT TROUBLESHOOTING

1. Connect the HDS to the DLC.

2. Select Shift Lock Solenoid Test in Miscellaneous Test Menu, and check that the shift lock solenoid

operates with the HDS. If the HDS does not communicate with the PCM, troubleshoot the DLC circuit
(see DLC CIRCUIT TROUBLESHOOTING ).



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



Does the shift lock solenoid work properly?

YES -Go to step 12.

NO -Go to step 3.

3. Turn the ignition switch OFF.

4. Disconnect the D3 switch/shift lock solenoid connector.

5. Turn the ignition switch ON (II).

6. Measure the voltage between D3 switch/shift lock solenoid connector terminal No. 3 and body ground.

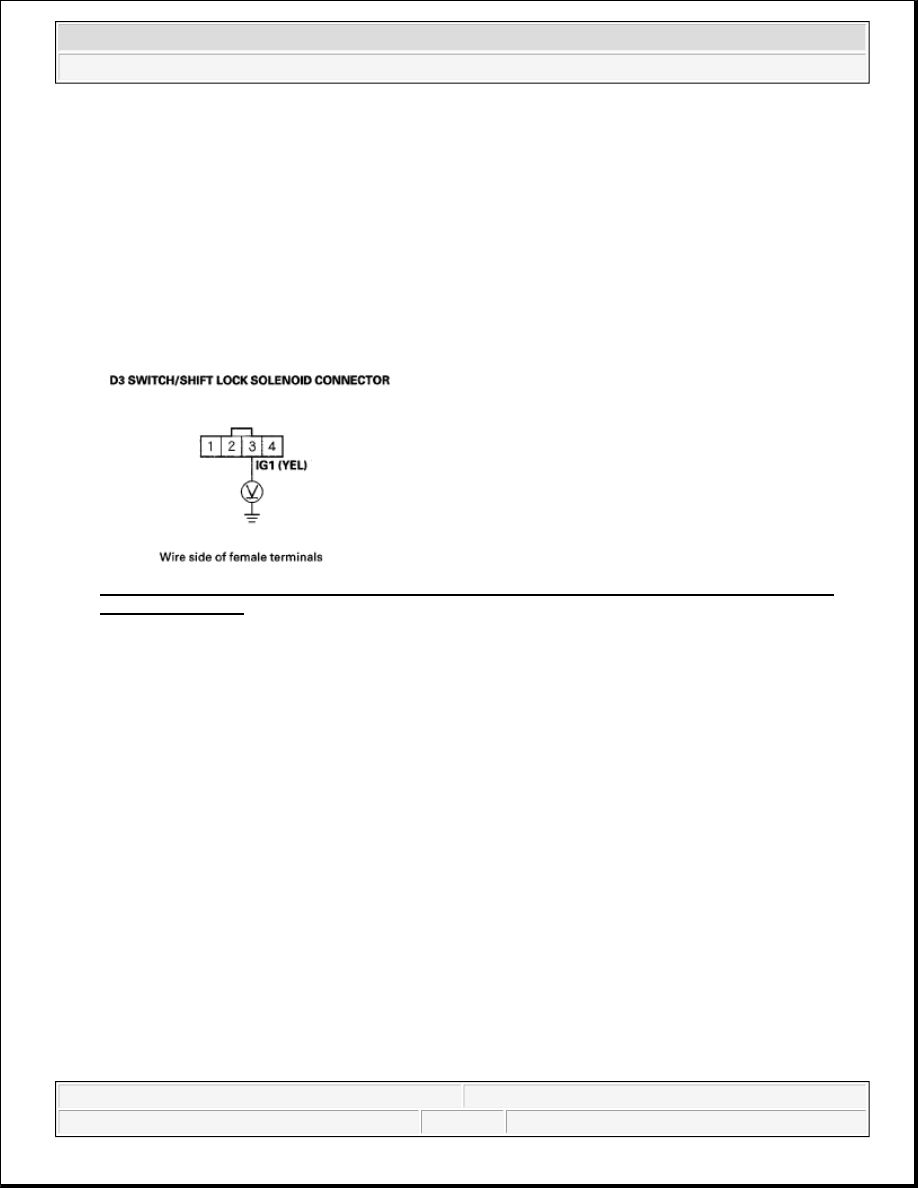

Fig. 368: Measuring Voltage Between D3 Switch/Shift Lock Solenoid Connector Terminal No. 3
And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 7.

NO -Check for a blown No. 10 fuse in the under-dash fuse/relay box. If the fuse is OK, repair open in the
wire between the D3 switch/shift lock solenoid connector and the under-dash fuse/relay box.

7. Shift the shift lever into the P position, and press the brake pedal. Do not press the accelerator.

8. Measure the voltage between D3 switch/shift lock solenoid connector terminal No. 3 and No. 4 while

pressing the brake pedal.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

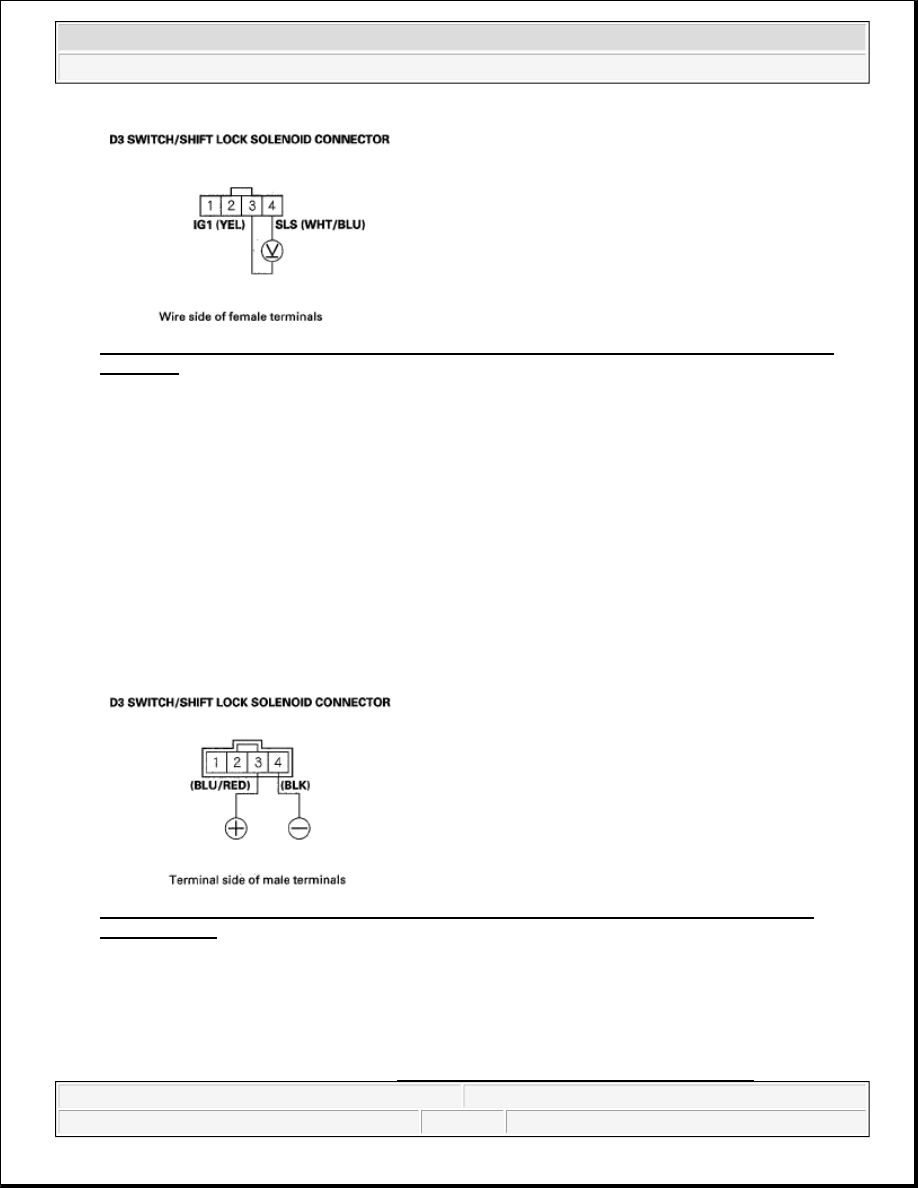

Fig. 369: Measuring Voltage Between D3 Switch/Shift Lock Solenoid Connector Terminal No. 3
And No. 4
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 9.

NO -Go to step 10.

9. Connect the battery positive terminal to D3 switch/shift lock solenoid connector terminal No. 3, and

connect the battery negative terminal to the terminal No. 4, then check that the shift lock solenoid
operates.

Fig. 370: Connecting Battery Positive Terminal To D3 Switch/Shift Lock Solenoid Connector
Terminal No. 3
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Does the shift lock solenoid operate properly?

YES -Repair the shift lock mechanism.

NO -Replace the shift lock solenoid (see SHIFT LOCK SOLENOID REPLACEMENT ).

NOTE:

Do not connect the battery positive terminal to terminal No. 4 or you will
damage the diode inside the shift lock solenoid.
