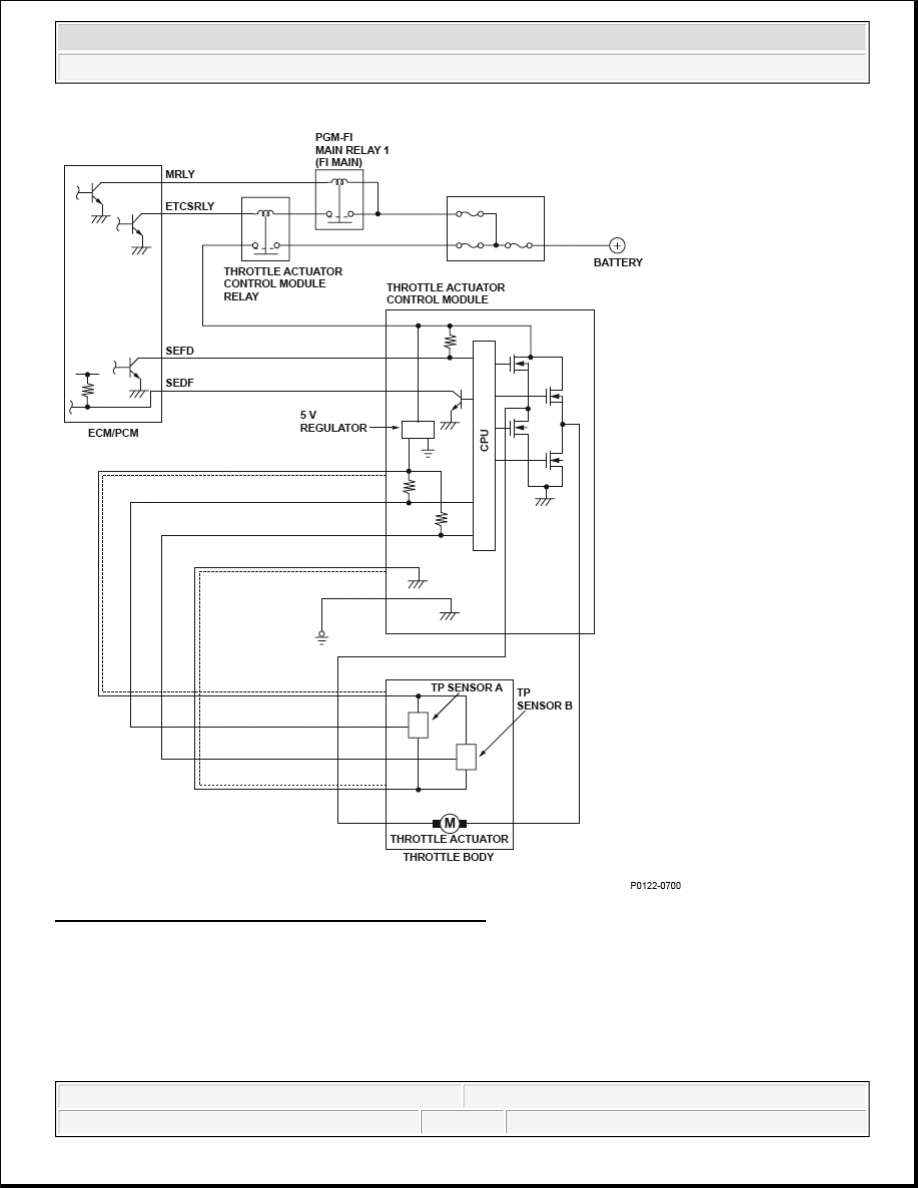

Fig. 252: Throttle Position (TP) Sensor Circuit Diagram

General Description

The engine control module (ECM)/powertrain control module (PCM) uses the serial signal line for two-way
communication with the throttle actuator control module.

The ECM/PCM transmits the accelerator pedal position signal to the throttle actuator module, and the throttle
actuator control module transmits the actual throttle valve position signal, or a malfunction signal, etc., to the



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



ECM/PCM via this line.

When no serial signals from the throttle actuator control module are received or the serial signals are abnormal
for more than a set time, the ECM/PCM detects a malfunction and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

One of these conditions must be met for at least 0.25 second.



No serial signals from the throttle actuator control module are detected.



The serial signals from the throttle actuator control module are abnormal.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC U0122 (126): ADVANCED DIAGNOSTICS

Execution

Continuous

Sequence

None

Duration

0.25 second or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition

Minimum

Maximum

Battery voltage

8.0 V

-

Elapsed time after starting throttle actuator control module

1 second

-

No active DTCs

P2101, P2108, P2118, P2135, P2176



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



DTC U0122: F-CAN MALFUNCTION (VSA-ECM/PCM)

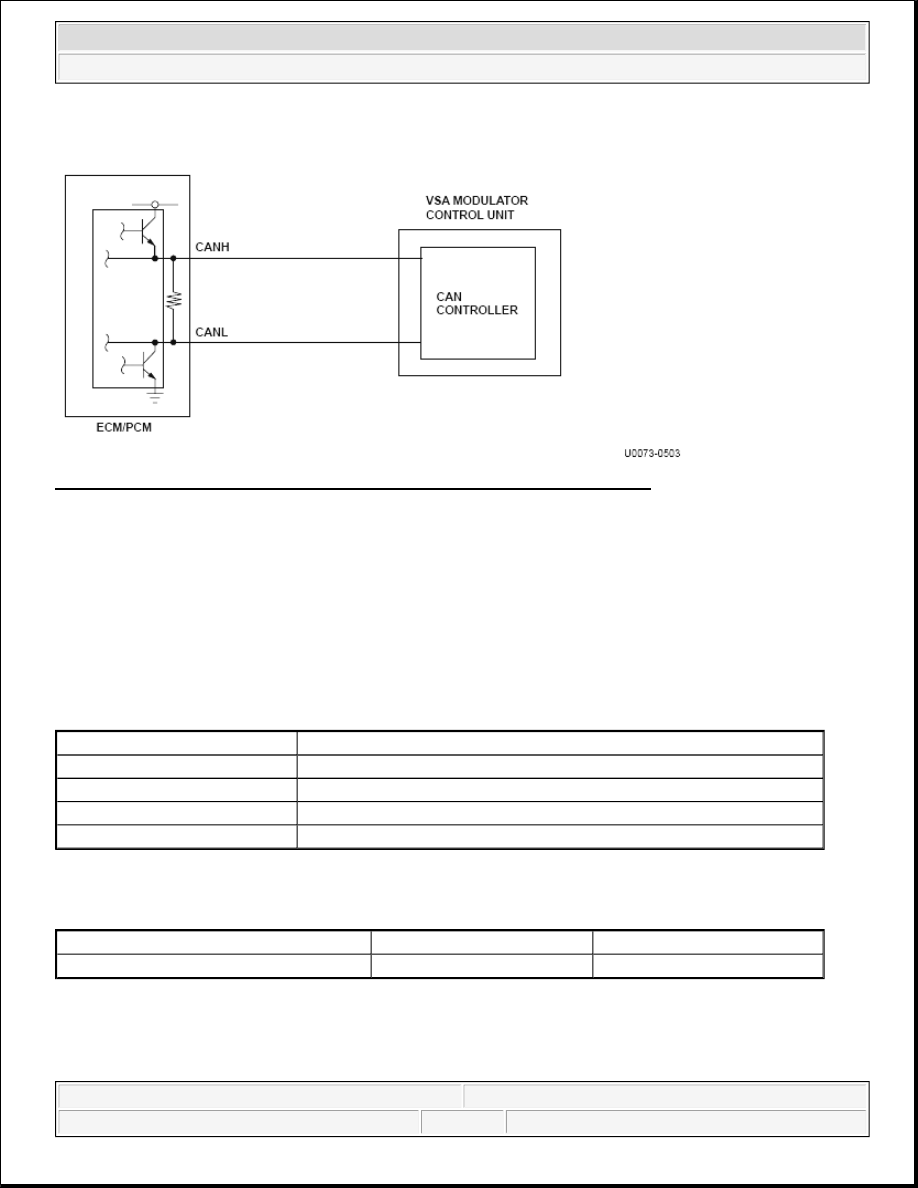

Fig. 253: Communication Diagram Between ECM/PCM And Control Module

General Description

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules
simultaneously by using two signal lines (CANH and CANL).

When the engine control module (ECM)/powertrain control module (PCM) does not receive the signals via the
CAN lines for more than a set time, the ECM/PCM detects a malfunction and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The ECM/PCM does not receive any signals for at least 1 second.

Execution

Continuous

Sequence

None

Duration

1 second or more

DTC Type

One drive cycle, MIL OFF

OBD Status

N/A

Condition

Minimum

Maximum

Battery voltage

9.0 V

-



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Diagnosis Details

Conditions for illuminating the indicator

When a malfunction is detected, the DTC and the freeze frame data are stored in the ECM/PCM memory. The
MIL does not come on.

Conditions for clearing the DTC

The DTC and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting
the battery.

DTC U0155 (126): ADVANCED DIAGNOSTICS

DTC U0155: F-CAN MALFUNCTION (GAUGE CONTROL MODULE-ENGINE CONTROL
MODULE (ECM)/POWERTRAIN CONTROL MODULE (PCM))

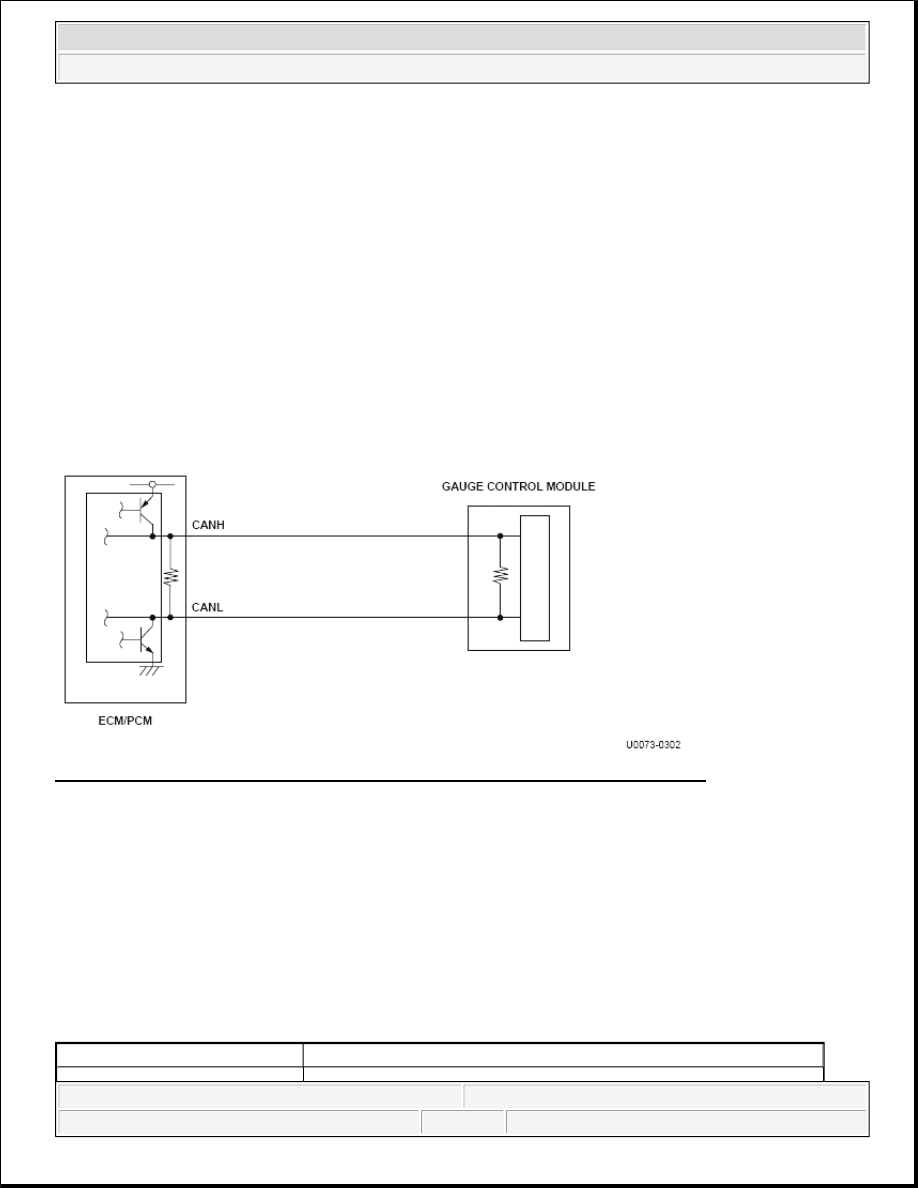

Fig. 254: Communication Diagram Between ECM/PCM And Gauge Control Module

General Description

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules
simultaneously by using two signal lines (CANH and CANL).

When the engine control module (ECM)/powertrain control module (PCM) does not receive the signals from
the gauge control module via the CAN lines for more than a set time, the ECM/PCM detects a malfunction and
a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Execution

Continuous



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element
