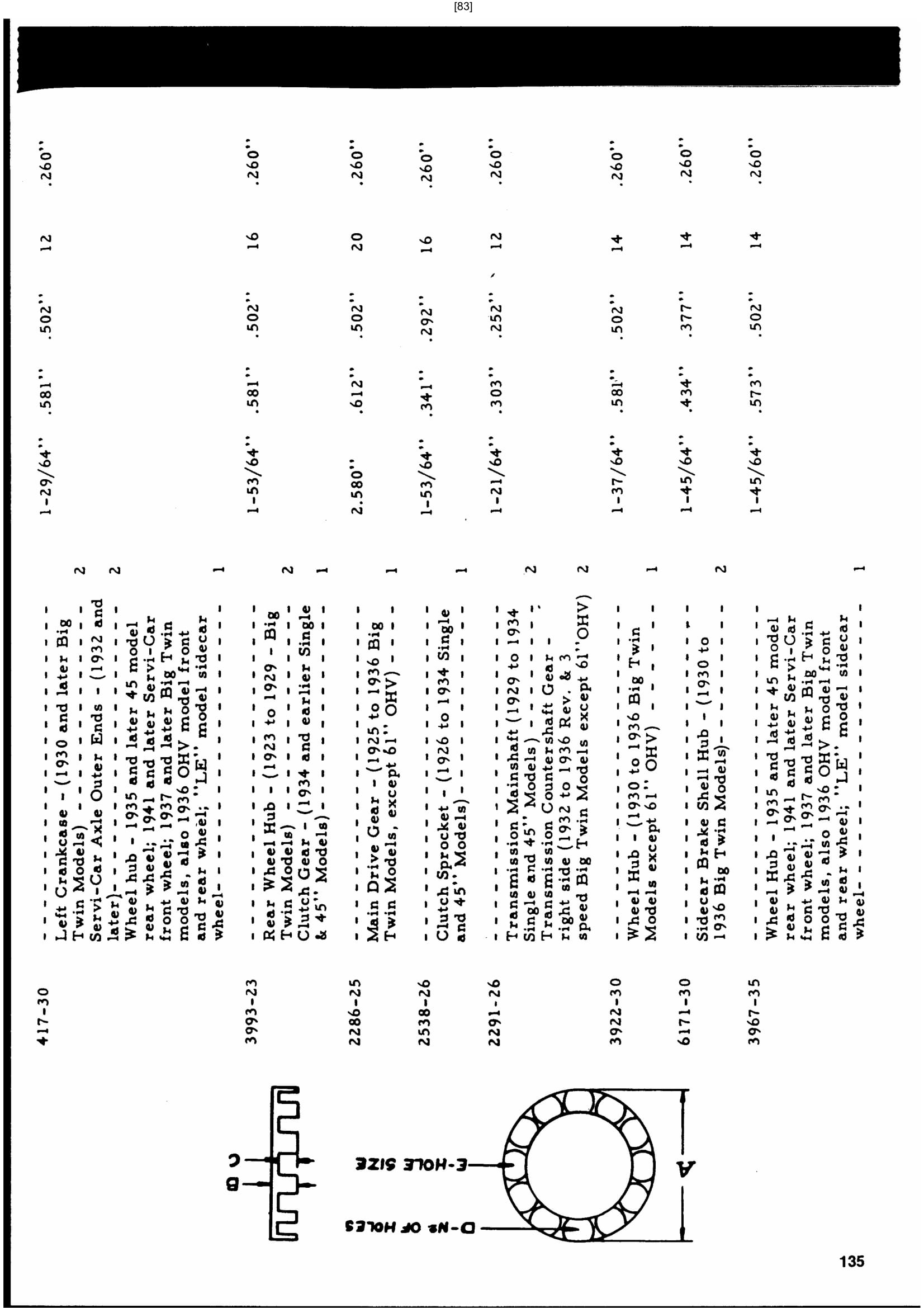

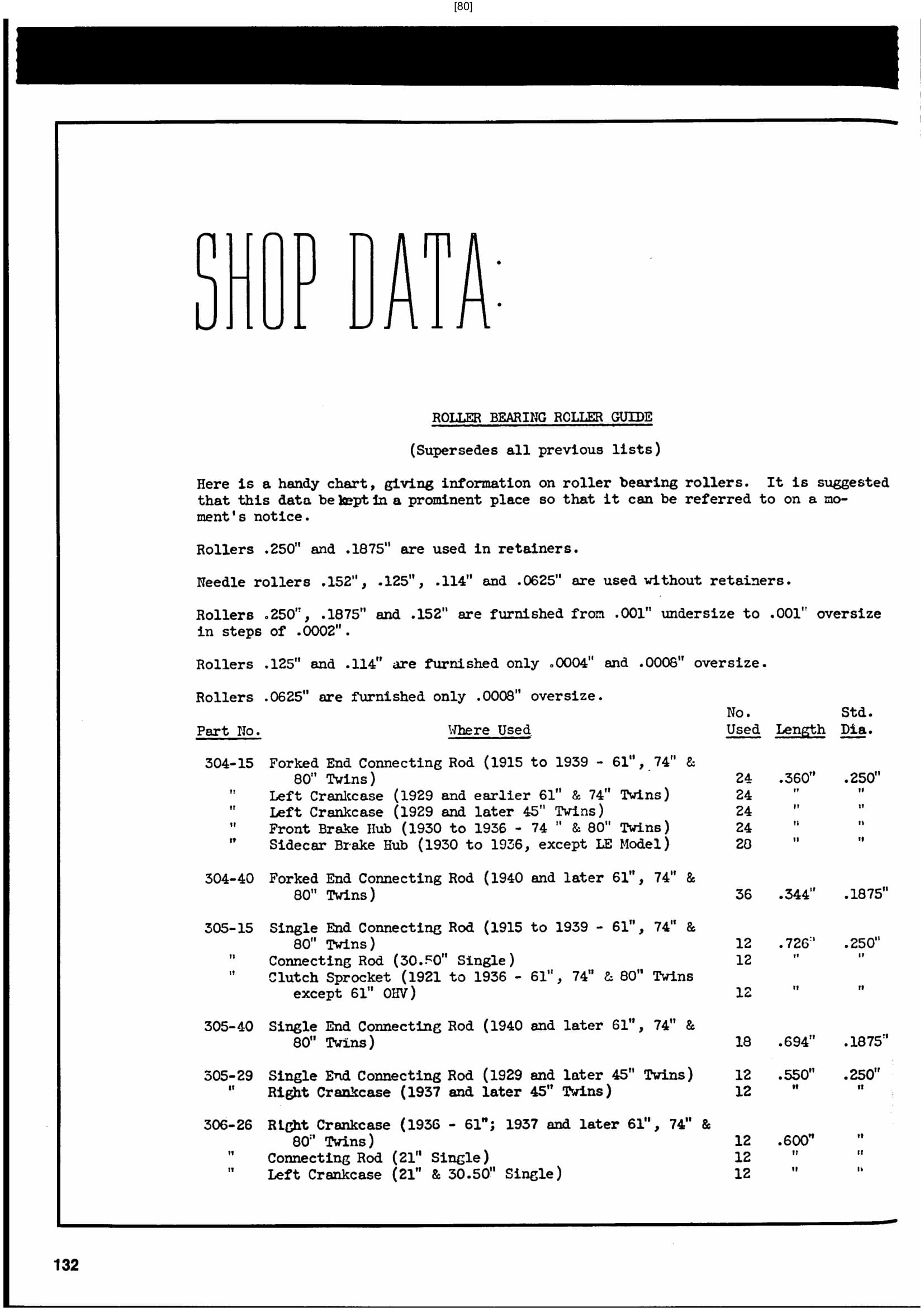

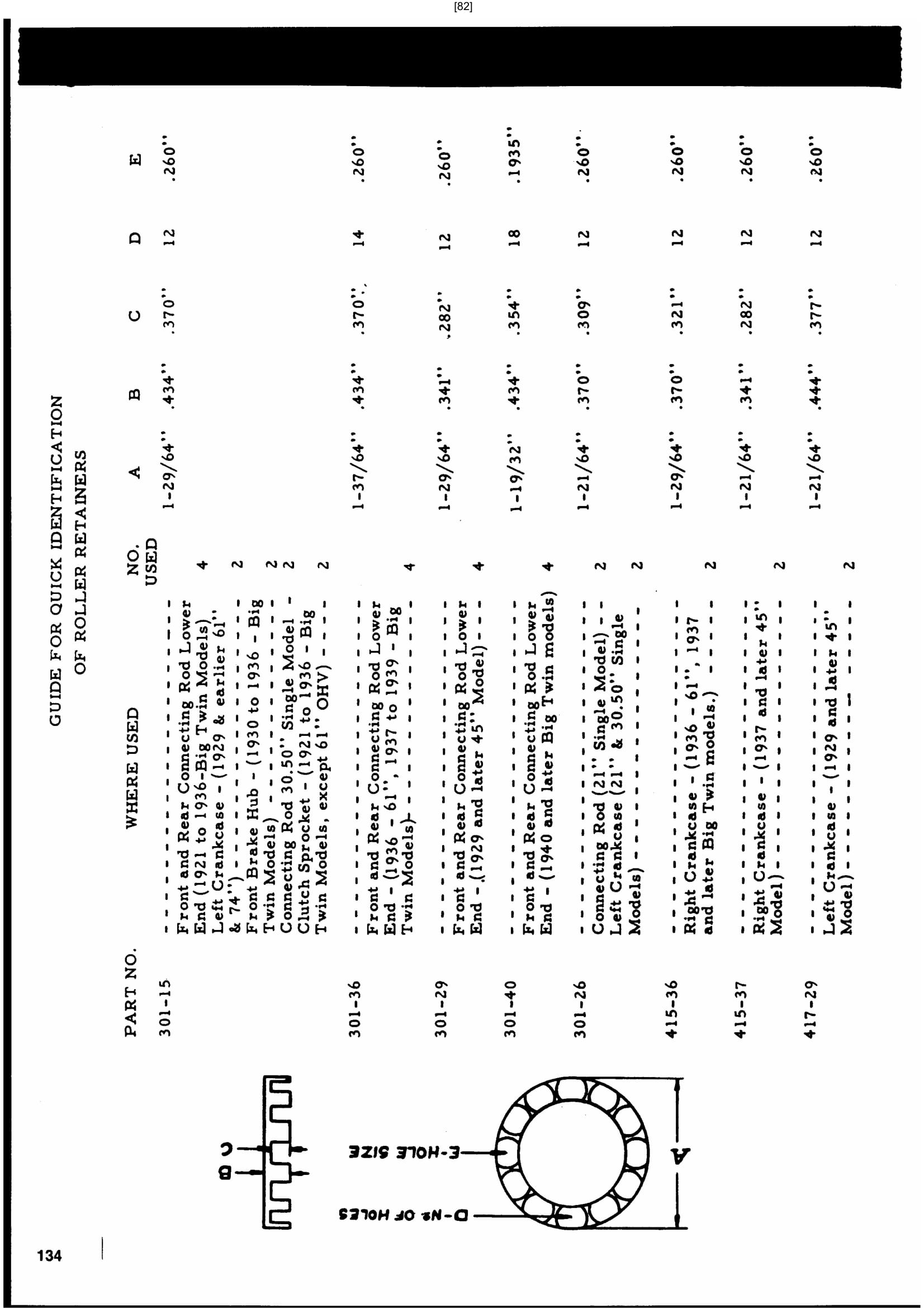

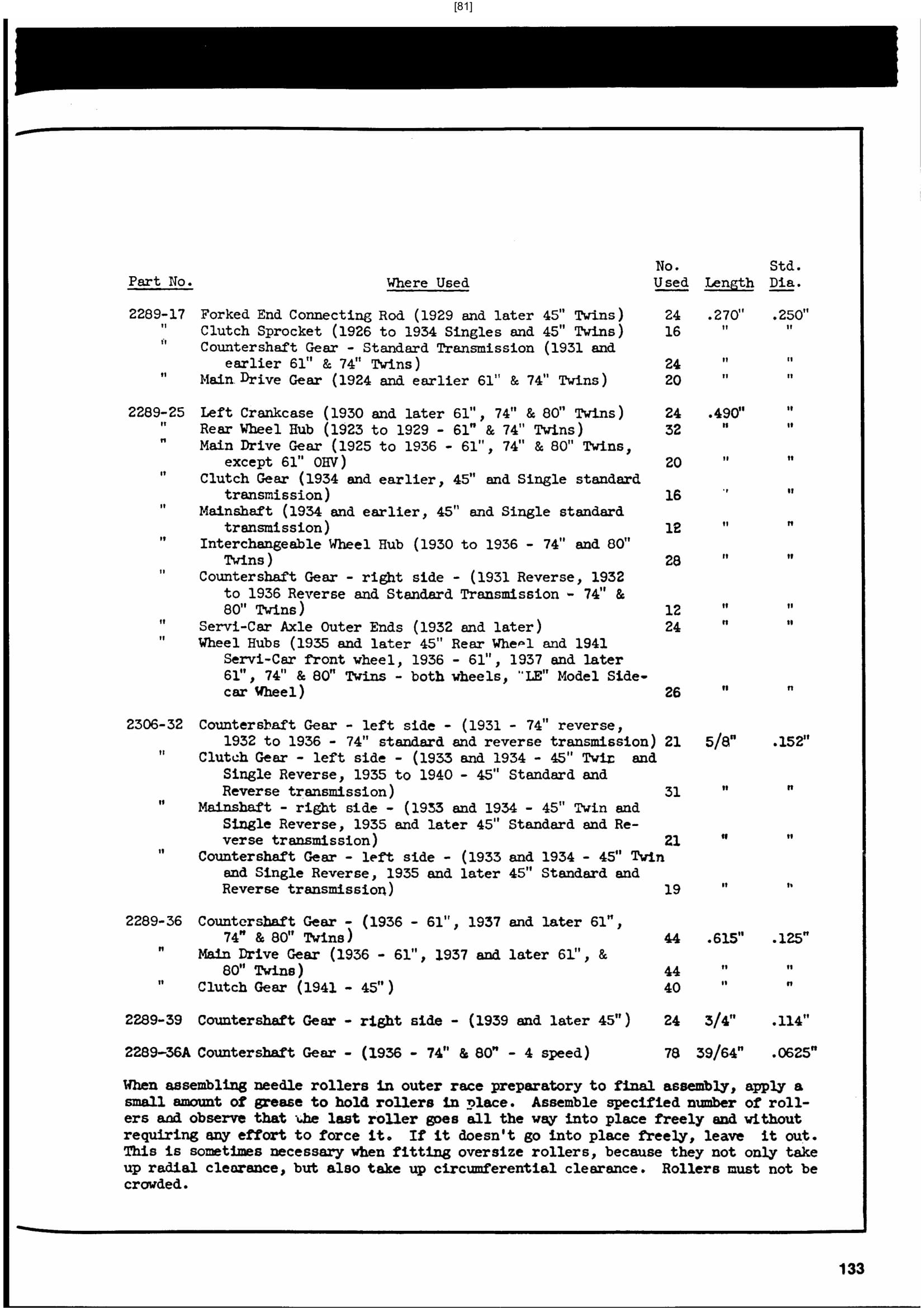

with left case bearing, and to attain a size
compatible with roller sizes available.

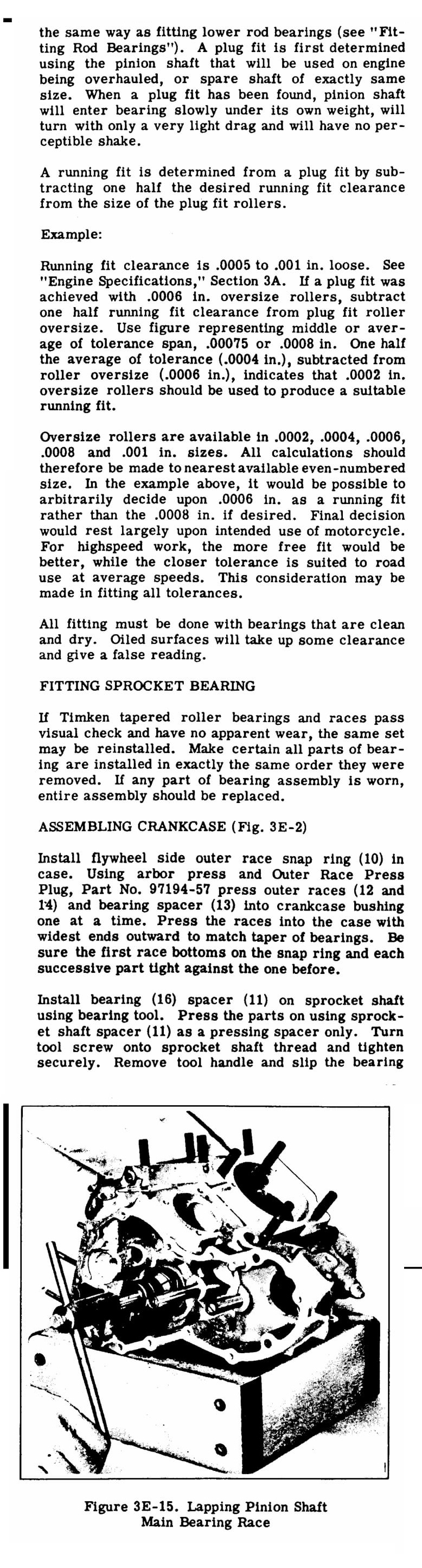

LAPPING ENGINE MAIN BEARINGS (Fig. 3E-15). Secure right and left
crankcase halves with three crankcase stud bolts (top center and bottom
left and right). The sprocket shaft bearing outer races and large spacer
must be installed in left crankcase.
Assemble lapping arbor to lapping handle and assemble guide sleeve to
sprocket shaft bearing bushing. Sleeves for use with tapered bearing,
are assembled to case with bearings and small spacer collar. Turn sleeve
parts finger tight.
Insert lap shaft with arbor assembled through pinion bearing bushing and
into guide sleeve. Tighten arbor expansion collars using a length of
5/32 in. rod as spanner until arbor begins to drag. Do not adjust arbor
snug in bushing or bushing will ’’bell,” a condition where hole is
larger at ends than it is in the center.
Withdraw arbor far enough to coat lightly with fine lapping compound. Do
not apply a heavy coat. Reposition lap in bushing and turn handle at
moderate hand speed. Work lap back and forth in bushing as it is
revolved to avoid grooving and tapering.
At frequent intervals, remove lap from crankcase, wash and inspect
bushing. Lapping is completed when entire bushing surface has a dull,
satin finish rather than a glossy, smooth appearance. If necessary,
flush off lap in cleaning solvent, air dry and apply fresh, light coat
of fine lapping compound.

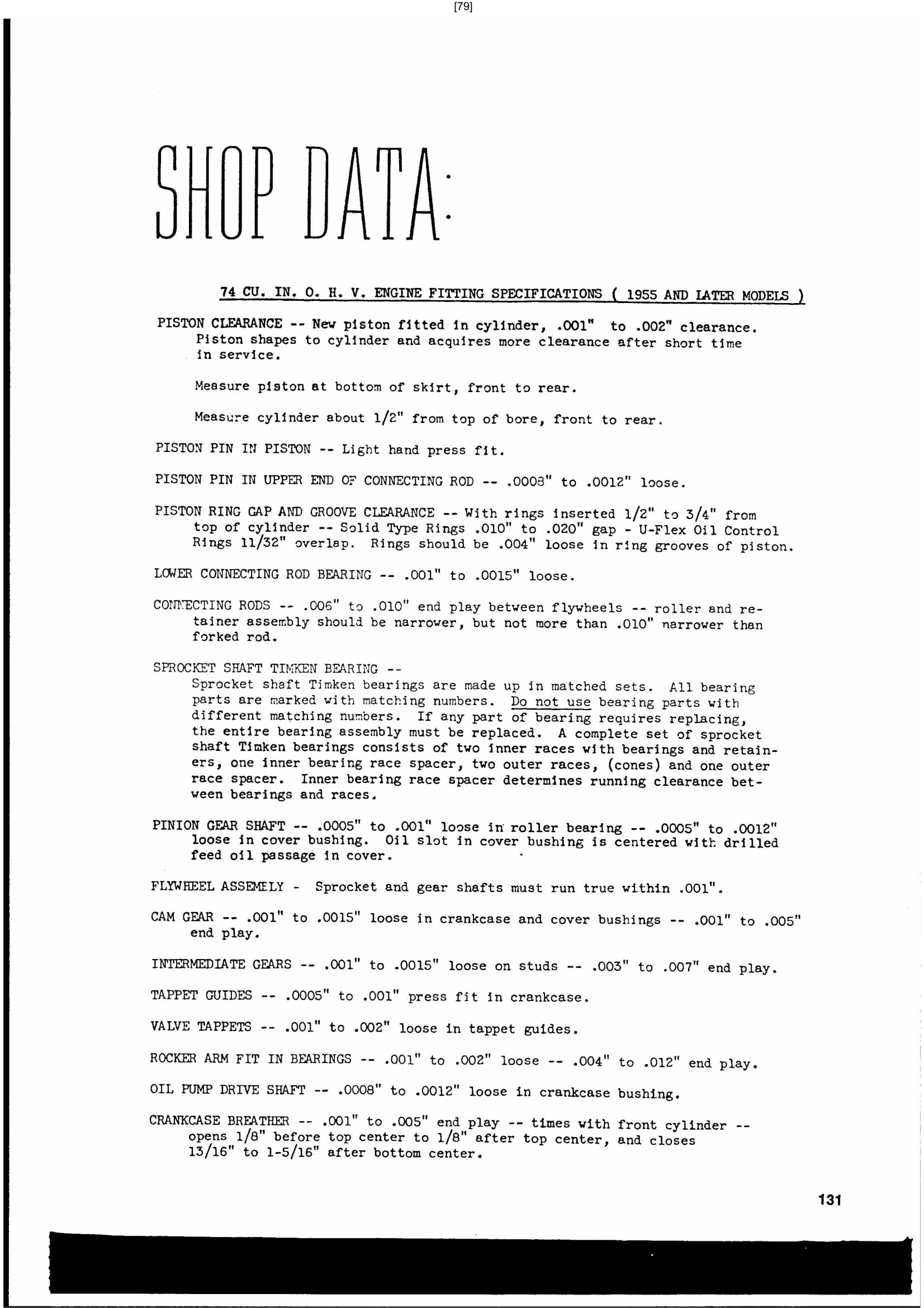

FITTING PINION SHAFT BEARING
The fitting of pinion shaft bearing is done in much
