Harley Davidson Touring Models 84-98 FLH, FLHT, FXR. Service manual - page 15
Inspection
1. Remove all gasket residue from the chaincase outer cover (Figure 7)
and chaincase inner housing gasket surfaces.
2. Clean the primary cover in
solvent and dry with compressed air.
3. Inspect the primary chaincase outer cover for cracks or damage.
4. Inspect the starter jackshaft bushing (Figure 8) for excessive wear
or damage. To replace the bushing, perform the following:
a. Remove the bushing with a blind bearing removal tool.
b. Clean the bushing bore in the housing.
c. Press in the new bushing until its outer surface is flush with the
edge of the bushing bore.

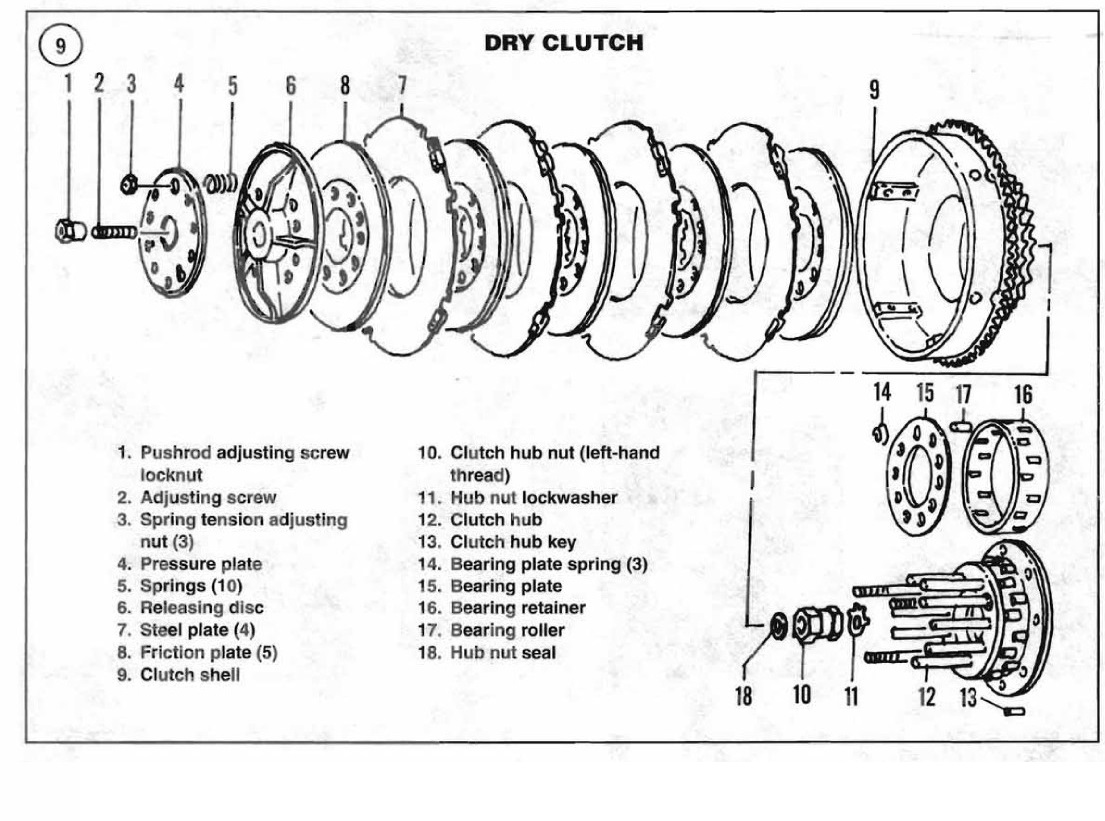

DRY CLUTCH
Refer to Figure 9.
Removal
1. Disconnect the negative battery cable from the battery.
2. Remove the primary chaincase outer cover as described in this
chapter.
