Harley Davidson Touring Models 84-98 FLH, FLHT, FXR. Service manual - page 14

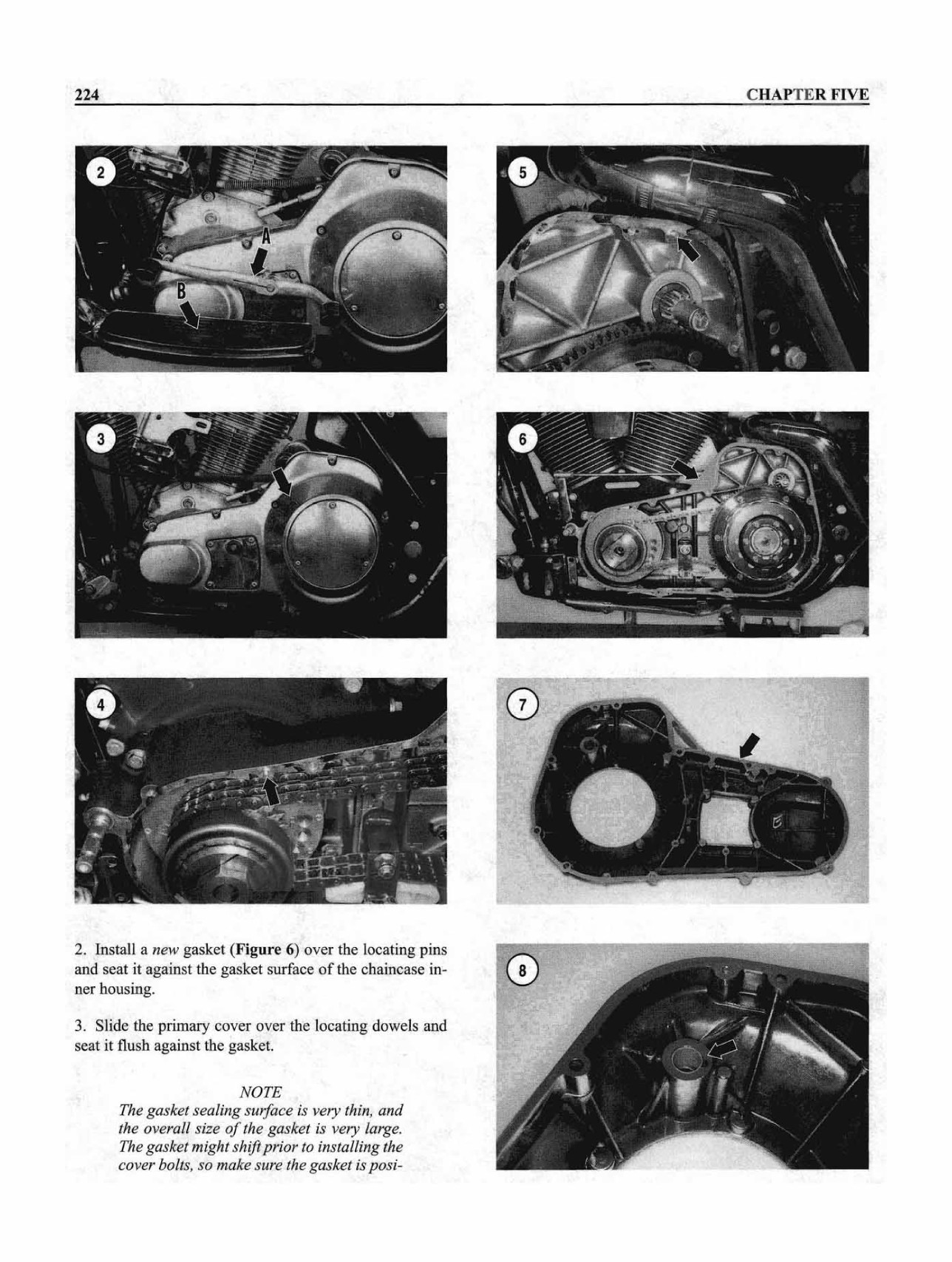

tioned correctly while installing the cover bolts in Step 4.

4. Install the primary chaincase outer cover bolts and captive washers into the correct locations noted during removal. Tighten the cover bolts to the torque in Table 5 and Table 6. Check that the gasket seats flush around the cover.

5. On early models, install the gearshift pedal (A, Figure 2).

6. On models so equipped, install the left footboard (B, Figure 2) as described in Chapter Fifteen.

7. Refill the primary chaincase with the type and quantity of oil specified under Primary Chain Lubrication in Chapter Three.

8. Connect the negative battery cable.
