Hafei Lobo, Brio. Spare parts catalog - 4

48

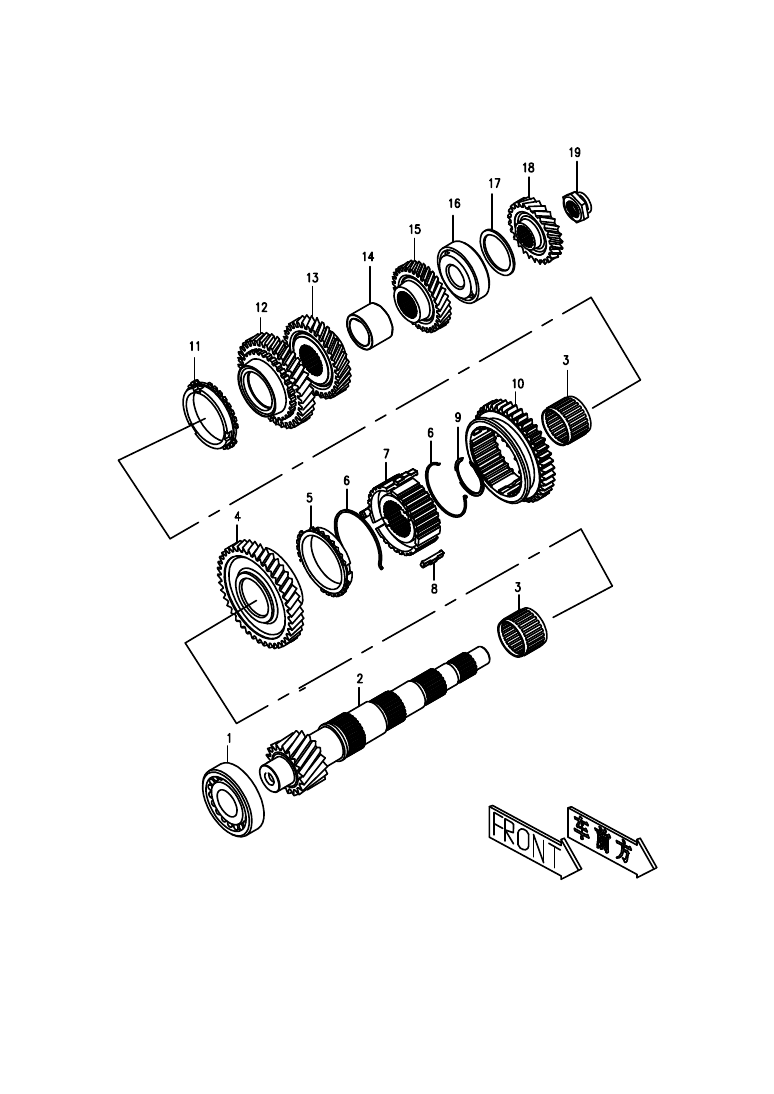

图二

变速器二轴部分

FIG. 2

SHAFT COUNTER ASSEMBLY OF TRANSMISSION

49

图二

变速器二轴部分

FIG. 2

SHAFT COUNTER ASSEMBLY OF TRANSMISSION

图位号

零配件名称

零配件号(备件号)

单车数量

备注

ITEM

NO.

DESCRIPTION

PART NO.(SPARE

PART NO)

QTY

REMARK

1

轴承
BEARING,

COUNTER

SHAFT R

GB/T297-94 33005

1

2

二轴
SHAFT,

TRANSMISSION

COUNTER

BS10-4-1701027-01

1

3

滚针轴承
BEARING,

1ST&2ND

GEAR

BS10-4-1701990

2

4

一档从动齿轮
GEAR, COUNTER SHAFT
1ST

BS10-4-1701031-01

1

5

一档同步环
RING, 1ST GEAR SYNC

BS10-5-1701015

1

6

低速弹簧卡圈
SPRING,

LOW

SPEED

SYNC

BS10-4-1701041

2

7

低速转接套齿
HUB, LOW SPEED SYNC

BS10-4-1701043

1

8

低速滑块
KEY, LOW SPEED SYNC

BS10-4-1701016

3

9

大挡圈
CIRCLIP,

LOW

SPEED

SYNC HUB

BS10-5-1701018

1

10

低速外齿圈
SLEEVE,

LOW

SPEED

SYNC

BS10-4-1701042

1

11

二档同步环
RING, 2ND GEAR SYNC

BS10-5-1701045

1

12

二档从动齿轮
GEAR, COUNTER SHAFT
2ND

BS10-4-1701032-01

1

13

三档从动齿轮
GEAR, COUNTER SHAFT
3RD

BS10-4-1701033

1

14

间隔套
SPACER, 3RD&4TH GEAR

BS10-5-1701046

1

50

图二

变速器二轴部分

FIG. 2

SHAFT COUNTER ASSEMBLY OF TRANSMISSION

图位号

零配件名称

零配件号(备件号)

单车数量

备注

ITEM

NO.

DESCRIPTION

PART NO.(SPARE PART

NO)

QTY

REMARK

15

四档从动齿轮
GEAR,

COUNTER

SHAFT 4TH

BS10-4-1701034

1

16

轴承
BEARING

ASSY,

COUNTER SHAFT

GB/T297-94 32004

1

17

轴承调整垫片
SHIM, BEARING SET

BS10-4-1700022
(-1、-2、-3、-4)

1

18

五档从动齿轮
GEAR,

COUNTER

SHAFT 5TH

BS10-4-1701059

1

19

五档齿轮锁紧螺母
NUT,

COUNTER

SHAFT

BS10-5-1701057

1

51

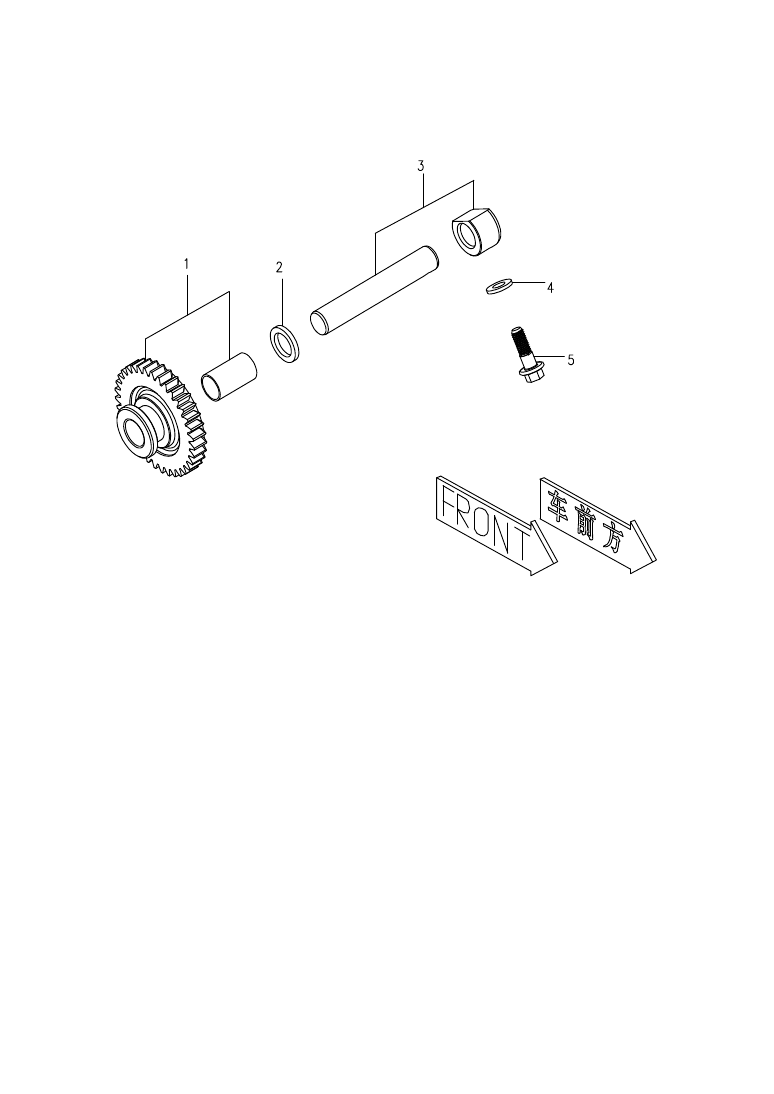

图三

倒档轴部分

FIG. 3

SHAFT ASSEMBLY OF REV GEAR

52

图三

倒档轴部分

FIG. 3

SHAFT ASSEMBLY OF REV GEAR

图位号

零配件名称

零配件号(备件号)

单车数量

备注

ITEM

NO.

DESCRIPTION

PART NO.(SPARE

PART NO)

QTY

REMARK

1

倒档中间齿轮总成
GEAR COMP, REVERSE
IDLER

BS10-4-1701870

1

2

倒档中间齿轮轴垫圈
SPACER,

T/M

REV

GEAR

BS10-4-1701062

1

3

倒档中间齿轮轴总成
SHAFT COMP, T/M REV
GEAR

BS10-5-1701970

1

4

垫片
WASHER,

REVERSE

SHAFT BOLT

BS10-4-1700014

1

5

倒档中间齿轮轴螺钉
BOLT, REVERSE SHAFT

BS10-5-1700013

1

53

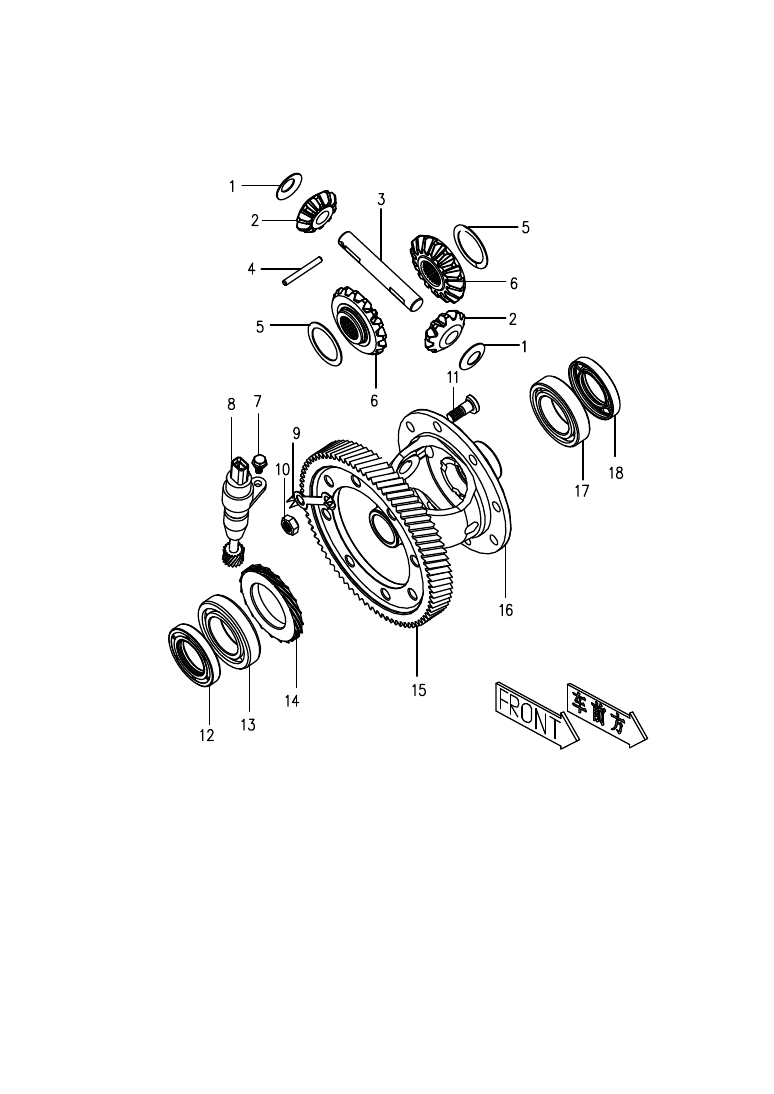

图四

差速器部分

FIG. 4

FRONT DIFFERENTIAL ASSEMBLY

54

图四

差速器部分

FIG. 4

FRONT DIFFERENTIAL ASSEMBLY

图位号

零配件名称

零配件号(备件号)

单车数量

备注

ITEM

NO.

DESCRIPTION

PART NO.(SPARE

PART NO)

QTY.

REMARK

1

行星齿轮垫圈
WASHER, FRONT DIFF
PINION THR

BS10-4-2303046-A

2

2

行星齿轮
PINION,

FRONT

DIFFERENTIAL

BS10-5-2303044-A

2

3

行星齿轮轴
SHAFT,

DIFF

SIDE

PINION

BS10-5-2303047

1

4

弹性销
PIN, DIFF SIDE PINION
SHAFT

GB879-86 5×35

1

5

半轴齿轮调整垫
WASHER, DIFF SIDE GR

BS10-5-2303043-A

2

6

半轴齿轮
GEAR,

FRONT

DIFFERENTIAL

BS10-5-2303002-B

2

7

螺栓
BOLT,

SPEEDOMETER

DRIVEN

GB5789-86 AM6×16

1

8

速度表从动齿轮总成
GEAR

COMP,

SPEEDOMETER DRIVEN

BS10-4-3802820-01

1

9

两用锁紧垫片
LOCK SPACER, FRONT
DIFFERENTIAL

BS10-4-2303004

4

10

螺母
NUT,

FRONT

DIFFERENTIAL

GB6171-86 M10×1.25

8

11

从动齿轮螺钉
BOLT,

FRONT

DIFFERENTIAL

BS10-4-2303003

8

12

右输出轴油封总成
SEAL,

FRONT

DIFF

RIGHT SIDE OIL

BS10-4-2303820

1

55

图四

差速器部分

FIG. 4

FRONT DIFFERENTIAL ASSEMBLY

图位号

零配件名称

零配件号(备件号)

单车数量

备注

ITEM

NO.

DESCRIPTION

PART NO.(SPARE

PART NO)

QTY.

REMARK

13

轴承
BEARING,
DIFFERENTIAL SIDE R

GB276-94 6207/P6

1

14

速度表主动齿轮
GEAR,

SPEEDOMETER

DRIVE

BS10-4-3802012-01

1

15

主减从动齿轮
GEAR, FINAL

BS10-4-2302001-01

1

16

差速器壳体
CASE,

FRONT

DIFFERENTIAL

BS10-4-2303001-02-B

1

17

轴承
BEARING,
DIFFERENTIAL SIDE L

GB276-94 6008/P6

1

18

左输出轴油封总成
SEAL, FRONT DIFF LEFT
SIDE OIL

BS10-4-2303830

1

56

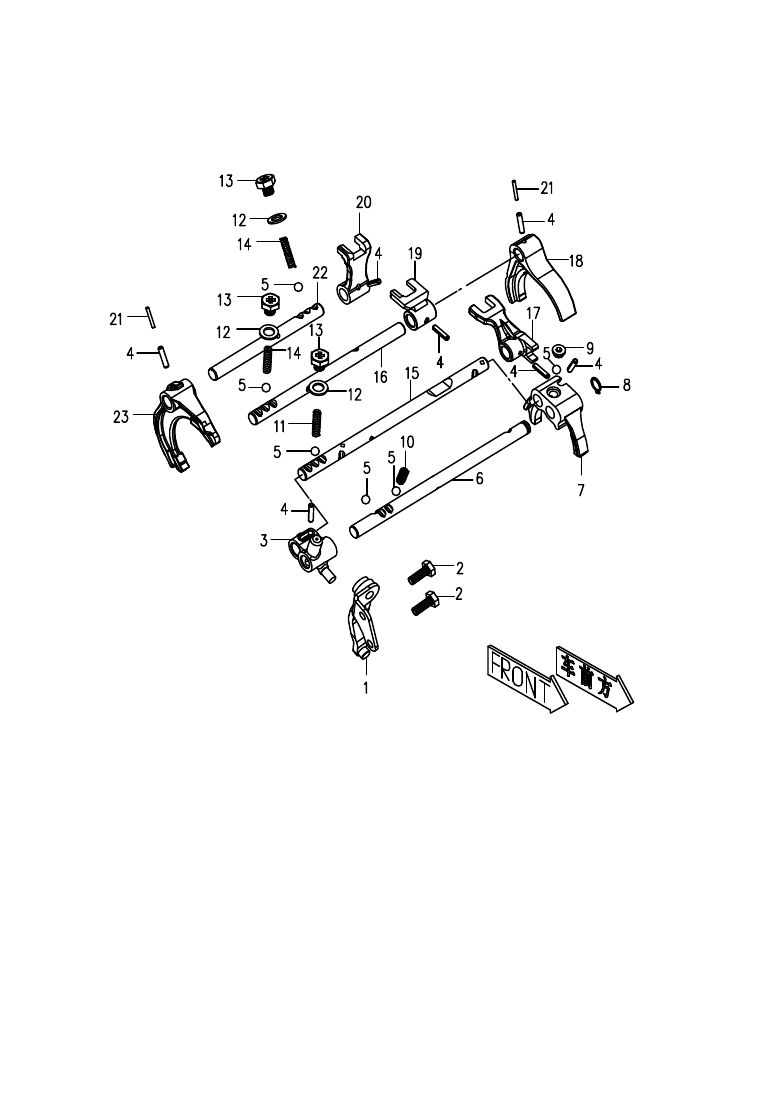

图五

换档拨叉部分

FIG.5

LEVER COMP ASSEMBLY, REVERSE GEAR

57

图五

换档拨叉部分

FIG. 5

LEVER COMP ASSEMBLY, REVERSE GEAR

图位号

零配件名称

零配件号(备件号)

单车数量

备注

ITEM

NO.

DESCRIPTION

PART NO.(SPARE

PART NO)

QTY.

REMARK

1

倒档拨叉总成
LEVER COMP, REVERSE
GEAR SHIFT

BS10-4-1702860-01

1

2

螺栓
BOLT, REVERSE GEAR
SHIFT

GB9074.15-88-M8×20

2

3

倒档控制叉
ARM,

REVERSE

GEAR

SHIFT

BS10-5-1702016

1

4

弹性销
PIN, GEAR SHFIT SHAFT

BS10-5-1702007

7

5

钢球
BALL,

GEAR

SHIFT

SHAFT

GB308-89 5/16

6

6

倒、五档导向轴
SHAFT,

5TH

&

REV

GEAR SHF GUIDE

BS10-5-1702022

1

7

五档拨叉
FORK, 5TH GEAR SHIFT

BS10-5-1702023

1

8

弹性挡圈
CIRCLIP,

5TH

&

REV

GEAR SHF GUIDE

GB894.1-86-12

1

9

五档拨叉螺钉
PLUG, 5TH GEAR SHIFT

BS10-4-1702053

1

10

倒档自锁弹簧
SPRING, REV GEAR SHF
ARM

BS10-5-1702052

1

11

弹簧
SPRING,

5TH&REV

SPEED LOCATING

BS10-4-1702049

1

12

垫片
WASHER, GEAR SHIFT
SHAFT

GB848-85-10-200HV

3

58

图五 换档拨叉部分

FIG. 5

LEVER COMP ASSEMBLY, REVERSE GEAR

图位号

零配件名称

零配件号(备件号)

单车数量

备注

ITEM

NO.

DESCRIPTION

PART NO.(SPARE

PART NO)

QTY.

REMARK

13

BS10-5-1702046

螺钉
BOLT, GEAR SHIFT
SHAFT

3

14

BS10-5-1702048

弹簧
SPRING, LOW&HIGH
SPEED LOCATING

2

15

BS10-5-1702026

倒、五档拨叉轴
SHAFT, 5TH & REV
GEAR SHIFT

1

16

BS10-5-1702029

三、四档拨叉轴
SHAFT, HIGH SPEED
GEAR SHIFT

1

17

BS10-5-1702015

倒、五档换档臂
YOKE,

5TH

&

REVERSE

GEAR

SHIFT

1

18

BS10-5-1702019

三、四档拨叉
FORK, HIGH SPEED
GEAR SHIFT

1

19

BS10-4-1702075

三、四档换档臂
YOKE, HIGH SPEED
GEAR SHIFT

1

20

BS10-5-1702073

一、二档换档臂
YOKE, LOW SPEED
GEAR SHIFT

1

21

BS10-5-1702008

弹性销
PIN,

GEAR

SHFIT

SHAFT INNER

2

22

BS10-5-1702027

一、二档拨叉轴
SHAFT, LOW SPEED
GEAR SHIFT

1

23

BS10-5-1702017

一、二档拨叉
FORK, LOW SPEED
GEAR SHIFT

1

59

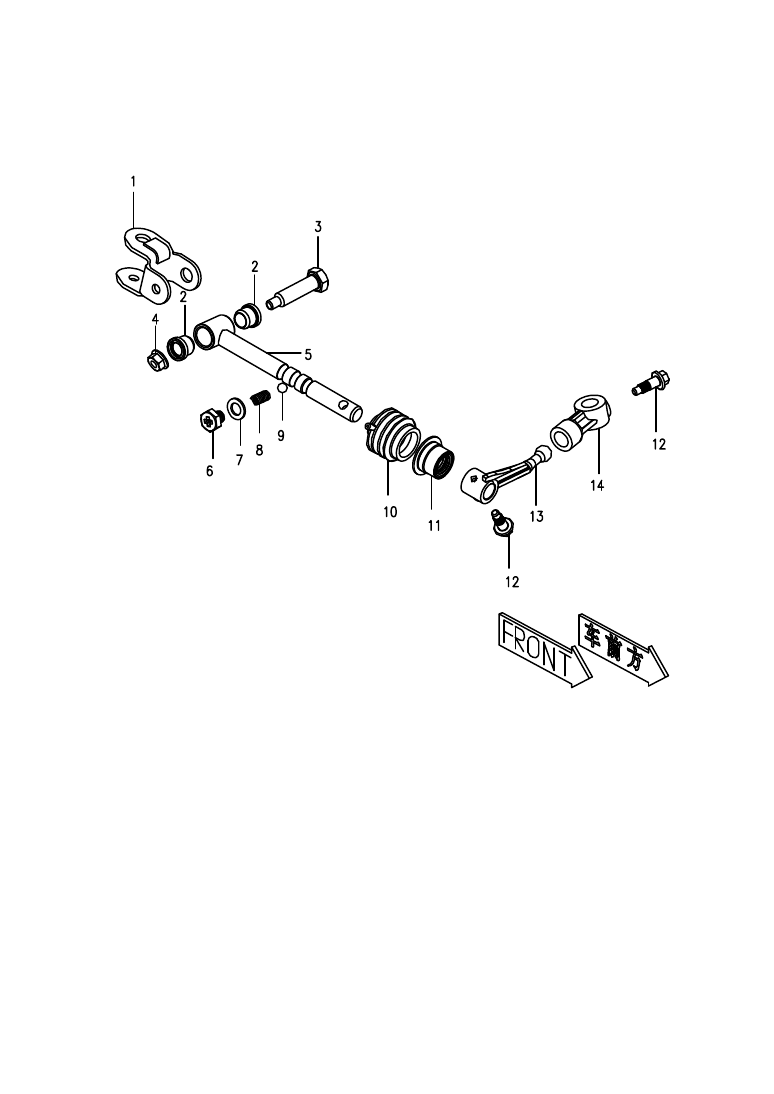

图六 换档轴部分

FIG. 6

SHAFT ASSEMBLY, GEAR SHIFT

60

图六 换档轴部分

FIG. 6

SHAFT ASSEMBLY, GEAR SHIFT

图位号

零配件名称

零配件号(备件号)

单车数量

备注

ITEM

NO.

DESCRIPTION

PART NO.(SPARE

PART NO)

QTY.

REMARK

1

换档铰接头总成
JOINT,

GEAR

SHIFT

CONTROL

BS10-5-1702920

1

2

衬套
BUSH,

GEAR

SHIFT

CONTROL

BS10-4-1702003

2

3

螺钉
BOLT, CONTROL SHAFT

BS10-5-1702034

1

4

螺母
NUT, CONTROL SHAFT

GB6177-86-M8

1

5

换档轴总成
SHAFT

COMP,

GEAR

SHIFT

BS10-5-1702810

1

6

螺钉
BOLT,

GEAR

SHIFT

SHAFT

BS10-5-1702046

1

7

垫片
WASHER, GEAR SHIFT
SHAFT BOLT

BS10-4-1702042

1

8

换档轴自锁弹簧
SPRING,

GEAR

SHIFT

DETENT

BS10-5-1702041

1

9

钢球
BALL,

GEAR

SHIFT

SHAFT

GB308-89 5/16

1

10

换档轴防尘胶套
BOOT,

GEAR

SHIFT

SHAFT

BS10-5-1702031

1

11

换档轴油封总成
SEAL, GEAR SHF SHAFT
OIL

BS10-4-1702910

1

12

固定螺钉
BOLT,

GEAR

SHIFT

YOKE

BS10-5-1702203

2

13

换档臂
ARM, GEAR SHIFT

BS10-5-1702032

1

14

换档选择轴臂
YOKE, GEAR SHIFT

BS10-5-1702033

1

61

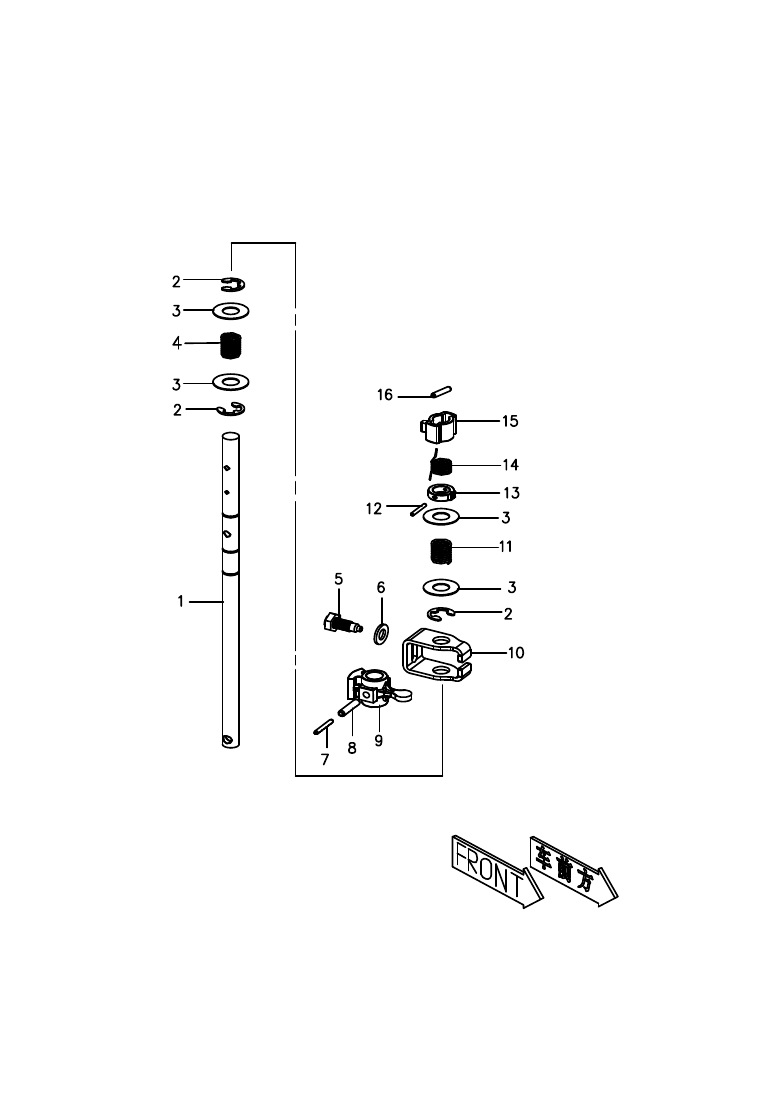

图七 换档选择轴部分

FIG. 7

SHAFT ASSEMBLY, GEAR SHIFT&SELECT

62

图七 换档选择轴部分

FIG. 7

SHAFT ASSEMBLY, GEAR SHIFT&SELECT

图位号

零配件名称

零配件号(备件号)

单车数量

备注

ITEM

NO.

DESCRIPTION

PART NO.(SPARE

PART NO)

QTY.

REMARK

1

换档选择轴
SHAFT, GEAR SHIFT &
SELECT

BS10-5-1702025

1

2

E 形卡圈
E-RING,

SHIFT

&

SELECT SHAFT

BS10-5-1702067

3

3

垫片
WASHER,

SHIFT

&

SELECT SHAFT

BS10-5-1702066

4

4

低速回位弹簧
SPRING,

LOW

SPEED

SELECT

BS10-4-1702035-01

1

5

档位限位螺钉
BOLT,

GEAR

SHIFT

LOCATING

BS10-5-1702201

1

6

垫片
WASHER, GEAR SHIFT
LOCATING

GB97.1-85-10-200HV

1

7

弹性销
PIN, SHIFT & SELECT
LEVER INNER

BS10-5-1702014

1

8

弹性销
PIN, SHIFT & SELECT
LEVER OUTER

BS10-5-1702013

1

9

换档选择柄
LEVER, GEAR SHIFT &
SELECT

BS10-4B-1702012

1

10

互锁板
PLATE,

GEAR

SHIFT

INTERLOCK

BS10-5-1702011

1

11

倒、五档回位弹簧
SPRING,

REV

&

5TH

SELECT

BS10-4-1702036-01

1

12

弹性销
PIN, GEAR SHIFT CAM
GUIDE

BS10-5-1702006

1

13

弹簧座
GUIDE,

5TH

&

REV

GEAR SHF CAM

BS10-5-1702068

1

63

图七 换档选择轴部分

FIG. 7

SHAFT ASSEMBLY, GEAR SHIFT&SELECT

图位号

零配件名称

零配件号(备件号)

单车数量

备注

ITEM

NO.

DESCRIPTION

PART NO.(SPARE

PART NO)

QTY.

REMARK

14

换档凸轮回位弹簧
SPRING,

CAM

GUIDE

RETURN

BS10-5-1702047

1

15

倒、五档换档凸轮
CAM, 5TH & REV GEAR
SHIFT

BS10-5-1702009

1

16

弹性销
PIN, 5TH & REV GEAR
SHIFT CAM

BS10-5-1702007

1
