Great Wall service chassis and body Manual - part 109

B0-60

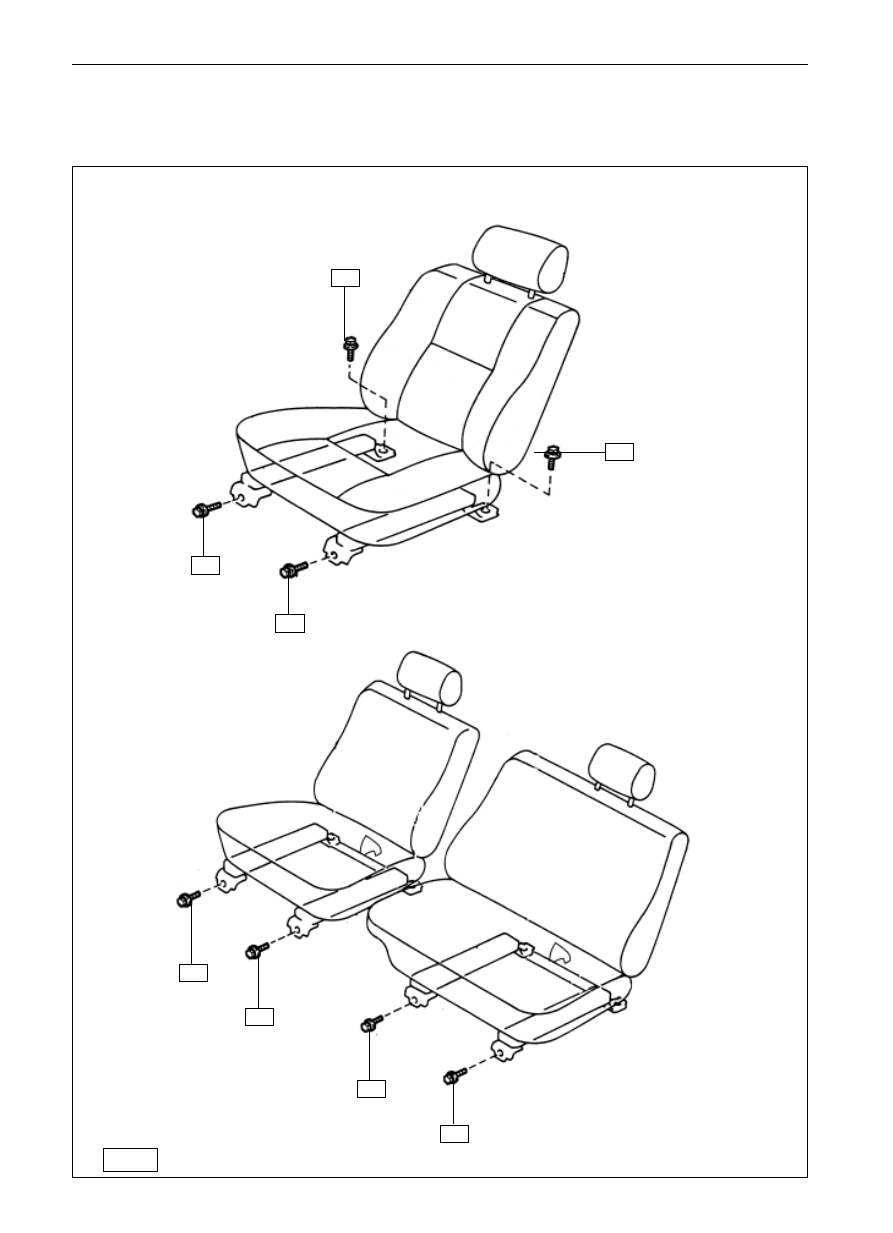

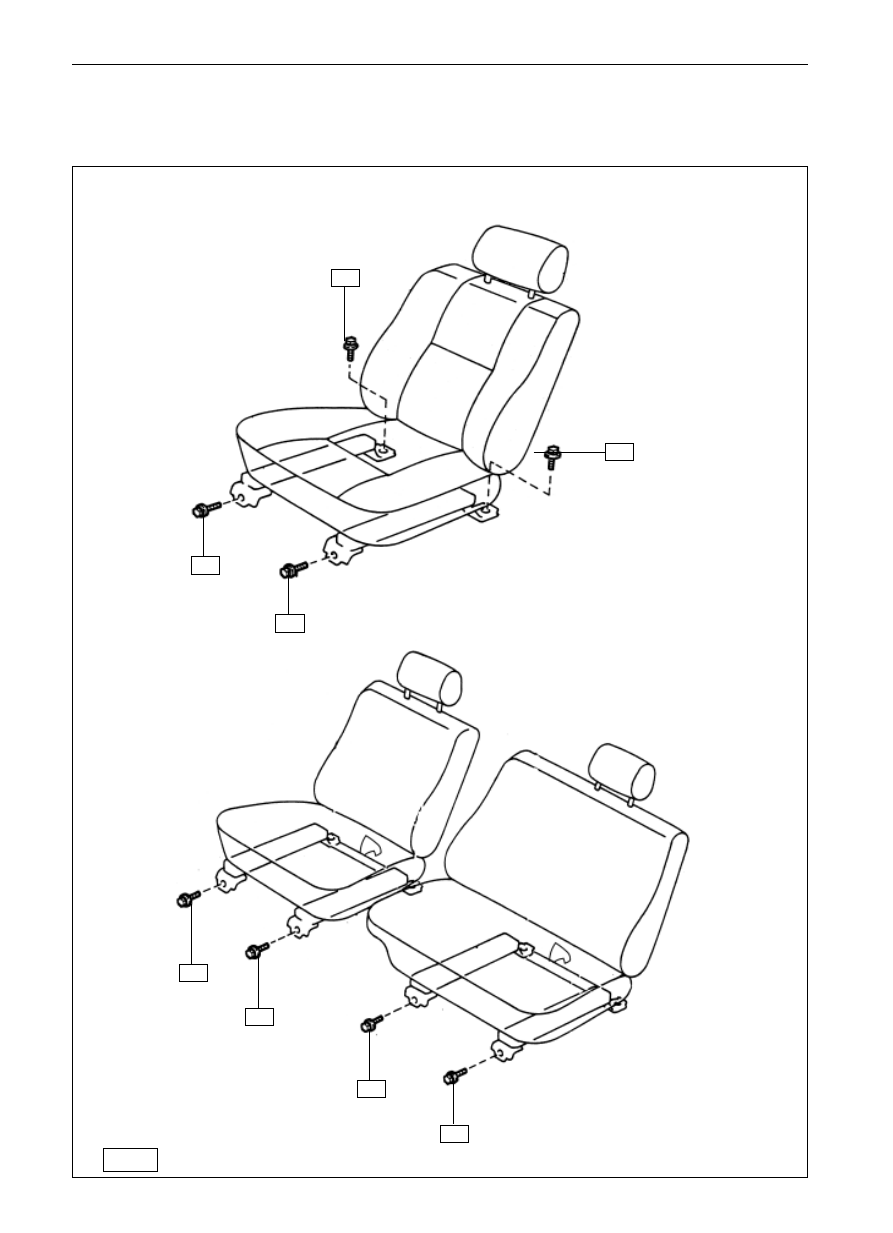

Seat (

)

Element figure

Vehicle Body

 Seat

Dr SL SK SF SY SJ
front seat

seat in SY
model vehicle

N

m

specified torque

37

37

37

37

18

18

18

18

B0-61

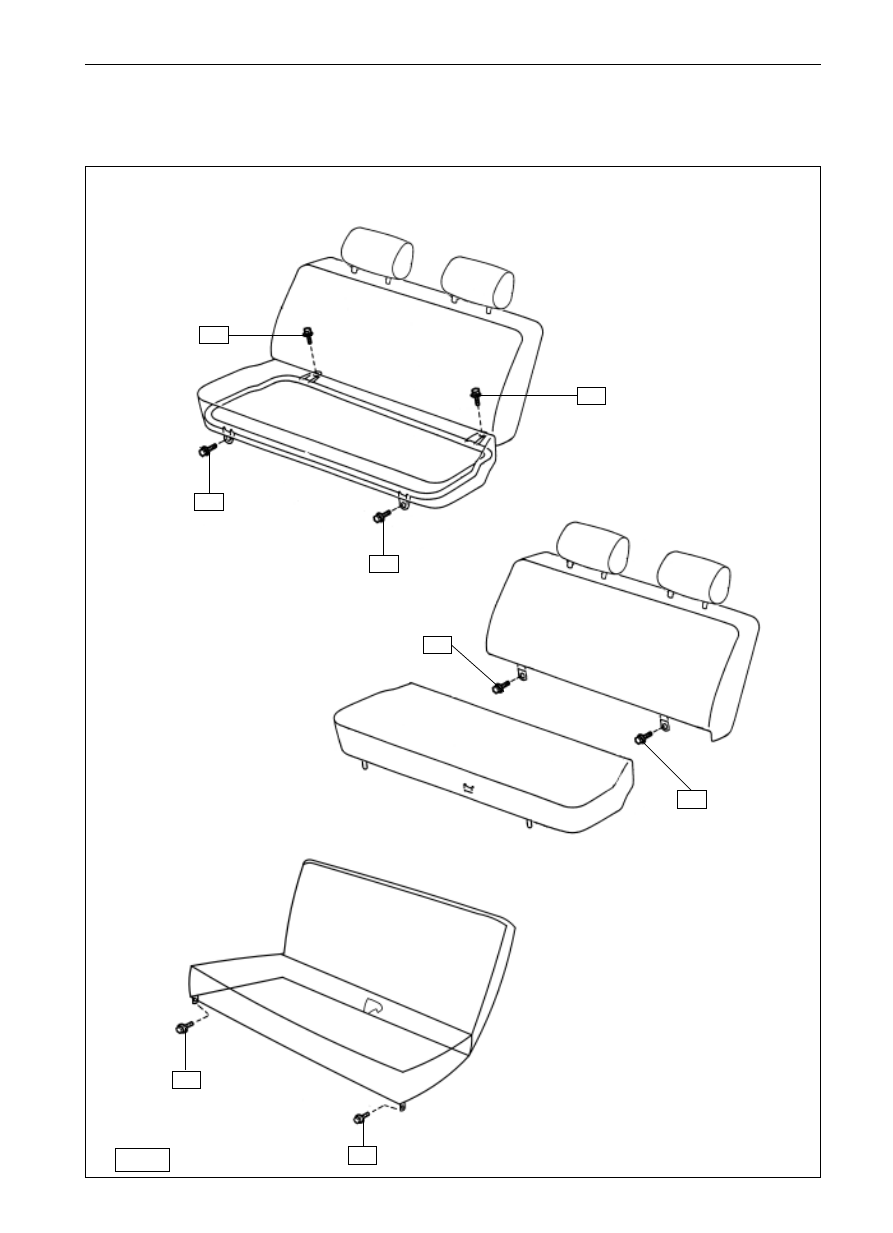

Safety belt (

)

Element figure

Vehicle Body

 Safety Belt

Dr rear seat

SL rear seat

N

m

specified torque

18

18

18

18

18

SY small seat

18

18

18

B0-62

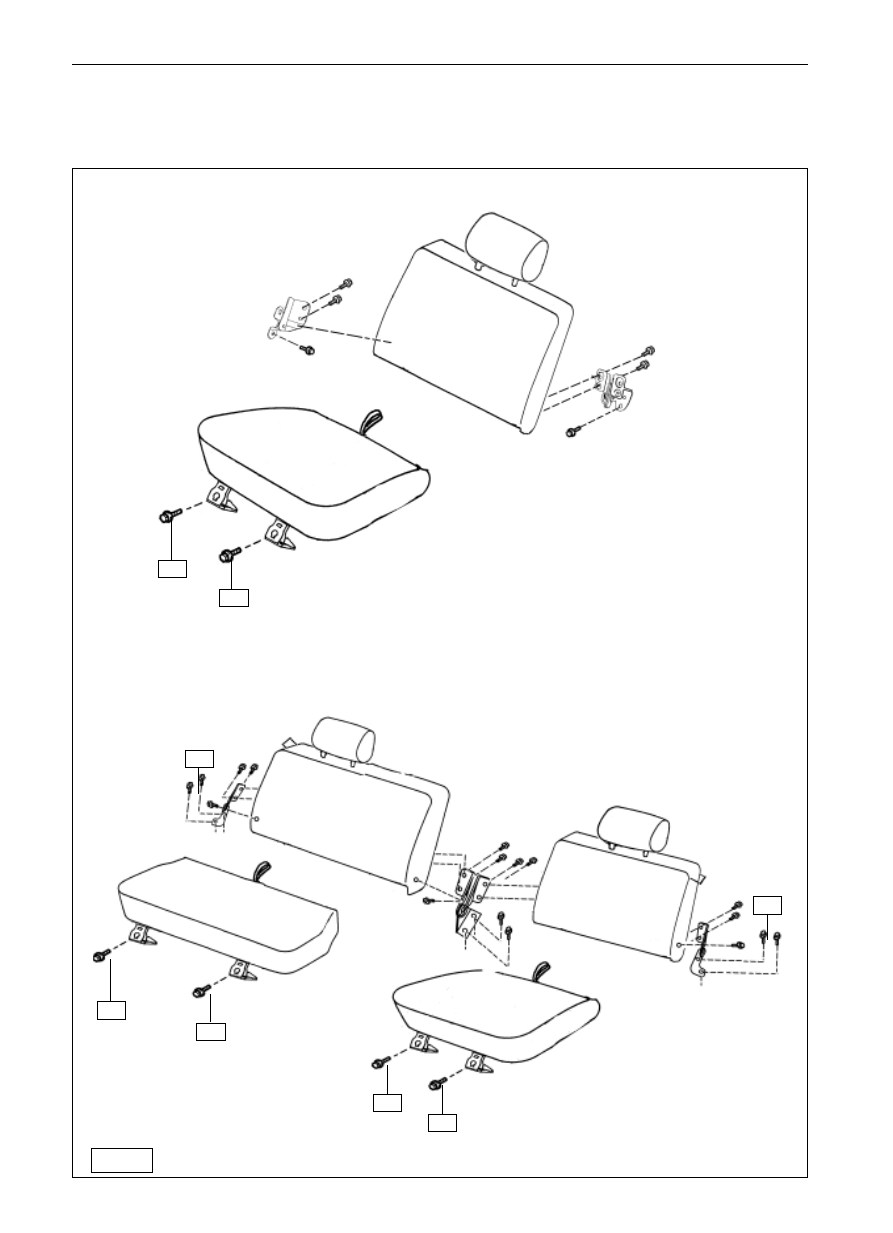

 Seat (

)

Element figure

Body

 Seat

SF rear seat

18

18

18

18

18

18

18

SJ rear seat

N

m

specified torque

18

B0-63

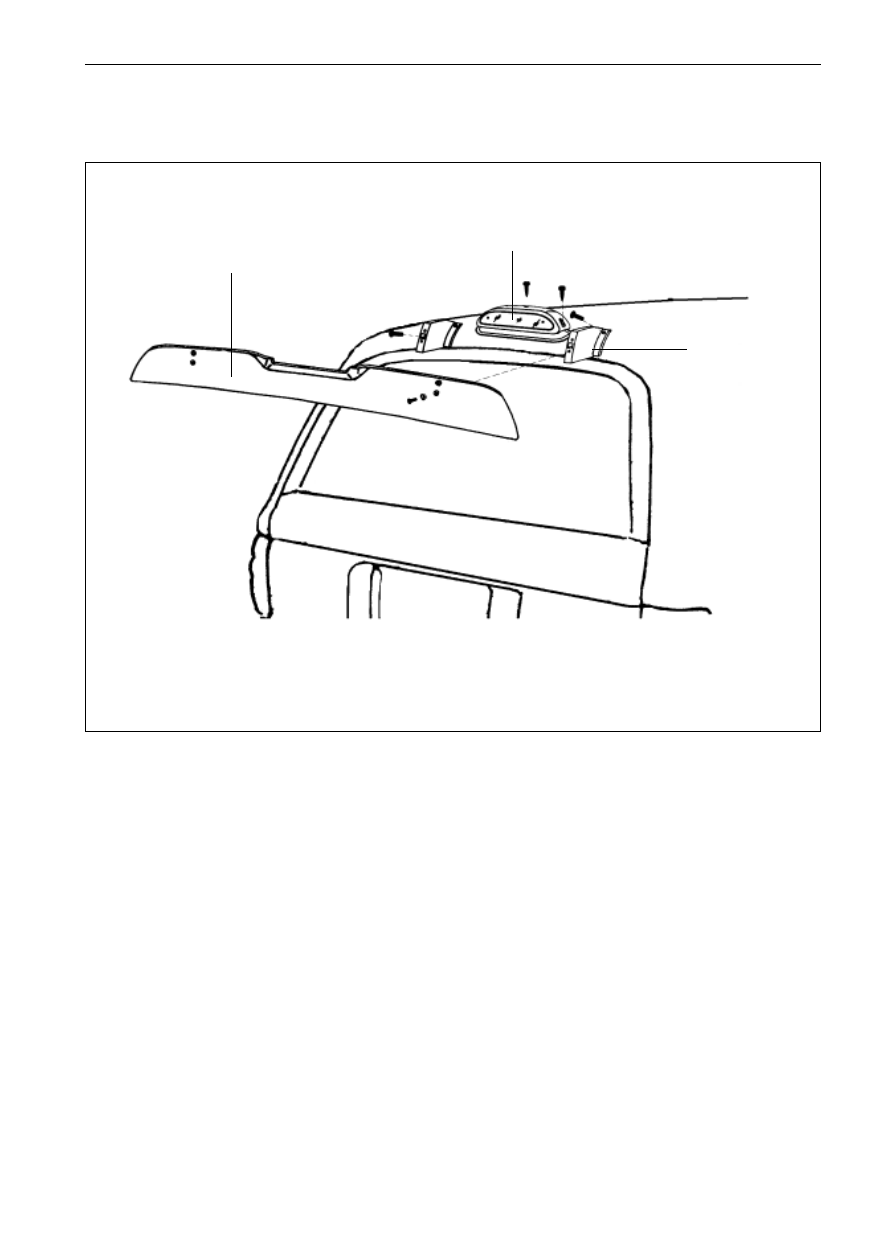

Spoiler (

)

Element figure

Vehicle Body

 Spoiler

Dismantle of Spoiler

1.

Tear down the spoiler assembly;

(a)

Tear down the four bolts and the spoiler;

(b)

Tear down the three bolts and the spoiler supporter.

2.

Tear down the wire harness of highly-mounted stop-

grade lamp and take it down;

Mount of spoiler

Mount the spoiler in the reverse approach.

SF

spoiler

spoiler supporter

highly mounted stop-grade lamp
