Great Wall service chassis and body Manual - part 107

B0-52

Vehicle Body

 Instrument Panel

 Instrument panel (

)

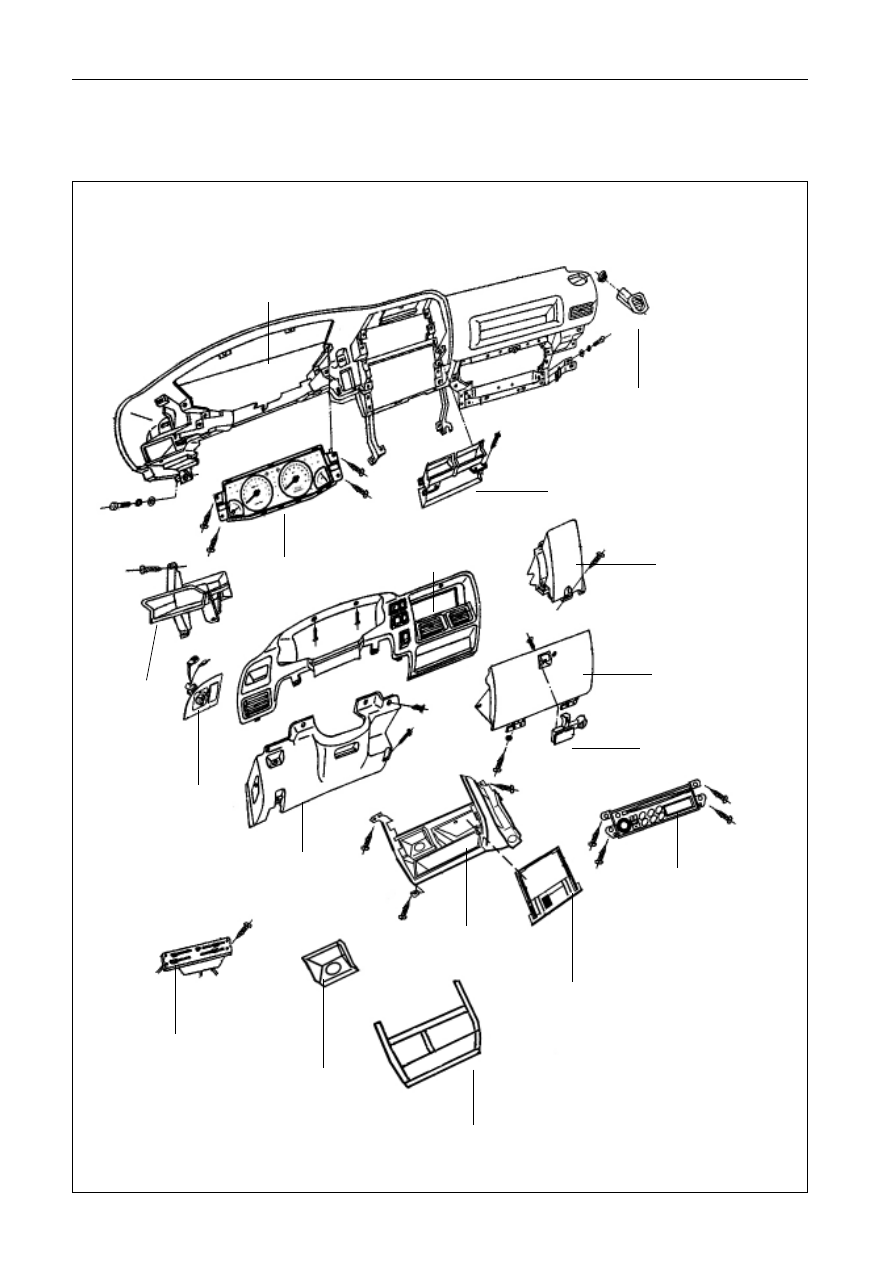

Element figure

SL SK SY SJ

instrument
panel body

right upper air tunnel

central air tunnel

left upper
air tunnel

combination
instrument

decorative cover
of instrument

lower covering board
at right end

glove box

 lower instrument
cover(SY)

air-conditioning
controlling mechanism
assembly

lower instrument cover

central cover

CD device

cigarette

lighter seat

lower decorative
frame of
instrument panel

ashtray cluster

glove box lock

B0-53

Vehicle Body

 Instrument Panel

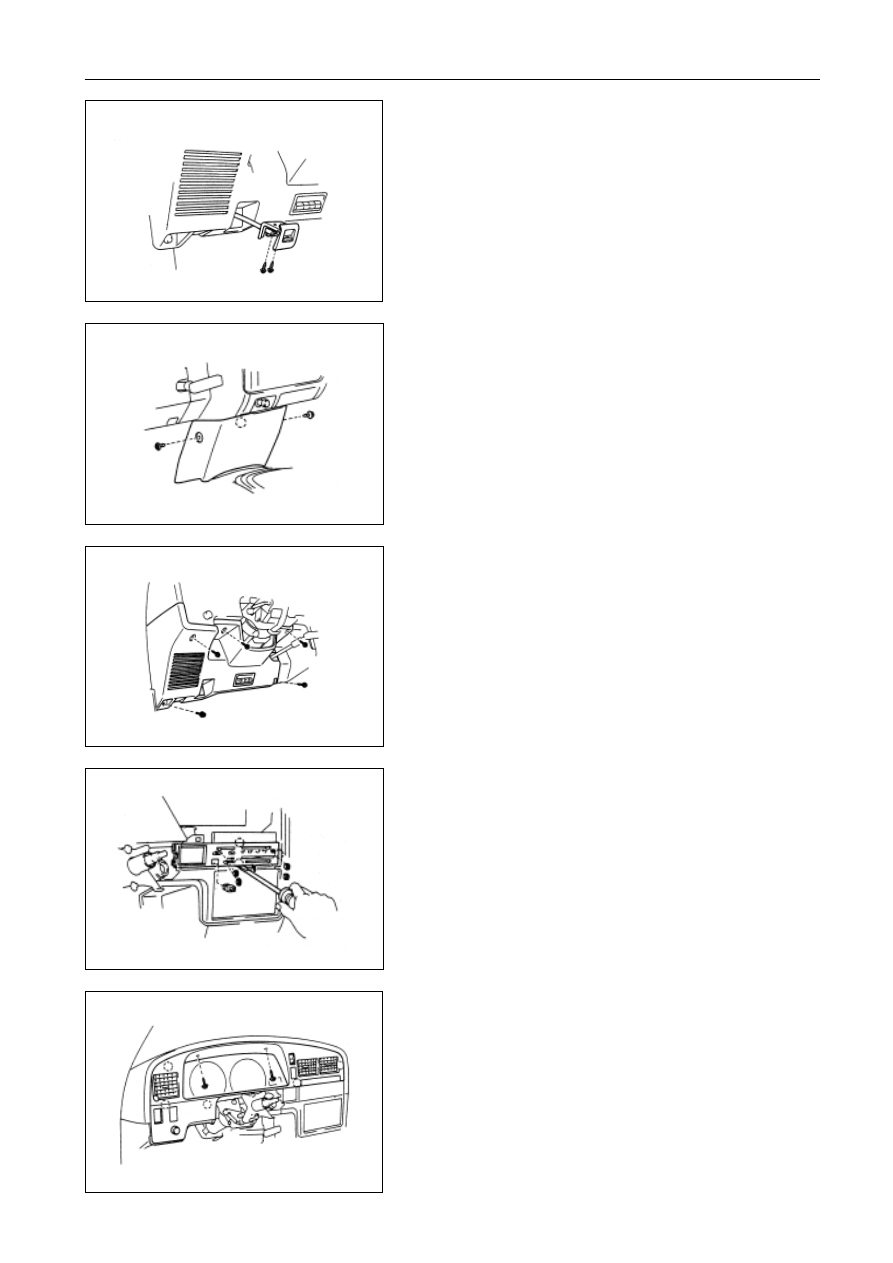

Dismantle of instrument panel

(Dr SF)

1.

Disconnect the cable of accumulator from the negative

polar;

2.

Tear down the steering wheel;

3.

Tear down the combined switch shell cluster;

4.

Tear down the bonnet lock switch;

Tear down the two screws and the sliding fastener of bonnet

lock.

5.

Tear down the central bottom-wall (Dr)

Tear down the decorative cover of gearbox (SF)

6.

Tear down the instrument cover (SF).

Tear down the two screws and the cover.

7.

Tear down the lower instrument cover;

(a)

Tear down the ignition lock;

(b)

Tear down the five screws and the cover;

Tear down the four screws and the cover;

(c)

Disconnect the plugging elements.

8.

Tear down the air-conditioner controlling panel;

(a) Pull out the air-conditioner controlling button;

(b) Prize out the A/C switch;

(c) Prize out the air-conditioner panel as shown in the

drawing with screwdriver and take it down.

Notice: the screwdriver should be wrapped with adhesive

strap at its head before using.

(d)

Disconnect the plugging elements.

9.

Tear down the decorative cover of instrument (Dr)

(a)

Tear down the two screws to pull out the decorative cover

of instrument;

(b)

Disconnect the plugging elements.

E

F

B0-54

Vehicle Body

 Instrument Panel

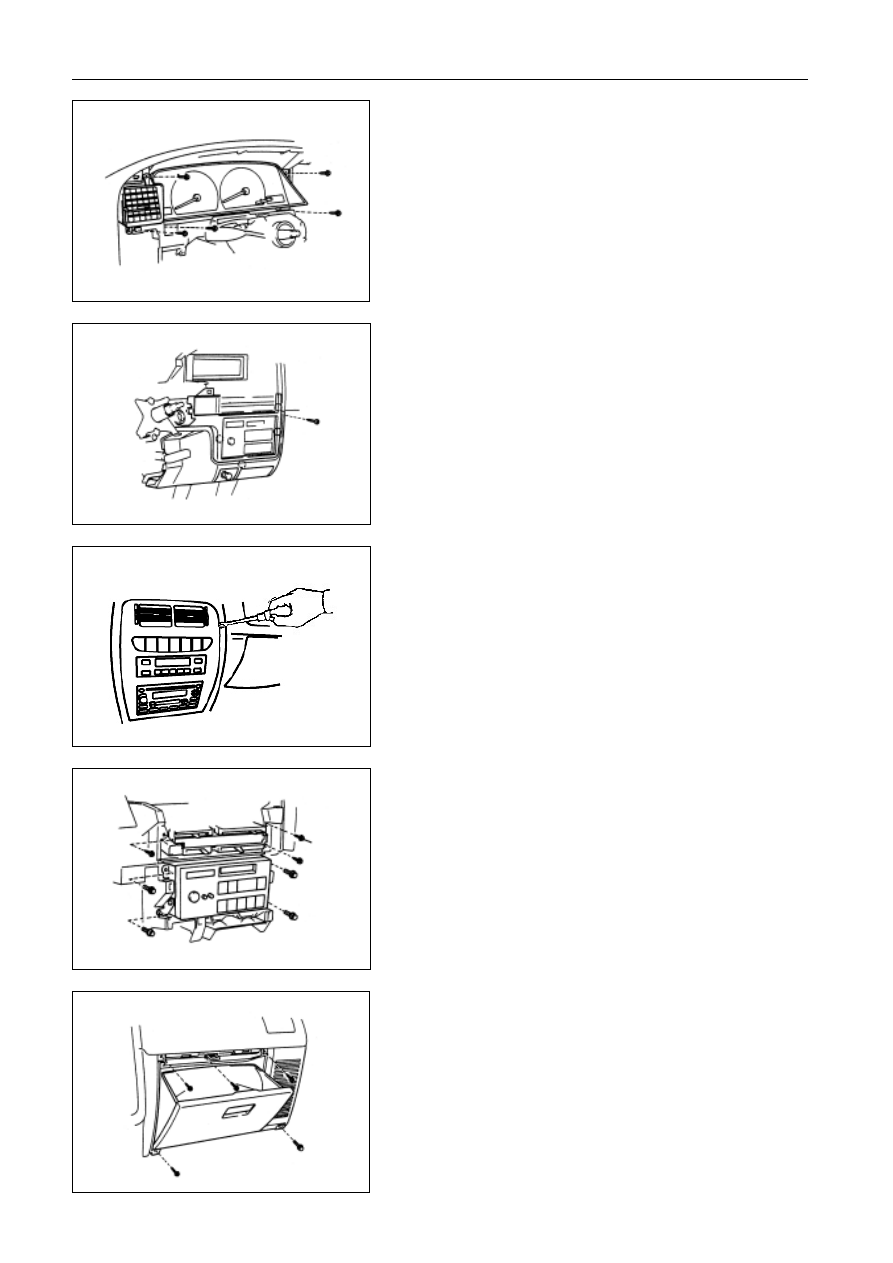

10. Tear down the combination instrument;

(a)

Tear down the four screws;

Tear down the two screws;

(b)

Disconnect the plugging elements;

(c)

Tear down the combination instrument.

11. Tear down the ashtray cluster;

12. Tear down the central cover;

(a)

Tear down the decorative frame;

(b)

Tear down the three screws to pull out the central cover;

(c)

Disconnect the plugging elements.

13. Tear down the central panel;

(a)

Prize out the central panel as shown in the drawing with

screwdriver to take it down.

Notice: the screwdriver must be wrapped with adhesive strap

at its head before using.

(b)

Disconnect the plugging elements.

14. Tear down the air-conditioning controlling mechanism

assembly;

Tear down the two screws, which will let the air-conditioning

controlling mechanism in suspension.

15. Tear down the air-controlling panel;

(a)

Tear down the four screws to pull out the air-condition-

ing panel;

(b)

Disconnect the plugging element;

16. Tear down the CD device or the combined acoustic

device;

(a)

Tear down the four screws.

(b)

Disconnect the aerial cable and the plugging elements.

(c)

Tear down the CD device or the combined acoustic device.

17. Tear down the glove box;

Tear down the two screws and the glove box.

SF

Seize the flanges at two ends of glove box into the sliding

channel of the glove box.

18. Tear down the central air tunnel;

Tear down the four screws and the central air tunnel.

B0-55

Vehicle Body

 Instrument Panel

19. Tear down the instrument panel body;

(a)

Tear down the three screws and the instrument panel.

(b)

Disconnect the plugging elements.

SF:

(a)

Tear down the fixing bolts at the ends of instrument panel

body to pull out the fixed clipes at the front end.

(b)

Disconnect the plugging elements.

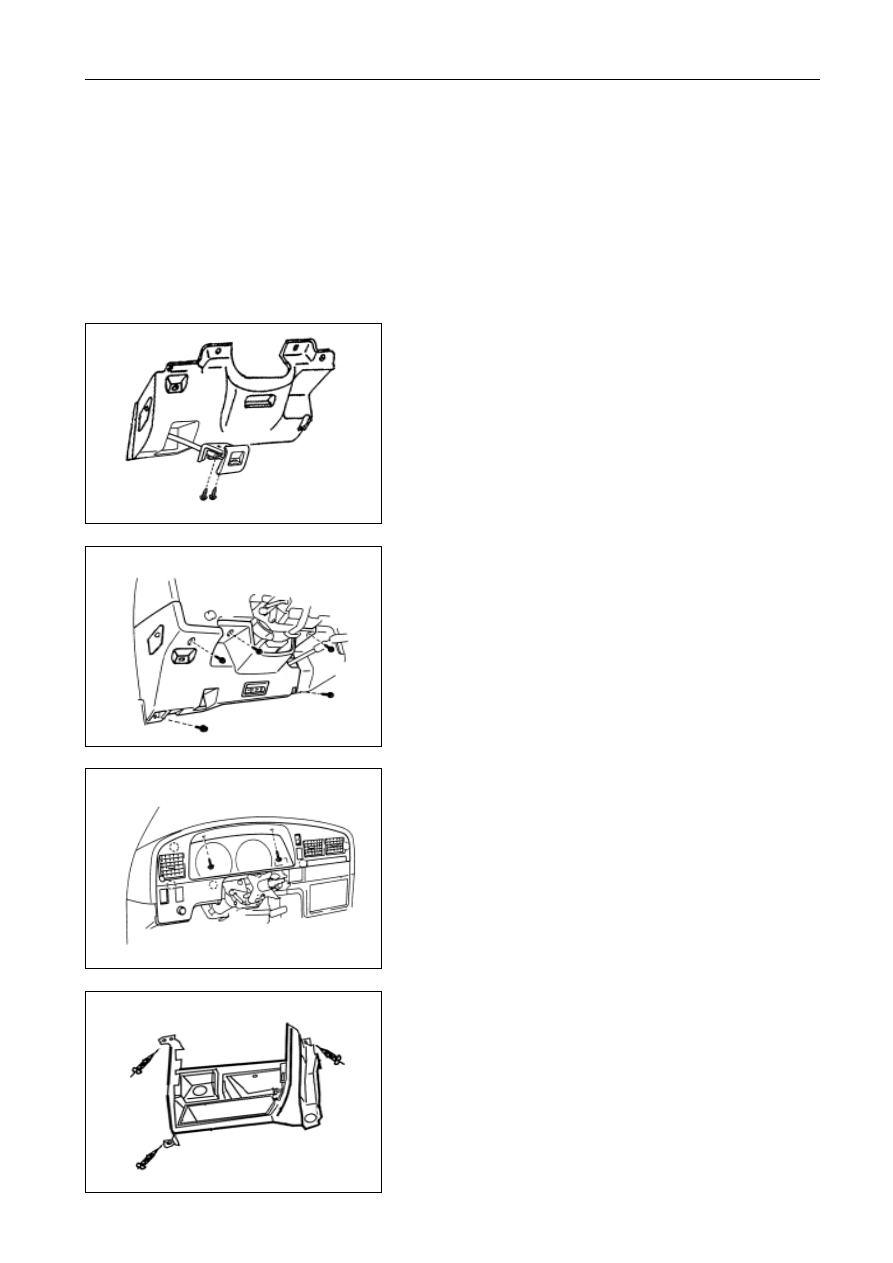

SL SK SJ SY

1.

Disconnect the cable of accumulator from the negative

polar (-):

2.

Tear down the steering wheel;

3.

Tear down the combined switch shell cluster;

4.

Tear down the bonnet lock switch;

Tear down the two screws and the sliding fastener of bonnet

lock.

5.

Tear down the lower instrument cover;

6.

Tear down the lower decorative frame of the instrument

panel;

Prize out the decorative frame of instrument with screwdriver

and take it down.

Notice: the screwdriver must be wrapped with adhesive

strap at its head before using.

7.

Tear down the decorative cover of instrument;

(a) Tear down the three screws to pull out the decorative

cover of instrument.

(b) Disconnect the plugging elements.

8.

Tear down the ashtray cluster;

9.

Tear down the central cover;

(a) Tear down the three screws to pull out the central cover;

(b)

Disconnect the plugging elements
