Great Wall service chassis and body Manual - part 71

BE-13

Body Electric System

 Protective Box Position and Content

Protective box II (continued)

Fuse

Vehicle

Relay

Vehicle

1. Standby

10A

SL SK

A.electromagnetic fan relay

SL SK

2. Standby

10A

SL SK

small lamp relay

(SL diesel)

3. Standby

30A

SL SK

B.electric window relay

SL SK

20A

(SL diesel)

cold start relay

(SL diesel)

4. Rear fog lamp

10A

SL SK

C.frost relay

SL SKLeft

large lamp

10A

(SL diesel)

charging relay)

(SL diesel)

5. Front fog lamp

10A

SL SK

D.blower relay)

SL SK

Right large lamp

10A

(SL diesel)

thermostatic relay

(SL diesel)

6. Small lamp

10A

SL SK

E.small lamp relay

SL SK

Air-conditioner

10A

(SL diesel)

heating relay

(SL diesel)

7. Electric horn

10A

SL SK

F.large lamp relay

SL SK

Warm air

20A

(SL diesel)

G.air-conditioner relay

SL SK

8. Electric window

30A

SL SK

frost relay

(SL diesel)

Unloa

(SL diesel)

H.rain-brusher intermissive relay

SL SK

9. A/C

10A

SL SK

I.diod

SL SK

Charging

10A

(SL diesel)

10.Air blower

30A

SL SK

Electric horn

10A

(SL diesel)

11.Electronic fan

10A

SL SK

Dual flasher

10A

(SL diesel)

12.Right large lamp

10A

SL SK

Unload

(SL diesel)

13.Left large lamp

10A

SL SK

Fog lamp

 10A

(SL diesel)

14.60A fuse

SL SK

15.60A fuse

SL SK

16.30A fuse

SL SK

17.30A fuse

SL SK

Unload

SL diesel

1

2

3

H

4

5

6

7

14

15

G

E

F

C

D

A

B

8

9

10

11

12

13

SL SK

17

16

I

BE-14

Fuse

Vehicle

Relay

Vehicle

1. Standby

10A

SY SJ

A. electromagnetic fan relay

SY SJ

2. Standby

10A

SY SJ

small lamp relay

(SY diesel)

3. Standby

30A

SY SJ

B. electric window relay

SY SJ

4. Rear fog lamp

10A

SY SJ

cold start relay

(SY diesel)

Left large lamp

10A

(SY diesel)

air-conditioner relay

SJ

5. Front fog lamp

10A

SY SJ

C. frost relay

SY SJ

Right large lamp

10A

(SY diesel)

 charging relay

(SY diesel)

6. Small lamp

10A

SY SJ

D. blower relay

SY SJ

Air-conditioner

10A

(SY diesel)

 thermostatic relay

(SY diesel)

7. Electric horn

10A

 SY SJ

E. small lamp relay

SY SJ

Warm air

20A

 (SY diesel)

heating relay

(SY diesel)

8. ECM

10A

SY SJ

rear defrost relay

SJ

Unload

(SY diesel)

F. large lamp

SY SJ

9. Fuel pump

10A

SY SJ

H. rain-brusher intermissive relay

SY SJ

Charging

10A

(SY DIESEL)

I. diode

SY SJ

10. Air blower

30A

SY SJ

Electric horn

10A

(SY diesel)

11. Electronic fan

10A

SY SJ

Dual flasher

10A

(SY diesel)

12. Right large lamp

10A

SY SJ

Rear fog lamp

10A

(SY diesel)

13. Left large lamp

10A

SY SJ

Front fog lamp

10A

(SY diesel)

14. 60A fuse

SY SJ

15. 60A fuse

SY SJ

16. 30A fuse

SY SJ

17. 30A fuse

SY SJ

Unload

(SY diesel)

Protective box II (continued)

Body Electric System

 Protective Box Position and Content

1

2

3

4

17

16

14

15

I

H

G

E

F

C

D

A

B

5

6

7

8

9

10

11

12

13

SY SJ

BE-15

 Body Electric System

 Protective Box Position and Content

Protective box III

Fuse

Vehicle model

1. Compressor

10A

Dr SF

2. Unload

SF

A/C

10A

Dr

3. Warm air

30A

Dr SF

Dr SF

A

1

2

3

BE-16

Power supply system

  Body Electric System

 Power Supply System

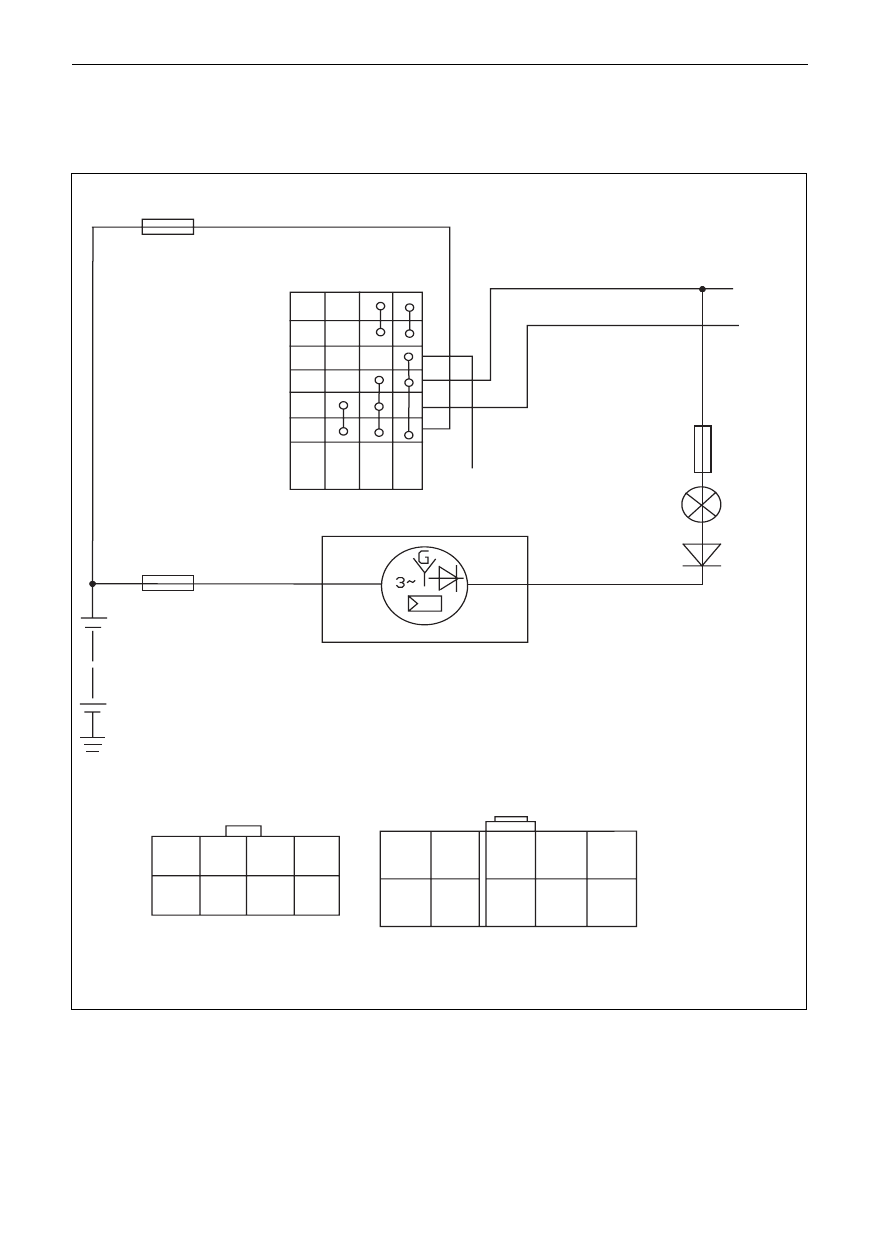

The power supply system includes the accumulator and the generator, the latter is the main power supply while the

accumulator is the auxiliary power supply. The two power supplies are in paralleling connection.

fuse

ignition switch

ACC

ON

ST

4

5







generator

fuse

ignition switch

SL SK SY SJ

Dr SF

4

3

2

8

7

6

5

1

5

4

3

1

10

9

8

7

6

2

vehicle models in parenthesis belongs to Dr and SF

battery

fuse

charging indicating lamp
