Great Wall service chassis and body Manual - part 69





BE-5

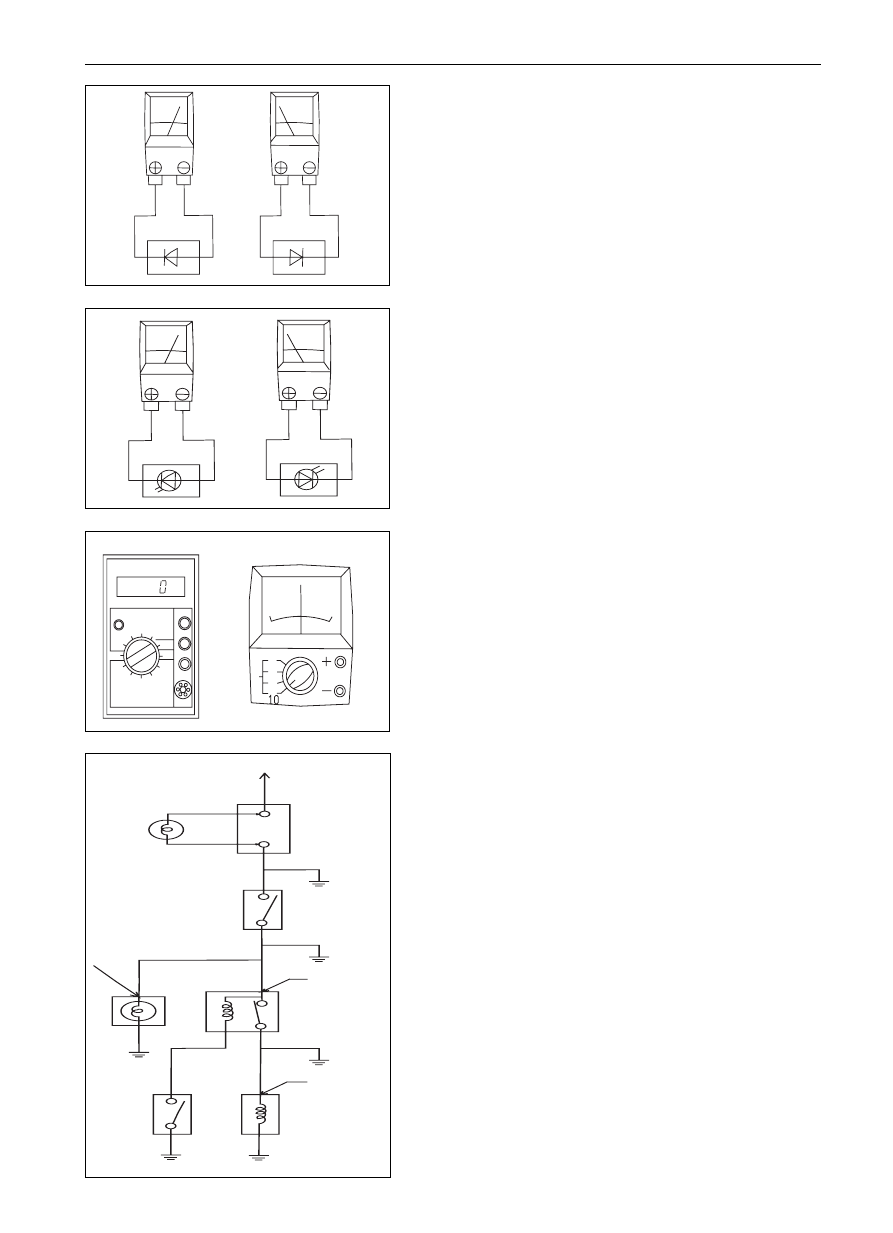

If there is diode in the circuit, connect the two leads in reverse

polar and make another inspection. When the cathode lead (-)

is connected with the positive (+) side of diode, and the

positive (+) lead should be connected with the cathode (-) lead

of diode, the diode should conduct, while the two leads

connected to the reverse polar, the diode should not contact.

Remark: the specification may be not same due to different

testing meter types; therefore, the application instruction for

testing meter should be referred before the inspection.

Check the light emitting diode (LED) according to the same

approach for diode inspection.

Remark:

The testing meter should be used the one with 3V voltage or the

one has larger resistance than that in circuit.

If no suitable testing meter is applied, the voltage of accumu-

lator may be added to check the LED to see whether it is

lighted.

(c)

Use the voltage or ohmn meter with high-impedance

(min voltage of 10 KV) to diagnose the failure in electric

circuit.

Body Electric System

Brief Introduction

0



0



K



K



ohmn meter

diode

0

0

K



K






ohmn

LED

digital type

 analogue type



DC

D
C

V

LG terminal of ignition switch

testing bubble

fuse box

short circuit



SW1

short circuit



disconnection

electromagnetic

coil

short circuit



disconnection

disconnectiong

Check to see whether there is short circuit

(a)

Tear down the burned fuse and remove all loads from

the fuse.

(b)

Connect the testing bubble at the fuse position;

(c)

Verify the situation of testing bubble position:

For example:

Put the ignition switch of SW atON position;
Put the ignition switch of SW and SW1 atON position;
Put the ignition switch of SW, SW1 and Relay at

ON position (which connects with the relay), and put

SW2 at

OFF) position (or disconnect the SW2).

(d)

Disconnect or re-connect the plugging elements when

observing the testing bubble. In case the testing bubble

keeps lighting, which shows there is short circuit between

the plugging elements; if the testing bubble extinguishes,

there is short circuit between the plugging elements.

(e)

Shake the trouble wire alongside the body to locate the

SW2

electromagnetic

coil

BE-6

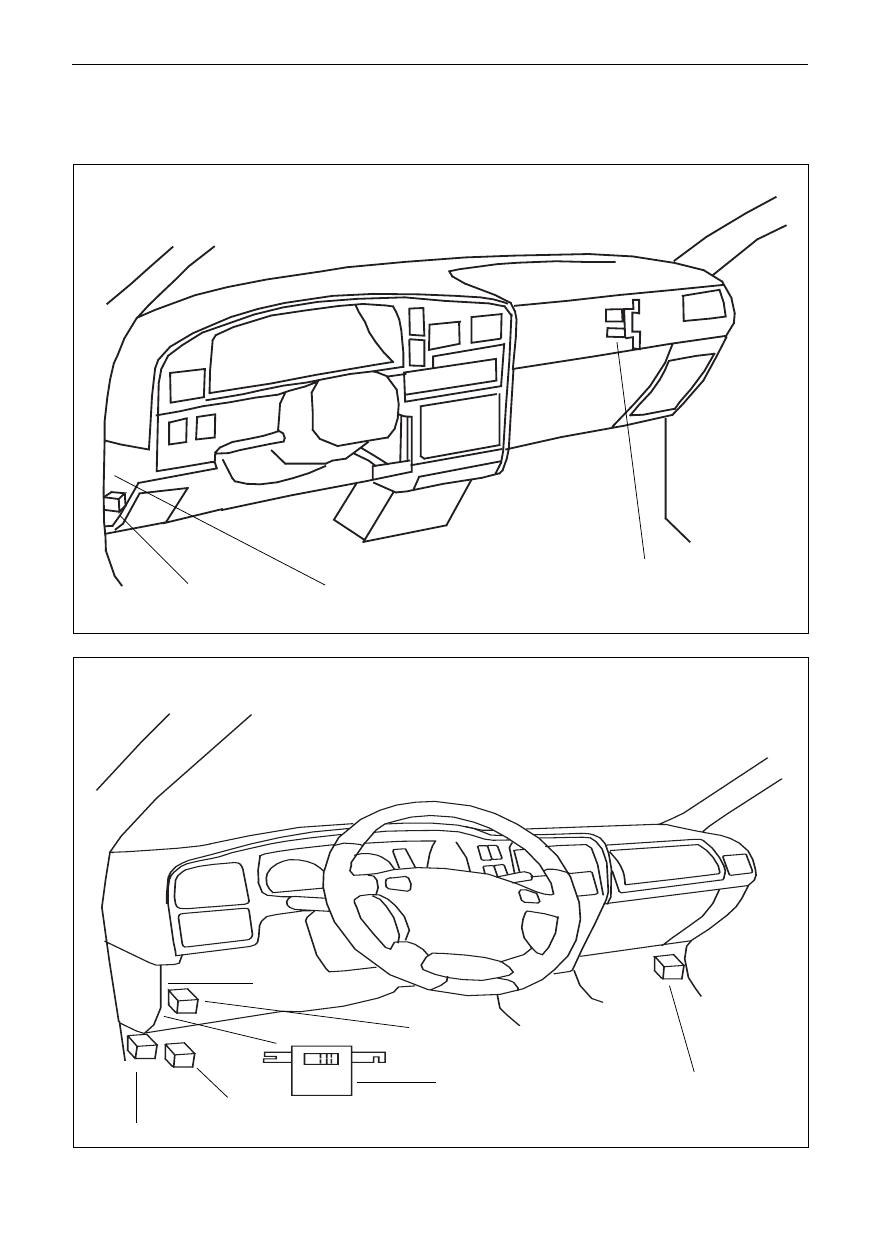

Position and content of protective box

 Parts mounting Position

Body Electric System

Protective Box Position and Content

time-delay relay

protective box I

protective box III

horn relay

SL diesel

SY diesel

pre-heating timer

SL diesel

SY diesel

flasher relay

protective box I

rear defrost relay SY

rear air-conditioning relay SY

SL SK SY SJ

Dr SF

BE-7

Body Electric System

Protective Box Position and Content

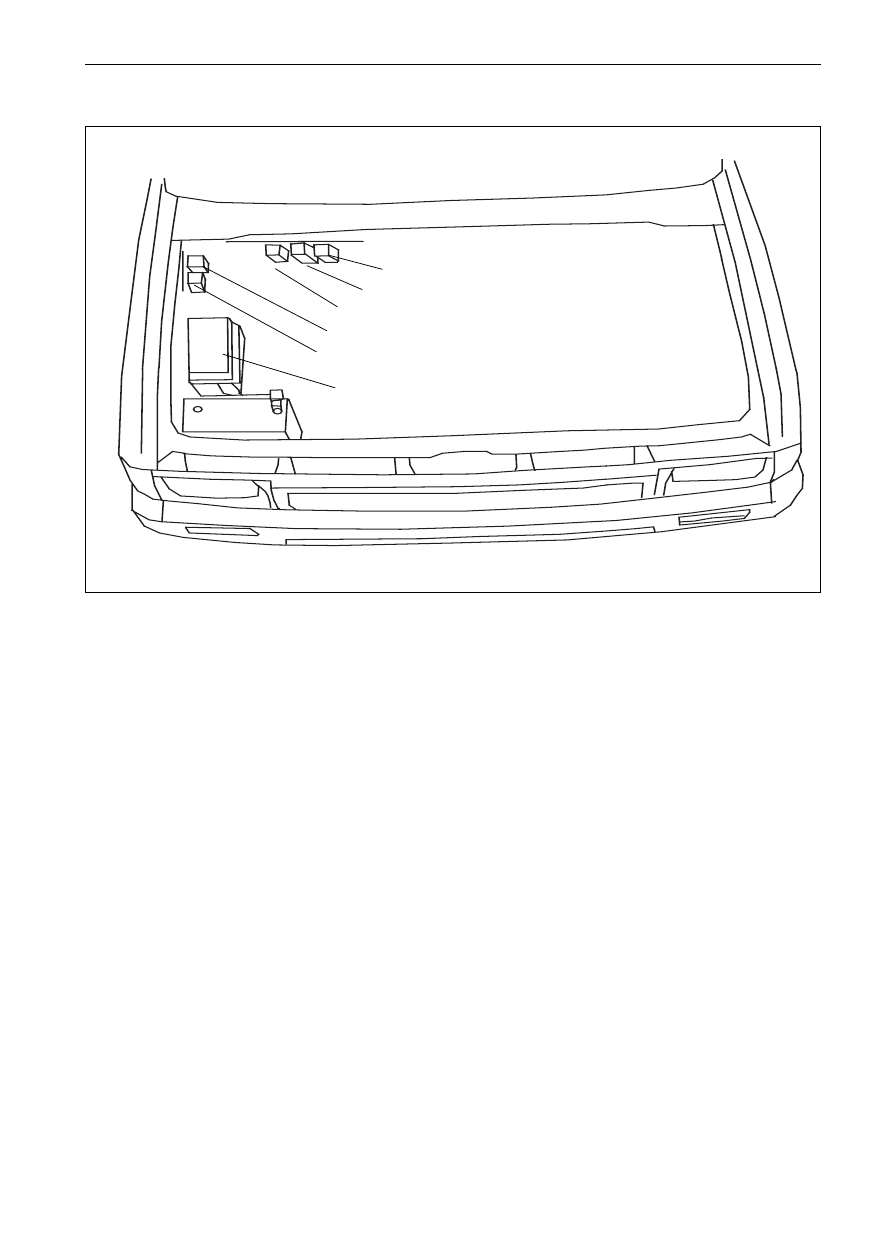

protective box II

preheating relay

diesel

air-conditioner relay

fuel pump relay

ECU relay

Parts Mounting Position (Continued)

BE-8

Body Electric System

Protective Box Position and Content

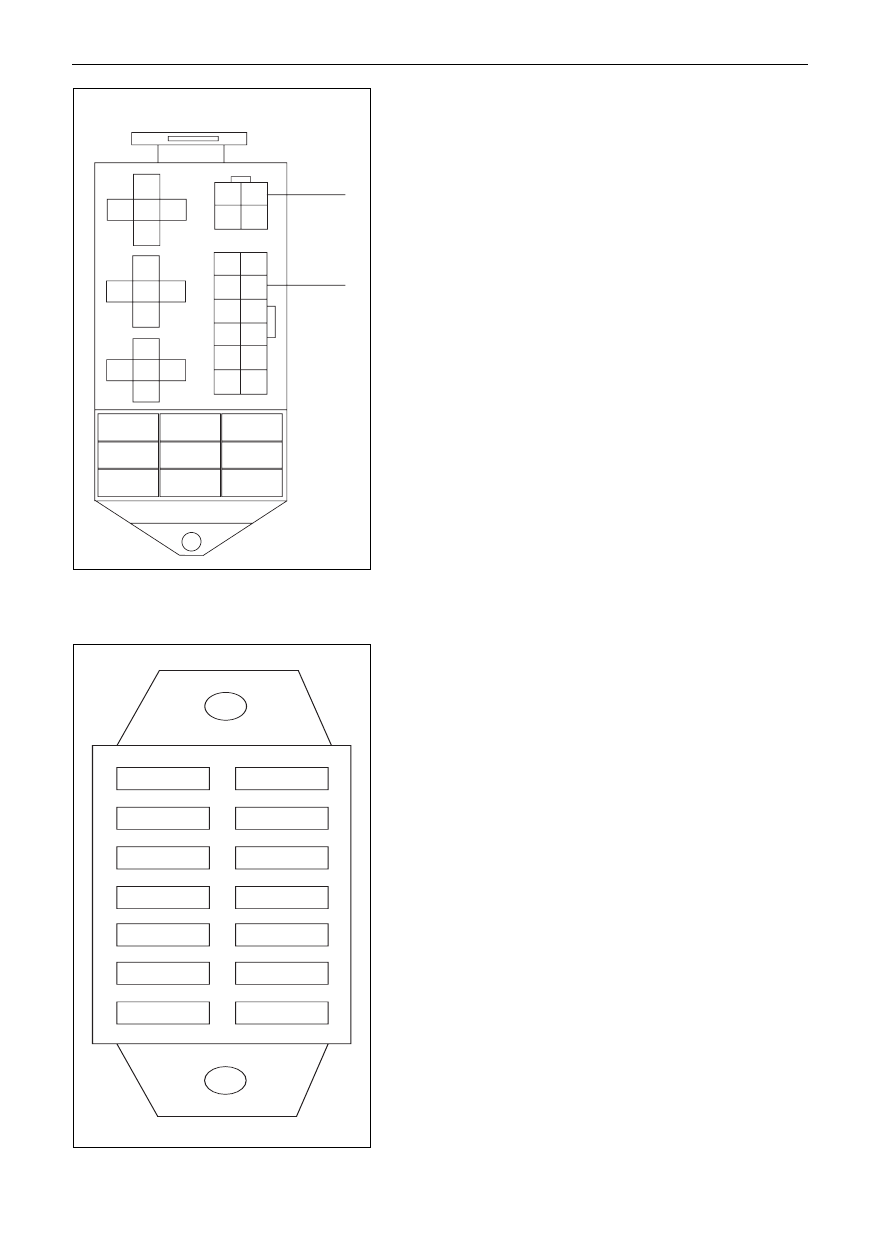

Content of Protective Box

1 protective box I

fuse

1.Small lamp

10A

2.Rain brus

20A

3.Ceiling lamp

10A

4.(Cigarette lighter)

15A

5.Back -u

15A

6.Brake

10A

7.electric window

30A

8.Instrument

10A

fuel delivery/break electromagnetic valve10A(diesel



9.Central control lock

15A

Dr

A

B

C





1

2

3

4

5

6

7

8

9

SL SK

U

N

O

V

P

Q

R

NM

NN

NO

S

T

NP

NQ

FUSE

1. Protection

10A

2. Unload

3. Charging

10A

4. Back-up

10A

5. ECU

10A

6. Unload

7. Rain wiper

10A

8. Stop lamp

10A

9. Ceiling lamp

10A

10. Central control lock 15A

11. Dual flasher

10A

12. EC

10A

13. Fuel pump

10A

14. Cigarette lighter

15A

relay

A electric window relay

B. small lamp relay

C.(flasher)
(plugging elements of ceiling

lamp wire harness)

(plugging elements of wire

harness in engine room)
