Brief Introduction

1. Power supply system

The power supply system includes accumulator, generator and its adjustor. Generator is the main power supply; the

accumulator is the auxiliary power supply. The generator, parallel with the accumulator, is equipped with the

adjustor, which is used to maintain the voltage of generator stable when the rotating velocity and the load varies.

2. Starting System

Which includes the direct current motor, drive mechanism and control device, etc. its performance is to start the

engine.

3. Lighting system

Which includes various lighting lamps inside and outside of the body and their control device; they are used mainly

to guarantee safety driving in night.

4. Alarming System

Which includes the electric horn, flasher and various service signal indicating lamps, etc. they are mainly used to

guarantee the physical and driving safe when driving.

5. Auxiliary Electric Appliance System

It includes the electric wiper, air-conditioner, recorder and cigarette lighter, etc.

R

red

R/G

red

green

socket plugging element

plug plugging element

N

2

3

4

5

6

1

2

3

4

5

S

s o c k e t   p l u g g i n g

element

plug plugging element

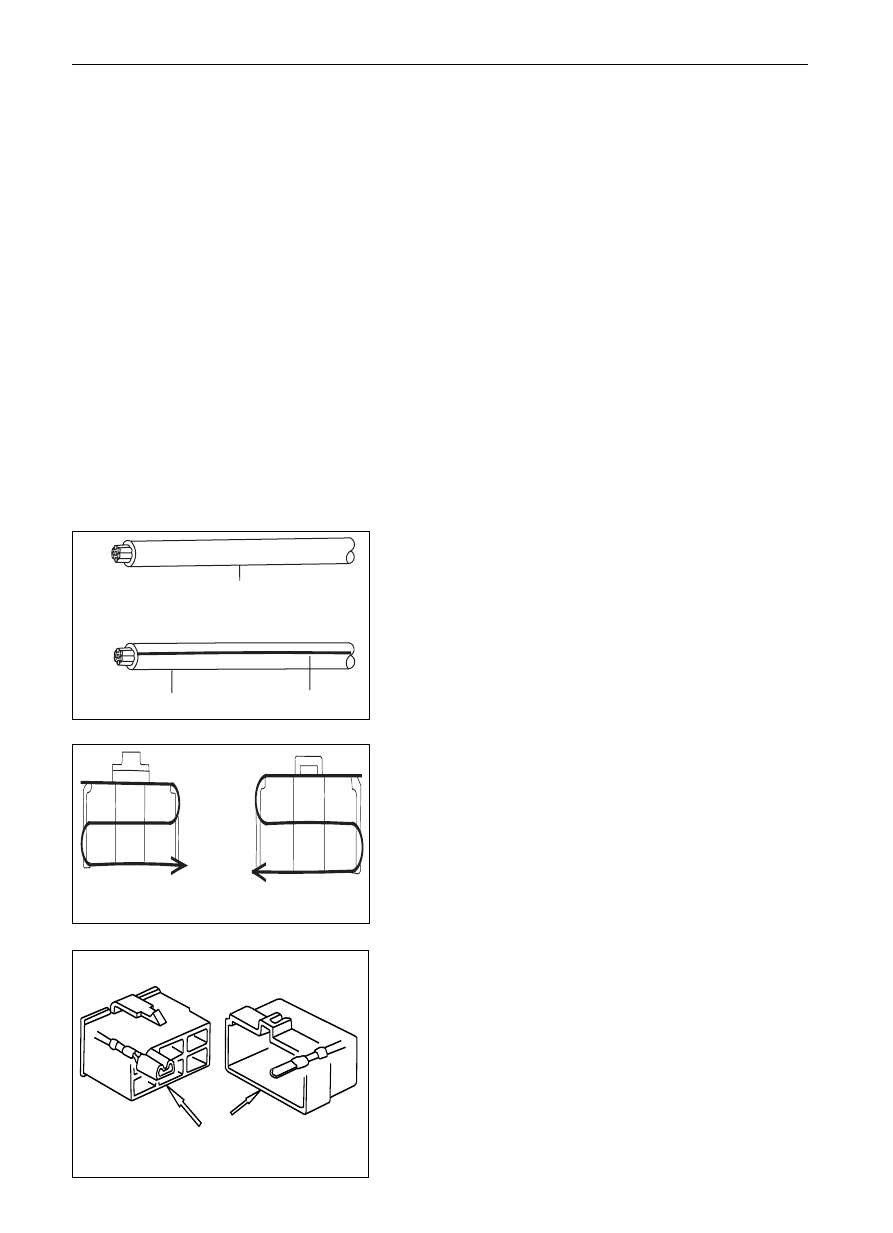

1.

The codes of sockets of socket plugging element are

complied from left to right.

2.

The codes of sockets of socket plugging element are

compiled from right to left.

Remark: all of plugging elements are watched from the in-

wiring direction.

3.

Comparison between plug and socket plugging elements

The plug and socket plugging elements are classified accord-

ing to their in-built socket shape.

(a)

All of plugging element are marked according to the

opening end and are locked at their tops.

(b)

When pulling the plugging element, pull the plugging

element itself instead of wire.

Remark: before pulling the plugging element, check the

plugging element that you want to disconnect first to verify

their classifications.

English letters for wiring colors code:

B =black    Bl =blue   R =red    Br =brown

Lg =reseda V  =purple   G =green    O =orange

W =white    Gr =gray   P =pink  Y =yellow

First letter stands for the basic color, while the second for the

stripe color.

Body Electric System

 Brief Introduction

BE-3

Body Electric System

 Brief Introduction

pull up

pull up

press down

press down

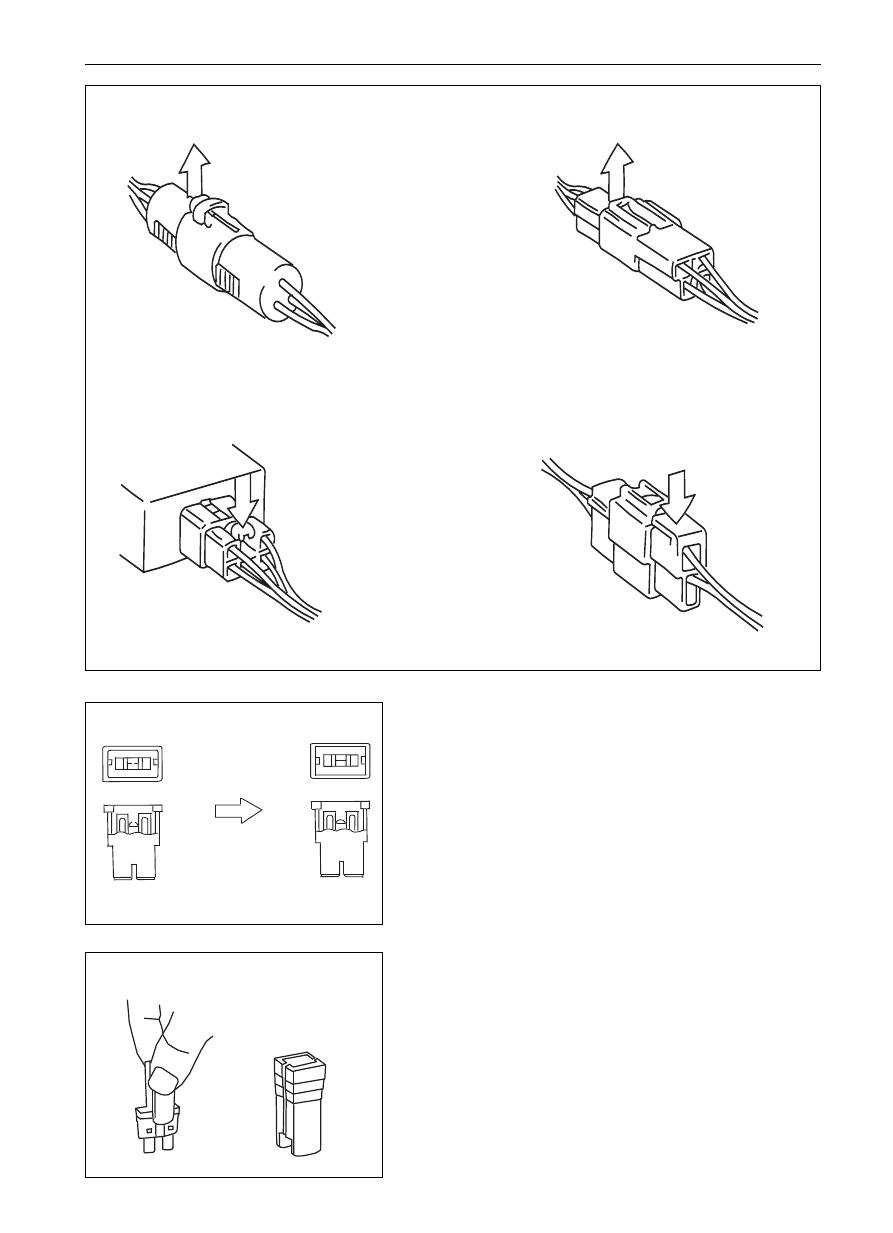

Change of fuse and maxi-fuse

Remark: in case of exchanging the fuse or maxi-fuse, the fuse

or maxi-fuse with same rated current should be used.

Notice:

1.

Before exchanging the fuse or maxi-fuse, all electric

appliances and ignition switches should be turned off

firstly. And the rated current of fuse or maxi-fuse should

not be exceeded.

2.

When disassembling or assembling the fuse, the

disassembly and assembly tools must be used. And they

must be pulled out or plugged in vertically. No bend is

allowed because the bend will make the connecting

terminals depart away, and thus poor connection will

occur. In case the fuse or maxi-fuse is burned, it shows

there is short circuit. In such situation, the systematic

inspection should be conducted by the qualified

technician.

Remark: the disassembly and assembly tools are put on the

protective box cover.

same  rated current

10A

10A

BE-4

How to make systematic inspection

The inspection order is a simple troubleshooting approach, which is used to check and diagnose the failure on vehicle

when there is part (wiring and plugging elements excluded) failure in the systematic operation or presupposed

system.

Following items should be considered firstly when checking the failure.

 wiring failure

 open circuit or short circuit of electric wiring

 failure in plugging element connection or terminal connection

 failure of fuse or maxi-fuse

Notice:

1.

The inspection is conducted on vehicle when the system is in operation, therefore, security should be

taken into account when checking.

2.

Care should be paid not to make short circuit in the system under the condition that the accumulator is

directly connected, and the applicable voltage should be selected correctly.

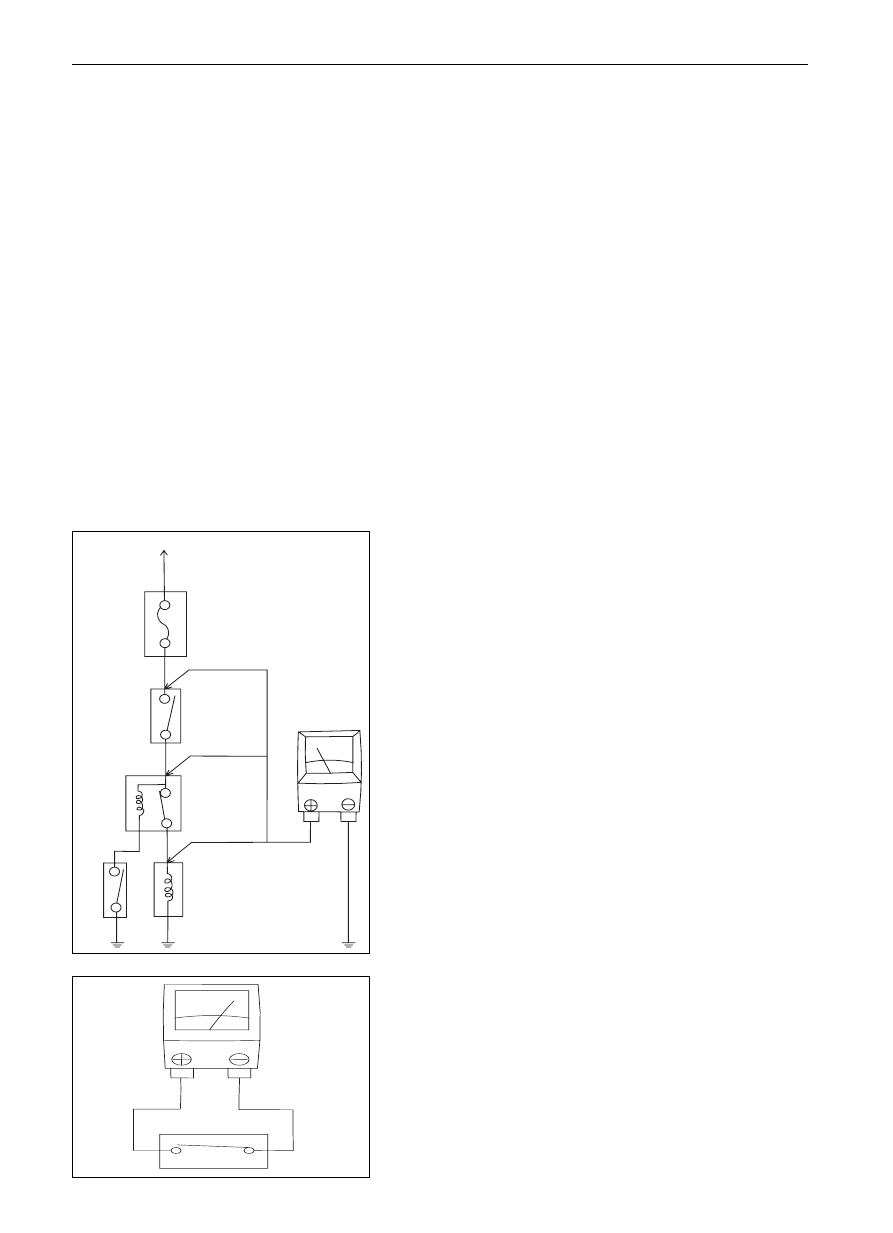

Voltage inspection

(a)

Verify the voltage situation at the inspection spots.

For example:

Put the ignition switch at
ON
 position

 Put the ignition switch and SW1 at
ON
position;

 Put the ignition switch of SW, SW1 and the relay at

ON
 position (SW2 at
OFF
 position)

(b)

Connect the cathode lead (-) to the normal grounding

place or the cathode terminal of accumulator with the

voltmeter; while connecting the positive lead (+) to the

plugging element or part terminal. Such inspection can

be conducted with the test bubble instead of voltmeter.

Inspection on Conductance and Resistance

(a)

Disconnect the terminal or wire of accumulator to guar-

antee there is no voltage between the inspection sports.

(b)

Connect the two measuring leads of ohmn meter with the

inspection spots.

ohmn meter

SW

SW2

electromagnetic coil

relay

SW1

fuse

IG terminal connected to ignigtion

switch of SW

12

0

0

V

Body Electric System
