No.298 Vss line (Vss line is disconnected or short circuit)

DTC21Vss line (the engine runs at 2500 R.P.m or higher for continuous 60 seconds (the rotation speed is
4000 R.P.m or higher when the engine is started) and there is no vehicle high speed signal input)
DTC23Vss line (the engine runs at 2500 R.P.m or higher for continuous 60 seconds (the rotation speed is
4000 R.P.m or higher when the engine is started) and there is no vehicle high speed signal input)
DTC24Vss line (the engine is beyond the standard level for continuous 5 seconds/there is no vehicle speed
input)
DTC14 torque sensor (supply voltage of the torque sensor is too high or too low)

Step Operation

Yes

No




1

Does the speedometer display the speed
signal?

1）"A5" is in poor connection with "V"
harness
2）Replace the control module to recheck if
the connection is all right

Replace with a good
vehicle speed sensor

No.299 DTC41 motor (the motor voltage is too high or too low)

DTC43 motor (the motor current is too high)
DTC42 motor (current displayed on the control module is of great difference from the current actually flowing
into the motor)
DTC44 motor (there is output signal in the control module, yet the motor doesn't start)
DTC45 motor (current actually flowing into the motor is lower than that outputed by the control module)
DTC14 torque sensor (supply voltage of the torque sensor is too high or too low)

Step Operation

Yes No

1

Is there DTC?

Motor failure

Go to step 2





2

1）Dismount the hole cover of the steering column
2）Disconnect the motor and the clutch connector
when the ignition switch is OFF
3）Check the conductivity between terminals of the
motor
4）Is it conductive?

Go to step 3

Motor failure

3

1)  Check the resistance between the motor and
the clutch as well as the body ground
2) Is it infinite?

1）"R" or "B" line is disconnected
2）"R" or "B" line is short to
ground
3 ） The connector is in poor
contact
4）Replace with a perfect control
module to recheck provided the
above phenomena are normal

Motor failure

No.300 DTC51 clutch line (the clutch line is disconnected or short)

Step Operation

Yes

No








402






1

1) Remove the hole cover of the
steering column
2) Disconnect the motor and the
connector when the ignition switch is
OFF
3) Check the conduction between
terminals of the clutch connector
4）Is it conductive?

Go to step 2

Clutch failure






2

1) Check the resistance between the
motor and the clutch connector as well
as between the motor and the ground
2) Is it infinite?

1）"B/B1" or "B/R" line is disconnected
2）"B/B1" or "B/R" to ground is short
3）The motor and the clutch connectors are in poor
contact
4）"A9" and "A10" terminals are in poor contact
5）Replace with a perfect control module to recheck
provided the above phenomena are normal

Clutch failure

No.301 Power circuit of DTC54 control module

(low voltage of the battery)

Step Operation

Yes

No





1

1）Remove the control module and connect the control
module connector when the ignition switch is off.
2）Check the voltage between "A7" terminal of the
control module and the ground when the ignition switch
is ON.
3）Is it 10-14V?

1）"A7" terminal is in poor contact
2) Replace with a perfect control
module to recheck provided the
above phenomena are normal.

Battery failure

No.302 DTC52 and DTC55 control modules (failure of control module)

Replace with a good control module and recheck; Inspection to the control module and its line: the control
module and its line can be inspected by measuring the voltage and the resistance of the module connector;
The multi-meter is strictly prohibited to measure the control module under the condition of disconnecting the
module connector.

No.303 Voltage inspection

1）Remove the control module from the body when the ignition switch is OFF
2）Connect the control module connector to the control module
3）Inspect each terminal voltage of the connector according to the following table
4）Voltage of the battery is confirmed to be 11V or higher when the ignition switch is in ON position

Terminal

Line

Normal voltage

Malfunction symptom

A6

Voltage of the ignition switch control

10-14V

Engine operates at idle speed

A5

Vss

0-1V and    4-6V

The front left tire rotates greatly under the
condition of ignition switch being ON and the
front wheel being locked

B2

Power supply of the torque sensor

About 5V

Inspect the voltage between "B2" and B3 when
the ignition switch is ON

B1 Blank

——

——

A3

"EPS" failure indicating lamp

0-2V, 10-14V

"EPS" lamp lights up or off when the engine
operates at idle speed








403

A9

Clutch plus

10-14

The engine operates at idle speed and the
steering wheel is fixed in straight ahead position
of the vehicle

A4 Engine

signal

——

——

B3 Torque

sensor

(GND)

0V



B4

Torque sensor plus

About 2.5V

The engine operates at idle speed, direct
moving direction, the voltage between "B4" and
"B3" terminals

B5

Torque sensor minus

About 2.5V

The engine operates at idle speed, direct
moving direction, the voltage between "B4" and
"B3" terminals

A10 Clutch

minus

0V

——

A2

Disconnect to the terminal 5V

Ignition

switch

ON

A11

Motor output plus

5-7V

The engine operates at idle speed, the steering
wheel is fixed to direct moving position of the
vehicle

A12

Motor output minus

5-7V

The engine operates at idle speed, the steering
wheel is fixed to direct moving position of the
vehicle

A7

Power supply plus

10-14V

Engine operates at idle speed

A8 Power

supply

minus

0V

——

A1 Blank

——

——



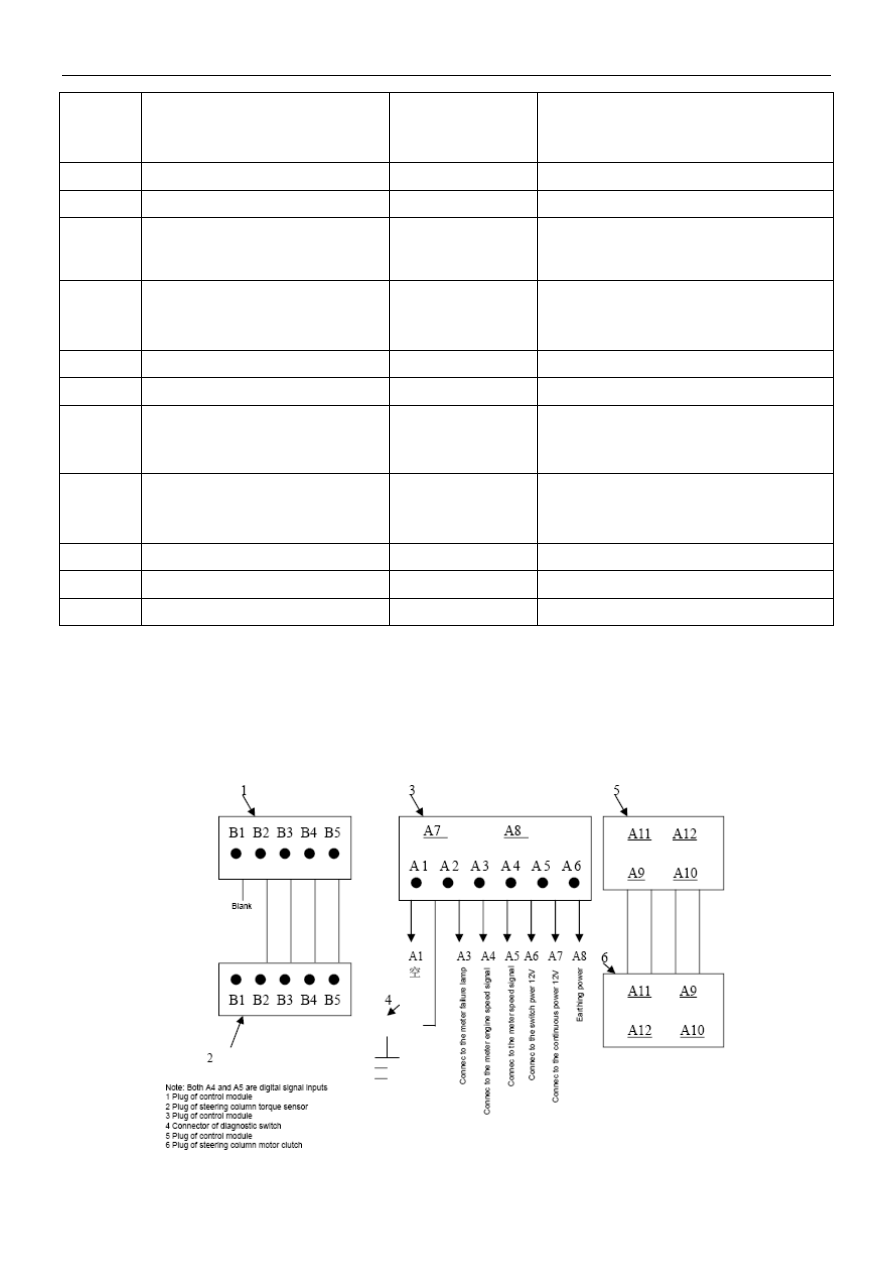

No.304 Introduction of mechanical assembly

1）The steering column assembly can not be disassembled. Provided any part is found to have defect, the
whole assembly shall be replaced.
2）It must be noticed not to cause the impact when the steering column assembly is replaced.

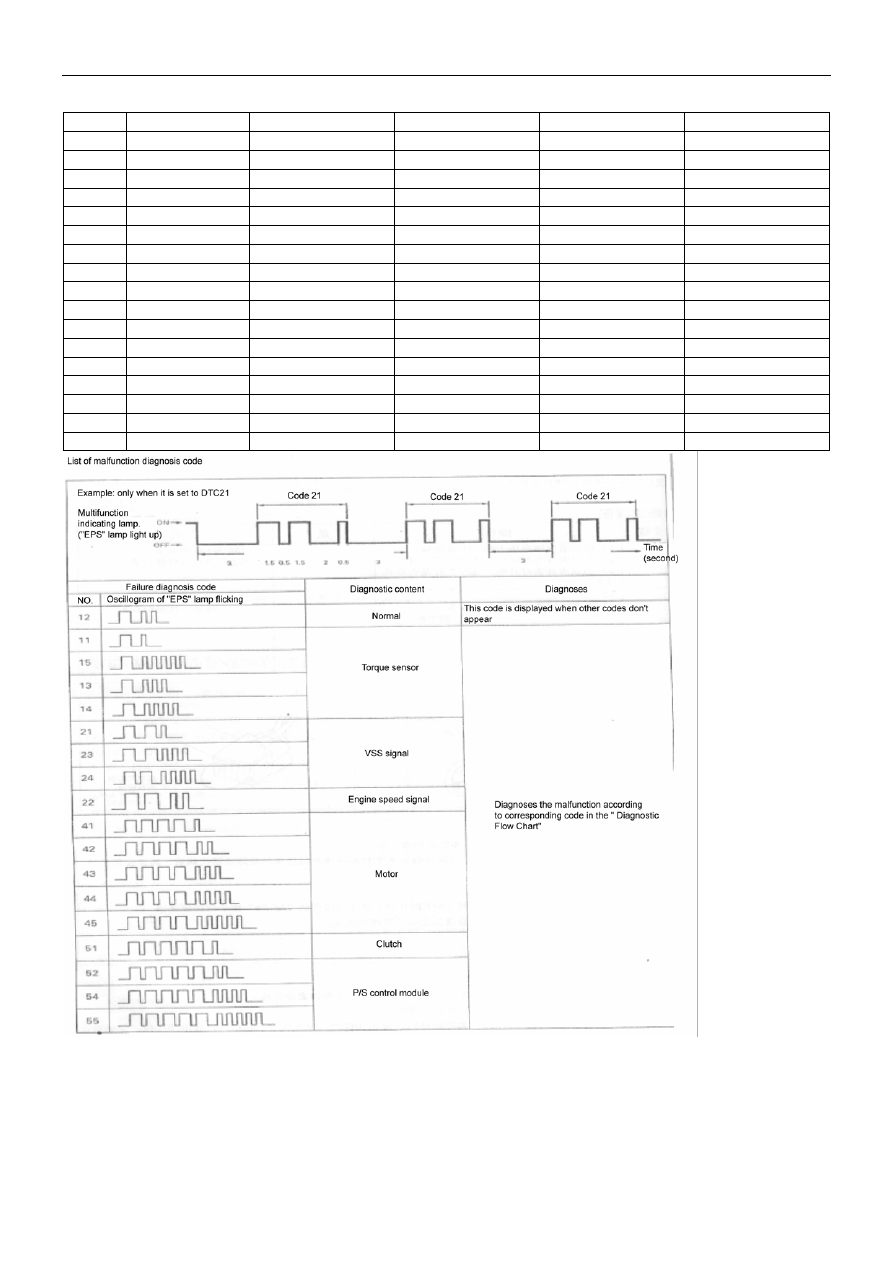

Chart of connector functions










404



SN Line

No.

Name

Load

Color

Dia.

1 B1

Blank

— — —

2 B2

+5V

5~10mA

R

0.5mm2

3 B3

GND

5~10mA

G

0.5mm2

4 B4 Torque signal 1

<5mA B 0.5mm2

5 B5 Torque signal 2

<5mA W 0.5mm2

6 A1

Blank

— — —

7 A2 Diagnosis control

<10mA B1/W 0.5mm2

8 A3 Indicating lamp

5~20mA V/G 0.5mm2

9 A4  Engine speed

<10mA Br 0.5mm2

10 A5  Speed signal

<10mA V 0.5mm2

11 A6

ON switch

<10mA B/W 0.75mm2

12 A7

12V power

<32A B/R

2.5mm2

13 A8  Power ground

<32A B

2.5mm2

14 A9  Clutch plus

<1A B/B1

0.75mm2

15 A10  Clutch minus

<1A B/r

0.75mm2

16 A11

Motor plus

<30A R

2.5mm2

17 A12  Motor minus

<30A B1

2.5mm2
