2. Only scrap airbag module

1. Explosion of safety airbag assembly at the side of driver.

(1) Prepare a battery as detonating power (12±1)V.
(2) Disassemble safety airbag assembly at the side of driver, and connect the airbag short wiring harness

on gas generator.
Warning: when storing safety airbag module at the side of driver, it is necessary to keep upper
surface face upwards.

Supplemental restraint system--Scrap treatment for safety airbag

(7) Safety airbag assembly at the side of driver after explosion should be scraped by the scrap main points.

Note: Firstly, confirm whether there are people on automobile and near the automobile, do

not operate until confirming none there.
After the safety airbag at the side of driver is unfolded, its gas generator temperature is
high, do not make any treatment until putting it for over 30 minutes to wait for it be-
comes cool.
If safety airbag assembly at the side of driver could not be unfolded, it is necessary to
contact with local appointed repairing station.

3. Safety airbag assembly at the side of passenger.

(1) Disassemble the glove box.
(2) Disassemble the connector between airbag short wiring harness and airbag wiring harness.
(3) Connect the conversion wiring harness of safety airbag with one wiring harness with over 10 m used

for unfolding, and the connecting part should be twisted with insulation adhesive tape to insulate and
prevent from wrong unfolding for static.

(4) Connect conversion wiring harness of safety airbag on yellow joint of helix cable, then lead it out of

automobile with unfolding wiring harness (see following figure).

 265

(5) Close all windows and doors, and assemble automobile

cover.

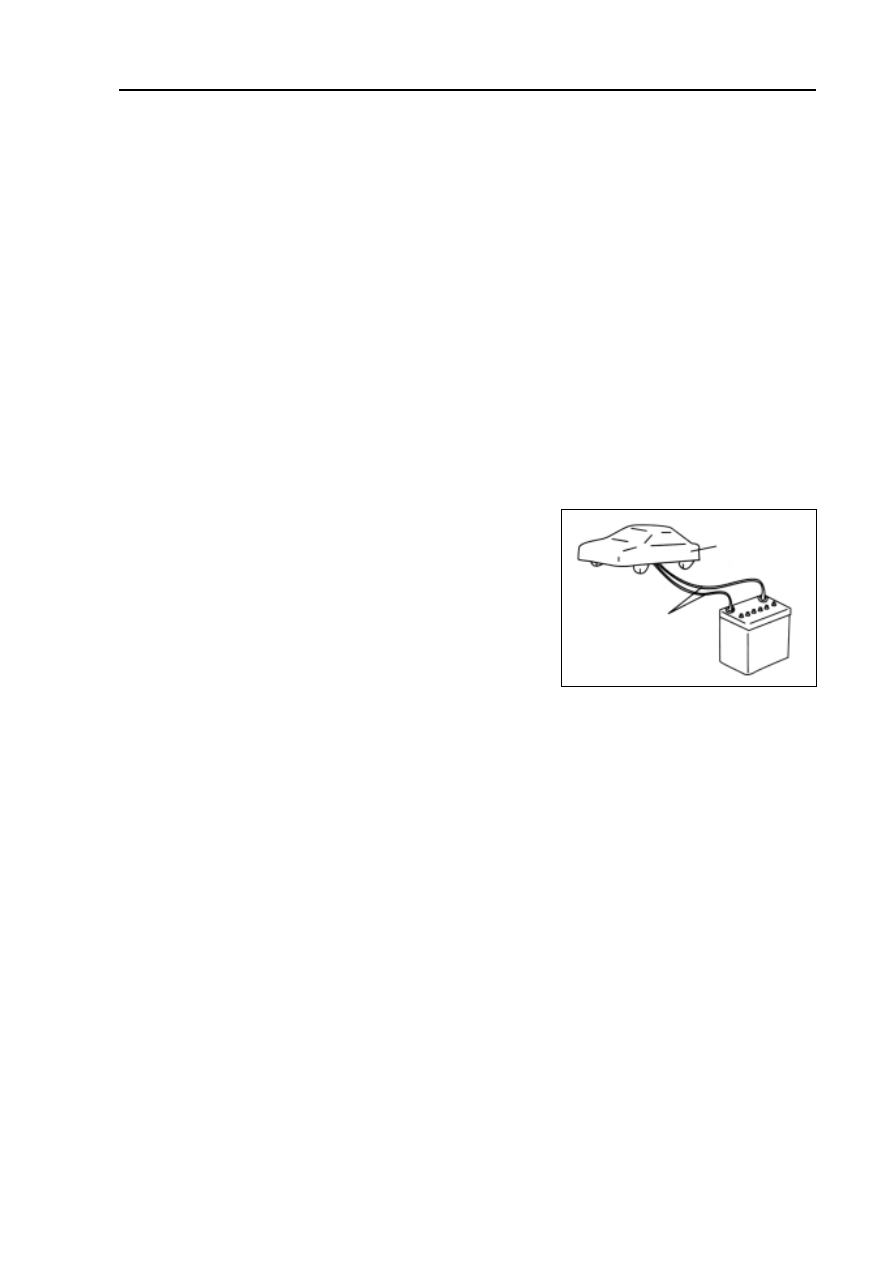

(6) Cut off the joint of wiring harness used for unfolding of safety

airbag assembly at the side of driver at the place apart from
the automobile, then connect it with two ends of battery
taken from automobile to make it unfold (see following figure).

(7) Safety airbag assembly at the side of driver after explosion

should be scraped by the scrap main points.

Note: Firstly, confirm whether there are people on automobile and near the automobile, do not

operate until confirming none there.
After the safety airbag at the side of driver is unfolded, its gas generator temperature is
high, do not make any treatment until putting it for over 30 minutes to wait for it be-
comes cool.
If safety airbag assembly at the side of driver could not be unfolded, it is necessary to
contact with local appointed repairing station.

Cover of automobile body

Wiring harness for explosion

Supplemental restraint system--Scrap treatment for safety airbag

(3) Fix the module on wheel.

a. Assemble two bolts with gasket on two assembling holes

of safety airbag module at the side of driver.
Size of bolt:

L 35.0 mm
M  6.0 mm

Note: tighten the bolts with hand until they could

not be turned in. But they could not be
screwed too tightly.

b. Use maintenance electric wire used for automobile to

fix safety airbag module at the side of driver on wheel.
Section area of nude wire part of wiring harness is more
than 2 mm

2

. If the wiring harness is too thin, it might

break for the shake when airbag explodes. This is very
dangerous.

c. Use three wiring harnesses, and the wiring harness

should twist the bolts at the two sides of airbag assem-
bly twice at least. Tighten the wiring harness twisted on
fixed bolts to avoid them loosen, if wiring harness loosen,
they might incur airbag assemble loosens for shake
when airbag explodes. This is very dangerous.

d. Place the airbag module upwards, and bind the con-

necting bolts at the two sides of airbag module in wheel
hub bolt holes of wheel. Adjust the fixed position of airbag
module to make the joint hang in the wheel hub hole of
wheel. Wiring harness should be tightened. The metal
surface of airbag assembly must face the downside to
prevent wiring harness from breaking for airbag
explosion, explosive force will throw airbag to air to hurt
human or surrounding things. Airbag explosion will leave
track for surrounding things, so used wheel should be
scraped.

(4) Place wheel on flat ground, and connect the one end of

wiring harness used for unfolding with airbag short wiring
harness, and connect the other end with short circuit.

 266

Safety airbag assembly

Wiring harness for explosion

(3) Fix the module on wheel.

a. Assemble three bolts with gasket on two assembling

holes of left, middle and right support pin of safety airbag
module at the side of passenger.
Size of bolt: L 35.0 mm

M  8.0 mm

Note: screw the bolts with hand, but they could not

be screwed too tightly, 2/3 L of bolts should
expose.

2. Explosion of safety airbag assembly at the side of passenger.

(1) Prepare a battery as detonating power (12±1)V.
(2) Disassemble safety airbag assembly at the side of passenger, and connect the airbag short wiring

harness on gas generator.
Warning: when storing safety airbag module at the side of driver, it is necessary to keep upper
surface face upwards.

Supplemental restraint system--Scrap treatment for safety airbag

Old tire

without hud

Wiring harness

for explosion

Wiring harness

for explosion

Left and

right small

bracket

 267

(5) Fix three scraped old tyres without wheel hub on the fixed

tyre of safety airbag assembly at the side of driver. The
terminal end of unfolding wiring harness is 10m apart from
wheel of fixed airbag at least.
Width: 185mm
Inner diameter: 360mm

(6) Cut off the joint of wiring harness used for unfolding of safety

airbag assembly at the side of driver at the place apart from
the automobile, then connect it with two ends of battery.

(7) Treatment for explosive module.

Disassemble the safety airbag module at the side of driver
from wheel, and put it in ethane plastic bag, then bind the
bag for treatment with other parts.

Supplemental restraint system--Scrap treatment for safety airbag

b. Use maintenance electric wire used for automobile to fix

safety airbag module at the side of driver on wheel.
Section area of nude wire part of wiring harness is more
than 2 mm

2

. If the wiring harness is too thin, it might

break for the shake when airbag explodes. This is very
dangerous.

c. Use four wiring harnesses, and the wiring harness should

twist the fixed bolts and small bracket of airbag assem-
bly twice at least. Tighten the wiring harness twisted to
avoid them loosen, if wiring harness loosen, they might
incur airbag assembly loosens for shake when airbag
explodes. This is very dangerous.

d. Place the airbag module upwards, and bind the wiring

harnesses at the two sides of airbag module in wheel
tightly. After twisting the tyre twice with the wiring har-
ness twisted on middle small bracket, bind it on tyre.
After twisting the tyre twice with the wiring harness
twisted on left and right small bracket, bind it on tyre.
Adjust the fixed position of airbag module to make the
joint hang in the wheel hub hole of wheel. Then fix the
wiring harness getting through the center of left and right
small bracket on tyre to prevent the module from shak-
ing left and right, and the wiring harness twisted on bolts
of small bracket is fixed on tyre to prevent airbag mod-
ule from shaking front and back.

(4) Place the wheel on flat ground, and connect one end of

wiring harness used for unfolding with airbag short wiring
harness, and connect the other end with short circuit. The
terminal end of unfolding wiring harness is 10m apart from
wheel of fixed airbag at least.

 268

Safety airbag assembly

Wiring harness for explosion

Tyre

(over five)
