Drive shaft--Front drive shaft

Left and right driving shaft

Capacity of lubricating grease

B type

125-135 grams

C type

190-200 grams

19. Disassemble clasp of inner joint of left front drive

shaft.

Use screw driver to disassemble the clasp.

20. Disassemble dustproof cover of left front drive

shaft.

Use special tool and press to disassemble dustproof cover .

21. Assemble dustproof cover of left front driveshaft.

Liking that shown in figure, use special tool and press to as-

semble left dustproof cover

Note: Dustproof cover should be assembled to its position

completely.

Do not damage dustproof cover lid.

22. Assemble the clasp of inner joint of left front drive

shaft.

Assemble new clasp.

23. Assemble exterior joint dustproof cover (B type and

C type).

(a) Twist ethylene adhesive tape on gear slot of exterior joint to

prevent damage.

(b) Assemble following parts on drive shaft by sequence.

(1) No.2 fixing clamp of exterior joint dustproof cover.

(2) Exterior joint dustproof cover

(3) Fixing clamp of exterior joint dustproof cover.

(c) Fill lubricating grease in exterior joint assembly.

(d) Assemble exterior joint dustproof cover on exterior joint shaft.

24. Assemble No.2 fixing clamp of exterior joint

dustproof cover of left front drive shaft.

(a) AUMIGA fixing type.

Tighten big fixing clamp of exterior joint.

Special tool

Special tool

117

(1) Put big fixing clamp on dustproof cover firmly.

(2) Put special tool on big fixing clamp.

(3) Lock special tool to tighten big fixing clamp.

Note: do not tighten special tool too much.

(4) Use special tool to adjust the clearance of big fixing

clamp.

Clearance:

≤≤≤≤≤ 0.8mm

25. Assemble fixing clamp of exterior joint dustproof

cover of left front drive shaft.

(a) AUMIGA fixing type.

Tighten small fixing clamp of exterior joint.

(1) Put small fixing clamp on dustproof cover firmly.

(2) Put special tool on small fixing clamp.

(6) Lock special tool to tighten small fixing clamp.

Note: do not tighten special tool too much.

(4) Use special tool to adjust the clearance of small fixing

clamp.

Clearance:

≤≤≤≤≤ 0.8mm

26. Assemble dynamic absorber of driveshaft (right

drive shaft).

(a) A type and C type

Liking that shown above, set up the distance of absorber:

Drive shaft--Front  drive shaft

A type and C type

440

± 2mm

118

Special

tool

Special

tool

Special

tool

Drive shaft--Front drive shaft

(b) B type

Liking that shown above, set up the distance of absorber:

27.  Assemble fixing clamp of dynamic absorber of drive

shaft.

(a) Single-contact fixing clamp type:

Assemble new fixing absorber clamp on the absorber of drive

shaft, then fix the fixing clamp with screw driver.

(b) Mesh clasp type:

Assemble new fixing absorber clamp on the absorber of drive

shaft, then fix the fixing clamp with screw driver.

28.  Assemble inner joint of left front drive shaft.

(a) Twist ethylene adhesive tape on gear slot of exterior joint to

prevent damage.

(b) Assemble following parts on drive shaft by sequence.

(1) No.2 fixing clamp of inner joint dustproof cover.

(2) Inner joint dustproof cover

(3) Fixing clamp of inner joint dustproof cover.

(c) Align the mark made before disassembly, and assemble

triangle joint in drive shaft.

(d) Assemble triangle joint assembly with copper stick and

hammer.

Note: do not knock the stator.

Single-contact fixing

clamp type

Mesh clamp type

Align the

mark

119

B type and C typ

470 ± 2mm

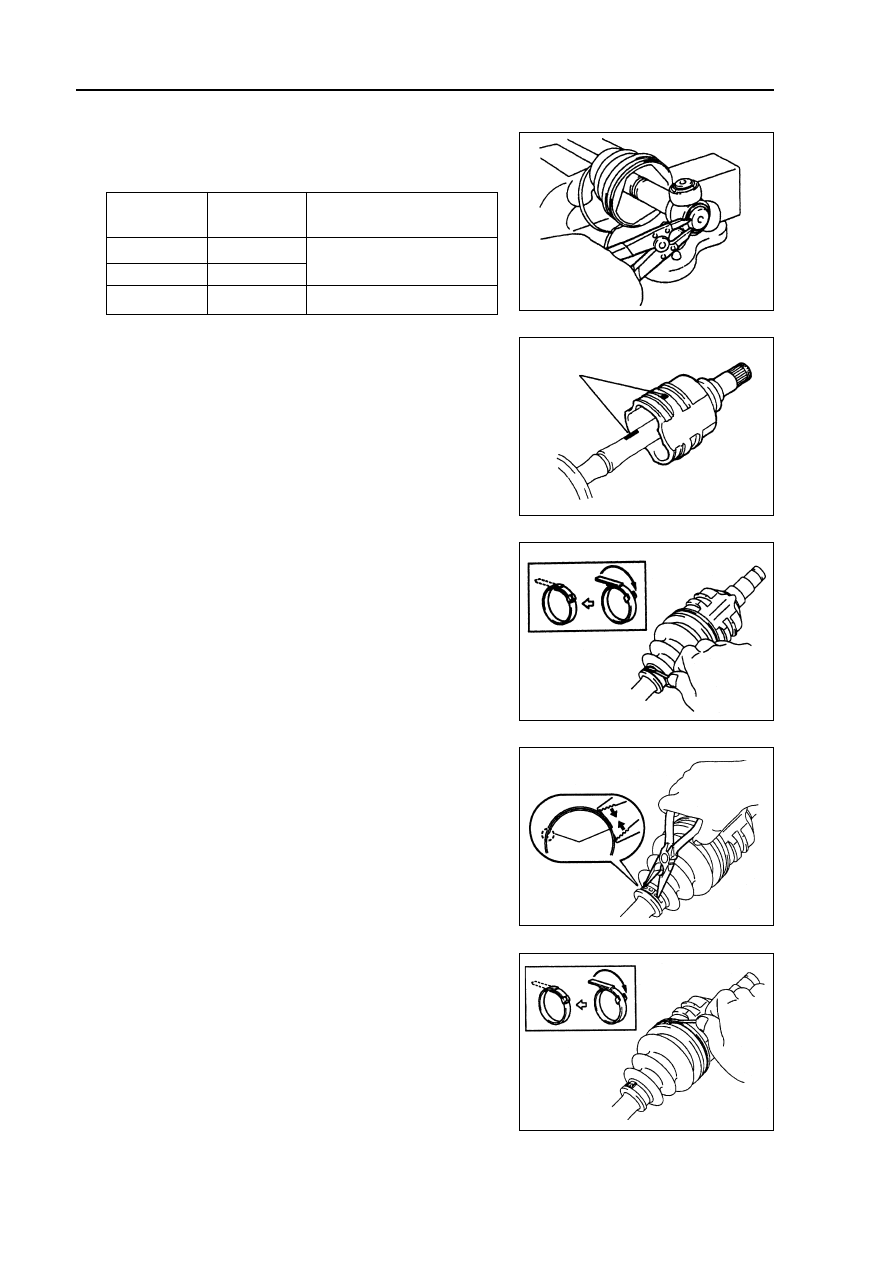

Drive shaft--Front drive shaft

(e) Use clasp spreading pliers to assemble the clasp.

(f) Fill lubricating grease in inner joint assembly.

(g) Align the mark before disassembly, and assemble inner joint

in drive shaft.

29. Assemble dustproof cover  inner joint of left front

drive shaft.

Assemble inner joint dustproof cover to inner joint and drive

shaft.

30. Assemble fixing clamp of dustproof cover inner joint

of left front drive shaft.

(a) Single-contact fixing clamp type:

Liking that shown in figure, use screw driver to assemble

fixing clamp of dust-proof cover inner joint .

(b) Mesh clamp type:

Liking that shown in figure, use pliers to assemble fixing

clamp of inner joint dust-proof cover.

31. Assemble No.2 fixing clamp of dust-proof cover in-

ner joint of left front drive shaft.

(a) Single-contact fixing clamp type:

Liking that shown in figure, use screw driver to assemble

No.2 fixing clamp of dust-proof cover inner joint.

A type

A type

180-190 grams

C type

C type

B type

B type

125-135 grams

Pliers

clamp

120

Left transmis-

sion shaft

Right trans-

mission shaft

Capacity of lubricating grease

Align the mark
