ROADSIDE ASSISTANCE

Vehicles Sold in the United States:
Getting Roadside Assistance

If you have a vehicle concern, Ford Motor
Company offers a complimentary roadside
assistance program. This program is
separate from the New Vehicle Limited
Warranty.

The service is available:
•

24 hours a day, seven days a week.

•

For the coverage period supplied with
your vehicle.

Knowing your vehicle's VIN, mileage and
your specific location allows help to get to
you faster.

Roadside Assistance covers:
•

A flat tire change with a good spare
(except vehicles supplied with a tire
inflation kit).

•

Battery jump start.

•

Lock-out assistance (key replacement
cost is the customer's responsibility).

•

Fuel delivery — independent service
contractors, if not prohibited by state,
local or municipal law, shall deliver up
to 2 gal (8 L) of gasoline or 5 gal (20 L)
of diesel fuel to a disabled vehicle.
Roadside assistance limits fuel delivery
service to two no-charge occurrences
within a 12-month period.

•

Winch out — available within 100 ft
(30 m) of a paved or county
maintained road, no recoveries.

•

Towing — independent service
contractors, if not prohibited by state,
local or municipal law, shall tow Ford
eligible vehicles to an authorized dealer
within 50 mi (80 km) of the
disablement location or to the nearest
authorized dealer. If a member
requests a tow to an authorized dealer
that is more than 50 mi (80 km) from
the disablement location, the member
shall be responsible for any mileage
costs in excess of 50 mi (80 km).
Warranty towing, non-warranty towing
and collision towing are available.

•

Roadside Assistance includes up to
$200 for a towed trailer if the disabled
eligible vehicle requires service at the
nearest authorized dealer. If the towing
vehicle is operational but the trailer is
not, then the trailer does not qualify for
any roadside services.

Vehicles Sold in the United States:
Using Roadside Assistance

United States vehicle customers who
require Roadside Assistance, call
1-800-241-3673.

If you need to arrange roadside assistance
on your own, Ford Motor Company
reimburses a reasonable amount for
towing to the nearest dealership within
50 mi (80 km). To obtain reimbursement
information, United States vehicle
customers call 1-800-241-3673.
Customers need to submit their original
receipts.

Vehicles Sold in Canada: Getting
Roadside Assistance

If you have a vehicle concern, Ford Motor
Company of Canada, Limited offers a
complimentary roadside assistance
program. This program is eligible within
Canada or the continental United States.

The service is available 24 hours a day,
seven days a week.

278

Crash and Breakdown Information

This program is separate from the New
Vehicle Limited Warranty, but the coverage
is concurrent with the powertrain coverage
period of your vehicle. Canadian roadside
coverage and benefits may differ from the
U.S. coverage. For complete details, see
your Warranty Guide at
www.ford.com/support/warranty/.

Download the Sykes4Ford Roadside
Assistance App for access to your roadside
assistance services. For more information,
scan here:

E398728

If you require more information, please call
us in Canada at 1-800-665-2006, or visit
our website at

www.ford.ca

Ford Motor Company reserves the right to
modify or discontinue Roadside Assistance
at any time. Certain restrictions apply to
Roadside Assistance benefits.

For further details, call

1-800-241-3673

(United States)

1-800-665-2006

(Canada)

SWITCHING THE HAZARD
FLASHERS ON AND OFF

E75790

The hazard flasher button is on
the instrument panel. Press the
button to switch the hazard

flashers on if your vehicle is creating a
safety hazard for other road users.

When you switch the hazard flashers on,
all front and rear direction indicators flash.

Note:

The hazard flashers operate when

the ignition is in any position, or if the key is
not in the ignition. The battery loses charge
and could have insufficient power to restart
your vehicle.

Press the button again to switch them off.

JUMP STARTING THE VEHICLE

JUMP STARTING PRECAUTIONS

WARNING:

Batteries normally

produce explosive gases which can
cause personal injury. Therefore, do not
allow flames, sparks or lighted
substances to come near the battery.
When working near the battery, always
shield your face and protect your eyes.
Always provide correct ventilation.

WARNING:

Keep batteries out of

reach of children. Batteries contain
sulfuric acid. Avoid contact with skin,
eyes or clothing. Shield your eyes when
working near the battery to protect
against possible splashing of acid
solution. In case of acid contact with skin
or eyes, flush immediately with water for
a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed,
call a physician immediately.

WARNING:

Use only adequately

sized cables with insulated clamps.

WARNING:

Make sure that the

cables are clear of any moving parts and
fuel delivery system parts.

WARNING:

Connect batteries with

only the same nominal voltage.

279

Crash and Breakdown Information

WARNING:

If the engine is running

while the hood is open, stay clear of
moving engine components. Failure to
follow this warning could result in serious
personal injury or death.

Do not attempt to push-start an automatic
transmission vehicle. This could cause
transmission damage.

Do not disconnect the battery of the
disabled vehicle. This could damage your
vehicle's electrical system.

PREPARING THE VEHICLE

Use only a 12 volt supply to start your
vehicle.

Park the booster vehicle close to the hood
of the disabled vehicle, making sure the
two vehicles do not touch.

JUMP STARTING THE VEHICLE

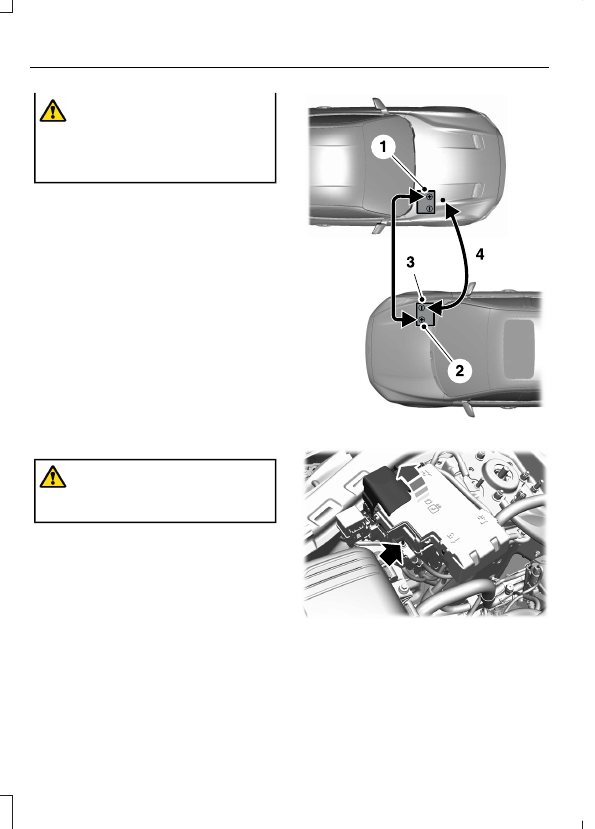

Connecting the Jumper Cables

WARNING:

Do not connect the

negative jumper cable to any other part
of your vehicle. Use the ground point.

Note:

If you are using a jump pack or

booster box, follow the manufacturer's
instructions.

Note:

In the illustration that follows, the

bottom vehicle represents the booster
vehicle.

E281345

E388149

Lift the red cap. Connect the positive
(+) jumper cable to the positive (+)
terminal of the discharged battery.

2. Connect the other end of the positive

(+) jumper cable to the positive (+)
terminal of the booster vehicle battery.

280

Crash and Breakdown Information

3. Connect the negative (-) jumper cable

to the negative (-) terminal of the
booster vehicle battery.

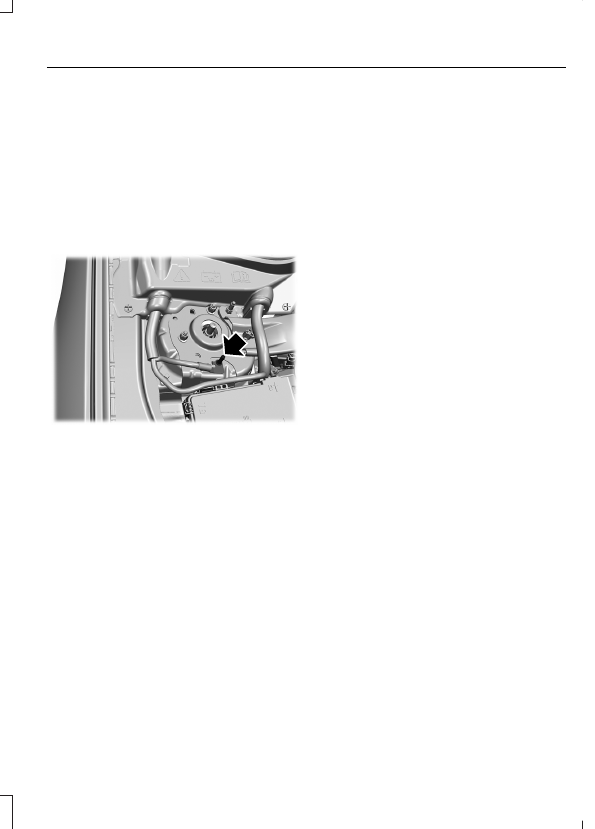

4. Make the final connection of the

negative (-) jumper cable to the jump
start stud, as shown in the following
illustration.

Note:

Do not use the hood latch as a

negative (-) connection point. This could
cause springs in the latch to burn and
prevent the hood from operating correctly.

E386942

Starting the Engine

Start the engine of the booster vehicle
and moderately rev the engine, or
gently press the accelerator to keep
the engine speed between 2000 RPM
and 3000 RPM, as shown in your
tachometer.

2. Start the engine of the disabled vehicle.

3. Once you start the disabled vehicle, run

both vehicle engines for an additional
three minutes before disconnecting the
jumper cables.

Removing the Jumper Cables

Remove the jumper cables in the reverse
order that they were connected.

Note:

Do not switch the headlamps on

when disconnecting the cables. The peak
voltage could blow the bulbs.

POST-CRASH ALERT SYSTEM

WHAT IS THE POST-CRASH
ALERT SYSTEM

The system helps draw attention to your
vehicle in the event of a serious impact.

HOW DOES THE POST-CRASH
ALERT SYSTEM WORK

The system is designed to turn the hazard
flashers on, turn the courtesy lamps on,
intermittently sound the horn and unlock
all doors in the event of a serious impact
that deploys an airbag or the seatbelt
pretensioners.

POST-CRASH ALERT SYSTEM
LIMITATIONS

Depending on applicable laws in the
country your vehicle was built for, the horn
does not sound in the event of a serious
impact.

SWITCHING THE POST-CRASH
ALERT SYSTEM OFF

Press the hazard flasher switch, the unlock
button on the remote control, the panic
button on the remote control or cycle the
ignition to switch the system off.

Note:

The alert turns off when the vehicle

battery runs out of charge.

POST-COLLISION BRAKING

How Does Post-Collision Braking
Work

In the event of a moderate to severe crash,
the braking system reduces the vehicle’s
speed to prevent or reduce the impact of
a potential secondary crash.

281

Crash and Breakdown Information

Post-Collision Braking Limitations

Post-collision braking does not activate if
any of the following occur:

•

The anti-lock braking system is
damaged during the collision.

•

Electronic stability control is disabled.

Overriding Post-Collision Braking

You can override post-collision braking by
pressing the brake or accelerator pedal.

Post-Collision Braking Indicators

E138639

It flashes when a post-collision
braking event is occurring.

AUTOMATIC CRASH SHUTOFF

WHAT IS AUTOMATIC CRASH
SHUTOFF

The automatic crash shutoff is designed
to stop the fuel going to the engine in the
event of a moderate or severe crash.

Note:

Not every impact causes a shutoff.

AUTOMATIC CRASH SHUTOFF
PRECAUTIONS

WARNING:

If your vehicle has been

involved in a crash, have the fuel system
checked. Failure to follow this instruction
could result in fire, personal injury or
death.

RE-ENABLING YOUR VEHICLE

Switch the ignition off.

2. Attempt to start your vehicle.

3. Switch the ignition off.

4. Attempt to start your vehicle.

Note:

If your vehicle does not start after the

third attempt, have your vehicle checked as
soon as possible.

RECOVERY TOWING

ACCESSING THE FRONT TOWING
POINT - VEHICLES WITH:
ECOBOOST™ PERFORMANCE
PACKAGE/GT PERFORMANCE
PACKAGE

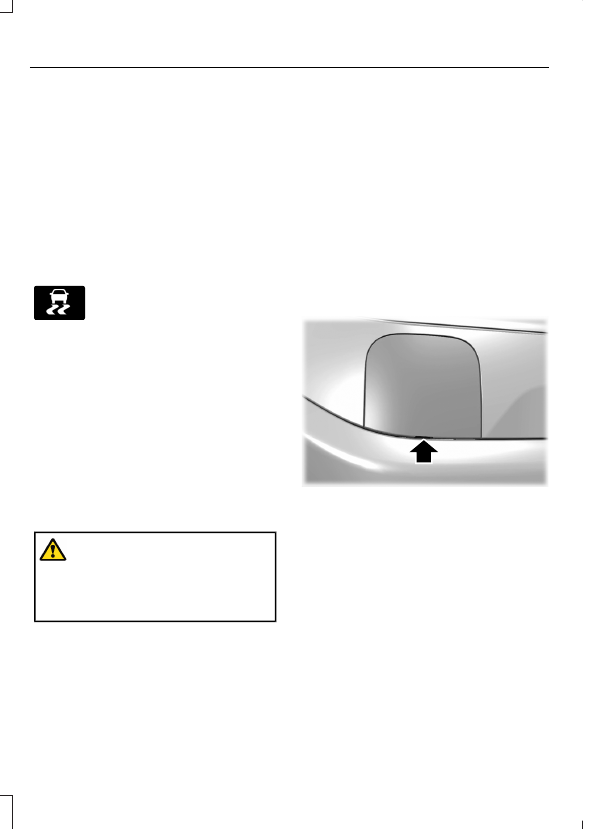

There is an installation point for the
recovery hook behind the fascia.

E381755

Insert a suitable tool into the hole on
the underside of the cover.

2. Carefully pry off the cover.

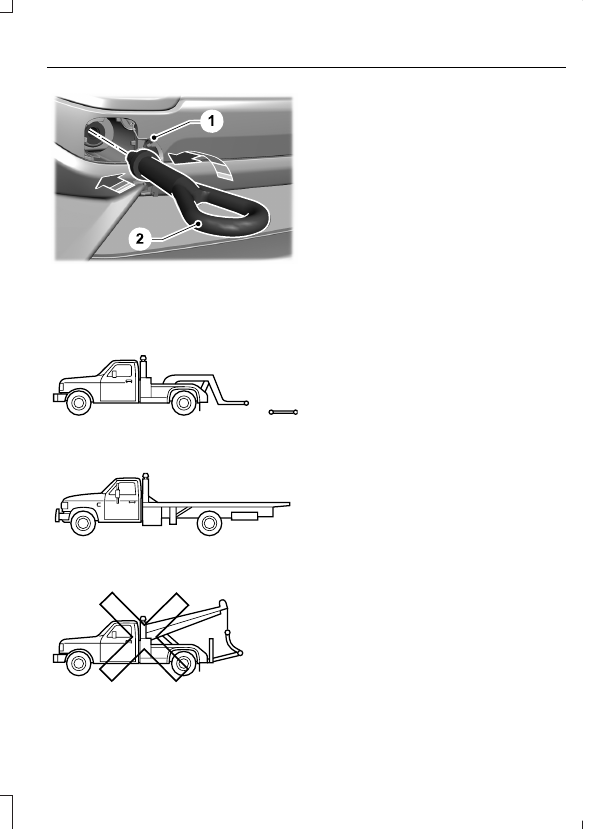

LOCATING THE TOWING EYE

If your vehicle is equipped with a screw-in
recovery hook, it is with the spare tire kit.

INSTALLING THE TOWING EYE

Insert the recovery hook into the
installation point and turn it
counterclockwise. Make sure that you fully
tighten the recovery hook.

282

Crash and Breakdown Information

E376529

Note:

The screw-in recovery hook has a

left-hand thread.

TRANSPORTING THE VEHICLE

E143886

If you need to tow your vehicle, contact a
professional towing service or your
roadside assistance service provider.

Your manufacturer produces a towing
manual for all authorized tow truck
operators. Have your tow truck operator
refer to this manual for proper hook-up
and towing procedures.

We recommend the use of a wheel lift and
dollies or flatbed equipment to tow your
vehicle. Vehicle damage could occur if
towed incorrectly, or by any other means.

Front-wheel and rear-wheel drive vehicles
must have their designated drive wheels
off the ground regardless of towing
direction. Use tow dollies to prevent
damage to the transmission.

All-wheel or four-wheel drive vehicles
require that all wheels be off the ground
using a wheel lift and dollies or flatbed
equipment. This prevents damage to the
transmission and drive system.

Note:

You need to switch on the ignition to

unlock the steering.

Note:

Make sure you check the steering

column before towing. It could lock if the
battery is dead.

FAIL-SAFE COOLING

WHAT IS FAIL-SAFE COOLING

Fail-safe cooling allows you to temporarily
drive your vehicle before any incremental
component damage occurs due to
overheating.

The fail-safe distance depends on outside
temperature, vehicle load and terrain.

283

Crash and Breakdown Information

HOW DOES FAIL-SAFE COOLING
WORK

If the engine reaches a preset
over-temperature condition, the engine
automatically switches to alternating
cylinder operation. Each disabled cylinder
acts as an air pump and cools the engine.

When this occurs, your vehicle still
operates, however:
•

Engine power is limited.

•

The air conditioning system turns off.

Continued operation increases the engine
temperature, causing the engine to
completely shut down. Your steering and
braking effort increases in this situation.

When the engine temperature cools, you
can re-start the engine.

Note:

Have your vehicle checked as soon

as possible to minimize engine damage.

DRIVING WHEN FAIL-SAFE MODE
IS ACTIVATED

WARNING:

Fail-safe mode is for

use during emergencies only. Operate
your vehicle in fail-safe mode only as
long as necessary to bring your vehicle
to rest in a safe location and seek
immediate repairs. When in fail-safe
mode, your vehicle will have limited
power, will not be able to maintain
high-speed operation, and may
completely shut down without warning,
potentially losing engine power, power
steering assist, and power brake assist,
which may increase the possibility of a
crash resulting in serious injury.

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

Continued operation increases the engine
temperature, causing the engine to
completely shut down. Your steering and
braking effort increases in this situation.

When the engine temperature cools, you
can re-start the engine. Have your vehicle
checked as soon as possible to minimize
engine damage.

Your vehicle has limited engine power
when in the fail-safe mode, drive your
vehicle with caution. Your vehicle does not
maintain high-speed operation and the
engine may operate poorly.

Remember that the engine is capable of
automatically shutting down to prevent
engine damage. In this situation:

Pull off the road as soon as safely
possible and switch the engine off.

2. If you are a member of a roadside

assistance program, we recommend
that you contact your roadside
assistance service provider.

3. If this is not possible, wait for a short

period of time for the engine to cool.

4. Check the coolant level. If the coolant

level is at or below the minimum mark,
add prediluted coolant immediately.

5. When the engine temperature cools,

you can re-start the engine. Have your
vehicle checked as soon as possible to
minimize engine damage.

Note:

Driving your vehicle without repair

increases the chance of engine damage.

284

Crash and Breakdown Information

TOWING YOUR VEHICLE
PRECAUTIONS

Use the following guidelines when towing
your vehicle. Failure to follow this
instruction could result in vehicle damage
not covered by the vehicle warranty.

Note:

Make sure you properly secure your

vehicle to the tow vehicle.

Note:

If you are unsure of the vehicle’s

configuration, contact an authorized dealer.

RECREATIONALLY TOWING
YOUR VEHICLE

You cannot recreational tow your vehicle
with all wheels on the ground because
vehicle or transmission damage could
occur. You must recreational tow your
vehicle with all four wheels off the ground,
such as when using a car-hauling trailer.
Otherwise, you cannot recreational tow
your vehicle.

EMERGENCY TOWING

If your vehicle becomes inoperable without
access to wheel dollies or a vehicle
transport trailer, it can be flat-towed with
all wheels on the ground, regardless of the
powertrain and transmission configuration,
under the following conditions:
•

Your vehicle is facing forward for
towing in a forward direction.

•

Place the transmission in neutral (N).
If you cannot move the transmission
into neutral (N), you may need to
override it. See

Automatic

Transmission

(page 175).

•

Maximum speed is 35 mph (56 km/h).

•

Maximum distance is 50 mi (80 km).

286

Towing Your Vehicle

FUSE PRECAUTIONS

WARNING:

Always disconnect the

battery before servicing high current
fuses.

WARNING:

To reduce risk of

electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs.

WARNING:

Always replace a fuse

with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.

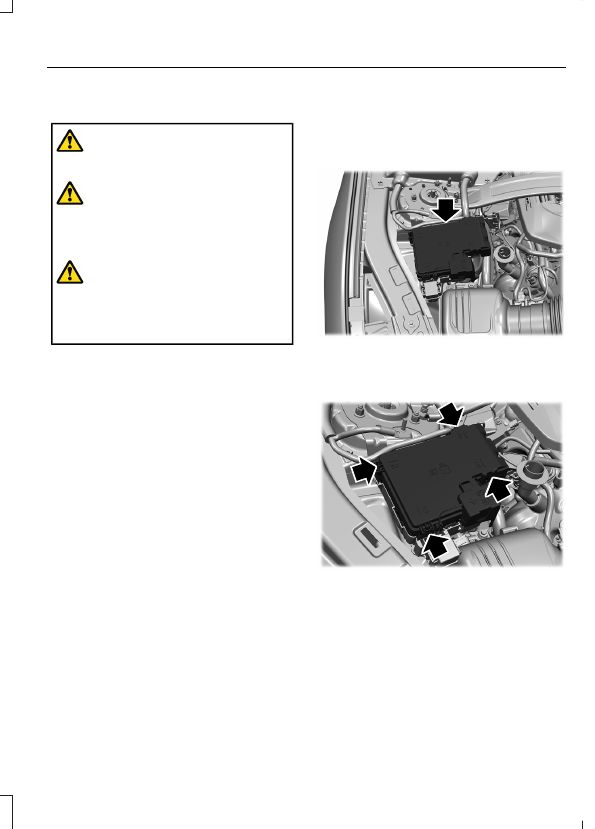

UNDER HOOD FUSE BOX

LOCATING THE UNDER HOOD
FUSE BOX

E371298

ACCESSING THE UNDER HOOD
FUSE BOX

E371299

287

Fuses

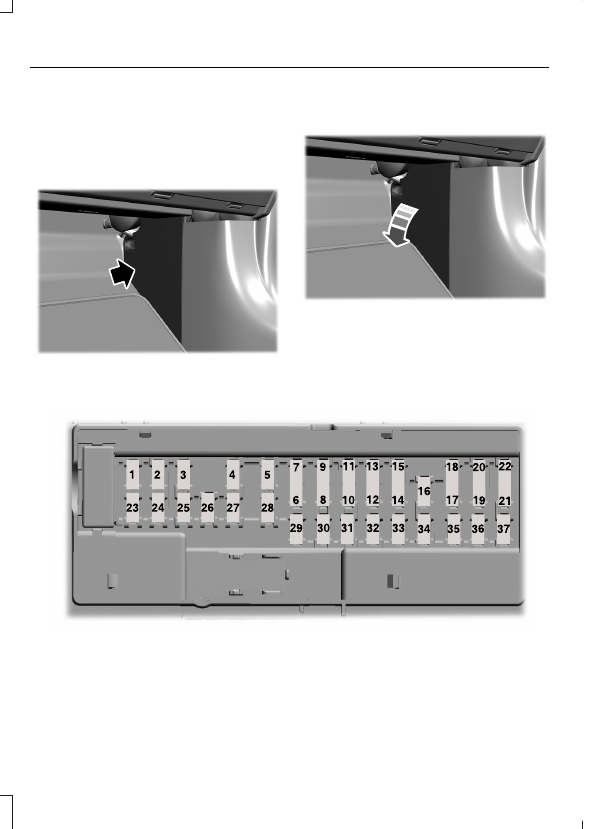

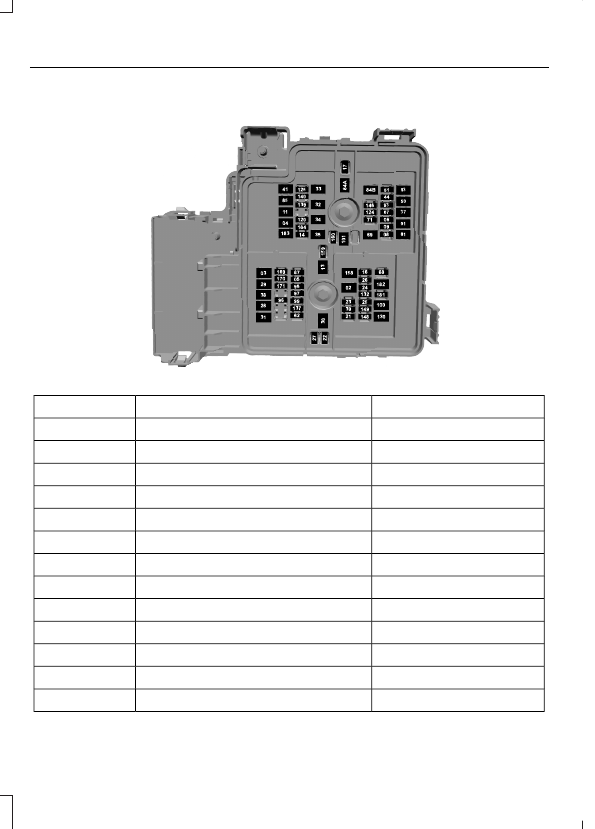

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX

E407167

Protected Component

Rating

Item

Body control module 1.

40 A

Not used (spare).

30 A

Body control module 2.

30 A

Fuel pump.

40 A

Not used (spare).

5 A

Vehicle power 1.

15 A

Vehicle power 2.

30 A

Vehicle power 3.

15 A

Vehicle power 4.

20 A

Starter motor.

30 A

Blower motor.

40 A

Not used (spare).

5 A

Decklid release.

10 A

288

Fuses

Protected Component

Rating

Item

Not used (spare).

5 A

Not used (spare).

10 A

Not used (spare).

5 A

Automatic brake system
module.

10 A

Powertrain control module.

10 A

Electronic power assist
steering.

Not used (spare).

10 A

Not used (spare).

10 A

Not used (spare).

5 A

Automatic brake system
valve.

40 A

Automatic brake system
pump.

60 A

Driver power seat.

40 A

Driver seat module.

Passenger power seat.

30 A

Power point 1.

20 A

Power point 2.

20 A

Not used (spare).

20 A

Not used (spare).

30 A

Convertible top motor - left-
hand side.

20 A

Climate controlled seat.

30 A

Not used (spare).

20 A

Convertible top motor -
right-hand side.

20 A

Not used (spare).

10 A

Heated rear window.

40 A

289

Fuses

Protected Component

Rating

Item

Heated exterior mirror.

10 A

Not used (spare).

30 A

Not used (spare).

10 A

Electronic steering column
lock.

20 A

Wiper motor.

30 A

Not used (spare).

20 A

Not used (spare).

15 A

Not used (spare).

60 A

84A

Not used (spare).

30 A

84B

Not used (spare).

40 A

Not used (spare).

15 A

Not used (spare).

10 A

Not used (spare).

10 A

Not used (spare).

10 A

Not used (spare).

20 A

Not used (spare).

10 A

Left-hand headlamps.

15 A

100

Right-hand headlamps.

15 A

101

Fuel injectors.

15 A

120

Rain sensor.

5 A

124

Not used (spare).

5 A

125

Differential pump.

20 A

130

Not used (spare).

15 A

132

Advanced driver assistance
module.

10 A

137

USB charge port 2.

5 A

139

Not used (spare).

5 A

140

290

Fuses

Protected Component

Rating

Item

Not used (spare).

5 A

146

Left-hand tail lamp.

5 A

148

Right-hand tail lamp.

5 A

149

Transmission fluid pump.

20 A

158

Not used (spare).

5 A

159

On-board diagnostic
connector.

10 A

160

Gateway module.

Not used (spare).

10 A

169

Not used (spare).

10 A

170

Not used (spare).

10 A

171

Headlamp control module.

5 A

181

Body control module.

30 A

182

Not used (spare).

30 A

183

Wireless accessory charging
module.

7.5 A

184

291

Fuses

Protected Component

Rating

Item

Not used.

—

Power windows.

10 A

Not used (spare).

7.5 A

Amplifier.

20 A

Not used.

—

Not used (spare).

10 A

Auxiliary body module.

10 A

Telematics control unit
module.

5 A

Intrusion sensor module.

5 A

Performance electric
parking brake.

Not used.

—

Not used.

—

Climate control module.

7.5 A

Steering column control
module.

7.5 A

Instrument cluster display.

Not used.

15 A

SYNC.

15 A

Not used (spare).

—

Not used (spare).

7.5 A

Not used (spare).

7.5 A

Headlamp switch.

5 A

Push button ignition switch.

5 A

Not used.

5 A

Vehicle dynamics module.

5 A

Driver door module.

30 A

Driver door window.

293

Fuses

Protected Component

Rating

Item

Vehicle dynamics module.

30 A

Amplifier.

20 A

Passenger door module.

30 A

Passenger door window.

Left-hand rear window
power (convertible).

30 A

Right-hand rear window
power (convertible).

30 A

Instrument cluster module.

15 A

Not used (spare).

5 A

SYNC display screen.

10 A

Integrated control panel.
Gateway module.
Remote keyless entry.

Audio unit.

20 A

Not used.

—

Run/start relay.

30 A

Auxiliary body module.

5 A

Not used (spare).

15 A

Auto-dimming interior
mirror.

20 A

Heated steering wheel.

HIGH CURRENT FUSE BOX

LOCATING THE HIGH CURRENT
FUSE BOX

To locate the fuses in the high current fuse
box, contact an authorized dealer.

ACCESSING THE HIGH CURRENT
FUSE BOX

To access the fuses in the high current fuse
box, contact an authorized dealer.

IDENTIFYING THE FUSES IN THE
HIGH CURRENT FUSE BOX

To identify the fuses in the high current
fuse box, contact an authorized dealer.

294

Fuses

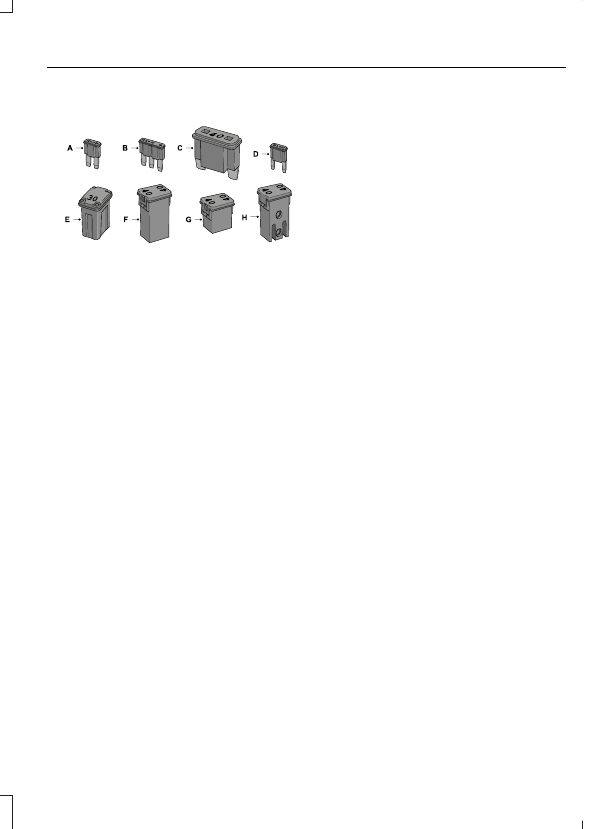

IDENTIFYING FUSE TYPES

E267379

Micro 2.

Micro 3.

Maxi.

Mini.

M Case.

J Case.

J Case Low Profile.

Slotted M Case.

FUSES – TROUBLESHOOTING

FUSES – FREQUENTLY ASKED
QUESTIONS

When do I need to check a fuse?

•

If electrical components in the vehicle
are not working.

When do I need to replace a fuse?

•

If a fuse has blown.

How do I identify a blown fuse?

•

You can identify a blown fuse by a
broken wire within the fuse.

295

Fuses

MAINTENANCE PRECAUTIONS

Service your vehicle regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. See

Capacities and

Specifications

(page 363).

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material, such as cigarettes, away from
the battery and all fuel related parts.

•

Set the parking brake, shift the
transmission to park (P) and block the
wheels.

OPENING AND CLOSING THE
HOOD

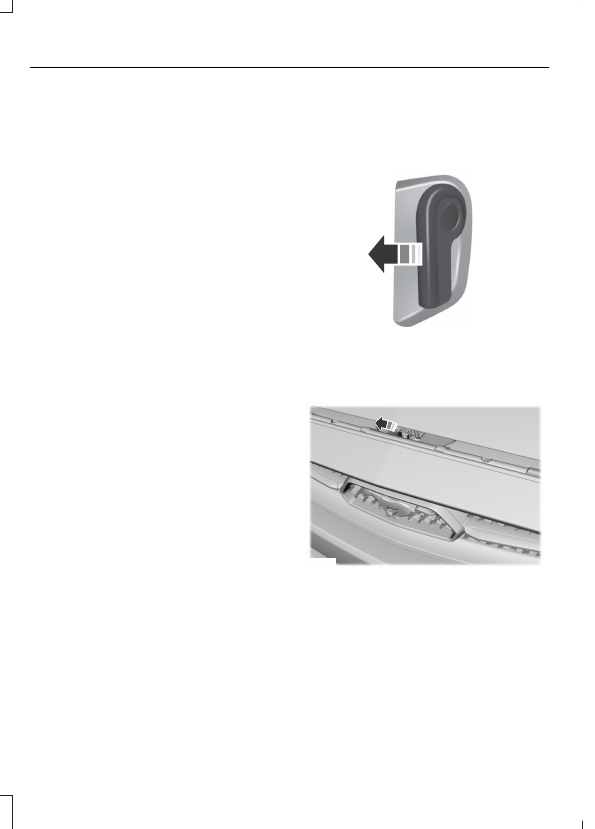

Opening the Hood

E142457

Inside the vehicle, pull the hood release
handle located under the left-hand
side of the instrument panel.

2. Slightly lift the hood.

E174561

3. Release the hood latch by pushing the

secondary release lever to your
left-hand side.

4. Open the hood. The hood struts

automatically support the hood.

Closing the Hood

Lower the hood and make sure it fully
latches.

296

Maintenance

Note:

Make sure that the hood is correctly

closed.

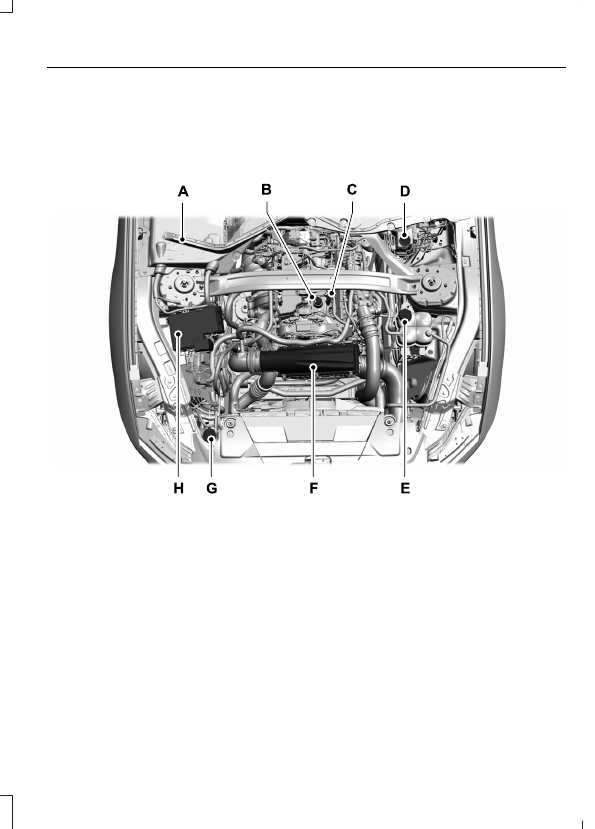

UNDER HOOD OVERVIEW - 2.3L ECOBOOST™

E383612

Battery (out of view). See

Changing the 12V Battery

(page 308).

Engine oil filler cap. See

Checking the Engine Oil Level

(page 299).

Engine oil dipstick. See

Engine Oil Dipstick Overview

(page 299).

Brake fluid reservoir. See

Checking the Brake Fluid

(page 182).

Engine coolant reservoir. See

Checking the Coolant Level

(page 302).

Air filter assembly. See

Changing the Engine Air Filter

(page 301).

Windshield washer fluid reservoir. See

Adding Washer Fluid

(page 94).

Power distribution box. See

Fuses

(page 287).

Note:

Your vehicle may not have an engine

cover as shown.

297

Maintenance

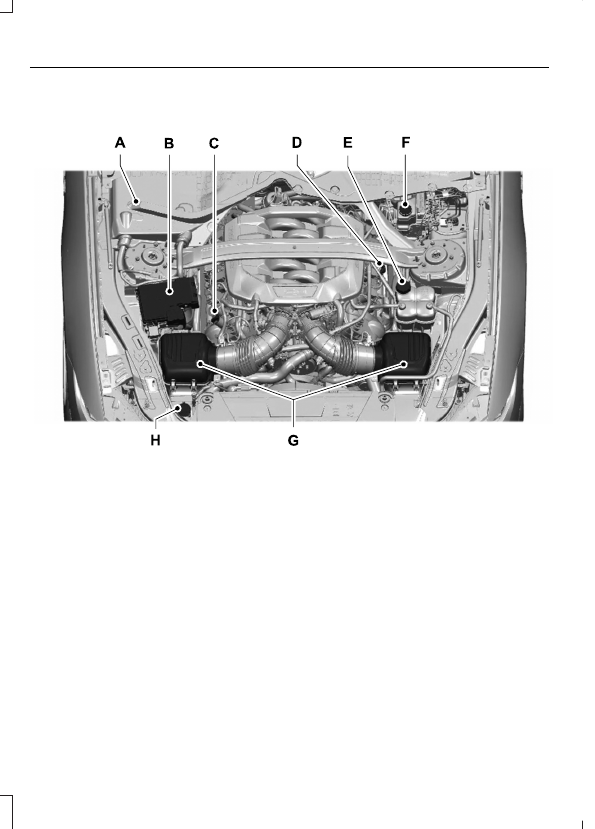

UNDER HOOD OVERVIEW - 5.0L

E395653

Battery (out of view). See

Changing the 12V Battery

(page 308).

Engine compartment fuse box. See

Fuses

(page 287).

Engine oil filler cap. See

Adding Engine Oil

(page 299).

Engine oil dipstick. See

Checking the Engine Oil Level

(page 299).

Engine coolant reservoir. See

Checking the Coolant Level

(page 302).

Brake fluid reservoir. See

Checking the Brake Fluid

(page 182).

Air filter. See

Changing the Engine Air Filter

(page 301).

Washer system fluid reservoir. See

Adding Washer Fluid

(page 94).

298

Maintenance

ENGINE OIL

ENGINE OIL DIPSTICK OVERVIEW

E270482

Minimum.

Nominal.

Maximum.

CHECKING THE ENGINE OIL LEVEL

Make sure that your vehicle is on level
ground.

2. Check the oil level before starting the

engine, or switch the engine off after
warm up and wait 15 minutes for the
oil to drain into the oil pan.

Note:

Checking the oil level too soon could

result in an inaccurate reading.

3. Remove the dipstick and wipe it with

a clean, lint-free cloth.

4. Reinstall the dipstick and make sure it

is fully seated.

5. Remove the dipstick again to check the

oil level.

Note:

If the oil level is between the

maximum and minimum marks, the oil level
is acceptable. Do not add oil.

6. If the oil level is at the minimum mark,

immediately add oil.

Reinstall the dipstick. Make sure it is
fully seated.

Note:

The oil consumption of new engines

reaches its normal level after approximately
3,000 mi (5,000 km).

Note:

Increases in oil level can occur from

frequent short trips that do not allow the
engine to get to operating temperature, as
well as frequent idling or low speed driving
for long periods of time.

Note:

If oil levels are continuously noted

above the maximum mark, have your vehicle
checked as soon as possible.

ADDING ENGINE OIL

WARNING:

Do not remove the filler

cap when the engine is running.

WARNING:

Do not add engine oil

when the engine is hot. Failure to follow
this instruction could result in personal
injury.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that the
vehicle warranty may not cover.

Clean the area surrounding the engine
oil filler cap before you remove it.

2. Remove the engine oil filler cap.

3. Add engine oil that meets our

specifications. See

Capacities and

Specifications

(page 363).

4. Reinstall the engine oil filler cap. Turn

it clockwise until you feel a strong
resistance.

Note:

Do not add oil further than the

maximum mark. Oil levels above the
maximum mark may cause engine damage.

Note:

Immediately soak up any oil spillage

with an absorbent cloth.

299

Maintenance

INTELLIGENT OIL LIFE MONITOR

Under certain conditions the vehicle’s
intelligent oil life monitor may determine
your oil requires replacement prior to your
general service. Should this occur it is
recommended you replace your oil within
two weeks or 500 mi (800 km) of being
alerted.

Your authorized dealer will be able to
advise you whether only an engine oil and
filter change is recommended or whether
you should complete your general service
inclusive of oil and oil Filter.

RESETTING THE INTELLIGENT OIL
LIFE MONITOR

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Select

Oil Life

4. Press and hold the

button until the

system reset confirmation appears.

ENGINE OIL CAPACITY AND
SPECIFICATION

For filling information, please refer to the
Capacities and Specifications section of
your owner's manual. See

Capacities and

Specifications

(page 363).

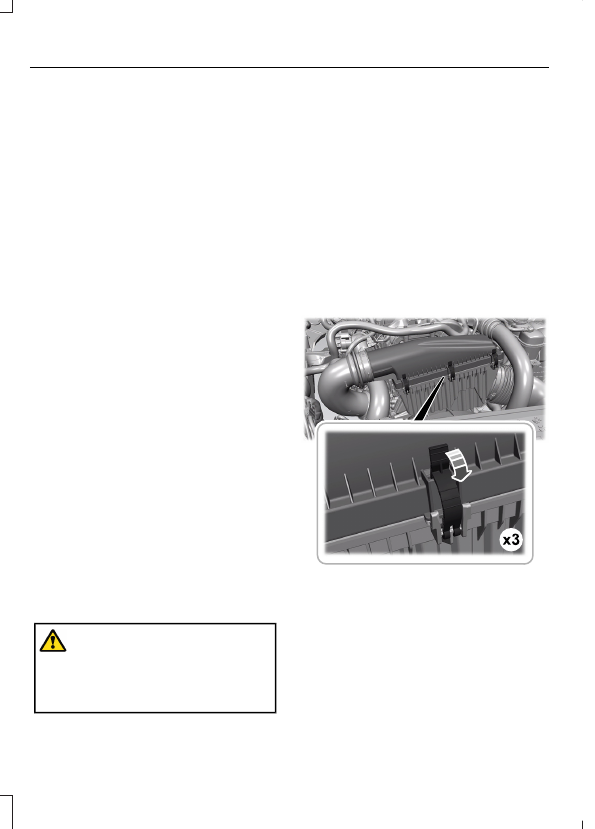

ENGINE AIR FILTER

CHANGING THE ENGINE AIR
FILTER - 2.3L ECOBOOST™

WARNING:

To reduce the risk of

vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.

Change the air filter element at the proper
intervals. See

Scheduled Maintenance

(page 433).

When changing the air filter element, use
only the air filter element listed. See

Capacities and Specifications

(page

363).

Note:

Failure to use the correct air filter

element could result in severe engine
damage that the vehicle Warranty may not
cover.

Note:

When servicing the air cleaner, do

not allow foreign material to enter the air
induction system. The engine is susceptible
to damage from even small particles.

E386184

Release the clips that secure the air
filter cover to the housing.

2. Carefully lift the air filter housing cover.

3. Remove the air filter element from the

air filter housing.

4. To install, reverse the removal

procedure.

300

Maintenance

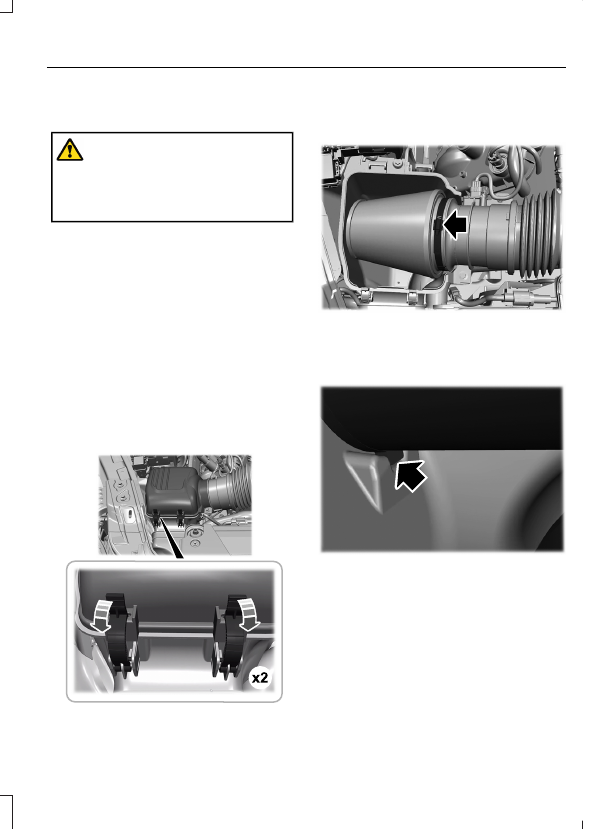

CHANGING THE ENGINE AIR
FILTER - 5.0L

WARNING:

To reduce the risk of

vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.

Change the air filter element at the proper
intervals. See

Scheduled Maintenance

(page 433).

When changing the air filter element, use
only the air filter element listed. See

Capacities and Specifications

(page

363).

Note:

Failure to use the correct air filter

element could result in severe engine
damage that the vehicle Warranty may not
cover.

Note:

When servicing the air cleaner, do

not allow foreign material to enter the air
induction system. The engine is susceptible
to damage from even small particles.

E395654

Release the clips that secure the air
filter cover to the housing.

2. Carefully lift the air filter housing cover.

E387033

3. Loosen the clamp that secures the air

filter to the air duct.

4. Remove the air filter element from the

air filter housing.

E387034

5. To install, reverse the removal

procedure.

Note:

Ensure that the tab on the bottom of

the filter is properly seated to the notch in
the housing.

6. Repeat the procedure with the second

air filter assembly.

301

Maintenance

COOLANT

CHECKING THE COOLANT LEVEL

WARNING:

Do not remove the

WARNING:

To reduce the risk of

personal injury, make sure the engine is
cool before unscrewing the coolant
pressure relief cap. The cooling system
is under pressure. Steam and hot liquid
can come out forcefully when you loosen
the cap slightly.

When the engine is cold, check the
concentration and level of the coolant at
the intervals listed in the scheduled
maintenance information. See

Scheduled

Maintenance

(page 433).

Note:

Make sure that the coolant level is

between the

MIN

and the

MAX

marks on

the coolant reservoir.

Note:

Coolant expands when it is hot. The

level may extend beyond the

MAX

mark.

This is normal.

Maintain coolant concentration within
48% to 50%, which equates to a freeze
point between -29°F (-34°C) and -35°F
(-37°C). Coolant concentration should be
checked using a refractometer. We do not
recommend the use of hydrometers or
coolant test strips for measuring coolant
concentration.

ADDING COOLANT

WARNING:

Do not add coolant

when the vehicle is on or the cooling
system is hot. Failure to follow this
instruction could result in personal injury.

WARNING:

Do not remove the

WARNING:

Do not allow the fluid

to touch your skin or eyes. If this
happens, rinse the affected areas
immediately with plenty of water and
contact your physician.

WARNING:

Do not put coolant in

the windshield washer reservoir. If
sprayed on the windshield, coolant could
make it difficult to see through the
windshield.

WARNING:

Do not add coolant

further than the

MAX

mark.

Note:

Do not use stop leak pellets, cooling

system sealants, or non-specified additives
as they can cause damage to the engine
cooling or heating systems. Resulting
component damage may not be covered by
the vehicle Warranty.

Note:

Automotive fluids are not

interchangeable.

302

Maintenance

It is very important to use prediluted
coolant approved to the correct
specification in order to avoid plugging the
small passageways in the engine cooling
system. See

Capacities and

Specifications

(page 363). Do not mix

different colors or types of coolant in your
vehicle. Mixing of engine coolants or using
an incorrect coolant may harm the engine
or cooling system components and may
not be covered by the vehicle Warranty.

Note:

If prediluted coolant is not available,

use the approved concentrated coolant
diluting it to 50/50 with deionised or
distilled water. See

Capacities and

Specifications

(page 363). Using water that

has not been deionised may contribute to
deposit formation, corrosion and plugging
of the small cooling system passageways.

Note:

Coolants marketed for all makes and

models may not be approved to our
specifications and may cause damage to
the cooling system. Resulting component
damage may not be covered by the vehicle
Warranty.

If the coolant level is at or below the
minimum mark, add prediluted coolant
immediately.

To top up the coolant level do the
following:

Unscrew the cap slowly. Any pressure
escapes as you unscrew the cap.

2. Add prediluted coolant approved to

the correct specification. See

Capacities and Specifications

(page

363).

3. Add enough prediluted coolant to

reach the correct level.

4. Replace the coolant reservoir cap. Turn

the cap clockwise until it contacts the
hard stop.

5. Check the coolant level in the coolant

reservoir the next few times you drive
your vehicle. If necessary, add enough
prediluted engine coolant to bring the
coolant level to the correct level.

If you have to add more than 1.1 qt (1 L) of
engine coolant per month, have your
vehicle checked as soon as possible.
Operating an engine with a low level of
coolant can result in engine overheating
and possible engine damage.

In case of emergency, you can add a large
amount of water without engine coolant
in order to reach a vehicle service location.

Water alone, without engine coolant, can
cause engine damage from corrosion,
overheating or freezing.

Do not use the following as a coolant
substitute:
•

Alcohol.

•

Methanol.

•

Brine.

•

Any coolant mixed with alcohol or
methanol antifreeze.

Alcohol and other liquids can cause engine
damage from overheating or freezing.

Do not add extra inhibitors or additives to
the coolant. These can be harmful and
compromise the corrosion protection of
the coolant.

CHANGING THE COOLANT

For coolant change, see your authorized
dealer.

Changing the coolant is necessary at
specific mileage intervals listed in the
scheduled maintenance information. See

Scheduled Maintenance

(page 433).

303

Maintenance

MANAGING THE COOLANT
TEMPERATURE

If you tow a trailer with your vehicle, the
engine may temporarily reach a higher
temperature during severe operating
conditions, for example ascending a long
or steep grade in high ambient
temperatures.

At this time, you may notice the coolant
temperature gauge moves toward the red
zone and a message may appear in the
information display.

WARNING:

To reduce the risk of

crash and injury, be prepared that the
vehicle speed may reduce and the
vehicle may not be able to accelerate
with full power until the coolant
temperature reduces.

WARNING:

If you continue to drive

your vehicle when the engine is
overheating, the engine could stop
without warning. Failure to follow this
instruction could result in the loss of
control of your vehicle.

You may notice a reduction in vehicle
speed caused by reduced engine power in
order to manage the engine coolant
temperature. Your vehicle may enter this
mode if certain high-temperature and
high-load conditions take place. The
amount of speed reduction depends on
vehicle loading, grade and outside
temperature. If this occurs, there is no
need to stop your vehicle. You can
continue to drive. See

Fail-Safe Cooling

(page 283).

The air conditioning may automatically
turn on and off during severe operating
conditions to protect the engine from
overheating. When the coolant
temperature decreases to the normal
operating temperature, the air conditioning
turns on.

If the coolant temperature gauge moves
fully into the red zone, or if the coolant
temperature warning or service engine
soon messages appear in your information
display, do the following:

Stop your vehicle as soon as it is safe
to do so. Fully apply the parking brake,
shift into park (P) or neutral (N).

2. Leave the engine running until the

coolant temperature gauge needle
returns to the normal position. If the
temperature does not drop after
several minutes, follow the remaining
steps.

3. Switch the engine off and wait for it to

cool. Check the coolant level.

4. If the coolant level is at or below the

minimum mark, add prediluted coolant
immediately.

5. If the coolant level is normal, restart

the engine and continue.

COOLANT – WARNING LAMPS

E103308

If the engine begins to overheat,
the coolant temperature gauge
moves toward the red zone.

E67028

A warning lamp illuminates and
a message may appear in the
information display.

304

Maintenance

COOLANT – INFORMATION MESSAGES

Description and Action

Message

Displays when the engine temperature is

too high. Stop your vehicle as soon as it is

safe to do so, switch the engine off and

allow it to cool. If the problem persists, have

your vehicle checked as soon as possible.

See

Checking the Coolant Level

(page

302).

High engine temperature Stop safely

CHANGING THE FUEL FILTER

Your vehicle has a lifetime fuel filter that
integrates with the fuel tank. It does not
need regular maintenance or replacement.

305

Maintenance

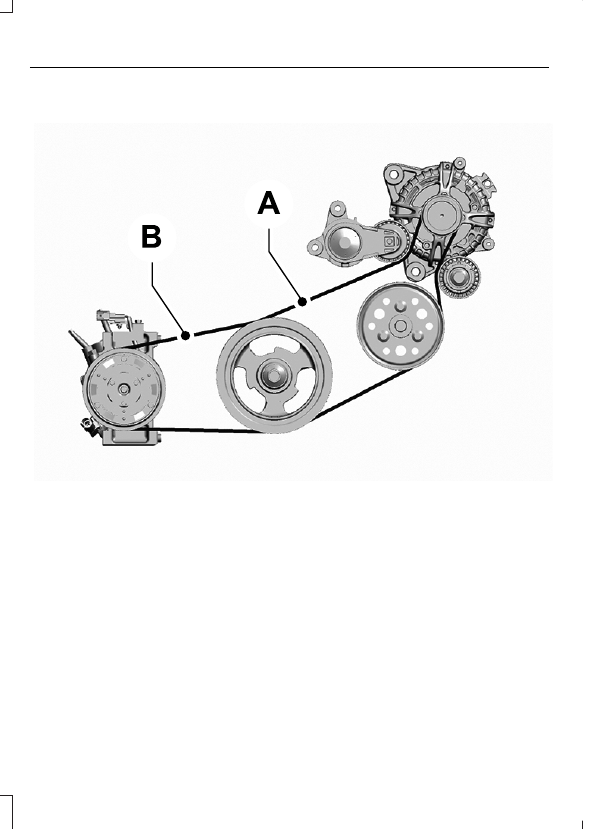

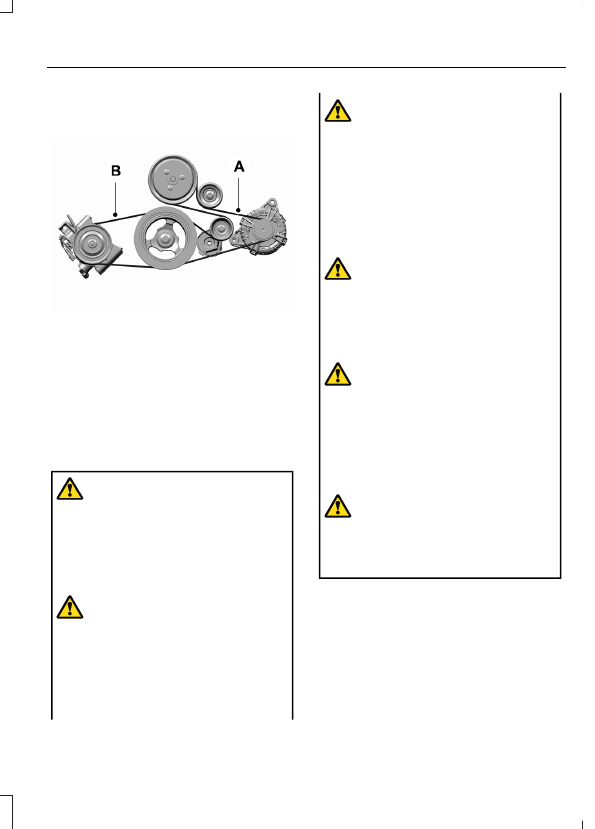

DRIVE BELT ROUTING
OVERVIEW - 5.0L

E378263

Short drive belt is closest to the
engine.

Long drive belt is furthest from
the engine.

12V BATTERY

12V BATTERY PRECAUTIONS

WARNING:

Batteries normally

WARNING:

When lifting a

plastic-cased battery, excessive pressure
on the end walls could cause acid to flow
through the vent caps, resulting in
personal injury and damage to the
vehicle or battery. Lift the battery with a
battery carrier or with your hands on
opposite corners.

WARNING:

Keep batteries out of

WARNING:

Battery posts,

terminals and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and
reproductive harm.

Wash your hands

after handling

WARNING:

This vehicle may have

more than one battery. Removing the
battery cables from only one battery
does not disconnect your vehicle
electrical system. Make sure you
disconnect the battery cables from all
batteries when disconnecting power.
Failure to do so may cause serious
personal injury or property damage.

WARNING:

For vehicles with

Auto-Start-Stop the battery requirement
is different. You must replace the battery
with one of exactly the same
specification.

WHAT IS THE BATTERY
MANAGEMENT SYSTEM

The battery management system monitors
battery conditions and takes actions to
extend battery life.

307

Maintenance

HOW DOES THE BATTERY
MANAGEMENT SYSTEM WORK

If excessive battery drain is detected, the
system temporarily disables some
electrical systems to protect the battery.

Systems included are:
•

Heated rear window.

•

Heated seats.

•

Climate control.

•

Heated steering wheel.

•

Audio unit.

•

Navigation system.

A message could appear in the information
display to alert you that battery protection
actions are active. This message is only for
notification that an action is taking place,
and not intended to indicate an electrical
problem or that the battery requires
replacement.

BATTERY MANAGEMENT SYSTEM
LIMITATIONS

After battery replacement, or in some
cases after charging the battery with an
external charger, the battery management
system requires eight hours of vehicle sleep
time to relearn the battery state of charge.
During this time, your vehicle must remain
fully locked with the ignition switched off.

Note:

Prior to relearning the battery state

of charge, the battery management system
could temporarily disable some electrical
systems.

Electrical Accessory Installation

To make sure the battery management
system works correctly, do not connect an
electrical device ground connection
directly to the battery negative post. This
can cause inaccurate measurements of
the battery condition and potential
incorrect system operation.

Note:

If you add electrical accessories or

components to the vehicle, it could
adversely affect battery performance and
durability. This could also affect the
performance of other electrical systems in
the vehicle.

CHANGING THE 12V BATTERY

The battery is in the engine compartment.
See

Maintenance

(page 296).

Your vehicle has a maintenance-free
battery. It does not require additional
water during service.

If the vehicle battery has a cover, make
sure you correctly install it after cleaning
or replacing the battery.

For longer, trouble-free operation, keep the
top of the battery clean and dry and the
battery cables tightly fastened to the
battery terminals. If any corrosion is
present on the battery or terminals, remove
the cables from the terminals and clean
with a wire brush. You can neutralize the
acid with a solution of baking soda and
water.

We recommend that you disconnect the
negative battery cable terminal from the
battery if you plan to store your vehicle for
an extended period.

Note:

If you only disconnect the negative

battery cable terminal, make sure it is
isolated or placed away from the battery
terminal to avoid unintended connection or
arcing.

If you disconnect or replace the battery
and your vehicle has an automatic
transmission, it must relearn its adaptive
strategy. Because of this, the transmission
may shift firmly when first driven. This is
normal operation while the transmission
fully updates its operation to optimum
shift feel.

308

Maintenance

Removing the Battery

Apply the parking brake and switch the
ignition off.

2. Switch all electrical equipment off, for

example lights and radio.

3. Wait a minimum of two minutes before

disconnecting the battery.

Note:

The engine management system has

a power hold function and remains powered
for a period of time after you switch the
ignition off. This is to allow diagnostic and
adaptive tables to be stored. Disconnecting
the battery without waiting can cause
damage not covered by the vehicle
Warranty.

4. Disconnect and isolate the negative

battery cable terminal.

5. Disconnect and isolate the positive

battery cable terminal.

6. Remove the battery securing clamp.
7.

Remove the battery.

If you disconnect or replace the vehicle
battery, you must reset the following
features:
•

Window bounce-back. See

Window

Bounce-Back

(page 105).

•

Clock Settings.

•

Pre-set radio stations.

Replacing the Battery

Note:

Before reconnecting the battery,

make sure the ignition remains switched off.

You must replace the battery with one of
exactly the same specification.

To install, reverse the removal procedure.

Note:

Make sure that you correctly install

the battery terminal covers, battery cover
and battery cable terminals.

RESETTING THE BATTERY
SENSOR

When you install a new battery, reset the
battery sensor by doing the following:

Switch the ignition on, and leave the
engine off.

Note:

Complete Steps 2 and 3 within 10

seconds.

2. Flash the high beam headlamps five

times, ending with the high beams off.

3. Press and release the brake pedal three

times.

The battery warning lamp flashes three
times to confirm that the reset is
successful.

RECYCLING AND DISPOSING OF
THE 12V BATTERY

E107998

Make sure that you dispose of
old batteries in an
environmentally friendly way.

Seek advice from your local authority
about recycling old batteries.

12V BATTERY –
TROUBLESHOOTING

12V BATTERY – WARNING LAMPS

E67021

If it illuminates while driving, it
indicates a charging system
error. Switch off all unnecessary

electrical equipment and have your vehicle
immediately checked.

309

Maintenance

Ford Mustang (2024 year). Manual in english - page 9
