Ford F-350 (2024 year). Manual in english

Failure to perform active or manual
regeneration when instructed could result
in a clogged diesel particulate filter. If the
diesel particulate filter fills beyond the
regeneration threshold, your vehicle
disables the ability for active and manual
regeneration. This could result in
irreversible damage your vehicle Warranty
may not cover.

DIESEL PARTICULATE FILTER
REQUIREMENTS

The diesel particulate filter on your vehicle
requires periodic regeneration to maintain
its correct function.

If your journeys meet one of the following
conditions:
•

You drive only short distances.

•

You frequently switch the ignition on
and off.

•

Your journeys contain a high level of
acceleration and deceleration.

You must carry out occasional trips with
the following conditions to assist the
regeneration process:
•

Drive your vehicle in more favorable
conditions, which you will find at higher
vehicle speeds in normal driving, on a
main road or freeway for a minimum
of 20 minutes. This drive may include
short stops that will not affect the
regeneration process.

•

Avoid prolonged idling and observe
speed limits and road conditions.

•

Do not switch the ignition off.

•

Select a suitable gear to ideally
maintain engine speed between 1500
and 3000 RPM.

DIESEL PARTICULATE FILTER
MANUAL REGENERATION

WHAT IS DIESEL PARTICULATE
FILTER MANUAL REGENERATION

Diesel particulate filter manual
regeneration allows you to manually start
regeneration of the diesel particulate filter
at idle to clean the filter.

Note:

If you are not sure whether your

vehicle has this feature, contact your
authorized dealer.

DIESEL PARTICULATE FILTER
MANUAL REGENERATION
PRECAUTIONS

WARNING:

Stay clear of the

exhaust tailpipe during regeneration. Hot
exhaust gases can burn you badly.

You may not be able to use manual
regeneration if the service engine soon
warning lamp appears in the information
display.

Note:

During the use of manual

regeneration, you may observe a light
amount of white smoke. This is normal.

DIESEL PARTICULATE FILTER
MANUAL REGENERATION
REQUIREMENTS

You can use the manual regeneration
feature when a message appears in the
information display and you are not able
to drive in a manner that allows effective
automatic active regeneration or if you
choose to manually start the regeneration
of the diesel particulate filter while the
vehicle is idle.

218

Diesel Particulate Filter - Diesel

Before you start manual regeneration, do
the following:
•

Make sure the parking brake is on.

•

Shift into park (P) on stable, level
ground.

•

Park your vehicle outside of any
structure.

•

Park your vehicle 10–15 ft (3–5 m)
away from any obstructions and away
from materials that can easily combust
or melt, for example paper, leaves,
petroleum products, fuels, plastics and
other dry organic material.

•

Make sure there is a minimum of 1/8
tank of fuel.

•

Make sure all fluids are at proper levels.

DIESEL PARTICULATE FILTER
MANUAL REGENERATION
LIMITATIONS

You cannot use manual regeneration until
the diesel particulate filter load percentage
has reached 100% or Full. The diesel
particulate filter load percentage
fluctuates up and down when driving your
vehicle due to active and passive
regenerations.

If your vehicle is operated with significant
stationary operation, low speed drive
cycles less than 25 mph (40 km/h), short
drive cycles, drive time less than 15 minutes
or the vehicle does not fully warm up,
passive and active regeneration may not
sufficiently clean the diesel particulate
filter system.

Aftermarket devices or modifications to
the exhaust system may reduce the
effectiveness of the exhaust system as
well as cause damage to the exhaust
system or engine. This may also degrade
vehicle performance and could lead to
engine damage that may not be covered
by the vehicle Warranty.

STARTING DIESEL PARTICULATE
FILTER MANUAL REGENERATION

Start with your vehicle engine and when it
has reached the normal operating
temperature, press the information display
control button on the steering wheel. See

Instrument Cluster Display

(page 140).

If the diesel particulate filter is near or at
saturation, a message requesting
permission to initiate filter cleaning
appears in the information display. See

Diesel Particulate Filter – Information
Messages

(page 220). Answer yes to this

prompt and then follow the next prompts
regarding exhaust position required to
initiate manual regeneration. Be sure to
understand each prompt. If you are not
sure what is being asked by each prompt,
contact an authorized dealer. The display
confirms the operation has started and
when it has finished. You can also drive to
clean the filter.

E67028

When the system is at the point
of oversaturation, the
malfunction indicator lamp

illuminates and a message appears in the
information display. You cannot initiate
filter cleaning. You must have your vehicle
checked as soon as possible.

Once manual regeneration starts, engine
speed increases and the cooling fan speed
increases. You will hear a change in audible
sound due to engine speed and cooling fan
speed increases.

It is not necessary to open the hood on the
engine compartment. Once manual
regeneration completes, the engine speed
returns to normal idling. The exhaust
system remains very hot for several
minutes even after regeneration is
complete. Do not reposition the vehicle
over materials that could burn until the

219

Diesel Particulate Filter - Diesel

exhaust system has had sufficient time to
cool. Depending on the amount of soot
collected by the diesel particulate filter,
ambient temperature and altitude, manual
regeneration lasts approximately 30
minutes.

DIESEL PARTICULATE FILTER
– TROUBLESHOOTING

DIESEL PARTICULATE FILTER –
WARNING LAMPS

E67028

If there are any issues with the
diesel particulate filter system,
or when the system is at the
point of oversaturation, the
powertrain warning lamp and
the malfunction indicator lamp

illuminate to inform you that your vehicle
requires service. You may not be able to
initiate filter cleaning. Have your vehicle
checked as soon as possible.

DIESEL PARTICULATE FILTER – INFORMATION MESSAGES

Action

Message

Your vehicle has entered the cleaning mode. Various engine

actions will raise the exhaust temperature in the Diesel

Particulate Filter system to burn off the particles (exhaust

soot). After the vehicle burns the particles off, the exhaust

temperature will return to normal levels. This message is

NORMAL.

Exhaust Filter Cleaning

The diesel particulate filter is full of particles (exhaust soot)

and you are not operating the vehicle in a manner that allows

normal cleaning. Drive the vehicle above 30 mph (50 km/h)

when it is safe to do so, until the message turns off.

Exhaust Filter Over-

loaded Drive to Clean

Exhaust Filter Over-

loaded Clean Now

The diesel particulate filter is full of particles (exhaust soot)

and you are not operating the vehicle in a manner that allows

normal cleaning. Drive the vehicle above 30 mph (50 km/h)

when it is safe to do so, until the message turns off.

Exhaust Filter at Limit

Clean Now

Exhaust Filter at Limit

Drive to Clean Now

Your diesel particulate filter is clean.

Exhaust Filter Drive

Complete

220

Diesel Particulate Filter - Diesel

Action

Message

Your diesel particulate filter is clean (OCR Only).

Exhaust Filter Cleaned

The manual regeneration process has stopped (OCR Only).

Exhaust Filter Cleaning

Stopped

You must have your vehicle serviced by an authorized dealer.
Ignoring this warning message could lead to reduced drivability

and customer expense, including damage to the diesel

particulate filter. Your new vehicle warranty may not cover

this damage.

Exhaust Filter Over Limit

Service Now

221

Diesel Particulate Filter - Diesel

WHAT IS THE SELECTIVE
CATALYTIC REDUCTION
SYSTEM

The selective catalytic reduction system
helps reduce tailpipe emissions and
requires Diesel Exhaust Fluid (DEF) to
convert nitrogen oxides into nitrogen and
water.

HOW DOES THE SELECTIVE
CATALYTIC REDUCTION
SYSTEM WORK

The selective catalytic reduction system
injects diesel exhaust fluid into the exhaust
system to enable correct selective catalytic
reduction system function.

The usage of diesel exhaust fluid has
increased from prior model years in order
to meet more stringent emissions
requirements. The diesel exhaust fluid
usage ranges from approximately 2-6%
of fuel burned (100.00 gal (378.54 L) of
fuel requires approximately 2.00 gal
(7.57 L)to 6.00 gal (22.71 L) of diesel
exhaust fluid) depending on vehicle usage.
Factors that influence diesel exhaust fluid
usage may include:

•

Payload/Towing

•

Driving Style

•

Altitude

•

Humidity

•

Temperature

SELECTIVE CATALYTIC
REDUCTION SYSTEM
PRECAUTIONS

WARNING:

Keep diesel exhaust

fluid out of reach of children. Avoid
contact with skin, eyes or clothing. In
case of contact with your eyes, flush
immediately with water and get prompt
medical attention. In case of contact
with your skin, clean immediately with
soap and water. If you swallow any
diesel exhaust fluid, drink plenty of
water, call a physician immediately.

WARNING:

Only refill the diesel

exhaust fluid tank in a well ventilated
area. When you remove the diesel
exhaust fluid tank filler cap or a diesel
exhaust fluid container cap, ammonia
vapors may escape. Ammonia vapors
can be irritating to skin, eyes and mucous
membranes. Inhaling ammonia vapors
can cause burning to the eyes, throat and
nose and cause coughing and watery
eyes.

WARNING:

Diesel exhaust fluid

must be refilled when low or replaced
when contaminated or your vehicle
speed becomes limited to 50 mph
(80 km/h). In these conditions, drive with
caution and refill diesel exhaust fluid
immediately. If the diesel exhaust fluid
becomes empty or contaminated and
fluid is not replaced, your vehicle
becomes limited to engine idle only once
stopped. In these conditions, be cautious
where you stop your vehicle because you
may not be able to drive long distances
or maintain highway speeds until you
refill or replace the diesel exhaust fluid.

222

Selective Catalytic Reduction System - Diesel

WARNING:

Tampering with or

disabling the selective catalytic
reduction system results in severe
vehicle performance limitation including
eventual speed limiting to 5 mph
(8 km/h).

Note:

Do not put diesel exhaust fluid in the

fuel tank. Do not start the engine if any
amount of diesel exhaust fluid was added
to the diesel fuel tank as it will likely lead to
failure of the fuel pump and injectors and
may result in severe engine damage which
your vehicle Warranty may not cover. The
diesel fuel tank must be completely drained
and cleaned prior to being refilled with clean
diesel fuel and starting the engine.

Selective catalytic reduction systems are
sensitive to contamination of the diesel
exhaust fluid. Maintaining the purity of the
fluid is important to avoid system
malfunctions. If you remove or drain the
diesel exhaust fluid tank, do not use the
same fluid to refill the tank. The system
has a sensor to monitor fluid quality.

Driving without refilling, replacing
contaminated diesel exhaust fluid, or
having the selective catalytic reduction
system repaired results in the following
actions as required by the California Air
Resources Board (CARB) and the U.S.
Environmental Protection Agency (EPA):
•

Within a preset distance to empty,
speed is limited upon vehicle restart.
Prior to this occurring a message
appears in the information display.

•

Further vehicle operation without
refilling or replacing contaminated
diesel exhaust fluid causes the engine
to enter an idle-only condition. This
only occurs upon vehicle refueling,
vehicle idling in park for 1 hour, or
engine shutdown for 10 minutes or
more and is indicated by a message in
the information display indicating
required actions to resume normal
operation. It is required to add a
minimum of 1.0 gal (3.8 L) of diesel
exhaust fluid to the tank to exit the
idle-only condition, but your vehicle is
still in the speed-limiting mode until
you refill the tank completely.

Note:

For vehicle speed limiting or idle-only

condition, normal vehicle operation resumes
when you refill the diesel exhaust fluid tank
or repair the contaminated system. If the
system is contaminated or inoperative, have
your vehicle checked as soon as possible.

223

Selective Catalytic Reduction System - Diesel

SELECTIVE CATALYTIC
REDUCTION SYSTEM
REQUIREMENTS

E163354

Only use diesel exhaust fluid that is
certified by the American Petroleum
Institute (API).

You can purchase diesel exhaust fluid at
an authorized dealer, or contact roadside
assistance for help in finding a retailer that
sells diesel exhaust fluid.

Note:

Non-certified diesel exhaust fluid use

can cause damage that your Warranty may
not cover

SELECTIVE CATALYTIC
REDUCTION SYSTEM
GUIDELINES

•

Diesel exhaust fluid is non-flammable,
non-toxic, colorless and water-soluble
liquid.

•

In order for the system to operate
correctly you must maintain the diesel
exhaust fluid level.

•

Do not overfill the diesel exhaust fluid
tank.

•

Diesel exhaust fluid is corrosive.

•

Avoid spilling diesel exhaust fluid on
painted surfaces, carpeting or plastic
components. Immediately wipe away
any diesel exhaust fluid that has spilled
with a damp cloth and water. If it has
already crystallized, use warm water
and a sponge.

•

Do not store the diesel exhaust fluid
bottle in your vehicle. If it leaks it could
cause damage to interior components
or release an ammonia odor inside your
vehicle.

•

Do not re-use the diesel exhaust fluid
container once it is emptied.

•

Store diesel exhaust fluid out of direct
sunlight and in temperatures between
23–68°F (-5–20°C).

•

The system has a diesel exhaust fluid
quality sensor. Dilution of diesel
exhaust fluid or use of any other liquid
in the selective catalytic reduction
system leads to a diesel exhaust fluid
system fault, eventually leading to the
vehicle only operating in idle-only
mode.

•

Do not dilute diesel exhaust fluid with
water or any other liquid.

FILLING THE SELECTIVE
CATALYTIC REDUCTION
SYSTEM TANK

FILLING THE SELECTIVE
CATALYTIC REDUCTION SYSTEM
TANK IN COLD WEATHER

Diesel exhaust fluid may freeze if the
ambient temperature is below 12°F (-11°C).
Your vehicle has a preheating system
which allows diesel exhaust fluid to
operate below 12°F (-11°C). If you do not
use your vehicle for an extended period
when the ambient temperature is below
12°F (-11°C), the fluid in the tank may
freeze.

224

Selective Catalytic Reduction System - Diesel

If the DEF tank is frozen, it may not
recognize when the tank is refilled. The DEF
level will update once the tank thaws out.
It is best to fill the DEF tank prior to, or after
a drive cycle greater than 20 minutes to
allow the remaining frozen DEF in the tank
to liquefy. If the tank is overfilled and the
fluid freezes it may cause damage that
your Warranty will not cover.

Note:

After filling the DEF tank, there may

be a short period before the increased level
is registered.

FILLING THE SELECTIVE
CATALYTIC REDUCTION SYSTEM
TANK USING A FUEL STATION
PUMP

Filling the diesel exhaust fluid tank using
a fuel station pump is similar to refueling
your vehicle.

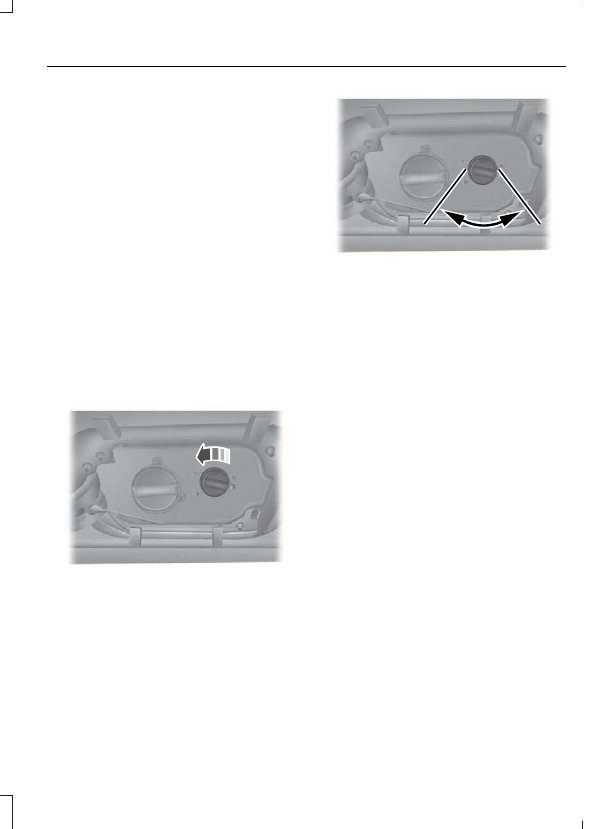

Fully open the fuel filler door.

E328788

2. Remove the diesel exhaust fluid tank

filler cap.

Note:

The diesel exhaust fluid tank has a

blue filler cap.

3. Fully insert the diesel exhaust fluid

pump nozzle.

E328783

4. Operate the diesel exhaust fluid pump

nozzle within the area shown.

Note:

The pump nozzle shuts off when the

tank is full.

5. Slightly raise the diesel exhaust fluid

pump nozzle and then slowly remove
it.

6. Replace the diesel exhaust fluid tank

filler cap. Turn it clockwise until you
feel a strong resistance and it clicks.

Note:

After filling the DEF tank, there may

be a short period before the increased level
is registered.

FILLING THE SELECTIVE
CATALYTIC REDUCTION SYSTEM

TANK USING A PORTABLE
CONTAINER

The following procedure applies to
Motorcraft diesel exhaust fluid or similar
fluid containers. Follow the
manufacturer's instructions.

Fully open the fuel filler door.

2. Remove the diesel exhaust fluid

container cap.

3. Place the spout on to the container and

tighten it until you feel a strong
resistance.

225

Selective Catalytic Reduction System - Diesel

E328788

4. Remove the diesel exhaust fluid tank

filler cap.

Note:

The diesel exhaust fluid tank has a

blue filler cap.

5. Insert the spout into the filler neck until

the seal on the spout fully seats.

6. Pour the fluid into the tank.

Note:

The fluid stops flowing when the tank

is full.

Return the container to the vertical
position slightly below the diesel
exhaust fluid filler neck.

8. Allow any fluid remaining in the spout

to drain back into the container.

9. Remove the spout from the diesel

exhaust fluid filler neck.

10.

Replace the diesel exhaust fluid tank
cap. Turn it clockwise until you feel
a strong resistance and it clicks.

11.

Remove the spout from the diesel
exhaust fluid container and replace
the cap.

Note:

If there is diesel exhaust fluid left in

the container retain it for later use. The
spout is reusable. Wash the spout with
clean water prior to storage. Do not use the
diesel exhaust fluid spout with any other
fluid.

Note:

After filling the DEF tank, there may

be a short period before the increased level
is registered.

CHECKING THE SELECTIVE
CATALYTIC REDUCTION
SYSTEM STATUS

The information display shows a series of
messages about the amount of diesel
exhaust fluid available. A systems check
displays messages indicating the amount
of diesel exhaust fluid available or displays
a warning message indicating the
approximate distance remaining as the
fluid in the diesel exhaust fluid tank nears
empty. See

Selective Catalytic

Reduction System – Information
Messages

(page 227).

DIESEL EXHAUST FLUID
CAPACITY AND
SPECIFICATION

For filling information please refer to the
Capacities and Specifications section of
the owner's manual. See

Diesel Exhaust

Fluid Capacity and Specification

(page

537).

226

Selective Catalytic Reduction System - Diesel

SELECTIVE CATALYTIC
REDUCTION SYSTEM –
TROUBLESHOOTING

SELECTIVE CATALYTIC
REDUCTION SYSTEM – WARNING
LAMPS

E163176

As the diesel exhaust fluid level
nears empty, the warning

symbol displays and a series of tones and
messages starting at 500 mi (800 km)
remaining before diesel exhaust fluid is
depleted. The warning symbol and
messages continue until you refill the
diesel exhaust fluid tank.

The warning lamp illuminates and a
message appears in the information
display if the system becomes
contaminated or inoperative.

SELECTIVE CATALYTIC REDUCTION SYSTEM – INFORMATION

MESSAGES

Action

Message

The distance you can travel before depleting the remaining

diesel exhaust fluid. Refill as soon as possible.

DEF Level Range: XX mi/

km Refill Now

Your diesel exhaust fluid is nearing empty. Your vehicle’s top

speed will become limited in the displayed distance. You must
replenish the diesel exhaust fluid to resume normal operation

of your vehicle. See

Diesel Exhaust Fluid Capacity and

Specification

(page 537).

DEF Level Empty Speed

Limited to XX MPH / km/

h in XX mi/km

Your remaining diesel exhaust fluid has depleted. Your speed

will be limited upon restart. You must replenish the diesel

exhaust fluid to resume normal operation of your vehicle. See

Diesel Exhaust Fluid Capacity and Specification

(page

537).

DEF Level Empty Speed

Limited to XX MPH/km/

h Upon Restart

The diesel exhaust fluid is empty. You must replenish the

diesel exhaust fluid to resume normal operation of your

vehicle. See

Diesel Exhaust Fluid Capacity and Specific-

ation

(page 537).

DEF Level Low Speed

Limited to XX MPH/km/

The selective catalytic reduction system detects low exhaust

fluid. The engine will eventually enter into an idle only mode.

You must replenish the diesel exhaust fluid to resume normal

operation of your vehicle. See

Diesel Exhaust Fluid Capa-

city and Specification

(page 537).

DEF Level Empty Engine

Idled Soon

The vehicle will enter into an idle only mode. You must

replenish the diesel exhaust fluid to resume normal operation

of your vehicle. See

Diesel Exhaust Fluid Capacity and

Specification

(page 537).

DEF Level Empty Engine

Idled See Manual

227

Selective Catalytic Reduction System - Diesel

Action

Message

The selective catalytic reduction system detects a fault. The

vehicle’s top speed will become limited in the displayed

distance and count down from this point. Have your vehicle

checked as soon as possible.

DEF Fault Speed Limited

to XX MPH/km/h in XX

mi/km

The selective catalytic reduction system detects a fault. The
vehicle’s top speed will become limited upon restarting. Have

your vehicle checked as soon as possible.

DEF Fault Speed Limited

to XX MPH/km/h Upon

Restart

The selective catalytic reduction system detects a fault. The

vehicle’s top speed is limited. Have your vehicle checked as

soon as possible.

DEF Fault Speed Limited

to XX MPH/km/h

The selective catalytic reduction system detects a fault. The
engine will eventually enter into an idle only mode. Have your

vehicle checked as soon as possible.

DEF Fault Engine Idled

Soon

228

Selective Catalytic Reduction System - Diesel

WHAT IS THE CATALYTIC
CONVERTER

The catalytic converter is part of your
vehicle's emissions system and filters
harmful pollutants from the exhaust gas.

CATALYTIC CONVERTER
PRECAUTIONS

WARNING:

Do not park, idle or

drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire.

WARNING:

The normal operating

temperature of the exhaust system is
very high. Never work around or attempt
to repair any part of the exhaust system
until it has cooled. Use special care when
working around the catalytic converter.
The catalytic converter heats up to a very
high temperature after only a short
period of engine operation and stays hot
after the engine is switched off.

WARNING:

Exhaust leaks may

result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.

To avoid damaging the catalytic converter:
•

Do not crank the engine for more than
10 seconds at a time.

•

Do not run the engine with a spark plug
lead disconnected.

•

Do not push-start or tow-start your
vehicle. Use booster cables. See

Jump

Starting the Vehicle

(page 420).

•

Use the correct fuel. See

Fuel and

Refueling

(page 209).

•

Do not switch the ignition off when your
vehicle is moving.

•

Avoid running out of fuel.

•

Have the items listed in scheduled
maintenance information performed
according to the specified schedule.

Note:

Do not make any unauthorized

changes to your vehicle or engine. By law,
vehicle owners and anyone who
manufactures, repairs, or services a fleet of
vehicles are not permitted to intentionally
remove an emission control device or
prevent it from working.

CATALYTIC CONVERTER –
TROUBLESHOOTING

CATALYTIC CONVERTER –
WARNING LAMPS

Your vehicle has an on-board diagnostics
system that monitors the emission control
system. If any of the following warning
lamps illuminate, this may indicate that
the on-board diagnostics system has
detected an emission control system
malfunction.

E103308

E67021

E67028

Continuing to drive your vehicle may cause
reduced power or the engine to stop.
Failure to respond to a warning lamp may
cause damage that your vehicle Warranty
may not cover. Have your vehicle checked
as soon as possible.

229

Catalytic Converter

AUTOMATIC TRANSMISSION
PRECAUTIONS

WARNING:

Apply the parking

brake, shift into park (P), switch the
vehicle off and remove the key or remote
control before you leave your vehicle.
Failure to follow this instruction could
result in personal injury or death.

WARNING:

When your vehicle is

stationary, keep the brake pedal fully
pressed when shifting gears. Failure to
follow this instruction could result in
personal injury, death or property
damage.

WARNING:

Do not apply the brake

pedal and accelerator pedal
simultaneously. Applying both pedals
simultaneously for more than a few
seconds limits vehicle performance,
which may result in difficulty maintaining
speed in traffic and could lead to serious
injury.

AUTOMATIC TRANSMISSION
POSITIONS

PARK (P)

WARNING:

Shift into park (P) only

when your vehicle is stationary.

In park (P) power is not transmitted to the
driven wheels.

Note:

A tone sounds if you attempt to exit

your vehicle without the vehicle in park (P).

Note:

Your vehicle may not shift out of park

(P) if the 12 V battery has run out of charge.

Note:

Your vehicle may not shift out of park

(P) if a fuse is blown.

Note:

Your vehicle may not shift out of park

(P) unless the key or remote control is inside
your vehicle.

Note:

The electronic parking brake could

apply when you power your vehicle on with
the selector in park (P).

Note:

The electronic parking brake could

apply if you shift to park (P) without fully
pressing the brake pedal.

Note:

The electronic parking brake could

apply if you shift to park (P) on a slope.

Note:

Do not manually release the parking

brake when the selector is in park (P). See

Automatically Releasing the Electric
Parking Brake

(page 251).

REVERSE (R)

WARNING:

Shift into reverse (R)

only when your vehicle is stationary.

In reverse (R) power is transmitted to the
driven wheels.

NEUTRAL (N)

WARNING:

In neutral (N) your

vehicle is free to roll.

In neutral (N) power is not transmitted to
the driven wheels.

DRIVE (D)

In drive (D) power is transmitted to the
driven wheels.

Note:

Progressive range selection is

available in drive (D). See

Using

Progressive Range Selection

(page 231).

230

Automatic Transmission

MANUAL (M)

In manual (M) you can select a specific
gear. See

Manually Shifting Gears

(page

232).

Note:

We recommend using this mode for

driving on hilly or mountainous roads or
when towing a trailer. See

Towing a Trailer

(page 362).

SHIFTING YOUR VEHICLE INTO
GEAR

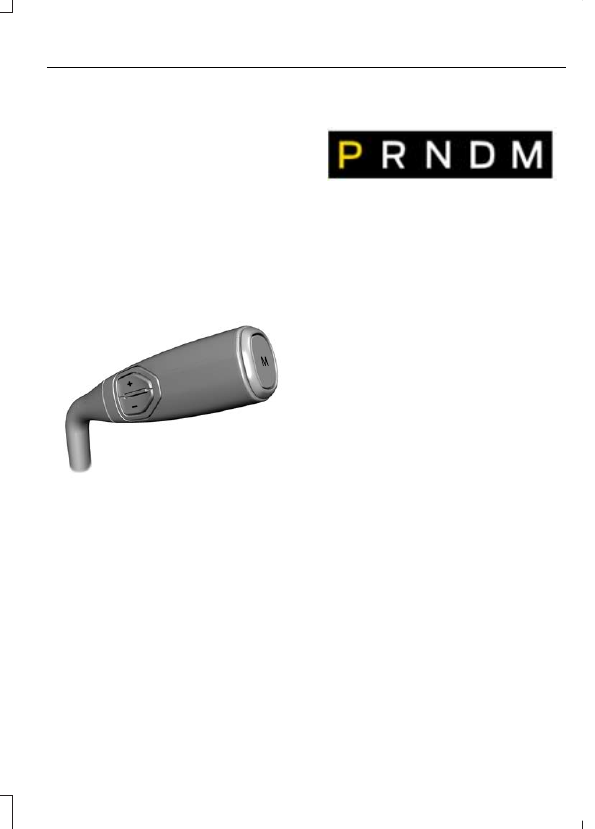

The transmission selector is on the steering
column.

E371381

Press and hold the brake pedal.

2. Move the lever to select a position.

3. Press the manual (M) button when

your vehicle is in drive (D) to enter or
exit mode.

AUTOMATIC TRANSMISSION
POSITION INDICATORS

The instrument cluster displays the current
position.

E341776

Note:

The position could illuminate on the

transmission selector.

AUTOMATIC TRANSMISSION
AUDIBLE WARNINGS

Sounds if any of the following occur:

•

You switch your vehicle off before
shifting into park (P).

•

You open the driver door before shifting
into park (P).

USING PROGRESSIVE RANGE
SELECTION

Progressive range selection gives you the
ability to lock out gears from the automatic
shifting range. This could provide you with
an improved driving experience by reducing
transmission shifts, for example, in slippery
conditions or steep slopes.

With the transmission in drive (D), press
the minus (-) button to begin to switch the
feature on.

Press the minus (-) button again to
continue locking out higher gears.
Beginning with the highest gear, the
instrument cluster will indicate the current
gear and highest gear available. For
example, press the minus (-) button twice
to lock out 10th and 9th gears.

Note:

The instrument cluster will indicate

the current gear and highest gear available.

231

Automatic Transmission

Press the plus (+) button to unlock gears
to allow the transmission to shift to higher
gears.

Note:

The transmission automatically

shifts within the gear range you select.

MANUALLY SHIFTING GEARS

SHIFTING USING THE BUTTONS
ON THE COLUMN SHIFTER

The instrument cluster displays the current
gear. The current gear flashes when your
vehicle cannot shift into the requested
gear. Your vehicle will not shift if the
requested gear raises or lowers the engine
speed beyond the limit.

Your vehicle could shift when you fully
press the accelerator or brake pedal.

Note:

Prolonged driving with high engine

speed could cause vehicle damage not
covered by vehicle warranty.

Note:

Drive modes could affect when the

vehicle shifts into the requested gear.

E372904

Manually Shifting Gears in Manual
(M)

Use this feature to select a specific gear.

Note:

We recommend using this feature for

engine braking, driving on hilly or
mountainous roads, or when towing a trailer.
See

Towing a Trailer

(page 362).

•

Shift to manual (M) to switch the
feature on.

•

Press the upper (+) button to upshift.

•

Press the lower (-) button to
downshift.

•

Shift to drive (D) to switch the feature
off.

POWER TAKE-OFF

(IF EQUIPPED)

HOW DOES THE POWER TAKE-
OFF WORK

Auxiliary equipment called power take-off,
or PTO, is often added to the engine or
transmission to operate utility equipment.
Examples include a wheel-lift for tow
trucks, cranes, tools for construction or tire
service, and pumping fluids. PTO
applications draw auxiliary horsepower
from the powertrain, often while the
vehicle is stationary. In this condition, there
is limited cooling air flow through the
radiator and around the vehicle that
normally occurs when a vehicle is moving.
The aftermarket PTO system installer,
having the most knowledge of the final
application, is responsible for determining
whether additional chassis heat protection
or powertrain cooling is required, and
alerting the user to the safe and proper
operation.

Note:

Use of auxiliary equipment that

exceeds the maximum Power Take-Off
(PTO) load specified in our Truck Body
Builders Layout Book can adversely affect
the performance of the powertrain system.
Refer to the Body Builders Layout Book for
instructions about the appropriate
installation of additional equipment.

232

Automatic Transmission

For additional information, visit

www.fordbbas.com/home

WHAT IS THE SPLIT SHAFT
CAPABILITY

The split shaft capability feature allows
you to install an aftermarket split shaft
gearbox in your vehicle's driveline and run
one or two power takeoffs on the gearbox.
The output of the transmission or transfer
case connects directly with the split shaft
gearbox and allows the engine to power
the power takeoff, when the engine is
running and the split shaft software is
enabled.

This feature is approved as a stationary
power source, within the limits and
operating guidelines detailed in our Truck
Body Builders Layout Book. For additional
information, visit

www.fordbbas.com/home

233

Automatic Transmission

HOW DOES FOUR-WHEEL
DRIVE WORK

Using the Electronic Shift On the
Fly System

(If Equipped)

This four-wheel drive system utilizes a
2-speed Electronic Shift On the Fly (ESOF)
transfer case which is also known as a
part-time system. This system offers the
driver two-wheel drive high, four-wheel
drive high, and four-wheel drive low as
available modes of operation. When you
select either four-wheel drive high or
four-wheel drive low, the system provides
mechanically locked four-wheel drive
power to both the front and rear wheels
for use in off-road or slippery conditions
such as deep snow, sand or mud. When
you select four-wheel drive low, the system
provides additional gearing for increased
torque multiplication for conditions like
deep sand, steep slopes, or pulling heavy
objects. Additionally, the system is capable
of recreational flat towing by putting the
transfer case into a neutral position. See

Recreationally Towing Your Vehicle

(page 426).

There is further information available on
driving in unique driving conditions. See

Off-Road Driving

(page 409).

LOCK

E339076

Your vehicle has manual hub locks on
either the driver side or the driver and
passenger side of your vehicle. For proper
operation, make sure that each hub is fully
engaged and that both hub locks are set
to the same position (both set to lock or
both set to auto). To engage lock, turn the
hub locks completely clockwise. To engage
auto, turn the hub locks completely
counterclockwise.

The ESOF four-wheel drive system:

•

Provides 4x4 High engagement and
disengagement while the vehicle is
moving.

•

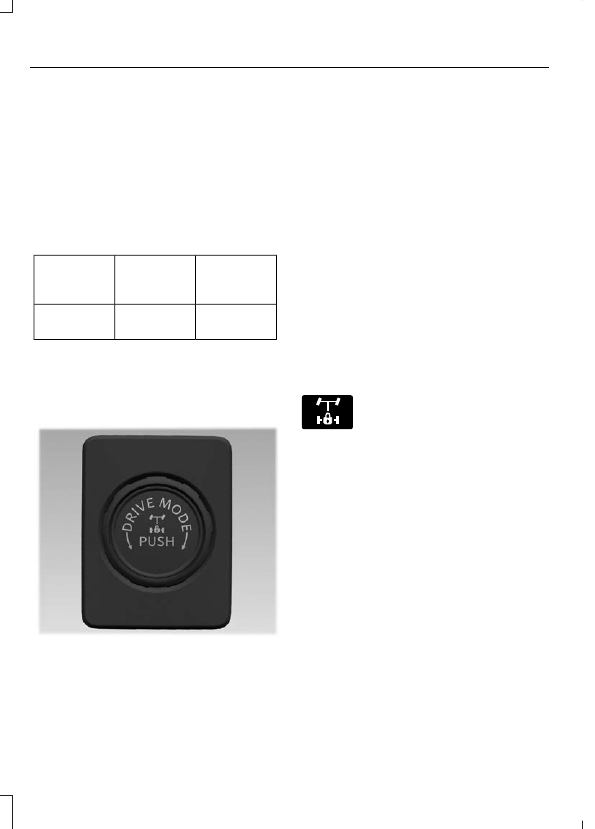

Operates by a push button control
located on the instrument panel that
allows you select 4x2, 4x4 High or 4x4
Low operation.

•

Uses auto-manual hub locks. When set
to auto, the hubs engage and
disengage automatically based on the
4x4 mode you select. When set to lock,
the hubs remain engaged at all times.

•

Increases fuel economy when used in
the hub lock's recommended auto
mode.

Note:

Auto-manual hub locks manually

lock by rotating the hub lock control from
auto to lock.

Note:

Hub locks should be in auto mode

when in 4x2 mode. If hub locks are in lock
mode in 4x2 mode, there will be additional
noise from the front axle.

234

Four-Wheel Drive

(If Equipped)

FOUR-WHEEL DRIVE
PRECAUTIONS

WARNING:

Vehicles with a higher

center of gravity (utility and four-wheel
drive vehicles) handle differently than
vehicles with a lower center of gravity
(passenger cars). Avoid sharp turns,
excessive speed and abrupt steering in
these vehicles. Failure to drive cautiously
increases the risk of losing control of your
vehicle, vehicle rollover, personal injury
and death.

WARNING:

Do not become

overconfident in the ability of four-wheel
drive vehicles. Although a four-wheel
drive vehicle may accelerate better than
a two-wheel drive vehicle in low traction
situations, it won't stop any faster than
two-wheel drive vehicles. Always drive
at a safe speed.

Truck and utility vehicles differ from
passenger cars. Your vehicle could be
higher to allow it to travel over rough
terrain without getting stuck or damaging
underbody components. The differences
that make your vehicle so versatile also
make it handle differently than passenger
cars. Always maintain steering wheel
control, especially in rough terrain. Since
sudden changes in terrain can result in
abrupt steering wheel motion, make sure
you grip the steering wheel from the
outside. Do not grip the spokes. Drive
cautiously to avoid vehicle damage from
concealed objects such as rocks and
stumps. Drive slower in strong crosswinds
which can affect the normal steering
characteristics of your vehicle. Be
extremely careful when driving on
pavement made slippery by loose sand,
water, gravel, snow or ice.

Note:

Your vehicle may come with a front

air dam that can become damaged (due to
reduced ground clearance) when taking your
vehicle off-road. To prevent damage,
remove the 15 bolts securing the air dam
and remove.

FOUR-WHEEL DRIVE
LIMITATIONS

Do not use four-wheel drive high or
four-wheel drive low mode on dry, hard
surface roads. Doing so can produce
excessive noise, increase tire wear and can
damage drive components. Four-wheel
drive high or four-wheel drive low modes
are intended for consistently slippery or
loose surfaces. Use of four low mode on
these surfaces could produce some noise,
such as occasional clunks, but should not
damage drive components. When
transitioning from consistently loose or
slippery surfaces, be sure the four-wheel
drive system is not mechanically blocked
once on dry, hard surface roads in
two-wheel drive high.

Note:

In certain scenarios, where the

four-wheel drive system has difficulty
engaging, a

To Engage 4x4 Slow to 3 MPH

To Engage 4x4 Slow to 5 km/h

message could appear in the instrument
cluster.

Operating Four-Wheel Drive with
a Spare or Worn Tires

Your four-wheel drive system is not
intended to provide full function with tires
that have different levels of wear or with
a dissimilar spare tire. Incorrect use of
four-wheel drive with such tires can cause
system damage.

235

Four-Wheel Drive

(If Equipped)

If there is a difference in the level of wear
among tires on the vehicle or if you install
a dissimilar spare tire on the vehicle, do not
use 4WD High or 4WD Low (if equipped)
other than to get your vehicle unstuck.
After getting your vehicle unstuck, shift to
2H by performing the following steps:

Come to a stop on a flat, horizontal
surface

2. Shift the transmission to park (P) for

automatic transmissions and neutral
(N) for manual transmissions.

3. Switch to two-wheel drive mode.

4. Shift the transmission to reverse (R).

5. Shift the transmission to drive (D) for

automatic transmissions and to first
gear for manual transmissions. This
ensures the transfer case system is not
trapped in place.

Note:

When the system detects a spare or

worn tires and a four-wheel drive
engagement request above a designated
speed, a warning message appears in the
instrument cluster. See

Four-Wheel Drive

– Information Messages

(page 239).

Note:

In certain scenarios, where the

four-wheel drive system has difficulty
engaging, a

To Engage 4x4 Slow to 3 MPH

To Engage 4x4 Slow to 5 km/h

message could appear in the instrument
cluster.

Mechanical Shift Blocking

On four-wheel drive vehicles with a
mechanically locked four-wheel drive high
mode, the transfer case distributes torque
to the front wheels by mechanically
interlocking the front and rear driveshafts
together. Various external factors affect
shifting performance of this type of system
including, but not limited to:

•

Vehicle acceleration.

•

Dissimilar tire sizes.

•

Steering input.

If the system detects a mechanical shift
blockage at speed after you select
two-wheel drive high, the message "4x4
Unable to Disengage See Manual", could
display momentarily. If this message
displays, one or more of the following
actions can relieve the mechanical shift
block:

•

Momentary acceleration.

•

Momentary braking.

•

Bringing the vehicle to a stop.

•

Shifting the transmission to neutral and
back to drive.

•

Shifting the transmission to reverse
and back to drive.

•

Driving the vehicle around a tight turn
at a slow speed.

Note:

In certain scenarios, where the

four-wheel drive system has difficulty
engaging, a warning message appears in
the instrument cluster. See

Four-Wheel

Drive – Information Messages

(page 239).

SWITCHING FOUR-WHEEL
DRIVE ON AND OFF

A vehicle that comes with four-wheel drive,
when selected, has the ability to use all
four wheels to power itself. This increases
traction, which may enable you to safely
drive over terrain and road conditions that
a conventional two-wheel drive vehicle
cannot.

On some four-wheel drive models, the
initial shift from two-wheel drive to
four-wheel drive while the vehicle is
moving can cause a momentary clunk and
ratcheting sound. These sounds are normal
as the front drivetrain comes up to speed
and are not cause for concern.

236

Four-Wheel Drive

(If Equipped)

SELECTING A FOUR-WHEEL
DRIVE MODE

E383456

The drive mode control is on the
instrument panel.

Press the four-wheel drive mode button
that best fits the current driving conditions.
You can select two-wheel drive high (2H)
or four-wheel drive high (4H) at a stop or
while driving. When the shift is complete,
the mode you select appears in the
instrument cluster display. While shifting,
the lights on the drive mode control can
flash and you could see messages in the
instrument cluster display indicating that
a shift is in progress or to release the
accelerator pedal to improve shift
performance.

Note:

Momentarily releasing the accelerator

pedal while a shift in progress message
displays improves engagement or
disengagement performance.

Note:

Do not perform this operation when

cruise control or trail control is selected and
active. The system may not shift as
expected.

Note:

When the light is solid, the system

has achieved the desired four-wheel drive
mode. When a selected four-wheel drive
mode light is blinking, the system is
attempting to shift to that specific
four-wheel drive mode.

Note:

When you achieve recreational

towing, all lights are off and Neutral Tow
Enabled Leave Transmission in Neutral
appears in the instrument cluster display.

Note:

Do not perform this operation if the

rear wheels are slipping, when making a
tight turn or when applying the accelerator
pedal. The system may not shift as
expected.

Note:

In certain scenarios, where the

four-wheel drive system has difficulty
engaging, a

To Engage 4x4 Slow to 3 MPH

To Engage 4x4 Slow to 5 km/h

message could appear in the instrument
cluster.

Note:

You could hear some noise as the

system shifts or engages, this is normal.

If the system detects a fault, a warning
message appears in the instrument cluster
display. See

Four-Wheel Drive –

Information Messages

(page 239).

Shifting to or from Four-Wheel
Drive Low (4L)

To select or exit four-wheel drive low (4L):

Bring your vehicle to a speed of 3 mph
(5 km/h) or less.

2. Place the transmission in neutral (N)

3. Press the desired four-wheel drive

button on the drive mode control.

A message appears in the instrument
cluster display indicating a four-wheel
drive shift is in progress. If any of the above
shift conditions are not present, the shift
will not occur and information guiding you
through the proper shifting procedures
appears in the instrument cluster display.

237

Four-Wheel Drive

(If Equipped)

If there is a transfer case tooth blockage a
message appears in the instrument cluster
display. To alleviate this condition, place
the transmission in a forward gear, move
your vehicle forward approximately 5 ft
(1.5 m), and shift the transmission back to
neutral (N) to allow the transfer case to
complete the range shift.

Note:

You could hear some noise as the

system shifts or engages, this is normal.

If the system detects a fault, a warning
message appears in the instrument cluster
display. See

Four-Wheel Drive –

Information Messages

(page 239).

FOUR-WHEEL DRIVE MODES

TWO-WHEEL DRIVE HIGH

Two-wheel drive high is for general
on-road driving. Power is sent to the rear
wheels only.

Note:

Two-wheel drive high can turn on or

off automatically based on Drive Mode
selection. See

Drive Mode Control

(page

309).

FOUR-WHEEL DRIVE HIGH

Four-wheel drive high provides
mechanically locked four-wheel drive
power to both the front and rear wheels
for use in off-road or winter conditions
such as deep snow, sand or mud. This
mode is not for use on dry pavement.

Note:

Four-wheel drive high can turn on or

off automatically based on Drive Mode
selection. See

Selecting a Drive Mode

(page 309).

FOUR-WHEEL DRIVE LOW

Four-wheel drive low provides
mechanically locked four-wheel drive
power to both the front and rear wheels
for use on low traction surfaces, but does
so with additional gearing for increased
torque multiplication. This mode is only for
off-road conditions such as deep sand,
steep slopes, or pulling heavy objects.

Note:

Four-wheel drive low can turn on or

off automatically based on drive mode
selection. See

Selecting a Drive Mode

(page 309).

FOUR-WHEEL DRIVE
INDICATORS

Two-wheel Drive High

E181778

Momentarily illuminates when
you select two-wheel drive high.

Four-wheel Drive High

E181779

Continuously illuminates when
you select four-wheel drive high.

Four-wheel Drive Low

E181780

Continuously illuminates when
you select four-wheel drive low.

TRANSFER CASE FLUID
CAPACITY AND
SPECIFICATION

See

Transfer Case Fluid Capacity and

Specification

(page 539).

238

Four-Wheel Drive

(If Equipped)

FOUR-WHEEL DRIVE –
TROUBLESHOOTING

FOUR-WHEEL DRIVE – WARNING
LAMPS

Illuminates when a four-wheel
drive or power train fault is

present.

Note:

When a system fault is present, the

system can typically remain in whichever
mode was selected prior to the fault
condition occurring. It does not default to
two-wheel drive in all circumstances. When
this warning is displayed, have your vehicle
serviced by an authorized dealer.

FOUR-WHEEL DRIVE – INFORMATION MESSAGES

Action

Message

A four-wheel drive system fault is present.

Have the system checked as soon as

possible.

Check 4x4

The four-wheel drive system is making a

shift.

4x4 Shift in Progress

Displays when you attempt to switch to

four-wheel drive low mode and you do not

shift the transmission to neutral (N).

For 4x4 LOW Shift to N

Displays when you attempt to switch to

four-wheel drive low mode and your

vehicle's speed is greater than 3 mph

(5 km/h).

For 4x4 LOW Slow to 3 MPH

For 4x4 LOW Slow to 5 km/h

Displays when you attempt to switch from
four-wheel drive low mode and you do not

shift the transmission to neutral (N).

To Exit 4x4 LOW Shift to N

Displays when you attempt to switch from

four-wheel drive low mode and your

vehicle's speed is greater than 3 mph

(5 km/h).

To Exit 4x4 LOW Slow to 3 MPH

To Exit 4x4 LOW Slow to 5 km/h

Displays when there is a transfer case gear

tooth blockage while shifting to or from

four-wheel drive low mode or to the neutral

state. Place the transmission in a forward

gear, move your vehicle forward approxim-
ately 5 ft (1.5 m), and shift the transmission

back to neutral (N) to allow the transfer

case to complete the range shift.

Shift Delayed Drive Forward

239

Four-Wheel Drive

(If Equipped)

Action

Message

Displays when the system requires an

additional transmission shift to neutral (N)

to complete a transfer case shift.

Shift to Neutral

Displays when the system is unable to

engage four-wheel drive high and requires

the driver to slow down before attempting

to engage.

To Engage 4x4 Slow to 3 MPH

To Engage 4x4 Slow to 5 km/h

Displays when the four-wheel drive system

requests that you release the accelerator

pedal to complete a four-wheel drive shift.
See

Selecting a Four-Wheel Drive Mode

(page 237).

To Engage 4x4 Release Accelerator Pedal

Displays when the four-wheel drive system

detects a mechanical shift block when

shifting out of four-wheel drive high. See

Four-Wheel Drive Limitations

(page 235).

4x4 Unable to Disengage See Manual

FOUR-WHEEL DRIVE VIDEOS

4-Wheel-Drive Systems Video Link

240

Four-Wheel Drive

(If Equipped)

WHAT IS THE ELECTRONIC
LOCKING DIFFERENTIAL

The electronic locking differential is a
device housed in the rear axle and when
activated, allows both wheels on that axle
to turn at the same speed. The electronic
locking differential provides additional
traction should your vehicle become stuck.

HOW DOES THE ELECTRONIC
LOCKING DIFFERENTIAL
WORK

You can activate the differential
electronically and shift it on the fly within
the operating speed range. The electronic
differential disengages when the vehicle
speed exceeds a set value and it reengages
when the vehicle speed drops below a set
value. See

Switching the Electronic

Locking Differential On and Off

(page

242). The electronic locking differential
could engage based on certain selected
drive modes. See

Selecting a Drive Mode

(page 309). The electronic locking
differential is for use in mud, rocks, sand,
or any off-road condition where you need
maximum traction.

Note:

The electronic locking differential is

for off-road use only and is not for use on
dry pavement. Using the electronic locking
differential on dry pavement results in
increased tire wear, noise and vibration.

Note:

The electronic locking differential

activates or deactivates automatically
based on speed, four-wheel drive mode, and
drive mode selection. See

Switching the

Electronic Locking Differential On and
Off

(page 242).

ELECTRONIC LOCKING
DIFFERENTIAL PRECAUTIONS

Operating the Electronic Locking
Differential with a Spare or
Mismatched Tires

On vehicles with an electronic locking
differential, the size of the spare tire can
affect performance of the system. If there
is a significant difference between the two
rear tires, you may have limited electronic
locking differential functionality. If the
system has difficulty disengaging, release
the accelerator pedal and turn the steering
wheel in the opposite direction when
rolling. We recommend engaging and
disengaging the electronic locking
differential at a stop when you mount a
spare on the rear axle.

SWITCHING THE ELECTRONIC
LOCKING DIFFERENTIAL ON
AND OFF - 4X4

Press the electronic lock differential switch
to engage and disengage the locking
differential.

E373433

242

Electronic Locking Differential

(If Equipped)

4X4 Rear Electronic Locking Differential Engagement Speed and Availability

Automatic Re-

Engagement Speed

Automatic Disen-

gagement Speed

Maximum Engage-

ment Speed

Drive Modes

20 mph (30 km/h)

25 mph (41 km/h)

20 mph (30 km/h)

Eco (2H, 4H)

20 mph (30 km/h)

25 mph (41 km/h)

20 mph (30 km/h)

Tow/Haul Mode

(2H,4H)

20 mph (30 km/h)

25 mph (41 km/h)

20 mph (30 km/h)

Normal (2H, 4H)

20 mph (30 km/h)

25 mph (41 km/h)

20 mph (30 km/h)

Slippery (2H, 4H)

No Speed Limit

Off-Road (4H, 4L)

No Speed Limit

Rock Crawl (4L)

Engages when you select these drive modes. You have the ability to manually override

the automatic engagement by pressing the electronic locking differential.

Engages when you select these drive modes. You have the ability to manually override

the automatic engagement by pressing the electronic locking differential. Only available
with Tremor Package.

Automatic Re-

Engagement Speed

Automatic Disen-

gagement Speed

Maximum Engage-

ment Speed

4WD Mode

No Speed Limit

Four-Wheel Drive

Low (4L)

Note:

The electronic locking differential

may not engage if you press the accelerator
pedal during an engagement attempt. A
message could display in the instrument
cluster display guiding you to release the
accelerator pedal.

Note:

Switching the electronic locking

differential off while turning results in
disengagement difficulties. If the electronic
locking differential has difficulty
disengaging, release the accelerator pedal
and turn the steering wheel back and forth
in small increments while maintaining
control and following a straight line.

Note:

The electronic locking differential is

for off-road use only and is not for use on
dry pavement. Using the electronic locking
differential on dry pavement results in
increased tire wear, noise and vibration.

Note:

Do not perform this operation when

cruise control or trail control is selected and
active. The system may not engage or
disengage as expected.

243

Electronic Locking Differential

(If Equipped)

SWITCHING THE ELECTRONIC
LOCKING DIFFERENTIAL ON
AND OFF - 4X2

Press the electronic locking differential
switch to engage and disengage the
electronic locking differential.

4X2 Rear Electronic Locking
Differential Engagement Speed and
Availability

Automatic

Re-Engage-

ment Speed

Automatic

Disengage-

ment Speed

Maximum

Engagement

Speed

20 mph

(30 km/h)

25 mph

(41 km/h)

20 mph

(30 km/h)

Note:

The electronic locking differential can

activate or deactivate automatically based
on speed, four-wheel drive mode, and drive
mode selection. See

Selecting a Drive

Mode

(page 309).

E373432

Note:

The electronic locking differential

may not engage if you press the accelerator
pedal during an engagement attempt. A
message could display in the instrument
cluster display guiding you to release the
accelerator pedal.

Note:

Switching the electronic locking

Note:

The electronic locking differential is

for off-road use only and is not for use on
dry pavement. Using the electronic locking
differential on dry pavement results in
increased tire wear, noise and vibration.

Note:

Do not perform this operation when

cruise control or trail control is selected and
active. The system may not engage or
disengage as expected.

ELECTRONIC LOCKING
DIFFERENTIAL INDICATORS

E325779

If both rear wheel axle shafts
lock together, the indicator in the
cluster is amber, providing

additional traction.

If you select the electronic locking
differential and the indicator in the cluster
is gray or turns from amber to gray while
driving, one of the following has occurred:

•

The vehicle speed is too high.

•

The accelerator pedal is too high during
an engagement attempt.

•

The vehicle is experiencing an anti-lock
brake activation.

•

The left and right wheel speed
difference is too high during an
engagement attempt.

If you select the electronic locking
differential and the indicator in the cluster
does not turn on, the following has
occurred:

244

Electronic Locking Differential

(If Equipped)

•

The system has malfunctioned and
accompanies a check locking
differential message in the information
display. See your dealer as soon as
possible.

Note:

If the vehicle is experiencing an

anti-lock braking event, the electronic
locking differential may momentarily
disengage.

ELECTRONIC LOCKING DIFFERENTIAL – TROUBLESHOOTING

ELECTRONIC LOCKING DIFFERENTIAL – INFORMATION MESSAGES

Description and Action

Message

An electronic locking differential system fault is present.

Contact an authorized dealer as soon as possible.

Check Locking Differen-

tial

Release the accelerator pedal to engage.

To Engage Locking

Differential Release

Accelerator Pedal

245

Electronic Locking Differential

(If Equipped)

BRAKE PRECAUTIONS

Wet brakes result in reduced braking
efficiency. Gently press the brake pedal a
few times when leaving a car wash or
driving from standing water to dry the
brakes.

Note:

Depending on applicable laws and

regulations in the country for which your
vehicle was originally built, your brake lamps
may flash during heavy braking. Following
this, your hazard lights may also flash when
your vehicle comes to a stop.

ANTI-LOCK BRAKING SYSTEM

ANTI-LOCK BRAKING SYSTEM
LIMITATIONS

The anti-lock braking system does not
eliminate the risk of crash when:
•

You drive too closely to the vehicle in
front of you.

•

Your vehicle is hydroplaning.

•

You take corners too fast.

•

The road surface is poor.

Note:

If the system activates, the brake

pedal could pulse and travel further.
Maintain pressure on the brake pedal.

BRAKE OVER ACCELERATOR

In the event the accelerator pedal
becomes stuck or entrapped, apply steady
and firm pressure to the brake pedal to
slow the vehicle and reduce engine power.
If you experience this condition, apply the
brakes and bring your vehicle to a safe
stop. Move the transmission to park (P),
switch the engine off and apply the parking
brake. Inspect the accelerator pedal for
any interference. If none are found and the
condition persists, have your vehicle towed
to the nearest authorized dealer.

LOCATING THE BRAKE FLUID
RESERVOIR

See

Under Hood Overview

(page 440).

CHECKING THE BRAKE FLUID

WARNING:

Do not use any fluid

other than the recommended brake fluid
as this will reduce brake efficiency. Use
of incorrect fluid could result in the loss
of vehicle control, serious personal injury
or death.

WARNING:

Only use brake fluid

from a sealed container. Contamination
with dirt, water, petroleum products or
other materials may result in brake
system damage or failure. Failure to
adhere to this warning could result in the
loss of vehicle control, serious personal
injury or death.

WARNING:

Do not allow the fluid

to touch your skin or eyes. If this
happens, rinse the affected areas
immediately with plenty of water and
contact your physician.

WARNING:

The brake system

could be affected if the brake fluid level
is below the

MIN

mark or above the

MAX

mark on the brake fluid reservoir.

Park your vehicle on a level surface.

246

Brakes

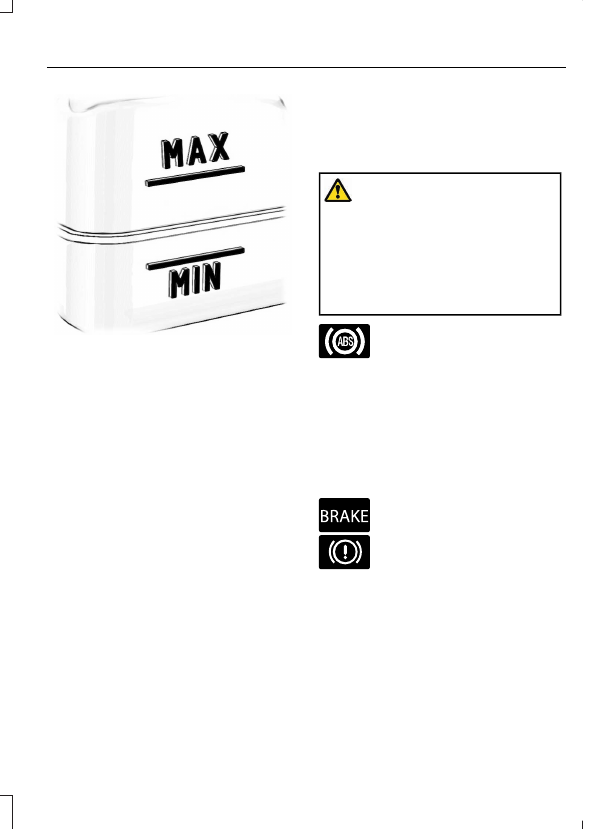

E170684

2. Look at the brake fluid reservoir to see

where the brake fluid level is relative
to the

MIN

and the

MAX

marks on the

reservoir.

Note:

To avoid fluid contamination, the

reservoir cap must remain in place and fully
tight, unless you are adding fluid.

Only use fluid that meets our
specifications. See

Capacities and

Specifications

(page 520).

BRAKE FLUID SPECIFICATION

See

Brake Fluid Specification

(page 538).

BRAKES –
TROUBLESHOOTING

BRAKES – WARNING LAMPS

WARNING:

Driving your vehicle

with the warning lamp on is dangerous.
A significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

E67020

If the ABS indicator illuminates
when you are driving, this
indicates a malfunction. Your

vehicle continues to have normal braking
without the anti-lock braking system
function. See an authorized dealer.

It also momentarily illuminates when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have the system checked
by an authorized dealer.

E270480

E67024

The brake indicator momentarily
illuminates when you switch the
ignition on to confirm the lamp

is functional. It may also illuminate when
you apply the parking brake and the
ignition is on. If it illuminates when your
vehicle is moving, make sure the parking
brake is disengaged. If the parking brake
is disengaged, this indicates low brake fluid
level or a brake system fault. See an
authorized dealer.

Note:

Lamps may vary depending on region.

247

Brakes

BRAKES – FREQUENTLY ASKED
QUESTIONS

Is it normal for my brakes to make
noise?

Occasional brake noise is normal. If a
metal-to-metal, continuous grinding, or
squeal sound is present, the brake lining
could be worn. Have the system checked.

There is an electrical motor sound
when I press on the brake pedal or
activate the park brake switch. Is
this normal?

Yes, those sounds are the electronic brake
booster or the electronic park brake
operating.

Note:

Brake dust could accumulate on the

wheels, even under normal driving
conditions. Some dust is normal as the
brakes wear and does not contribute to
brake noise. See

Cleaning Wheels

(page

469).

249

Brakes

Ford F-350 (2024 year). Manual in english - page 7
