Immobile Vehicle Out of Park (P)

In snow and ice, all-wheel drive vehicles
have advantages over two-wheel drive
vehicles but can still skid. When driving on
snowy or icy roads, should you start to
slide, turn the steering wheel in the
direction of the slide until you regain
control.

477

Driving Hints

On snow and ice, avoid suddenly applying
power and avoid quick change of direction.
Apply the accelerator slowly and steadily
when starting from a stop.

Avoid sudden braking. An all-wheel drive
vehicle may accelerate better than a
two-wheel drive vehicle in snow and ice.
However, an all-wheel drive vehicle will
not stop any faster, as braking occurs at
all four wheels. Do not become
overconfident to road conditions.

FLOOR MATS

WARNING:

Use a floor mat

designed to fit the footwell of your
vehicle that does not obstruct the pedal
area. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Pedals that cannot

move freely can cause loss of vehicle
control and increase the risk of serious
personal injury.

WARNING:

Secure the floor mat

to both retention devices so that it
cannot slip out of position and interfere
with the pedals. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Do not place additional

floor mats or any other covering on top
of the original floor mats. This could
result in the floor mat interfering with the
operation of the pedals. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Always make sure that

objects cannot fall into the driver foot
well while your vehicle is moving. Objects
that are loose can become trapped
under the pedals causing a loss of
vehicle control.

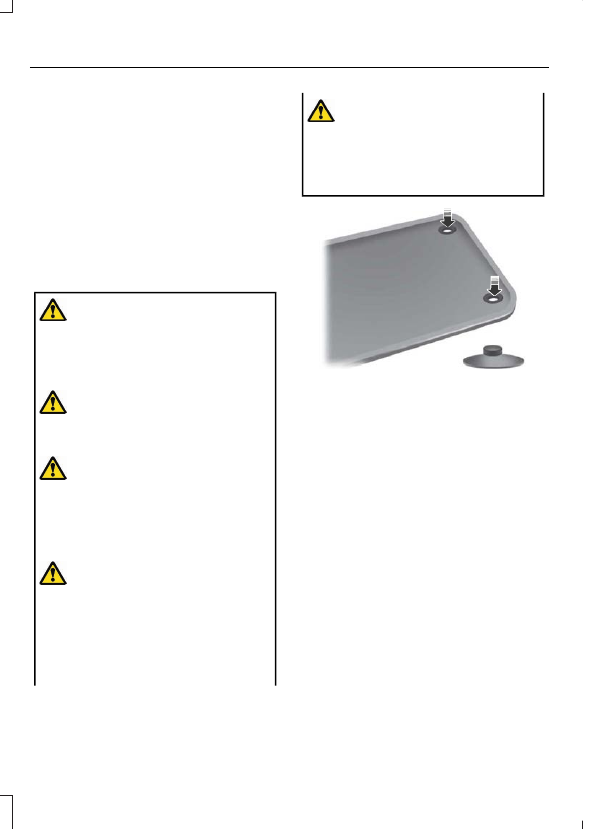

E142666

To install floor mats that have eyelets,
position the floor mat eyelet over the
retention post and press down to lock in
position. Repeat for all eyelets on the floor
mat.

To remove the floor mats, reverse the
installation procedure.

Note:

Regularly check the floor mats to

make sure they are secure.

478

Driving Hints

ROADSIDE ASSISTANCE

Vehicles Sold in the United States:
Getting Roadside Assistance

If you have a vehicle concern, Ford Motor
Company offers a complimentary roadside
assistance program. This program is
separate from the New Vehicle Limited
Warranty.

The service is available:
•

24 hours a day, seven days a week.

•

For the coverage period supplied with
your vehicle.

Knowing your vehicle's VIN, mileage and
your specific location allows help to get to
you faster.

Roadside Assistance covers:
•

A flat tire change with a good spare
(except vehicles supplied with a tire
inflation kit).

•

Battery jump start.

•

Lock-out assistance (key replacement
cost is the customer's responsibility).

•

Fuel delivery — independent service
contractors, if not prohibited by state,
local or municipal law, shall deliver up
to 2 gal (8 L) of gasoline or 5 gal (20 L)
of diesel fuel to a disabled vehicle.
Roadside assistance limits fuel delivery
service to two no-charge occurrences
within a 12-month period.

•

Winch out — available within 100 ft
(30 m) of a paved or county
maintained road, no recoveries.

•

Towing — independent service
contractors, if not prohibited by state,
local or municipal law, shall tow Ford
eligible vehicles to an authorized dealer
within 50 mi (80 km) of the
disablement location or to the nearest
authorized dealer. If a member
requests a tow to an authorized dealer
that is more than 50 mi (80 km) from
the disablement location, the member
shall be responsible for any mileage
costs in excess of 50 mi (80 km).
Warranty towing, non-warranty towing
and collision towing are available.

•

Roadside Assistance includes up to
$200 for a towed trailer if the disabled
eligible vehicle requires service at the
nearest authorized dealer. If the towing
vehicle is operational but the trailer is
not, then the trailer does not qualify for
any roadside services.

Vehicles Sold in the United States:
Using Roadside Assistance

United States vehicle customers who
require Roadside Assistance, call
1-800-241-3673.

If you need to arrange roadside assistance
on your own, Ford Motor Company
reimburses a reasonable amount for
towing to the nearest dealership within
50 mi (80 km). To obtain reimbursement
information, United States vehicle
customers call 1-800-241-3673.
Customers need to submit their original
receipts.

Vehicles Sold in Canada: Getting
Roadside Assistance

If you have a vehicle concern, Ford Motor
Company of Canada, Limited offers a
complimentary roadside assistance
program. This program is eligible within
Canada or the continental United States.

The service is available 24 hours a day,
seven days a week.

479

Crash and Breakdown Information

This program is separate from the New
Vehicle Limited Warranty, but the coverage
is concurrent with the powertrain coverage
period of your vehicle. Canadian roadside
coverage and benefits may differ from the
U.S. coverage. For complete details, see
your Warranty Guide at
www.ford.com/support/warranty/.

Download the Sykes4Ford Roadside
Assistance App for access to your roadside
assistance services. For more information,
scan here:

E398728

If you require more information, please call
us in Canada at 1-800-665-2006, or visit
our website at

www.ford.ca

Ford Motor Company reserves the right to
modify or discontinue Roadside Assistance
at any time. Certain restrictions apply to
Roadside Assistance benefits.

For further details, call

1-800-665-2006

(Canada)

1-800-241-3673

(United States)

HIGH VOLTAGE BATTERY
VEHICLE PRECAUTIONS

In the event of damage or fire involving an
electric vehicle or hybrid-electric vehicle:
•

Assume the high-voltage battery and
associated components are energized
and fully charged.

•

Physical damage to the vehicle or
high-voltage battery could result in
immediate or delayed release of toxic,
flammable gases and fire.

Crashes

A crash or impact significant enough to
require an emergency response for
conventional vehicles would also require
the same response for an electric or
hybrid-electric vehicle.

If Possible:
1.

Move your vehicle to a safe, nearby
location and remain on the scene.

2. Roll down the windows before you

switch your vehicle off.

3. Place your vehicle in park (P), apply

the parking brake, switch off the
vehicle, turn on the hazard flashers and
move the key at least 16 ft (5 m) away
from the vehicle.

Always:
•

Call emergency assistance if needed
and advise that an electric or
hybrid-electric vehicle is involved.

•

Avoid contact with leaking fluids and
gases, and remain out of the way of
oncoming traffic until emergency
responders arrive.

•

When emergency responders arrive,
tell them that the vehicle involved is an
electric vehicle or hybrid-electric
vehicle.

480

Crash and Breakdown Information

Fires

As with any vehicle, call emergency
assistance immediately if you see sparks,
smoke or flames coming from the vehicle.
Remain a safe distance from the vehicle
and try to stay clear of the smoke.

Exit the vehicle immediately.

2. Advise emergency assistance that an

electric or hybrid-electric vehicle is
involved.

3. As with any vehicle fire, do not inhale

smoke, vapors or gas from the vehicle,
as they may be hazardous.

Post-Incident

Do not store a severely damaged
vehicle with a lithium-ion battery inside
a structure or within 50 ft (15 m) of any
structure or vehicle.

2. Make sure that passenger and luggage

compartments remain ventilated.

3. As with any vehicle, call emergency

assistance immediately if you see
sparks, smoke or flames coming from
the vehicle.

SWITCHING THE HAZARD
FLASHERS ON AND OFF

E75790

The hazard flasher button is on
the instrument panel. Press the
button to switch the hazard

flashers on if your vehicle is creating a
safety hazard for other road users.

When you switch the hazard flashers on,
all front and rear direction indicators flash.

Note:

The hazard flashers operate when

the ignition is in any position, or if the key is
not in the ignition. The battery loses charge
and could have insufficient power to restart
your vehicle.

Press the button again to switch them off.

JUMP STARTING THE VEHICLE

JUMP STARTING PRECAUTIONS

WARNING:

Batteries normally

produce explosive gases which can
cause personal injury. Therefore, do not
allow flames, sparks or lighted
substances to come near the battery.
When working near the battery, always
shield your face and protect your eyes.
Always provide correct ventilation.

WARNING:

Keep batteries out of

reach of children. Batteries contain
sulfuric acid. Avoid contact with skin,
eyes or clothing. Shield your eyes when
working near the battery to protect
against possible splashing of acid
solution. In case of acid contact with skin
or eyes, flush immediately with water for
a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed,
call a physician immediately.

WARNING:

Use only adequately

sized cables with insulated clamps.

WARNING:

Make sure that the

cables are clear of any moving parts and
fuel delivery system parts.

WARNING:

Connect batteries with

only the same nominal voltage.

WARNING:

If the engine is running

while the hood is open, stay clear of
moving engine components. Failure to
follow this warning could result in serious
personal injury or death.

Do not attempt to push-start an automatic
transmission vehicle. This could cause
transmission damage.

481

Crash and Breakdown Information

Do not disconnect the battery of the
disabled vehicle. This could damage your
vehicle's electrical system.

PREPARING THE VEHICLE

Use only a 12 volt supply to start your
vehicle.

Park the booster vehicle close to the hood
of the disabled vehicle, making sure the
two vehicles do not touch.

JUMP STARTING THE VEHICLE

Connecting the Jumper Cables

WARNING:

Do not connect the

negative jumper cable to any other part
of your vehicle. Use the ground point.

Note:

If you are using a jump pack or

booster box, follow the manufacturer's
instructions.

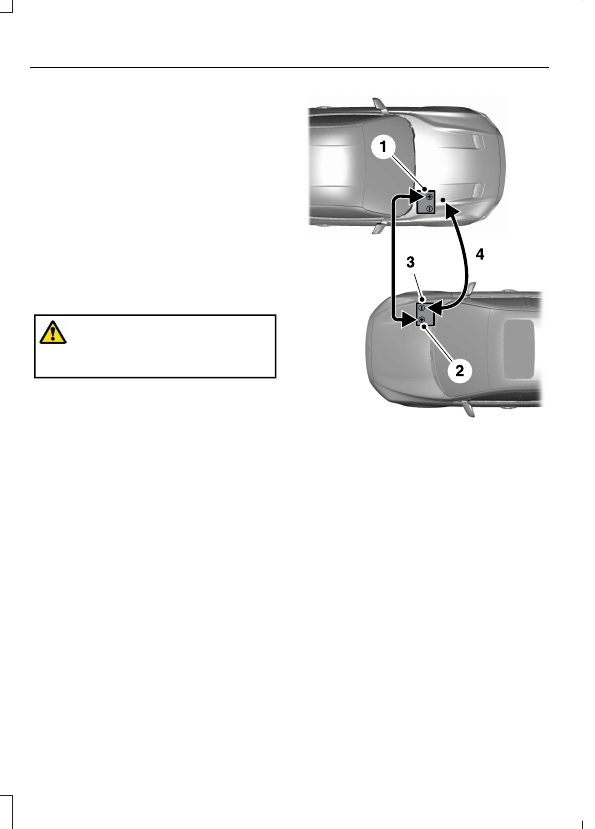

E281345

Pull the red rubber boot backward.
Connect the positive (+) jumper cable
to the positive (+) terminal of the
discharged battery.

2. Connect the other end of the positive

(+) jumper cable to the positive (+)
terminal of the booster vehicle battery.

3. Connect the negative (-) jumper cable

to the negative (-) terminal of the
booster vehicle battery.

4. Make the final connection of the

negative (-) jumper cable to an
exposed metal part of the disabled
vehicle's engine, as shown in the
following illustration, away from the
battery and fuel injection system, or
connect the negative (-) jumper cable
to a ground connection point if
available.

482

Crash and Breakdown Information

Note:

Do not use the hood latch as a

negative (-) connection point. This could
cause springs in the latch to burn and
prevent the hood from operating correctly.

E309115

Starting the Engine

Start the engine of the booster vehicle
and moderately rev the engine, or
gently press the accelerator to keep
the engine speed between 2000 and
3000 RPM, as shown in your
tachometer.

2. Start the engine of the disabled vehicle.

3. Once you start the disabled vehicle, run

both vehicle engines for an additional
three minutes before disconnecting the
jumper cables.

Removing the Jumper Cables

Remove the jumper cables in the reverse
order that they were connected.

Note:

Do not switch the headlamps on

when disconnecting the cables. The peak
voltage could blow the bulbs.

POST-CRASH ALERT SYSTEM

WHAT IS THE POST-CRASH
ALERT SYSTEM

The system helps draw attention to your
vehicle in the event of a serious impact.

HOW DOES THE POST-CRASH
ALERT SYSTEM WORK

The system is designed to turn the hazard
flashers on, turn the courtesy lamps on,
intermittently sound the horn and unlock
all doors in the event of a serious impact
that deploys an airbag or the seatbelt
pretensioners.

POST-CRASH ALERT SYSTEM
LIMITATIONS

Depending on applicable laws in the
country your vehicle was built for, the horn
does not sound in the event of a serious
impact.

SWITCHING THE POST-CRASH
ALERT SYSTEM OFF

Press the hazard flasher switch, the unlock
button on the remote control, the panic
button on the remote control or cycle the
ignition to switch the system off.

Note:

The alert turns off when the vehicle

battery runs out of charge.

POST-COLLISION BRAKING

How Does Post-Collision Braking
Work

In the event of a moderate to severe crash,
the braking system reduces the vehicle’s
speed to prevent or reduce the impact of
a potential secondary crash.

483

Crash and Breakdown Information

Post-Collision Braking Limitations

Post-collision braking does not activate if
any of the following occur:

•

The anti-lock braking system is
damaged during the collision.

•

Electronic stability control is disabled.

Overriding Post-Collision Braking

You can override post-collision braking by
pressing the brake or accelerator pedal.

Post-Collision Braking Indicators

E138639

It flashes when a post-collision
braking event is occurring.

AUTOMATIC CRASH SHUTOFF

WHAT IS AUTOMATIC CRASH
SHUTOFF

The automatic crash shutoff is designed
to stop the fuel going to the engine in the
event of a moderate or severe crash.

Note:

Not every impact causes a shutoff.

AUTOMATIC CRASH SHUTOFF

PRECAUTIONS

WARNING:

If your vehicle has been

involved in a crash, have the fuel system
checked. Failure to follow this instruction
could result in fire, personal injury or
death.

RE-ENABLING YOUR VEHICLE

Switch the ignition off.

2. Attempt to start your vehicle.

3. Switch the ignition off.

4. Attempt to start your vehicle.

Note:

If your vehicle does not start after the

third attempt, have your vehicle checked as
soon as possible.

RECOVERY TOWING

(IF EQUIPPED)

ACCESSING THE FRONT TOWING
POINT

WARNING:

Using recovery hooks

is dangerous and should only be done by
a person familiar with proper vehicle
recovery safety practices. Improper use
of recovery hooks may cause hook failure
or separation from the vehicle and could
result in serious injury or death.

WARNING:

Slowly remove the

slack from the recovery strap prior to
pulling. Failure to do so can introduce
significantly higher loads which can
cause the recovery hooks to break off, or
the recovery strap to fail which can cause
serious injury or death.

WARNING:

Never link two straps

together with a clevis pin. These heavy
metal objects could become projectiles
if the strap breaks and can cause serious
injury or death.

WARNING:

Switch the ignition off

before removing the recovery hook.
Failure to do so could result in personal
injury.

WARNING:

The recovery hook can

become hot. Let the recovery hook cool
down before removing it. Failure to do
so could result in personal injury.

Your vehicle has frame-mounted front
recovery hooks.

484

Crash and Breakdown Information

Note:

Do not apply a load to the recovery

hooks that is greater than the gross vehicle
weight rating of your vehicle.

Before using recovery hooks:
•

Make sure all attaching points are
secure and capable of withstanding
the applied load.

•

Do not use chains, cables or tow straps
with metal hook ends.

•

Only use recovery straps that have a
minimum breaking strength two to
three times the gross vehicle weight of
the stuck vehicle.

•

Make sure the recovery strap is in good
condition and free of visible cuts, tears
or damage.

•

Use a damper device such as a tarp,
heavy blanket or piece of carpet, and
place it over the recovery strap to help
absorb the energy in the event the
strap breaks.

•

Make sure the stuck vehicle is not
loaded heavier than its gross vehicle
weight rating specified on the
certification label.

•

Align the tow vehicle and stuck vehicle
in a straight line, within 10 degrees.

•

Keep bystanders to the sides of the
vehicle, at a distance of at least twice
the length of the recovery strap. This
helps avoid injury from the hazard of a
recovery hook or strap breaking, or a
vehicle lurching into their path.

Note:

Use towing equipment that is

properly rated for your vehicle. Always
carefully follow the instructions and
warnings provided by the equipment
manufacturer.

TRANSPORTING THE VEHICLE

E143886

If you need to tow your vehicle, contact a
professional towing service or your
roadside assistance service provider.

Your manufacturer produces a towing
manual for all authorized tow truck
operators. Have your tow truck operator
refer to this manual for proper hook-up
and towing procedures.

We recommend the use of a wheel lift and
dollies or flatbed equipment to tow your
vehicle. Vehicle damage could occur if
towed incorrectly, or by any other means.

Front-wheel and rear-wheel drive vehicles
must have their designated drive wheels
off the ground regardless of towing
direction. Use tow dollies to prevent
damage to the transmission.

485

Crash and Breakdown Information

All-wheel or four-wheel drive vehicles
require that all wheels be off the ground
using a wheel lift and dollies or flatbed
equipment. This prevents damage to the
transmission and drive system.

Note:

You need to switch on the ignition to

unlock the steering.

Note:

Make sure you check the steering

column before towing. It could lock if the
battery is dead.

FAIL-SAFE COOLING

WHAT IS FAIL-SAFE COOLING

Fail-safe cooling allows you to temporarily
drive your vehicle before any incremental
component damage occurs due to
overheating.

The fail-safe distance depends on outside
temperature, vehicle load and terrain.

HOW DOES FAIL-SAFE COOLING
WORK

If the engine reaches a preset
over-temperature condition, the engine
automatically switches to alternating
cylinder operation. Each disabled cylinder
acts as an air pump and cools the engine.

When this occurs, your vehicle still
operates, however:
•

Engine power is limited.

•

The air conditioning system turns off.

Continued operation increases the engine
temperature, causing the engine to
completely shut down. Your steering and
braking effort increases in this situation.

When the engine temperature cools, you
can re-start the engine.

Note:

Have your vehicle checked as soon

as possible to minimize engine damage.

DRIVING WHEN FAIL-SAFE MODE
IS ACTIVATED

WARNING:

Fail-safe mode is for

use during emergencies only. Operate
your vehicle in fail-safe mode only as
long as necessary to bring your vehicle
to rest in a safe location and seek
immediate repairs. When in fail-safe
mode, your vehicle will have limited
power, will not be able to maintain
high-speed operation, and may
completely shut down without warning,
potentially losing engine power, power
steering assist, and power brake assist,
which may increase the possibility of a
crash resulting in serious injury.

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

Continued operation increases the engine
temperature, causing the engine to
completely shut down. Your steering and
braking effort increases in this situation.

When the engine temperature cools, you
can re-start the engine. Have your vehicle
checked as soon as possible to minimize
engine damage.

Your vehicle has limited engine power
when in the fail-safe mode, drive your
vehicle with caution. Your vehicle does not
maintain high-speed operation and the
engine may operate poorly.

Remember that the engine is capable of
automatically shutting down to prevent
engine damage. In this situation:

486

Crash and Breakdown Information

Pull off the road as soon as safely
possible and switch the engine off.

2. If you are a member of a roadside

assistance program, we recommend
that you contact your roadside
assistance service provider.

3. If this is not possible, wait for a short

period of time for the engine to cool.

4. Check the coolant level. If the coolant

level is at or below the minimum mark,
add prediluted coolant immediately.

5. When the engine temperature cools,

you can re-start the engine. Have your
vehicle checked as soon as possible to
minimize engine damage.

Note:

Driving your vehicle without repair

increases the chance of engine damage.

FAIL-SAFE COOLING INDICATORS

E103308

If the engine begins to overheat,
the coolant temperature gauge
moves toward the red zone.

E67028

A warning lamp illuminates and
a message may appear in the
instrument cluster display.

487

Crash and Breakdown Information

TOWING YOUR VEHICLE
PRECAUTIONS

Use the following guidelines when towing
your vehicle. Failure to follow this
instruction could result in vehicle damage
not covered by the vehicle warranty.

Note:

Make sure you properly secure your

vehicle to the tow vehicle.

Note:

If you are unsure of the vehicle’s

configuration, contact an authorized dealer.

RECREATIONALLY TOWING
YOUR VEHICLE - 4X4

WARNING:

Do not disconnect the

battery when recreationally towing your
vehicle. This prevents the transfer case
from shifting properly and could cause
the vehicle to roll, even if the
transmission is in park (P).

WARNING:

Placing the transfer

case in its neutral position could cause
your vehicle to freely roll. Make sure you
press and hold the brake pedal and the
vehicle is in a secure, safe position when
you place the transfer case in its neutral
position.

Follow these guidelines if you have a need
for recreational towing. An example of
recreational towing would be towing your
vehicle behind a motorhome. These
guidelines are to make sure that you do
not damage the transmission.

You can only tow your vehicle with all
wheels on the ground by placing the
transfer case in its neutral position and
engaging the recreational tow feature.
Perform the following steps after
positioning your vehicle behind the tow
vehicle and properly securing them
together.

Note:

Put your climate control system in

recirculated air mode to prevent exhaust
fumes from entering your vehicle.

Note:

Failure to put the transfer case in its

neutral position can damage vehicle
components.

Note:

You can check the towing status at

any time by opening the driver door or
turning the ignition to the accessory or on
position.

Neutral Tow Enabled Leave

Transmission in Neutral

appears in the

instrument cluster display to confirm you
can recreationally tow your vehicle.

Note:

If your vehicle has an anti-theft

alarm, make sure you switch perimeter
sensing on when towing. See

Setting the

Alarm Security Level

(page 133).

Note:

If a supplemental braking system is

used when towing, your vehicle may
experience intermittent brake force.

Switching

Neutral Tow

Start your vehicle.

2. Press the

button on the four-wheel

drive mode control.

3. Place your vehicle in temporary neutral

mode. See

Temporary Neutral Mode

(page 269).

4. Switch your vehicle off by pressing the

push button ignition switch once or
turning the key as far toward the off
position as possible. A message
appears in the instrument cluster
display.

488

Towing Your Vehicle

5. Switch your vehicle to accessory mode

by pressing the push button ignition
switch once without pressing the brake
pedal or by turning the key to the on
position.

6. Press and hold the brake pedal.

Using the instrument cluster controls
on the steering wheel, select

Settings

8. Select

Neutral Tow

9. Press and hold the

button until a

confirmation message appears in the
information display.

Note:

If completed successfully, the

information display shows

Neutral Tow

Enabled Leave Transmission in Neutral

This indicates that your vehicle is safe to
tow with all wheels on the ground.

Note:

If you do not see a confirmation

message in the instrument cluster display,
you must perform the procedure again from
the beginning.

Note:

You may hear noise as the transfer

case shifts into its neutral position. This is
normal.

10.

Release the brake pedal.

11.

Leave the transmission in neutral (N)
and switch your vehicle off by
pressing the push button ignition
switch once without pressing the
brake pedal or turning the key as far
toward the off position.

Note:

Vehicles with keys do not turn to the

off position when the transmission is in
neutral (N). You must leave the key in the
ignition when towing. Use the keyless entry
keypad or an extra set of keys to lock and
unlock your vehicle.

Switching

Neutral Tow

Off

With your vehicle properly secured to
the tow vehicle, press and hold the
brake pedal and start the engine.

2. Switch your vehicle off by pressing the

push button ignition switch once or
turning the key as far towards the off
position and release the brake pedal.

3. Place your vehicle in accessory mode

by pressing the push button ignition
switch once without pressing the brake
pedal or by turning the ignition key to
the on position.

4. Press and hold the brake pedal.

5. Shift into park (P).
6. Release the brake pedal.

Note:

If completed successfully, the

instrument cluster displays

and

Neutral

Tow Disabled

Note:

You must perform the switching

neutral tow on and switching neutral tow
off procedures again from the beginning if
the indicator light and message do not
display.

Note:

You may hear a noise as the transfer

case shifts out of its neutral position. This
is normal.

Apply the parking brake, then
disconnect your vehicle from the tow
vehicle.

8. Release the parking brake, start the

engine, and shift into drive (D) to make
sure the transfer case is out of the
neutral tow position.

9. If the transfer case does not

successfully shift out of its neutral
position, set the parking brake. Have
your vehicle checked as soon as
possible.

Resolving the

Shift Delayed Drive

Forward

Message

Press and hold the brake pedal.

2. Start your vehicle.

3. Shift into neutral (N).

489

Towing Your Vehicle

4. With the vehicle running, shift into drive

(D) and let the vehicle roll forward up
to 3 ft (1 m).

Note:

You may hear a noise as the transfer

case shifts out of its neutral position. This
is normal.

5. Make sure the instrument cluster

displays

Neutral Tow Disabled

RECREATIONALLY TOWING
YOUR VEHICLE - 4X2

You cannot recreational tow your vehicle
with all wheels on the ground because
vehicle or transmission damage could
occur. You must recreational tow your
vehicle with all four wheels off the ground,
such as when using a car-hauling trailer.
Otherwise, you cannot recreational tow
your vehicle.

EMERGENCY TOWING

If your vehicle becomes inoperable without
access to wheel dollies or a vehicle
transport trailer, it can be flat-towed with
all wheels on the ground, regardless of the
powertrain and transmission configuration,
under the following conditions:
•

Your vehicle is facing forward for
towing in a forward direction.

•

Use the manual park release
procedure. See

Shifting Your

(page 271). Failure to do so may result
in damage to the transmission.

•

Maximum speed is 35 mph (56 km/h).

•

Maximum distance is 50 mi (80 km).

TOWING YOUR VEHICLE – TROUBLESHOOTING

TOWING YOUR VEHICLE – INFORMATION MESSAGES

Description

Message

The transfer case is in the neutral position and your vehicle

is safe to tow with all four wheels on the ground.

Neutral Tow Enabled

Leave Transmission in

Neutral

There is a transfer case gear tooth blockage present. With

your vehicle on, shift the transmission into drive (D) and let

the vehicle roll forward, up to 3 ft (1 m).

Shift Delayed Drive

Forward

The transfer case is not in the neutral position and your vehicle

is not safe to tow with all four wheels on the ground.

Neutral Tow Disabled

490

Towing Your Vehicle

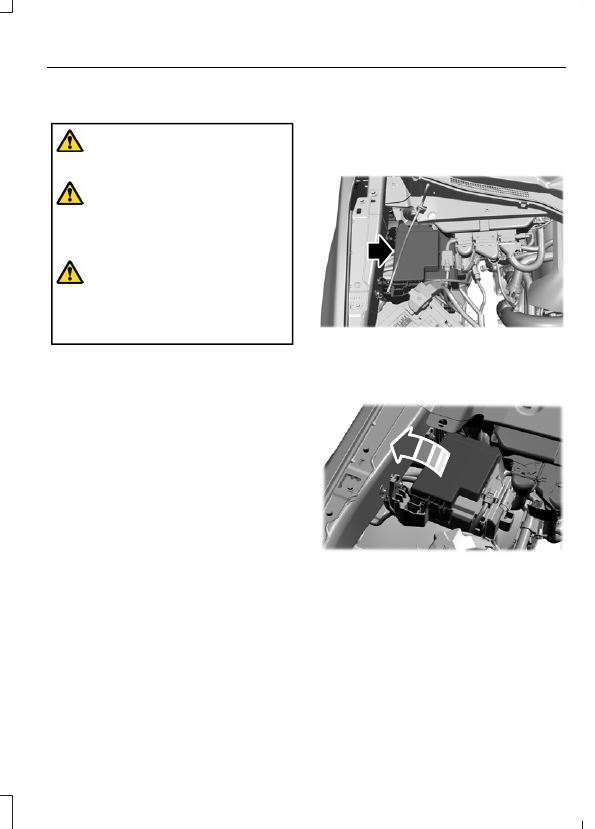

FUSE PRECAUTIONS

WARNING:

Always disconnect the

battery before servicing high current
fuses.

WARNING:

To reduce risk of

electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs.

WARNING:

Always replace a fuse

with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.

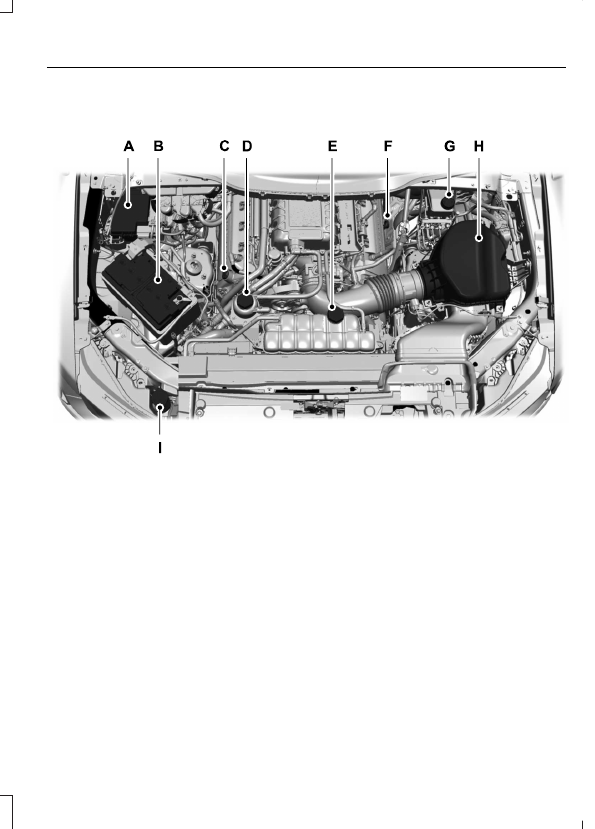

UNDER HOOD FUSE BOX

LOCATING THE UNDER HOOD
FUSE BOX

E311329

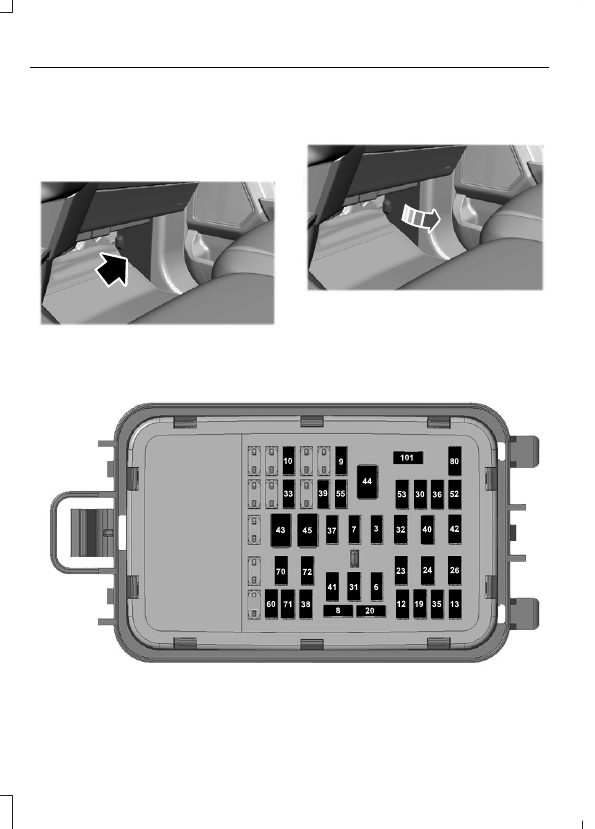

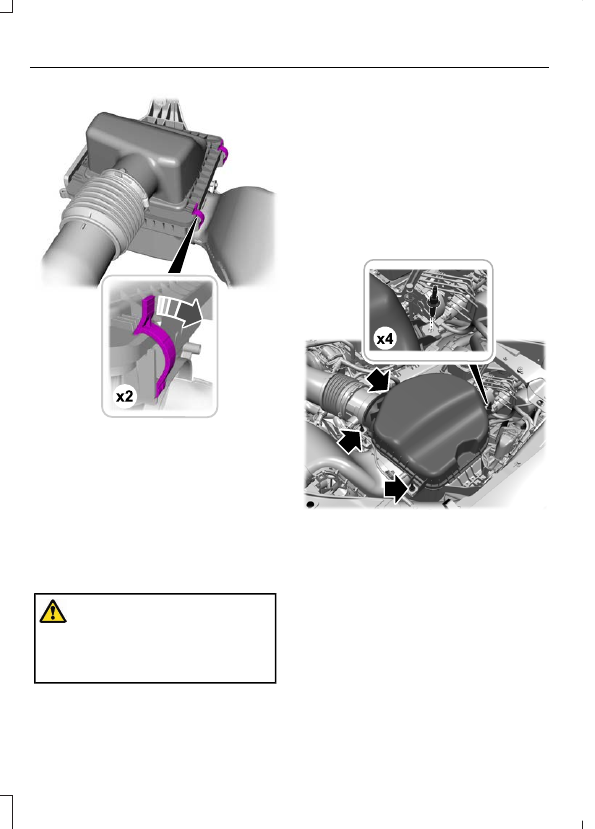

ACCESSING THE UNDER HOOD
FUSE BOX

E322941

491

Fuses

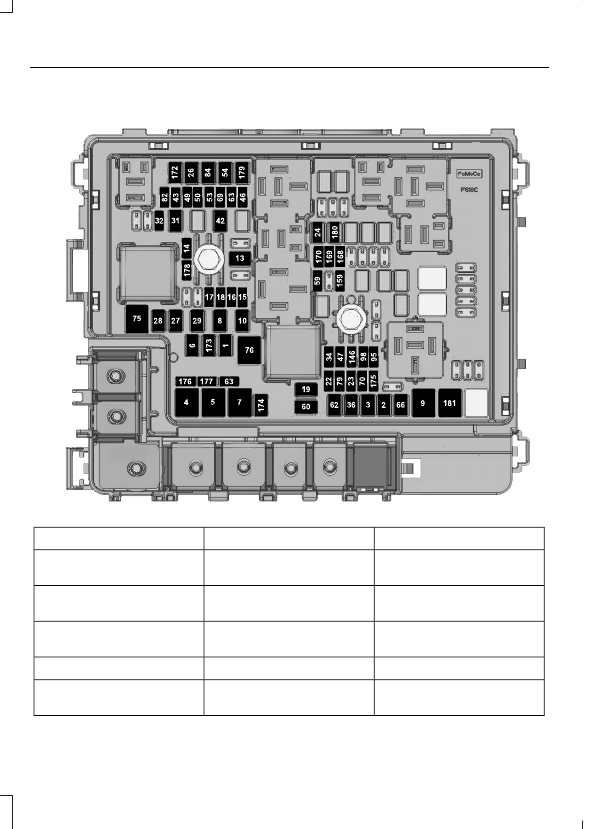

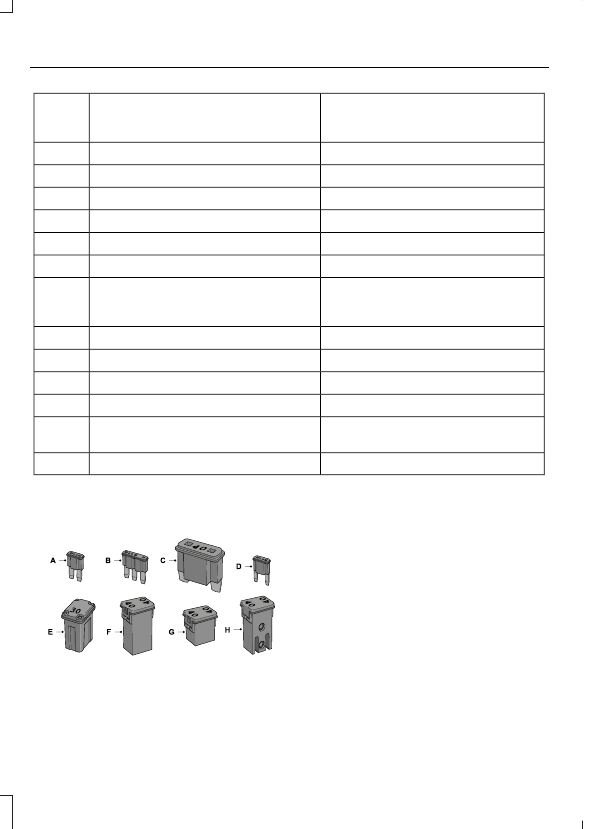

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX

E407045

Protected Component

Rating

Item

Body control module -

battery power in feed 1.

30 A

Body control module -

battery power in feed 2.

30 A

Body control module -

power feed 3.

30 A

Electric brake booster.

50 A

Customer interface module

50 A

492

Fuses

Protected Component

Rating

Item

Climate control module.

40 A

Electric brake booster.

50 A

Trailer tow 1.

30 A

Customer interface module

50 A

Trailer tow braking.

30 A

All wheel drive module.

40 A

Hybrid powertrain control

module.

10 A

Powertrain control module.

25 A

Vehicle power 2.

20 A

Vehicle power 3.

10 A

Vehicle power 4.

20 A

Transmission.

20 A

Right headlamp.

15 A

Left headlamp.

15 A

Starter.

30 A

Fuel pump.

30 A

Power outlet 1.

20 A

Power outlet 2.

20 A

Power outlet 3.

20 A

Front wiper motor.

30 A

Rain switch.

5 A

Multi access tailgate switch.

15 A

Body control module -

power feed 4.

30 A

Trailer brake control

module.

20 A

493

Fuses

Protected Component

Rating

Item

Interior power distribution

box - run/start power.

30 A

Rear seat climate control.

20 A

Spotlight.

15 A

Electric brake booster.

5 A

Powertrain control module.

5 A

Air quality/Oxides of

nitrogen sensor.

10 A

Rear heated windshield.

40 A

Horn.

25 A

Trailer tow park lamps.

30 A

Blower motor.

40 A

Trailer tow connector.

10 A

Rear sliding window.

25 A

Power steering module.

5 A

Diagnostic connector.

10 A

Electric fan 1.

50 A

Electric fan 2.

50 A

Adaptive front light.

5 A

Hybrid powertrain control

module.

5 A

Fuel injectors.

15 A

Hybrid powertrain control

module.

15 A

Engine cooling valve.

10 A

Traction battery control

module.

10 A

146

DC/DC power.

5 A

159

Traction battery control.

15 A

168

494

Fuses

Protected Component

Rating

Item

Motor electric coolant

pump.

10 A

169

Auxiliary water pump.

10 A

170

Fuel pump 2.

30 A

172

Upfitter 1.

15 A

173

Upfitter 2.

15 A

174

Upfitter 3.

10 A

175

Upfitter 4.

10 A

176

Upfitter 5.

5 A

177

Upfitter 6.

5 A

178

Charge air pump.

15 A

179

Intercooler fan.

40 A

181

Protected Component

Relay Number

Electronic fan relay 1.

R04

Electronic fan relay 3.

R06

Not used.

R35

Not used.

R36

495

Fuses

Protected Component

Fuse Rating

Fuse

Loca-

tion

Wireless charger.

7.5 A

Driver power window switch.

10 A

Gear shift module.

10 A

Cell phone passport module.

7.5 A

Overhead console combined sensing

module.

5 A

Multi-contour seat module.

25 A

Climate control.

5 A

Steering column control module.

7.5 A

Head up display.

5 A

Ignition switch.

5 A

Driver door control module.

30 A

Moonroof.

30 A

Passenger door control module.

30 A

USB charging port 1.

10 A

Terrain management switch.

10 A

Audio control module.

20 A

Instrument cluster display.

5 A

Electronic toll collection.

5 A

Interior temperature sensor.

5 A

Adjustable pedals.

15 A

Exterior mirrors.

5 A

Driver monitor.

5 A

Amplifier.

30 A

Navigation.

10 A

Voice control module.

15 A

497

Fuses

Protected Component

Fuse Rating

Fuse

Loca-

tion

Tailgate.

30 A

Driver seat.

40 A

Passenger seat.

30 A

Tailgate brake lamp.

5 A

Climate controlled rear seats.

5 A

Electrochromatic rear view mirror.

5 A

Rear sliding window.

10 A

Moonroof.

Driver power window.

Rear power window switch.

30 A

Adaptive driver assistance systems.

20 A

High mounted camera.

5 A

Towing trailer connector.

15 A

Steering column control.

15 A

Heated steering wheel.

USB charge port 3.

10 A

101

IDENTIFYING FUSE TYPES

E267379

Micro 2.

Micro 3.

Maxi.

Mini.

M Case.

J Case.

J Case Low Profile.

Slotted M Case.

FUSES – TROUBLESHOOTING

FUSES – FREQUENTLY ASKED
QUESTIONS

When do I need to check a fuse?

•

If electrical components in the vehicle
are not working.

498

Fuses

MAINTENANCE PRECAUTIONS

Service your vehicle regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. See

Capacities and

Specifications

(page 578).

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material, such as cigarettes, away from
the battery and all fuel related parts.

•

Set the parking brake, shift the
transmission to park (P) and block the
wheels.

OPENING AND CLOSING THE
HOOD

WARNING:

Make sure that you fully

latch the hood before driving. Failure to
follow this instruction could result in
personal injury or death.

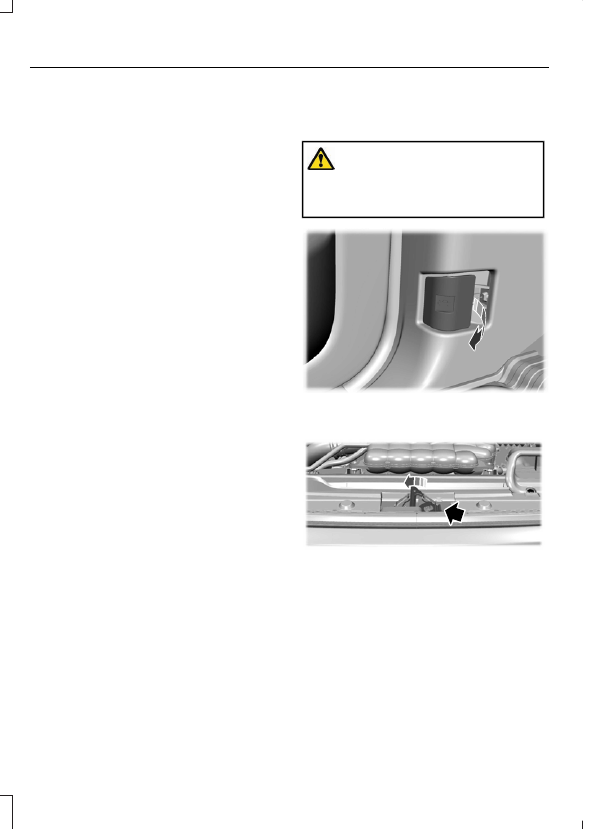

E337831

Pull the hood release handle under the
left hand side of the instrument panel.

E338104

2. Pull the secondary release lever under

the front of the hood near the center
of your vehicle.

500

Maintenance

E338089

3. Raise the hood until the lift cylinders

hold it open.

4. To close, lower the hood and make

sure that it fully latches.

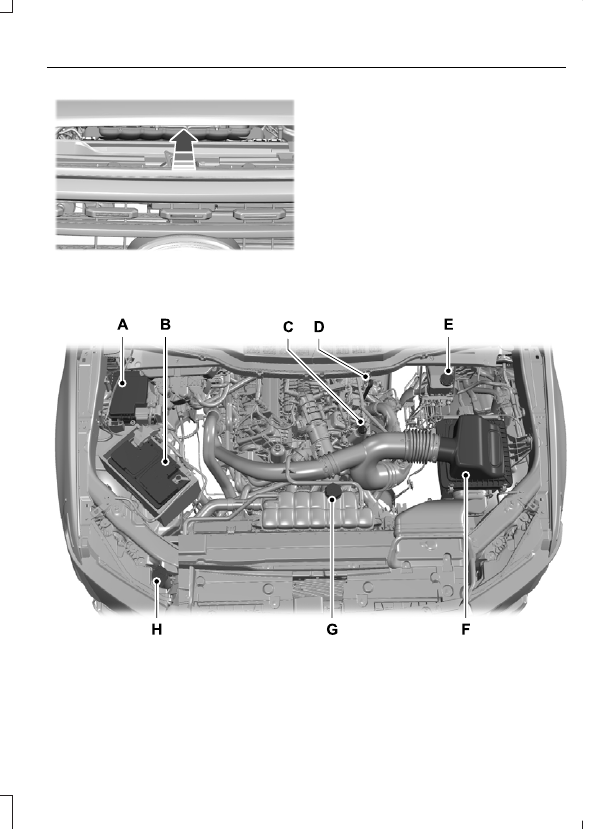

UNDER HOOD OVERVIEW - 2.7L ECOBOOST™

E337516

Engine compartment fuse box. See

Battery. See

Checking the Engine Oil Level

Engine oil filler cap. See

501

Maintenance

Engine oil dipstick. See

Brake fluid reservoir. See

Checking the Brake Fluid

Air filter assembly. See

Engine coolant reservoir. See

Windshield washer fluid reservoir.

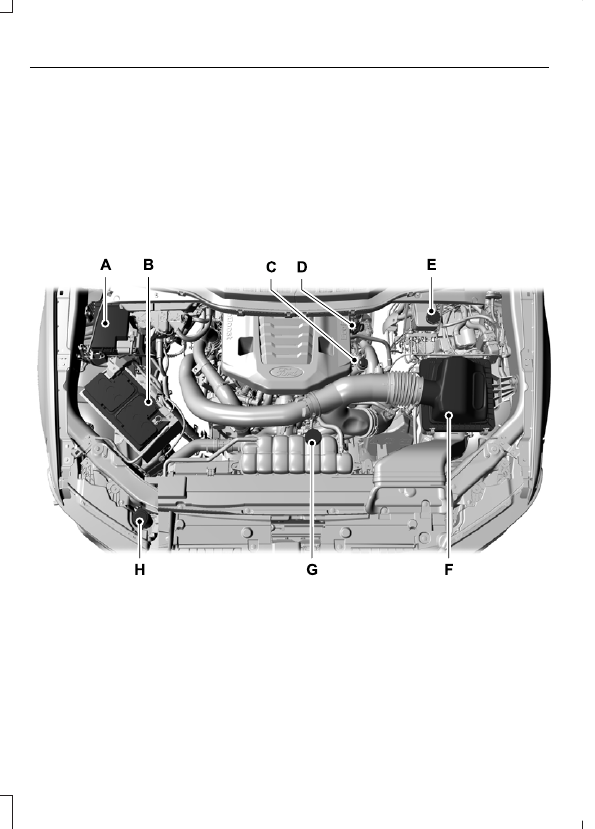

UNDER HOOD OVERVIEW - 3.5L ECOBOOST™

E313722

Engine compartment fuse box. See

Battery. See

Checking the Engine Oil Level

Engine oil filler cap. See

Engine oil dipstick. See

Brake fluid reservoir. See

Brakes

Air filter. See

502

Maintenance

Engine coolant reservoir. See

Windshield washer fluid reservoir.

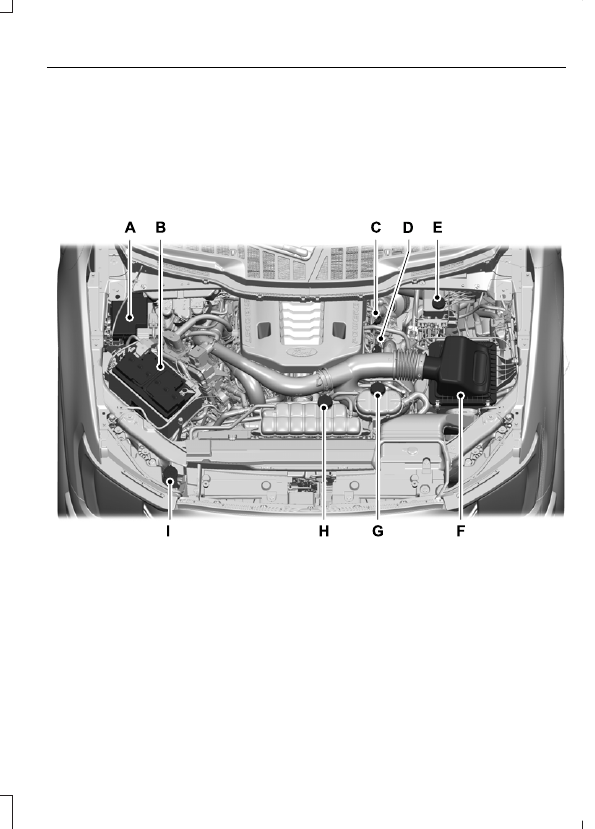

UNDER HOOD OVERVIEW - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)

E333718

Engine compartment fuse box. See

Battery. See

Engine oil dipstick. See

Engine oil filler cap. See

Adding Engine Oil

Brake fluid reservoir. See

Checking the Brake Fluid

Air filter. See

Secondary coolant reservoir. See

503

Maintenance

Engine coolant reservoir. See

Windshield washer fluid reservoir.

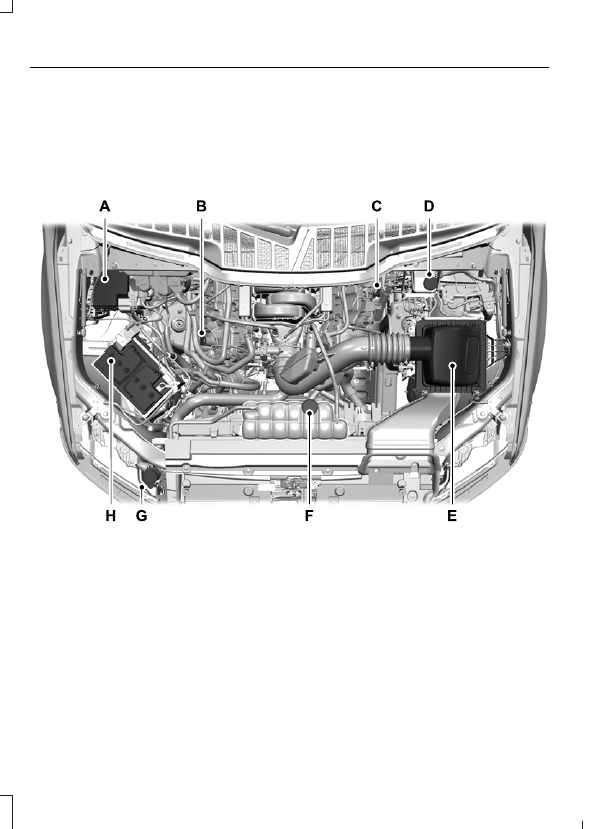

UNDER HOOD OVERVIEW - 5.0L

E346494

Engine compartment fuse box. See

Checking the Engine Oil Level

Engine oil filler cap. See

Engine oil dipstick. See

Brake fluid reservoir. See

Checking the Brake Fluid

Air filter assembly. See

Engine coolant reservoir. See

Windshield washer fluid reservoir.

Battery. See
