AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 2.0L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.4 fl oz (100 ml)

19.4 oz (0.55 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

345

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 1.5L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

4.1 fl oz (120 ml)

19.4 oz (0.55 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

346

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

Note:

We recommend you use Dot 4 Low

Viscosity (LV) High Performance Brake Fluid
meeting WSS-M6C65-A2 specifications or
ISO 4925 Class 6 standards. If you use any
fluid other than the recommended fluid, it
could cause reduced brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

347

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

LOCATING THE VEHICLE
IDENTIFICATION NUMBER

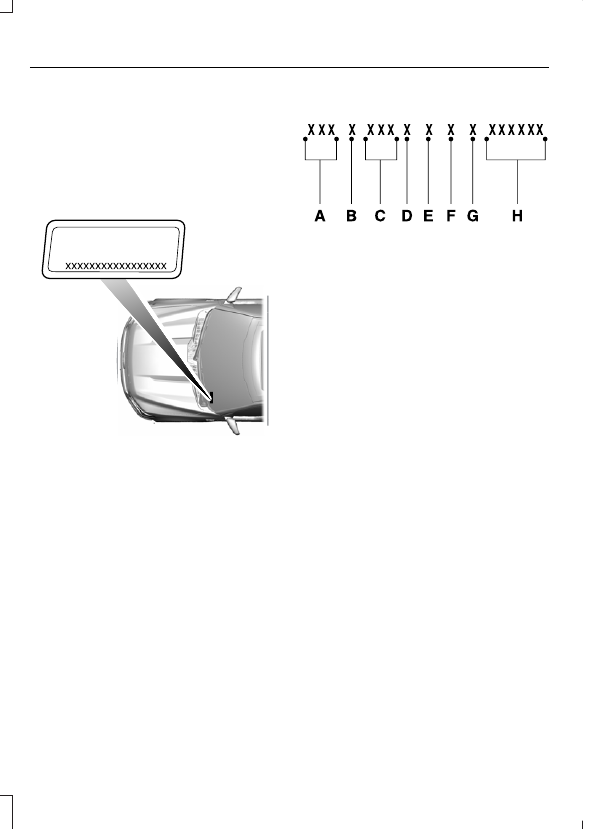

The vehicle identification number is on the
left-hand side of the instrument panel.

E311767

Note:

In the illustration, XXXX is

representative of your vehicle identification
number.

VEHICLE IDENTIFICATION
NUMBER OVERVIEW

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

Brake system, gross vehicle
weight rating, restraint devices
and their locations.

Make, vehicle line, series, body
type.

Engine or motor type.

Check digit.

Model year.

Assembly plant.

Production sequence number.

348

Vehicle Identification

WHAT IS A CONNECTED
VEHICLE

A connected vehicle has technology that
allows your vehicle to connect to a mobile
network and for you to access a range of
features. When used in conjunction with
the FordPass app, it could allow you to
monitor and control your vehicle further,
for example checking the tire pressures,
the fuel level and the vehicle location. For
additional information, refer to the local
Ford website.

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates
may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO
A MOBILE NETWORK -
VEHICLES WITH: MODEM

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM

Press

Settings

2. Press

FordPass Connect

3. Press

Connectivity Settings

4. Switch connectivity features on or off.

CONNECTING FORDPASS TO THE
MODEM

Make sure that the modem is enabled
using the vehicle settings menu.

2. Open the FordPass app on your device

and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option to activate your

vehicle.

5. Make sure that the name on the screen

matches the name shown in your
FordPass account.

6. Confirm that FordPass account is

connected to the modem.

CONNECTING THE VEHICLE TO
A WI-FI NETWORK - VEHICLES
WITH: SYNC 3

Press

Settings

2. Press

Wi-Fi

349

Connected Vehicle

3. Switch

Wi-Fi

on.

4. Press

View Available Networks

5. Select an available Wi-Fi network.

Note:

Enter the network password to

connect to a secure network.

CONNECTED VEHICLE – TROUBLESHOOTING - VEHICLES WITH:
MODEM

Possible Cause and Resolution

Symptom

I cannot confirm the
connection of my FordPass
account to the modem.

–

Modem is not enabled.
•

Switch connectivity features on.

–

Weak network signal.
•

Move your vehicle closer to a place where the
network signal is not obstructed.

350

Connected Vehicle

CONNECTED VEHICLE – TROUBLESHOOTING - VEHICLES WITH:
SYNC 3

Possible Cause and Resolution

Symptom

I cannot connect to a Wi-Fi
network.

–

Password error.
•

Enter the correct network password.

–

Weak network signal.
•

Move your vehicle closer to the Wi-Fi hotspot or to
a place where the network signal is not obstructed.

–

Multiple access points in range with the same SSID.
•

Use a unique name for your SSID. Do not use the
default name unless it contains a unique identifier,
for example as part of the MAC address.

The Wi-Fi connection
disconnects after successful
connection.

–

Weak network signal.
•

Move your vehicle closer to the Wi-Fi hotspot or to
a place where the network signal is not obstructed.

I am close to a Wi-Fi hotspot
but the network signal
strength is weak.

–

Obstructed network signal.
•

If your vehicle has a heated windshield, position
your vehicle so that the windshield is not facing the
Wi-Fi hotspot.

•

If your vehicle has metallic tinting on the windows
but not on the windshield, position your vehicle so
that the windshield is facing the Wi-Fi hotspot or
open the windows that are facing the hotspot.

•

If your vehicle has metallic tinting on the windows
and the windshield, open the windows that are
facing the hotspot.

•

If your vehicle is in a garage and you have the
garage door closed, open the garage door.

I cannot see a network in the
list of available networks
that I expect to see.

–

Hidden network.
•

Make the network visible and try again.

351

Connected Vehicle

Possible Cause and Resolution

Symptom

I cannot see the Wi-Fi
hotspot name when I search
for Wi-Fi networks on my
cell phone or other device.

–

System limitation.
•

Make sure Wi-Fi hotspot visibility is on.

•

The system does not provide a Wi-Fi hotspot at
this time.

–

Weak network signal.
•

Move your vehicle closer to the Wi-Fi hotspot or to
a place where the network signal is not obstructed.

–

Wi-Fi hotspot in high demand or has a slow Internet
connection.
•

Use a more reliable Wi-Fi hotspot.

Software downloads take
too long.

–

No software update available.

–

Wi-Fi network requires a subscription or acceptance
of terms and conditions.
•

Test the connection using another device. If the
network requires a subscription or acceptance of
terms and conditions, contact the network service
provider.

The system seems to
connect to a Wi-Fi network
and the signal strength is
excellent but the software
does not update.

352

Connected Vehicle

CREATING A VEHICLE WI-FI
HOTSPOT

You can create a Wi-Fi hotspot in your
vehicle and allow devices to connect to it
for access to the Internet.

E280315

Select the settings option on the
feature bar.

Press

FordPass Connect

2. Press

Vehicle Hotspot

Note:

The vehicle hotspot default setting

is on.

3. Press

Settings

4. Press

Wi-Fi visibility

Note:

The Wi-Fi Visibility default setting is

on.

Finding the Wi-Fi Hotspot Name
and Password

E280315

Select the settings option on the
feature bar.

Press

FordPass Connect

2. Press

Vehicle Hotspot

3. Press

Settings

Note:

The SSID is the hotspot name.

4. Press

View Password

Connecting a Device to the Wi-Fi
Hotspot

On your device, switch Wi-Fi on and
select the hotspot from the list of
available Wi-Fi networks.

2. When prompted, enter the password.

Purchasing a Data Plan

Connect a device to the hotspot.

Note:

The vehicle network carrier’s portal

opens on your device.

2. If the portal does not open on your

device, open a website and it redirects
to the vehicle network carrier’s portal.

Note:

Secure websites do not redirect.

3. Follow the instructions on the carrier

portal to purchase a plan.

Note:

If you have an active plan, the system

does not redirect to the vehicle network
carrier’s portal when you connect a device.
Visit the vehicle network carrier’s website
to purchase more data.

Note:

If data usage information is available

in the vehicle hotspot menu, it is
approximate.

Note:

If you carry out a master reset, the

system does not remove your vehicle from
your vehicle network carrier’s account. To
remove your vehicle from the account,
contact your vehicle network carrier.

Note:

The vehicle network carrier provides

Vehicle Hotspot services, subject to your
vehicle network carrier agreement, coverage
and availability.

CHANGING THE VEHICLE WI-
FI HOTSPOT NAME OR
PASSWORD

E280315

Select the settings option on the
feature bar.

Press

FordPass Connect

2. Press

Vehicle Hotspot

3. Press

Settings

4. Press

Edit

5. Press

Change SSID Name

6. Enter your required SSID.

Press

Done

8. Press

Change Password

9. Enter your required password.

10.

Press

Done

353

Vehicle Wi-Fi Hotspot

GENERAL INFORMATION

WARNING:

Driving while distracted

hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Radio Frequencies and Reception
Factors

Note:

Listening to loud audio for long

periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the
weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating
tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

AUDIO UNIT

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

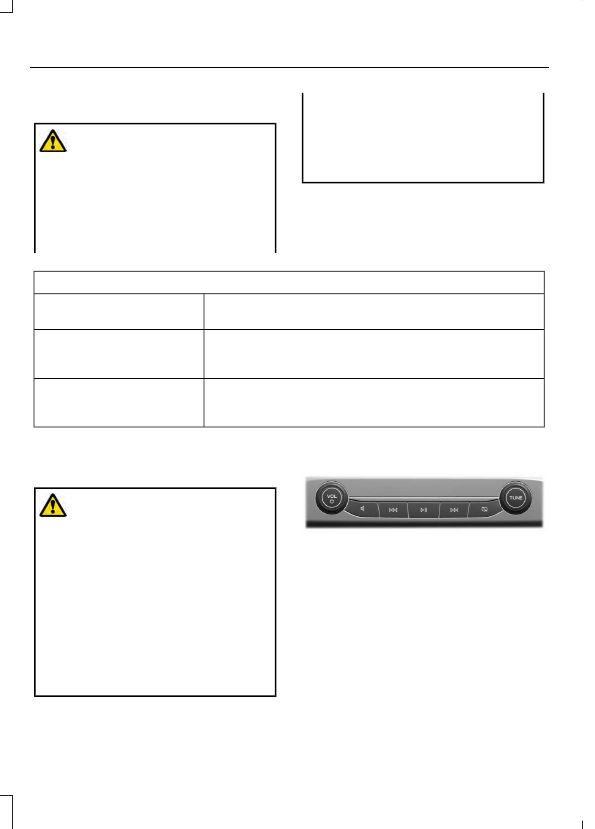

E289731

Note:

Depending on your vehicle option

package, the controls may look different
from what you see here.

Note:

Some features, such as satellite

radio, may not be available in your location.
Check with an authorized dealer.

Note:

The touchscreen system controls

most of the audio features.

354

Audio System

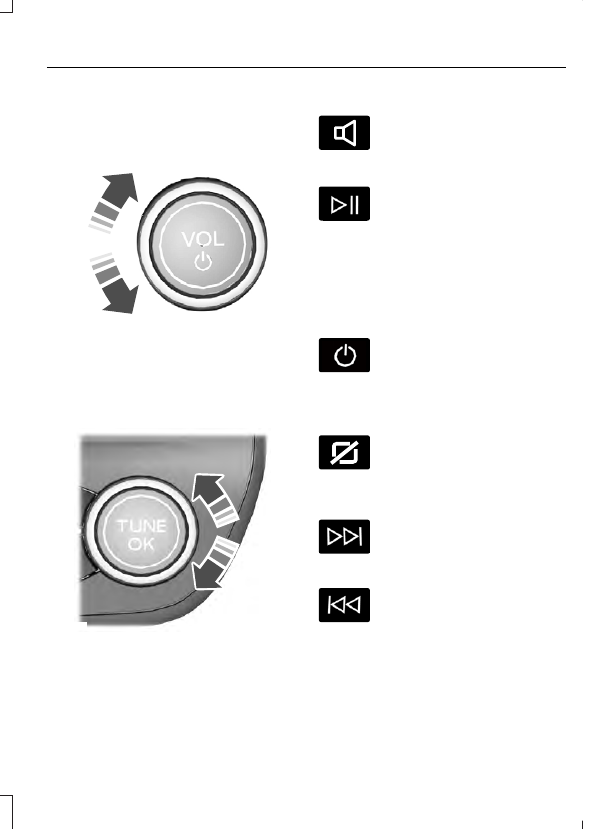

Adjusting the Volume

E248939

Turn to adjust the volume.

Changing Radio Stations

E248947

In radio mode, turn to search through the
radio frequency band.

In satellite radio mode, turn to find the
previous or next available satellite radio
station.

Muting the Audio

E285283

Press and release the button to
mute the playing audio.

Pausing or Playing Media

In media mode, press and
release the button to pause
playback. Press the button again

to resume playback.

In radio mode, press and release the button
to mute the radio. Press the button again
to unmute.

Switching the Audio Unit On and
Off

Press and release the button.

Note:

The button may be on the volume

control.

Switching the Display On and Off

E272035

Press and release the button.

Using Seek, Fast Forward and
Reverse

Press and release the button to
skip to the next track.

Press and hold the button to fast

forward through the track.

Press and release the button to
return to the beginning of a track.

Repeatedly press the button to

return to previous tracks.

Press and hold the button to fast rewind.

In radio mode, select a frequency band and
press and release either button. The
system stops at the first station it finds in
that direction.

355

Audio System

In satellite radio mode, press and release
to select the next or previous satellite radio
station. If you select a specific category,
such as jazz, rock or news, press to find the
next or previous station in the category you
select.

DIGITAL RADIO

(IF EQUIPPED)

Note:

HD Radio broadcasts are not

available in all markets.

HD Radio technology is the digital
evolution of analog AM/FM radio. Your
system has a special receiver that allows
it to receive digital broadcasts, where
available, in addition to the analog
broadcasts, it already receives. Digital
broadcasts provide a better sound quality
than analog broadcasts with free,
crystal-clear audio and no static or
distortion. For more information, and a
guide to available stations and
programming, please visit
www.hdradio.com.

When HD Radio is on and you tune to a
station broadcasting HD Radio technology,
you may notice the HD Radio logo on your
screen. When this logo is available, you
may also see Title and Artist fields
on-screen.

The multicast indicator appears in FM
mode, only, if the current station is
broadcasting multiple digital broadcasts.
The highlighted numbers signify available
digital channels where new or different
content is available. HD1 signifies the main
programming status and is available in
analog and digital broadcasts. Other
multicast stations, HD2 through HD7, are
only available digitally.

When HD Radio broadcasts are active, you
can access the following functions:
•

Memory presets

allow you to save an

active channel as a memory preset.
Touch and hold a memory preset slot
until the sound returns. There is a brief
mute while the radio saves the station.
Sound returns when finished. When
switching to an HD2 or HD3 memory
preset, the sound mutes before the
digital audio plays, because the system
has to reacquire the digital signal.

Note:

As with any saved radio station, you

cannot access the saved station if your
vehicle is outside the station’s reception
area.

356

Audio System

HD Radio Reception and Station Troubleshooting

Potential Reception Issues

If you are listening to a multicast station and you are on
the fringe of the reception area, the station may mute due
to weak signal strength.

Reception area

If you are listening to HD1, the system switches back to
the analog broadcast until the digital broadcast is available
again. However, if you are listening to any of the possible
HD2-HD7 multicast channels, the station mutes and stays
muted unless it is able to connect to the digital signal
again.

When the system first receives a station, aside from HD2-
HD7 multicast stations, it first plays the station in the
analog version. Once the receiver verifies the station is an
HD Radio station, it shifts to the digital version. Depending
on the station quality, you may hear a slight sound change
when the station changes from analog to digital. Blending
is the shift from analog to digital sound or digital back to
analog sound.

Station blending

In order to provide the best possible
experience, use the contact form to report
any station issues found while listening to
a station broadcasting with HD Radio
technology. Independent entities own and
operate each station. These stations are
responsible for the accuracy of all audio
streams and data fields.

357

Audio System

Potential Station Issues

Action

Cause

Issues

No action required. This is a
broadcast issue.

This is poor time alignment
by the radio broadcaster.

Echo, stutter, skip or repeat
in audio.
Increase or decrease in
audio volume.

No action required. The
reception issue may clear up
as you continue to drive.

The radio is shifting between
analog and digital audio.

Sound fading or blending in
and out.

No action required. This is
normal behavior. Wait until
the audio is available.

The digital multicast is not
available until the HD Radio
broadcast is decoded. Once
decoded, the audio is avail-
able.

There is an audio mute
delay when selecting HD2 or
HD3, multicast preset or
direct tune.

No action required. The
station is not available in
your current location.

The previously stored
multicast preset or direct
tune is not available in your
current reception area.

Cannot access the HD2 or
HD3 multicast channels
when recalling a preset or
from a direct tune.

Fill out the station issue
form at website listed

below.

Data service issue by the
radio broadcaster.

Text information does not
match currently playing
audio.

Fill out the station issue
form at website listed

below.

Data service issue by the
radio broadcaster.

There is no text information
shown for currently selected
frequency.

http://hdradio.com/stations/feedback.

HD Radio Technology manufactured under
license from iBiquity Digital Corporation
and foreign patents. HD Radio and the HD
and HD Radio logos are proprietary
trademarks of DTS. Ford and DTS are not
responsible for the content sent using HD
Radio technology. Content may be
changed, added or deleted at any time at
the station owner's discretion.

SATELLITE RADIO

(IF EQUIPPED)

SiriusXM® Satellite Radio broadcasts a
variety of music, news, sports, weather,
traffic and entertainment satellite radio
channels. For more information and a
complete list of SiriusXM satellite radio
channels, visit www.siriusxm.com in the
United States, www.siriusxm.ca in Canada,
or call SiriusXM at 1-888-539-7474.

358

Audio System

Note:

This receiver includes the eCos

real-time operating system. eCos is
published under the eCos License.

Satellite Radio Reception Factors

Potential Satellite Radio Reception Issues

For optimal reception performance, keep the antenna
clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
Factory-installed and aftermarket vehicle structures
including, but not limited to, roof racks and soft top roofs
in a partially open position could reduce reception
performance.

Antenna obstructions

Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with your reception.

Terrain

When you pass a ground-based broadcast-repeating
tower, a stronger signal may overtake a weaker one and
the audio system could mute.

Station overload

Your display may show ACQUIRING . . . to indicate the
interference and the audio system could mute.

Satellite radio signal interfer-
ence

SiriusXM Satellite Radio Service

Note:

SiriusXM reserves the unrestricted

right to change, rearrange, add or delete
programming including canceling, moving
or adding particular channels, and its prices,
at any time, with or without notice to you.
Neither SiriusXM and its affiliates nor Ford
Motor Company and its affiliates will be
liable to you or any third party for any such
modification, suspension or termination.

E208625

359

Audio System

SiriusXM satellite radio is a
subscription-based satellite radio service
that broadcasts a variety of music, sports,
news, weather, traffic and entertainment
programming. Your factory-installed
SiriusXM satellite radio system includes
hardware and a limited subscription term,
which begins on the date of sale or lease
of your vehicle. See an authorized dealer
for availability.

For more information on extended
subscription terms, a service fee is required,
the online media player and a complete
list of SiriusXM satellite radio channels,
and other features, please visit
www.siriusxm.com in the United States,
www.siriusxm.ca in Canada, or call
SiriusXM at 1-888-539-7474.

Satellite Radio Electronic Serial
Number (ESN)

You need your ESN to activate, modify or
track your satellite radio account.

Locating Your ESN

Select SiriusXM as the audio source.

2. Tune to channel 0.

Troubleshooting

Action

Condition

Message

No action required. This
message should disappear
shortly.

Radio requires more than
two seconds to produce
audio for the selected
channel.

Acquiring…

If this message does not
clear shortly, or with an igni-
tion key cycle, your receiver
may have a fault. See an
authorized dealer for service.

There is an internal module
or system failure present.

Satellite antenna fault

SIRIUS system failure

Tune to another channel or
choose another preset.

The channel is no longer
available.

Invalid Channel

Contact SiriusXM at 1-888-
539-7474 to subscribe to
the channel, or tune to
another channel.

Your subscription does not
include this channel.

Unsubscribed Channel

The signal is blocked. When
you move into an open area,
the signal should return.

The signal is lost from the
SiriusXM satellite or Siri-
usXM tower to your vehicle
antenna.

No Signal

360

Audio System

Ford Bronco Sport (2022 year). Manual in english - page 22
