CHANGING A ROAD WHEEL

WARNING:

The tire pressure

monitoring system is not a substitute for
manually checking tire pressures. You
should periodically check tire pressures
using a pressure gauge. Failure to
correctly maintain tire pressures could
increase the risk of tire failure, loss of
control, vehicle rollover and personal
injury.

WARNING:

If the tire pressure

monitor sensor becomes damaged it
may not function.

Note:

Only use tire sealants in roadside

emergencies as they may cause damage to
the tire pressure monitoring system sensor.

Note:

The tire pressure monitoring system

indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on your vehicle.

If you get a flat tire when driving, do not
heavily apply the brake. Instead, gradually
decrease your speed. Firmly hold the
steering wheel and slowly move to a safe
place on the side of the road.

Have a flat serviced by an authorized
dealer in order to prevent damage to the
tire pressure monitoring system sensors.
See

Tire Pressure Monitoring System

(page 324). Replace the spare tire with a
road tire as soon as possible. During
repairing or replacing of the flat tire, have
the authorized dealer inspect the tire
pressure monitoring system sensor for
damage.

Dissimilar Spare Wheel and Tire
Assembly Information

WARNING:

Failure to follow these

guidelines could result in an increased
risk of loss of vehicle control, injury or
death.

If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that we provided with your
vehicle. If the dissimilar spare tire or wheel
is damaged, replace it instead of repairing
it.

A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of three types:

T-type mini-spare:

This spare tire

begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.

Full-size dissimilar spare with label

on wheel:

This spare tire has a label on

the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.

When driving with one of the dissimilar
spare tires listed above, do not:

•

Exceed 50 mph (80 km/h).

•

Load your vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.

•

Tow a trailer.

•

Use snow chains on the end of your
vehicle with the dissimilar spare tire.

•

Use more than one dissimilar spare tire
at a time.

329

Wheels and Tires

•

Use commercial car washing
equipment.

•

Try to repair the dissimilar spare tire.

Use of one of the dissimilar spare tires
listed above at any one wheel location can
lead to impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

All-wheel driving capability

Full-size dissimilar spare without

label on wheel

When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•

Exceed 70 mph (113 km/h).

•

Use more than one dissimilar spare
wheel and tire assembly at a time.

•

Use commercial car washing
equipment.

•

Use snow chains on the end of your
vehicle with the dissimilar spare wheel
and tire assembly.

The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

Four-wheel driving capability.

When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•

Towing a trailer.

•

Driving vehicles equipped with a
camper body.

•

Driving vehicles with a load on the
cargo rack.

Cautiously drive when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.

Tire Change Procedure

WARNING:

Ensure screwthread is

adequately lubricated before use.

WARNING:

The jack should be

used on level firm ground wherever
possible.

WARNING:

Switch the ignition off

and apply the park brake fully before
lifting vehicle.

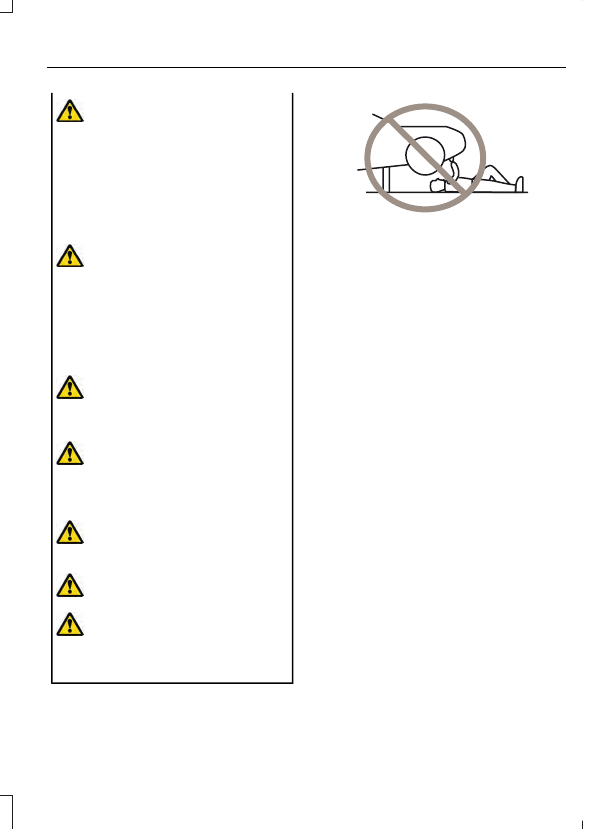

WARNING:

No person should place

any portion of their body under a vehicle
that is supported by a jack.

WARNING:

The jack supplied with

this vehicle is only intended for changing
a flat tire in an emergency. Do not
attempt to do any other work on your
vehicle when it is supported by the jack,
as your vehicle could slip off the jack.
Failure to follow this instruction could
result in personal injury or death.

WARNING:

Check that the vehicle

jack is not damaged or deformed and
the thread is lubricated and clean.

330

Wheels and Tires

WARNING:

To help prevent your

vehicle from moving when changing a
wheel, shift the transmission into park
(P), set the parking brake and use an
appropriate block or wheel chock to
secure the wheel diagonally opposite to
the wheel being changed. For example,
when changing the front left wheel,
place an appropriate block or wheel
chock on the right rear wheel.

WARNING:

Always use the jack

provided as original equipment with your
vehicle. If using a jack other than the one
provided, make sure the jack capacity is
adequate for the vehicle weight,
including any vehicle cargo or
modifications. If you are unsure if the jack
capacity is adequate, contact the
authorized dealer.

WARNING:

Failure to follow these

guidelines could result in an increased
risk of loss of vehicle control, injury or
death.

WARNING:

Use only the specified

jacking points. If you use other locations,
you could damage the body, steering,
suspension, engine, braking system or
the fuel lines.

WARNING:

Never place anything

between the vehicle jack and your
vehicle.

WARNING:

Never place anything

between the vehicle jack and the ground.

WARNING:

Park your vehicle so

that you do not obstruct the flow of
traffic or place yourself in any danger and
set up a warning triangle.

E166722

Note:

The jack does not require

maintenance or additional lubrication over
the service life of your vehicle.

Park on a level surface, set the parking
brake and activate the hazard flashers.

2. Apply parking brake, place the

transmission in park (P). Turn the
engine off.

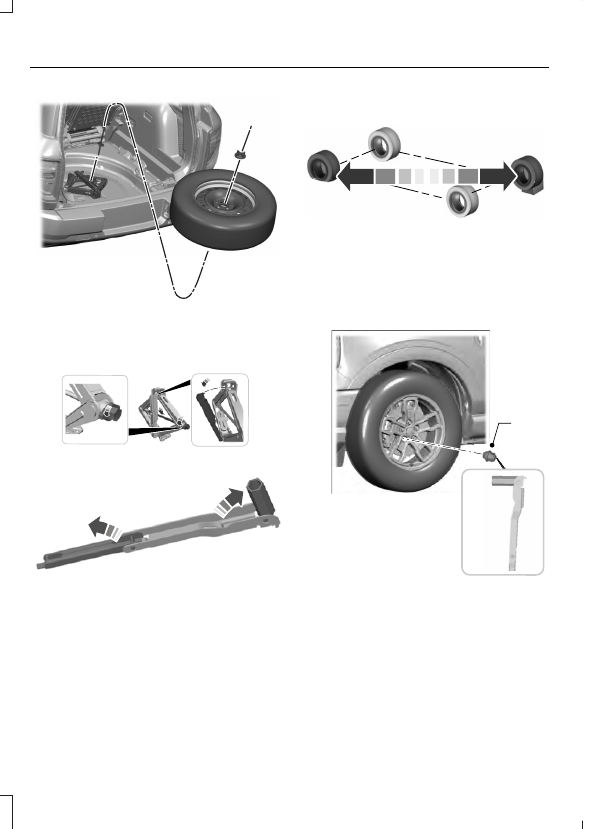

3. Lift and remove the carpeted cargo

area floor to access the spare tire and
jack.

4. Remove the wing nut that secures the

spare tire by turning it
counterclockwise.

5. Remove the spare tire, jack, wrench

and warning triangle from spare tire
compartment, and set the warning
triangle.

6. Remove the jack and the flat tire

retainer strap from the jack base.

331

Wheels and Tires

E323462

Turn the jack hex nut drive screw
counterclockwise to detach the lug
wrench from the jack. This lowers the
jack and releases the mechanical lock.

E337330

8. Unfold the lug wrench for use.

E181744

9. Block the wheel diagonally opposite

the flat tire. For example, if the left
front tire is flat, block the right rear
wheel.

E142551

10.

Loosen each wheel lug nut one-half
turn counterclockwise, but do not
remove them until the wheel is raised
off the ground.

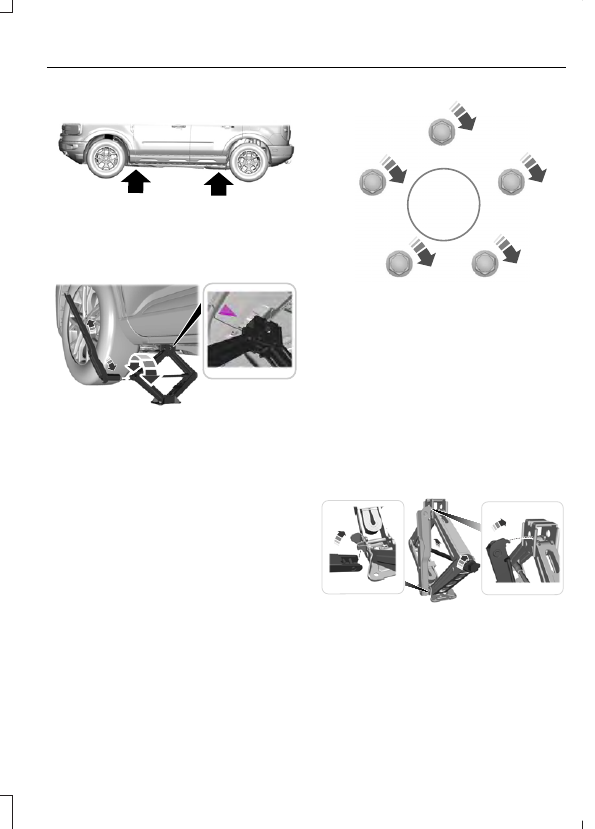

E357778

Note:

Jack at the specified locations to

avoid damage to your vehicle.

11.

Your vehicle jacking points shown
here are also depicted on the warning
label on the jack. Small arrow-shaped
marks on your vehicle sills show the
location of the jacking points.

332

Wheels and Tires

E322803

12.

Turn the wrench clockwise to raise
your vehicle until the flat tire is
completely off the ground.

E294119

13.

Remove the lug nuts with the lug
wrench.

Note:

For vehicles with full wheel covers

with exposed wheel nuts, remove the wheel
nuts prior to removing the wheel cover or
damage to the wheel cover may occur.

14.

Replace the flat tire with the spare
tire, making sure the valve stem is
facing outward. Reinstall the lug nuts
until the wheel is snug against the
hub. Do not fully tighten the lug nuts
until the wheel has been lowered.

15.

Lower the wheel by turning the jack
handle counterclockwise.

16.

Remove the jack and fully tighten the
lug nuts in the order shown. See

Technical Specifications

(page

335).

E306781

Stowing the flat tire

To store the jack kit fold the jack and
wrench handle and engage it to the
bracket of the jack base using the lug
wrench pin.

2. When attaching the folded wrench on

the jack, swing the wrench upward and
adjust the jack height until the wrench
hook engages the hole on the jack.
Tighten the hex nut clockwise until
secure.

E294121

3. Re-position the jack kit assembly into

the original vehicle position and secure
with the plastic wing nut. Make sure
the jack is securely fastened before you
drive.

4. Remove the wheel blocks and retrieve

the warning triangle.

333

Wheels and Tires

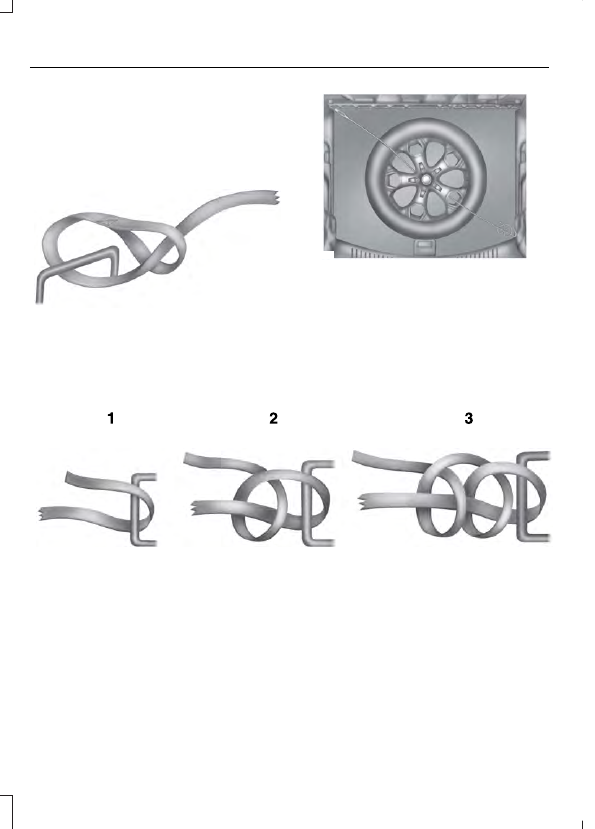

5. Stow the flat tire on the floor in the

cargo area. Secure with the flat tire
retainer strap by following the next
steps:

E142906

6. Locate the cargo tie-down near the

seatback. Push the loop of the retainer
strap through the tie-down. Thread the
non-loop end through the loop.

E157926

Weave the retainer strap through the
wheel openings.

8. Locate the front cargo tie-down at the

opposite corner of the cargo area to
the tie-down used in Step 4. Thread
the retainer strap through the tie-down
and pull tight.

9. Secure by tying a 2-half hitch knot.

E143746

334

Wheels and Tires

TECHNICAL SPECIFICATIONS

Wheel Lug Nut Torque Specifications

WARNING:

When you install a wheel, always remove any corrosion, dirt or foreign

materials present on the mounting surfaces of the wheel or the surface of the wheel
hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while
your vehicle is in motion, resulting in loss of vehicle control, personal injury or death.

Ib-ft (Nm)

Bolt size

100 lb.ft (135 Nm)

M12 x 1.5

Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford

recommended replacement fasteners.

Retighten the lug nuts to the specified torque within 100 mi (160 km) after any wheel
disturbance, such as tire rotation, changing a flat tire, wheel removal.

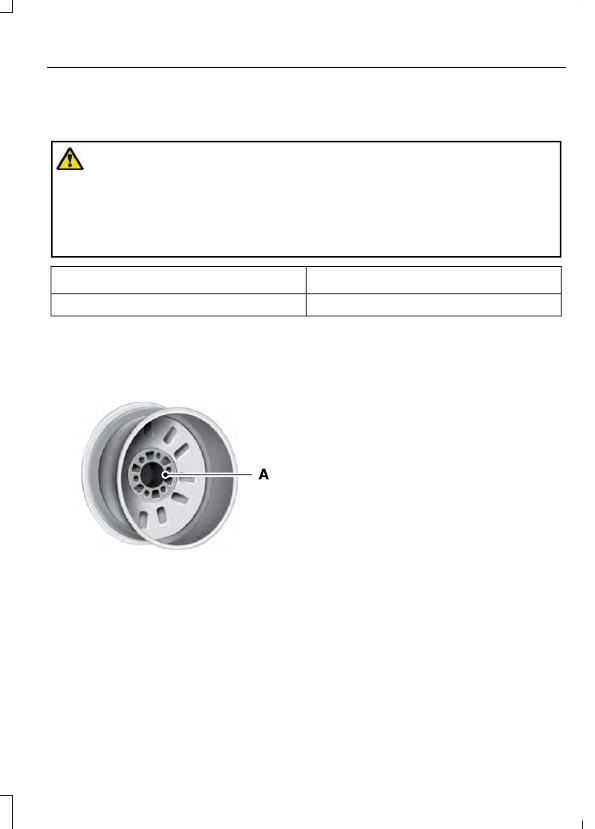

E145950

Wheel pilot bore.

Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.

335

Wheels and Tires

ENGINE SPECIFICATIONS - 1.5L ECOBOOST™

Specification

Engine

11:1

Compression ratio.

91 in³ (1,497 cm³)

Displacement.

1-2-3

Firing order.

Coil on plug

Ignition system.

0.031 in (0.8 mm)

Spark plug gap.

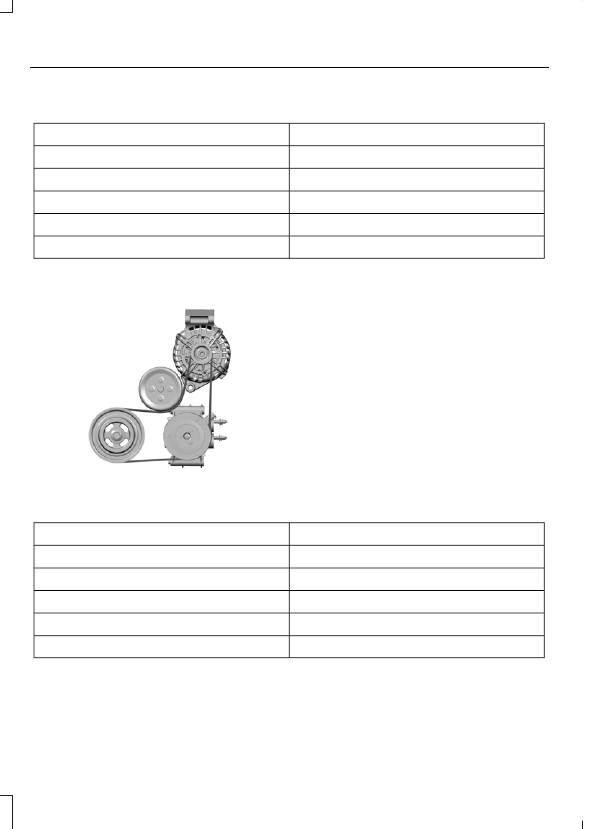

Drivebelt Routing

E163198

ENGINE SPECIFICATIONS - 2.0L ECOBOOST™

Specification

Engine

10:1

Compression ratio.

122.0 in³ (1,999 cm³)

Displacement.

1-3-4-2

Firing order.

Coil on plug

Ignition system.

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap.

336

Capacities and Specifications

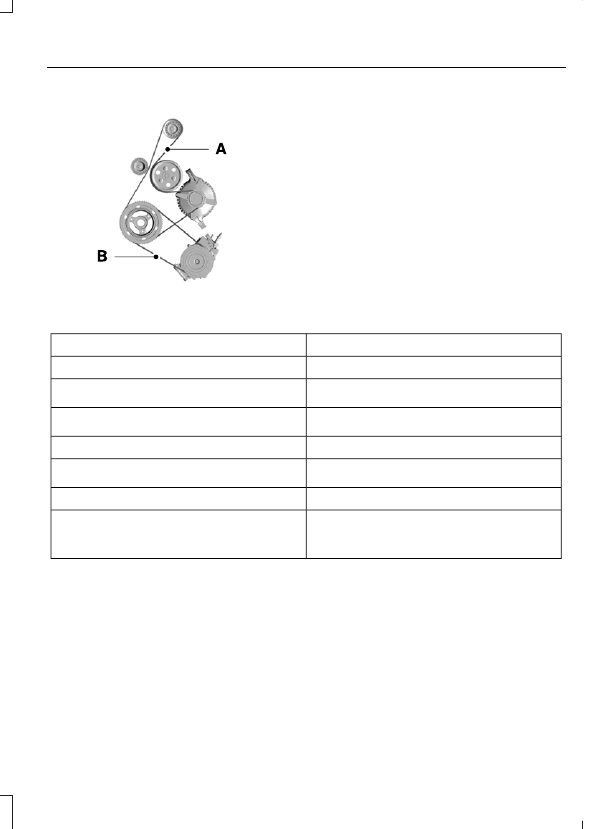

Drivebelt Routing

E161383

Drivebelt closest to the engine.

Drivebelt furthest from the
engine.

MOTORCRAFT PARTS - 1.5L ECOBOOST™

Motorcraft Part Number

Component

FA-1939

Air filter element.

BHEF-48H6

Battery.

BAGM-48H6-760

Alternative battery.

FP-89

Cabin air filter.

FL-910-S

Engine oil filter.

SP-550

Spark plug.

WW-2117 (driver side)

Windshield wiper blade.

WW-2302 (passenger side)

WW-901-A (rear window)

Configure your vehicle’s battery management system to match the replacement battery.

If using a battery not listed, it must match the specification as one of the listed batteries.
Configure your vehicle’s battery management system to match the listed battery. Failure
to use an appropriate configuration for your battery management system could result in
shortened battery life, features not working correctly, or your vehicle not starting. Consult
your local dealer or service provider for further details.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

337

Capacities and Specifications

impact vehicle performance, emissions
and durability. Your warranty could be void
for any damage related to use of other
parts.

MOTORCRAFT PARTS - 2.0L ECOBOOST™

Motorcraft Part Number

Component

FA-1939

Air filter element.

BHEF-48H6

Battery.

BAGM-48H6-760

Alternative battery.

FP-89

Cabin air filter.

FL-910-S

Engine oil filter.

SP-594

Spark plug.

WW-2117 (driver side)

Windshield wiper blade.

WW-2302 (passenger side)

WW-901-A (rear window)

Configure your vehicle’s battery management system to match the replacement battery.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

We recommend Motorcraft parts that are
available at your authorized dealer or at
www.fordparts.com. We engineer these
parts for your vehicle to meet or exceed
our specifications. Use of other parts could
impact vehicle performance, emissions
and durability. Your warranty could be void
for any damage related to use of other
parts.

BULB SPECIFICATION CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.

338

Capacities and Specifications

Exterior Lamps

Power (Watt)

Specification

Lamp

W21W

Backup, reverse lamp.

LED

Fog lamp.

LED

Front side marker.

LED

Headlamp.

LED

High-mount brake lamp.

LED

License plate lamp.

LED

Mirror turn signal lamp.

LED

Rear side marker.

WY16W

Rear turn signal lamp.

P27

Stop lamp.

LED

Tail lamp.

Note:

LED lamps are not serviceable. See an authorized dealer if they fail.

Interior Lamps

Power (Watt)

Specification

Lamp

LED

All interior lamps.

Note:

LED lamps are not serviceable. See an authorized dealer if they fail.

339

Capacities and Specifications

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.0L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

5.5 qt (5.2 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-30
Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

340

Capacities and Specifications

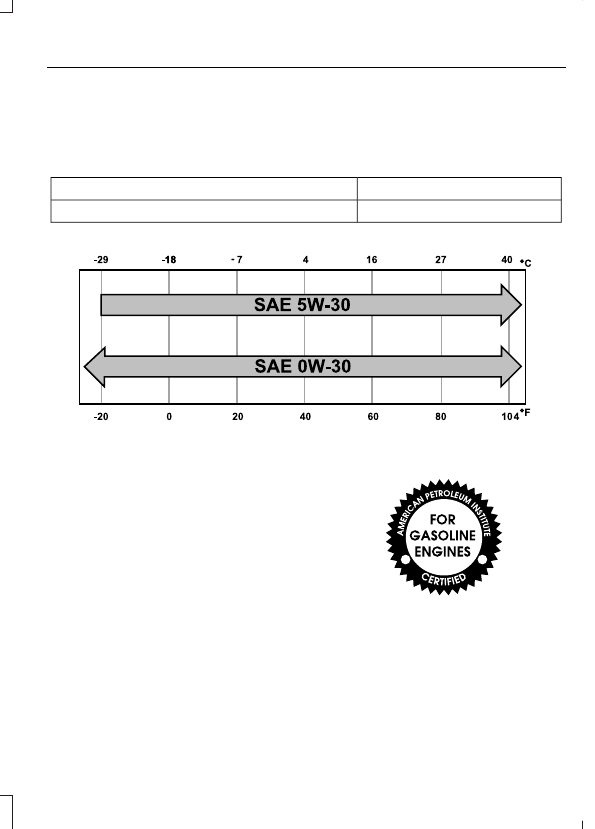

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,

we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

E240523

ENGINE OIL CAPACITY AND
SPECIFICATION - 1.5L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

341

Capacities and Specifications

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline

engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

5.3 qt (5.05 L)

All.

Materials

Specification

Name

WSS-M2C960-A1

Motorcraft® SAE 5W-20 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-20 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-20
Motorcraft®(Canada)
XO-5W20-Q1SP(U.S.)
CXO-5W20-LSP6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C962-A1

Motorcraft® SAE 0W-20 Full Synthetic Motor
Oil(U.S.)
(Canada)
XO-0W20-QFS(U.S.)

342

Capacities and Specifications

E240522

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 2.0L
ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

8.6 qt (8.1 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

343

Capacities and Specifications

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 1.5L
ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

7.7 qt (7.3 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

FUEL TANK CAPACITY

Capacities

Quantity

Variant

15.7 gal (59.5 L)

All.

344

Capacities and Specifications

Content .. 19 20 21 22 ..
