WHAT IS AUTOMATIC HIGH
BEAM CONTROL

The system turns on high beams if it is dark
enough and no other traffic is present. If it
detects an approaching vehicle’s
headlamps or tail lamps, or street lighting
ahead, the system turns the high beams
off. Low beams remain on.

A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off.

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF

WARNING:

Do not use the system

in poor visibility, for example fog, heavy
rain, spray or snow.

Press

Settings

2. Press

Vehicle

3. Press

Lighting

Activating the Automatic High
Beam Control

E281240

Switch the lighting control to the
autolamps position. See

Autolamps

(page 84).

Note:

The lighting control defaults to

autolamps each time you switch your
vehicle on.

When active, the high beams turn on if all
of the following occur:
•

The ambient light level is low enough.

•

There is no traffic in front of your
vehicle.

•

The vehicle speed is greater than
approximately 32 mph (51 km/h).

When active, the high beams turn off if any
of the following occur:
•

The ambient light level is high enough
that the system does not require high
beams.

•

The system detects an approaching
vehicle's headlamps or tail lamps.

•

The system detects severe rain, snow
or fog.

•

The camera is blocked.

•

The vehicle speed falls below
approximately 27 mph (44 km/h).

Note:

The deactivation speed is lower on

curves.

Note:

There could be a delay in high beam

reactivation in certain curvy road situations.

Note:

If there is a blocked sensor, the

system may not operate properly. Keep the
windshield free from obstruction or damage.

Note:

The system may not operate properly

in cold or inclement conditions. You can
switch on the high beams by overriding the
system.

Note:

If the system detects a blockage, for

example bird droppings, bug splatter, snow
or ice, the system goes into low beam mode
until you clear the blockage. If there is a
blocked camera, a message may appear in
the information display.

Note:

Using much larger tires or adding

vehicle accessories such as snowplows can
modify your vehicle's ride height and
degrade automatic high beam control
performance.

AUTOMATIC HIGH BEAM
CONTROL INDICATORS

The indicator illuminates to
confirm when the system is
ready to assist.

Automatic High Beam Control

OVERRIDING AUTOMATIC
HIGH BEAM CONTROL

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the high beams on or off.

WARNING:

You may need to

override the system when approaching
other road users.

WARNING:

You may need to

override the system during inclement
weather.

E248603

Push the lever away from you to switch
between high beam and low beam.

Automatic High Beam Control

POWER WINDOWS

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the power windows.
Failure to follow this instruction could
result in personal injury.

WARNING:

When closing the

power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings.

Press the control to open the
window. Lift the control to close
the window.

To reduce wind noise or pulsing noise when
just one window is open, slightly open the
opposite window.

One-Touch Down

(If Equipped)

Press the switch fully and release it. Press
again or lift it to stop the window.

One-Touch Up

(If Equipped)

Lift the switch fully and release it. Press or
lift it again to stop the window.

Resetting One-Touch Up

Start the engine.

Lift and hold the window switch until
you fully close the door window.
Continue to hold the switch for a few
seconds after you close the window.

2. Release the window switch.

3. Press and hold the window switch until

you fully open the door window.

4. Release the window switch.

5. Lift and hold the window switch until

you fully close the window.

6. Test for correct window operation by

carrying out the one-touch down and
one-touch up features.

Rear Window Lock

Press the control to lock or
unlock the rear window controls.
It illuminates when you lock the

rear window controls.

Bounce-Back

(If Equipped)

The window stops and reverses if it detects
an obstruction.

Overriding the Bounce-Back Feature

WARNING:

If you override

bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.

Pull up the window switch and hold within
a few seconds of the window reaching the
bounce-back position. The window travels
up with no bounce-back protection. The
window stops if you release the switch
before the window fully closes.

Resetting Bounce-Back

WARNING:

Bounce-back is off until

you reset the memory. Take care when
closing the windows to avoid personal
injury or damage to your vehicle.

If you have disconnected the battery, you
must reset the bounce-back memory
separately for each window.

Lift and hold the switch until the
window is fully closed.

2. Release the switch.

Windows and Mirrors

3. Lift and hold the switch again for a few

seconds.

4. Release the switch.

5. Lift and hold the switch again for a few

seconds.

6. Release the switch.

Press and hold the switch until the
window is fully open.

8. Lift and hold the switch until the

window is fully closed.

9. Release the switch.

10.

Open the window and then try to
close it using one-touch close.

Note:

Repeat the procedure if the window

does not close when you use one-touch.

Accessory Delay

You can use the window controls for
several minutes after switching off the
ignition or until opening either front door.

GLOBAL OPENING AND
CLOSING

(IF EQUIPPED)

You can use the remote control to open
the windows with the ignition off.

Note:

You can enable or disable this feature

in the information display or see an
authorized dealer. See

General

Information

(page 102).

Note:

To operate this feature, accessory

delay must not be active.

Opening the Windows

You can only open the windows for a short
time after you unlock your vehicle with the
remote control. After you unlock your
vehicle, press and hold the remote control
unlock button to open the windows.
Release the button once movement starts.
Press the lock or unlock button to stop
movement.

Closing the Windows

WARNING:

When closing the

power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings.

To close the windows, press and hold the
remote control lock button. Release the
button once movement starts. Press the
lock or unlock button to stop movement.

EXTERIOR MIRRORS

Power Exterior Mirrors

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

E303926

Left-hand mirror.

Right-hand mirror.

Windows and Mirrors

E303927

Press the arrows to adjust the mirror.

Fold-Away Exterior Mirrors

Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position.

Signal Indicator Mirrors

(If Equipped)

The outer portion of the appropriate mirror
housing blinks when you switch on the turn
signal.

Blind Spot Monitor

See

Blind Spot Information System

(page 220).

INTERIOR MIRROR

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

You can adjust the interior mirror to your
preference. Some mirrors also have a
second pivot point. This lets you move the
mirror head up or down and from side to
side.

Manual Dimming Mirror

Pull the tab below the mirror toward you
to reduce the effect of bright light from
behind.

Automatic Dimming Mirror

(If Equipped)

Note:

Do not block the sensors on the front

and back of the mirror. A rear center
passenger or raised rear center head
restraint may also block light from reaching
the sensor.

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or if you shift into
reverse (R).

SUN VISORS

E138666

Rotate the sun visor toward the side
window and extend it rearward for extra
shade.

Windows and Mirrors

Illuminated Vanity Mirror

(If Equipped)

E162197

Lift the cover to switch the lamp on.

MOONROOF

(IF EQUIPPED)

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the moonroof. Failure
to follow this instruction could result in
personal injury.

WARNING:

When closing the

moonroof, verify that it is free of
obstruction and make sure that children
and pets are not in the proximity of the
roof opening.

The moonroof and sunscreen controls are
on the overhead console.

The Moonroof and sunscreen have a
one-touch open and close feature, press
the control all the way down and release.
To stop them during one-touch operation,
press the control a second time.

Opening and Closing the Moonroof

E303933

Moonroof open.

Press and

release to open the moonroof.

Moonroof vent or close.

Press

and release to vent or close the
moonroof. When the glass is
closed, press to vent the
moonroof.

Sunshade open.

Press and

release to open the sunshade.
The sunshade opens with the
moonroof. You can also open
the sunshade with the moonroof
closed.

Sunshade close.

Press and

release to close the sunshade.

Bounce-Back

The moonroof stops when closing. It can
reverse some distance if there is an
obstacle in the way.

Press and hold the front of the control
within two seconds of a bounce-back
event to override this function. When
bounce-back is active, the closing force
increases for each of the next three times
that you close the moonroof.

Windows and Mirrors

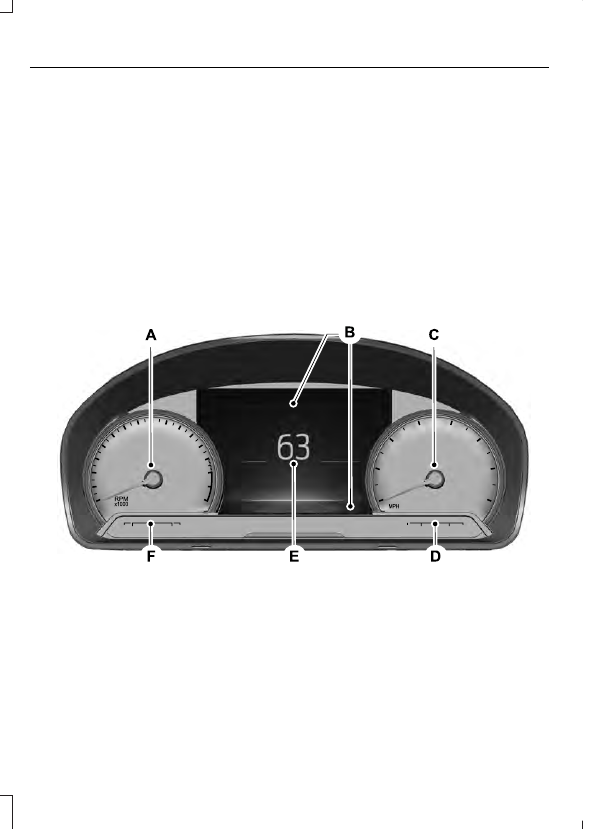

GAUGES - VEHICLES WITH: 4.2 INCH INSTRUMENT CLUSTER
DISPLAY SCREEN

E282227

Tachometer.

Information display.

Speedometer.

Fuel gauge.

Engine coolant temperature gauge.

Information Display

Information that appears depends on your
vehicle settings. See

General

Information

(page 102).

Engine Coolant Temperature
Gauge

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator will be in the normal range. If the
engine coolant temperature exceeds the
normal range, stop your vehicle as soon as
safely possible, switch off the engine and
let the engine cool.

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

Instrument Cluster

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

Note:

The fuel gauge can vary slightly when

your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty
reaches 75 mi (120 km) to empty for
MyKey, and at 50 mi (80 km), 25 mi
(40 km), 10 mi (20 km) and 0 mi (0 km)
for all vehicle keys.

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

GAUGES - VEHICLES WITH: 6.5 INCH INSTRUMENT CLUSTER
DISPLAY SCREEN

E282067

Tachometer.

Information bar.

Speedometer.

Fuel gauge.

Information display.

Engine coolant temperature gauge.

Instrument Cluster

Information Bar

Displays information related to the
navigation, outside air temperature,
odometer and distance to empty.

Information Display

Displays information related to the
navigation, outside air temperature,
odometer and distance to empty.

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

Note:

The fuel gauge may vary slightly

when your vehicle is moving or on a slope.

Low Fuel Reminder

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

Distance to Empty

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

Engine Coolant Temperature
Gauge

WARNING:

Do not remove the

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators alert you to a vehicle condition
that may become serious. Some lamps
illuminate when you start your vehicle to
make sure they work. If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.

Note:

Some warning indicators appear in

the information display and function the
same as a warning lamp, but do not display
when you start your vehicle.

Note:

Depending on your vehicle options

and instrument cluster type, not all
indicators display or are available.

Instrument Cluster

Adaptive Cruise Control

E323440

The speed control system
indicator light changes color to
indicate what mode the system

is in. See

How Does Adaptive Cruise

Control With Stop and Go Work

(page

203).

On (white light): Illuminates when you
switch on the adaptive cruise control
system. Turns off when the speed control
system is turned off.

Engaged (green light): Illuminates when
you engage the adaptive cruise control
system. Turns off when you disengage the
speed control system.

Anti-Lock Braking System

If it illuminates when you are
driving, this indicates a system
error. You continue to have the

normal braking (without ABS) unless the
brake system warning lamp also
illuminates. Have the system checked by
an authorized dealer.

Automatic High Beam Control

Illuminates when this feature is
on. See

Switching Automatic

High Beam Control On and Off

(page 89).

Auto Hold Active

E323448

Illuminates when the system
holds your vehicle stationary.

Auto Hold Unavailable

E323449

Illuminates when the system is
on, but unavailable to hold your
vehicle stationary.

Auto-Start-Stop

Illuminates when the engine
shuts down or in conjunction
with a message.

Battery

If it illuminates while driving, it
indicates a system error. Switch
off all unnecessary electrical

equipment and have the system checked
by an authorized dealer immediately.

Blind Spot Monitor

E323450

Illuminates when you switch this
feature off or in conjunction with
a message. See

Blind Spot

Information System

(page 220).

Brake System Warning Lamp

WARNING:

Driving your vehicle

with the warning lamp on is dangerous.
A significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

Note:

Indicators vary depending on region.

This lamp is a dual function lamp and
illuminates when:

•

You apply the parking brake with the
ignition on.

•

Your vehicle has a brake fault or low
brake fluid level, regardless of parking
brake position.

Instrument Cluster

E270480

If the lamp illuminates when you
are moving, you may have the
parking brake applied. Make sure
the parking brake is off. Have
your vehicle checked as soon as
possible if the lamp continues to

illuminate.

Cruise Control

E71340

Illuminates when you switch this
feature on.

Direction Indicator

Illuminates when you switch on
the left or right direction
indicator or the hazard flasher. If

the indicators stay on or flash faster, check
for a burned out bulb. See

Changing a

Bulb

(page 298).

Door Ajar

E323451

Illuminates when the ignition is
on and any door is not
completely closed.

Electric Park Brake

Note:

Indicators vary depending on region.

E325775

Illuminates or flashes when the
electric parking brake has a
system error. See

Electric

Parking Brake

(page 183).

Engine Coolant Temperature
Warning Lamp

Illuminates when the engine or
motor coolant temperature is
high. Stop your vehicle as soon

as possible, switch your vehicle off and let
it cool. See

Engine Coolant Check

(page

287).

Engine Oil

If it illuminates with the engine
running or when you are driving,
this indicates a system error.

Stop your vehicle as soon as it is safe to
do so and switch the engine off. Check the
engine oil level. See

Engine Oil Check

(page 285).

Note:

Do not resume your journey if it

illuminates despite the level being correct.
Have the system checked by an authorized
dealer immediately.

Fasten Seatbelt

E71880

Illuminates and a tone sounds
to remind you to fasten your
seatbelt. See

Seatbelt

Reminder

(page 42).

Fasten Rear Seatbelt

E206718

Illuminates and a tone sounds
to signal the rear seatbelts are
not fastened.

Front Airbag

E67017

If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates

there is a system error. Have the system
checked as soon as possible.

Front Fog Lamps

Illuminates when you switch the
front fog lamps on.

High Beam

Illuminates when you switch the
high beam headlamps on. It
flashes when you use the

headlamp flasher.

Instrument Cluster

Hood Ajar

E325774

Illuminates when the ignition is
on and the hood is not
completely closed.

Lamps On

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

Liftgate Ajar

E323454

Illuminates when the liftgate is
not completely closed.

Low Beam Warning

E325579

Illuminates when the low beam
headlamp bulb is not functioning
properly.

Low Fuel Level

E325771

Illuminates when the fuel level
is low or the fuel tank is nearly
empty. Refuel as soon as

possible.

Low Tire Pressure Warning

Illuminates when your tire
pressure is low. If the lamp
remains on with the engine

running or when driving, check your tire
pressure as soon as possible.

It also illuminates momentarily when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have the system checked
by an authorized dealer.

Low Washer Fluid

E132353

Illuminates when the windshield
washer fluid is low.

Malfunction Indicator Lamp

It illuminates when you switch
the ignition on prior to engine
start to check the bulb.

Normally, it illuminates until the engine is
cranked and automatically turns off if no
system errors are present.

If it illuminates when the engine is running
this indicates a system error. The On Board
Diagnostics system has detected an error
in the vehicle emission control system. See

Emission Law

(page 168).

If it flashes, engine misfire may be
occurring. Continuing to drive your vehicle
may cause reduced power or the engine
to stop. Failure to respond to the warning
lamp may cause component damage not
covered by the vehicle warranty. Have your
vehicle checked as soon as possible.

Powertrain Fault

E323455

Illuminates when the system
detects a powertrain or a
4WD/AWD fault. Contact an

authorized dealer as soon as possible.

Rear Differential Lock

E325779

Illuminates when you lock the
rear differential.

100

Instrument Cluster

Stability Control

E323869

It flashes when the system is
active. If it remains illuminated
or does not illuminate when you

switch the ignition on, this indicates a
system error. During a system error the
system switches off. Have the system
checked by an authorized dealer
immediately. See

Using Stability

Control

(page 189).

Stability Control Off

E323870

Illuminates when you switch the
system off. It goes out when you
switch the system back on or

when you switch the ignition off. See

Using Stability Control

(page 189).

Trail Control

E318506

Illuminates when you switch trail
control on.

4WD Lock

E325580

Illuminates when four-wheel
drive is locked.

AUDIBLE WARNINGS AND
INDICATORS

Key in Ignition Warning Chime

Sounds when you open the driver's door
and you have left the key in the ignition.

Keyless Warning Alert

(If Equipped)

Sounds the horn twice when you exit your
vehicle with the intelligent access key, after
the last door is closed and your keyless
vehicle is in RUN, indicating your vehicle is
still on.

Headlamps On Warning Chime

Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.

Parking Brake On Warning Chime

Sounds when you have left the parking
brake on and drive your vehicle. If the
warning chime remains on after you have
released the parking brake, have the
system checked by an authorized dealer
immediately.

101

Instrument Cluster

GENERAL INFORMATION

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

You can control various systems on your
vehicle using the quick action menu (QAM)
buttons on the right-hand side of the
steering wheel. The information display
provides the corresponding information.

Information Display Controls

E250032

Return button.

OK button.

Menu button.

Return Button

Use the return button to go back or to exit.

Button

Use the

button to make a selection.

You can also use it to scroll through a
menu.

Menu Button

Use the menu button on the main screen
to display the submenu.

4 Inch Display Menu

E204495

This icon shows the features on
or off status. A check in the box
indicates the feature is on, and

unchecked indicates the feature is off.

Note:

Some options could appear slightly

different or not at all if the items are
optional.

Note:

Some MyKey menu options only

appear if MyKey is enabled and at least one
MyKey is programmed.

102

Information Displays

Trip Menu

Trip 1

Trip 2

Select Your Setting

Reset Individual Values

Select Your Setting

Configure View

•

Trip Odometer - Registers the distance traveled of individual journeys or the total
distance since the function was last reset.

•

Trip Timer - Registers the elapsed time of individual journeys or the total time since
the function was last reset.

•

Average Fuel - Indicates the average fuel consumption of individual journeys or the
average fuel consumption since the function was last reset.

•

Average Speed - Indicates the average vehicle speed of individual journeys or the
average vehicle speed since the function was last reset.

•

Distance to Empty - Indicates the approximate distance your vehicle can travel on
the fuel remaining in the tank. Changes in driving pattern can cause the value to not
only decrease but also increase or stay constant for periods of time.

Note:

Press and hold the OK button to reset your trip information.

MyView

Digital Speedometer

Fuel Economy

Trip/Audio

Calm Screen

Navigation

Menu options covered in the SYNC chapter. See

General Information

(page 363).

103
