LANE KEEPING SYSTEM – TROUBLESHOOTING

LANE KEEPING SYSTEM – INFORMATION MESSAGES

Action

Message

The system has malfunctioned. Have your

vehicle checked as soon as possible.

Lane Keeping Sys. Malfunction Service

Required

The system has detected a condition that

has caused the system to be temporarily

unavailable.

Front Camera Temporarily Not Available

The system has detected a condition that

requires you to clean the windshield in order

for it to operate properly.

Front Camera Low Visibility Clean Screen

The system has malfunctioned. Have your

vehicle checked as soon as possible.

Front Camera Malfunction Service Required

The system requests that you keep your

hands on the steering wheel.

Keep Hands on Steering Wheel

226

Lane Keeping System

LANE KEEPING SYSTEM – FREQUENTLY ASKED QUESTIONS

Why is the feature not available (lane markings are gray) when I can see the lane markings

on the road?

Your vehicle speed is less than 40 mph (65 km/h).

The sun is shining directly into the camera lens.

A quick intentional lane change has occurred.

Your vehicle stays too close to the lane markings for an extended interval of time.

Driving at high speeds in curves.

The last alert warning or aid intervention occurred a short time ago.

Ambiguous lane markings, for example, in construction zones.

Rapid transition from light to dark, or from dark to light.

Sudden offset in lane markings.

ABS or AdvanceTrac™ is active.

There is a camera blockage due to dirt, grime, fog, frost or water on the windshield.

You are driving too close to the vehicle in front of you.

Transitioning between no lane markings to lane markings, or vice versa.

There is standing water on the road.

Faint lane markings, for example, partial yellow lane markings on concrete roads.

Lane width is too narrow or too wide.

You have not calibrated the camera after a windshield replacement.

Driving on tight or on uneven roads.

227

Lane Keeping System

WHAT IS BLIND SPOT
INFORMATION SYSTEM

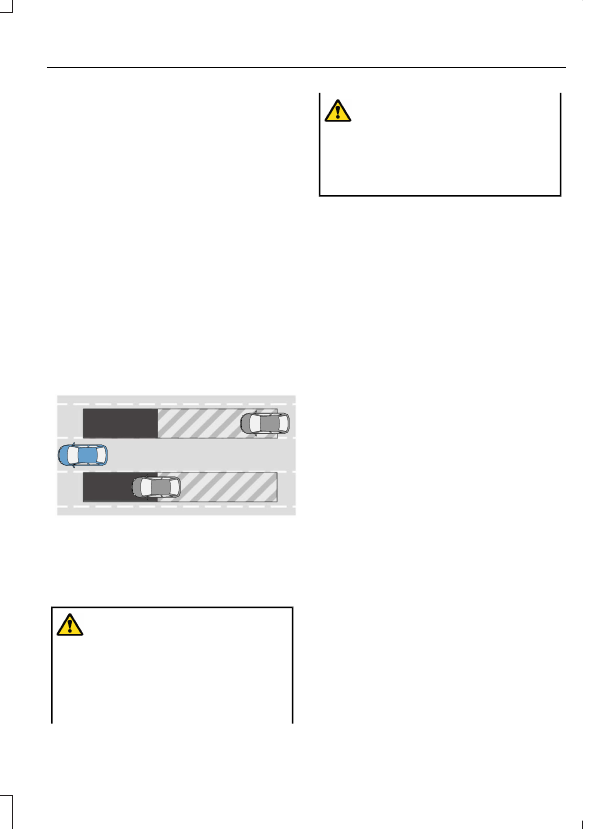

Blind spot information system detects
vehicles that may have entered the blind
spot zone.

HOW DOES BLIND SPOT
INFORMATION SYSTEM WORK

Blind spot information system uses
sensors on both sides of your vehicle,
detecting rearward from the exterior
mirrors to approximately 13 ft (4 m)
beyond the rear bumper. The detection
area extends to approximately 59 ft (18 m)
beyond the rear bumper when the vehicle
speed is greater than 30 mph (48 km/h)
to alert you of faster approaching vehicles.

E255695

BLIND SPOT INFORMATION
SYSTEM PRECAUTIONS

WARNING:

Do not use the blind

spot information system as a
replacement for using the interior and
exterior mirrors or looking over your
shoulder before changing lanes. The
blind spot information system is not a
replacement for careful driving.

WARNING:

The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due
care and attention. Failure to take care
may result in a crash.

Note:

Blind spot information system does

not prevent contact with other vehicles. It
does not detect parked vehicles,
pedestrians, animals or other infrastructure.

BLIND SPOT INFORMATION
SYSTEM LIMITATIONS

Blind spot information system does not
operate in park (P) or reverse (R).

The system may not alert you if a vehicle
quickly passes through the detection zone.

Note:

The system may not correctly operate

when towing a trailer. For vehicles with a
trailer tow module and tow bar approved
by us, the system turns off when you attach
a trailer. For vehicles with an aftermarket
trailer tow module or tow bar, we
recommend that you switch the system off
when you attach a trailer.

BLIND SPOT INFORMATION
SYSTEM REQUIREMENTS

Blind spot information system turns on
when all the following occur:
•

You start your vehicle.

•

You shift into drive (D).

•

The vehicle speed is greater than
6 mph (10 km/h).

229

Blind Spot Information System

SWITCHING BLIND SPOT
INFORMATION SYSTEM ON
AND OFF

To switch blind spot information system
on or off, use the instrument cluster
display:

Using the instrument cluster display
controls on the steering wheel, select

Driver Assist

2. Switch

Blind Spot

on or off.

When you switch blind spot information
system off, a warning lamp illuminates and
a message displays. When you switch the
system on or off, the alert indicators flash
twice.

Note:

The system remembers the last

setting when you start your vehicle.

To permanently switch the system off,
contact an authorized dealer.

LOCATING THE BLIND SPOT
INFORMATION SYSTEM
SENSORS

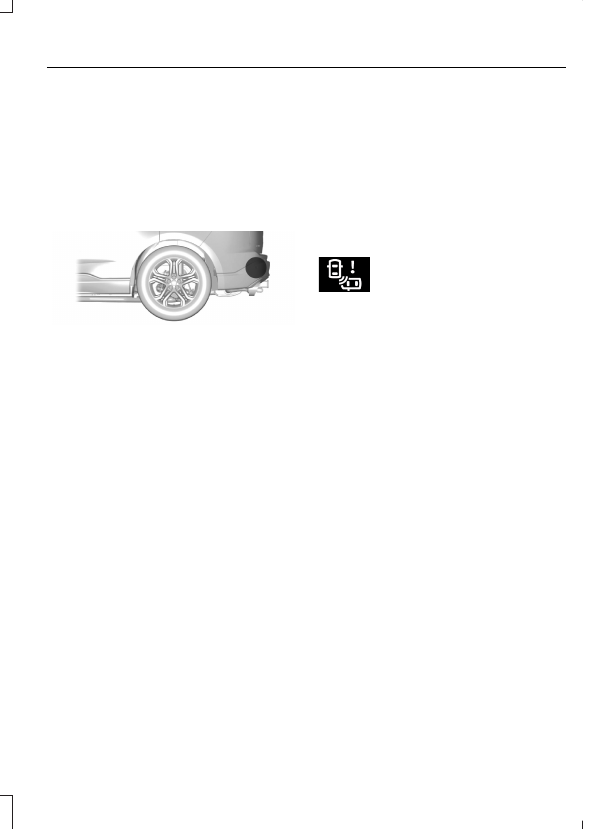

E205199

The sensors are behind the rear bumper
on both sides of your vehicle.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt.

Note:

Do not cover the sensors with bumper

stickers, repair compound or other objects.

Note:

Blocked sensors may affect system

accuracy.

Note:

Bike and cargo racks could cause

false alerts due to obstruction of the sensor.
We recommend switching the feature off
when using a bike or cargo rack.

If the sensors become blocked, a message
may appear in the information display. The
alert indicators remain illuminated but the
system does not alert you.

BLIND SPOT INFORMATION
SYSTEM INDICATORS

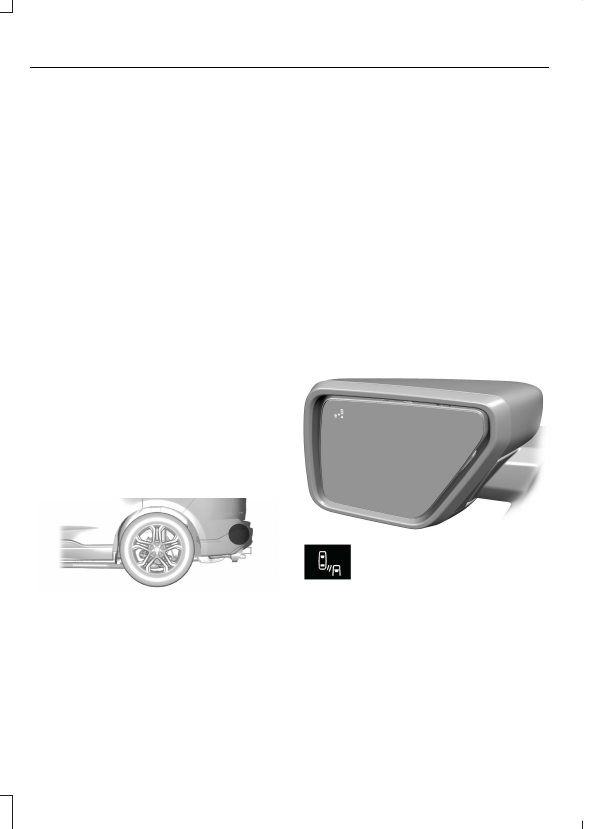

E309137

E249861

When blind spot information
system detects a vehicle, an
alert indicator illuminates in the

exterior mirror on the side the approaching
vehicle is coming from. If you turn the turn
signal on for that side of your vehicle, the
alert indicator flashes.

230

Blind Spot Information System

BLIND SPOT INFORMATION SYSTEM – TROUBLESHOOTING

BLIND SPOT INFORMATION SYSTEM – INFORMATION MESSAGES

Action

Message

A fault with the system has occurred. Have

your vehicle checked as soon as possible.

Blind Spot System Fault

Something is blocking the sensors. Clean

the sensors.

Blind Spot Not Available Sensor Blocked

See Manual

The system automatically turns off and

displays this message when you connect a

trailer to the vehicle that does not have a

trailer blind spot system or when you switch
the trailer blind spot system off through the

touchscreen.

Blind Spot Alert Deactivated Trailer

Attached

231

Blind Spot Information System

WHAT IS CROSS TRAFFIC
ALERT

The system alerts you of vehicles
approaching from the sides behind your
vehicle when you shift into reverse (R).

HOW DOES CROSS TRAFFIC
ALERT WORK

Cross traffic alert detects vehicles that
approach at a speed between 4–37 mph
(6–60 km/h). Coverage decreases when
the sensors are partially, mostly or fully
obstructed.

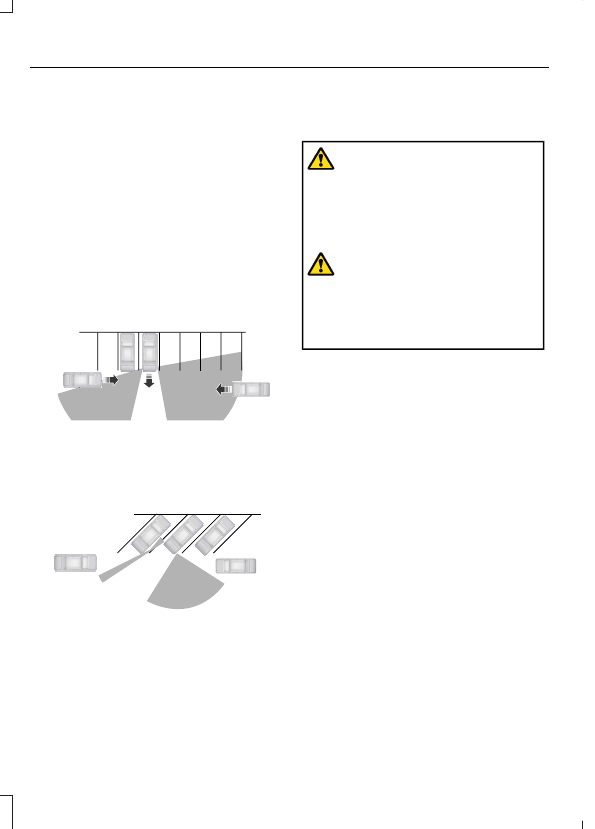

E142440

The sensor on the left-hand side is only
partially obstructed and zone coverage on
the right-hand side is maximized.

E142441

Zone coverage also decreases when
parking at narrow angles. The sensor on
the left-hand side is mostly obstructed and
zone coverage on that side is severely
reduced.

Note:

Slowly reversing helps increase the

coverage area and effectiveness.

CROSS TRAFFIC ALERT
PRECAUTIONS

WARNING:

Do not use the cross

traffic alert system as a replacement for
using the interior and exterior mirrors or
looking over your shoulder before
reversing out of a parking space. The
cross traffic alert system is not a
replacement for careful driving.

WARNING:

The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due
care and attention. Failure to take care
may result in a crash.

CROSS TRAFFIC ALERT
LIMITATIONS

Cross traffic alert may not correctly
operate when any of the following occur:
•

Something is blocking the sensors.

•

Adjacently parked vehicles or objects
are obstructing the sensors.

•

Vehicles approach at speeds less than
4 mph (6 km/h) or greater than 37 mph
(60 km/h).

•

Your vehicle speed is greater than
7 mph (12 km/h).

•

You reverse out of an angled parking
space.

SWITCHING CROSS TRAFFIC
ALERT ON AND OFF

To switch cross traffic alert on or off use
the instrument cluster display:

232

Cross Traffic Alert

Using the instrument cluster display
controls on the steering wheel, select

Driver Assist

2. Switch

Cross Traffic Alert

on or off.

LOCATING THE CROSS
TRAFFIC ALERT SENSORS

E205199

The sensors are behind the rear bumper
on both sides of your vehicle.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt.

Note:

Do not cover the sensors with bumper

stickers, repair compound or other objects.

Note:

Blocked sensors could affect system

performance.

Note:

Bike and cargo racks could cause

false alerts due to obstruction of the sensor.
We recommend switching the feature off
when using a bike or cargo rack.

If the sensors are blocked, a message may
appear in the information display when
you shift into reverse (R).

CROSS TRAFFIC ALERT
INDICATORS

E268294

When the cross traffic alert
detects an approaching vehicle,
a tone sounds, a warning lamp

illuminates in the relevant exterior mirror
and arrows appear in the information
display to show which side the vehicle is
approaching from.

If the system malfunctions, a warning lamp
illuminates in the instrument cluster and
a message appears in the information
display. Have your vehicle checked as soon
as possible.

Note:

If arrows do not display, a message

appears in the information display.

Note:

In some conditions, the system could

alert you, even when there is nothing in the
detection zone, for example a vehicle
passing further away from your vehicle.

233

Cross Traffic Alert

CROSS TRAFFIC ALERT – TROUBLESHOOTING

CROSS TRAFFIC ALERT – INFORMATION MESSAGES

Action

Message

Displays instead of indication arrows when

the system detects a vehicle. Check for

approaching traffic.

Cross Traffic Alert

Indicates blocked cross traffic alert system
sensors. Clean the sensors. If the message

continues to appear, have your vehicle

checked as soon as possible.

Cross Traffic Not Available Sensor Blocked

See Manual

The system has malfunctioned. Have your

vehicle checked as soon as possible.

Cross Traffic System Fault

Displays if you attach a trailer to your

vehicle.

Cross Traffic Alert Deactivated Trailer

Attached

234

Cross Traffic Alert

WHAT IS PRE-COLLISION
ASSIST

Pre-collision assist detects and warns of
approaching hazards in the roadway. If
your vehicle is rapidly approaching another
stationary vehicle, a vehicle traveling in the
same direction as yours, or a pedestrian
within your driving path, the system
provides multiple levels of assistance to
help avoid a collision.

HOW DOES PRE-COLLISION
ASSIST WORK

The system warns the driver of potential
hazards by providing three levels of
assistance.

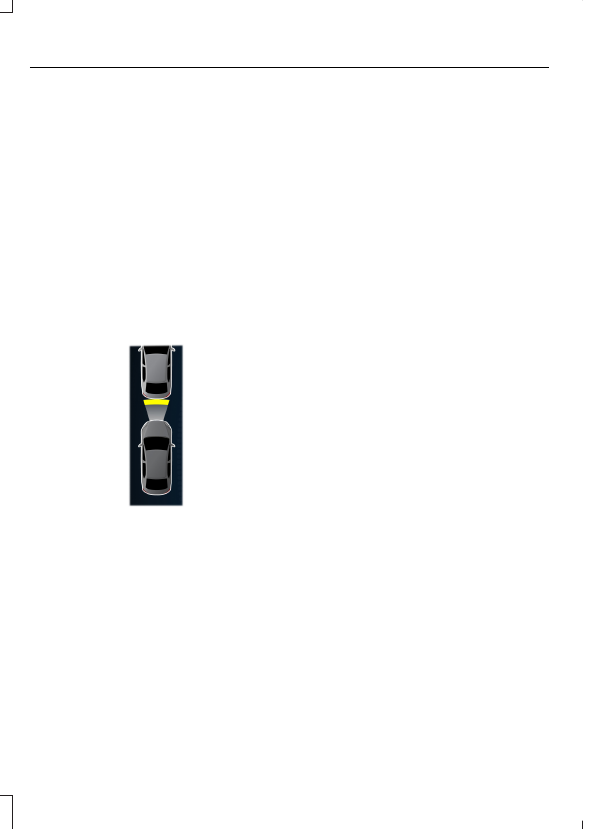

E156130

If your vehicle is rapidly approaching
potential hazards, the system provides the
following levels of functionality:

Alert.

2. Brake Support.

3. Automatic Emergency Braking.

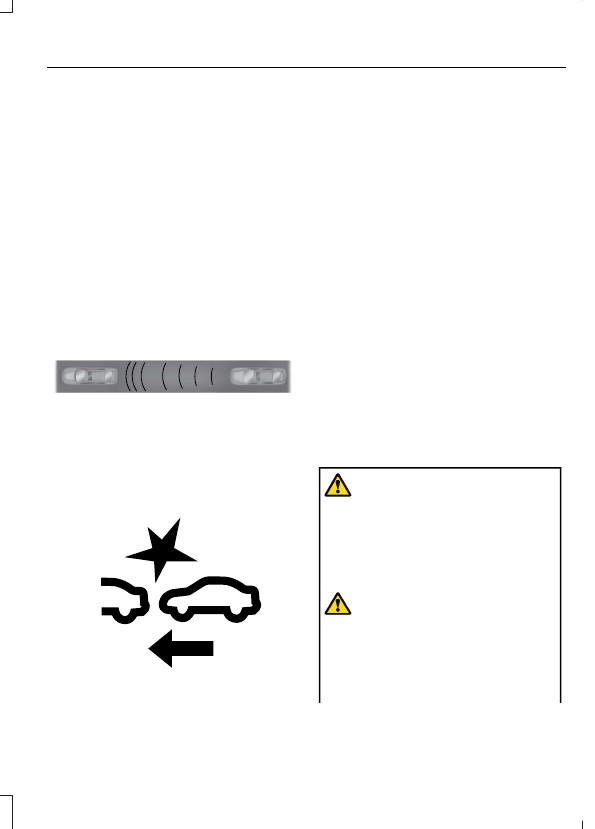

E255268

Alert

: When active, a flashing visual

warning appears and an audible warning
tone sounds.

Brake Support

: The system is designed

to help reduce the impact speed by
preparing the brakes for rapid braking. The
system does not automatically apply the
brakes. If you press the brake pedal, the
system could apply additional braking up
to maximum braking force, even if you
lightly press the brake pedal.

Automatic Emergency Braking

Automatic emergency braking may
activate if the system determines that a
collision is imminent.

Note:

If you perceive pre-collision assist

alerts as being too frequent or disturbing,
then you can reduce the alert sensitivity,
though the manufacturer recommends
using the highest sensitivity setting where
possible. Setting lower sensitivity would
lead to fewer and later system warnings.

Each system has various level of detection
capabilities. See

Pre-Collision Assist

Limitations

(page 236).

PRE-COLLISION ASSIST
PRECAUTIONS

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

The system does not

detect vehicles moving in a different
direction or animals. Apply the brakes
when necessary. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

235

Pre-Collision Assist

WARNING:

The system does not

operate during hard acceleration or
steering. Failure to take care may lead
to a crash or personal injury.

WARNING:

The system may fail or

operate with reduced function during
cold and severe weather conditions.
Snow, ice, rain, spray and fog can
adversely affect the system. Keep the
front camera and radar free of snow and
ice. Failure to take care may result in the
loss of control of your vehicle, serious
personal injury or death.

WARNING:

Take additional care if

your vehicle is heavily loaded or you are
towing a trailer. These conditions could
result in reduced performance of this
system. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

The system cannot

help prevent all crashes. Do not rely on
this system to replace driver judgment
and the need to maintain a safe distance
and speed.

WARNING:

In situations where the

vehicle camera has limited detection
capability, this may reduce system
performance. These situations include
but are not limited to direct or low
sunlight, vehicles at night without tail
lights, unconventional vehicle types,
pedestrians with complex backgrounds,
running pedestrians, partly obscured
pedestrians, or pedestrians that the
system cannot distinguish from a group.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death.

PRE-COLLISION ASSIST
LIMITATIONS

Pre-collision assist depends on the
detection ability of its camera and sensors.
Any obstructions or damage to these areas
can limit detection or prevent the system
from functioning. See

Locating the

Pre-Collision Assist Sensors

(page 237).

The system is active at speeds above
3 mph (5 km/h)

Note:

The pre-collision assist system

disables when you select four-wheel drive
low or manually disable AdvanceTrac™.

Note:

Brake support and automatic

emergency braking are active at speeds up
to 80 mph (130 km/h). If the vehicle has a
radar sensor included with adaptive cruise
control, then brake support and automatic
emergency braking are active up to the
maximum speed of the vehicle.

Pedestrian Detection Limitations

Pedestrian detection is active at speeds
up to 50 mph (80 km/h).

Pedestrian detection functions optimally
when detected hazards are clearly
identifiable. System performance may
reduce in situations where pedestrians are
running, partly obscured, have a complex
background, or cannot be distinguished
from a group.

236

Pre-Collision Assist

LOCATING THE PRE-
COLLISION ASSIST SENSORS

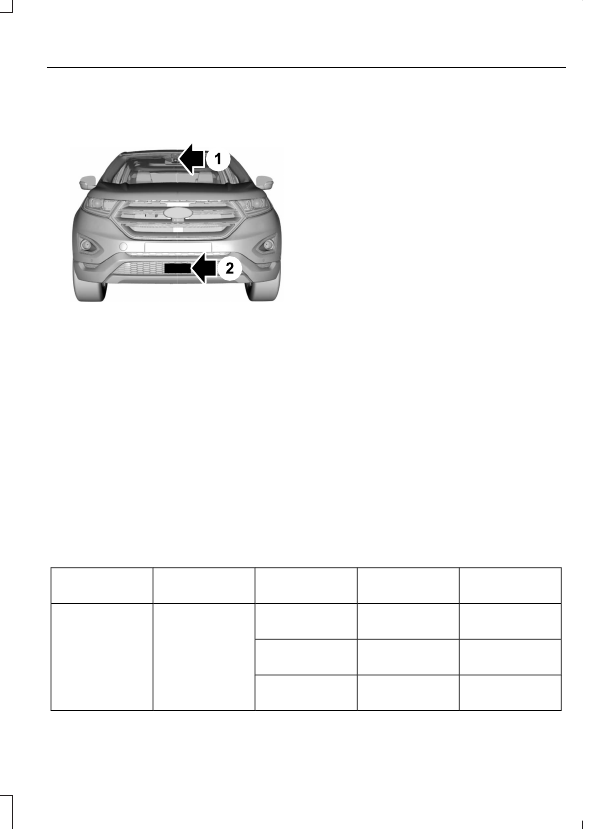

E273245

Camera.

Radar sensor (if equipped).

If a message regarding a blocked sensor
or camera appears in the information
display, something is obstructing the radar
signals or camera images. The radar sensor
is behind the fascia cover in the center of
the lower grille. With a blocked sensor or
camera, the system may not function, or
performance may reduce. See

Pre-Collision Assist – Information
Messages

(page 240).

Note:

Proper system operation requires a

clear view of the road by the camera. Have
any windshield damage in the area of the
camera's field of view repaired.

Note:

If something hits the front end of your

vehicle or damage occurs and your vehicle
has a radar sensor, the radar sensing zone
could change. This could cause missed or
false vehicle detections. Have your vehicle
serviced to have the radar checked for
proper coverage and operation.

Note:

If your vehicle detects excessive heat

at the camera or a potential misalignment
condition, a message could display in the
information display indicating temporary
sensor unavailability. When operational
conditions are correct, the message
deactivates. For example, when the ambient
temperature around the sensor decreases
or the sensor recalibrates successfully.

DISTANCE INDICATION

(IF

EQUIPPED)

WHAT IS DISTANCE INDICATION

Distance indication displays the gap
between your vehicle and the vehicle
ahead of you.

Note:

The graphic does not display if you

switch on cruise control or adaptive cruise
control.

Time Gap

Distance Gap

Distance Indic-

ator Color

System Sensit-

ivity

Vehicle Speed

Greater than 0.9

seconds.

Greater than
82 ft (25 m).

Gray.

Normal.

62 mph

(100 km/h).

0.6-0.9

seconds.

56–82 ft

(17–25 m).

Yellow.

Less than 0.6

seconds.

Less than 56 ft

(17 m).

Red.

237

Pre-Collision Assist

SWITCHING DISTANCE
INDICATION ON AND OFF

To switch the system on or off, use the
instrument cluster display:

Using the instrument cluster display
controls on the steering wheel, select

Driver Assist

2. Select

Pre-Collision

3. Switch

Dist. Indication

on or off.

DISTANCE INDICATION
INDICATOR

The indicator displays the time gap
between your vehicle and vehicles traveling
in the same direction ahead of you.

E355762

DISTANCE ALERT

(IF EQUIPPED)

WHAT IS DISTANCE ALERT

The system alerts you with a warning lamp
if the distance to the vehicle ahead is
small.

Note:

The warning lamp does not

illuminate if cruise control or adaptive cruise
control is active.

ADJUSTING THE SENSITIVITY OF
DISTANCE ALERT

To adjust the sensitivity of the system, use
the instrument cluster display:

Using the instrument cluster display
controls on the steering wheel, select

Driver Assist

2. Select

Pre-Collision

3. Select

Alert Sensitivity

4. Select a setting.

AUTOMATIC EMERGENCY
BRAKING

WHAT IS AUTOMATIC
EMERGENCY BRAKING

Automatic emergency braking may
activate if the system determines that a
collision is imminent. The system may help
reduce impact damage to avoid the crash
completely.

Automatic emergency braking is only
available up to certain speeds. See

Pre-Collision Assist Limitations

(page

236).

SWITCHING AUTOMATIC
EMERGENCY BRAKING ON AND
OFF

To switch the system on or off, use the
instrument cluster display:

Using the instrument cluster display
controls on the steering wheel, select

Driver Assist

2. Select

Pre-Collision

3. Switch

Active Braking

on or off.

Note:

Automatic emergency braking

switches on every time you switch the
ignition on.

238

Pre-Collision Assist

EVASIVE STEERING ASSIST

(IF

EQUIPPED)

WHAT IS EVASIVE STEERING
ASSIST

If your vehicle is rapidly approaching a road
user, evasive steering assist helps you steer
around the road user.

After you turn the steering wheel in an
attempt to avoid a crash with the road
user, the system applies additional steering
torque to help you steer around the road
user. After you pass the road user, the
system applies steering torque when you
turn the steering wheel to steer back into
the lane. The system deactivates after you
fully pass the road user.

Note:

Road users are defined as obstacles

encountered on the road that the system is
able to detect. See

Pre-Collision Assist

Precautions

(page 235).

EVASIVE STEERING ASSIST
LIMITATIONS

Evasive steering assist only activates when
all the following occur:
•

Automatic emergency braking and
evasive steering assist are on.

•

The system detects a road user ahead
and starts to apply the brakes.

•

You significantly turn the steering
wheel to steer around a road user.

Note:

Evasive steering assist does not

automatically steer around a road user. If
you do not turn the steering wheel, evasive
steering assist does not activate.

Note:

Evasive steering assist does not

activate if the distance to the road user
ahead is too small and the system cannot
avoid a crash.

Note:

Evasive steering does not activate

with cyclists or pedestrians.

SWITCHING EVASIVE STEERING
ASSIST ON AND OFF

To switch the system on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Switch

Evasive Steering

on or off.

Note:

If you switch automatic emergency

braking off, evasive steering assist turns off.

Note:

Automatic emergency braking and

evasive steering assist turn on every time
you switch the ignition on.

239

Pre-Collision Assist

PRE-COLLISION ASSIST – TROUBLESHOOTING

PRE-COLLISION ASSIST – INFORMATION MESSAGES

Action

Message

You have a blocked sensor due to bad

weather, ice, mud or water in front of the

radar sensor. You can typically clean the

sensor to resolve.

Pre-Collision Assist Not Available Sensor

Blocked

A fault with the system has occurred. Have

your vehicle checked as soon as possible.

Pre-Collision Assist Not Available

240

Pre-Collision Assist

PRE-COLLISION ASSIST –
FREQUENTLY ASKED QUESTIONS

Camera Troubleshooting

The windshield in front of the camera
is dirty or obstructed.

Clean the outside of the windshield in
front of the camera.

The windshield in front of the camera
is clean, but the message remains in
the instrument cluster display.

Wait a short time. It could take several
minutes for the camera to detect that
there is no obstruction.

Radar Troubleshooting

(If Equipped)

The surface of the radar in the grille is
dirty or obstructed.

Clean the grille surface in front of the
radar or remove the object causing the
obstruction.

The surface of the radar in the grille is
clean, but the message remains in the
instrument cluster display.

Wait a short time. It could take several
minutes for the radar to detect that
there is no obstruction.

Heavy rain, spray or fog is interfering
with the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision
assist reactivates a short time after
the weather conditions improve.

Swirling water or snow or ice on the
surface of the road could interfere with
the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision
assist reactivates a short time after
the weather conditions improve.

Radar is out of alignment due to a front
end impact.

Have your vehicle serviced to have the
radar checked for proper coverage and
operation.

241

Pre-Collision Assist

Ford Edge (2022 year). Manual in english - page 14
