ELECTRIC POWER STEERING

ELECTRIC POWER STEERING
PRECAUTIONS

WARNING:

The electric power

steering system has diagnostic checks
that continuously monitor the system. If
a fault is detected, a message displays
in the information display. Stop your
vehicle as soon as it is safe to do so.
Switch the vehicle off. After at least 10
seconds, switch the vehicle on and
watch the information display for a
steering system warning message. If a
steering system warning message
returns, have the system checked as
soon as possible.

WARNING:

If the system detects

an error, you may not feel a difference in
the steering, however a serious condition
may exist. Have your vehicle checked as
soon as possible. Failure to do so may
result in loss of steering control.

Adapt your speed and driving behavior
according to reduced steering assist.

Extreme continuous steering may increase
the effort to steer. This occurs to prevent
internal overheating and damage to the
steering system. If this occurs, you will not
lose the ability to steer your vehicle
manually nor will it cause damage to the
system. Normal steering and driving allows
the system to cool down and steering
assist returns to normal.

Note:

There is no fluid reservoir to check or

fill.

STEERING – TROUBLESHOOTING

STEERING – INFORMATION MESSAGES

Action

Message

The power steering system has detected a

condition that requires service. Have your

vehicle checked as soon as possible.

Steering Fault Service Now

The power steering system is not working.
Stop your vehicle in a safe place. Have your

vehicle checked as soon as possible.

Steering Loss Stop Safely

The power steering system has detected a

condition that requires service. Have your

vehicle checked as soon as possible.

Steering Assist Fault Service Required

194

Steering

PARKING AID PRECAUTIONS

WARNING:

To help avoid personal

injury, always use caution when in
reverse (R) and when using the sensing
system.

WARNING:

The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care
and attention. Failure to take care may
result in a crash.

WARNING:

Traffic control systems,

fluorescent lamps, inclement weather,
air brakes, external motors and fans may
affect the correct operation of the
sensing system. This may cause reduced
performance or false alerts.

WARNING:

The system may not

detect small or moving objects,
particularly those close to the ground.

WARNING:

The parking aid system

can only assist you to detect objects
when your vehicle is moving at parking
speeds. To help avoid personal injury you
must take care when using the parking
aid system.

WARNING:

The system may not

function if the sensor is blocked.

WARNING:

In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance.

WARNING:

If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

Note:

If your vehicle sustains damage

leaving the sensors misaligned, this will
cause inaccurate measurements or false
alerts.

When you connect a trailer to your vehicle,
the rear parking aid detects the trailer and
provides an alert. Disable the parking aid
when you connect a trailer to prevent the
alert.

Note:

Certain add-on devices installed

around the bumper or fascia may create
false alerts, for example, large trailer
hitches, bike or surfboard racks, license plate
brackets, bumper covers or any other device
that could block the normal detection zone
of the parking aid system. Aftermarket spare
tires or spare tire covers mounted to the rear
tailgate could cause false alerts from the
park aid system. Remove the add-on device
to prevent false alerts.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt. If the
sensors are covered, the system's accuracy
can be affected.

Do not clean the sensors with sharp
objects.

Note:

When using a programmed MyKey,

you cannot switch the parking aids off. See

MyKey Settings

(page 65).

SWITCHING PARKING AID ON
AND OFF

Using the Park Aid Button

(If Equipped)

E139213

Press the parking aid button and
use the menu to turn the system
on and off.

Using Park Aid Prompt

The system can be turned off using the
pop-up message that appears when you
are in reverse (R).

195

Parking Aids

(If Equipped)

REAR PARKING AID

WHAT IS THE REAR PARKING AID

Rear parking sensors detect objects behind
your vehicle when in reverse (R).

REAR PARKING AID LIMITATIONS

There is a decreased coverage area at the
outer corners.

When using a programmed MyKey, you
cannot switch the rear parking aid off.

The rear parking aid sensors are active
when your vehicle is in reverse (R) and the
vehicle speed is less than 5 mph (8 km/h).

The sensor coverage area is up to 71 in
(180 cm) from the rear bumper.

The rear parking aid detects large objects
when you shift into reverse (R) and any of
the following occur:
•

Your vehicle is moving backward at a
low speed.

•

Your vehicle is stationary but an object
is approaching the rear of your vehicle
at a low speed.

•

Your vehicle is moving backward at a
low speed and an object is moving
towards your vehicle, for example
another vehicle at a low speed.

The system shall provide no audible
warning for the object behind the vehicle
when in neutral (N) gear.

LOCATING THE REAR PARKING
AID SENSORS

E130178

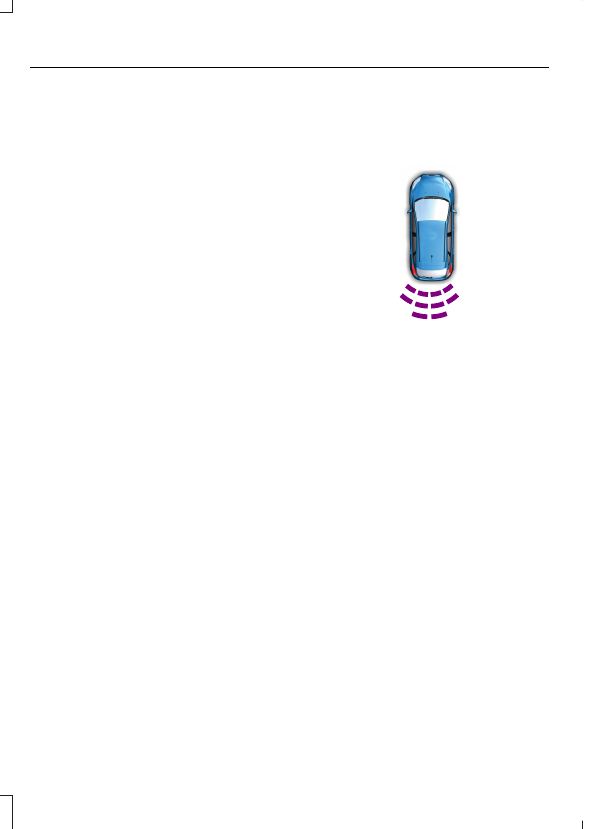

The rear parking aid sensors are in the rear
bumper.

REAR PARKING AID AUDIBLE

WARNINGS

A warning tone sounds when your vehicle
approaches an object. As your vehicle
moves closer to an object, the rate of the
tone increases. The warning tone
continuously sounds when an object is 12 in
(30 cm) or less from the rear bumper.

If your vehicle remains stationary for a few
seconds, the audible warning turns off. If
your vehicle moves backward the tone
sounds again.

Note:

When the parking aid system sounds

a tone, the audio system could reduce the
set volume.

FRONT PARKING AID

WHAT IS THE FRONT PARKING
AID

Front parking sensors detect objects in
front of your vehicle.

196

Parking Aids

(If Equipped)

FRONT PARKING AID
LIMITATIONS

The front parking aid sensors are active
when your vehicle is in any position other
than park (P) and the vehicle speed is less
than 5 mph (8 km/h).

The sensor coverage area is up to 28 in
(70 cm) from the bumper.

If your vehicle is in reverse (R), the front
parking aid detects objects when your
vehicle is moving at a low speed or an
object is moving toward your vehicle and
provides an audible warning, for example
another vehicle at a low speed. If your
vehicle remains stationary for a few
seconds, the audible warning turns off.
Visual indication is always active in reverse
(R).

If your vehicle is in any forward gear, the
front parking aid provides audible warnings
and visual indication when your vehicle is
moving at a speed of 5 mph (8 km/h) or
below and the system detects an object
within the detection zone. If your vehicle
remains stationary for a few seconds, the
visual indication and audible warning turns
off.

If your vehicle is in neutral (N), the front
and rear sensors provide visual indication
only when your vehicle is moving below a
speed of 5 mph (8 km/h) and obstacles
are detected inside the detection areas.
Once your vehicle stops, the visual
indication and audible warning stops after
a few seconds.

LOCATING THE FRONT PARKING
AID SENSORS

E187330

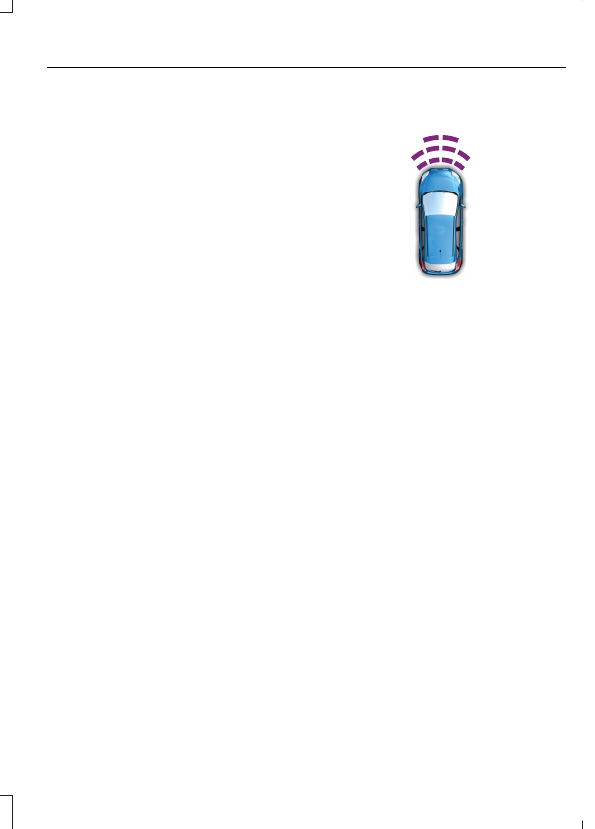

The front parking aid sensors are in the
front bumper.

FRONT PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when there is an
object within 28 in (70 cm) from the front
bumper. As your vehicle moves closer to
an object, the rate of the tone increases.

The warning tone continuously sounds
when an object is 12 in (30 cm) or less from
the front bumper.

Note:

If the detected object is 12 in (30 cm)

or less from your vehicle, visual indication
remains on.

SIDE PARKING AID

WHAT IS THE SIDE PARKING AID

The front and rear outermost parking aid
sensors map objects that are near to the
sides of your vehicle.

SIDE PARKING AID LIMITATIONS

The sensor coverage is up to 24 in (60 cm)
from the sides of your vehicle.

197

Parking Aids

(If Equipped)

The side parking aid may not function if:
•

Your vehicle remains stationary for over
two minutes.

•

The anti-lock brake system activates.

•

The traction control system activates.

•

Your vehicle is in park (P).

•

The steering wheel angle information
is not available. You must drive at least
492 ft (150 m) above 19 mph
(30 km/h) to reset the steering wheel
angle information.

Note:

If you switch traction control off, the

side sensing system also turns off.

To reinitialize the system, drive the length
of your vehicle.

The side parking aid does not detect an
object that is moving toward the side of
your vehicle, for example another vehicle
moving at a low speed, if it does not pass
a front or rear parking aid sensor.

If the transmission is in reverse (R), the side
sensing system provides audible warnings.
When your vehicle is moving slowly,
obstacles are detected within 24 in
(60 cm) and are inside the driving path of
your vehicle. If your vehicle remains
stationary for a few seconds, the audible
warning turns off. Visual indication is
always present in reverse (R).

If your vehicle is in neutral (N), the side
sensing system provides visual indication
only when your vehicle is moving slowly
and there is a front or rear parking aid
obstacle detected, and the side obstacle
is within 24 in (60 cm) from the side of
your vehicle. If your vehicle remains
stationary for a few seconds, the visual
indication turns off.

If the transmission is in drive (D) or any
other forward gear, the side sensing system
provides audible and visual warnings.
When your vehicle is moving slowly,
obstacles are detected within 24 in
(60 cm) and are inside the driving path of
your vehicle. If your vehicle remains
stationary for a few seconds, the visual
indication and audible warning turns off.

LOCATING THE SIDE PARKING AID
SENSORS

E187810

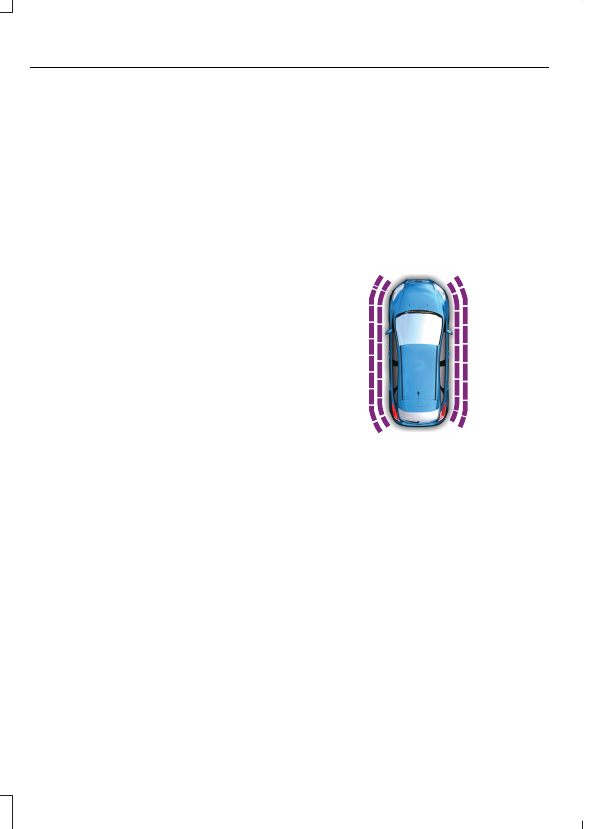

The side parking sensors are in the front
and rear bumpers on both sides of the
vehicle.

SIDE PARKING AID AUDIBLE
WARNINGS

When the side parking aid detects an
object within the coverage area and the
driving path of your vehicle, an audible
warning sounds. As your vehicle moves
closer to the object, the rate of the tone
increases.

198

Parking Aids

(If Equipped)

PARKING AID INDICATORS

E190459

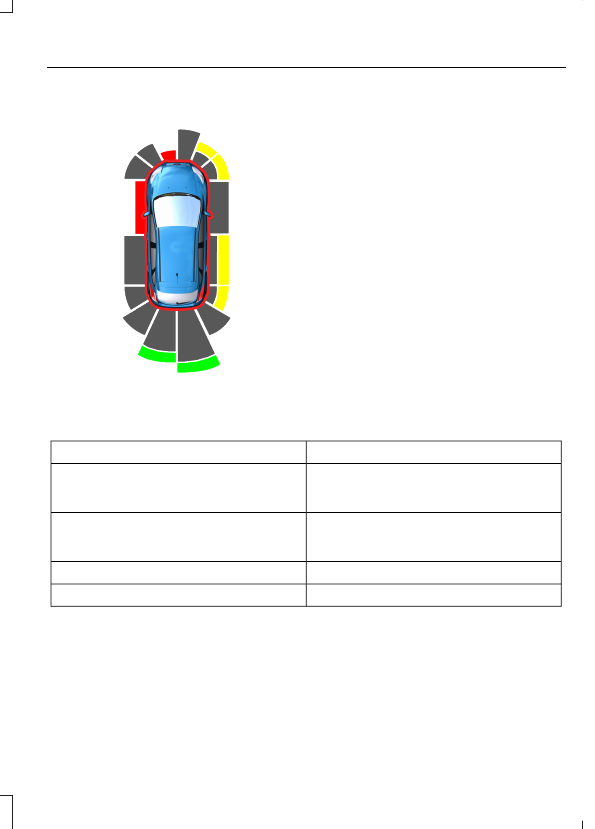

The system provides object distance
indication through the information and
entertainment display.

•

As the distance to the object
decreases, the indicator waves and the
lines move toward the vehicle icon.

•

If there is no object detected, the
distance indicator lines are grey.

Visual indication remains on when your
vehicle is in reverse (R). In any other gear,
when you stop your vehicle, visual
indication turns off after four seconds.

If the parking aids are not available, the
side distance indicator lines do not display.

PARKING AIDS –
TROUBLESHOOTING

PARKING AIDS – INFORMATION
MESSAGES

If a fault is present in the parking aids, a
warning message appears in the
instrument cluster or the information and
entertainment display.

Action

Message

The system detects a condition that

requires service. Have your vehicle checked

as soon as possible.

Check Front Park Aid

The system detects a condition that

requires service. Have your vehicle checked

as soon as possible.

Check Rear Park Aid

Displays the park aid status.

Front Park Aid On Off

Displays the park aid status.

Rear Park Aid On Off

199

Parking Aids

(If Equipped)

WHAT IS THE REAR VIEW
CAMERA

The rear view camera provides a video
image of the area behind your vehicle when
the transmission is in reverse (R).

REAR VIEW CAMERA
PRECAUTIONS

WARNING:

The rear view camera

system is a reverse aid supplement
device that still requires the driver to use
it in conjunction with the interior and
exterior mirrors for maximum coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Reverse your vehicle

slowly. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Use caution when the

rear cargo door is ajar. If the rear cargo
door is ajar, the camera will be out of
position and the video image could be
incorrect. All guide lines disappear when
the rear cargo door is ajar. Failure to
follow this instruction could result in
personal injury.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

Note:

When towing, the camera only sees

what you are towing. This might not provide
adequate coverage and you might not see
some objects. In some vehicles, the guide
lines may disappear when you connect the
trailer tow connector.

LOCATING THE REAR VIEW
CAMERA

The rear view camera is located on the
cargo door. It provides a video image of the
area behind your vehicle.

REAR VIEW CAMERA GUIDE
LINES

Note:

Active guide lines and fixed guide

lines are only available when the
transmission is in reverse (R).

Note:

The centerline is only available if the

active or fixed guide lines are on.

200

Rear View Camera

E306774

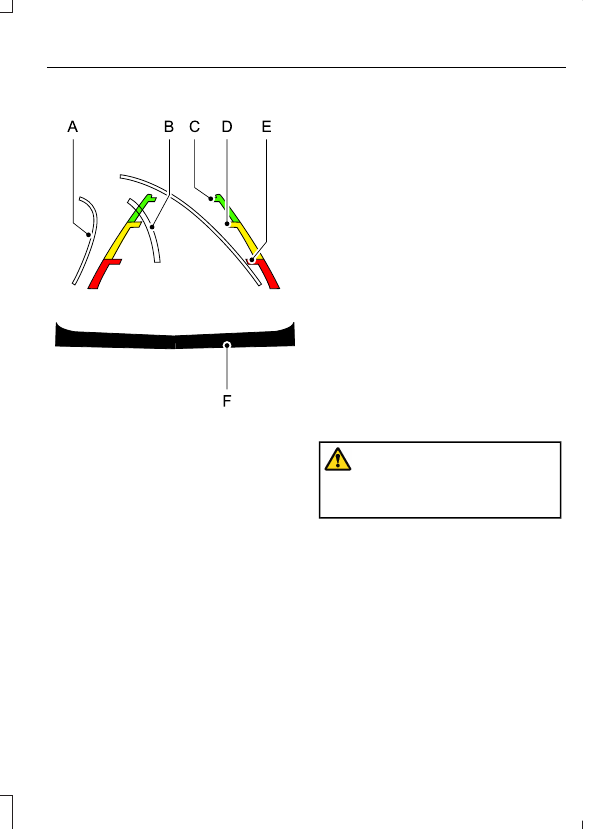

A. Active guide lines.
B. Centerline.
C. Fixed guide line: Green zone.
D. Fixed guide line: Yellow zone.
E. Fixed guide line: Red zone.
F. Rear bumper.

Active guide lines only show with fixed
guide lines. To use active guide lines, turn
the steering wheel to point the guide lines
toward an intended path. If the steering
wheel position changes while reversing,
your vehicle might deviate from the
intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

Use caution while reversing. Objects in the
red zone are closest to your vehicle and
objects in the green zone are farther away.
Objects get closer to your vehicle as they
move from the green zone to the yellow or
red zones. Use the side view mirrors and
rear view mirror to get better coverage on
both sides and rear of your vehicle.

REAR VIEW CAMERA OBJECT
DISTANCE INDICATORS

The system provides an image of your
vehicle and the sensor zones. The zones
highlight green, yellow, and red when the
parking aid sensors detect an object in the
coverage area.

REAR VIEW CAMERA
SETTINGS

ZOOMING THE REAR VIEW
CAMERA IN AND OUT

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

Selectable settings for this feature are
zoom in (+) and zoom out (-). Press the
symbol on the camera screen to change
the view. The default setting is zoom off.

This allows you to get a closer view of an
object behind your vehicle. The zoomed
image keeps the bumper in the image to
provide a reference. The zoom is only
active while the transmission is in reverse
(R).

Note:

Manual zoom is only available when

the transmission is in reverse (R).

Note:

Only the centerline shows when you

enable manual zoom.

201

Rear View Camera

SWITCHING REAR VIEW CAMERA
DELAY ON AND OFF

Press

Settings

on the touchscreen.

Press

Vehicle Settings

Switch

Rear View Camera Delay

on or

off.

When shifting the transmission out of
reverse (R) and into any gear other than
park (P), the camera image remains in the
display until:

•

Your vehicle speed reaches
approximately 5 mph (8 km/h).

•

You shift your vehicle into park (P).

202

Rear View Camera

WHAT IS THE 180 DEGREE
CAMERA

The 180 degree camera system consists
of front and rear cameras.

HOW DOES THE 180 DEGREE
CAMERA WORK

The 180 degree camera system allows you
to see what is directly in front or behind
your vehicle, provides a cross traffic view
in front of your vehicle and provides
visibility when parking your vehicle.

180 DEGREE CAMERA
PRECAUTIONS

WARNING:

The rear view camera

system is a reverse aid supplement
device that still requires the driver to use
it in conjunction with the interior and
exterior mirrors for maximum coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

180 DEGREE CAMERA
LIMITATIONS

Note:

The area displayed on the screen may

vary according to your vehicle's orientation
or road condition.

Note:

The front view camera will switch off

if your vehicle speed exceeds 6 mph
(10 km/h). You will have to switch the
system back on by using the camera system
button once below the speed threshold.

Note:

The camera system may not operate

correctly if mud, water or debris obstructs
the camera's view. You can clean the lens
with a soft, lint-free cloth and non-abrasive
cleaner or by using your front or rear washer.
See

Wipers

(page 95).

LOCATING THE 180 DEGREE
CAMERAS

The front view camera is in the grille. The
rear view camera is on the liftgate.

180 DEGREE CAMERA
INDICATORS

The 180 degree camera provides an image
of your vehicle and the sensor zones. The
zones will highlight green, yellow, and red
when the parking aid sensors detect an
object in the coverage area.

180 DEGREE CAMERA
SETTINGS

SWITCHING THE 180 DEGREE
CAMERA ON AND OFF

E188847

The camera button is located on
the audio unit and allows you to
toggle through different camera

views.

Note:

The camera system may not operate

correctly if mud, water or debris obstructs
the camera's view. You can clean the lens
with a soft, lint-free cloth and non-abrasive
cleaner or by using your front or rear washer.
See

Wipers

(page 95).

203

180 Degree Camera

WHAT IS ACTIVE PARK
ASSIST

Assists you with parking in and out of
parking spaces.

HOW DOES ACTIVE PARK
ASSIST WORK

Active park assist uses sensors to detect
parking spaces. Active park assist controls
steering as required to maneuver into or
out of a parking space when activate.

ACTIVE PARK ASSIST
PRECAUTIONS

WARNING:

You must remain in

your vehicle when the system turns on.
At all times, you are responsible for
controlling your vehicle, supervising the
system and intervening, if required.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death.

WARNING:

The sensors may not

detect objects in heavy rain or other
conditions that cause interference.

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

Do not use the system

with accessories that extend beyond the
front or rear of your vehicle, for example
a trailer hitch or bike rack. The system is
not able to make corrections for the
additional length of the accessories.

SWITCHING ACTIVE PARK
ASSIST ON AND OFF

E146186

Press the active park assist
button to bring up full screen
notifications.

Press the soft keys on the touchscreen to
switch between parallel park in,
perpendicular park in or parallel park out
parking modes.

Cancelling Active Park Assist

To cancel parking assistance at any time:
•

Press the active park assist button
during operation.

•

Grab the steering wheel during
operation.

•

Drive above 22 mph (35 km/h) for a
short period of time when searching for
a parking space.

•

Drive above 6 mph (9 km/h) during
operation.

•

Switch traction control off.

ENTERING A PARALLEL
PARKING SPACE

Press the active park assist button.

2. Select parallel park.

Note:

The system detects other vehicles

and curbs to find a parking space.

205

Active Park Assist

(If Equipped)

3. Use the turn signal lever to search for

a parking space on the driver or
passenger side of your vehicle.

Note:

The system defaults to searching for

a parking spot on the passenger side of your
vehicle if you do not use the turn signal lever.

4. Drive your vehicle approximately 3 ft

(1 m) away from and parallel to the
other parked vehicles when searching
for a parking space.

Note:

A tone sounds and a message

appears in the information and
entertainment display when active park
assist finds a parking space.

5. Press and hold the brake pedal.

6. Release the steering wheel and shift

into reverse (R).

Use the accelerator and brake to
control your vehicle's speed when
parking. You are responsible for
stopping your vehicle.

8. Active park assist is a multi-step

process and requires you to shift the
transmission multiple times. Follow the
onscreen instructions until parking is
complete.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

Note:

When parallel parking between

objects, the system will park closer to the
object in front of your vehicle to allow easier
access to the luggage compartment.

ENTERING A PERPENDICULAR
PARKING SPACE

Press the active park assist button.

2. Select perpendicular parking.

Note:

Active park assist does not recognize

parking space lines and centers your vehicle
between objects.

Note:

Active park assist backs your vehicle

into parking spaces.

3. Use the turn signal lever to search for

a parking space on the driver or
passenger side of your vehicle.

Note:

The system defaults to searching for

a parking spot on the passenger side of your
vehicle if you do not use the turn signal lever.

4. Drive your vehicle approximately 3 ft

(1 m) away from and perpendicular to
the other parked vehicles when
searching for a parking space.

Note:

A tone sounds and a message

appears in the information and
entertainment display when active park
assist finds a parking space.

5. Press and hold the brake pedal.

6. Release the steering wheel and shift

into reverse (R).

Use the accelerator and brake to
control your vehicle's speed when
parking. You are responsible for
stopping your vehicle.

8. Active park assist is a multi-step

process and requires you to shift the
transmission multiple times. Follow the
onscreen instructions until parking is
complete.

Note:

Active park assist aligns the front-end

of your vehicle with the lane side of the
object next to it.

Note:

When only one object is detected,

the system allows enough distance to open
the door on either side.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

EXITING A PARKING SPACE

Active park assist only assists leaving
parallel parking spaces.

Press the active park assist button.

206

Active Park Assist

(If Equipped)

2. Select parallel park exit.

3. Use the turn signal to choose the

direction to exit the parking space.

4. Press and hold the brake pedal.

5. Release the steering wheel and shift

into the instructed gear.

6. Release the parking brake.

Use the accelerator and brake to
control your vehicle's speed when
exiting the parking space. You are
responsible for stopping your vehicle.

8. Active park assist is multi-step process

and requires you to shift the
transmission multiple times. Follow the
onscreen instructions until operation
is complete.

Note:

After active park assist drives your

vehicle to a position where you can exit the
parking space in a forward movement, a
message appears instructing you to take full
control of your vehicle.

9. Take control of your vehicle.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

ACTIVE PARK ASSIST –
TROUBLESHOOTING

ACTIVE PARK ASSIST –
INFORMATION MESSAGES

Action

Message

The system

requires service.

Have your vehicle

checked as soon as

possible.

Active Park Fault

ACTIVE PARK ASSIST –
FREQUENTLY ASKED QUESTIONS

Why does active park assist not
operate correctly?

The system is unable to detect a
vehicle, curb or object to park next to
or in between. The system needs
boundary objects to operate correctly.

Why does active park assist not search
for a parking space?

You have switched traction control off.

Why does active park assist not search
for a parking space?

The transmission is in reverse (R). Your
vehicle must be moving forward to be
able to detect a parking space.

Why does active park assist not offer
a parking space?

The sensors could be blocked. For
example, snow, ice or large
accumulations of dirt. Blocked sensors
can affect how the system functions.

Why does active park assist not offer
a parking space?

The sensors in the front or rear bumper
could be damaged.

207

Active Park Assist

(If Equipped)

Why does active park assist not offer
a parking space?

There is not enough room in the
parking space for your vehicle to safely
park.

Why does active park assist not offer
a parking space?

There is not enough space for the
parking maneuver on the opposite side
of the parking space.

Why does active park assist not offer
a parking space?

The parking space is more than 5 ft
(1.5 m) or less than 2 ft (0.5 m) away
from your vehicle.

Why does active park assist not offer
a parking space?

Your vehicle's speed is greater than
22 mph (35 km/h) for parallel parking
or greater than 19 mph (30 km/h) for
perpendicular parking.

Why does active park assist not offer
a parking space?

You recently disconnected or replaced
the battery. After you reconnect the
battery you must drive your vehicle on
a straight road for a short period of
time.
