4. Press the push button ignition switch.

STOPPING THE ENGINE WHEN
YOUR VEHICLE IS MOVING

WARNING:

Switching off the

engine when your vehicle is still moving
results in a significant decrease in
braking assistance. Higher effort is
required to apply the brakes and to stop
your vehicle. A significant decrease in
steering assistance could also occur. The
steering does not lock, but higher effort
could be required to steer your vehicle.
When you switch the ignition off, some
electrical circuits, for example airbags,
also turn off. If you unintentionally switch
the ignition off, shift into neutral (N) and
restart the engine.

E321258

Press and hold the push button ignition
switch until the engine stops, or press
it three times within two seconds.

2. Shift into neutral and use the brakes to

bring your vehicle to a safe stop.

3. Shift into park (P).

4. Apply the parking brake.

AUTOMATIC ENGINE STOP

(IF

EQUIPPED)

WHAT IS AUTOMATIC ENGINE
STOP

Automatic engine stop is a feature that
switches the engine off if it has been idling
for an extended period to help you save
fuel.

HOW DOES AUTOMATIC ENGINE
STOP WORK

Automatic engine stop turns the engine
off. The ignition also turns off in order to
save battery power. Before the engine
shuts down, a message appears in the
information display showing a timer
counting down. If you do not intervene
within 30 seconds, the engine shuts down.
Another message appears in the
information display to inform you that the
engine has shut down in order to save fuel.
Start your vehicle as you normally do.

SWITCHING AUTOMATIC ENGINE
STOP ON AND OFF

Press the menu button on the steering
wheel to enter the information display
main menu.

2. Select

Settings

3. Switch

Auto Engine Off

on or off.

Note:

You cannot permanently switch off

the automatic shutdown. If you switch it
off, it turns on each time you switch the
ignition on.

162

Starting and Stopping the Engine

OVERRIDING AUTOMATIC ENGINE
STOP

You can stop the engine shutdown, or reset
the timer, at any point before the
30-second countdown has expired by
doing any of the following:
•

Pressing the brake pedal or accelerator
pedal.

•

Pressing the

RESET

button

during the countdown.

Note:

You cannot permanently switch off

the automatic engine shutdown feature.
When you switch it off temporarily, it turns
on at the next ignition cycle.

ACCESSING THE PASSIVE KEY
BACKUP POSITION

If you are unable to start the engine, do the
following:

E335944

Open the floor console storage
compartment lid.

E335945

2. With the buttons facing upward and

the unlock button facing the front of
your vehicle, place the passive key into
the backup slot.

3. With the key in this position, press the

brake pedal then press the push button
ignition switch to switch the ignition on
and start your vehicle.

STARTING AND STOPPING
THE ENGINE –
TROUBLESHOOTING

STARTING AND STOPPING THE
ENGINE – WARNING LAMPS

Malfunction Indicator Lamp

If it illuminates when the engine
is running, the on-board
diagnostics system is detecting

a malfunction of the vehicle emission
control system.

If it flashes, engine misfire could be
occurring. Increased exhaust gas
temperatures could damage the catalytic
converter or other vehicle components.
Avoid heavy acceleration and deceleration,
and have your vehicle checked as soon as
possible.

163

Starting and Stopping the Engine

Powertrain Warning Lamp

If it illuminates when the engine
is running, this indicates a
powertrain or four-wheel drive

fault. If it flashes when you are driving,
immediately reduce the vehicle speed.
Avoid heavy acceleration and deceleration,
and have your vehicle checked as soon as

possible.

If both lamps illuminate when the engine
is running, stop your vehicle as soon as it
is safe to do so. Continuing to drive your
vehicle could cause reduced power or the
engine to stop. Switch the ignition off and
attempt to restart the engine. Have your
vehicle checked as soon as possible.

STARTING AND STOPPING THE ENGINE – INFORMATION MESSAGES

Action

Message

Displays if you exceed the starting time limit. You cannot
attempt to start the engine for 15 minutes. If you cannot start
the engine after 15 minutes passes, have your vehicle imme-
diately checked.

Cranking Time Exceeded

Displays if you are unable to start your vehicle with a correctly
coded key. The system has detected a fault that requires
service. Have your vehicle checked as soon as possible.

Starting System Fault

Displays if the system does not detect a valid passive key.

No Key Detected

164

Starting and Stopping the Engine

STARTING AND STOPPING THE
ENGINE – FREQUENTLY ASKED
QUESTIONS

Why is the engine idle speed high when
I am starting the engine?

The speed at which the engine idles
immediately after starting is optimized
to minimize vehicle emissions and
maximize cabin comfort and fuel
economy.

Why does the engine not crank?

You can only attempt to start the
engine for a limited amount of time
before the starting system temporarily
disables. If you exceed the starting
time limit, a message may appear and
you cannot attempt to start the engine
for at least 15 minutes.

Why do I experience different driving
characteristics?

If you disconnect the battery, your
vehicle may exhibit some unusual
driving characteristics for
approximately 5 mi (8 km) after you
reconnect it. This is because the engine
management system must realign
itself with the engine. You can
disregard any unusual driving
characteristics during this period.

Why can I not start the engine?

If you cannot start the engine after 3
attempts, wait 10 seconds and do the
following:

Fully press the brake pedal.

Note:

Make sure that the parking brake is

applied.

Note:

Make sure that the transmission is in

park (P) or neutral (N).

2. Fully press the accelerator pedal and

hold it there.

3. Press the push button ignition switch.

Note:

The engine cranks for a short period

of time and then it stops.

4. Release the accelerator pedal.

E321258

5. Press the push button ignition switch.

Why does the system not detect a
passive key?

If the system does not detect a passive
key and you are unable to start the
engine, insert the passive key into the
backup position and press the push
button ignition switch to start the
engine. See

Accessing the Passive

Key Backup Position

(page 163).

165

Starting and Stopping the Engine

WHAT IS AUTO-START-STOP

The system is designed to help reduce fuel
consumption and CO

emissions by

stopping the engine when it is idling, for
example at traffic lights.

AUTO-START-STOP
PRECAUTIONS

WARNING:

Apply the parking

brake, shift into park (P), switch the
ignition off and remove the key before
you leave your vehicle. Failure to follow
this instruction could result in personal
injury or death.

WARNING:

Apply the parking

brake, shift into park (P), switch the
ignition off and remove the key before
you open the hood or have any service
or repair work completed. If you do not
switch the ignition off, the engine could
restart at any time. Failure to follow this
instruction could result in personal injury
or death.

SWITCHING AUTO-START-
STOP ON AND OFF

The system turns on when you switch the
ignition on.

Press the button to switch the
system off.

Note:

OFF

illuminates in the switch.

Note:

Deactivating the system using the

button lasts only one key cycle.

Press the button again to switch the
system back on.

Note:

The system turns off if it detects a

malfunction. If the system malfunctions,
have your vehicle checked as soon as
possible.

STOPPING THE ENGINE

Stop your vehicle, keep your foot on the
brake pedal and the transmission in drive
(D).

Note:

Power assist steering turns off when

the engine stops.

RESTARTING THE ENGINE

Release the brake pedal or press the
accelerator pedal.

A message appears in the information
display if the system requires you to take
action.

AUTO-START-STOP
INDICATORS

WARNING:

The system may

require the engine to automatically
restart when the auto-start-stop
indicator illuminates green or flashes
amber. Failure to follow this instruction
could result in personal injury.

The Auto-Start-Stop indicator
illuminates green when the
engine stops. It flashes amber

and a message appears when you need to
take action.

E146361

The Auto-Start-Stop indicator
illuminates gray with a
strikethrough when the system

is not available.

166

Auto-Start-Stop

Note:

You can display the reason why the

system is not available in the information
display.

AUTO-START-STOP – TROUBLESHOOTING

AUTO-START-STOP – INFORMATION MESSAGES

Action

Condition

Message

Shift into park (P) and
restart the engine yourself.

The system is not func-
tioning.

Auto StartStop Shift to P,
then Restart Engine

Restart the engine yourself.

The system is not func-
tioning.

Auto StartStop Manual
Restart Required

167

Auto-Start-Stop

AUTO-START-STOP –
FREQUENTLY ASKED QUESTIONS

Why does the engine not always
stop when I expect it to?

The system is designed to work in a way
that complements other vehicle systems,
allowing them to operate at optimum
performance.

The system does not stop the engine if:
•

The driver door is open.

•

Your vehicle is at high altitude.

•

The heated windshield is on.

•

The engine is warming up.

•

The outside temperature is too low or
too high.

•

The battery charge is low.

•

The battery temperature is outside the
optimal operating range.

•

The engine is required to run to
maintain interior climate and reduce
fogging.

Why does the engine sometimes
restart when I do not expect it to?

The system is designed to work in a way
that complements other vehicle systems,
allowing them to operate at optimum
performance.

The system restarts the engine if:
•

You switch the heated windshield on.

•

You switch maximum defrost on.

•

Your vehicle starts to roll downhill in
neutral.

•

The engine is required to run to
maintain adequate brake system
assistance.

•

The engine is required to run to
maintain interior climate and reduce
fogging.

Can I permanently switch the
system off?

No. The system plays an important role in
reducing the fuel consumption and the CO

emissions.

Will the frequent engine starts
cause parts to wear out?

Your vehicle has an enhanced battery and
starter motor that are designed for the
increased number of engine starts.

168

Auto-Start-Stop

FUEL AND REFUELING
PRECAUTIONS

WARNING:

Do not overfill the fuel

tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray
and fire.

WARNING:

The fuel system may

be under pressure. If you hear a hissing
sound near the fuel filler inlet, do not
refuel until the sound stops. Otherwise,
fuel may spray out, which could cause
serious personal injury.

WARNING:

Fuels can cause serious

injury or death if misused or mishandled.

WARNING:

Fuel may contain

benzene, which is a cancer-causing
agent.

WARNING:

When refueling always

shut the engine off and never allow
sparks or open flames near the fuel tank
filler valve. Never smoke or use a cell
phone while refueling. Fuel vapor is
extremely hazardous under certain
conditions. Avoid inhaling excess fumes.

WARNING:

Read and follow all the

instructions on the pump island.

Follow these guidelines when refueling:
•

Extinguish all smoking materials and
any open flames before refueling your
vehicle.

•

Switch the engine off before refueling.

•

Automotive fuels can be harmful or
fatal if swallowed. Fuel is highly toxic
and if swallowed can cause death or
permanent injury. If fuel is swallowed
immediately call a physician, even if no
symptoms are immediately apparent.
The toxic effects of fuel may not be
apparent for hours.

•

Avoid inhaling fuel vapors. Inhaling fuel
vapor can lead to eye and respiratory
tract irritation. In severe cases,
excessive or prolonged breathing of
fuel vapor can cause serious illness and
permanent injury.

•

Avoid getting fuel in your eyes. If you
splash fuel in your eyes, immediately
remove contact lenses, if worn, flush
with water for 15 minutes and seek
medical attention. Failure to seek
proper medical attention could lead to
permanent injury.

•

Fuels can be harmful if absorbed
through the skin. If you splash fuel on
your skin, clothing or both, promptly
remove contaminated clothing and
thoroughly wash your skin with soap
and water. Repeated or prolonged skin
contact causes skin irritation.

•

Be particularly careful if you are taking
Antabuse or other forms of Disulfiram
for the treatment of alcoholism.
Breathing fuel vapors could cause an
adverse reaction, serious personal
injury or sickness. Immediately call a
physician if you experience any adverse
reactions.

169

Fuel and Refueling

FUEL QUALITY

SELECTING THE CORRECT FUEL

E161513

Your vehicle operates on regular unleaded
gasoline with a minimum pump (R+M)/2
octane rating of 87.

Some fuel stations, particularly those in
high altitude areas, offer fuels posted as
regular unleaded gasoline with an octane
rating below 87. The use of these fuels
could result in engine damage that will not
be covered by the vehicle Warranty.

For best overall vehicle and engine
performance, premium fuel with an octane
rating of 91 or higher is recommended. The
performance gained by using premium fuel
is most noticeable in hot weather as well
as other conditions, for example when
towing a trailer. See

Towing a Trailer

(page 254).

Do not be concerned if the engine
sometimes knocks lightly. However, if the
engine knocks heavily while using fuel with
the recommended octane rating, contact
an authorized dealer to prevent any engine
damage.

We recommend Top Tier detergent
gasolines, where available to help minimize
engine deposits and maintain optimal
vehicle and engine performance.

For additional information, visit

www.toptiergas.com

Note:

Use of any fuel for which the vehicle

was not designed can impair the emission
control system, cause loss of vehicle
performance, and cause damage to the
engine which may not be covered by the
vehicle Warranty.

Do not use:
•

Diesel fuel.

•

Fuels containing kerosene or paraffin.

•

Fuel containing more than 15% ethanol
or E85 fuel.

•

Fuels containing methanol.

•

Fuels containing metallic-based
additives, including manganese-based
compounds.

•

Fuels containing the octane booster
additive, methylcyclopentadienyl
manganese tricarbonyl (MMT).

•

Leaded fuel, using leaded fuel is
prohibited by law.

The use of fuels with metallic compounds
such as methylcyclopentadienyl
manganese tricarbonyl, which is a
manganese-based fuel additive, will impair
engine performance and affect the
emission control system.

LOCATING THE FUEL FILLER
FUNNEL

The fuel filler funnel is under the luggage
compartment floor covering.

170

Fuel and Refueling

RUNNING OUT OF FUEL

FILLING A PORTABLE FUEL
CONTAINER

WARNING:

Flow of fuel through a

fuel pump nozzle can produce static
electricity. This can cause a fire if you are
filling an ungrounded fuel container.

Use the following guidelines to avoid
electrostatic charge build-up, which can
produce a spark, when filling an
ungrounded fuel container:
•

Only use an approved fuel container to
transfer fuel to your vehicle. Place the
container on the ground when filling it.

•

Do not fill a fuel container when it is
inside your vehicle (including the cargo
area).

•

Keep the fuel pump nozzle in contact
with the fuel container when filling it.

•

Do not use a device that holds the fuel
pump nozzle lever in the fill position.

ADDING FUEL FROM A PORTABLE
FUEL CONTAINER

WARNING:

Do not insert the nozzle

of a fuel container or an aftermarket
funnel into the fuel filler neck. This may
damage the fuel system filler neck or its
seal and cause fuel to run onto the
ground.

WARNING:

Do not pry open the

fuel tank filler valve. This could damage
the fuel system. Failure to follow this
instruction could result in fire, personal
injury or death.

WARNING:

Do not dispose of fuel

in the household refuse or the public
sewage system. Use an authorized waste
disposal facility.

When refueling the vehicle fuel tank from
a fuel container, use the fuel filler funnel
included with your vehicle. See

Locating

the Fuel Filler Funnel

(page 170).

Note:

Do not use aftermarket funnels as

they may not work with the capless fuel
system and can damage it.

When refueling the vehicle fuel tank from
a fuel container, do the following:

Fully open the fuel filler door.

E157452

2. Fully insert the fuel filler funnel into the

fuel filler inlet.

3. Add fuel to your vehicle from the fuel

container.

4. Remove the fuel filler funnel.

5. Fully close the fuel filler door.

6. Clean the fuel filler funnel and place it

back in your vehicle or correctly dispose
of it.

171

Fuel and Refueling

Note:

If your vehicle runs out of fuel add a

minimum of 1.3 gal (5 L) of fuel to restart
the engine.

Note:

You may need to switch the ignition

from off to on several times after refueling
to allow the fuel system to pump the fuel
from the tank to the engine. When
restarting, cranking time takes a few
seconds longer than normal.

Note:

Extra funnels can be purchased from

an authorized dealer if you choose to
dispose of the funnel.

REFUELING

REFUELING SYSTEM OVERVIEW

E267248

Fuel filler door.

Fuel filler inlet.

Fuel tank filler pipe.

REFUELING YOUR VEHICLE

WARNING:

When refueling always

WARNING:

The fuel system may

be under pressure. If you hear a hissing
sound near the fuel filler inlet, do not
refuel until the sound stops. Otherwise,
fuel may spray out, which could cause
serious personal injury.

WARNING:

Do not pry open the

fuel tank filler valve. This could damage
the fuel system. Failure to follow this
instruction could result in fire, personal
injury or death.

WARNING:

Do not remove the fuel

pump nozzle from its fully inserted
position when refueling.

WARNING:

Stop refueling when

the fuel pump nozzle automatically
shuts off for the first time. Failure to
follow this will fill the expansion space
in the fuel tank and could lead to fuel
overflowing.

WARNING:

Do not overfill the fuel

tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray
and fire.

WARNING:

Wait at least five

seconds before removing the fuel pump
nozzle to allow any residual fuel to drain
into the fuel tank.

Fully open the fuel filler door.

172

Fuel and Refueling

2. Select the correct fuel pump nozzle for

your vehicle.

E139202

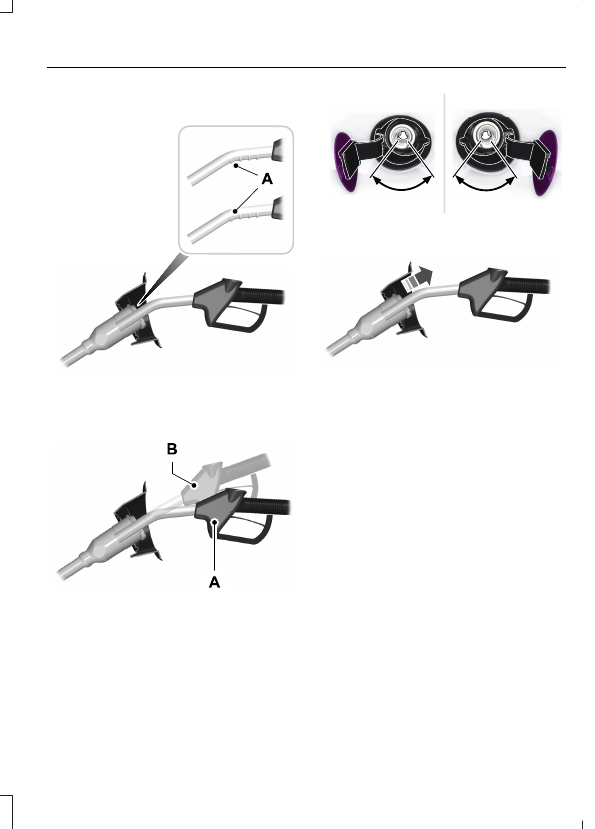

3. Insert the fuel pump nozzle up to the

first notch. Keep the fuel pump nozzle
resting on the fuel tank filler pipe.

E327438

4. Hold the fuel pump nozzle in position

A when refueling. Holding the fuel
pump nozzle in position B can affect
the flow of fuel and shut off the fuel
pump nozzle before the fuel tank is full.

E352626

5. Operate the fuel pump nozzle within

the area shown.

E119081

6. When the pump shuts off, wait five

seconds, then raise the fuel pump
nozzle and slowly remove it.

Fully close the fuel filler door.

Note:

Do not attempt to start the engine

if you have filled the fuel tank with incorrect
fuel. Incorrect fuel use could cause damage
not covered by the vehicle Warranty. Have
your vehicle immediately checked.

MANUALLY OPENING THE FUEL
FILLER DOOR

Your vehicle does not have a fuel tank filler
cap.

173

Fuel and Refueling

E206911

Left-hand side. To open the fuel
filler door, press the center rear
edge of the fuel filler door and
then release.

Right-hand side. To open the
fuel filler door, press the center
rear edge of the fuel filler door
and then release.

Left-hand side. Pull the rear of
the fuel filler door to open it.

Right-hand side. Pull the rear of
the fuel filler door to open it.

FUEL TANK CAPACITY

Advertised Capacity

The advertised capacity is the maximum
amount of fuel that you can add to the fuel
tank after running out of fuel. Included in
the advertised capacity is an empty
reserve. The empty reserve is an
unspecified amount of fuel that remains
in the fuel tank when the fuel gauge
indicates empty.

Note:

The amount of fuel in the empty

reserve varies and should not be relied upon
to increase driving range.

FUEL AND REFUELING –
TROUBLESHOOTING

FUEL AND REFUELING –
WARNING LAMPS

If it illuminates when you are
driving, refuel as soon as
possible.

FUEL AND REFUELING –
INFORMATION MESSAGES

Refueling System Warning

If the fuel tank filler valve does not fully
close, a message could appear in the
information display.

Message

Check Fuel Fill Inlet

If the message appears, do the following:

Stop your vehicle as soon as it is safe
to do so and switch the engine off.

2. Shift into park (P) or neutral (N).

3. Apply the parking brake.

4. Fully open the fuel filler door.

5. Check the fuel tank filler valve for any

debris that may be restricting its
movement.

6. Remove any debris from the fuel tank

filler valve.

Fully insert a fuel pump nozzle or the
fuel filler funnel provided with your
vehicle into the fuel filler pipe. See

Locating the Fuel Filler Funnel

(page 170). This action should dislodge
any debris that may be preventing the
fuel tank filler valve from fully closing.

8. Remove the fuel pump nozzle or fuel

filler funnel from the fuel filler pipe.

174

Fuel and Refueling

WHAT IS THE CATALYTIC
CONVERTER

The catalytic converter is part of your
vehicle's emissions system and filters
harmful pollutants from the exhaust gas.

CATALYTIC CONVERTER
PRECAUTIONS

WARNING:

Do not park, idle or

drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire.

WARNING:

The normal operating

temperature of the exhaust system is
very high. Never work around or attempt
to repair any part of the exhaust system
until it has cooled. Use special care when
working around the catalytic converter.
The catalytic converter heats up to a very
high temperature after only a short
period of engine operation and stays hot
after the engine is switched off.

WARNING:

Exhaust leaks may

result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.

To avoid damaging the catalytic converter:
•

Do not crank the engine for more than
10 seconds at a time.

•

Do not run the engine with a spark plug
lead disconnected.

•

Do not push-start or tow-start your
vehicle. Use booster cables. See

Jump

Starting Precautions

(page 266).

•

Use the correct fuel. See

Fuel and

Refueling

(page 169).

•

Do not switch the ignition off when your
vehicle is moving.

•

Avoid running out of fuel.

•

Have the items listed in scheduled
maintenance information performed
according to the specified schedule.

Note:

Do not make any unauthorized

changes to your vehicle or engine. By law,
vehicle owners and anyone who
manufactures, repairs, or services a fleet of
vehicles are not permitted to intentionally
remove an emission control device or
prevent it from working.

CATALYTIC CONVERTER –
TROUBLESHOOTING

CATALYTIC CONVERTER –
WARNING LAMPS

Your vehicle has an on-board diagnostics
system that monitors the emission control
system. If any of the following warning
lamps illuminate, this may indicate that
the on-board diagnostics system has
detected an emission control system
malfunction.

Continuing to drive your vehicle may cause
reduced power or the engine to stop.
Failure to respond to a warning lamp may
cause damage that your vehicle Warranty
may not cover. Have your vehicle checked
as soon as possible.

176

Catalytic Converter

AUTOMATIC TRANSMISSION
PRECAUTIONS

WARNING:

When your vehicle is

stationary, keep the brake pedal fully
pressed when shifting gears. Failure to
follow this instruction could result in
personal injury, death or property
damage.

WARNING:

Do not apply the brake

pedal and accelerator pedal
simultaneously. Applying both pedals
simultaneously for more than a few
seconds will limit power, which may
result in difficulty maintaining speed in
traffic and could lead to serious injury.

WARNING:

Apply the parking

brake, shift into park (P), switch the
vehicle off and remove the key or remote
control before you leave your vehicle.
Failure to follow this instruction could
result in personal injury or death.

Note:

You may not be able to shift out of

park (P) unless the intelligent access key is
inside your vehicle.

AUTOMATIC TRANSMISSION
POSITIONS

PARK (P)

WARNING:

Move the transmission

selector lever to park (P) only when your
vehicle is stationary.

This position locks the driveline. Come to
a complete stop before shifting into and
out of park (P).

The electric parking brake could apply
when you shift to park (P) without the
brake pedal fully pressed. The electric
parking brake applies when you shift to
park (P) on large slopes. The electric
parking brake releases with the drive away
release function. See

Electric Parking

Brake

(page 187).

Note:

A tone sounds if you attempt to exit

your vehicle without the transmission in park
(P).

Note:

Your vehicle may not shift out of park

(P) if the vehicle battery has run out of
charge. See

Jump Starting the Vehicle

(page 266).

Note:
