Ford Edge (2022 year). Manual in english - page 8

SETTING THE BLOWER MOTOR
SPEED

E266187

E266186

Press the touchscreen up or
down on the control to select the
blower motor speed.

SWITCHING THE HEATED
MIRRORS ON AND OFF

E266189

Press the touchscreen.

SETTING THE TEMPERATURE

Press the touchscreen temperature
controls on either side of the climate
control to set the temperature for that side.

E328451

Slide the control to set the
temperature.

Note:

This control also sets the right-hand

side temperature when you switch off dual
zone mode.

DIRECTING THE FLOW OF AIR

Directing Air to the Windshield Air
Vents

Press the touchscreen.

Directing Air to the Instrument
Panel Air Vents

E244097

Press the touchscreen.

Directing Air to the Footwell Air
Vents

Press the touchscreen.

AUTO MODE

SWITCHING AUTO MODE ON AND
OFF

Press the touchscreen to switch
auto mode on. Repeatedly press
the button to adjust auto mode.

Note:

When you switch auto mode on,

lights on the blower motor control do not
illuminate to indicate the blower motor
speed.

Adjust the blower motor control or air
distribution control to switch auto mode
off.

AUTO MODE INDICATORS

The indicators are on the Auto Mode
button.

130

Climate Control

Description

Auto Mode Indicator

Status

The blower motor speed is reduced. Use this setting to
minimize the amount of noise from the blower motor. This
setting increases the time taken to cool the interior.

One indicator illumin-
ated.

The blower motor speed is moderate.

Two indicators illumin-
ated.

The blower motor speed is increased. Use this setting to
reduce the time taken to cool the interior. This setting
increases the amount of noise from the blower motor.

Three indicators illumin-
ated.

131

Climate Control

SWITCHING DUAL MODE ON AND
OFF

E265280

Press the button.

CLIMATE CONTROL –
TROUBLESHOOTING

CLIMATE CONTROL –
FREQUENTLY ASKED QUESTIONS

Why is the volume of air to the rear
passenger compartment limited ?

Objects may obstruct the air direction
to the rear passenger compartment.
Make sure objects have not been
placed under the front seats.

Why is the volume of air from the air
vents reduced?

The air intake area at the base of the
windshield could be obstructed. Make
sure the air intake area is free from any
snow, ice or leaves.

What are the recommended settings
for heating the interior?

Auto mode on and instrument panel
and side air vents fully open.

How can I quickly heat the interior?

Select the highest blower motor
speed, highest temperature and direct
the air to the footwell air vents.

What are the recommended settings
for cooling the interior?

Auto mode on.

How can I quickly cool the interior?

Switch maximum cooling on, switch
recirculated air on and drive with the
windows open until you feel cold air
through the air vents.

How can I reduce the humidity build-up
inside my vehicle?

Do not drive with the system off or
with recirculated air on.

How can I defog the side windows?

Switch maximum defrost on.

How can I defog or clear the windshield
of thin ice?

Switch maximum defrost on.

Why do I feel air from the footwell air
vents regardless of the air
distribution?

This is normal operation. You may feel
a small amount of air from the
footwell air vents regardless of the air
distribution.

What happens if I switch auto mode on
when the outside temperature and
in-vehicle temperature is high?

The system temporarily selects
recirculated air to maximize cooling.

What happens if I switch auto mode on
when the outside temperature is low
and the engine is cold?

Air is directed to the windshield and
the outer instrument panel air vents.

132

Climate Control

WHAT IS THE CABIN AIR
FILTER

The cabin air filter improves the quality of
air in your vehicle by trapping dust, pollen
and other particles.

LOCATING THE CABIN AIR
FILTER

You can locate the cabin air filter behind
the glove box.

REPLACING THE CABIN AIR
FILTER

Replace the filter at regular intervals. See

Scheduled Maintenance

(page 393).

Note:

Make sure you have a cabin air filter

installed at all times. This prevents foreign
objects from entering the system. Running
the system without a filter in place could
result in degradation or damage to the
system.

Note:

Using an aftermarket cabin air filter

could reduce cabin air filtration and climate
control performance.

133

Interior Air Quality

FRONT SEAT PRECAUTIONS

WARNING:

Sitting improperly, out

of position or with the seatback reclined
too far can take weight off the seat
cushion and affect the decision of the
passenger sensing system, resulting in
serious injury or death in the event of a
crash. Always sit upright against your
seat back, with your feet on the floor.

WARNING:

Do not recline the seat

backrest too far as this can cause the
occupant to slide under the seatbelt,
resulting in personal injury in the event
of a crash.

WARNING:

Do not place objects

higher than the top of the seat backrest.
Failure to follow this instruction could
result in personal injury or death in the
event of a sudden stop or crash.

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

SITTING IN THE CORRECT
POSITION

E68595

When you use them properly, the seat,
head restraint, seatbelt and airbags will
provide optimum protection in the event
of a crash.

We recommend that you follow these
guidelines:
•

Sit in an upright position with the base
of your spine as far back as possible.

•

Do not recline the seat backrest so that
your torso is more than 30 degrees
from the upright position.

•

Adjust the head restraint so that the
top of it is level with the top of your
head and as far forward as possible.
Make sure that you remain
comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in
(25 cm) between your breastbone and
the airbag cover.

•

Hold the steering wheel with your arms
slightly bent.

134

Front Seats

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the
seatbelt over the center of your
shoulder and position the lap strap
tightly across your hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

MANUAL SEATS

(IF EQUIPPED)

HEAD RESTRAINT COMPONENTS

E138642

The head restraints consist of:

An energy absorbing head
restraint.

Two steel stems.

Guide sleeve adjust and unlock
button.

Guide sleeve unlock and remove
button.

ADJUSTING THE HEAD
RESTRAINT

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

safety device. Whenever possible it
should be installed and properly
adjusted when the seat is occupied.
Failure to adjust the head restraint
properly could reduce its effectiveness
during certain impacts.

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Note:

Adjust the seat backrest to an upright

driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

Pull the head restraint up to raise it.

To lower the head restraint:

Press and hold the adjust and unlock
button.

2. Push the head restraint down.

To tilt the head restraint (if equipped):

135

Front Seats

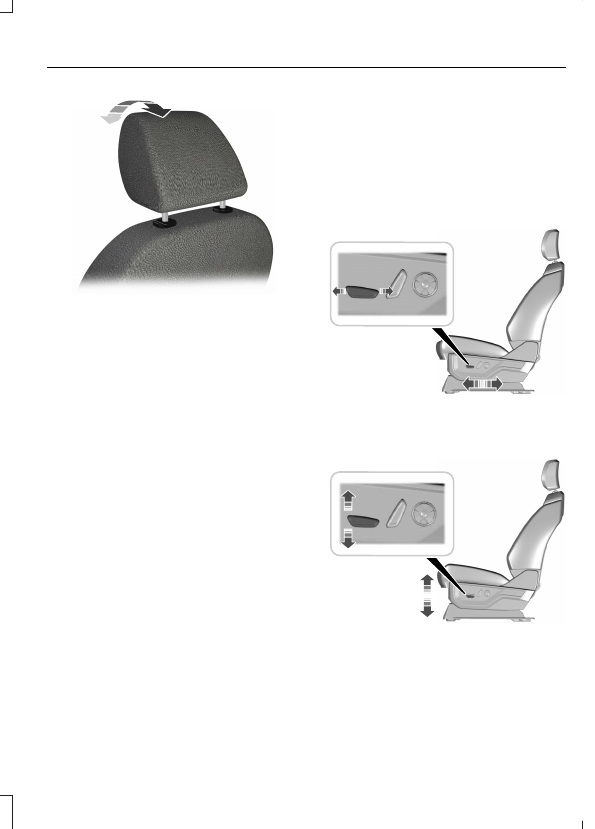

E144727

Adjust the seat backrest to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the preferred position.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, untilted
position.

Note:

Do not attempt to force the head

restraint backward after it is tilted. Instead,
continue tilting it forward until the head
restraint releases to the upright position.

REMOVING THE HEAD RESTRAINT

Pull the head restraint up until it
reaches its highest position.

2. Press and hold the adjust and unlock

button, and the unlock and remove
button.

3. Pull the head restraint up.

Note:

You cannot remove front seat head

restraints that have entertainment system
video screens.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

MOVING THE SEAT BACKWARD
AND FORWARD

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

WARNING:

Make sure the seat fully

locks into place by rocking it backward
and forward. Not securing the seat into
the locked position can be dangerous in
a crash and could cause serious personal
injury or death.

E325269

136

Front Seats

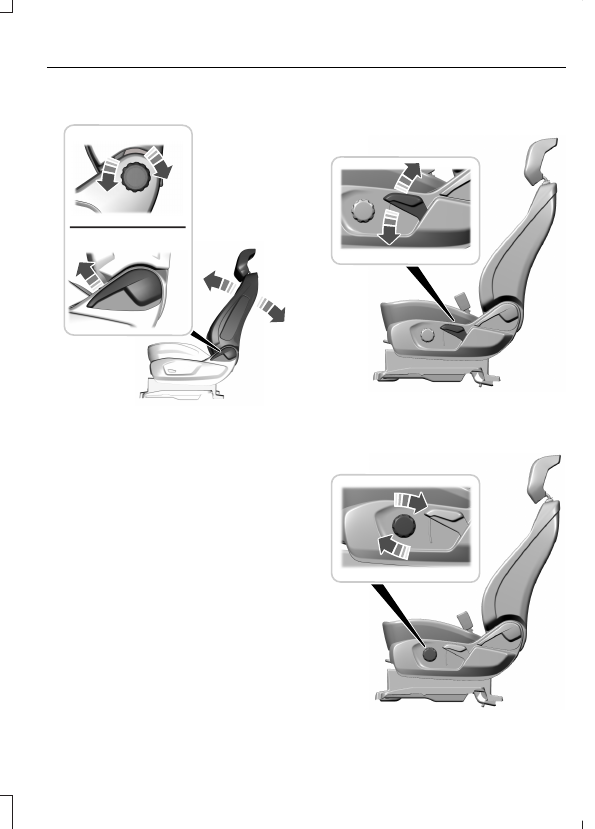

ADJUSTING THE SEAT BACKREST

E267945

ADJUSTING THE SEAT HEIGHT

(If

Equipped)

E325271

ADJUSTING THE LUMBAR
SUPPORT

(If Equipped)

E325270

137

Front Seats

POWER SEATS

(IF EQUIPPED)

HEAD RESTRAINT COMPONENTS

E138642

The head restraints consist of:

An energy absorbing head
restraint.

Two steel stems.

Guide sleeve adjust and unlock
button.

Guide sleeve unlock and remove
button.

ADJUSTING THE HEAD
RESTRAINT

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Note:

Adjust the seat backrest to an upright

Pull the head restraint up to raise it.

To lower the head restraint:

Press and hold the adjust and unlock
button.

2. Push the head restraint down.

To tilt the head restraint (if equipped):

138

Front Seats

E144727

Adjust the seat backrest to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the preferred position.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, untilted
position.

Note:

Do not attempt to force the head

restraint backward after it is tilted. Instead,
continue tilting it forward until the head
restraint releases to the upright position.

REMOVING THE HEAD RESTRAINT

Pull up the head restraint until it
reaches its highest position.

2. Press and hold the adjust and unlock

button, and the unlock and remove
button.

3. Pull up the head restraint.

Note:

You cannot remove front seat head

restraints that have entertainment system
video screens.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

MOVING THE SEAT BACKWARD
AND FORWARD

E308339

ADJUSTING THE SEAT CUSHION

(If Equipped)

E308336

139

Front Seats

ADJUSTING THE SEAT BACKREST

WARNING:

Do not place cargo or

any objects behind the seatback before
returning it to the original position.

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

E308338

ADJUSTING THE SEAT HEIGHT

E308337

ADJUSTING THE LUMBAR
SUPPORT

(If Equipped)

E298774

HEATED SEATS

(IF EQUIPPED)

HEATED SEAT PRECAUTIONS

WARNING:

Use caution when using

the heated seat if you are unable to feel
pain to your skin because of advanced
age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use,
exhaustion or other physical conditions.
The heated seat could cause burns even
at low temperatures, especially if used
for long periods of time. Failure to follow
this instruction could result in personal
injury.

WARNING:

Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could
result in personal injury.

140

Front Seats

WARNING:

Do not place anything

on the seat that blocks the heat, for
example a seat cover or a cushion. This
could cause the seat to overheat. Failure
to follow this instruction could result in
personal injury.

Do not:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry.

SWITCHING THE HEATED SEATS
ON AND OFF

The vehicle must be running to use this
feature.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
The more indicators that display, the
warmer the temperature of the seat.

Note:

The heated seats may remain on

after you remote start your vehicle, based
on your remote start settings. The heated
seats may also turn on when you start your
vehicle if they were on when you switched
your vehicle off.

COOLED SEATS

(IF EQUIPPED)

SWITCHING THE COOLED SEATS
ON AND OFF

(If Equipped)

E146309

Press the cooled seat symbol to cycle
through the various cool settings and off.
More indicator lights indicate cooler
settings.

The cooled seats only function when the
engine is running.

141

Front Seats

MANUAL SEATS

HEAD RESTRAINT COMPONENTS

Rear Seat Outermost Head Restraints

E138642

Rear Seat Center Head Restraint

E138645

The head restraints consists of:

An energy absorbing head
restraint.

Two steel stems.

Guide sleeve adjust and unlock
button.

Guide sleeve unlock and remove
button.

ADJUSTING THE HEAD
RESTRAINT

Raising the Head Restraint

Pull the head restraint up to raise it.

Lowering the Head Restraint

Press and hold the adjust and unlock
button.

2. Push the head restraint down.

REMOVING THE HEAD RESTRAINT

Pull the head restraint up until it
reaches its highest position.

2. Press and hold the adjust and unlock

button, and the unlock and remove
button.

3. Pull the head restraint up.

INSTALLING THE HEAD

RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

FOLDING THE SEAT BACKREST

WARNING:

To prevent possible

damage to the seat or seatbelts, make
sure that the seatbelts are not fastened
before folding the seatback.

WARNING:

When folding or

unfolding the seats, take care not to get
your fingers caught between the seat
backrest and seat frame. Failure to
follow this warning could result in serious
personal injury.

142

Rear Seats

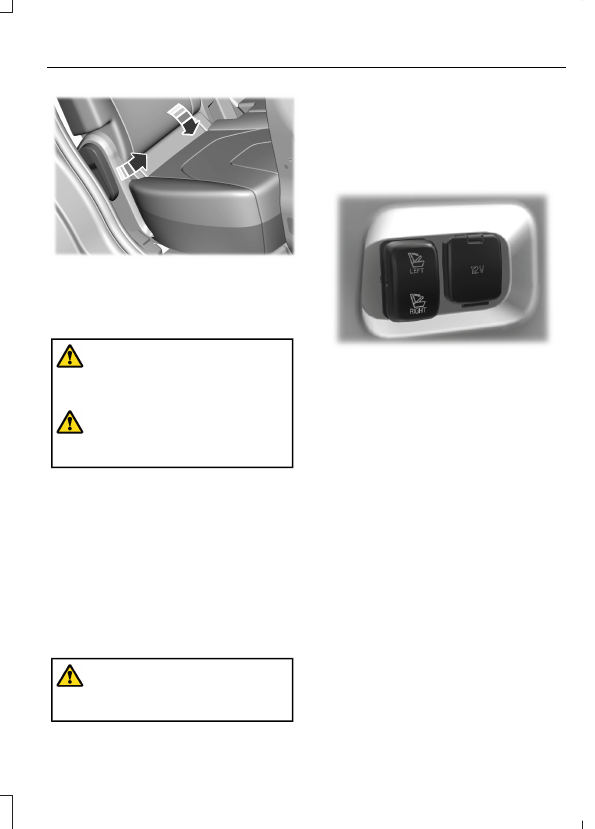

E186789

With the seat empty, pull the lever up to
fold the seat backrest forward.

UNFOLDING THE SEAT BACKREST

WARNING:

When unfolding the

seat backrests, make sure that the
seatbelts are not trapped behind the
seat.

WARNING:

Make sure that the

seats and the seat backrests are secure
and fully locked in their catches.

Rotate the seat backrest up until it latches
in the upright position. It clicks when you
lock it into position.

Reclining the Seat Backrest

With the seat occupied, pull the lever up
to recline the seat backrest.

POWER SEATS

(IF EQUIPPED)

FOLDING THE SEAT BACKREST

WARNING:

Do not fold a seat if it

is occupied. Failure to follow this
instruction could result in personal injury.

This feature operates when the vehicle is
in park (P) and the liftgate has been open
for less than 10 minutes.

The controls are on the left hand rear
quarter trim panel and are accessible from
the liftgate area.

E190965

Press and hold the top control to lower the
left seat backrest.

Press and hold the bottom control to lower
the right seat backrest.

UNFOLDING THE SEAT BACKREST

Rotate the seat backrest up until it latches
in the upright position. It clicks when you
lock it into position.

143

Rear Seats

HEATED SEATS

(IF EQUIPPED)

HEATED SEAT PRECAUTIONS

WARNING:

Use caution when using

WARNING:

Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could
result in personal injury.

WARNING:

Do not place anything

on the seat that blocks the heat, for
example a seat cover or a cushion. This
could cause the seat to overheat. Failure
to follow this instruction could result in
personal injury.

Do not:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry.

SWITCHING THE HEATED SEATS
ON AND OFF

The vehicle must be running to use this
feature.

The rear seat heat controls are on the rear
of the center console.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

The heated seats turn off when you switch
off the vehicle.

144

Rear Seats

WHAT IS THE REAR
OCCUPANT ALERT SYSTEM

The rear occupant alert system monitors
vehicle conditions and notifies you to check
for rear seat occupants when you switch
the ignition off.

HOW DOES THE REAR
OCCUPANT ALERT SYSTEM
WORK

The system monitors when rear doors have
been opened and closed to indicate the
potential presence of an occupant in the
rear seat.

A message displays in the information and
entertainment display screen and an
audible warning sounds when you switch
the ignition off after any of the following
conditions have been met:
•

A rear door is opened or closed while
the ignition is on.

•

You switch the ignition on within 15
minutes of a rear door opening and
closing.

•

You switch the ignition on within 15
minutes of the alert having displayed
or sounded.

REAR OCCUPANT ALERT
SYSTEM PRECAUTIONS

WARNING:

On hot days, the

temperature inside the vehicle can rise
very quickly. Exposure of people or
animals to these high temperatures for
even a short time can cause death or
serious heat related injuries, including
brain damage. Small children are
particularly at risk.

WARNING:

Do not leave children

or pets unattended in your vehicle.
Failure to follow this instruction could
result in personal injury or death.

REAR OCCUPANT ALERT
SYSTEM LIMITATIONS

The system does not detect the presence
of objects or passengers in the rear seat.
It monitors when rear doors are opened
and closed.

Note:

It is possible to receive an alert when

there is no rear seat occupant, but alert
conditions are met.

Note:

It is possible to receive no alert when

there is an occupant in the rear seat, if alert
conditions are not met. For example, if a rear
seat occupant does not enter the vehicle
through a rear door.

Note:

The audible warning does not sound

when the front door is opened before you
switch the ignition off.

SWITCHING REAR OCCUPANT
ALERT SYSTEM ON AND OFF

Access the vehicle drawer on the
touchscreen.

2. Press

SETTINGS

3. Press

Vehicle

4. Switch

Rear Occupant Alert

on or off.

Note:

The default setting is on.

Note:

Performing a master reset causes the

system to switch on again.

145

Rear Occupant Alert System

(If Equipped)

Content .. 6 7 8 9 ..
