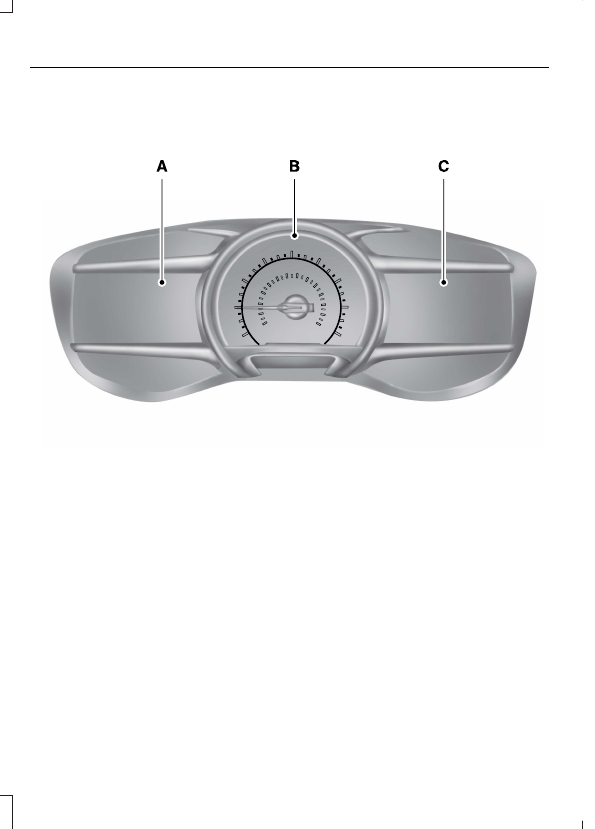

INSTRUMENT CLUSTER OVERVIEW

E272460

Left information display.

Speedometer.

Right information display.

TACHOMETER

Indicates the engine speed.

SPEEDOMETER

Indicates the vehicle speed.

FUEL GAUGE

WHAT IS THE FUEL GAUGE

Indicates approximately how much fuel is
in the fuel tank.

114

Instrument Cluster

FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an
accurate reading when your vehicle is on
an incline.

LOCATING THE FUEL FILLER
DOOR

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

WHAT IS THE LOW FUEL
REMINDER

A low fuel level reminder displays and
sounds when the distance to empty
reaches 75 mi (120 km) to empty for
MyKey, and at 50 mi (80 km), 25 mi
(40 km), 12 mi (20 km) and 0 mi (0 km)
for all vehicle keys.

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WHAT IS DISTANCE TO EMPTY

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

ENGINE COOLANT
TEMPERATURE GAUGE

Indicates the engine coolant temperature.

TURBO BOOST GAUGE

Indicates the amount of manifold air
pressure in the engine.

Note:

This is a configurable gauge.

WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS

Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work. If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

INSTRUMENT CLUSTER
WARNING LAMPS

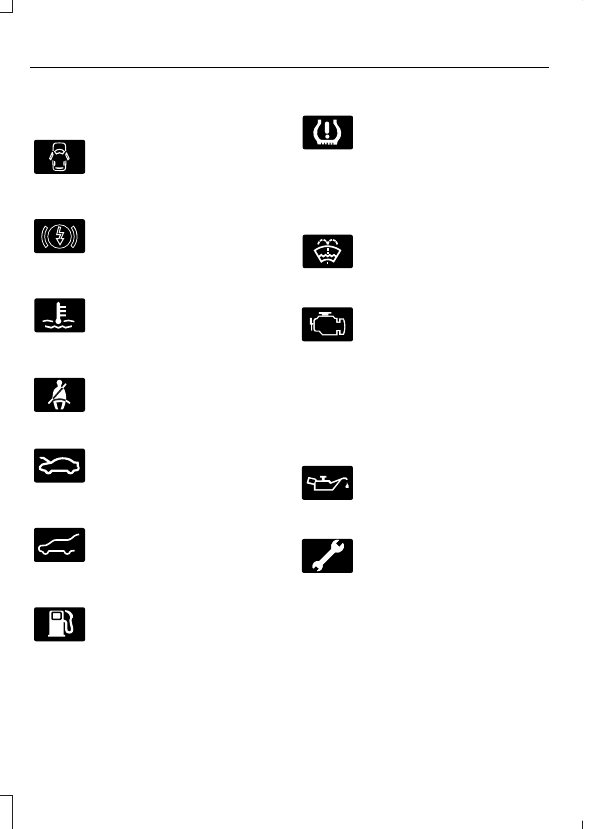

Anti-Lock Brake System

If it illuminates when you are
driving, this indicates the system
requires service. Your vehicle

continues to have normal braking without
the anti-lock brake system function. Have
your vehicle checked as soon as possible.

Battery

It illuminates when you switch
the ignition on.

If it illuminates when the engine

is running, this indicates your vehicle
requires service. Have your vehicle
checked as soon as possible.

Brake System

E270480

It illuminates when you apply the
parking brake and the ignition is
on. If it illuminates when your
vehicle is moving, make sure the
parking brake is released. If the
parking brake is released, this

indicates low brake fluid level or the brake
system requires service. Have your vehicle
checked as soon as possible.

115

Instrument Cluster

Note:

Lamps may vary depending on region.

Door Ajar

It illuminates when ignition is on
and remains on if any door is
open.

Electric Park Brake

E146190

It illuminates or flashes when the
electric parking brake requires
service.

Engine Coolant Temperature

If it illuminates, safely stop your
vehicle and switch the vehicle
off.

Fasten Seatbelt

E71880

It illuminates and a tone sounds
until you fasten the seatbelts.

Hood Ajar

E159324

It illuminates when ignition is on
and remains on if the hood is
open.

Liftgate Ajar

E162453

It illuminates when ignition is on
and remains on if the liftgate is
open.

Low Fuel Level

It illuminates when the fuel level
is low.

Low Tire Pressure Warning

It illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon

as possible. If it begins to flash at anytime,
have the system checked as soon as
possible.

Low Washer Fluid Level

E132353

It illuminates when the washer
fluid is low.

Malfunction Indicator Lamp

It illuminates when the ignition
is on and the engine is off, this is
normal operation. If it illuminates

when the engine is on this indicates that
the emission control system requires
service. If it flashes, have your vehicle
checked immediately. See

Emission Law

(page 472). See

Starting and Stopping

the Engine – Warning Lamps

(page 163).

Oil Pressure

It illuminates when the engine
oil pressure is low.

Powertrain Fault

It illuminates when the
powertrain requires service. Have
the system checked as soon as

possible.

WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS

Indicators notify you of various features
that are active on your vehicle.

116

Instrument Cluster

INSTRUMENT CLUSTER

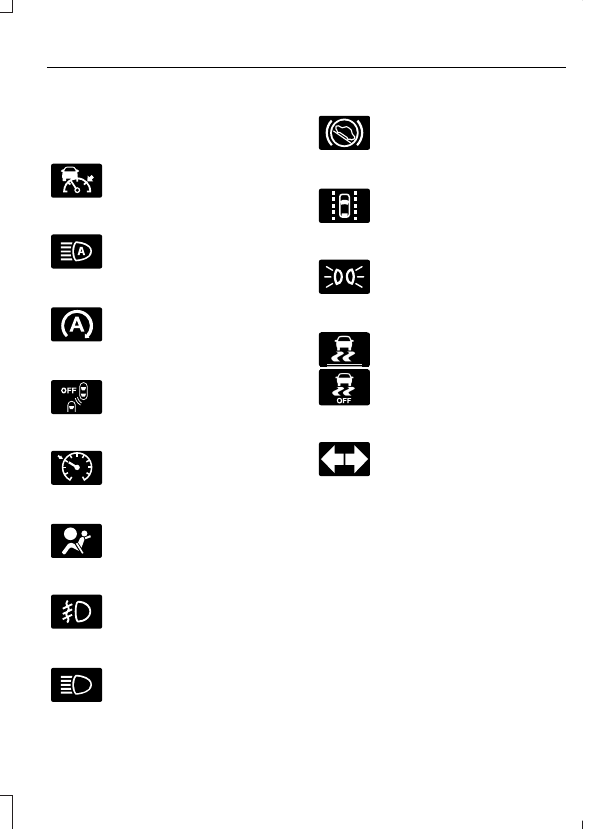

INDICATORS

Adaptive Cruise Control

E144524

See

Adaptive Cruise Control

(page 211).

Automatic Headlamp High Beam

Auto-Start-Stop

Blind Spot Monitor

E151262

See

Blind Spot Information

System

(page 229).

Cruise Control

E71340

See

Cruise Control

(page 209).

Front Airbag

E67017

Front Fog Lamps

High Beam

Hill Start Assist

Lane Keeping Aid

E144813

Side Marker Lamps

See

Exterior Lamps

(page 101).

Stability and Traction Control

E138639

E130458

Turn Signal Lamps

117

Instrument Cluster

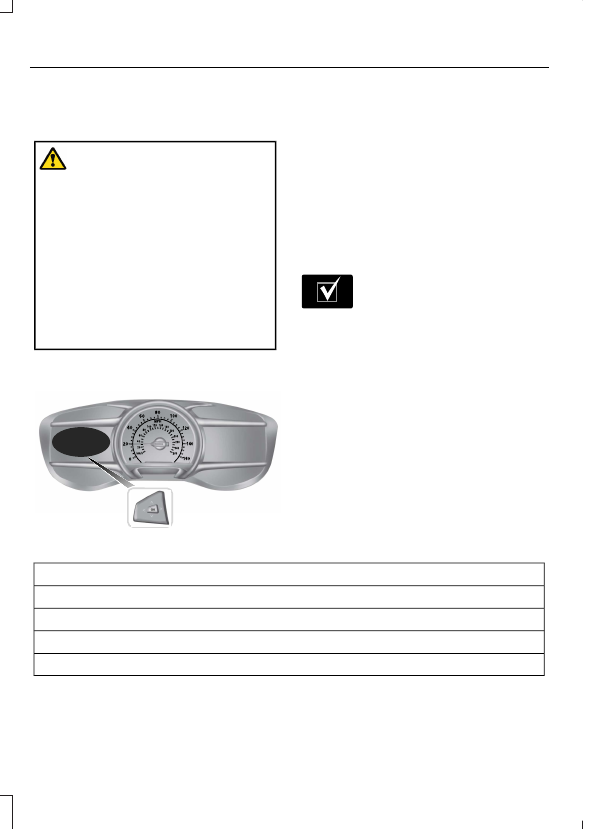

USING THE INSTRUMENT
CLUSTER DISPLAY CONTROLS

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

The controls are on the steering wheel.

E144638

Button

Press to make a selection.

Toggle Buttons

Press the toggle button up and down to
scroll through the menu items.

Press the right arrow button to enter a
sub-menu.

Press the left arrow button to exit a menu.

Status Indicator

E204495

Menu items with a check box
indicates a feature's status. A
check in the box indicates the

feature is on, and unchecked indicates the
feature is off.

INSTRUMENT CLUSTER
DISPLAY MAIN MENU

Depending on your vehicle options, some
menu items may appear different or not
at all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Menu Item

Trip 1 & 2

Fuel Economy

Driver Assist

Settings

118

Instrument Cluster Display

TRIP COMPUTER

ACCESSING THE TRIP COMPUTER

You can access the trip computer using
the steering wheel controls to navigate the
instrument cluster display.

Action

Menu Item

Press the

button.

Trip 1 & 2

119

Instrument Cluster Display

RESETTING THE TRIP COMPUTER

You can reset values using the steering

wheel controls to navigate the instrument
cluster display.

Action

Menu Item

Press the

button.

Fuel Economy

Press and hold the

button until the

system reset confirmation appears.

Fuel Economy

Press and hold the

button until the

system reset confirmation appears.

Fuel History

Press and hold the

button until the

system reset confirmation appears.

Average Speed

120

Instrument Cluster Display

RESETTING THE INDIVIDUAL TRIP
VALUES

You can reset the trip values using the
steering wheel controls to navigate the
instrument cluster display.

Action

Menu Item

Press the

button.

Trip 1 & 2

Press and hold the

button until the

system reset confirmation appears.

Trip 1

Press and hold the

button until the

system reset confirmation appears.

Trip 2

CUSTOMIZING THE
INSTRUMENT CLUSTER
DISPLAY

You can change the gauge layout in the
cluster using the steering wheel controls
to navigate the instrument cluster display.

Action

Menu Item

Press the

button.

Settings

Press the

button.

Display Setup

Press the

button. Choose a gauge

display.

Gauge Display

PERSONALIZED SETTINGS

CHANGING THE INSTRUMENT
CLUSTER DISPLAY LANGUAGE

You can change the language using the
steering wheel controls to navigate the
instrument cluster display.

121

Instrument Cluster Display

Action

Menu Item

Press the

button.

Settings

Press the

button.

Display Setup

Press the

button. Select a language.

Language

Note:

Available languages vary by region.

CHANGING THE MEASURE UNIT

You can change the measurement unit
using the steering wheel controls to
navigate the instrument cluster display.

Action

Menu Item

Press the

button.

Settings

Press the

button.

Display Setup

Press the

button. Select a measure-

ment unit.

Units

122

Instrument Cluster Display

CHANGING THE TEMPERATURE
UNIT

You can change the temperature unit using
the steering wheel controls to navigate the
instrument cluster display.

Action

Menu Item

Press the

button.

Settings

Press the

button.

Display Setup

Press the

button. Select a temperature

unit.

Temperature

123

Instrument Cluster Display

CHANGING THE TIRE PRESSURE
UNIT

You can change the tire pressure unit using
the steering wheel controls to navigate the
instrument cluster display.

Action

Menu Item

Press the

button.

Settings

Press the

button.

Display Setup

Press the

button. Select a pressure unit.

Tire Pressure

124

Instrument Cluster Display

SWITCHING THE INSTRUMENT CLUSTER DISPLAY AUDIBLE WARNINGS
ON AND OFF

Action

Menu Item

Press the

button.

Settings

Press the

button.

Vehicle

Press the

button. Make a selection.

Chimes

125

Instrument Cluster Display

WHAT IS REMOTE START

The system allows you to remotely start
your vehicle and to adjust the interior
temperature according to the settings that
you chose.

REMOTE START
PRECAUTIONS

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.

REMOTE START LIMITATIONS

Remote start does not work under the
following conditions:

•

The alarm horn is sounding.

•

The hood is open.

•

The transmission is not in park (P).

•

The ignition is on.

•

The battery voltage is below the
minimum operating voltage.

•

Remote start is not enabled.

Note:

Do not use remote start if the fuel

level is low.

Note:

You can use remote start with

FordPass. See

Connecting the Vehicle to

a Wi-Fi Network

(page 358).

ENABLING REMOTE START

Using the information display controls
on the steering wheel, select

Settings

2. Select

Settings

3. Select

Vehicle

4. Select

Remote Start

5. Switch

System

on.

Note:

To use remote start, make sure that

the modem is enabled. See

Enabling and

Disabling the Modem

(page 358).

REMOTELY STARTING AND
STOPPING THE VEHICLE

Remotely Starting the Vehicle

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

Note:

You can also use the Lincoln Way

App to start the vehicle.

Note:

The direction indicators flash twice.

Note:

The parking lamps turn on when the

vehicle is running.

Note:

The horn sounds if the system fails

to start.

Note:

All other vehicle systems remain off

when you have remotely started the vehicle.

Note:

The vehicle remains secured when

you have remotely started the vehicle. A
valid key must be inside your vehicle to
switch the ignition on and drive your vehicle.

Remotely Stopping the Vehicle

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

126

Remote Start

(If Equipped)

EXTENDING THE REMOTE
START DURATION

To extend the remote start duration during
remote start, do the following:

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

If the duration is set to 15 minutes, the
duration extends by another 15 minutes.
This provides a total of 30 minutes.

Note:

Remote start can only be extended

once.

Note:

A maximum of two remote starts, or

one remote start with an extension, are
allowed. To reset the restart procedure
switch the vehicle to on, then to off.

REMOTE START REMOTE
CONTROL INDICATORS

Remote Control Feedback

(If Equipped)

An LED on the remote control provides
status feedback of remote start or stop
commands.

Status

LED

Remote start

successful.

Solid green.

Remote stop

successful.

Solid red.

Request failed or

status not received.

Blinking red.

Status incomplete.

Blinking green.

REMOTE START SETTINGS

SWITCHING CLIMATE CONTROL
AUTO MODE ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Press

Remote Start Setup

4. Press

Climate control

5. Switch

Auto

on or off.

Note:

If you switch the auto mode on, the

system attempts to heat or cool the interior
to 22°C (72°F).

Note:

When you switch the ignition on, the

climate control system returns to the last
used settings.

Note:

The heated windshield, heated rear

window, heated mirrors, heated seats and
heated steering wheel could turn on in cold
weather.

SWITCHING CLIMATE CONTROL
LAST SETTINGS ON AND OFF

Using the touchscreen, select

Settings

2. Select

Vehicle

3. Select

Remote Start Setup

4. Select

Climate control

5. Switch

Last settings

on or off.

Note:

If you switch the last settings on, the

system remembers the last used settings.

SWITCHING THE HEATED SEAT
SETTINGS ON AND OFF

Using the touchscreen, select

Settings

2. Select

Vehicle

3. Select

Remote Start Setup

4. Select

Seats

Seats and Wheel

5. Select

Auto

Off

127

Remote Start

(If Equipped)

Note:

If you switch the heated seat settings

on, the heated seats turn on during cold
weather.

Note:

You cannot adjust the heated seat

settings when you have remotely started
the engine.

SWITCHING THE HEATED
STEERING WHEEL SETTINGS ON
AND OFF

Using the touchscreen, select

Settings

2. Select

Vehicle

3. Select

Remote Start Setup

4. Select

Seats and Wheel

5. Select

Auto

Off

Note:

If you switch the heated steering

wheel settings on, the heated steering wheel
turns on during cold weather.

Note:

You cannot adjust the heated

steering wheel settings when you have
remotely started the engine.

SETTING THE REMOTE START
DURATION

You can set a duration for the engine to
run.

Note:

Wait a few seconds before remotely

starting the engine after the engine stops
running.

Using the touchscreen, select

Settings

2. Select

Vehicle

3. Select

Remote Start Setup

4. Select

Duration

5. Select

5 minutes

10 minutes

minutes

128

Remote Start

(If Equipped)

SWITCHING CLIMATE
CONTROL ON AND OFF

Use the touchscreen to change
the climate inside of your vehicle.

SWITCHING RECIRCULATED
AIR ON AND OFF

Press the touchscreen to
recirculate air currently in the
passenger compartment.

Note:

Recirculated air may turn off, or

prevent you from switching on, in all air flow
modes except MAX A/C to reduce the risk
of fogging. Recirculation may also turn on
and off in various air distribution control
combinations during hot weather to improve
cooling efficiency

Note:

Recirculated air could turn off or be

prevented from turning on in all air flow
modes except maximum cooling to reduce
the risk of the windows fogging up.

Note:

Recirculated air could turn on and off

when you direct air to the instrument panel
or footwell air vents during hot weather to
improve cooling efficiency.

SWITCHING AIR
CONDITIONING ON AND OFF

Press the touchscreen.

Note:

Under certain conditions, the air

conditioning compressor could continue to
operate after you switch air conditioning off.

SWITCHING MAXIMUM
DEFROST ON AND OFF

Press the button.

Note:

When you switch maximum defrost

on, the heated windshield, heated rear
window and air conditioning turn on. The
blower motor is set to the highest speed.

Note:

When you switch maximum defrost

off, the heated windshield and heated rear
window remain on.

SWITCHING MAXIMUM
COOLING ON AND OFF

Press the touchscreen.

Note:

When you switch maximum cooling

off, air conditioning remains on.

SWITCHING THE HEATED
REAR WINDOW ON AND OFF

Press the touchscreen to clear
the rear window of thin ice and
fog. The heated rear window

turns off after a short period of time.

Note:

Do not use harsh chemicals, razor

blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

129

Climate Control

Content .. 5 6 7 8 ..
