Ford Expedition (2022 year). Manual in english

The rear parking aid sensors are active
when your vehicle is in reverse (R) and the
vehicle speed is less than 5 mph (8 km/h).

The sensor coverage area is up to 71 in
(180 cm) from the rear bumper.

The rear parking aid detects large objects
when you shift into reverse (R) and any of
the following occur:
•

Your vehicle is moving backward at a
low speed.

•

Your vehicle is stationary but an object
is approaching the rear of your vehicle
at a low speed.

•

Your vehicle is moving backward at a
low speed and an object is moving
towards your vehicle, for example
another vehicle at a low speed.

The system shall provide no audible
warning for the object behind the vehicle
when in neutral (N) gear.

LOCATING THE REAR PARKING
AID SENSORS

E130178

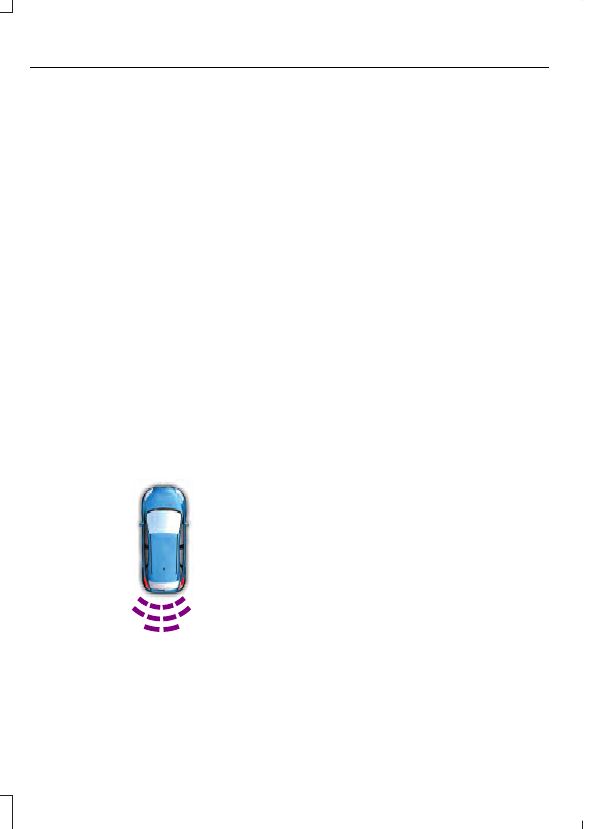

The rear parking aid sensors are in the rear
bumper.

REAR PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when your vehicle
approaches an object. As your vehicle
moves closer to an object, the rate of the
tone increases. The warning tone
continuously sounds when an object is 12 in
(30 cm) or less from the rear bumper.

If your vehicle remains stationary for a few
seconds, the audible warning turns off. If
your vehicle moves backward the tone
sounds again.

Note:

When the parking aid system sounds

a tone, the audio system could reduce the
set volume.

FRONT PARKING AID

(IF EQUIPPED)

WHAT IS THE FRONT PARKING
AID

Front parking sensors detect objects in
front of your vehicle.

FRONT PARKING AID
LIMITATIONS

The front parking aid sensors are active
when your vehicle is in any position other
than park (P) and the vehicle speed is less
than 5 mph (8 km/h).

The sensor coverage area is up to 28 in
(70 cm) from the bumper.

If your vehicle is in reverse (R), the front
parking aid detects objects when your
vehicle is moving at a low speed or an
object is moving toward your vehicle and
provides an audible warning, for example
another vehicle at a low speed. If your
vehicle remains stationary for a few
seconds, the audible warning turns off.
Visual indication is always active in reverse
(R).

248

Parking Aids

If your vehicle is in any forward gear, the
front parking aid provides audible warnings
and visual indication when your vehicle is
moving at a speed of 5 mph (8 km/h) or
below and the system detects an object
within the detection zone. If your vehicle
remains stationary for a few seconds, the
visual indication and audible warning turns
off.

If your vehicle is in neutral (N), the front
and rear sensors provide visual indication
only when your vehicle is moving below a
speed of 5 mph (8 km/h) and obstacles
are detected inside the detection areas.
Once your vehicle stops, the visual
indication and audible warning stops after
a few seconds.

LOCATING THE FRONT PARKING
AID SENSORS

E187330

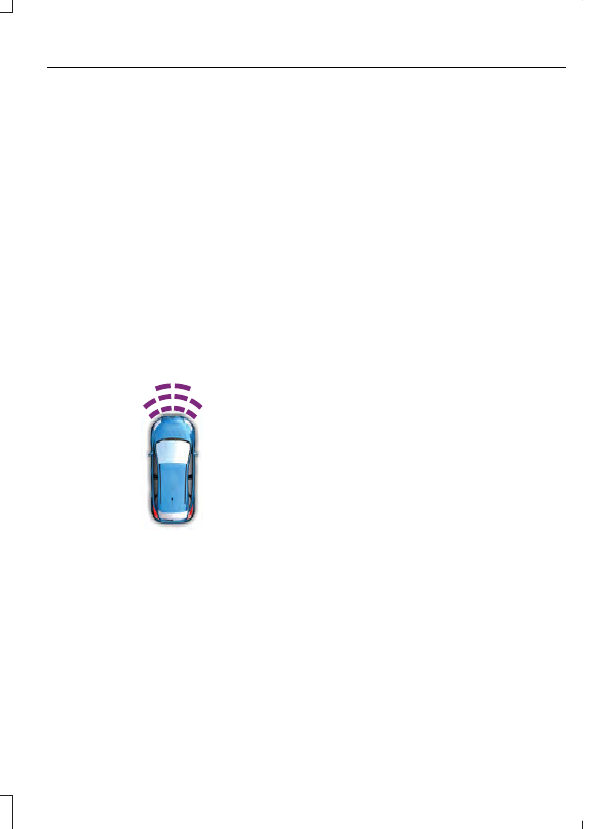

The front parking aid sensors are in the
front bumper.

FRONT PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when there is an
object within 28 in (70 cm) from the front
bumper. As your vehicle moves closer to
an object, the rate of the tone increases.

The warning tone continuously sounds
when an object is 12 in (30 cm) or less from
the front bumper.

Note:

If the detected object is 12 in (30 cm)

or less from your vehicle, visual indication
remains on.

SIDE PARKING AID

(IF EQUIPPED)

WHAT IS THE SIDE PARKING AID

The front and rear outermost parking aid
sensors map objects that are near to the
sides of your vehicle.

SIDE PARKING AID LIMITATIONS

The sensor coverage is up to 24 in (60 cm)
from the sides of your vehicle.

The side parking aid may not function if:
•

Your vehicle remains stationary for over
two minutes.

•

The anti-lock brake system activates.

•

The traction control system activates.

•

Your vehicle is in park (P).

•

The steering wheel angle information
is not available. You must drive at least
492 ft (150 m) above 19 mph
(30 km/h) to reset the steering wheel
angle information.

Note:

If you switch traction control off, the

side sensing system also turns off.

To reinitialize the system, drive the length
of your vehicle.

The side parking aid does not detect an
object that is moving toward the side of
your vehicle, for example another vehicle
moving at a low speed, if it does not pass
a front or rear parking aid sensor.

249

Parking Aids

If the transmission is in reverse (R), the side
sensing system provides audible warnings.
When your vehicle is moving slowly,
obstacles are detected within 24 in
(60 cm) and are inside the driving path of
your vehicle. If your vehicle remains
stationary for a few seconds, the audible
warning turns off. Visual indication is
always present in reverse (R).

If your vehicle is in neutral (N), the side
sensing system provides visual indication
only when your vehicle is moving slowly
and there is a front or rear parking aid
obstacle detected, and the side obstacle
is within 24 in (60 cm) from the side of
your vehicle. If your vehicle remains
stationary for a few seconds, the visual
indication turns off.

If the transmission is in drive (D) or any
other forward gear, the side sensing system
provides audible and visual warnings.
When your vehicle is moving slowly,
obstacles are detected within 24 in
(60 cm) and are inside the driving path of
your vehicle. If your vehicle remains
stationary for a few seconds, the visual
indication and audible warning turns off.

LOCATING THE SIDE PARKING AID
SENSORS

E187810

The side parking sensors are located in the
sides of the front and rear bumpers.

SIDE PARKING AID AUDIBLE
WARNINGS

When the side parking aid detects an
object within the coverage area and the
driving path of your vehicle, an audible
warning sounds. As your vehicle moves
closer to the object, the rate of the tone
increases.

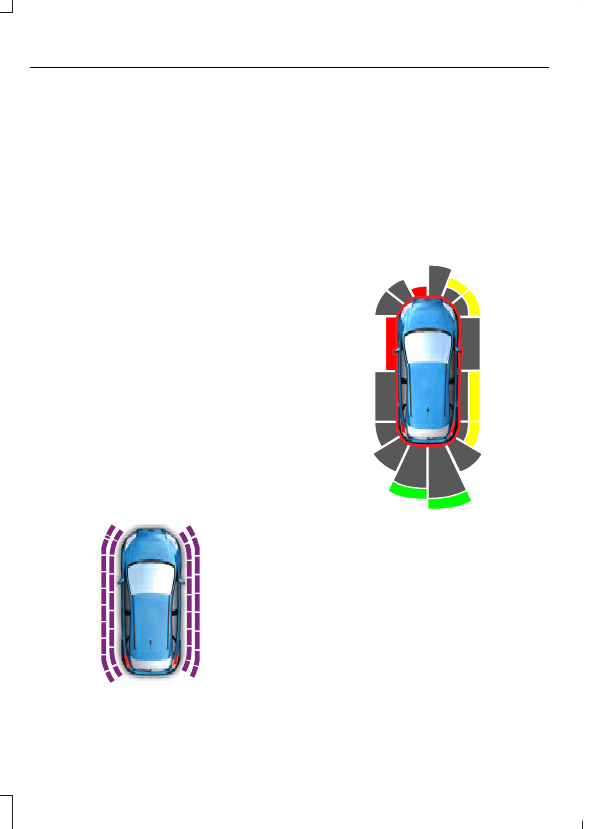

PARKING AID INDICATORS

E190459

The system provides object distance
indication through the information and
entertainment display.

•

As the distance to the object
decreases, the indicator waves and the
lines move toward the vehicle icon.

•

If there is no object detected, the
distance indicator lines are grey.

Visual indication remains on when your
vehicle is in reverse (R). In any other gear,
when you stop your vehicle, visual
indication turns off after four seconds.

If the parking aids are not available, the
side distance indicator lines do not display.

250

Parking Aids

PARKING AIDS –
TROUBLESHOOTING

PARKING AIDS – INFORMATION
MESSAGES

If a fault is present in the parking aids, a
warning message appears in the
instrument cluster or the information and
entertainment display.

Action

Message

The system detects a condition that

requires service. Have your vehicle checked

as soon as possible.

Check Front Park Aid

The system detects a condition that

requires service. Have your vehicle checked

as soon as possible.

Check Rear Park Aid

Displays the park aid status.

Front Park Aid On Off

Displays the park aid status.

Rear Park Aid On Off

251

Parking Aids

WHAT IS THE REAR VIEW
CAMERA

The rear view camera provides a video
image of the area behind your vehicle when
the transmission is in reverse (R).

E332186

The rear view camera button is
on the instrument panel.

REAR VIEW CAMERA
PRECAUTIONS

WARNING:

The rear view camera

system is a reverse aid supplement
device that still requires the driver to use
it in conjunction with the interior and
exterior mirrors for maximum coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Reverse your vehicle

slowly. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Use caution when the

rear cargo door is ajar. If the rear cargo
door is ajar, the camera will be out of
position and the video image could be
incorrect. All guide lines disappear when
the rear cargo door is ajar. Failure to
follow this instruction could result in
personal injury.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

Note:

When towing, the camera only sees

what you are towing. This might not provide
adequate coverage and you might not see
some objects. In some vehicles, the guide
lines may disappear when you connect the
trailer tow connector.

LOCATING THE REAR VIEW
CAMERA

The rear view camera is on the tailgate. It
provides a video image of the area behind
your vehicle.

252

Rear View Camera

REAR VIEW CAMERA GUIDE
LINES

E306774

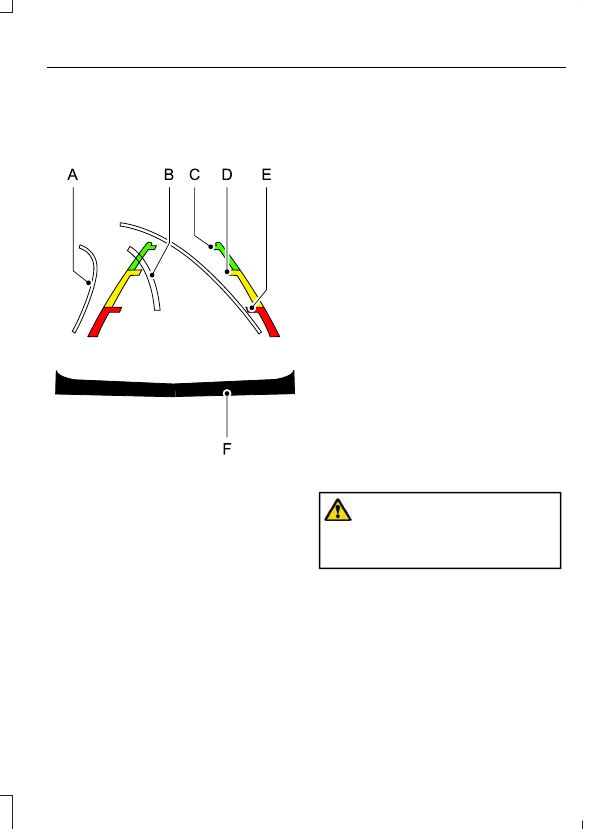

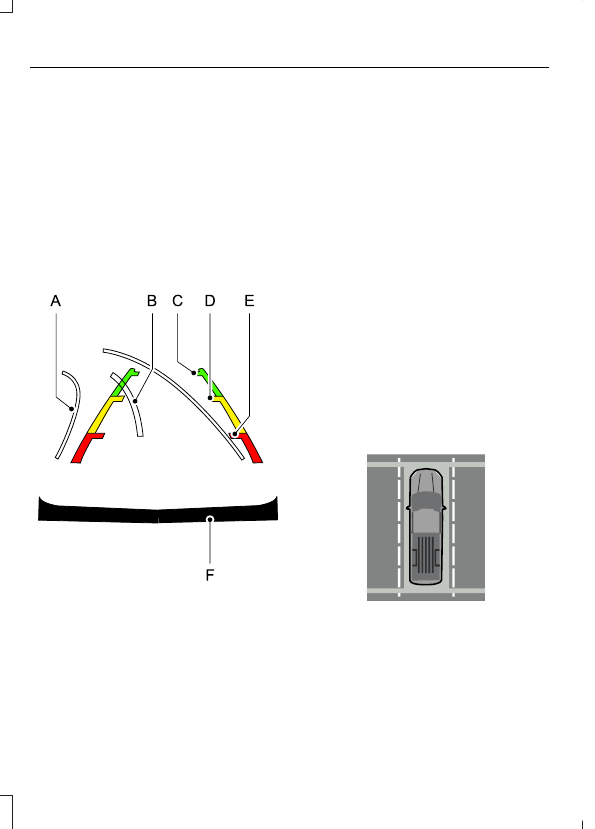

Active guide lines.

Centerline.

Fixed guide line: Green zone.

Fixed guide line: Yellow zone.

Fixed guide line: Red zone.

Rear bumper.

Active guide lines only show with fixed
guide lines. To use active guide lines, turn
the steering wheel to point the guide lines
toward an intended path. If the steering
wheel position changes while reversing,
your vehicle might deviate from the
intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

Use caution while reversing. Objects in the
red zone are closest to your vehicle and
objects in the green zone are farther away.
Objects get closer to your vehicle as they
move from the green zone to the yellow or
red zones. Use the side view mirrors and
rear view mirror to get better coverage on
both sides and rear of your vehicle.

Note:

Active guide lines and fixed guide

lines are only available when the
transmission is in reverse (R).

Note:

The centerline is only available if the

active or fixed guide lines are on.

Note:

Not all camera modes work properly

without an auxiliary camera.

REAR VIEW CAMERA
SETTINGS

ZOOMING THE REAR VIEW
CAMERA IN AND OUT

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

Selectable settings for this feature are
zoom in (+) and zoom out (-). Press the
symbol on the camera screen to change
the view. The default setting is zoom off.

This allows you to get a closer view of an
object behind your vehicle. The zoomed
image keeps the bumper in the image to
provide a reference. The zoom is only
active while the transmission is in reverse
(R).

253

Rear View Camera

Note:

Zooming in also engages park hold

which applies the electric park brake when
you shift to park (P). When you press the
zoom button, the electronic park hold
button illuminates on the touchscreen. See

Connecting a Trailer

(page 340).

Note:

Manual zoom is only available when

the transmission is in reverse (R).

Note:

Only the centerline shows when you

enable manual zoom.

SWITCHING REAR VIEW CAMERA
DELAY ON AND OFF

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Rear View Camera

4. Switch

Rear View Camera Delay

on or

off.

When shifting the transmission out of
reverse (R) and into any gear other than
park (P), the camera image remains in the
display until:

•

Your vehicle speed reaches
approximately 5 mph (8 km/h).

•

You shift your vehicle into park (P).

SWITCHING REAR VIEW CAMERA
DELAY ON AND OFF

Access the vehicle drawer on the
touchscreen.

Press

SETTINGS

2. Press

Driver Assistance

3. Switch

Rear View Camera Delay

on or

off.

When shifting the transmission out of
reverse (R) and into any gear other than
park (P), the camera image remains in the
display until:

•

Your vehicle speed reaches
approximately 5 mph (8 km/h).

•

You shift your vehicle into park (P).

254

Rear View Camera

WHAT IS THE 360 DEGREE
CAMERA

The 360 degree camera system consists
of front, side and rear cameras which
provide visibility around your vehicle.

HOW DOES THE 360 DEGREE
CAMERA WORK

The 360 Degree Camera system:

•

Allows you to see what is directly in
front of or behind your vehicle.

•

Provides a cross traffic view in front of
and behind your vehicle.

•

Allows you to see a top-down view of
the area outside your vehicle, including
the blind spots and obstacles near your
vehicle.

360 DEGREE CAMERA
PRECAUTIONS

WARNING:

The 360 degree

camera system still requires the driver
to use it in conjunction with looking out
of the windows, and checking the interior
and exterior mirrors for maximum
coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

Use caution when the

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

360 DEGREE CAMERA
LIMITATIONS

Note:

Use caution if a door is ajar. The 360

degree camera could be out of position and
the image could be incorrect.

LOCATING THE 360 DEGREE
CAMERAS

Rear View Camera

The rear view camera is on the liftgate. It
provides a video image of the area behind
your vehicle.

Front View Camera

The front view camera is in the grille. It
provides a video image of the area in front
of your vehicle.

255

360 Degree Camera

(If Equipped)

Side View Camera

The side view camera is on the outside
mirror. It provides a video image of the area
on the sides of your vehicle to aid you when
parking.

360 DEGREE CAMERA GUIDE
LINES

Note:

Active guide lines are only available

when the transmission is in reverse (R).

E306774

Active guide lines.

Centerline.

Fixed guide line: Green zone.

Fixed guide line: Yellow zone.

Fixed guide line: Red zone.

Rear bumper.

Active guide lines only show with fixed
guide lines. Turn the steering wheel to
point the guide lines toward an intended
path. If the steering wheel position changes
when reversing, your vehicle could deviate
from the intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

Objects in the red zone are closest to your
vehicle and objects in the green zone are
farther away. Objects get closer to your
vehicle as they move from the green zone
to the yellow or red zones. Use the side
view mirrors and rear view mirror to get
better coverage on both sides and rear of
your vehicle.

Keep Out Zone

E310341

The keep out zone is represented by the
yellow dotted lines running parallel to your
vehicle.

256

360 Degree Camera

(If Equipped)

360 DEGREE CAMERA
SETTINGS

SWITCHING THE 360 DEGREE
CAMERA ON AND OFF

E332186

The 360 degree camera system
button is on the instrument
panel and allows you to toggle

the front camera on or off. The front and
rear cameras have multiple screens which
consist of:

•

Normal view.

•

Normal view with 360.

•

Split view.

Note:

The rear view camera activates when

you switch into reverse (R). Additional views
are then accessible on the touchscreen.

When in park (P), neutral (N) or drive (D),
only the front images display when you
press the button. When in reverse (R), only
the rear images display when you press the
button.

Note:

The 360 degree camera system turns

off when your vehicle is in motion at low
speed, except when in reverse (R).

SWITCHING THE 360 DEGREE
CAMERA VIEW

E337002

Press to access the different
camera views.

E336516

Front normal view provides an
image of what is directly in front
of your vehicle.

E336517

Front split view provides an
extended view of what is in front
of your vehicle.

E310996

Normal + 360 degree view
contains the normal camera
view next to a 360 degree

camera view.

E310967

Rear normal view provides an
image of what is directly behind
your vehicle.

E310974

Rear split view provides an
extended view of what is behind
your vehicle.

E350276

The hitch view provides an
image of the area around the
tow hitch.

E310965

Trailer reverse guidance shows
the sides of your truck and trailer.
See

Trailer Reverse Guidance

(page 367).

E224485

Zooms in on the image and park
hold is activated. See

Connecting a Trailer

(page 340).

E337359

Zooms in on the 360 degree
image.

Note:

The rear normal view and hitch view

are available when your vehicle speed is
greater than 6 mph (10 km/h).

257

360 Degree Camera

(If Equipped)

WHAT IS ACTIVE PARK
ASSIST

Assists you with parking in and out of
parking spaces.

HOW DOES ACTIVE PARK
ASSIST WORK

Active park assist uses sensors to detect
parking spaces. Active park assist controls
steering, acceleration, braking and shifting
as required to maneuver into or out of a
parking space when activate.

ACTIVE PARK ASSIST
PRECAUTIONS

WARNING:

You must remain in

your vehicle when the system turns on.
At all times, you are responsible for
controlling your vehicle, supervising the
system and intervening, if required.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death.

WARNING:

The sensors may not

detect objects in heavy rain or other
conditions that cause interference.

WARNING:

You are responsible for

WARNING:

Do not use the system

with accessories that extend beyond the
front or rear of your vehicle, for example
a trailer hitch or bike rack. The system is
not able to make corrections for the
additional length of the accessories.

SWITCHING ACTIVE PARK
ASSIST ON AND OFF

E326188

Press the parking aid button,
then press the active park assist
icon on the touchscreen to bring

up full screen notifications.

Press the soft keys on the touchscreen to
switch between the parallel park in,
perpendicular park in, or parallel park out
parking modes.

Cancelling Active Park Assist

To cancel parking assistance at any time,
shift out of neutral (N).

Pausing Active Park Assist

To pause parking assistance at any time,
release the parking aid button.

If you open the passenger or rear doors,
active park assist pauses.

To resume parking, press and hold the
parking aid button again.

ENTERING A PARALLEL
PARKING SPACE

Press the parking aid button.

Note:

The system detects other vehicles

and curbs to find a parking space.

2. Press the active park assist icon on the

touchscreen.

3. Select parallel parking.

258

Active Park Assist

(If Equipped)

4. Use the turn signal lever to search for

a parking space on the driver or
passenger side of your vehicle.

Note:

If you do not use the turn signal lever,

the system searches for a parking space on
the passenger side of your vehicle.

5. Drive your vehicle approximately 3 ft

(1 m) away from and parallel to the
other parked vehicles when searching
for a parking space.

Note:

A tone sounds and a message

appears in the information and
entertainment display when active park
assist finds a suitable parking space.

6. Press and hold the brake pedal.

Release the steering wheel and shift
into neutral (N).

8. Press and hold the active park assist

button.

9. Release the brake pedal to allow your

vehicle to park.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

Note:

When parallel parking between

objects, the system parks closer to the
object in front of your vehicle to allow easier
access to the luggage compartment.

Note:

When parking is complete, your

vehicle shifts into park (P).

ENTERING A PERPENDICULAR
PARKING SPACE

Press the parking aid button.

Note:

Active park assist does not recognize

parking space lines and centers your vehicle
between objects.

2. Press the active park assist icon on the

touchscreen.

3. Select perpendicular parking.

4. Use the turn signal lever to search for

a parking space on the driver or
passenger side of your vehicle.

Note:

If you do not use the turn signal lever,

the system searches for a parking space on
the passenger side of your vehicle.

5. Drive your vehicle approximately 3 ft

(1 m) away from and perpendicular to
the other parked vehicles when
searching for a parking space.

Note:

A tone sounds and a message

appears in the information and
entertainment display when active park
assist finds a parking space.

6. Press and hold the brake pedal.

Release the steering wheel and shift
into neutral (N).

8. Press and hold the parking aid button.

9. Release the brake pedal to allow the

vehicle to park.

Note:

Active park assist backs your vehicle

into parking spaces.

Note:

Active park assist aligns the front end

of your vehicle with the lane side of the
object next to it.

Note:

When the system detects only one

object, it allows enough distance to open
the door on either side.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

Note:

When parking is complete, your

vehicle shifts into park (P).

EXITING A PARKING SPACE

Active park assist only assists leaving
parallel parking spaces.

Press the parking aid button.

2. Press the active park assist icon on the

touchscreen.

3. Select parallel park exit.

259

Active Park Assist

(If Equipped)

4. Use the turn signal to choose the

direction to exit the parking space.

5. Press and hold the brake pedal.

6. Release the steering wheel and shift

into neutral (N).

Release the parking brake.

8. Press and hold the parking aid button.

9. Release the brake pedal to allow your

vehicle to move.

Note:

After active park assist drives your

vehicle to a position where you can exit the
parking space in a forward movement, a
message appears instructing you to take full
control of your vehicle.

10.

Take control of your vehicle.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

ACTIVE PARK ASSIST –
TROUBLESHOOTING

ACTIVE PARK ASSIST –
INFORMATION MESSAGES

Action

Message

The system

requires service.

Have your vehicle

checked as soon as

possible.

Active Park Fault

ACTIVE PARK ASSIST –
FREQUENTLY ASKED QUESTIONS

Why does active park assist not
operate correctly?

The system is unable to detect a
vehicle, curb or object to park next to
or in between. The system needs
boundary objects to operate correctly.

Why does active park assist not search
for a parking space?

You have switched traction control off.

Why does active park assist not search
for a parking space?

The transmission is in reverse (R). Your
vehicle must be moving forward to be
able to detect a parking space.

Why does active park assist not offer
a parking space?

The sensors could be blocked. For
example, snow, ice or large
accumulations of dirt. Blocked sensors
can affect how the system functions.

Why does active park assist not offer
a parking space?

The sensors in the front or rear bumper
could be damaged.

Why does active park assist not offer
a parking space?

There is not enough room in the
parking space for your vehicle to safely
park.

Why does active park assist not offer
a parking space?

There is not enough space for the
parking maneuver on the opposite side
of the parking space.

Why does active park assist not offer
a parking space?

The parking space is more than 5 ft
(1.5 m) or less than 2 ft (0.5 m) away
from your vehicle.

Why does active park assist not offer
a parking space?

Your vehicle's speed is greater than
22 mph (35 km/h) for parallel parking
or greater than 19 mph (30 km/h) for
perpendicular parking.

260

Active Park Assist

(If Equipped)

Why does active park assist not offer
a parking space?

You recently disconnected or replaced
the battery. After you reconnect the
battery you must drive your vehicle on
a straight road for a short period of
time.
