Ford F-150 (2022 year). Manual in english

Automatic Re-

Engagement Speed

Automatic Disen-

gagement Speed

Maximum Engage-

ment Speed

Drive Modes

20 mph (30 km/h)

25 mph (41 km/h)

20 mph (30 km/h)

Slippery (2H, 4A

4H)

No Speed Limit

Deep Snow/Sand

(4H, 4L)

No Speed Limit

Mud/Ruts (4H, 4L)

No Speed Limit

Rock Crawl (4L)

20 mph (30 km/h)

25 mph (41 km/h)

No Speed Limit

Tow/Haul Mode

Automatically engages when you select these drive modes. You have the ability to

manually override the automatic engagement by pressing the electronic locking differential
button.

If available for 4A drive modes.

Automatic Re-

Engagement Speed

Automatic Disen-

gagement Speed

Maximum Engage-

ment Speed

4WD Mode

No speed Limit

Four-Wheel Drive

Low (4L)

Note:

The electronic locking differential

may not engage if you press your accelerator
pedal during an engagement attempt. A
message could display in the instrument
display guiding you to release the
accelerator pedal.

Note:

If the electronic locking differential

has difficulty disengaging, release the
accelerator pedal and turn the steering
wheel in the opposite direction while rolling.

Note:

The electronic locking differential is

for off-road use only and is not for use on
dry pavement. Using the electronic locking
differential on dry pavement results in
increased tire wear, noise and vibration.

SWITCHING THE ELECTRONIC
LOCKING DIFFERENTIAL ON
AND OFF - RAPTOR

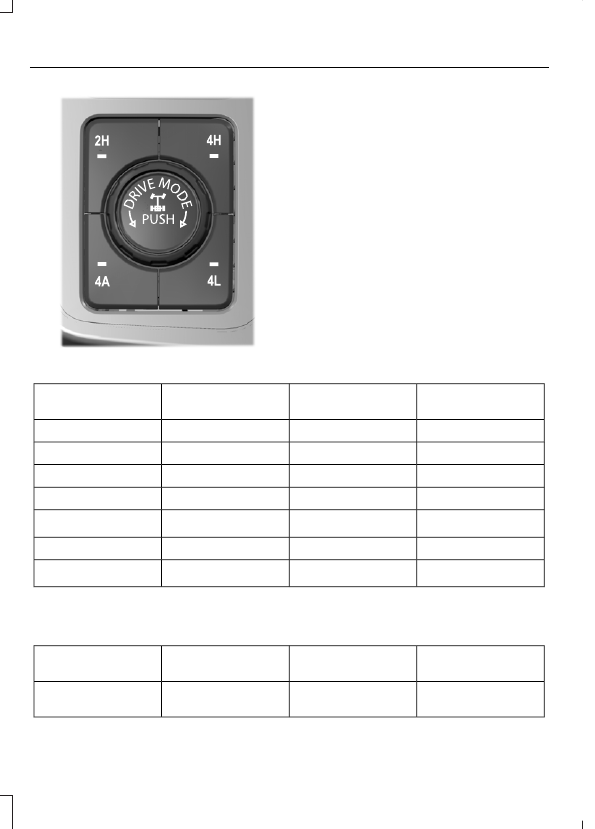

The button to activate and deactivate the
electronic locking differential is in the
center of the drive mode rotary switch.

281

Electronic Locking Differential

(If Equipped)

E308146

To manually activate or deactivate the
electronic locking differential, press the
electronic locking differential button.

Note:

The electronic locking differential can

activate or deactivate automatically based
on speed, four-wheel drive mode, and drive
mode selection. See

Selecting a Drive

Mode

(page 350).

Rear Electronic Locking Differential Engagement Speed and Availability

Automatic Re-

Engagement Speed

Automatic Disen-

gagement Speed

Maximum Engage-

ment Speed

Drive Modes

20 mph (30 km/h)

25 mph (41 km/h)

20 mph (30 km/h)

Normal (4A, 4H)

20 mph (30 km/h)

25 mph (41 km/h)

20 mph (30 km/h)

Sport (4A, 4H)

20 mph (30 km/h)

25 mph (41 km/h)

20 mph (30 km/h)

Slippery (4A, 4H)

20 mph (30 km/h)

25 mph (41 km/h)

20 mph (30 km/h)

Tow/Haul (4A,4H)

No Speed Limit

Off-Road (4H)

No Speed Limit

Baja (4H)

No Speed Limit

Rock Crawl (4L)

Automatically engages when you select this drive mode. You have the ability to manually

override the automatic engagement by pressing the electronic locking differential button.

Automatic Re-

Engagement Speed

Automatic Disen-

gagement Speed

Maximum Engage-

ment Speed

4WD Mode

No speed Limit

Four-Wheel Drive

Low (4L)

282

Electronic Locking Differential

(If Equipped)

Note:

The electronic locking differential

may not engage if you press your accelerator
pedal during an engagement attempt. A
message could display in the instrument
display guiding you to release the
accelerator pedal.

Note:

If the electronic locking differential

has difficulty disengaging, release the
accelerator pedal and turn the steering
wheel in the opposite direction while rolling.

Note:

The electronic locking differential is

for off-road use only and is not for use on
dry pavement. Using the electronic locking
differential on dry pavement results in
increased tire wear, noise and vibration.

SWITCHING THE ELECTRONIC
LOCKING DIFFERENTIAL ON
AND OFF - 4X2

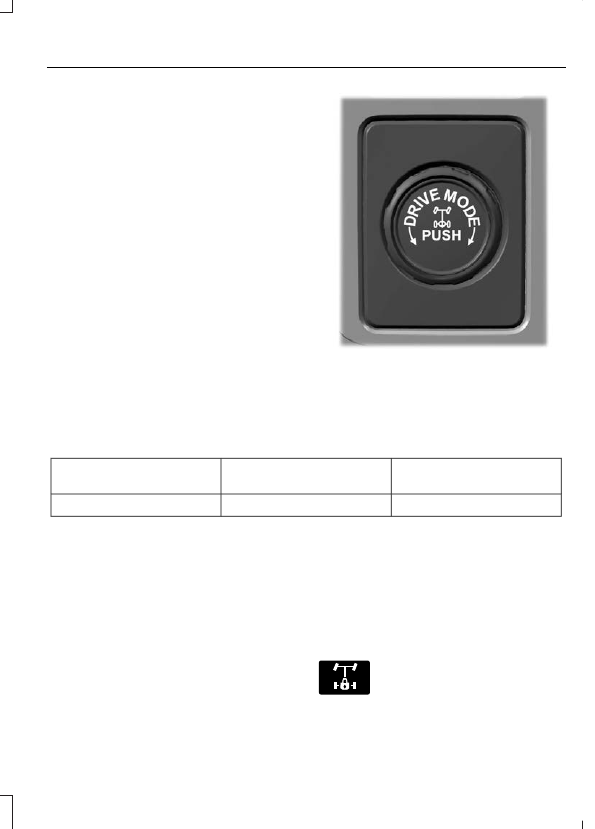

The button to activate and deactivate the
electronic locking differential is located in
the center of the Drive mode rotary switch.

E333748

To manually activate or deactivate the
electronic locking differential, press the
electronic locking differential button.

4X2 Rear Electronic Locking Differential Engagement Speed and Availability

Automatic Re-Engagement

Speed

Automatic Disengagement

Speed

Maximum Engagement

Speed

20 mph (30 km/h)

25 mph (41 km/h)

20 mph (30 km/h)

Note:

The electronic locking differential

may not engage if you press your accelerator
pedal during an engagement attempt. A
message could display in the instrument
display guiding you to release the
accelerator pedal.

Note:

If the electronic locking differential

has difficulty disengaging, release the
accelerator pedal and turn the steering
wheel in the opposite direction while rolling.

Note:

The electronic locking differential is

for off-road use only and is not for use on
dry pavement. Using the electronic locking
differential on dry pavement results in
increased tire wear, noise and vibration.

ELECTRONIC LOCKING
DIFFERENTIAL INDICATORS

E325779

If both rear wheel axle shafts
lock together, the indicator in the
cluster is amber, providing

additional traction.

283

Electronic Locking Differential

(If Equipped)

If you select the electronic locking
differential and the indicator in the cluster
is gray or turns from amber to gray while
driving, one of the following has occurred:

•

The vehicle speed is too high.

•

The accelerator pedal is too high during
an engagement attempt.

•

The vehicle is experiencing an anti-lock
brake activation.

•

The left and right wheel speed
difference is too high during an
engagement attempt.

If you select the electronic locking
differential and the indicator in the cluster
does not turn on, the following has
occurred:

•

The system has malfunctioned and
accompanies a check locking
differential message in the information
display. See your dealer as soon as
possible.

Note:

If the vehicle is experiencing an

anti-lock braking event, the electronic
locking differential could momentarily
disengage.

ELECTRONIC LOCKING DIFFERENTIAL – TROUBLESHOOTING

ELECTRONIC LOCKING DIFFERENTIAL – INFORMATION MESSAGES

Description and Action

Message

The electronic locking differential has been requested and

will engage when the speed condition is met.

To Engage Locking

Differential Slow to XX

mph/km/h

Release the accelerator pedal in order to engage.

To Engage Locking

Differential Release

Accelerator Pedal

An electronic locking differential system fault is present.

Contact an authorized dealer as soon as possible.

Check Locking Differen-

tial

284

Electronic Locking Differential

(If Equipped)

ELECTRONIC LOCKING DIFFERENTIAL – INFORMATION MESSAGES -
RAPTOR

Description and Action

Message

The electronic locking differential has been requested and

will engage when the speed condition is met.

To Engage Locking

Differential Slow to XX

mph/km/h

Release the accelerator pedal in order to engage.

To Engage Locking

Differential Release

Accelerator Pedal

An electronic locking differential system fault is present.

Contact an authorized dealer as soon as possible.

Check Locking Differen-

tial

Displays when the electronic locking differential is selected

while in 2H.

Locking differential not

available in 2H

285

Electronic Locking Differential

(If Equipped)

BRAKE PRECAUTIONS

WARNING:

Driving your vehicle

with the warning lamp on is dangerous.
A significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

Wet brakes result in reduced braking
efficiency. Gently press the brake pedal a
few times when leaving a car wash or
driving from standing water to dry the
brakes.

Note:

Depending on applicable laws and

regulations in the country for which your
vehicle was originally built, the stoplamps
could flash during heavy braking. Following
this the hazard warning flashers could also
turn on when your vehicle comes to a stop.

ANTI-LOCK BRAKING SYSTEM

ANTI-LOCK BRAKING SYSTEM
LIMITATIONS

The anti-lock braking system does not
eliminate the risk of crash when:
•

You drive too closely to the vehicle in
front of you.

•

Your vehicle is hydroplaning.

•

You take corners too fast.

•

The road surface is poor.

Note:

If the system activates, the brake

pedal could pulse and travel further.
Maintain pressure on the brake pedal.

BRAKE OVER ACCELERATOR

In the event the accelerator pedal
becomes stuck or entrapped, apply steady
and firm pressure to the brake pedal to
slow the vehicle and reduce engine power.
If you experience this condition, apply the
brakes and bring your vehicle to a safe
stop. Move the transmission to park (P),
switch the engine off and apply the parking
brake. Inspect the accelerator pedal for
any interference. If none are found and the
condition persists, have your vehicle towed
to the nearest authorized dealer.

BRAKE OVER ACCELERATOR
- RAPTOR

Note:

Certain drive modes can disable

brake over accelerator for off-road driving.

LOCATING THE BRAKE FLUID
RESERVOIR

See

Under Hood Overview

(page 483).

286

Brakes

CHECKING THE BRAKE FLUID

WARNING:

Do not use any fluid

other than the recommended brake fluid
as this will reduce brake efficiency. Use
of incorrect fluid could result in the loss
of vehicle control, serious personal injury
or death.

WARNING:

Only use brake fluid

from a sealed container. Contamination
with dirt, water, petroleum products or
other materials may result in brake
system damage or failure. Failure to
adhere to this warning could result in the
loss of vehicle control, serious personal
injury or death.

WARNING:

Do not allow the fluid

to touch your skin or eyes. If this
happens, rinse the affected areas
immediately with plenty of water and
contact your physician.

WARNING:

The brake system

could be affected if the brake fluid level
is below the

MIN

mark or above the

MAX

mark on the brake fluid reservoir.

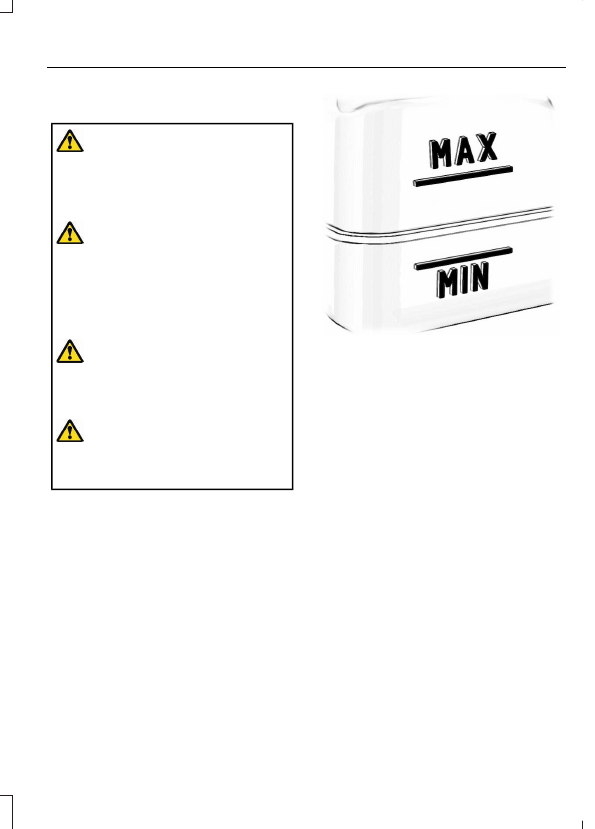

E170684

Park your vehicle on a level surface.

2. Look at the brake fluid reservoir to see

where the brake fluid level is relative
to the

MIN

and the

MAX

marks on the

reservoir.

Note:

To avoid fluid contamination, the

reservoir cap must remain in place and fully
tight, unless you are adding fluid.

Only use fluid that meets our
specifications. See

Capacities and

Specifications

(page 558).

BRAKE FLUID SPECIFICATION

See

Brake Fluid Specification

(page 590).

287

Brakes

BRAKES –
TROUBLESHOOTING

BRAKES – WARNING LAMPS

If the ABS indicator illuminates
when you are driving, this
indicates a malfunction. Your

vehicle continues to have normal braking
without the anti-lock braking system
function. See an authorized dealer.

It also momentarily illuminates when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have the system checked
by an authorized dealer.

E270480

The brake indicator momentarily
illuminates when you switch the
ignition on to confirm the lamp

is functional. It may also illuminate when
you apply the parking brake and the
ignition is on. If it illuminates when your
vehicle is moving, make sure the parking
brake is disengaged. If the parking brake
is disengaged, this indicates low brake fluid
level or a brake system fault. See an
authorized dealer.

BRAKES – FREQUENTLY ASKED
QUESTIONS

Is it normal for my brakes to make
noise?

Occasional brake noise is normal. If a
metal-to-metal, continuous grinding,
or continuous squeal sound is present,
the brake lining could be worn-out.
Have the system checked by an
authorized dealer.

There is an electrical motor sound
when I press on the brake pedal or
activate the park brake switch. Is this
normal?

Yes, those sounds are the electronic
brake booster or the electronic park
brake operating.

Note:

Brake dust could accumulate on the

wheels, even under normal driving
conditions. Some dust is normal as the
brakes wear and does not contribute to
brake noise. See

Cleaning Wheels

(page

512).

288

Brakes

WHAT IS THE ELECTRIC
PARKING BRAKE

The electric parking brake is used to hold
your vehicle on slopes and flat roads.

APPLYING THE ELECTRIC
PARKING BRAKE

WARNING:

Always fully apply the

parking brake and make sure you shift
into park (P). Failure to follow this
instruction could result in personal injury
or death.

WARNING:

If you drive extended

distances with the parking brake applied,
you could cause damage to the brake
system.

E267156

The switch is on the lower part
of the instrument panel.

Pull the switch up.

The red warning lamp flashes during
operation and illuminates when the parking
brake is applied.

Note:

You can apply the electric parking

brake when the ignition is off.

Note:

The electric parking brake could

apply when the transmission selector is in
park (P). See

Park (P)

(page 260).

APPLYING THE ELECTRIC
PARKING BRAKE IN AN
EMERGENCY

You can use the electric parking brake to
slow or stop your vehicle in an emergency.

Pull the switch up and hold it.

The electric parking brake continues to
slow your vehicle down unless you release
the switch.

The red warning lamp illuminates, a tone
sounds and the stoplamps turn on when
you use the electric parking brake in an
emergency.

Note:

Do not apply the electric parking

brake when your vehicle is moving, except
in an emergency. If you repeatedly use the
electric parking brake to slow or stop your
vehicle, you could cause damage to the
brake system.

MANUALLY RELEASING THE
ELECTRIC PARKING BRAKE

Switch the ignition on.

2. Press and hold the brake pedal.

3. Push the switch down.

The red warning lamp turns off.

Pulling Away on a Hill When Towing a
Trailer

Press and hold the brake pedal.

2. Pull the switch upward and hold it.

3. Shift into gear.
4. Press the accelerator pedal until engine

has developed sufficient torque to
prevent your vehicle from rolling down
the hill.

5. Release the switch and pull away in a

normal manner.

AUTOMATICALLY RELEASING
THE ELECTRIC PARKING
BRAKE

Close the driver door.

2. Shift into gear.

289

Electric Parking Brake

3. Press the accelerator pedal and pull

away in a normal manner.

ELECTRIC PARKING BRAKE
AUDIBLE WARNING

Sounds when the parking brake is on and
your vehicle is moving. If the warning tone
continues after you have released the
parking brake, this indicates a malfunction.
Have your vehicle checked as soon as
possible.

RELEASING THE ELECTRIC
PARKING BRAKE IF THE
VEHICLE BATTERY HAS RUN
OUT OF CHARGE

WARNING:

The electric parking

brake does not operate if the vehicle
battery has run out of charge.

Connect a booster battery to the vehicle
battery to release the electric parking brake
if the vehicle battery has run out of charge.
See

Jump Starting the Vehicle

(page

465).

ELECTRIC PARKING BRAKE –
TROUBLESHOOTING

ELECTRIC PARKING BRAKE –
WARNING LAMPS

Brake System

E270480

It illuminates red when you apply
the parking brake and your
vehicle is on. If the lamp flashes
when the parking brake has been
released, this indicates the
parking brake system requires

service. Have your vehicle checked as
soon as possible.

Note:

Lamps may vary depending on region.

Electric Parking Brake

E146190

When the lamp illuminates
yellow, it indicates a malfunction
in the electric parking brake.

Have your vehicle checked as soon as
possible.

290

Electric Parking Brake

ELECTRIC PARKING BRAKE – INFORMATION MESSAGES

Action

Message

The electric parking brake is set and a manual release

is attempted without the brake pedal being pressed.

To Release: Press Brake and

Switch

The electric parking brake is set and an automatic

release is attempted but cannot be performed.

Perform a manual release.

Park Brake Use Switch to

Release

The electric parking brake is set and your vehicle speed

exceeds 3 mph (5 km/h). Release the parking brake

before continuing driving.

Release Park Brake

The electric parking brake is not fully applied.

Park Brake Not Applied

The electric parking brake is not fully released.

Park Brake Not Released

The electric parking brake system has been put into a

special mode that is used to allow service of the rear

brakes. Contact an authorized dealer.

Park Brake Maintenance Mode

The electric parking brake system has detected a

condition that requires service. Some functionality

may still be available. Contact an authorized dealer.

Park Brake Limited Function

Service Required

The electric parking brake system has detected a

condition that requires service. Contact an authorized

dealer.

Park Brake Malfunction Service

Now

291

Electric Parking Brake

WHAT IS REVERSE BRAKING
ASSIST

The system uses sensors on the rear of
your vehicle to detect a possible collision
and applies the brakes to either reduce the
damage from impact, or to assist in
avoiding the collision.

HOW DOES REVERSE
BRAKING ASSIST WORK

Reverse Braking Assist functions when in
reverse (R) and traveling at a speed of
1–7 mph (1.5–12 km/h).

If the system detects an obstacle behind
your vehicle, it provides a warning through
the rear parking aid or cross traffic alert
system.

REVERSE BRAKING ASSIST
PRECAUTIONS

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

To help avoid personal

injury, always use caution when in
reverse (R) and when using the sensing
system.

WARNING:

The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due
care and attention. Failure to take care
may result in a crash.

WARNING:

Traffic control systems,

fluorescent lamps, inclement weather,
air brakes, external motors and fans may
affect the correct operation of the
sensing system. This may cause reduced
performance or false alerts.

WARNING:

Some situations and

objects prevent hazard detection. For
example low or direct sunlight, inclement
weather, unconventional vehicle types,
and pedestrians. Apply the brakes when
necessary. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Do not use the system

with accessories that extend beyond the
front or rear of your vehicle, for example
a trailer hitch or bike rack. The system is
not able to make corrections for the
additional length of the accessories.

The system only applies the brakes for a
short period of time when an event occurs.
Act as soon as you notice the brakes apply
in order to remain in control of the vehicle.
If you do not intervene the vehicle may
start to move again.

Note:

Certain add-on devices around the

bumper or fascia may create false alerts.
For example, large trailer hitches, bicycle or
surfboard racks, license plate brackets,
bumper covers or any other device that may
block the normal detection zone of the
system. Remove the add-on device to
prevent false alerts.

Note:

The system does not react to small

or moving objects, particularly those close
to the ground.

Note:

The system does not operate during

hard acceleration or steering.

292

Reverse Braking Assist

(If Equipped)

Note:

If your vehicle sustains damage to

the bumper or fascia leaving it misaligned
or bent, it could alter the sensing zone
causing inaccurate measurement of
obstacles or false alerts.

Note:

Vehicle loading and suspension

changes can impact the angle of the sensors
and may change the normal detection zone
of the system resulting in inaccurate
measurement of obstacles or false alerts.

Note:

When you connect a trailer, the

system may detect the trailer and provide
an alert, or the system turns off. If the
system does not turn off, switch the system
off manually after you connect the trailer.

Note:

You may experience reduced system

performance on road surfaces that limit
deceleration. For example, roads with ice,
loose gravel, mud or sand.

SWITCHING REVERSE
BRAKING ASSIST ON AND OFF

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Switch

Reverse Brake Assist

on or off.

Note:

The system is unavailable when the

rear parking aid, cross traffic alert or traction
control is off.

Note:

If your vehicle is not equipped with

cross traffic alert the reverse braking assist
relies on input from the rear parking aid and
rear camera sensors.

Note:

The default setting is on in some

regions.

OVERRIDING REVERSE
BRAKING ASSIST

There could be instances when
unexpected or unwanted braking occurs.
Firmly pressing the accelerator pedal or
switching the feature off overrides the
system.

REVERSE BRAKING ASSIST
INDICATORS

If the system determines that a collision
with an obstacle may occur, full braking
may apply. Bring your vehicle to a stop a
safe distance away from the obstacle.

E293490

A message and warning
indicator appear when the
system applies the brakes.

293

Reverse Braking Assist

(If Equipped)

REVERSE BRAKING ASSIST – TROUBLESHOOTING

REVERSE BRAKING ASSIST – INFORMATION MESSAGES

Action

Message

Make sure that all doors, liftgate and hood

are closed. Drive the vehicle on a straight

road for a short period. Make sure the

parking aids and cross traffic alert systems
are on. If the message remains on, have the

system checked as soon as possible.

Reverse Brake Assist Not Available See

Manual

Displays when a system error has occurred.

Have your vehicle checked as soon as

possible.

Reverse Brake Assist Fault

Displays when reverse brake assist is off.

Reverse Brake Assist Off

294

Reverse Braking Assist

(If Equipped)

REVERSE BRAKING ASSIST –
FREQUENTLY ASKED QUESTIONS

Why is reverse braking assist unavailable?

•

Make sure the reverse braking assist is
on. See

Switching Reverse Braking

Assist On and Off

(page 293).

•

Make sure that all doors and the
liftgate or tailgate are closed. Drive the
vehicle on a straight road for a short
period. If the message remains, contact
an authorized dealer.

•

Make sure the cross traffic alert system
is on if equipped. See

Switching

Reverse Braking Assist On and Off

(page 293).

•

Make sure the rear parking aid system
is on. See

Rear Parking Aid

(page 314).

•

Make sure the traction control is on.
See

Switching Reverse Braking

Assist On and Off

(page 293).

Note:

The traction control automatically

turns off if four-wheel drive low and certain
drive modes such as mud/ruts and
snow/sand is activated.

•

The vehicle may have sustained a rear
end impact. Contact an authorized
dealer to have the sensors checked for
proper coverage and operation.

•

An anti-lock brake, traction control or
stability control event may have
occurred. Reverse braking assist
resumes operation when the event is
complete.

•

Make sure the rear view camera and
360 degree camera are not dirty or
obstructed. If dirty, clean the camera.
If the message still appears after
cleaning the camera, wait a short time
for the message to clear. If the
message does not clear, contact an
authorized dealer.

•

Make sure the cross traffic alert and
rear parking aid sensors are not
blocked or faulty. See

Locating the

Cross Traffic Alert Sensors

(page

373). See

Locating the Rear Parking

Aid Sensors

(page 314).

•

You recently had your vehicle serviced,
or the battery disconnected. Drive your
vehicle a short distance to resume
system operation.

•

Reverse braking assist does not
function when you connect a trailer.
Operation resumes when you
disconnect the trailer.

Note:

If the answers to why the system is

unavailable do not assist in returning reverse
braking assist to available, have the system
checked as soon as possible.

295

Reverse Braking Assist

(If Equipped)

WHAT IS HILL START ASSIST

Hill Start Assist makes it easier for you to
pull away when your vehicle is on a slope
without using the parking brake.

HOW DOES HILL START
ASSIST WORK

When the system activates, your vehicle
remains stationary for a few seconds after
you release the brake pedal. This gives you
time to move your foot from the brake
pedal to the accelerator pedal. The brakes
release when the engine has developed
sufficient torque to prevent your vehicle
from rolling down the slope.

HILL START ASSIST
PRECAUTIONS

WARNING:

The system does not

replace the parking brake. When you
leave your vehicle, always apply the
parking brake.

WARNING:

You must remain in

your vehicle when the system turns on.
At all times, you are responsible for
controlling your vehicle, supervising the
system and intervening, if required.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death.

WARNING:

The system will turn

off if a malfunction is apparent. Failure
to take care may result in the loss of
control of your vehicle, serious personal
injury or death.

HILL START ASSIST –
TROUBLESHOOTING

HILL START ASSIST –
INFORMATION MESSAGES

Action

Message

Displays when

system is not avail-

able. Have your

vehicle checked as

soon as possible.

Hill Start Assist Not

Available

296

Hill Start Assist

Ford F-150 (2022 year). Manual in english - page 17
