POWER OUTLET – TROUBLESHOOTING

POWER OUTLET – INFORMATION MESSAGES

Description

Message

Ensure plugged in devices do not exceed

the available power displayed. Devices may

exceed the power rating shown the device

label when plugged in. Unplug the device

and switch the ignition on and off to reset

the system.

Item(s) plugged in exceed the system's

maximum capacity. Try unplugging one or

more items and reset. See Owner's Manual

for detail.

After disconnecting all electrical loads, the
ground fault can be reset using the switches
on the power point, on the instrument panel
or on the touchscreen. Use the controls on

the touchscreen to test the ground fault

detection circuit.

Ground Fault Detected. See Owner's

Manual for details.

The climate control system may turn on

and power may be limited during extreme

hot or cold temperatures to optimize the

performance of the system.

Generator System is outside its operating

temperature and capacity is reduced. See

Owner's Manual for details.

Do not plug in any device that supplies

power to the vehicle through the power

points. This could result in damage to

vehicle systems.

Another power source is trying to supply

power to your vehicle's AC outlets. Discon-

nect vehicle from that power source. See

Owner's Manual for details.

The Pickup Bed Power Generator is in fault

mode. Ensure all devices are unplugged

from the system. Use the controls on the

touchscreen to reset the system. Switch

the vehicle on and off if the touchscreen

controls are unable to reset the system. See

an authorized dealer if these steps do not

fix the fault.

Pro Power OnBoard is currently unavailable.

See Owner's Manual for details.

After disconnecting all electrical loads, the
ground fault can be reset using the switches
on the power point, on the instrument panel
or on the touchscreen. Use the controls on

the touchscreen to test the ground fault

detection circuit.

This button test outlets for proper opera-

tion of ground fault detection. In a

successful test, Pro Power OnBoard

detects the ground fault and turns off. See

Owner's Manual for details.

217

Power Outlet - Vehicles With: Pickup Bed Power Generator

Outlet

Description

Message

Extended idling in drive (D) is reducing

available power. When safe, shift to park
(P) while idling, or reduce power draw to

less than 4300W to keep the generator

running.

Extended idling in drive (D) is reducing

available power to 4300W. See Owner’s

Manual for details

218

Power Outlet - Vehicles With: Pickup Bed Power Generator

Outlet

POWER OUTLET – FREQUENTLY
ASKED QUESTIONS

Why is there a warning about
something being plugged into the bed
power outlet when I do not have
anything plugged in?

One or more of the bed power outlet
covers may be ajar or broken. Make
sure the generator is off and check the
outlet covers. Select OK on the
instrument cluster display to
acknowledge the warning.

Why can I not shift my vehicle out of
Park (P)?

Make sure the bed power outlet covers
are closed and not damaged. Press
OK on the instrument cluster display
to acknowledge the warning to be able
to move the transmission from Park
(P).

What do I do when my instrument
cluster display is malfunctioning and
I cannot acknowledge the warning to
put the transmission in Drive (D).

Switch the vehicle off and make sure
nothing is plugged into the bed power
outlet and all outlet covers are closed.
Switch the vehicle on and select OK
on the instrument cluster display to
acknowledge the warning. Have your
vehicle serviced soon.

219

Power Outlet - Vehicles With: Pickup Bed Power Generator

Outlet

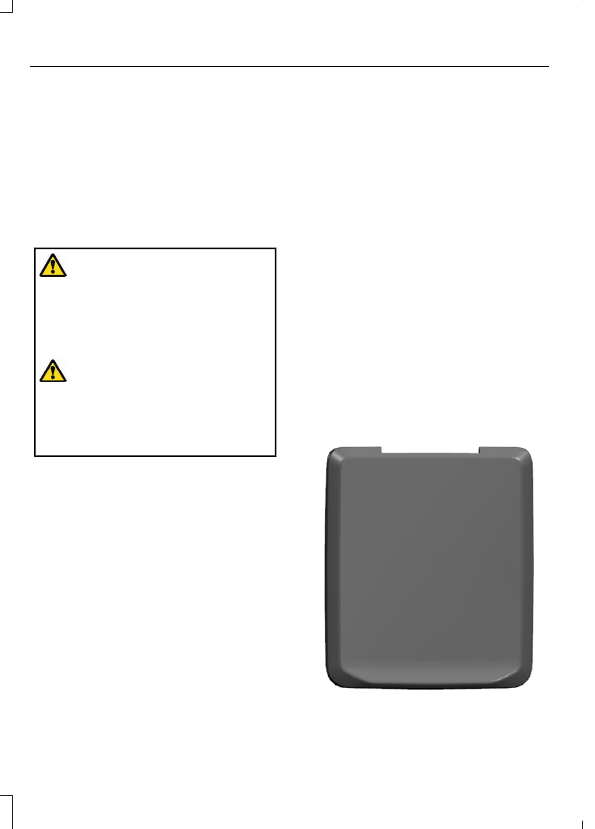

WHAT IS THE POWER OUTLET

The power outlet can power devices that
require up to the rating on the outlet cover.

Note:

The total power delivered is divided

if more than one outlet is used.

POWER OUTLET
PRECAUTIONS

WARNING:

Do not use an

extension cord or connect multiple
devices to the power outlet. Doing so
could result in overloading the power
outlet. Failure to follow this instruction
could result in fire, personal injury or
property damage.

WARNING:

Do not keep electrical

devices plugged into the power outlet
whenever the device is not in use. The
outlet provides power when the vehicle
is on. Failure to follow this instruction
could result in personal injury.

POWER OUTLET LIMITATIONS

You should not use the power outlet for
these types of electric devices:
•

Cathode ray tube type televisions.

•

Motor loads, such as vacuum cleaners,
electric saws or other electric power
tools and compressor-driven
refrigerators.

•

Measuring devices which process
precise data, such as medical
equipment or measuring equipment.

•

Other appliances requiring an
extremely stable power supply, such
as microcomputer-controlled electric
blankets or touch sensor lamps.

Note:

Some devices may exceed the power

rating on the device label when they are
initially plugged-in and may require you to
press the device power button more than
one time in order to allow a soft start. After
multiple attempts, if the device remains off,
please consider that your device may require
more than the available power.

Note:

The power outlet provides full

available power when the vehicle is in park
(P). Power availability may be reduced
when the vehicle is in drive (D). If more than
one outlet is available in the vehicle, power
is divided between the outlets that are in
use at the same time.

LOCATING THE POWER
OUTLETS

The power outlet may be located on the
instrument panel, the rear of the center
console or the in the bed.

Instrument Panel

E337927

220

Power Outlet - Vehicles With: 120V Power Outlet

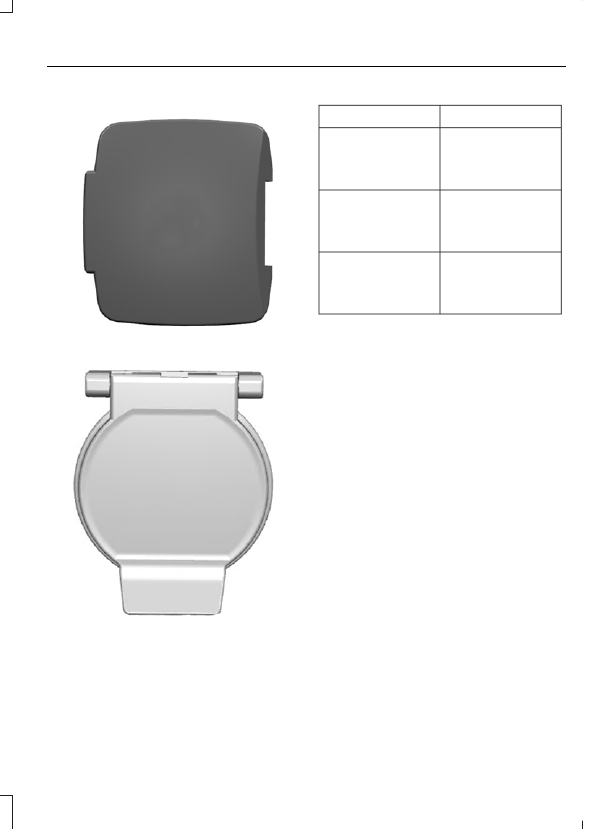

Rear of the Center Console

E337926

Bed

E338700

POWER OUTLET INDICATORS

The power outlet indicator illuminates to
let you know the status of the system.

Description

Indicator Status

When the indicator

light is on, the

outlet is providing

power.

On

When the indicator

light is off, there is

no power to the

outlet.

Off

When the indicator
light is flashing, the

outlet is in a fault

mode.

Flashing

Fault mode

The power outlet temporarily turns off
power if the device exceeds the watt limit.

1.

Unplug your device.

2. Switch your vehicle off to let the

system cool and reset the fault mode.

3. Switch your vehicle back on, but do not

plug your device back in.

4. With your vehicle on, make sure the

indicator light remains on.

5. Make sure your device does not exceed

the power limits and then plug in your
device.

Note:

If a fault occurs again, your device

may exceed the capacity available from the
power outlet.

221

Power Outlet - Vehicles With: 120V Power Outlet

WHAT IS THE POWER OUTLET

The power outlet can power devices using
a 12 V outlet adapter.

POWER OUTLET
PRECAUTIONS

WARNING:

Do not plug optional

electrical accessories into the cigar
lighter socket. Incorrect use of the cigar
lighter can cause damage not covered
by the vehicle warranty, and can result
in fire or serious injury.

When you switch the vehicle on, you can
use the socket to power 12 V appliances
with a maximum current rating of 20 A. Do
not use the power point over the vehicle
capacity of 12 V DC 240 W or a fuse could
blow. Do not plug in any device that
supplies power to the vehicle through the
power points. This could result in damage
to vehicle systems. Do not hang any
accessory from the accessory plug. Always
keep the power point caps closed when
not in use. Do not insert objects other than
an accessory plug into the power point.

To prevent the battery from running out of
charge:
•

Do not use the power point longer than
necessary when the vehicle is off.

•

Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.

LOCATING THE POWER
OUTLETS

Power outlets are in the following
locations:
•

On the instrument panel.

•

Inside the center console.

•

On the rear of the center console.

222

Power Outlet - Vehicles With: 12V Power Outlet

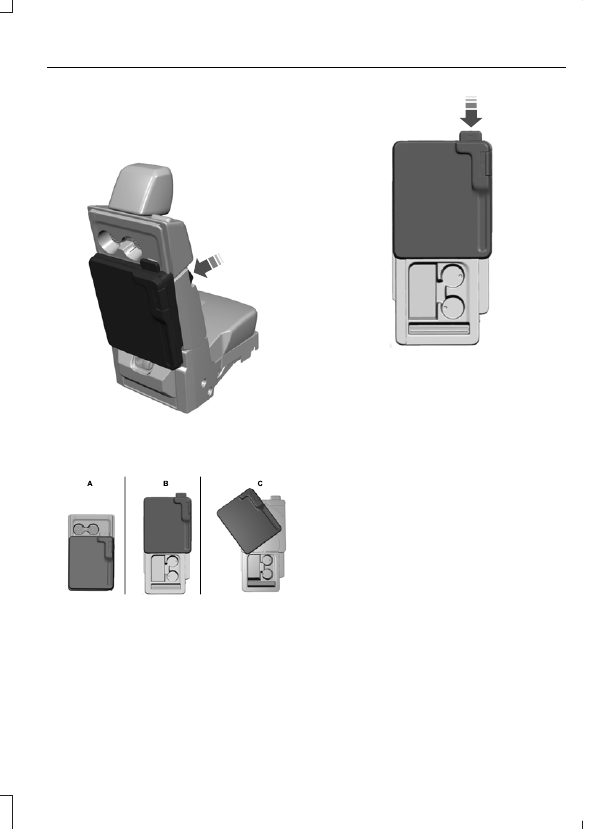

USING THE CENTER CONSOLE
WORK SURFACE - VEHICLES
WITH: COLUMN SHIFT

E313248

Push the lever on the side of the seat and
fold the seat down.

There are three different positions:

E312215

Home position.

A.

Forward position.

B.

Rotated position.

C.

E327628

Push the latch down on the top of the work
surface to move it to the forward position.
There are 11 lockable positions.

223

Center Console Work Surface

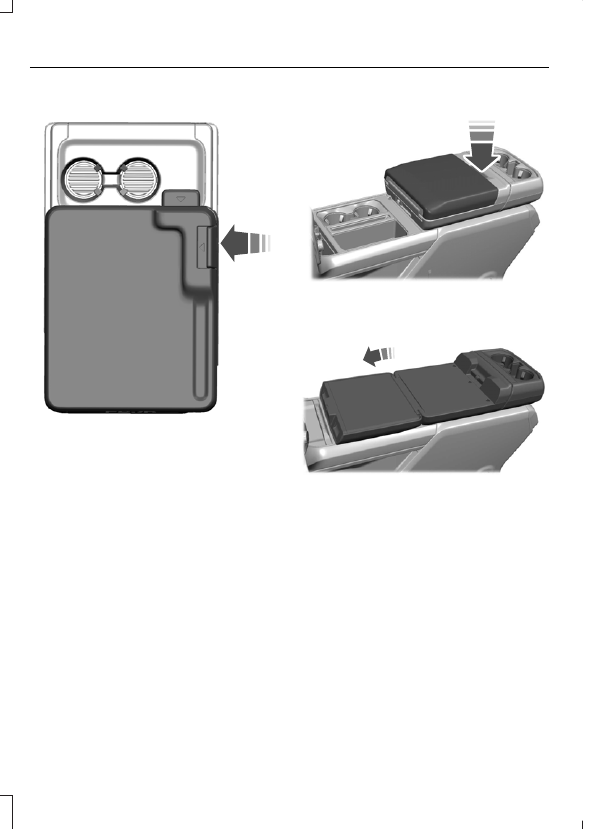

E331800

Push the latch on the side of the work
surface to rotate it toward the driver. It
rotates into 11 lockable positions in 5°
increments.

Note:

The work surface must be in the

home position when driving your vehicle.

Note:

Do not drive with the work surface

rotated. This could interfere with steering
your vehicle.

Note:

Do not adjust the steering column

with a rotated work surface.

Note:

Do not raise the seat when the work

surface is in the forward or rotated positions
to avoid damaging it.

Note:

To avoid damaging the work surface,

do not use it as a handle when entering or
exiting the vehicle.

Floor Console

 (If Equipped)

E346160

1.

Press the button to release the folding
surface.

E327043

2. Open the work surface. Fold the work

surface to close.

USING THE CENTER CONSOLE
WORK SURFACE - VEHICLES
WITH: CONSOLE SHIFT

To use the center console work surface,
stow the selector lever. See

Stowing the

Selector Lever

 (page 266).

224

Center Console Work Surface

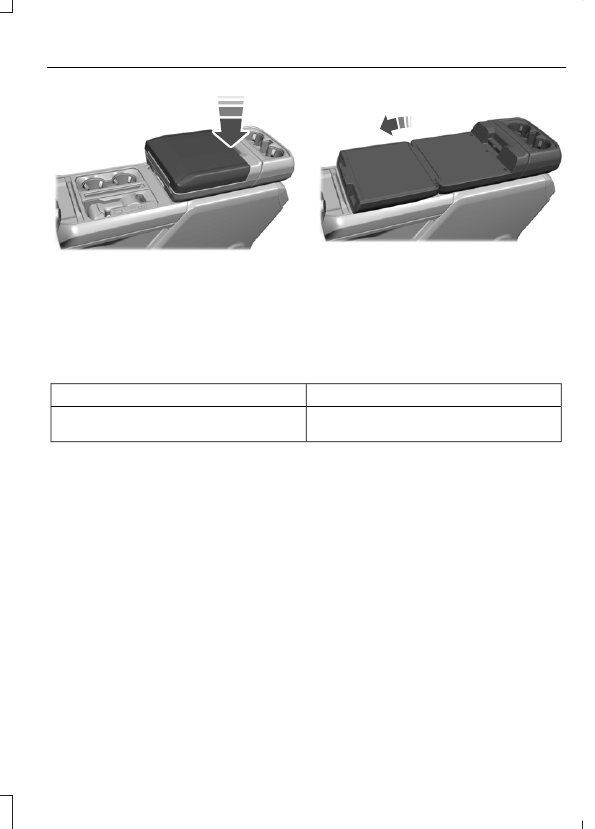

E327042

1.

Press the button to release the folding
surface.

E327043

2. Open the work surface. Fold the work

surface to close.

CENTER CONSOLE WORK SURFACE – TROUBLESHOOTING

CENTER CONSOLE WORK SURFACE – INFORMATION MESSAGES

Action

Message

Return the work surface to the home posi-

tion to clear the message.

Stow work surface before driving.

225

Center Console Work Surface

WHAT IS THE WIRELESS
ACCESSORY CHARGER

The wireless accessory charger allows you
to charge one compatible Qi wireless
charging device on the charging area.

WIRELESS ACCESSORY
CHARGER PRECAUTIONS

WARNING:

Wireless charging

devices can affect the operation of
implanted medical devices, including
cardiac pacemakers. If you have any
implanted medical devices, we
recommend that you consult with your
physician.

Keep the charging area clean and remove
foreign objects prior to charging a device.

Do not place items with a magnetic strip
or radio-frequency identification chip, for
example passports, parking tickets,
transportation passes or credit cards, near
the charging area when charging a device.
Damage could occur to the magnetic strip
or radio-frequency identification chip.

Do not place metal objects, for example
remote controls, coins and candy
wrappers, on or near the charging area
when charging a device. Metal objects may
heat up and degrade the charging
performance, in addition to causing
interruptions in charging.

Charging could be interrupted, degraded,
or could stop if any of the following occur:

•

The system detects a foreign object.

•

The device is misaligned on the
charging area.

•

The device moves on the active
charging area when the vehicle is in
motion.

•

The vehicle ambient temperature is too
high.

•

You attempt to charge a non-Qi
compatible device on the wireless
charger.

Note:

During charging, the device and the

charger could heat up, this is normal. If the
battery gets hotter than usual, the device
may stop charging.

LOCATING THE WIRELESS
ACCESSORY CHARGER

E297549

The charging area is on the
center console or in the media
bin below the instrument panel.

CHARGING A WIRELESS
DEVICE

Place the device on the center of the
charging surface with the charging side
down. The charging stops after your device
reaches a full charge.

You can use the charger when the vehicle
is in accessory mode, when the vehicle is
running, or when SYNC is on.

Displays on the status bar when
wireless charging is in progress.

Note:

The charging performance may be

affected if your device is in a case. It may be
necessary to remove the case to wirelessly
charge your device.

Note:

Software and firmware updates may

affect device compatibility, including the
use of unofficial software or firmware. You
should verify charging functionality with your
specific devices in-vehicle.

226

Wireless Accessory Charger

 (If Equipped)

CUP HOLDERS

CUP HOLDER PRECAUTIONS

WARNING:

Use caution when

stowing items or hot drinks in the cup
holders. Items could become loose or
spill during hard braking, acceleration or
crashes. Failure to follow this instruction
could result in personal injury.

GLOVE COMPARTMENT

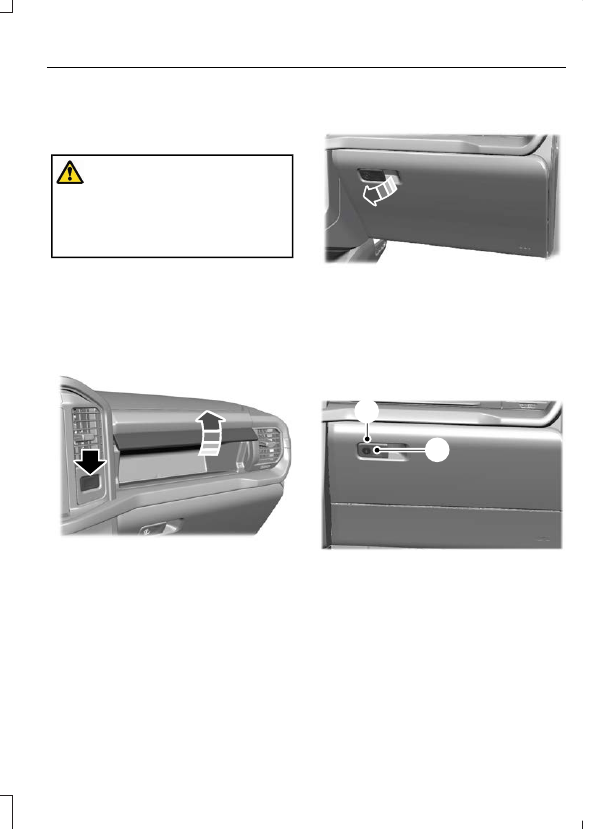

OPENING THE GLOVE
COMPARTMENT

Upper Glove Compartment

E310219

Push the button on the instrument panel
to open.

Lower Glove Compartment

E310218

Pull the latch to the left to open.

LOCKING THE GLOVE
COMPARTMENT

You can lock lower glove compartment
using the key.

E351063

B

A

Unlock.

A

Lock.

B

227

Storage

UNDER SEAT STORAGE

LOCATING THE UNDER SEAT
STORAGE COMPARTMENT

Front Under Seat Storage

E306120

Lift the latch to access the storage
compartment under the center seat
cushion.

Locking the Front Under Seat
Storage

E224738

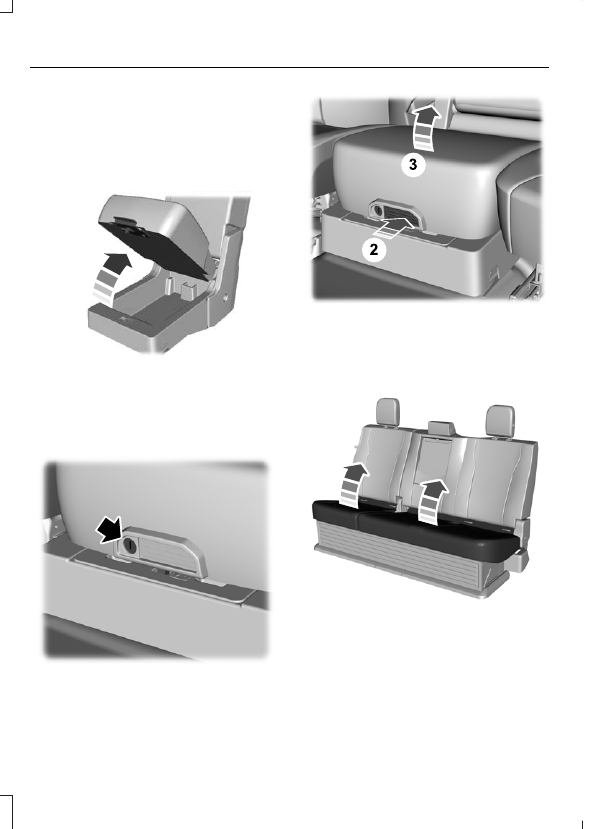

1.

Use the key in the remote control to
unlock.

E223578

2. Press the latch to release the cushion.

3. Lift the cushion to access the storage

compartment.

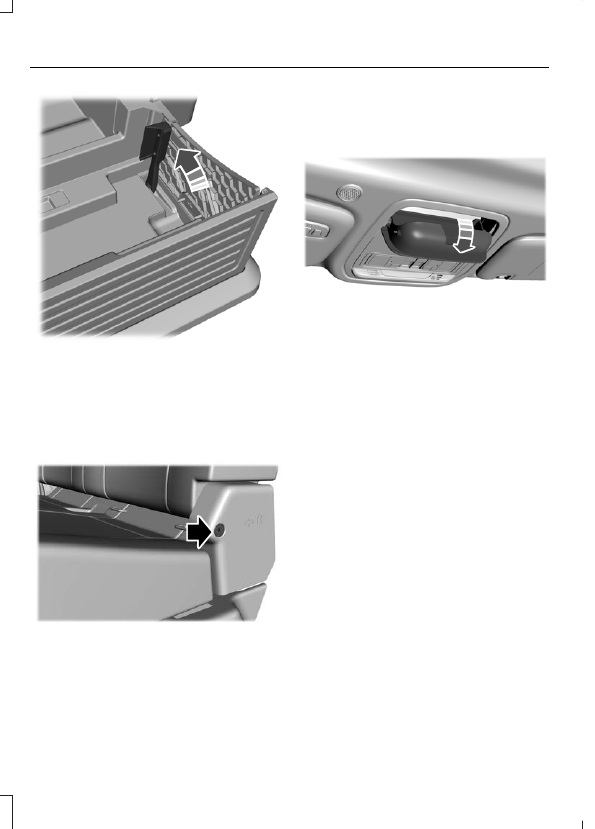

Rear Under Seat Storage

E229819

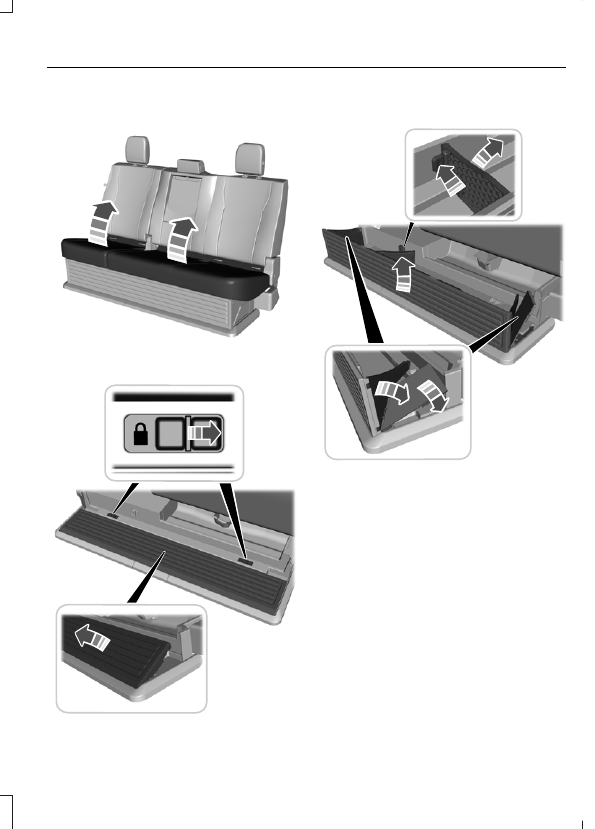

Lift the rear seat to access the under seat
storage bin.

228

Storage

Locking the Rear Under Seat
Storage

E229819

1.

Lift the rear seat to access under seat
storage bin.

E235007

2. Lift the front and side panels to expand

and lock them in place.

E235008

3. Lock the panels in an open position.

229

Storage

E235009

4. To collapse, release the lever, push

down to the stowed position and fold
in the side and front panels.

Note:

Make sure the storage divider is not

locked into place when collapsing. Push the
button to release the divider door and swing
to stowed position on front wall.

E224956

The locking key is in the key fob. Turn the
key to lock or unlock the cushion.

GLASSES HOLDER

LOCATING THE GLASSES HOLDER

E306967

The glasses holder is in the overhead
console.

Press near the rear edge of the door to
open it.

230

Storage

STARTING AND STOPPING
THE ENGINE – PRECAUTIONS

WARNING:

Extended idling at high

engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.

WARNING:

Do not park, idle or

drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire.

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Do not use starting

fluid, for example ether, in the air intake
system. Such fluid could cause
immediate explosive damage to the
engine and possible personal injury.

WARNING:

Exhaust leaks may

result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

If you stop your vehicle and leave the
engine idling for long periods, we
recommend that you do one of the
following:
•

Open the windows at least 1 in
(2.5 cm).

•

Set your climate control to outside air.

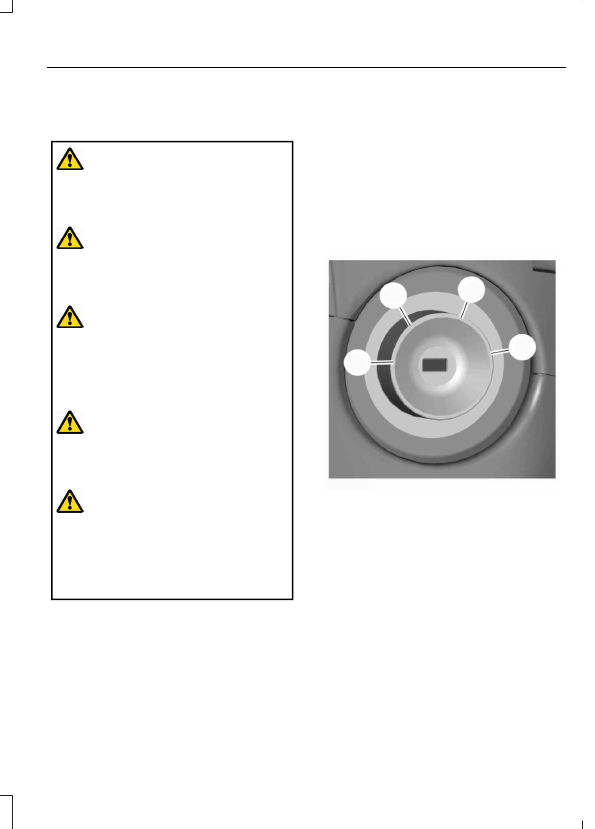

IGNITION SWITCH

 (IF EQUIPPED)

E252522

0

/

//

///

Switching the Ignition Off

Turn the key to position

0

.

Switching the Ignition to
Accessory Mode

Turn the key to position

I

.  Electrical

accessories, for example the radio, operate
without the engine running.

Switching the Ignition On

Turn the key to position

II

.  All electrical

circuits and accessories are operational
and the warning lamps and indicators
illuminate.

231

Starting and Stopping the Engine

Starting the Engine

Turn the key to position

III

.  Release the

key when the engine starts.

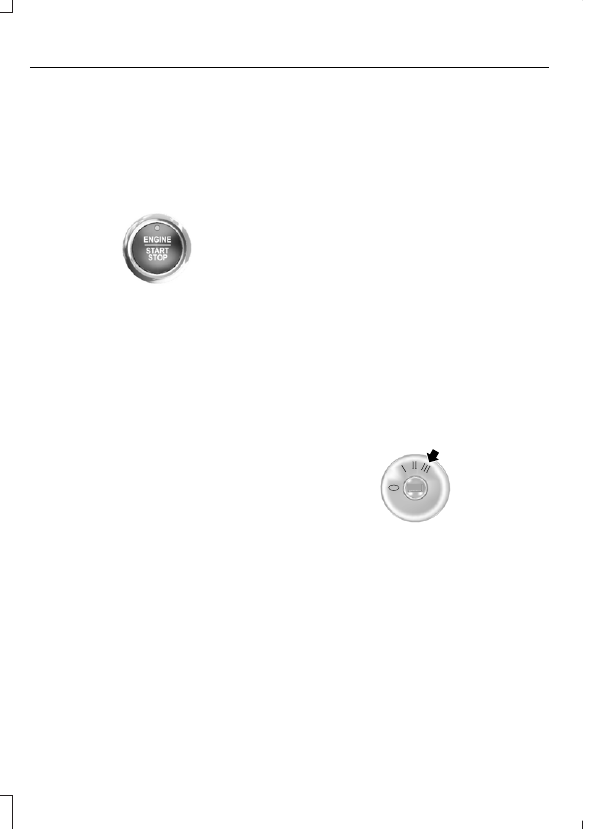

PUSH BUTTON IGNITION
SWITCH

 (IF EQUIPPED)

E321258

Switching the Ignition Off

When the ignition is on or in accessory
mode, press the push button ignition
switch once without your foot on the brake
pedal.

Switching the Ignition to
Accessory Mode

When the ignition is off, press the push
button ignition switch once without your
foot on the brake pedal.

All electrical circuits and accessories are
operational and the warning lamps and
indicators illuminate.

Note:

Your vehicle has a battery saver

feature that shuts your vehicle off when it
detects a certain amount of battery drain,
or after approximately 30 minutes of
inactivity in accessory mode.

Starting the Engine

With the transmission in park (P), press
the brake pedal and press the push button
ignition switch. An indicator light on the
button illuminates when the ignition is on
and when the engine starts.

Note:

The system may not function if the

passive key is close to metal objects or
electronic devices, for example keys or a cell
phone.

Note:

A valid key must be inside your

vehicle to switch the ignition on and start
the engine.

STARTING THE ENGINE

STARTING A GASOLINE ENGINE -
VEHICLES WITHOUT: PUSH
BUTTON START

Before starting your vehicle, check the
following:
•

Make sure that the headlamps and
electrical accessories are off.

•

Make sure that the parking brake is on.

•

Make sure that the transmission is in
park (P).

1.

Fully press the brake pedal.

Note:

Do not touch the accelerator pedal.

E322354

2. Turn the key to position

III

.

Note:

The engine may continue cranking

for up to 15 seconds or until it starts.

Note:

The engine takes longer to start at

lower temperatures. It may crank for several
seconds when very cold.

232

Starting and Stopping the Engine
