RESETTING THE BATTERY
SENSOR

When you install a new battery, reset the
battery sensor by doing the following:

1.

Switch the ignition on, and leave the
engine off.

Note:

Complete Steps 2 and 3 within 10

seconds.

2. Flash the high beam headlamps five

times, ending with the high beams off.

3. Press and release the brake pedal three

times.

The battery warning lamp flashes three
times to confirm that the reset is
successful.

RECYCLING AND DISPOSING OF
THE 12V BATTERY

E107998

Make sure that you dispose of
old batteries in an
environmentally friendly way.

Seek advice from your local authority
about recycling old batteries.

CHARGING THE 12V BATTERY -
ELECTRIC MOTOR

Your vehicle has a high voltage to low
voltage energy transfer feature that keeps
the 12 volt battery charged by the high
voltage battery. If the 12 volt battery level
is low, the high voltage battery transfers
energy to the 12 volt battery when the
vehicle is off.

12V BATTERY –
TROUBLESHOOTING -
ELECTRIC MOTOR

12V BATTERY – WARNING LAMPS

If it illuminates when the green
ready to drive indicator is
activated, this indicates your

vehicle requires service.  Have your vehicle
checked as soon as possible.

12V BATTERY – INFORMATION MESSAGES

Action

Message

Your vehicle has a 12 volt battery problem.

We recommend having the battery system

checked by an authorized EV dealer.

12V Battery Fault Service Soon

The electric vehicle range is reduced due

to the park and/or hazard lamps on while

your vehicle was off.

Electric Range Reduced due to Park/Hazard

Lamps On While Vehicle Off

Your vehicle has an electrical drain within

the vehicle. Please check for any after-

market devices that could be draining the

battery. If none are found, please have your
vehicle serviced by an authorized EV dealer.

Electrical System Drain Service Required

389

Maintenance

ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

If your vehicle has been involved in a crash,
have the aim of the headlamp beam
checked by an authorized dealer.

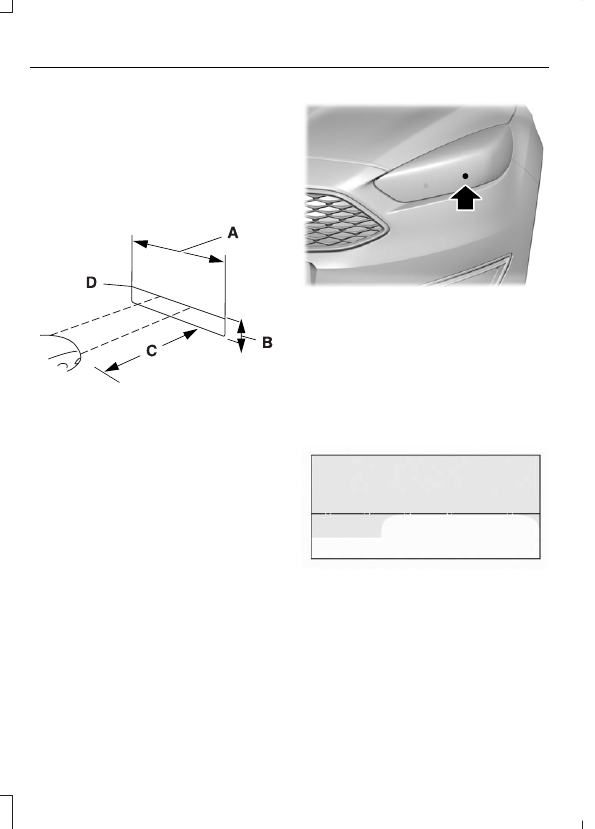

Headlamp Aiming Target

E142592

8 ft (2.4 m)

A

Ground to the center of the
headlamp low beam bulb

B

25 ft (7.6 m)

C

Horizontal reference line

D

Vertical Aim Adjustment Procedure

1.

Park your vehicle on level ground
approximately 25 ft (7.6 m) from a wall
or screen.

2. Measure the distance from the ground

to the center of the headlamp low
beam bulb and mark an 8 ft (2.4 m)
long horizontal reference line on the
wall or screen at this height.

E199411

Note:

There may be an identifying mark on

the lens to help you locate the center of the
bulb.

Note:

To see a clearer light pattern while

adjusting one headlamp, you may want to
block the light from the other headlamp.

3. Switch on the low beam headlamps

and open the hood.

E142465

4. On the wall or screen you will observe

a flat zone of high intensity light
located at the top of the beam pattern.
If the top edge of the flat zone of high
intensity light is not on the horizontal
reference line, adjust the aim of the
headlamp beam.

390

Maintenance

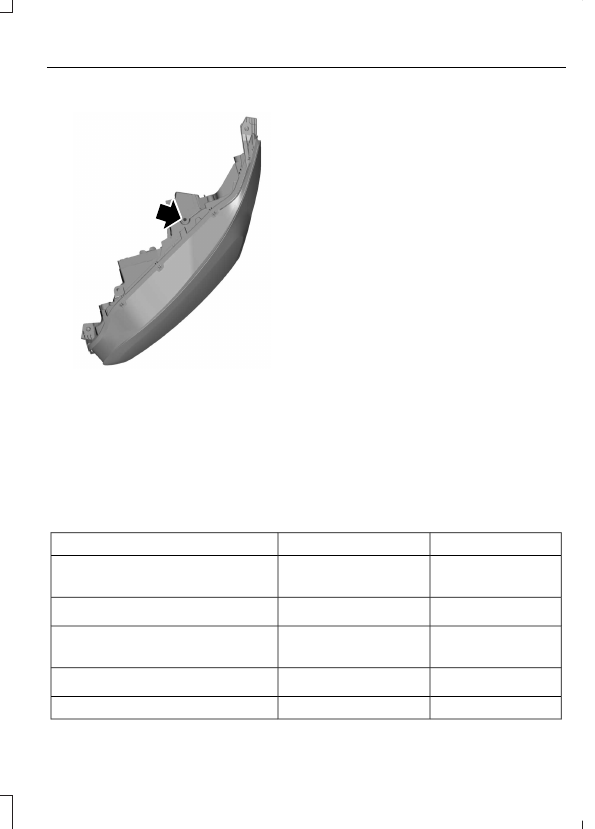

E164485

5. Locate the vertical adjuster on each

headlamp. Use a suitable tool, for
example a screwdriver or hexagonal
socket, to turn the adjuster clockwise
or counterclockwise to adjust the
vertical aim of the headlamp. The
horizontal edge of the brighter light
should touch the horizontal reference
line.

6. Close the hood and switch off the

lamps.

Horizontal Aim Adjustment

The horizontal aim of the headlamp beam
on your vehicle is not adjustable.

EXTERIOR BULBS

EXTERIOR BULB SPECIFICATION
CHART

Replacement bulbs are specified in the
chart below.  Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.

Power (Watt)

Specification

Lamp

25

D5S

Headlamp low beam and headlamp

high beam.

1

LED.

LED.

Daytime running lamps.

1

55

H11

Headlamp low beam and daytime

running lamp.

2

60

9005

Headlamp high beam.

2

55

H11

Cornering lamps.

391

Maintenance

Power (Watt)

Specification

Lamp

35

H8

Front fog lamp.

21

3457NAK

Front parking lamp.

24

PY24W

Front turn signal lamp.

1

21

3457NAK

Front turn signal lamp.

2

5

W5W

Front side marker lamp.

3

5

W5WL

Clearance lamp.

5

W5W

Body side marker lamp.

16

W16W

Mirror turn signal lamp.

4

5

WY5W

Mirror turn signal lamp.

5

21/5

P21/5W

Rear lamp and stoplamp.

21

P21W

Reversing lamp.

21

PY21W

Rear turn signal lamp.

21

P21W

Rear fog lamp.

LED.

LED.

High mounted stoplamp.

5

W5W

License plate lamp.

5

W5W

Chassis cab rear marker lamp.

5

W5W

Roof outline marker lamp.

1

Vehicles with High Intensity Discharge Headlamps.

2

Vehicles with Halogen Headlamps.

3

Front side marker lamps are also available as LED lamps.

4

High Watt.

5

Low Watt.

Note:

 LED lamps are not serviceable.  See an authorized dealer if they fail.

392

Maintenance

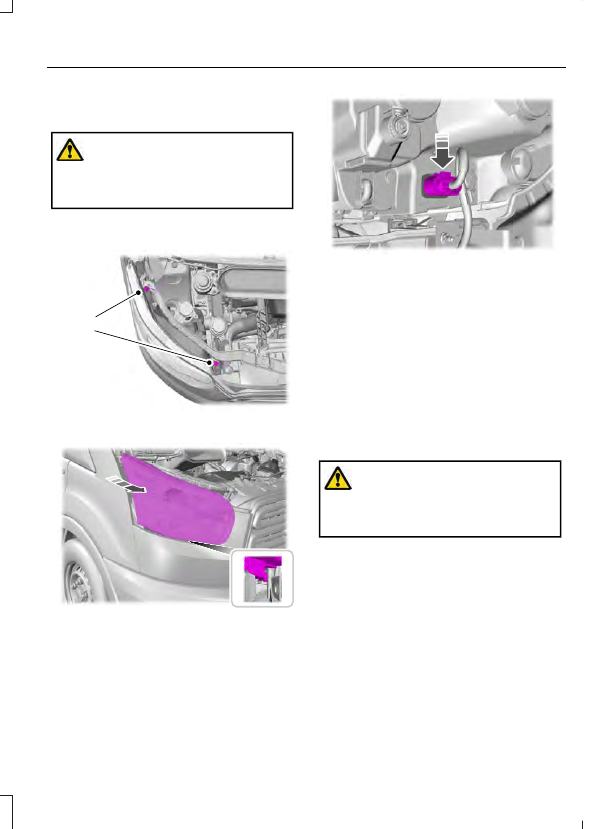

REMOVING A HEADLAMP
ASSEMBLY

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

1.

Open the hood.  See

Opening and

Closing the Hood

 (page 374).

E169198

2

2. Remove the screws.

E169199

3. Pull the headlamp toward the front of

your vehicle to disengage it from its
locking points and then lift the
headlamp up.

E169200

4. Disconnect the electrical connector.

5. To install, reverse the removal

procedure.

Note:

When you install the headlamp, make

sure that you correctly attach the electrical
connector.

Note:

When you install the headlamp, make

sure that you correctly engage its locking
points.

REMOVING A REAR LAMP
ASSEMBLY

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

393

Maintenance

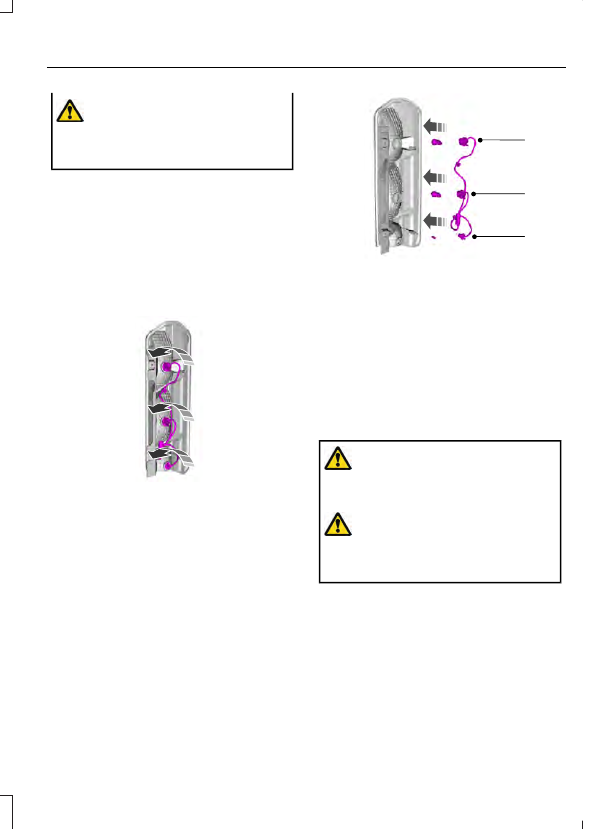

E175758

2

1

1.

Remove the screws.

2. Remove the lamp.

3. To install, reverse the removal

procedure.

CHANGING A HEADLAMP BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

You must remove the headlamp assembly
prior to replacing any bulb.  See

Removing a Headlamp Assembly

 (page

393).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

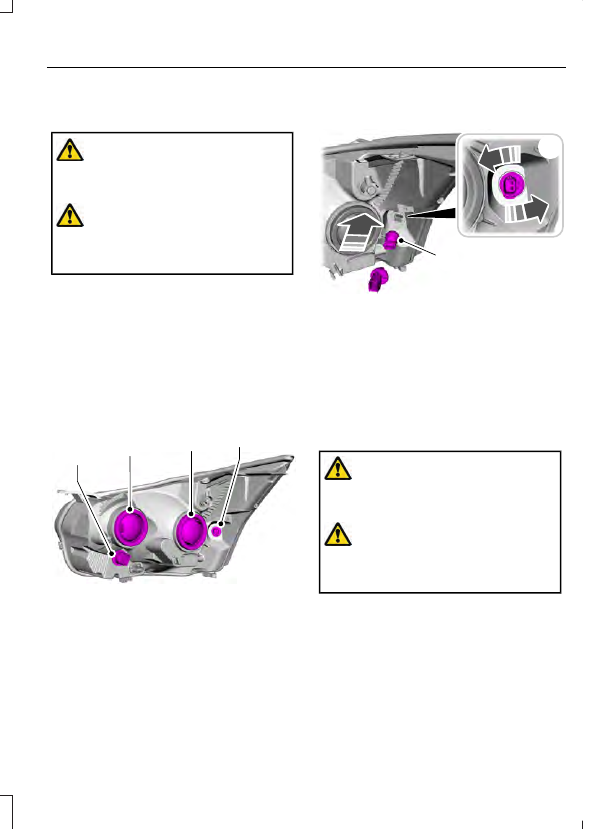

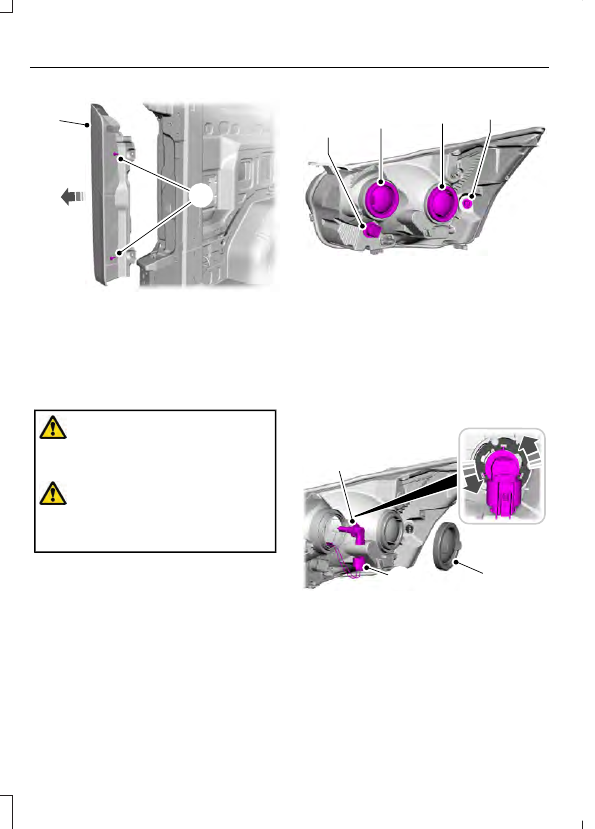

E175739

B

C

D

A

Front parking lamp and front
turn signal lamp.

A

Headlamp high beam.

B

Headlamp low beam and
daytime running lamp.

C

Front side marker lamp.

D

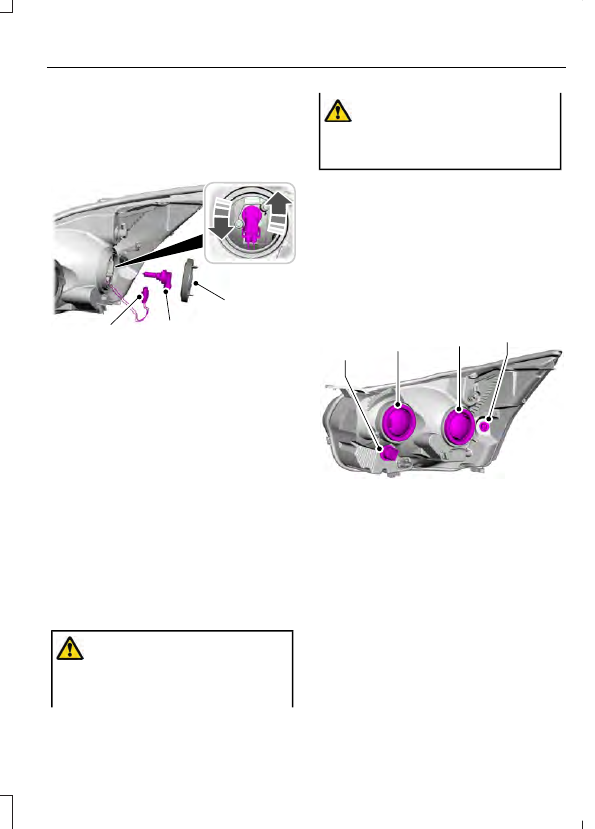

Replacing the Headlamp High
Beam Bulbs

3

2

1

E352146

1.

Carefully remove the cover.

2. Turn the bulb counterclockwise and

remove it.

3. Disconnect the electrical connector.

4. To install, reverse the removal

procedure.

Note:

Do not touch the bulb glass.

394

Maintenance

Note:

You cannot separate the bulb from

the bulb holder.

Replacing the Headlamp Low
Beam and Daytime Running Lamp
Bulbs

3

2

1

E352147

1.

Carefully remove the cover.

2. Turn the bulb counterclockwise and

remove it.

3. Disconnect the electrical connector.

4. To install, reverse the removal

procedure.

Note:

Do not touch the bulb glass.

Note:

You cannot separate the bulb from

the bulb holder.

Replacing the High Intensity
Discharge Headlamp Bulbs

These lamps operate at a high voltage.
See an authorized dealer if they fail.

CHANGING A FRONT PARKING
LAMP BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

You must remove the headlamp assembly
prior to replacing any bulb.  See

Removing a Headlamp Assembly

 (page

393).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

E175739

B

C

D

A

Front parking lamp and front
turn signal lamp.

A

Headlamp high beam.

B

Headlamp low beam and
daytime running lamp.

C

Front side marker lamp.

D

395

Maintenance

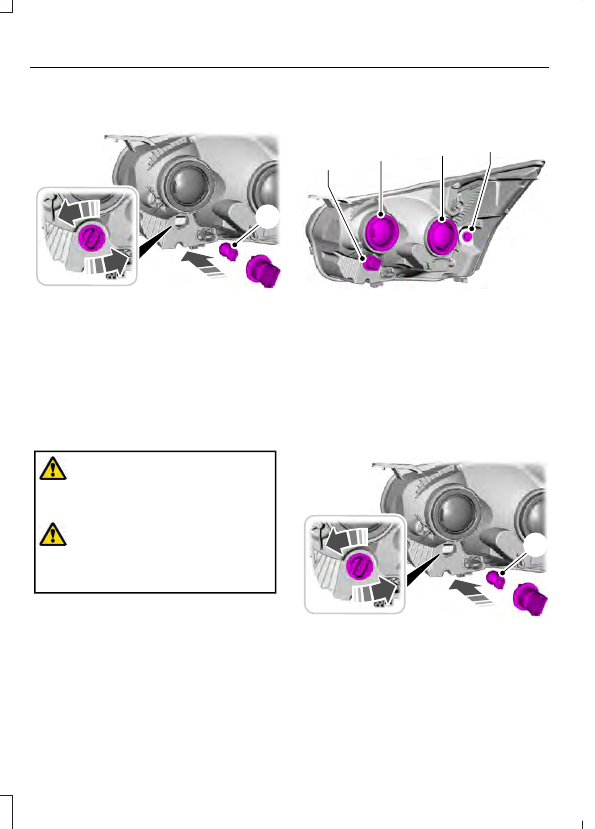

Replacing the Front Parking Lamp
and Front Turn Signal Lamp Bulbs

2

1

E352157

1.

Turn the bulb holder counterclockwise
and remove it.

2. Remove the bulb by pulling it straight

out.

3. To install, reverse the removal

procedure.

CHANGING A FRONT TURN
SIGNAL LAMP BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

You must remove the headlamp assembly
prior to replacing any bulb.  See

Removing a Headlamp Assembly

 (page

393).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

E175739

B

C

D

A

Front parking lamp and front
turn signal lamp.

A

Headlamp high beam.

B

Headlamp low beam and
daytime running lamp.

C

Front side marker lamp.

D

Replacing the Front Parking Lamp
and Front Turn Signal Lamp Bulbs

2

1

E352157

1.

Turn the bulb holder counterclockwise
and remove it.

2. Remove the bulb by pulling it straight

out.

3. To install, reverse the removal

procedure.

396

Maintenance

CHANGING A FRONT SIDE
MARKER LAMP BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

You must remove the headlamp assembly
prior to replacing any bulb.  See

Removing a Headlamp Assembly

 (page

393).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

E175739

B

C

D

A

Front parking lamp and front
turn signal lamp.

A

Headlamp high beam.

B

Headlamp low beam and
daytime running lamp.

C

Front side marker lamp.

D

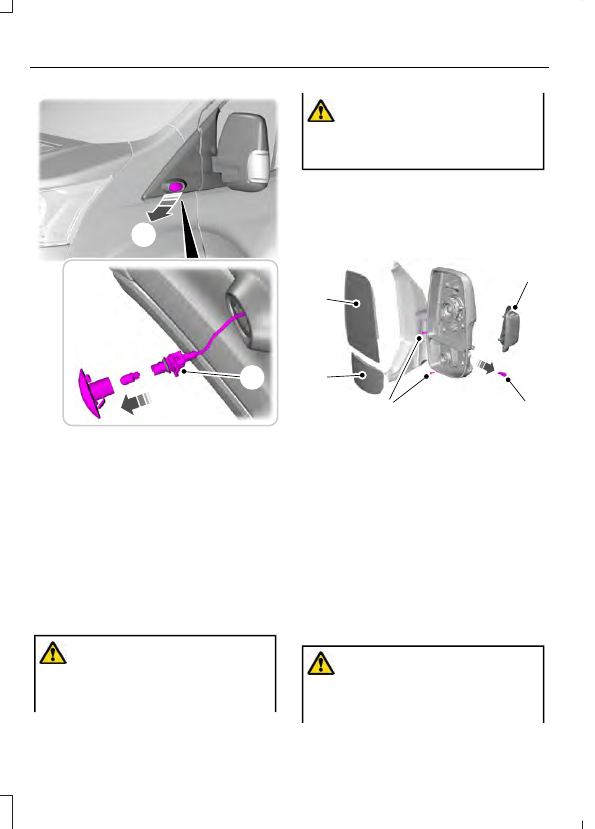

Replacing the Front Side Marker
Lamp Bulbs

2

1

E352161

1.

Turn the bulb holder counterclockwise
and remove it.

2. Remove the bulb by pulling it straight

out.

3. To install, reverse the removal

procedure.

CHANGING A CLEARANCE LAMP
BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

397

Maintenance

E181397

2

1

1.

Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

4. To install, reverse the removal

procedure.

CHANGING A MIRROR TURN
SIGNAL LAMP BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

E169209

3

1

4

5

2

1.

Remove the large mirror glass.  Tilt the
mirror glass fully up and pull the mirror
glass toward you from the bottom.

2. Remove the small mirror glass.  Tilt the

mirror glass fully down and pull the
mirror glass toward you from the top.

3. Remove the screws.

4. Remove the lamp lens.

5. Remove the bulb.

6. To install, reverse the removal

procedure.

CHANGING A REAR LAMP BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

398

Maintenance

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

You must remove the rear lamp assembly
prior to replacing any bulb.  See

Removing a Rear Lamp Assembly

 (page

393).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

E352269

1.

Turn the bulb holder counterclockwise
and remove it.

A

B

C

E352270

Tail lamp and stoplamp.

A

Reversing lamp.

B

Rear clearance lamp.

C

2. Remove the bulb by pulling it straight
out.

3. To install, reverse the removal
procedure.

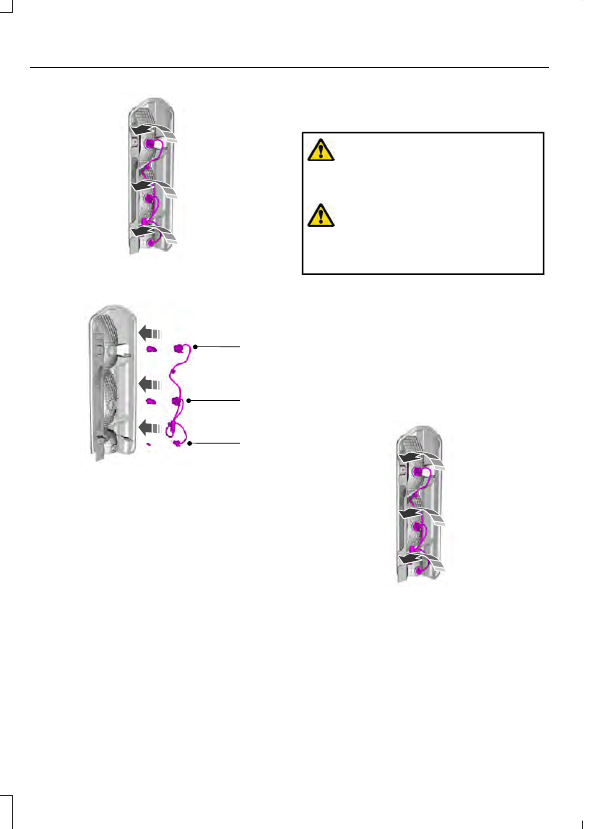

CHANGING A STOPLAMP BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

You must remove the rear lamp assembly
prior to replacing any bulb.  See

Removing a Rear Lamp Assembly

 (page

393).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

399

Maintenance

E352269

1.

Turn the bulb holder counterclockwise
and remove it.

A

B

C

E352270

Tail lamp and stoplamp.

A

Reversing lamp.

B

Rear clearance lamp.

C

2. Remove the bulb by pulling it straight
out.

3. To install, reverse the removal
procedure.

CHANGING A REVERSING LAMP
BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

You must remove the rear lamp assembly
prior to replacing any bulb.  See

Removing a Rear Lamp Assembly

 (page

393).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

E352269

1.

Turn the bulb holder counterclockwise
and remove it.

400

Maintenance

A

B

C

E352270

Tail lamp and stoplamp.

A

Reversing lamp.

B

Rear clearance lamp.

C

2. Remove the bulb by pulling it straight
out.

3. To install, reverse the removal
procedure.

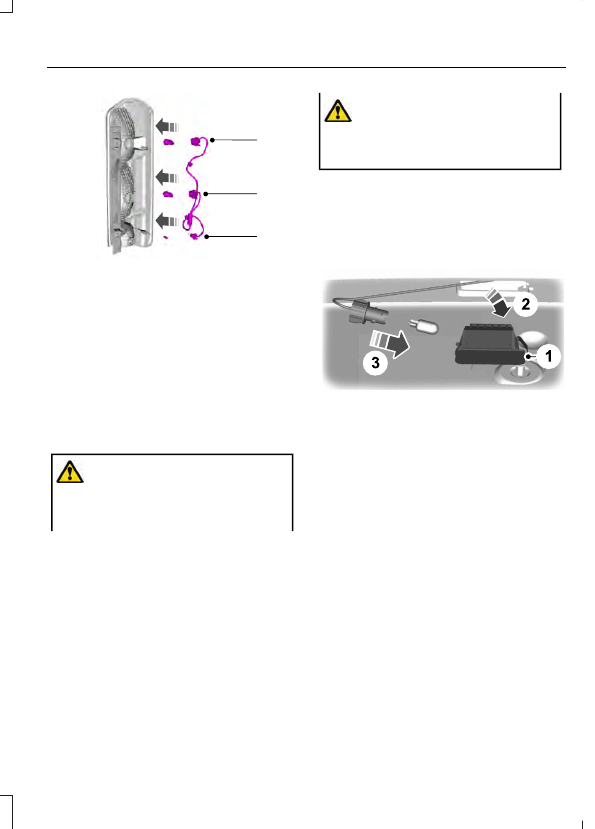

CHANGING A LICENSE PLATE
LAMP BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

E72789

1.

Carefully release the spring clip.

2. Remove the lamp.

3. Turn the bulb holder counterclockwise

and remove it.  Remove the bulb by
pulling it straight out.

4. To install, reverse the removal

procedure.

401

Maintenance

INTERIOR BULBS

INTERIOR BULB SPECIFICATION CHART

Power (Watt)

Specification

Lamp

6

W6W

Front interior lamp.

6

Festoon

Front interior lamp.

1

10

211 Festoon

Luggage compartment lamp.

6

W6W

Map reading lamp.

10

211 Festoon

Side door entrance lamp.

1

Vehicles with anti-theft alarm.

Note:

 LED lamps are not serviceable.  See an authorized dealer if they fail.

402

Maintenance

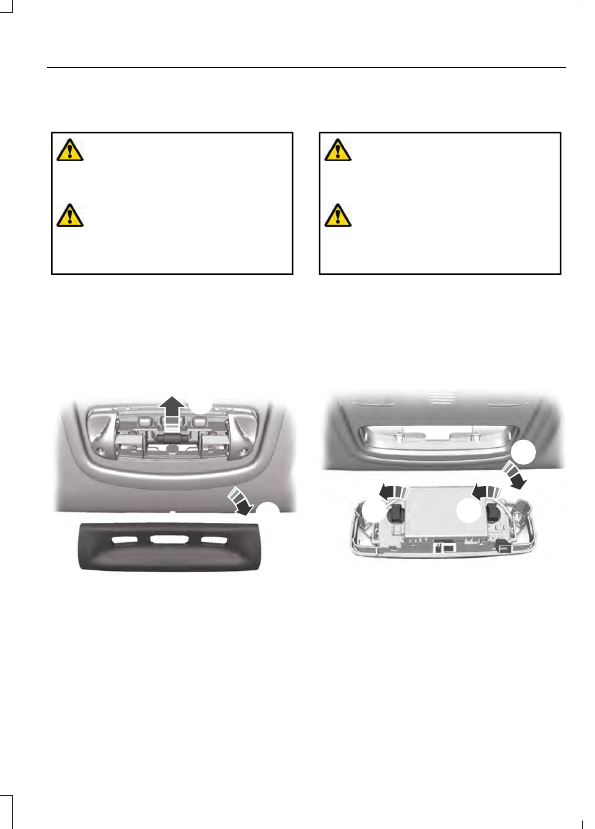

CHANGING A FRONT INTERIOR
LAMP BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

Vehicles With Interior Sensors

1

2

E154370

1.

Carefully remove the lens.

2. Remove the bulb.

3. To install, reverse the removal

procedure.

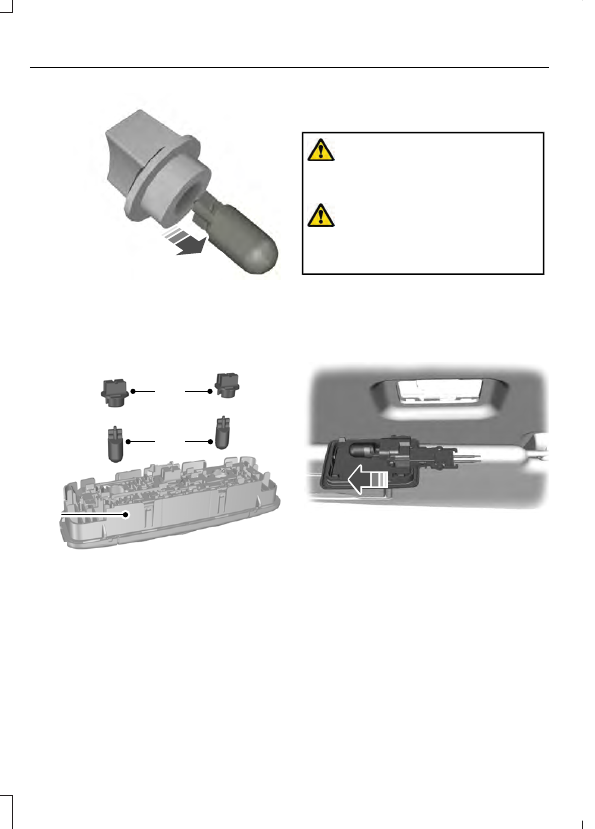

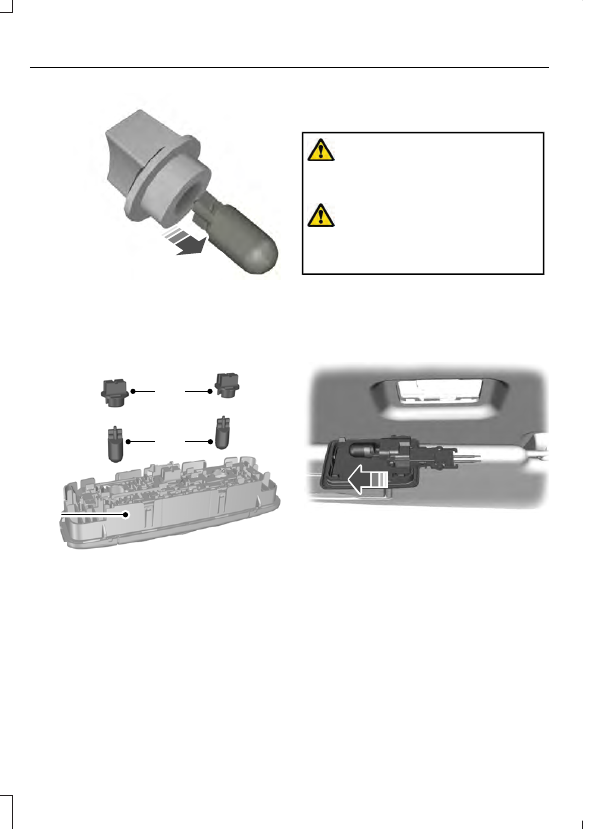

CHANGING A MAP READING LAMP
BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

Vehicles With Interior Sensors

2

2

1

E72786

1.

Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.

2. Turn the bulb holder counterclockwise

and remove it.

403

Maintenance

E73939

3

3. Remove the bulb.

4. To install, reverse the removal

procedure.

Vehicles Without Interior Sensors

E99453

2

3

1

1.

Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb.

4. To install, reverse the removal

procedure.

CHANGING A VANITY MIRROR
LAMP BULB

WARNING:

Switch the lamps and

the ignition off. Failure to follow this
warning could result in serious personal
injury.

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Use the correct specification bulb.  See

Exterior Bulb Specification Chart

 (page

391).

Note:

 LED lamps are not serviceable.  See

an authorized dealer if they fail.

E72785

1.

Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.

2. Remove the bulb.

3. To install, reverse the removal

procedure.

404

Maintenance
