STORING A FIRST AID KIT

You can store a first aid kit in the passenger
side front door storage.

STORING A WARNING
TRIANGLE

You can store a warning triangle in the
driver side front door storage.

357

Emergency Equipment

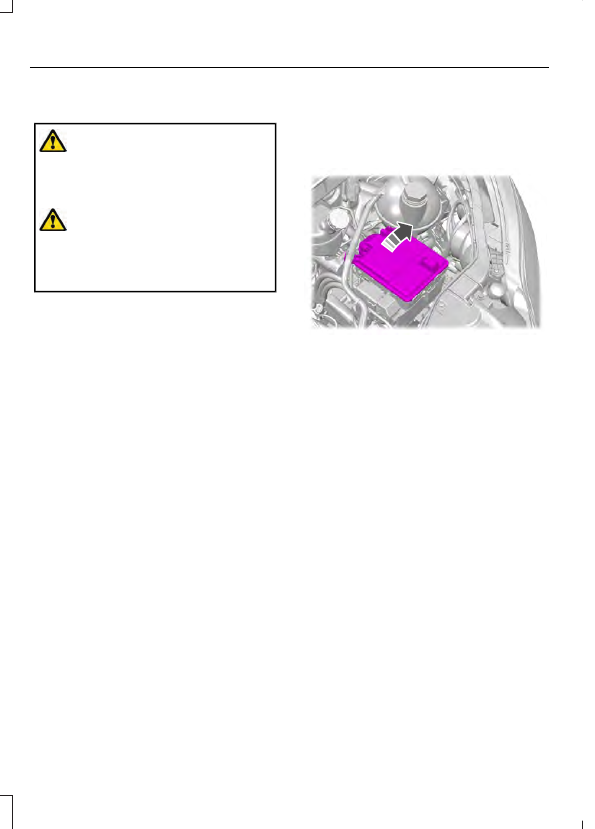

FUSE PRECAUTIONS

WARNING:

Always replace a fuse

with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.

WARNING:

To reduce risk of

electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs.

UNDER HOOD FUSE BOX

ACCESSING THE UNDER HOOD
FUSE BOX

E319023

358

Fuses

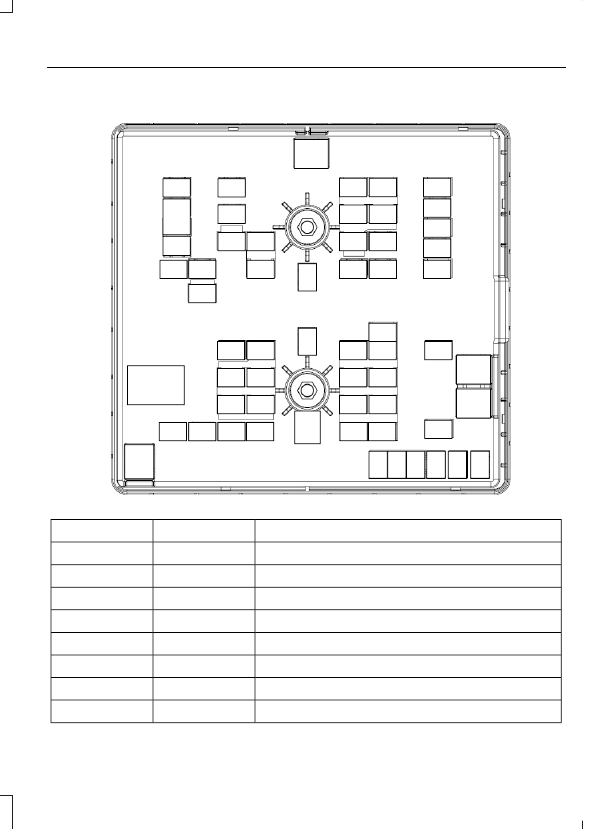

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX

E308021

12

18

7

2

3

8

13

1

38

43

52

21

28

35

40

39

34

27

31

33

51

26

25

17

11

6

14

9

10

4

5

15

16

23

24

53

48

29

22

54 55 56 57 58

19

20

45

44

46

47

32

37

42

41

36

30

49

50

59

Protected Component

Fuse Rating

Item

Wipers.

50 A

1

Not used.

-

2

Not used (Spare).

40 A

3

Parking lamps.

30 A

4

Reversing lamp.

10 A

5

Electric steering column lock

15 A

6

Front blower motor.

40 A

7

Not used (Spare).

40 A

8

359

Fuses

Protected Component

Fuse Rating

Item

Rear door latch.

15 A

9

Not used.

-

10

Auxiliary power point.

40 A

11

USB port.

Horn.

20 A

12

Selective catalytic reduction system.

10 A

13

Not used (Spare).

15 A

14

Charge port.

5 A

15

Not used.

-

16

Right-hand high-intensity discharge headlamps.

10 A

17

Rear window defroster.

40 A

18

Not used (Spare).

20 A

19

Power folding mirrors.

10 A

20

Vehicle power 4.

15 A

21

Rear blower motor.

40 A

22

Not used.

-

23

Run/Start relay.

40 A

24

Auxiliary power points.

40 A

25

Left-hand high-intensity discharge headlamps.

10 A

26

Not used.

-

27

Vehicle power 1.

5 A

28

Not used.

-

29

Not used (Spare).

10 A

30

Anti-lock brake system.

5 A

31

Transmission control module.

15 A

32

Not used.

-

33

Selective catalytic reduction system.

5 A

34

360

Fuses

Protected Component

Fuse Rating

Item

Not used (Spare).

15 A

35

Run/Start power distribution box.

5 A

36

Run/Start power control module.

5 A

37

Power distribution box.

60 A

38

Not used (Spare).

10 A

39

Vehicle power 3.

10 A

40

Glow plugs.

10 A

41

Not used (excluding 510 series).

-

42

Cooling fan (510 series).

15 A

Anti-lock brake system pump.

60 A

43

Not used.

-

44

Trailer socket.

30 A

45

Not used (Spare).

20 A

46

Not used (Spare).

40 A

47

Not used (Spare).

50 A

48

Nitrogen oxide sensor.

15 A

49

Not used (Spare).

5 A

50

Not used.

-

51

Not used (Spare).

60 A

52

Battery electronic control module.

5 A

53

Battery back-up sounder.

20 A

54

DC/DC converter.

5 A

55

Not used (Spare).

20 A

56

Anti-lock brake system valves.

40 A

57

Trailer socket.

30 A

58

Not used.

-

59

361

Fuses

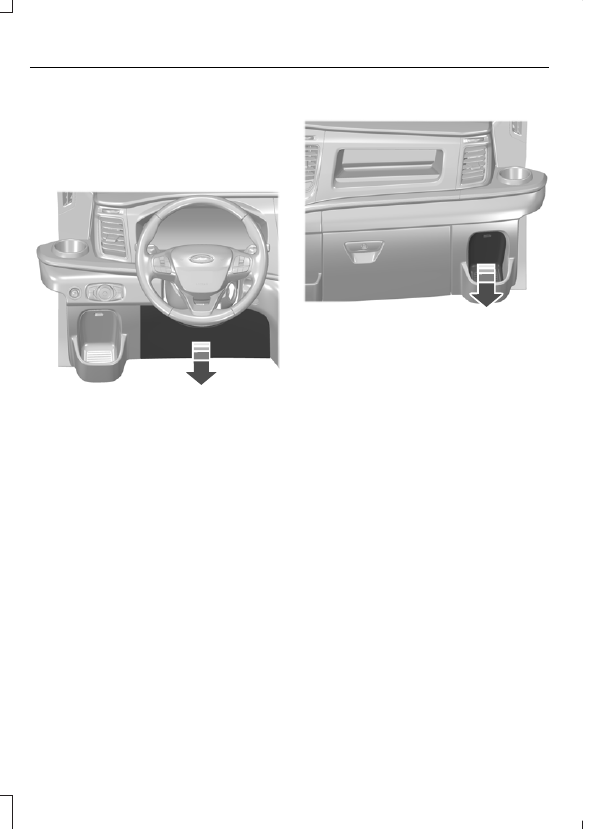

INTERIOR FUSE BOX

ACCESSING THE INTERIOR FUSE
BOX

Driver Compartment Fuse Box

E357309

Passenger Compartment Fuse Box

E357311

362

Fuses

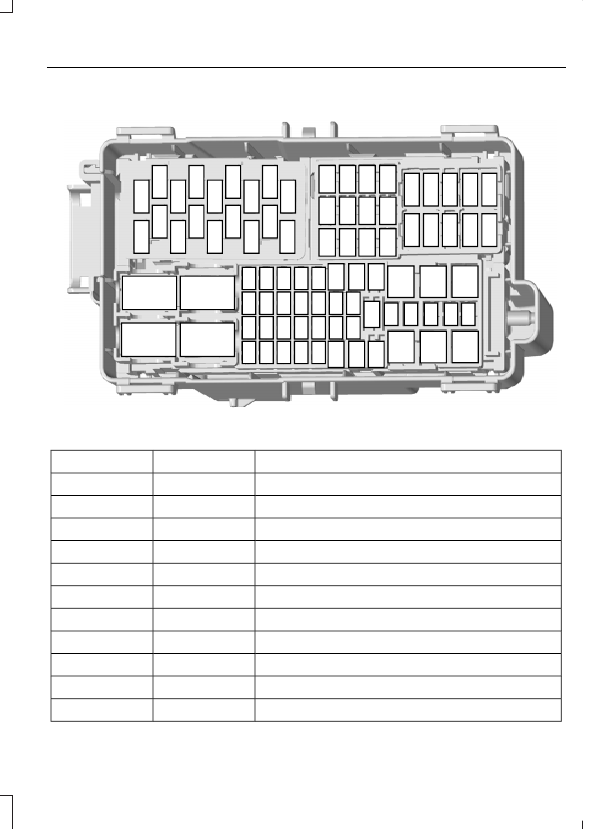

IDENTIFYING THE FUSES IN THE INTERIOR FUSE BOX

E296291

64 65 66 67 68

63

1

3

5

7

9

8

19 20 21 22

31 32 33 34 35

36 37 38 39 40

23 24 25 26

27 28 29 30

6

4

2

10

41

42

45 46 47 48 49

56 57 58 59 60 61 62

74 75

69 70 71 72 73

76 77 78 79 80

50 51 52

53

54

55

84

85

86

81 82 83

43

44

12

14

16

18

17

15

13

11

Driver Compartment Fuse Box

Protected Component

Fuse Rating

Item

USB port.

5 A

1

Not used.

-

2

USB port.

5 A

3

Not used.

-

4

Not used.

-

5

Not used.

-

6

Not used.

-

7

Not used.

-

8

Heated exterior mirrors.

10 A

9

Cooling fan.

5 A

10

Not used.

-

11

363

Fuses

Protected Component

Fuse Rating

Item

Not used.

-

12

Not used.

-

13

Not used.

-

14

Not used.

-

15

Rain sensor.

5 A

16

Not used.

-

17

Relay.

20 A

18

Not used.

-

19

Not used.

-

20

Heated rear window.

20 A

21

Heated rear window.

20 A

22

Auxiliary power point.

20 A

23

Auxiliary power point.

20 A

24

Not used.

-

25

Windshield wiper motor.

25 A

26

Not used.

-

27

Modified vehicle connections.

30 A

28

Fuel fired heater.

20 A

29

Power running boards.

30 A

30

Not used.

-

31

Not used.

-

32

Not used.

-

33

Not used.

-

34

Not used.

-

35

Not used.

-

36

Not used.

-

37

Not used.

-

38

364

Fuses

Protected Component

Fuse Rating

Item

Not used.

-

39

Not used.

-

40

Load shed relay.

25 A

41

Starter relay.

40 A

42

Upfitter relay.

40 A

43

Starter relay.

40 A

44

Upfitter interface module.

10 A

45

Not used.

-

46

Not used.

-

47

Modified vehicle connections.

5 A

48

Brake pedal switch.

10 A

49

Passenger power seat.

30 A

50

Modified vehicle connections.

40 A

51

Driver power seat.

30 A

52

Battery.

60 A

53

Power inverter.

60 A

54

Body control module.

50 A

55

Modified vehicle connections.

10 A

56

Not used.

-

57

Connector camper body interface.

10 A

58

Upfitter interface.
Secondary junction box.

Rear climate control.

10 A

59

Front view camera.
Rear view camera.
Adaptive cruise control module.
Blind spot information system.

Trailer brake control module.

10 A

60

Not used.

-

61

365

Fuses

Protected Component

Fuse Rating

Item

Enhanced cut off relay system module.

15 A

62

Auxiliary power point.

20 A

63

Modified vehicle connections.

30 A

64

Not used.

-

65

Enhanced cut off relay system.

10 A

66

Camper.
Load shed relay.

Not used.

-

67

Trailer tow module.

5 A

68

Steering wheel module.

5 A

69

Swivel seats.

5 A

70

Passenger heated seat.

10 A

71

Driver heated seat.

10 A

72

Headlamp leveling.

20 A

73

Temperature sensor.

5 A

74

Engine compartment fuse box.

20 A

75

Power sliding door control switch.

10 A

76

Headlamp switch.

5 A

77

Modified vehicle connections.

7.5 A

78

Driver compartment fuse box relay.

5 A

79

Diagnostic connector.

10 A

80

Trailer tow module.

40 A

81

Power sliding door.

30 A

82

Trailer brake control module.

30 A

83

Body control module.

50 A

84

Power sliding door.

30 A

85

Body control module.

50 A

86

366

Fuses

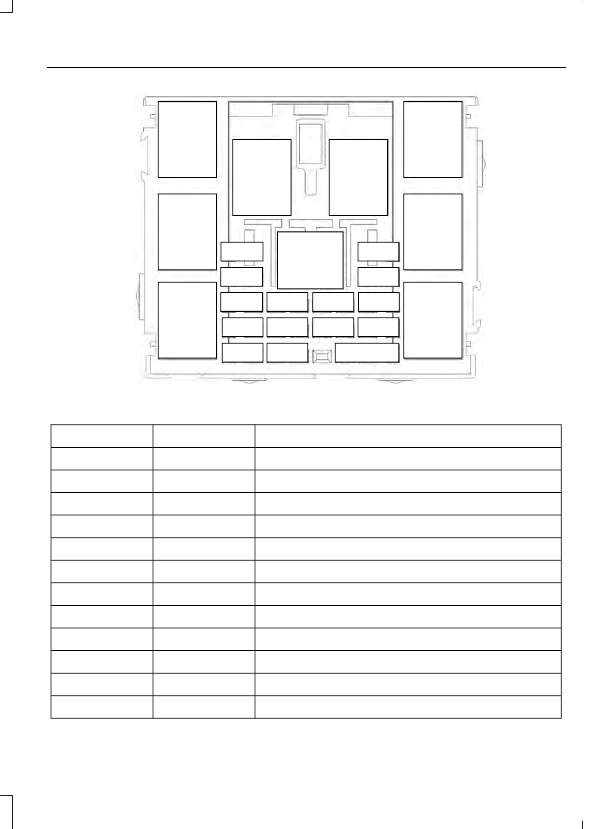

E296792

1

3

4

5

8

9

12

10

14

18

19

20

21

22

23

24

15

16

6

7

11

13

17

2

Passenger Compartment Fuse Box

Protected Component

Fuse Rating

Item

Relay 2.

40 A

1

Relay 3.

40 A

2

Relay 1.

20 A

3

Relay 4.

20 A

4

Relay 5.

20 A

5

Not used.

-

6

Not used.

-

7

Relay 7.

20 A

8

Relay 8.

20 A

9

Not used.

-

10

Not used.

-

11

Relay 9.

20 A

12

367

Fuses

Protected Component

Fuse Rating

Item

Relay 6.

20 A

13

Ignition.

5 A

14

Power supply.

5 A

15

Auxiliary switch 3 relay.

20 A

16

Auxiliary switch 3 relay.

40 A

17

Auxiliary switch 3 relay.

40 A

18

Auxiliary switch 4 relay.

20 A

19

Auxiliary switch 5 relay.

20 A

20

Auxiliary fuse box relay.

20 A

21

Auxiliary switch 7 relay.

20 A

22

Auxiliary switch 8 relay.

20 A

23

Auxiliary switch 9 relay.

20 A

24

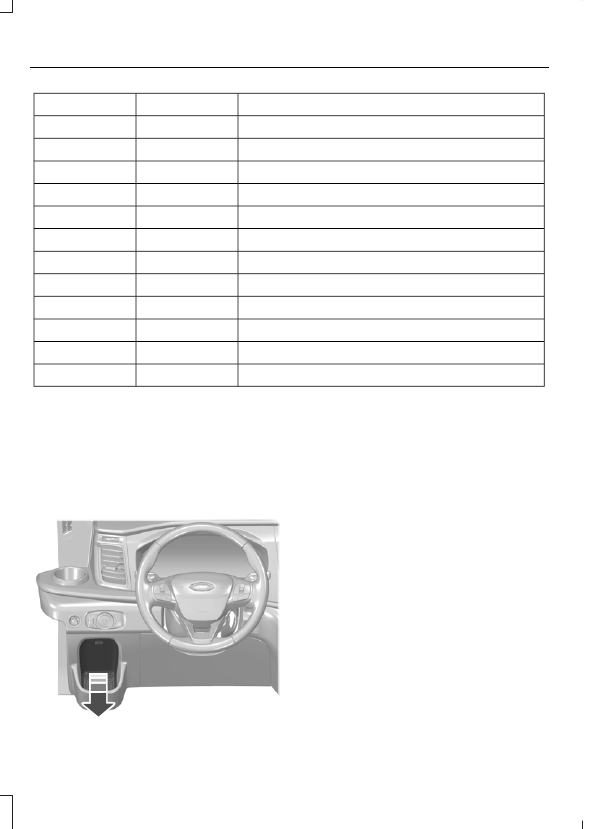

BODY CONTROL MODULE
FUSE BOX

ACCESSING THE BODY CONTROL
MODULE FUSE BOX

E357310

368

Fuses

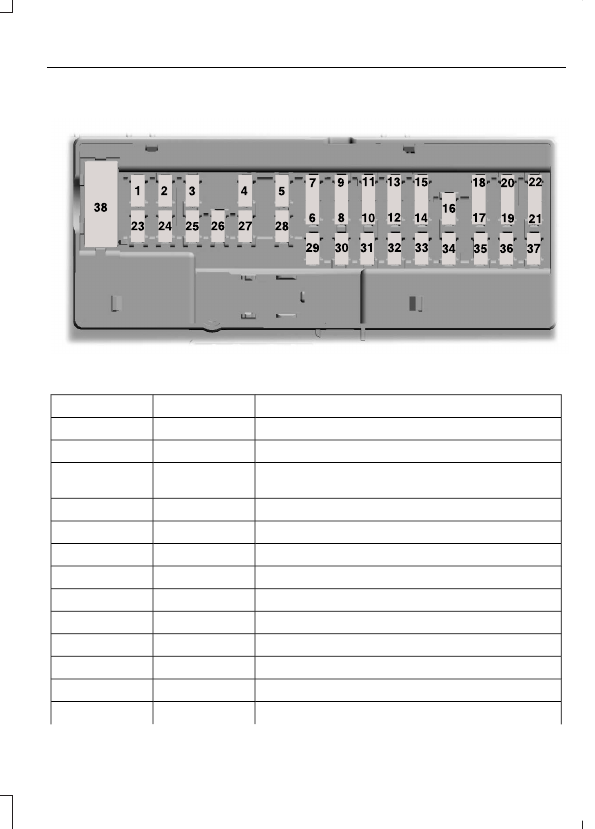

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX

E145984

Protected Component

Fuse Rating

Item

Not used.

-

1

Power inverter.

10 A

2

Power window switch.

7.5 A

3

Power exterior mirrors.

Not used.

20 A

4

Not used.

-

5

Not used.

10 A

6

Not used.

10 A

7

Telematics control unit module.

5 A

8

Rear air conditioning.

5 A

9

Not used.

-

10

Not used.

-

11

Climate control.

7.5 A

12

Data link connector.

7.5 A

13

369

Fuses

Protected Component

Fuse Rating

Item

Steering column.
Instrument cluster.

Not used.

15 A

14

SYNC 3 module.

15 A

15

Integrated control panel.

Not used.

-

16

Not used.

7.5 A

17

Not used.

7.5 A

18

Not used.

5 A

19

Ignition switch.

5 A

20

Not used.

5 A

21

Not used.

5 A

22

Not used.

30 A

23

Not used.

30 A

24

Not used.

20 A

25

Not used.

30 A

26

Not used.

30 A

27

Not used.

30 A

28

Not used.

15 A

29

Not used.

5 A

30

Data link connector.

10 A

31

Remote key receiver.

Radio.

20 A

32

Not used.

-

33

Run/Start relay.

30 A

34

Parking aid.
Steering column.

Not used.

5 A

35

Parking aid.

15 A

36

370

Fuses

Protected Component

Fuse Rating

Item

Steering column control module.

Not used.

20 A

37

Power windows.

30 A

38

HIGH CURRENT FUSE BOX

LOCATING THE HIGH CURRENT
FUSE BOX

The high current fuse box is under the
driver seat.

ACCESSING THE HIGH CURRENT
FUSE BOX

Remove the trim panel.

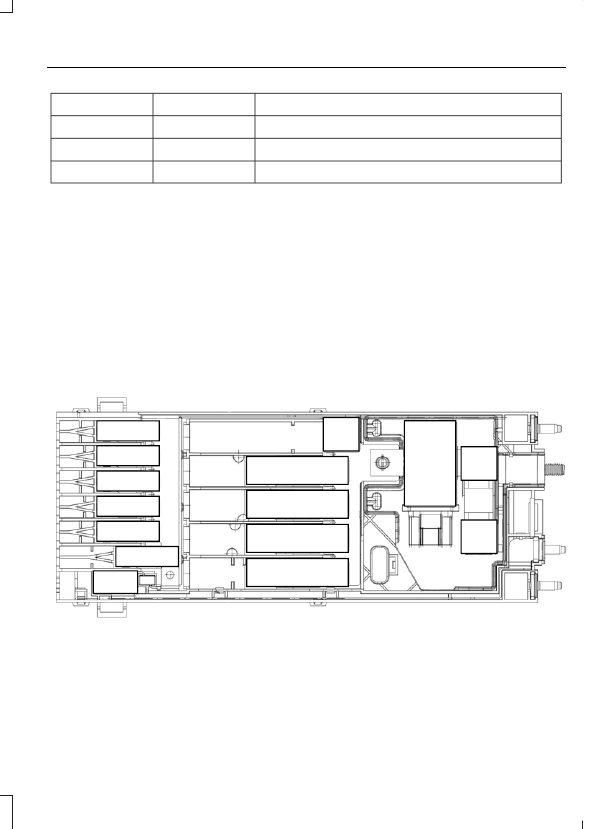

IDENTIFYING THE FUSES IN THE HIGH CURRENT FUSE BOX

8

14

15

E296043

13

9

10

11

12

1

2

3

4

5

6

7

371

Fuses

Protected Component

Fuse Rating

Item

Body control module.

125 A

1

Electronic power assist steering.

80 A

2

Positive temperature coefficient heater.

150 A

3

Not used.

-

4

Cooling fan.

60 A

5

Passenger compartment fuse box.

150 A

6

Camper.

60 A

7

Not used.

-

8

Starter motor.

500 A

9

Alternator.

Engine compartment fuse box.

300 A

10

Dual generators.

250 A

11

Driver compartment fuse box.

150 A

12

Load shed relay.

190 A

13

Auxiliary power point 1.

175 A

14

Auxiliary power point 2.

60 A

15

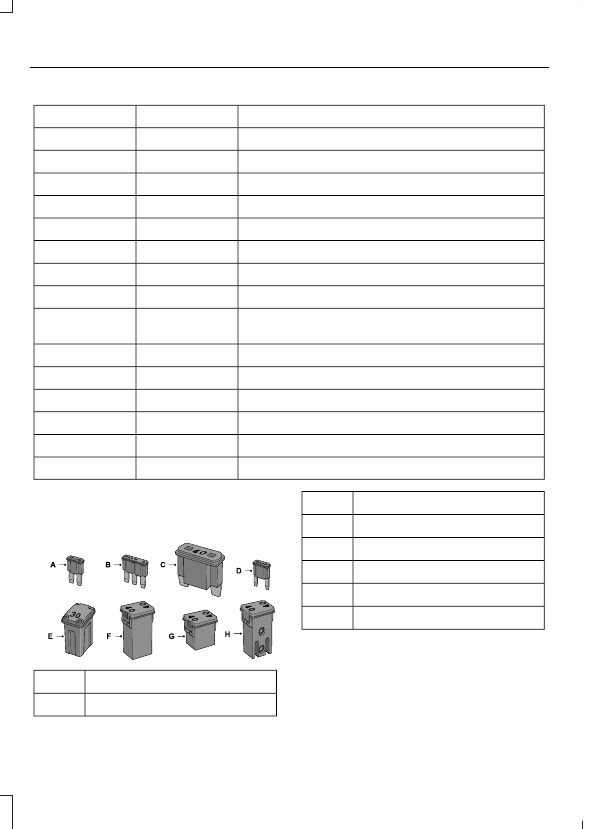

IDENTIFYING FUSE TYPES

E267379

Micro 2.

A

Micro 3.

B

Maxi.

C

Mini.

D

M Case.

E

J Case.

F

J Case Low Profile.

G

Slotted M Case.

H

372

Fuses















Content      ..     20      21      22      23     ..
