Resetting the System

Simultaneously press and hold the
seek up and the audio unit power
buttons until the screen goes black.

2. Wait three minutes to allow the system

to complete the reset.

3. Press the audio unit power button to

switch the system on.

Note:

You can reset the system to restore

functionality that has stopped working. The
system reset is designed to restore
functionality and not delete any data that
you have stored.

Additional Information and
Assistance

For additional information and assistance,
we recommend that you contact an
authorized dealer or refer to our website.

407

SYNC™ 3

(If Equipped)

For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit the
online store web site:

Web Address (United States)

www.Accessories.Ford.com

Web Address (Canada)

www.Accessories.Ford.ca

We will repair or replace any properly
authorized dealer-installed Ford Original
Accessory found to be defective in
factory-supplied materials or workmanship
during the warranty period, as well as any
component damaged by the defective
accessories.

We will warrant your Ford Original
Accessory through the warranty that
provides the greatest benefit:
•

24 months, unlimited mileage.

•

The remainder of your new vehicle
limited warranty.

Contact an authorized dealer for details
and a copy of the warranty.

Ford Licensed Accessories are the
accessory manufacturer's designs. The
manufacturer develops and therefore
warrants Ford Licensed Accessories, and
does not design or test these accessories
to Ford Motor Company engineering
requirements. Contact an authorized Ford
dealer for the manufacturer’s limited
warranty details, and request a copy of the
Ford Licensed Accessories product limited
warranty from the accessory manufacturer.

For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
•

When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the Safety Compliance
Certification label). Ask an authorized
dealer for specific weight information.

•

The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
that are equipped with radio
transmitters, for example two-way
radios, telephones and theft alarms.
Any such equipment installed in your
vehicle should comply with Federal
Communications Commission (FCC)
and Canadian Radio
Telecommunications Commission
(CRTC) regulations and should be
installed only by an authorized dealer.

•

An authorized dealer needs to install
mobile communications systems.
Improper installation may harm the
operation of your vehicle, particularly
if the manufacturer did not design the
mobile communication system
specifically for automotive use.

•

If you or an authorized Ford dealer add
any non-Ford electrical or electronic
accessories or components to your
vehicle, you may adversely affect
battery performance and durability. In
addition, you may also adversely affect
the performance of other electrical
systems in the vehicle.

408

Accessories

AUXILIARY SWITCHES

For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
•

•

The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
equipped with radio transmitters, for
example, two-way radios, telephones
and theft alarms. Any such equipment
installed in your vehicle should comply
with Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulations, and
should be installed by an authorized
dealer.

•

E220728

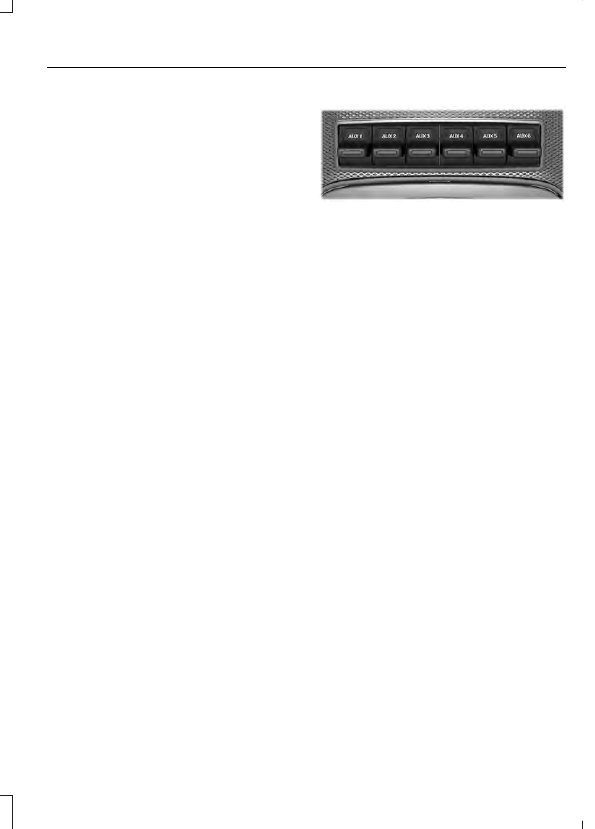

The auxiliary switch option package
provides six switches mounted in the
instrument panel. These switches operate
when the vehicle is running . We
recommend, however, that the engine
remain running to maintain battery charge
when using the auxiliary switches for
extended periods of time or higher current
draws.

When switched on, the auxiliary switches
provide electrical battery power for a
variety of personal or commercial uses.
Switch 1 is provided with 25 amps fuse.
Switch 2 is provided with 15 amps fuse.
Switch 3 is provided with 10 amps fuse.
Switches 4, 5 and 6 provided with a 5
amps fuse.

The relay box for the auxiliary switches is
in the left front of the engine compartment.
See your authorized dealer for service.

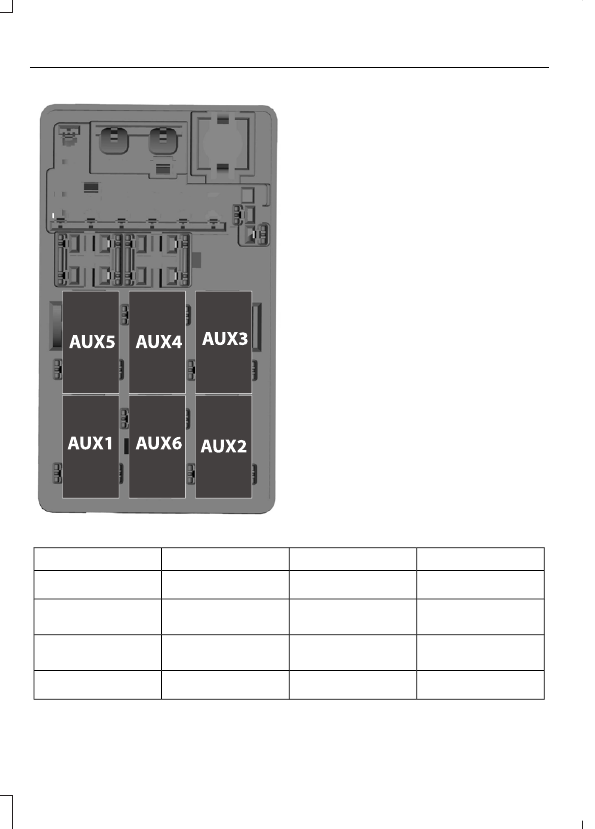

The relays are coded as shown:

409

Accessories

E332362

Each switch includes a blunt-cut, wire
located next to the auxiliary fuse and relay
box in the left front of the engine bay.

Protected Component

Fuse Rating

Fuse or Relay

Number

Fuse 11A and 11B.

25A

Fuse 12A and 12B.

20A

Relay AUX1.

25A

Not used.

Relay AUX2.

15A

Not used.

Relay AUX3.

10A

11A

410

Accessories

Protected Component

Fuse Rating

Fuse or Relay

Number

Relay AUX4.

11B

Relay AUX5.

12A

Relay AUX6.

12B

Relay AUX3 violet with green trace.

Relay AUX4 brown.

Relay AUX5 blue with orange trace.

Relay AUX2 green with brown trace.

Relay AUX6 yellow with orange trace.

Relay AUX1 yellow.

LPJ-type fuse.

M-type fuse.

Mini fuse.

411

Accessories

E333655

The power leads are coded as shown:

Fuse Amp Rating

Wire Color

Circuit Number

Switch

25A

Yellow

CAC05A

AUX 1

15A

Green with brown

trace

CAC06A

AUX 2

10A

Violet with green

trace

CAC07A

AUX 3

Brown

CAC08A

AUX 4

412

Accessories

Fuse Amp Rating

Wire Color

Circuit Number

Switch

Blue with orange

trace

CAC13A

AUX 5

Yellow with orange

trace

CAC14A

AUX 6

M-type fuse.

Mini fuse

E332775

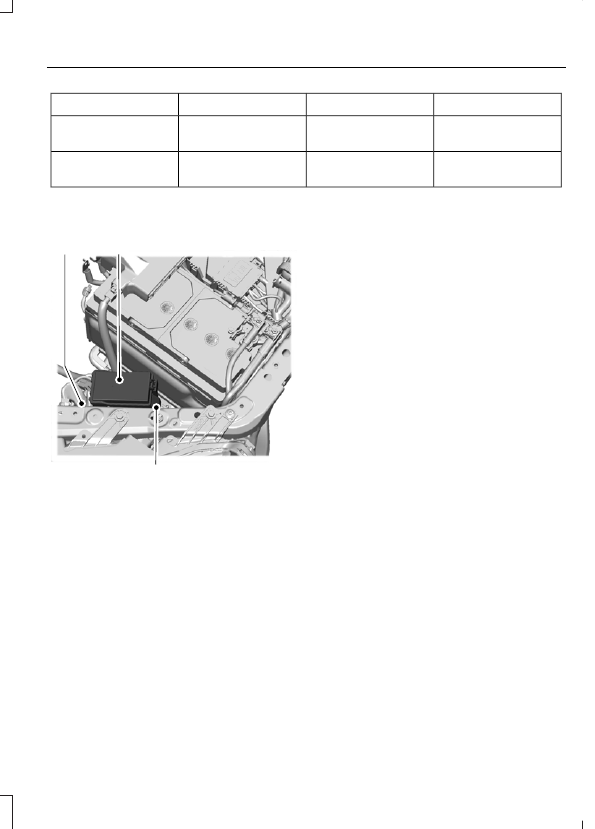

A - Press tabs to release mounting bracket.

B - Auxiliary fuse and relay box.

C - The power lead location.

413

Accessories

PROTECT YOURSELF FROM THE RISING
COST OF VEHICLE REPAIRS WITH A FORD
PROTECT EXTENDED SERVICE PLAN.

Ford Protect Extended Service
Plans (U.S. Only)

Ford Protect extended service plan means
peace of mind. It is the extended service
plan backed by Ford Motor Company, and
provides more protection beyond the New
Vehicle Limited Warranty coverage. When
you visit your Ford Dealer, Insist on Ford
Protect extended service plans!

Ford Protect Can Quickly Pay for Itself

One trip to the Service Center could easily
exceed the price of your Ford Protect
extended service plan. With Ford Protect
extended service plan you minimize your
risk for unexpected repair bills and rising
repair costs.

Up to 1,000+ Covered Vehicle
Components

There are four mechanical Ford Protect
extended service plans with different levels
of coverage. Ask your authorized dealer for
details.

PremiumCARE - Our most
comprehensive coverage. With over
1,000 covered components, this plan
is so complete it is probably easier to
list what is not covered.

2. ExtraCARE - Covers 113 components,

and includes many high-tech items.

3. BaseCARE - Covers 84 components.

4. PowertrainCARE - Covers 29 critical

components.

Ford Protect extended service plans are
honored by all authorized Ford dealers in
the U.S., Canada and Mexico.

That means you get:
•

Reliable, quality service at any Ford or
Lincoln dealership.

•

Repairs performed by factory trained
technicians, using genuine parts.

Rental Car Reimbursement

1st day Rental Benefit

If you bring your car into your dealer for
service, we’ll give you a loaner to use for
the day.

Extended Rental Benefits

If your vehicle is kept overnight for covered
repairs, you are eligible for rental car
coverage, including warranty repairs, and
Field Service Actions.

Roadside Assistance

Exclusive 24/7 roadside assistance,
including:

•

Towing, flat-tire change and battery
jump starts.

•

Out of fuel and lock-out assistance.

•

Travel expense reimbursement for
lodging, meals and rental car.

•

Assistance for taxi, shuttle, rental car
coverage or other transportation.

Transferable Coverage

If you sell your vehicle before your Ford
Protect extended service plan coverage
expires, you can transfer any remaining
coverage to the new owner. Which should
give you and your potential buyer a little
more peace of mind.

414

Ford Protect

Less Cost to Properly Maintain Your
Vehicle

Ford Protect extended service plan also
offers a Premium Maintenance Plan that
covers all scheduled maintenance, and
selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle’s maintenance.

Covered maintenance includes:
•

Windshield wiper blades.

•

Spark plugs.

•

The clutch disc (if equipped).

•

Brake pads and linings.

•

Shock absorbers.

•

Struts.

•

Engine belts.

•

Engine coolant hoses, clamps and
O-rings.

•

Diesel exhaust fluid replenishment (if
equipped).

•

Cabin air filter replacement every
20,000 mi (32,000 km) (electric
vehicles only).

Interest Free Finance Options

Just a 5% down payment will provide you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Ford Protect
extended service plan has to offer while
paying over time. You are pre-approved
with no credit check or hassles. To learn
more, call our Ford Protect extended
service plan specialists at 800-367-3377.

Ford Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232

Ford Protect Extended Service
Plan (CANADA ONLY)

You can get more protection for your
vehicle by purchasing a Ford Protect
extended service plan. Ford Protect
extended service plan is the only service
contract backed by Ford Motor Company
of Canada, Limited. Depending on the plan
you purchase, Ford Protect extended
service plan provides benefits such as:

•

Rental reimbursement.

•

Coverage for certain maintenance and
wear items.

•

Protection against repair costs after
your New Vehicle Limited Warranty
Coverage expires.

•

Roadside Assistance benefits.

There are several Ford Protect extended
service plans available in various time,
distance and deductible combinations.
Each plan is tailored to fit your own driving
needs, including reimbursement for towing
and rental. When you purchase Ford
Protect extended service plan, you receive
added peace-of-mind protection
throughout Canada, the United States and
Mexico, provided by a network of
participating authorized Ford Motor
Company dealers.

Note:

Repairs performed outside of Canada

and the United States are not eligible for
Ford Protect extended service plan
coverage.

This information is subject to change. For
more information; visit your local Ford of
Canada dealer or www.ford.ca to find the
Ford Protect extended service plan that is
right for you.

415

Ford Protect

GENERAL MAINTENANCE
INFORMATION

Why Maintain Your Vehicle?

Carefully following the maintenance
schedule helps protect against major repair
expenses resulting from neglect or
inadequate maintenance and may help to
increase the value of your vehicle when
you sell or trade it. Keep all receipts for
completed maintenance with your vehicle.

We have established regular maintenance
intervals for your vehicle based upon
rigorous testing. It is important that you
have your vehicle serviced at the proper
times. These intervals serve two purposes;
one is to maintain the reliability of your
vehicle and the second is to keep your cost
of owning your vehicle down.

It is your responsibility to have all
scheduled maintenance performed and to
make sure that the materials used meet
the specifications identified in this owner's
manual. See

Capacities and

Specifications

(page 324).

Failure to perform scheduled maintenance
invalidates warranty coverage on parts
affected by the lack of maintenance.

Why Maintain Your Vehicle at Your
Dealership?

Factory-Trained Technicians

Service technicians participate in extensive
factory-sponsored certification training to
help them become experts on the
operation of your vehicle. Ask your
dealership about the training and
certification their technicians have
received.

Genuine Ford and Motorcraft®
Replacement Parts

Dealerships stock Ford, Motorcraft and
Ford-authorized branded re-manufactured
replacement parts. These parts meet or
exceed our specifications. Parts installed
at your dealership carry a nationwide
24-month or unlimited mile (kilometer)
parts and labor limited warranty.

If you do not use our authorized parts, they
may not meet our specifications and
depending on the part, it could affect
emissions compliance.

Convenience

Many dealerships have extended evening
and Saturday hours to make your service
visit more convenient and they offer one
stop shopping. They can perform any
services that are required on your vehicle,
from general maintenance to collision
repairs.

Note:

Not all dealers have extended hours

or body shops. Please contact your dealer
for details.

Protecting Your Investment

Maintenance is an investment that pays
dividends in the form of improved
reliability, durability and resale value. To
maintain the proper performance of your
vehicle and its emission control systems,
make sure you have scheduled
maintenance performed at the designated
intervals.

Your vehicle has an Intelligent Oil-Life
Monitor system, a message appears in the
information display at the proper oil
change interval. This interval may be up to
one year or 10,000 mi (16,000 km), hybrid
vehicles may exceed 10,000 mi
(16,000 km).

416

Scheduled Maintenance

When the oil change message appears in
the information display, it is time for an oil
change. Make sure you perform the oil
change within two weeks or 500 mi
(800 km) of the message appearing. Make
sure you reset the Intelligent Oil-Life
Monitor after each oil change. See

Oil

Change Indicator Reset

(page 267).

If your information display resets
prematurely or becomes inoperative, you
should perform the oil change interval at
six months or 5,000 mi (8,000 km) from
your last oil change. Never exceed one year
or 10,000 mi (16,000 km) between oil
change intervals,

Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to properly diagnose and repair
your vehicle.

We have recommended maintenance
intervals for various parts and component
systems based upon engineering testing.
We rely upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information.

We strongly recommend the use of only
genuine Ford, Motorcraft or
Ford-authorized re-manufactured
replacement parts engineered for your
vehicle.

Additives and Chemicals

This owner's manual and our Workshop
Manual list the recommended additives
and chemicals for your vehicle. We do not
recommend using chemicals or additives
not approved by us as part of your vehicle’s
normal maintenance. Please consult your
warranty information.

Oils, Fluids and Flushing

In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.

Make sure to change your vehicle’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the
system or using a Ford-approved flushing
chemical.

Owner Checks and Services

Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals.

Check Every Month

Engine oil level.

Function of all interior and exterior lights.

Tires (including spare) for wear and proper pressure.

417

Scheduled Maintenance

Check Every Month

Windshield washer fluid level.

Fuel and water separator. Drain if necessary (or if indicated by the information display).

Holes and slots in the tail pipe to make sure they are functional and clear of debris.

Check Every Six Months

Battery connections. Clean if necessary.

Body and door drain holes for obstructions. Clean if necessary.

Cooling system fluid level and coolant strength.

Door weatherstrips for wear. Lubricate if necessary.

Hinges, latches and outside locks for proper operation. Lubricate if necessary.

Parking brake for proper operation.

Seatbelts and seat latches for wear and function.

Safety warning lamps (brake, ABS, airbag and seatbelt) for operation.

Washer spray and wiper operation. Clean or replace blades as necessary.

Multi-Point Inspection

In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great.

Multi-Point Inspection

Hazard warning system operation

Accessory drive belt(s)

Horn operation

Battery performance

Radiator, cooler, heater and air conditioning

hoses

Engine air filter

418

Scheduled Maintenance

Multi-Point Inspection

Suspension components for leaks or

damage

Exhaust system

Steering and linkage

Exterior lamps operation

Tires (including spare) for wear and proper

pressure

Fluid levels

; fill if necessary

Windshield for cracks, chips or pits

For oil and fluid leaks

Washer spray and wiper operation

Half-shaft dust boots

Brake, coolant recovery reservoir, automatic transmission and window washer.

If your vehicle comes with a temporary mobility kit, check the tire sealant expiration Use

By date on the canister. Replace as needed.

Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle.

NORMAL SCHEDULED
MAINTENANCE

Intelligent Oil-Life Monitor™

Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you
use your vehicle. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning
your vehicle and reduces environmental
waste at the same time.

This means you do not have to remember
to change the oil on a mileage-based
schedule. Your vehicle lets you know when
an oil change is due by displaying a
message in the information display.

The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of
use.

When to Expect the OIL CHANGE REQUIRED Message

Vehicle Use and Example

Interval

Normal

7,500–10,000 mi

(12,000–16,000 km)

Normal commuting with highway driving

419

Scheduled Maintenance

When to Expect the OIL CHANGE REQUIRED Message

Vehicle Use and Example

Interval

No, or moderate, load or towing
Flat to moderately hilly roads
No extended idling

Severe

5,000–7,500 mi

(8,000–12,000 km)

Moderate to heavy load or towing
Mountainous or off-road conditions
Extended idling
Extended hot or cold operation

Extreme

3,000–5,000 mi

(5,000–8,000 km)

Maximum load or towing
Extreme hot or cold operation
Extended engine idling

Hybrid vehicles may achieve longer distances between oil changes, but do not exceed

the 1 year maximum oil change interval. Remaining oil life can be accessed through the
information display. See

Information Displays

(page 96).

420

Scheduled Maintenance

Normal Maintenance Intervals

At Every Oil Change Interval as Indicated by the Information Display

Change the engine oil and filter.

Rotate the tires, inspect tire wear and measure the tread depth.

Perform a multi-point inspection, recommended.

Inspect the automatic transmission fluid level, if your vehicle has a dipstick. Consult
your dealer for requirements.

Inspect the brake pads, shoes, rotors, drums, brake linings, hoses and the parking brake.

Inspect the engine cooling system strength and hoses.

Inspect the exhaust system and heat shields.

Inspect the front axle and U-joints. Lubricate if equipped with grease fittings. Four–wheel
drive vehicles.

Inspect the half-shaft boots.

Inspect the steering linkage, ball joints, suspension, tire-rod ends, driveshaft and the U-
joints. Lubricate any areas with grease fittings.

Inspect the wheels and related components for abnormal noise, wear, looseness or
drag.

Do not exceed one year or 10,000 mi (16,000 km) between service intervals.

Brake Fluid Maintenance

Change the brake fluid.

Every 3 Years

Perform this maintenance item every 3 years. Do not exceed the designated time for

the interval.

Brake fluid servicing requires special equipment available at your authorized dealer.

421

Scheduled Maintenance

Other Maintenance Items

Replace the cabin air filter.

Every 20,000 mi
(32,000 km)

Replace the engine air filter.

Every 30,000 mi
(48,000 km)

Replace the spark plugs.

Every 100,000 mi
(160,000 km)

Inspect the accessory drive belt or belts.

Change the automatic transmission fluid and filter.

Every 150,000 mi
(240,000 km)

Change the front axle fluid. Four-wheel drive vehicles.

Change the rear axle fluid.

Change the transfer case fluid. Four-wheel drive vehicles.

Replace the accessory drive belt or belts.

Change the engine coolant.

At 200,000 mi
(320,000 km)

Perform these maintenance items within 3,000 mi (4,800 km) of the last engine oil and

filter change. Do not exceed the designated distance for the interval.

After initial inspection, inspect every other oil change until replaced.

Initial replacement at 10 years or 200,000 mi (320,000 km), then every five years or

100,000 mi (160,000 km).

SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE

If you operate your vehicle

primarily

in any

of the following conditions, you need to
perform extra maintenance, as indicated.
If you operate your vehicle

occasionally

under any of these conditions, it is not
necessary to perform the extra
maintenance. For specific
recommendations, see your dealership
service advisor or technician.

Perform the services shown in the
following tables when specified or within
3,000 mi (4,800 km) of the

OIL CHANGE

REQUIRED

message appearing in the

information display.

422

Scheduled Maintenance

Content .. 24 25 26 27 ..
